Pansat 250SM User manual

ⓒ2007 by Panarex Electronics 1
USER’S GUIDE
250SM
DIGITAL SATELLITE RECEIVER
Panarex Electronics
Sun Valley, California, USA

ⓒ2007 by Panarex Electronics 2

ⓒ2007 by Panarex Electronics 3

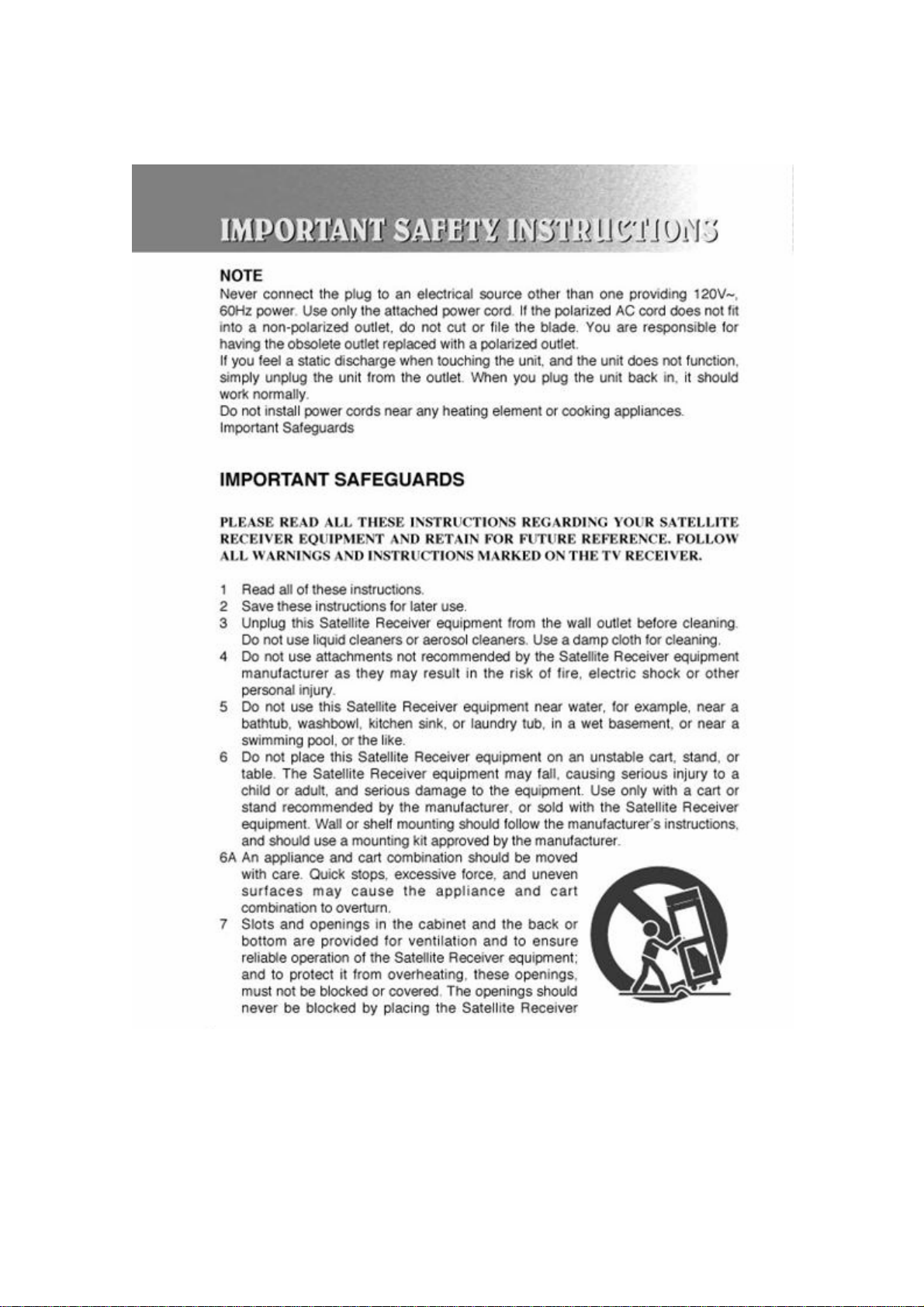

ⓒ2007 by Panarex Electronics 4

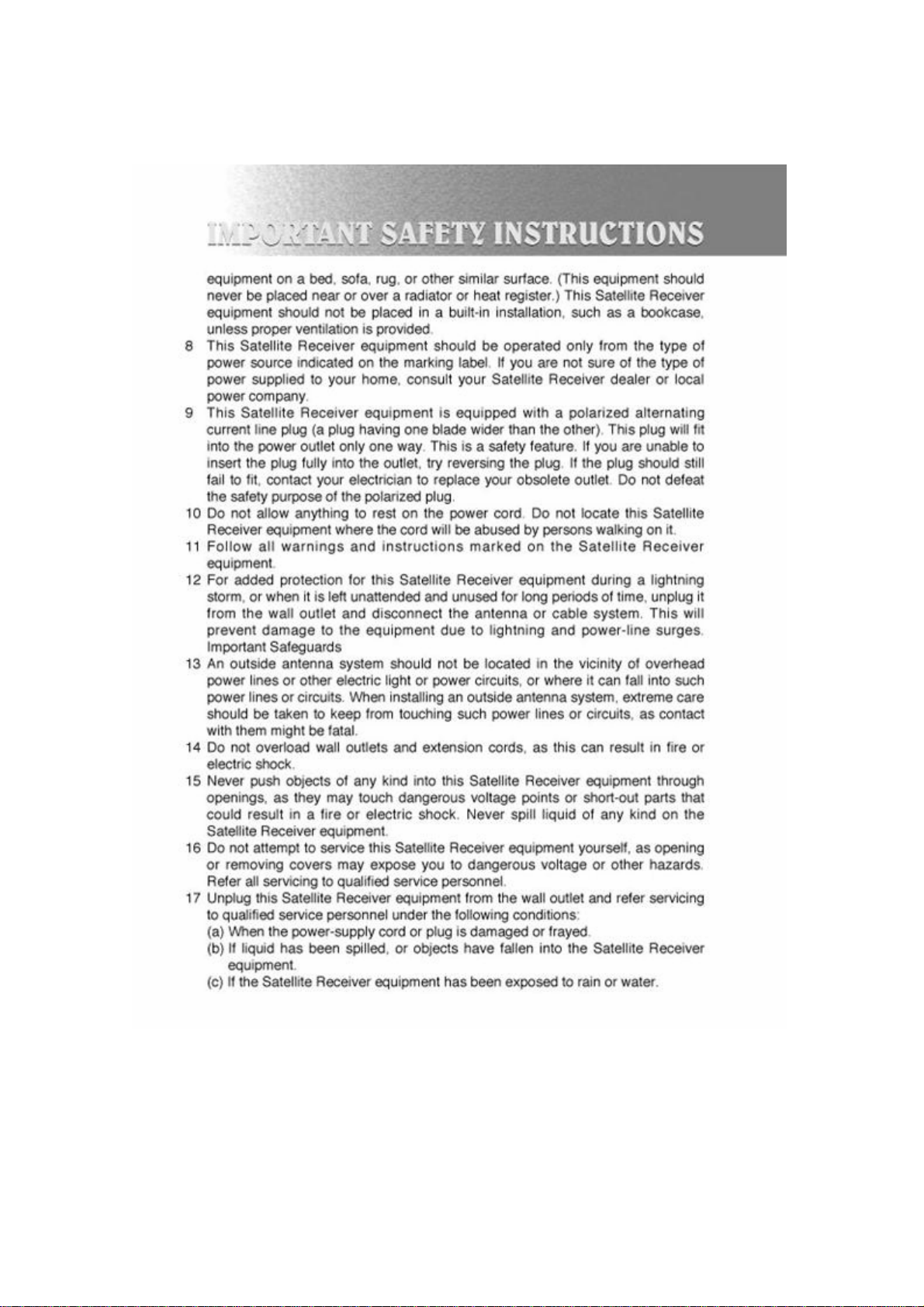

ⓒ2007 by Panarex Electronics 5

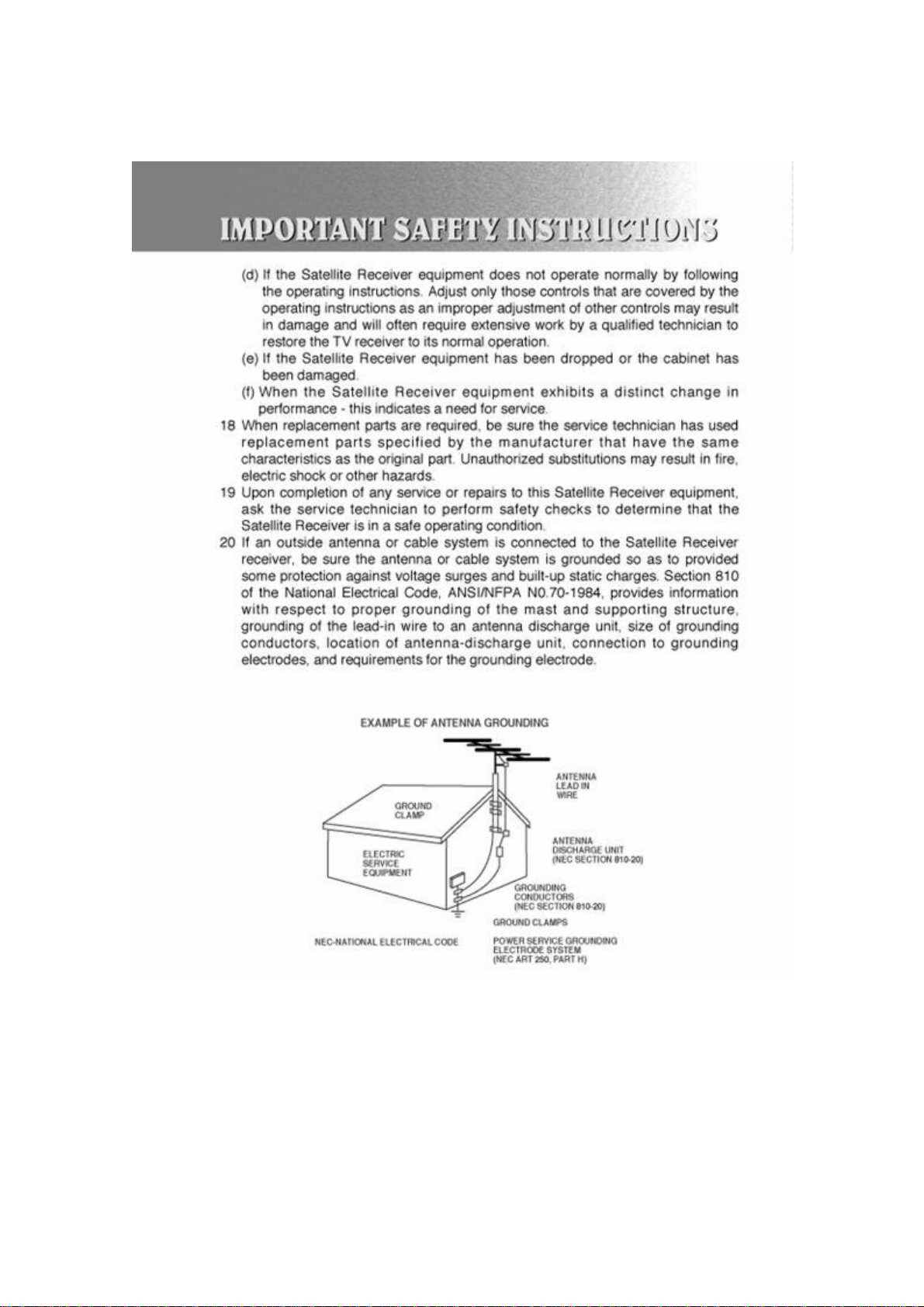

ⓒ2007 by Panarex Electronics 6

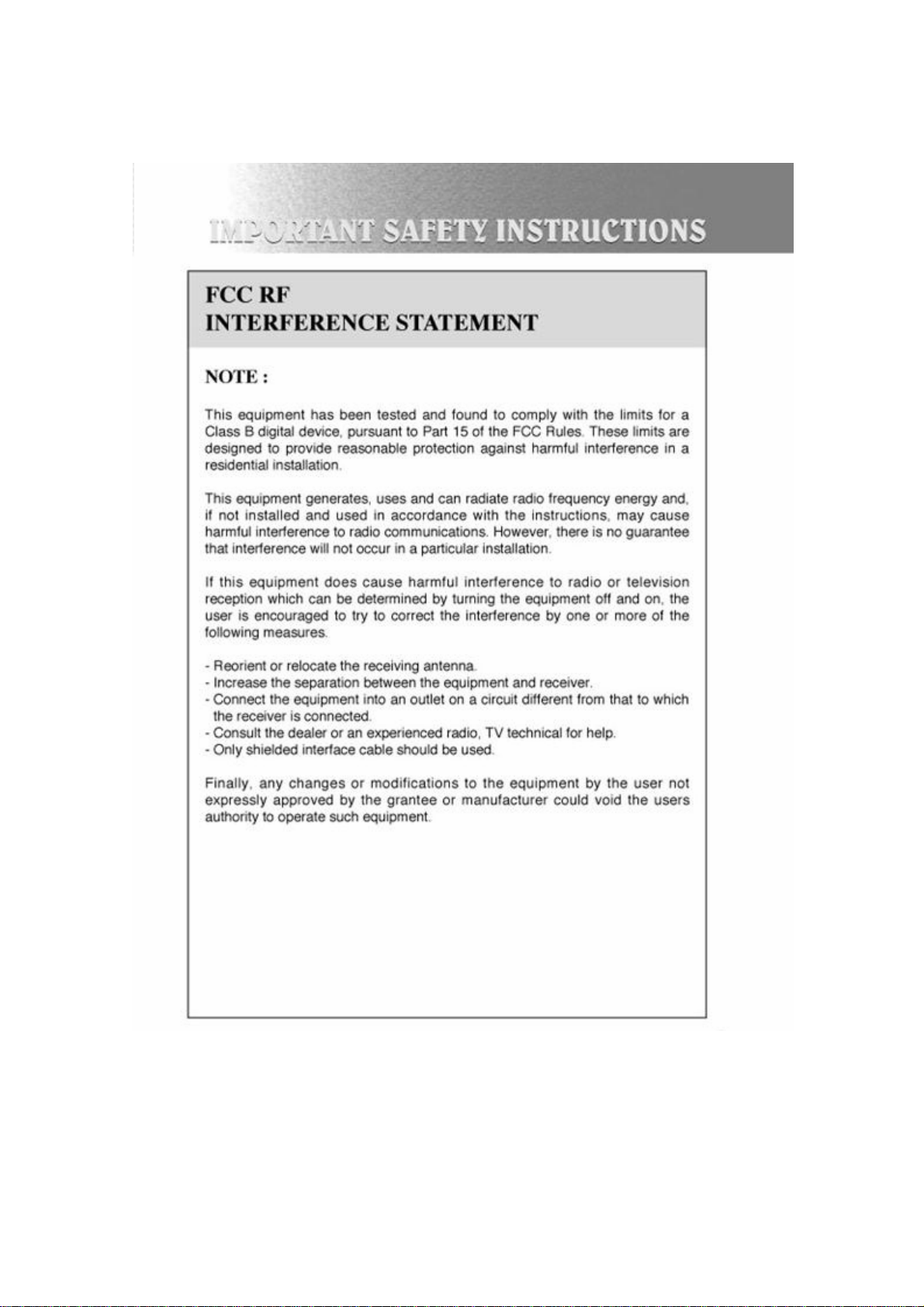

ⓒ2007 by Panarex Electronics 7
PREFACE
1. OVERVIEW
1. WHAT IS THIS PRODUCT FOR?
2. WHAT FEATURE DOES THIS PRODUCT OFFER?
3. FOR YOUR SAFETY
4. PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED
5. HOW TO USE THE REMOTE CONTROL KEY
6. FRONT PANEL
7. REAR PANEL
8. SIMPLE DIGITAL CONNECTION
9. ANALOGUE / DIGITAL CONNECTION
2. OPERATING
1. Start Up
2. Installation
3. Channel Edit
4. User Setup
5. System Setup
6. Channel List
7. Program Guide
8. Audio Change
9. USB Memory Stick
10. Multi Pictures
11. Embedded
12. Recall the Favorite Channel
13. Download Procedure between Receiver & PC
3. UHF REMOTE CONTROL KIT U-30 (Optional)
4. SPECIFICATION
5. TROUBLE SHOOTING

ⓒ2007 by Panarex Electronics 8
1. OVERVIEW
1. WHAT IS THIS PRODUCT FOR?
This product is designed for using Digital Satellite and allows you to enjoy a lot of broadcasting whenever you want to
watch it anytime. By simply pressing the button of the remote control unit, the vivid picture and life –like sound of digital
broadcasting that your TV portrays through this product, allows you to watch whatever channel you wish of the digital
broadcasting.
Through this manual you will notice that the operation is easy to use.
This manual will help you get the most from this product and guide you through Installation, channel selection and many
other functions.
In case you experience any difficulties to use this product, please consult the relevant section of this manual.
From now on, enjoy digital broadcasting with digital satellite receiver!!!
2. WHAT FEATURE DOES THIS PRODUCT OFFER?
2.1 General Features
▪10days EPG (Electronic Program Guide)
▪Full Compliant of MPEG-2 Digital & DVB broadcasting
▪950-2, 150MHz Input Frequency (IF Loop Throughout)
▪Variable Input Symbol Rate (1-45Msps)
▪Multi Language OSD
▪Automatic PAL/NTSC Conversion
▪Fast Channel Change & Scan
▪5,000 Channel TV & Radio Program
▪Flexible reception of SCPC & MCPC from C/Ku-Band Satellites
▪S/PDIF (Digital Audio or Dolby AC3 Stream out)
▪Timer Function (Automatic Turn On/Off by Setting Function)
▪256 Colors (Graphic Use Interface) Number
▪PIG (Picture In Graphic)
▪5 Favorite List & 100 programs per each
▪Powerful Channel Editing Function
- Sorting: Alphabetic, Satellite, TP order, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
▪Manual PID/Satellite & TP/Network Scan
▪Smart Search

ⓒ2007 by Panarex Electronics 9
▪Satellite Scan – Simultaneous Scan with various Satellites
▪DiSEqC 1.2 & USALS Compatible
▪Comparable of Setting the Frequency for SMATV System
▪Software Upgrade via USB Memory Stick or RS232C (Receiver to Receiver, PC to Receiver)
▪UHF- Ready (U-30 Kit optional)
▪S-VHS Out
▪Universal II Remote Control (3 different code selectable)
2.2 Additional Features
▪RTC (Real Time Clock)
▪Component Out (YPbPr)
▪Integrated USB2.0 (Host), Support to USB Memory Stick
▪Multi Pictures (Max. 16)
2.3 Conditional Access
▪Conditional Access – Conax CAS Embedded
3. FOR YOUR SAFETY
▪Do not open the cover. It may cause malfunction or electric shock.
▪When you do not use the product for a long time, please pull the power cord out from the outlet.
Also do not use a damaged power cord that may cause fire or electric shock.
▪Do not use install the product in a humid area.
▪Do not cover the product or place anything heavy on the product, Keep clear space around the product for sufficient
ventilation.
▪Avoid using spray or liquid materials around the product. Don’t make other materials come into the inside the product.
▪Do not connect to modify cables when the product is plugged in.
▪Socket-outlet shall be installed near the equipment and shall be easily accessible.
▪Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases
shall be placed on the apparatus.
4 PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED
▪User Manual 1 set
▪Remote Control Unit 1 Set
▪Batteries (AAA Type) 2EA
▪128Mb (min.) Memory Stick 1 pc
Note !
If any of the accessories listed above are missing, Please contact the sales outlet where this product was initially
purchased.

ⓒ2007 by Panarex Electronics 10

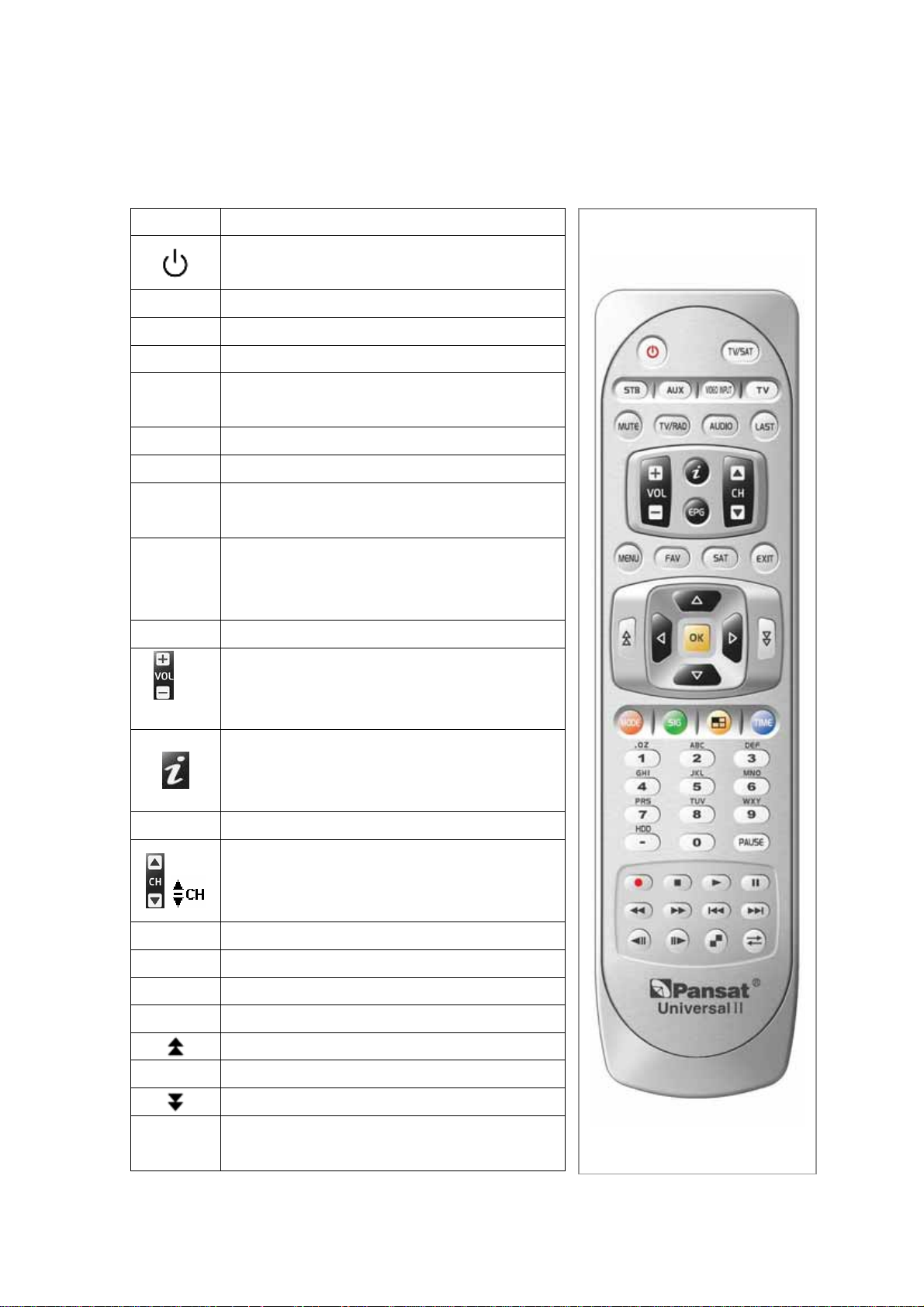

5. HOW TO USE THE REMOTE CONTROL KEY
Key Function
Turns the selected equipment (Set Top Box, AUX, TV)
power on/off.
TV/SAT Toggles between TV & SAT operation
STB Enable remote to control the receiver
AUX Enable remote to control aux any unit
VIDEO
INPUT
Toggles between TV & Video input
TV Enable remote to control TV set
MUTE Sounds Off/On
Toggles between the TV service and radio
TV/RAD
service
AUDIO
Selects audio mode
(Stereo, left only and right only).
Select language in case of Multilingual program.
LAST Returns to previous program
VOL ◀I▶
Volume down/up
Change the value of a selected line
Shows channel information, such as channel
number, channel name, Frequency, Polarity,
Symbol Rate, Scrambled/Dolby/Favorite/Lock
EPG Shows program information
Channel up/down
Moves the cursor upward/downward in the menu screen
MENU Enters main menu screen.
FAV Enter favorite program
SAT Enter programmed satellite list
EXIT Moves to previous menu
Execute page up function in the menu
OK Shows Channel list. Confirms selection
Execute page down function in the menu
Change the output resolution
MODE (Component & HDMI only)

ⓒ2007 by Panarex Electronics 11
SIG Shows signal quality
Multi Picture (Max 16 CH)
TIME Time shows current Time
Changes channel directly.
Controls the numerical operation.
PAUSE Holds the picture or release the pause
Operating Principle
▪Select an item by using up and down key and change the value of the highlighted (selected) item by using keys shown
on the screen. Press OK to enter to the sub-menu if there is no instruction marks on the screen.
▪The item is automatically stored and moved the upper menu by pressing the ‘EXIT’ key
▪You can return to normal mode at any time by pressing the menu key from the menu mode
Universal II Remote Interface Programming
A) Manual Code Input Method
1. Turn the TV set power on.
2. Press remote TV button for 5 seconds until TV button LED red light on.
3. While LED red light on (within 10 seconds), aim remote to the TV set and enter 3 digit code in the list.
If the code is a matched one, red light will flash 3 times and the TV set power will be turned off automatically. If
red light does not flash, try another 3 digit code one by one.

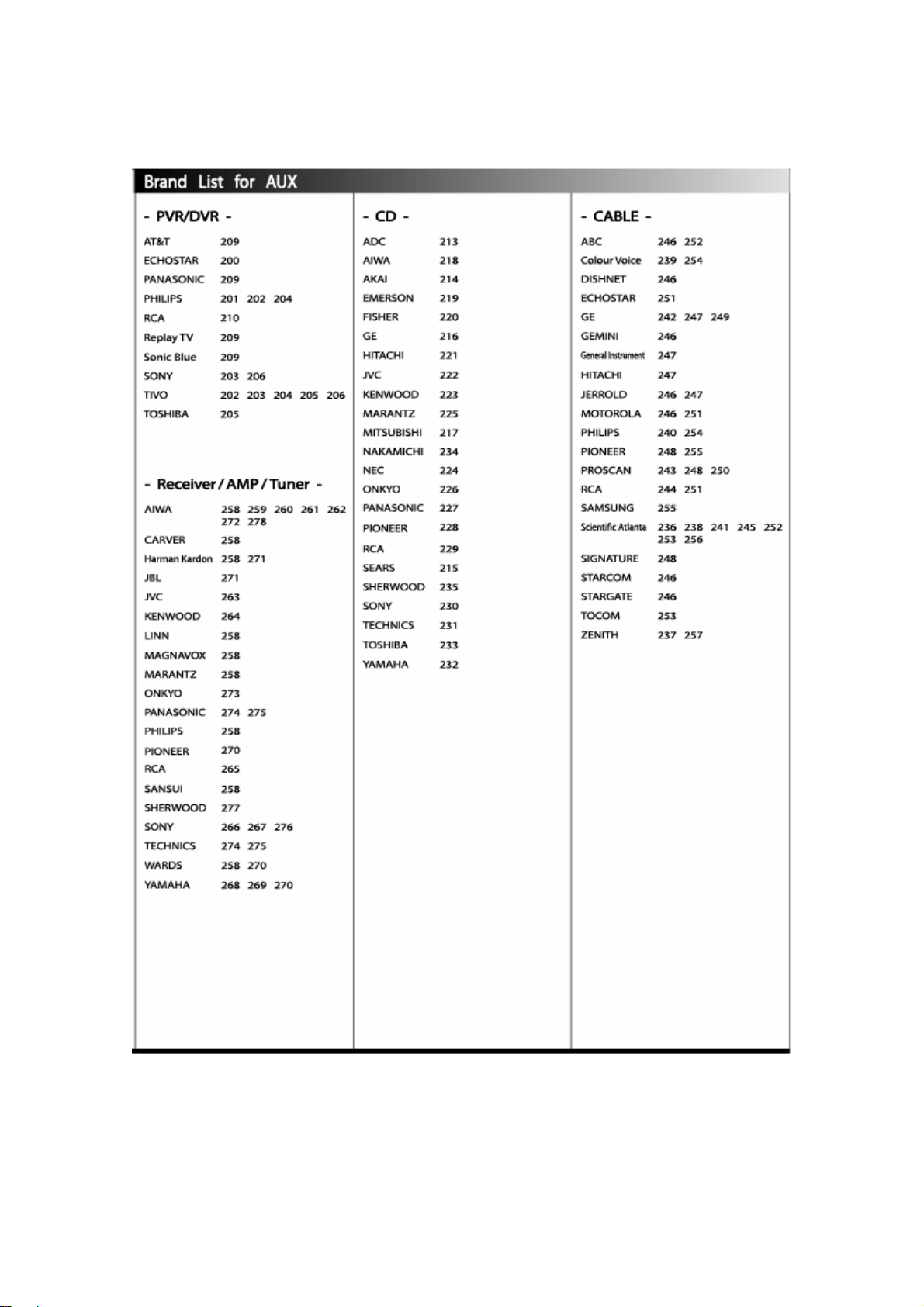

4. For other AUX products, follow same as above steps.
B) Automatic Code Search Method
1. Turn the TV set power on.
2. Press remote TV button for 5 seconds until TV button LED light on.
3. While LED red light on (within 10 seconds), aim remote to the TV set and press
and release UP( ▲) button and wait 3 seconds. If auto search code is a matched one, red light will flash 3 times
and the TV set power will be turned off automatically.
If no response within 3 seconds, press and release UP( ▲) button again and wait 3
seconds for another code search. Continue this procedure until you get the response.
4. For other AUX products, follow same as above steps.
Custom Code Programming
When the remote control interfering TV (AUX) set at “STB” operation position, program another code among 3 different
codes to avoid the problem.
Press OK and number 2 (or 3) button simultaneously about 5 seconds until STB button red light flash 3 times.

ⓒ2007 by Panarex Electronics 12

ⓒ2007 by Panarex Electronics 13

ⓒ2007 by Panarex Electronics 14

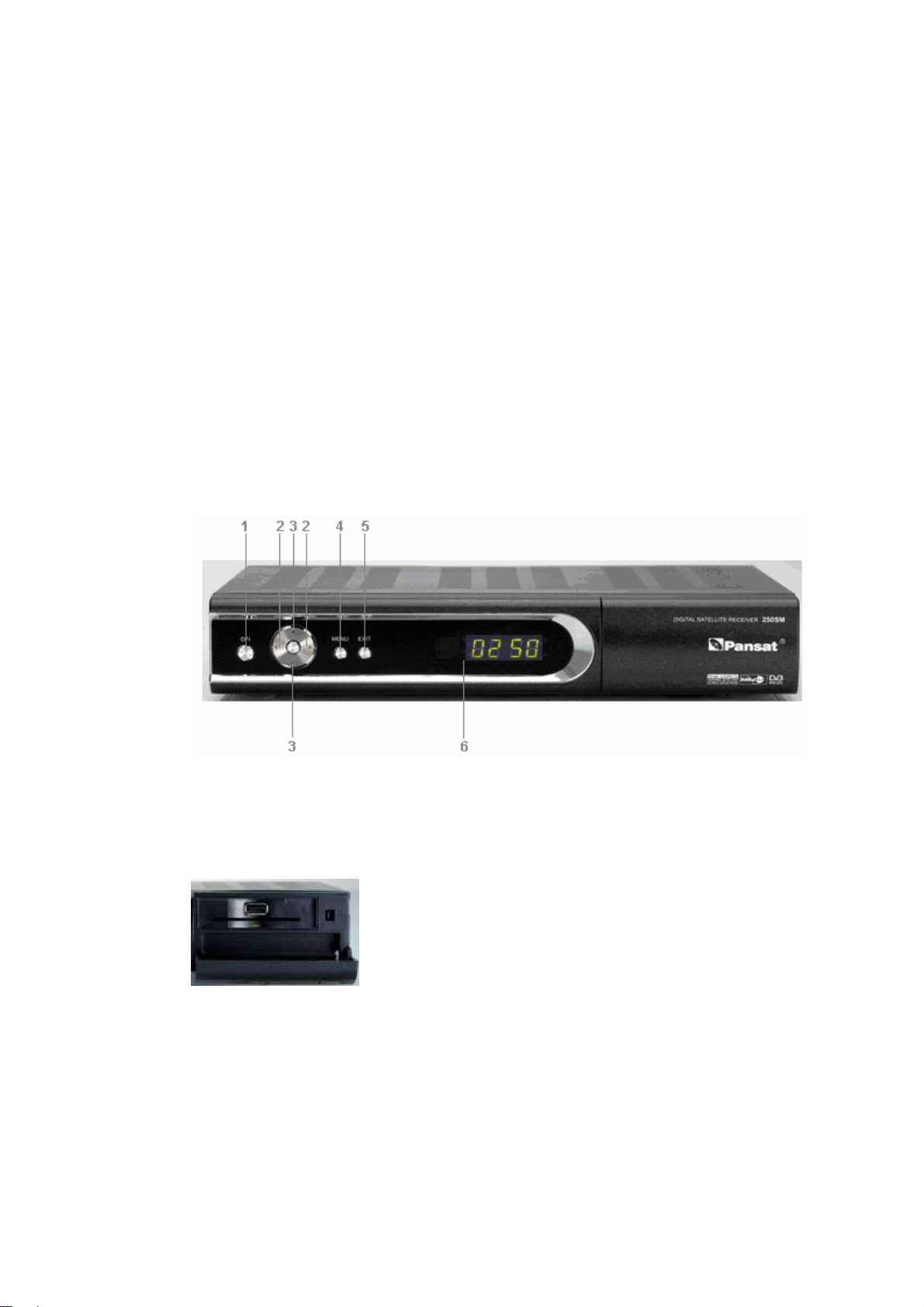

6. FRONT PANEL
1. POWER
To put power in and out of standby mode.
2. VOLUME
To make volume up and down.
3. CHANNEL
To move up and down in the menus, To change channels.
4. Menu
To enter main menu screen.
5. Exit
To move to previous menu.
6. Display
To show channel number, error messages, remote control commands and time in standby mode.
7. USB
Connect UBS Port.

ⓒ2007 by Panarex Electronics 15
7. REAR PANEL
NO NAME FUNCTION
1 S-VHS Super Video output to TV or VCR
2 UHF Option for UHF Remote Control lit
3 S/PDIF For digital audio output
4 RS232 Serial port used for software upgrade
5 L Left Audio Output
6 R Right Audio Output
7 Y Component Video Output
8 Pb Component Video Output
9 TV OUT Output to TV
10 IF OUTPUT IF Loop-through output to 2nd receiver
11 IF INPUT IF INPUT from LNB to receiver
12 Modulator Switch CH 3/4 Switch
13 ANT IN Input from terrestrial TV antenna
14 Pr Component Video Output
15 VIDEO Composite Video Output
16 AC SWITCH AC Power ON/OFF (Reset Function)

ⓒ2007 by Panarex Electronics 16
8. SIMPLE DIGITAL CONNECTION
When connecting receiver to TV and VCR with RF Cable (Single Antenna)
9. ANALOGUE / DIGITAL CONNECTION
When connecting receiver to analogue receiver and VCR with RF Cable

ⓒ2007 by Panarex Electronics 17
2. OPERATING
1. Start Up
If you are watching TV through the RF-cable, you need to adjust the channel number. The type of TV and channel
numbers are set to PAL-G and channel 38 at the factory. For USA, Ch3 is factory preset.
Please follow the brief procedure below and watch the satellite programs.
1) Select the language
2) Select the antenna setup in main menu screen
3) Adjust LNB configuration per each satellite
4) Execute scanning to find program
5) Exit from installation after all programs are searched.

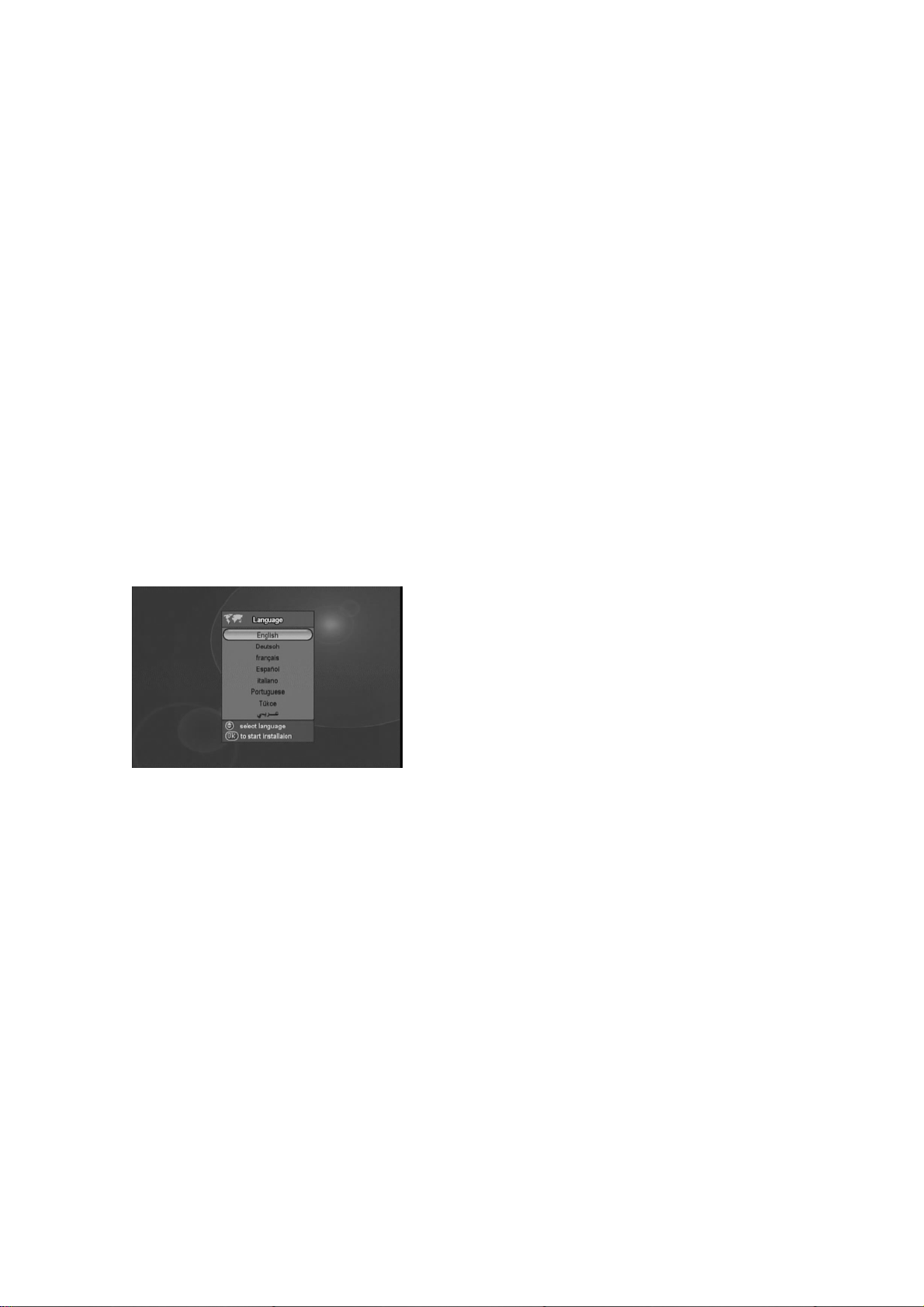

1.1 Language
When the receiver is turned on for the first time, the language selection menu is appeared as in the Fig 1-1. Select
the desired language and press OK to confirm it.
This receiver supports 8 languages.
English
German
French
Spanish
Italian
Portuguese
Turkish
Arabic

ⓒ2007 by Panarex Electronics 18

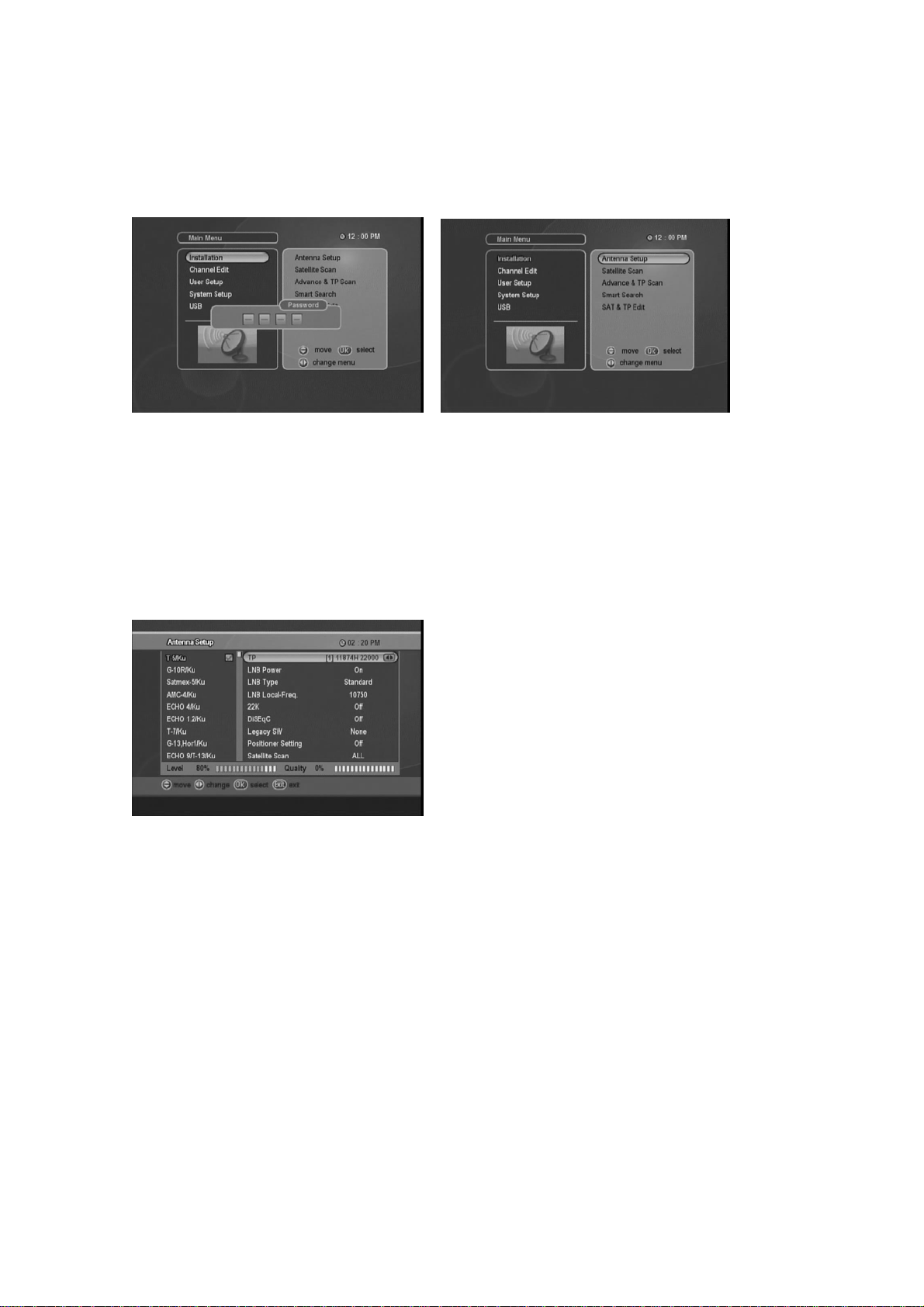

2. Installation
Press the OK key. Use common password “0000”. Parental control and channel edit are not accessible until satellite
channel scanned and saved. Antenna setup is appeared on screen as upper second figure.
2.1 Antenna Setup
In this section you could know how to operate LNB set-up.
2.1.1 Satellite
• When you adjust the LNB set-up,
you select the satellite using OK key.
• Adjust TP, LNB Power, LNB Type, LNB Local freq, 22k,
DiSEqC, Legacy sw, positioner setting
• You can cancel the satellite you chose using EXIT key.
2.1.2 TP
Select a specific transponder by using the ◀▶keys and ▲▼ keys.
2.1.3 LNB type
Select LNB type using keys◀▶ and ▲▼ keys.
There are 7 LNB alternatives.
• Universal 1 (9750MHz & 10600 MHz)

ⓒ2007 by Panarex Electronics 19
• Universal 2 (9750MHz & 10750 MHz)
• Single-SL (5150MHz & 5750 MHz)
• Single-SH (5150MHz & 5750 MHz)
• Standard for USA (10750 or 11250)
• Single Stack (10750(V) / 10175(H))
2.1.4 LNB Lo-Freq
If the required LNB frequency is not available, select “Standard” and then input the frequency manually using the
numeric keys.
2.1.5 22Khz
In case you are using a Dual LNB or two antennas connected to a 22KHz tone switch box, make 22KHz tone switch
“ON” or “OFF” to select an LNB or an antenna.
2.1.6 DiSEqC
• DiSEqC 1.0, 1.2, 1.3 (STAB USALS) is compatible
• DiSEqC 2X1 & 4X1 is usually available.
2.1.7 Positioner Setting
It is used to set the DiSEqC 1.2 motor & USALS
If you have no positioner equipment, select “Disable”
1) DiSEqC 1.2
(1) Current position
Select the position number by using keys◀▶ (#0~#26:default define, #27~#49: user define)
(2) Movement
Select East / West by using keys◀▶ .
(3) East Limit Set
Move the position to the most desired eastern position and press OK then East Limit is stored.
(4) West Limit Set
Move the position to the most desired western position and press OK then West Limit is stored.
(5) Limits Disable
Select Disable limits by using OK key
(6) Go to reference
Select go to reference by using OK key
This selection also enables “resynchronize” programmed positions when shifted after certain period operation.

ⓒ2007 by Panarex Electronics 20
2) USALS (DiSEqC 1.3)
(1) Satellite Position
It points out the position of saved satellite. Change satellite position number to maximize quality level if needed.
(2) Local Longitude
Please input Local Longitude by numeric keys and adjust E.W by using ◀▶keys.
(3) Local latitude
Please input Local Latitude by numeric keys and adjust N.S by using ◀▶keys.
(4) Reference position
This is the same as DiSEqC 1.2 Reference except “resynchronization” function inapplicable.
(5) Move
The satellite’s position of (1) and the one calculated by value of (2) & (3) will be shown. Press OK key and it will
move.
(6) Store
Please select “Store” and the current position will be saved.
2.1.8 Satellite Scan
After all LNB setting is finished, adjust antenna direction toward satellite until signal quality level maximized. Then select
and confirm Satellite scan to start scan and saved.
# If you press SIG key on RCU, signal strength menu will be displayed in the screen with beep sound.
2.2 Satellite Scan
Scan all the listed transponders in a selected satellite.
(1)Press OK key and select wanted satellite by using ▼&▲keys.
(If you want to scan several satellites once, you can control ◀▶keys.)
Then press OK key to execute scanning.
(2) Transponder will be consecutively scanned in all selected satellites.
2.3 Advanced & TP Scan
Scan a selected TP or new TP.
(1) Select a satellite
(2) Select a TP in TP list or type any new TP data if needed.
