Zeitler EZ100 User manual

PULL LINE BLOWER
OPERATING INSTRUCTIONS

Production and Distribution
ZEITLER AG
Sonnhalde 7
CH-6206 Neuenkirch
SWITZERLAND
TEL [phone]
www.zeitler.swiss [email protected]
Dear Customer
Thank you for choosing a quality engineered ZEITLER product.
Our machines are built using modern production techniques and comprehensive quality
assurance. Every effort has been made to ensure your satisfaction and trouble-free use
of the machine.
Please contact either your dealer or us for any queries concerning your EZ100.
ZEITLER AG
Markus Zeitler

Contents
1. Important Instructions 4
2. Safety Precautions and Working Techniques 4
3. Scope of supply EZ100 7
4. Scope of supply EZ100 + Plus 8
5. Accessories, Consumables, Spare Parts 10
6. Putting into operation 13
7. How to use accessories 14

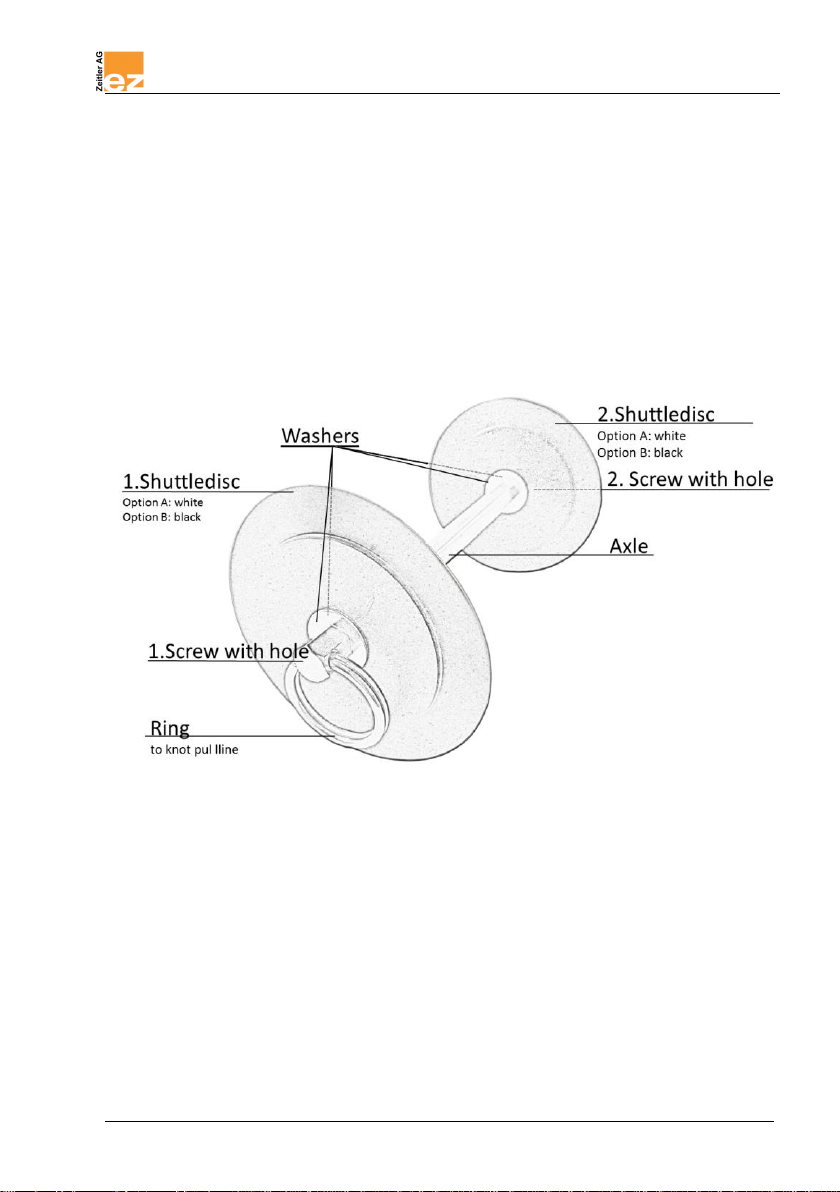

8. Assemble the Shuttles 15
9. Blowing mode with EZ100 16
10. Suction mode with EZ100 18
11. Cleaning 19
12. Storage 19
13. Transport 19
14. Trouble Shooting 20
15. Support 21
16. Service and Maintenance 22
17. Main Parts of EZ100 23
18. Technical Data EZ100 24
19. Guarantee / Legal Details 25
20. EC Declaration of Conformity 26

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 4 / 26
1. Important Instructions
Congratulations on your purchase of an EZ100 Pull Line Blower which is a product
of the highest quality. The following instructions must be observed without fail and
relevant regulations complied with, in order to guarantee the product remains
functionally efficient and has a long service life.
As with all electrical equipment, when using this Pull Line Blower, particular care
must be taken to avoid personal injury and damage to equipment.
2. Safety Precautions and Working Techniques
Special safety precautions must be observed when working with an
electrical tool.
It is important you read and understand the operating instructions before
using your machine for the first time. Always keep the Operating
Instructions with the EZ100 for future reference. Non-observance of the
safety precautions may result in serious or even fatal injury.
Observe all application such as local safety regulations, standards and ordinances
of for example Government, Insurances, Associations etc.
If you have not used this type of power tool before: Have your dealer or other
experienced user show you how to operate your power tool properly.
Minors should never be allowed to use this machine except for minors of more than
16 years and being trained under supervision during their apprentice.
Bystanders, especially children, and animals should not be allowed in the area
where this machine is in use.
Inform all people present on possible dangers.
When the machine is not in use, disconnect the mains plug and place it so that it
does not endanger others. Secure it against unauthorized use.
The user of the unit is responsible for avoiding injury to third parties or damage to
their property.
Do not lend or rent your machine without the operating instructions. Be sure that
anyone using the EZ100 understands the information contained in the operating
instructions.
In some countries the operation of noise emitting electrical tools is restricted by
local regulations. Observe country specific requirements and regulations.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 5 / 26
Special Safety Regulations
The Pull Line Blower requires electricity for it to operate, which is supplied via the
mains plug. The device must never be used with an extension cable. The required
power supply depends on the country of operation –please check the type plate on the
unit for the minimum prescribed fuse value in the socket. Use socket with an earth
leakage circuit breaker!
Arrange the mains cable in such a way that it does not create a tripping hazard.
Safety equipment
The EZ-100 Pull Line Blower is equipped with an integrated thermal safety switch.
Accessories and Spare Parts
Only use genuine replacement parts and accessories that are explicitly approved
for the EZ100 by ZEITLER AG. These parts are specifically designed to match your
machine model and meet your performance requirements and also to avoid the risk
of accidents and damage to the machine. If you have any question in this respect,
consult an authorized servicing dealer.
Never attempt to modify your tool in any way since this will increase the risk of
personal injury.
ZEITLER AG excludes all liability for personal injury and damage to property
caused while using unauthorized attachments.
Engineering improvement
ZEITLER’s philosophy is to continually improve all of their products. For this reason,
we may modify the design, engineering and appearance of our products
periodically.
Therefore, some changes, modifications and improvements may not be covered in
the operating instructions.
Physical Condition
To operate this unit you must be rested, in good physical condition and mental
health. If you have any condition that might be aggravated by strenuous work,
check with your doctor before operating this electrical tool.
Do not operate this machine if you are under the influence of any substance
(alcohol, drugs) which might impair visions, dexterity of judgement.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 6 / 26
Applications
The EZ100 Pull Line Blower is intended exclusively for blowing in or sucking out
special pull lines in pipe work that has already been laid. Then, cables or extra
strong pull lines can be fixed to the pull line in order to pull them through the pipe
work.
It must not be used for any other purpose because of the increased risk of
accidents and damage to the machine. Never attempt to modify your electrical tool
in any way since this may result in accidents or damage to the machine.
Disposal of lines
Used lines can also be used for other purposes or must be properly disposed of. All
relevant regulations and laws of the particular country must be complied with when
disposing of old lines.
Personal protective equipment
Wear proper protective clothing and equipment
Clothing must be sturdy but allow complete freedom of movement. Wear
snug-fitting clothing, an overall and jacket combination, do not wear a
work coat.
Avoid any clothing, scarves, neckties, jewellery or anything that could get
into the air intake.
Tie up and confine long hair (e.g. with a hair net, cap, hard hat, etc.)
Wear sturdy shoes with non-slip soles
Wear safety glasses and ‘personal’ hearing protection, e.g. earplugs or
ear muffs.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 7 / 26

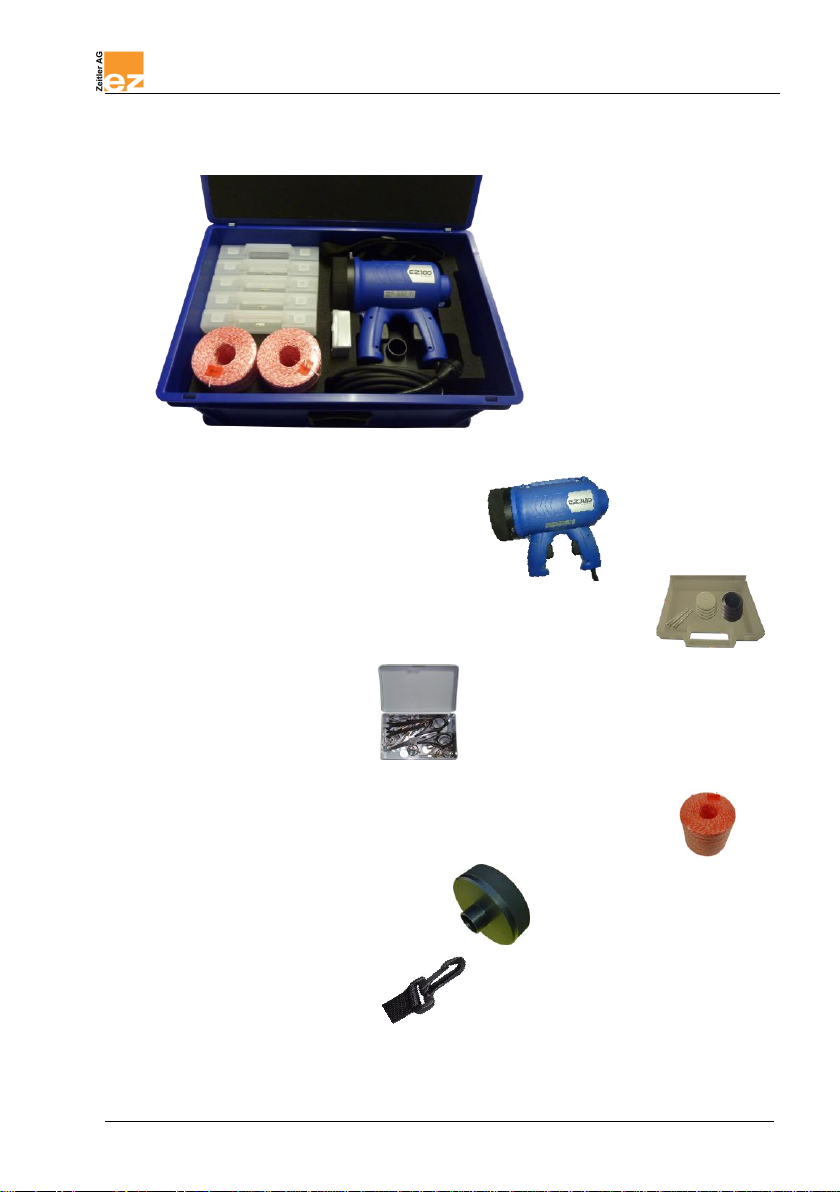

3. Scope of supply EZ100
Standard equipment in original plastic carrying case:
1 x EZ100 Pull Line Blower
(Art. 100045 for 230 V / 50 Hz)
(Art. 100046 for 115 V / 60 Hz)
5 x Shuttle sets dimensions free of choice (ø 20-200 mm)
(Art. 112000 –112065)
1 x box with assembly material for shuttles (Art. 100056): content
40 Washers
20 screws
10 rings
2 wrench7 mm
1 sissors
2 x Special pull line, ø 1 mm, 24 kg tensile strength, approx. 900 m
(Art. 100132)
1 x suction unit (Art. 100059)
1 x carrying belt (Art. 100015)

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 8 / 26
4. Scope of supply EZ100 + Plus
PLUS equipment in original plastic carrying case.
1 x EZ.100 Pull Line Blower with change-over front
(Art. 100544 for 230 V / 50 Hz)
(Art. 100545 for 115 V / 60 Hz)
5 x Shuttle sets dimensions free of choice (ø 20-150 mm)
(Art. 112000 –112065)
1 x box with assembly material for shuttles (Art. 100056): content:
40 Washers
20 screws
10 rings
2 wrench7 mm
1 sissors
2 x Special pull line, ø 1 mm, 24 kg tensile strength, approx. 900 m
(Art. 100132)
1 x suction unit (Art. 100059)
1 x carrying belt (Art. 100015)

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 9 / 26
Extra + Plus:
1 x Special equipment for small tube diameters 25-50 mm (Art. 100073)
1 x Foam adapter (ø 170 mm) (Art. 100076)
1 x parachute 30-600mm (Art. 100309)
1 x parachute 60-100 mm (Art. 100152)
1 x parachute 100-150 mm (Art. 100153)
1 x cone (Art. 100075)

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 10 / 26
5. Accessories, Consumables, Spare Parts
Art. 100132 Pull line roll Ø 1 mm, tensile strength approx. 24 kg
approx. 900 m / roll, box of 10 rolls
Art. 100716 Toneable pull line roll Ø 1 mm, with copper wire
tensile strength approx. 24 kg, approx. 820 m / roll,
box of 10 rolls
Art.100136 Pull line roll Ø 4 mm, tensile strength approx. 210 kg
approx. 1100 m / roll, box of 3 rolls
Art.100717 Toneable pull line roll Ø 4 mm, with copper wire
tensile strength approx. 210 kg, approx. 1100 m / roll,
box of 3 rolls
Art.100522 Pull line roll Ø 4 mm, tensile strength 210 kg
with meter marks, approx. 1100 m / roll
box of 3 rolls
Art.100140 Pull line roll Ø 4 mm, tensile strength 300 kg,
approx. 750 m / roll, box of 3 rolls
Art.100309 Parachute yellow for ducts (inner)
Ø of 30 to 60 mm
Art.100152 Parachute green for ducts (inner)
Ø of 60 to 100 mm
Art.100153 Parachute blue for ducts (inner)
Ø of 100 to 150 mm

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 11 / 26

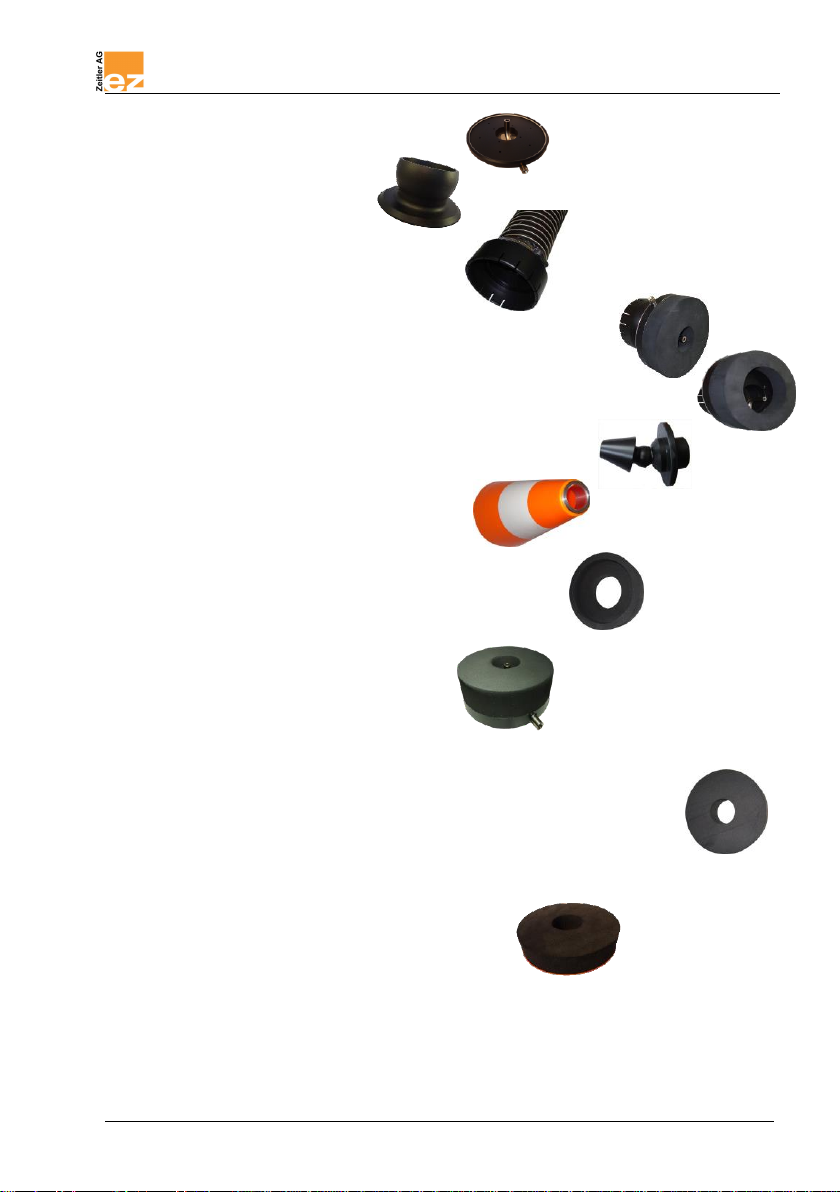

Art. 100278 EZ100 change-over front
Art. 100341 EZ100 hose flange
Art. 100120 air hose complete 1.8 m
Art. 100125 air hose complete 4 m
Art. 100105 Front piece Ø 140 mm with pull line supply
Art. 100099 Front piece Ø 200 mm with pull line supply
Art. 100073 Special equipment for small Ø of 25 to 50 mml
Art. 100075 Cone orange with metallic head
Art. 100076 Adapter black ø 170mm
for Ø int. of approx. 120mm to 150mm
Art. 100077 Adapter black d 200mm
for Ø int. of approx. 140mm to 180mm
Art. 100048 EZ100 Front plate complete
Art.100049 Foam collar 140mm
exchange :
-tear off the used foam collar
-take off as much of the remaining adhesive as possible
-now clean the surface with some denatured alcohol
-short drying period
-fix the new foam collar and press it on tightly
Art.100279 Foam ring with support disc

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 12 / 26

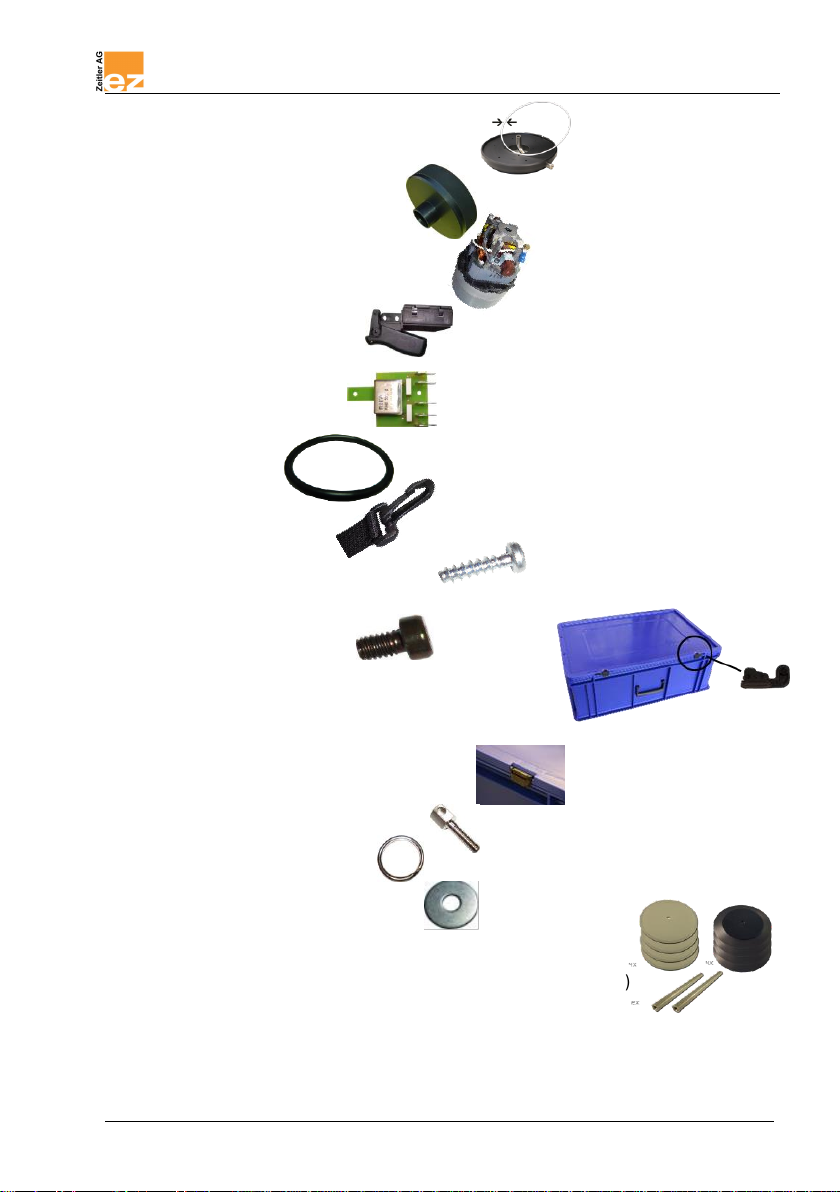

Art.100749 Clamp ring to fix
foam ring of change over front
Art. 100059 suction unit
Art.100003 Motor 230 V / 50 Hz
Art.100004 Motor 115 V / 60 Hz
Art. 100006 Handle Switch
Art. 100021 Electronic plate
Art. 100010 O-Ring
Art. 100015 carrying belt
Art. 100017 TORX screw K 30 X 12
Art. 100018 TORX screw
Art. 101344 EZ100 Original Case with foam inlet
Art. 101340 Swivel lock to Original Case
Art. 101341 Hinge to Original Case
Art. 100146 Screw with hole 20 pieces
Art. 100150 Ring 20 pieces
Art. 100148 Washer 20 pieces
Please find details to shuttle discs and sets in our online shop.
(https://zeitler.swiss/en/shop/1-schnureinblasen/30-ez100/shuttle)
Please find current spare part and accessory list in our online shop
(www.zeitler.swiss/en/shop)

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 13 / 26
6. Putting into operation
1. Before any unit is put into operation, firstly ensure that the device is in
perfect and clean condition.
2. Do not work in the vicinity of flammable or explosive materials, fluids,
gases or open flames
3. In the event of any faults or the suspicion of a fault, disconnect the mains
plug immediately and have the device checked over by the importer or the
manufacturer
4. Do not blow towards people, animals or objects
5. If working on a platform or ladder, always carry the unit with the shoulder
strap
6. Firstly blow through the conduit without any line (to clear any water,
impurities or the like in the conduit)
7. Use protective eyewear (beware of dust, water etc.)
8. If any residual water is actually left in the ducting, never work in suction
mode (damage to the motor)
9. Always keep the air intake opening/screen free (danger of
overheating/fire). If any impurities are found in the screen, remove them
immediately
10. Never use the device if the mains cable is damaged. Have faulty cables or
plugs replaced immediately (by the manufacturer or the importer). Never
pull the plug out of the mains socket by the cable if your hands are wet. Do
not drag the cable across sharp edges or corners. Never place the cable
on hot objects.
11. Caution: some of the plastic parts have limited impact resistance!
Warning!
Improper application, use, modification, operation or maintenance
can lead to serious personal injury or damage to property!
To reduce the risk of personal injury from fire, never attempt to suck
on hot or burning substances (e.g. smoldering ashes, glowing cigarettes).
To reduce the risk of fatal injury from fire or explosion, never attempt to
suck on combustible fluids (e.g. gasoline) or materials soaked in
combustible fluids.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 14 / 26
7. How to use accessories
Shuttle
Black disc:
•Corresponds to 70% inner duct diameter
•To be used for standard application in electrical ducts and flex ducts
•To be used also in deformed, soiled and dusty ducts
White disc:
•Corresponds to 90% inner duct diameter
•To be used to eject water (condensation or meteoric water)
•Might be used to calibrate ducts
! First step: Check permeability!
! Blow air through the duct without using a shuttle !
Parachute (optional, included in EZ100 + Plus)
•used for heavy soiled conduits and in pipe constructions with variations of Ø up
to 50mm
•might be used to blow pull line in occupied ducts
Parachute yellow for int. duct Ø of 30mm to 60mm
Parachute green for int. duct Ø of 60mm to 100mm
Parachute blue for int. duct Ø of 100mm to 150mm
Cone orange with metallic head (optional, included in EZ100 + Plus)
•For duct Ø from 50mm to 120mm
•To be used if end of duct isn’t cut straight or difficult to access
Special equipment for small tube diameters (optional, included in EZ100 + Plus)
•To be used for ducts inner ø 25-50 mm
Adapter black ø170mm (optional, included in EZ100 + Plus)
•Fix on the front plate for ducts Ø from approx. 120mm to 150mm
Adapter black ø200mm (optional)
•Fix on the front plate for duct Ø from approx. 140mm to 180mm

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 15 / 26
8. Assemble the Shuttles
Assemble each end of axle:
2 washers
1 disk (black or white)
1 screw with hole
Tighten with the two small wrenches

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 16 / 26
9. Blowing mode with EZ100
1. Duct ends must be clean and cut off evenly
(if not possible →please use orange cone)
2. Choose the duct end at higher level to blow in pull line
3. Position control person near the duct end / exit
(protect your eyes, wear safety goggles!)
4. First blow air through duct during 30 sec at max.
(water, dirt, dust), hold device tight to the duct end.
5. Control person: Check volume of air flow leaving the duct (eye protection,
safety glasses/goggles)
6. Prepare shuttle corresponding to the internal duct diameter (ID) (TOLERANCE
to ID +0/-2 mm) or use respective parachute
7. Insert the pull line through the pull line supply and ring / screw or thimble of
parachute, knot tightly (shorten line end if too long)
8. Place shuttle / parachute in the duct
9. Press EZ100 closely to the duct
10. Do NOT block the air inlet / grid on the rear of the device with clothing or
body!!
11. Blow pull line continuously without interruption (thermal circuit breaker)
12. When working with parachutes make sure to keep pull line tense, to keep
parachute open.
13. As soon as the shuttle leaves the end of the duct, the pull line stops uncoiling.
If shuttle gets stuck inside the duct, pull it back and try to blow from the
opposite side or with an alternative accessory.
14. Stop blowing and place device in a save place
15. Air inlet duct end: Cut off the pull line and secure it
16. Air outlet duct end: Cut off the pull line and secure it
17. After completing the work, clean and stow the equipment and accessories
properly in the provided transport case.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 17 / 26
How to couple two pull lines rolls:
If the existing line length of one roll is not sufficient, you may add another line roll:
1. You are working with a started roll of pull line, make sure to secure the end of
the line so that it cannot slip into the duct (large knot / tie object)
2. Stop the blowing process on time before the end of the line
3. Release the knot / object and carefully pull the remaining line completely
through the line supply
4. Thread the line start of the second roll through the line supply
5. Tie the end of the first roll firmly and strongly to the start of the second roll (for
example, with a Figure Eight (Flemish) knot)
6. Place the EZ100 tight to the duct and continue blowing
7. When working with a parachute make sure to keep pull line tense, to keep
parachute open.
ATTENTION: connecting two roll ends automatically reduces the tensile strength
NEVER BLOW IN SHUTTLE WITHOUT PULL LINE –
MAY GET STUCK OR LOST IN THE DUCT AND CAN’T GET PULLED
BACK.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 18 / 26
10. Suction mode with EZ100
Only change to suction mode if blowing mode does not work
(never with water in the conduits!)
1. Conduit ends must be clean and cut off evenly
2. Choose the duct end at higher level to vacuum the pull line
3. Position control person near the duct end / exit
(protect your eyes, wear safety goggles!)
4. Prepare shuttle corresponding to the internal duct diameter (ID)
(TOLERANCE to ID +0/-2 mm)
5. Thread the pull line start through the screw hole, knot tightly (shorten line end
if too long)
6. Fix the end of the roll to an object that cannot slip into the conduit (especially
when the roll is not of full length!)
7. Place shuttle in the conduit
8. Fix suction unit to the rear of the Pull Line Blower
9. Press tool tightly to the other end of the duct
10. Start sucking the shuttle without interruption (beware of dust)
11. As soon as the shuttle meets the EZ100, stop sucking mode
12. Side of sucking in: Cut off the pull line and secure it
13. Opposite side: Cut off the pull line and secure it
14. Suction mode completed: immediately clean both screens / grids and
remove suction unit !
15. After completing the work, stow the equipment and accessories properly in the
provided transport case.
NEVER START SUCKING THE SHUTTLE WITHOUT PULL LINE -
MAY GET STUCK OR LOST IN THE DUCT AND CAN’T GET PULLED BACK.

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 19 / 26
11. Cleaning
•Disconnect the main plug
•Clean the unit with a damp cloth
•Do not use solvents
•Never immerse in water
•Never poke objects of any kind into the device
•Do not open the housing
•Remove any residues from the screen
12. Storage
•If the device is not in use, disconnect the main plug
•Store the unit in its original case to protect it from damage
(with the Operating Instructions)
•Protect the unit from moisture and dust
•Temperature range: 0 to 40°C, relative air humidity 40 to.90 %
13. Transport
•Transport the unit in its original carrying case, making sure it is correctly closed
•If the unit is dispatched by any mode of transport, it must be in original carrying
case, correctly closed and secured (closures secured with cable ties)

Blowing pull line into cable conduits (ø 50-150 mm)
Operating Manual EZ100 Version 10/2021 page 20 / 26
14. Trouble Shooting
Motor does not work
•Check cable and / or power source
•Thermo Circuit breaker activated? (wait 30 min. for cool down)
Insufficient air leaving the duct?
•Protector on duct end? →Remove it
•Duct kinked or blocked? →Try to suck from other side
•Grid blocked? →Clean it
Pull line is not uncoiling
•Air inlet / Grid blocked with body or clothing?
•Air inlet / gird dirty?
•Protector on duct end? →Remove it
