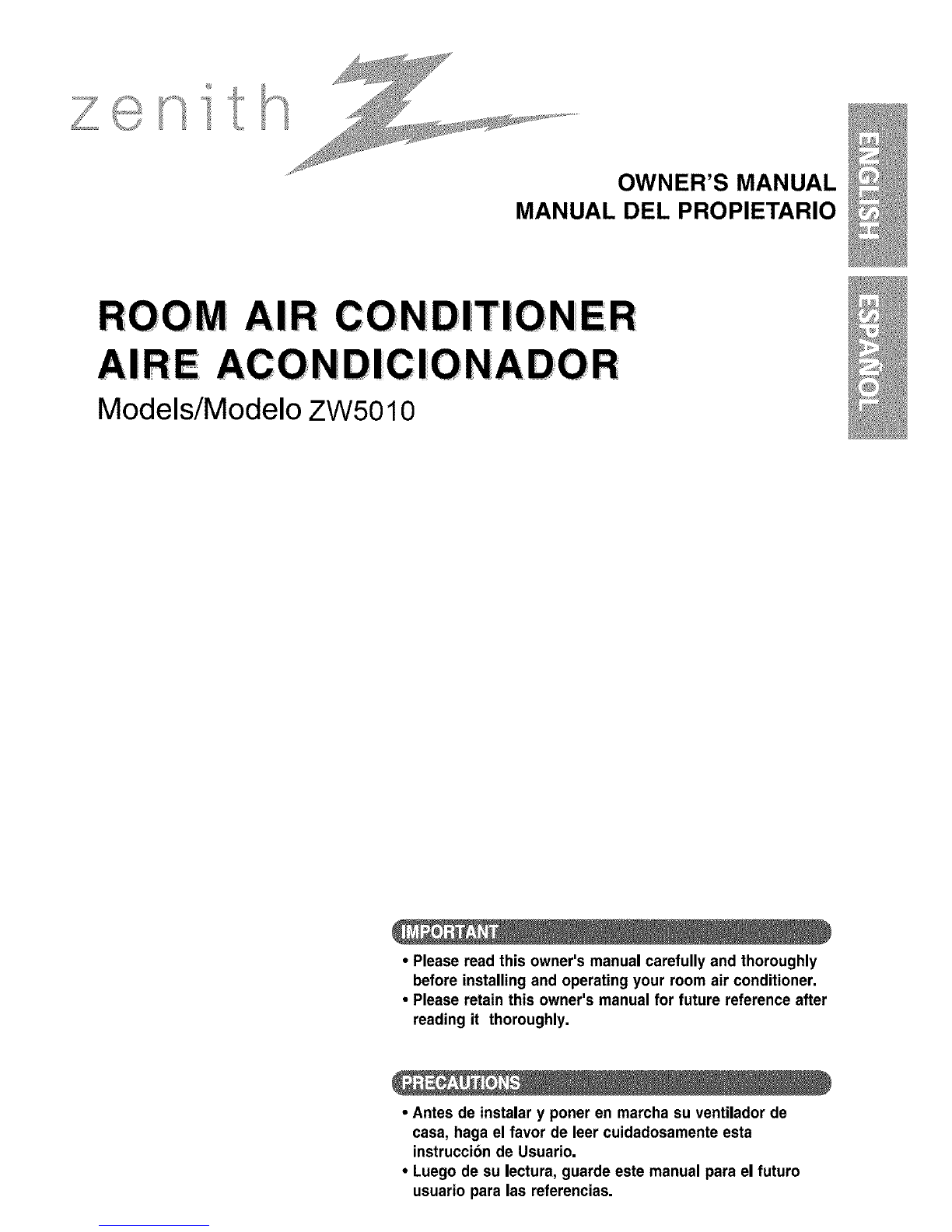

Zenith ZW5010 User manual

Z®
• ! _ i•i _
OWNER'S MANUAL
MANUAL DEL PROPIETARIO
AIR CONDITIONER
AI RE ACON DICION ADOR
Models/Modelo ZW5010
• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
•Please retain this owner's manual for future reference after
reading it thoroughly.
•Antes de instalar y poner en marcha su ventilador de
casa, haga el favor de leer cuidadosamente esta
instruccibn de Usuario.
•Luego de su lectura, guarde este manual para el futuro
usuario para las referencias.

FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
==You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
• Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
*Contact an Authorized Service Center for repair or
maintenance of this unit. Call 1-800-243-0000 to
locate the nearest ASC.
*This air conditioner is not intended for use by young
children or invalids without supervision.
*Young children should be supervised to ensure that
they do not play with the air conditioner.
*If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
*Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
2Room Air Conditioner

SafetyPrecautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
• Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
, WARNING This symbol indicates the possibility of death or serious injury.
CAUTION This symbol indicates the possibility of injury or damage to property only.
• Meanings of symbols used in this manual are as shown below.
QBe not to do,
sure
Be sure to follow the instruction,
•Installation , kWARNING
• Improper assembly or installation may cause
incorrect operation, including injury, fire, and
poor performance,electric shock hazards.
• It may cause fire and electric shock.
• It may cause explosion or fire. • It may cause electric shock and failure.
Owner's Manual 3

SafetyPrecautions
• Operation
• Otherwise, it will cause
electric shock or fire.
• Itwill cause electric shock or
fire.
• Itwill cause electric shock or
fire. ON
• Otherwise it will cause fire
and electric shock accident.
• Itwill cause electric shock or
fire.
• It may cause fire and electric
shock.
• It will cause electric shock or
fire.
• No grounding may cause
electric shock.
• It may cause electric shock.
4 Room Air Conditioner

• The air conditioner must be operated in a
enclosed area to be most effective.
Safety Precautions
• It may cause explosion, fire, and burn.
2
• Itwill cause electric shock or failure of
machine.
•Installation
• They are sharp and may
cause injury.
•Water may enter the unit and degrade the
insulation. It may cause an electric shock.
( ,CAUTION
• It may cause failure of
appliance or performance
deteriorate.
• If the outer case is damaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creating a safety hazard.
®
Owner's Manual 5

Safety Precautions
• Operation
It may cause injury. _ It may cause electric shock
Q and damage ®
, It will waste power consumption
in vain and it may cause accident.
Sharp
edges
Since the fan rotates at high • This could injure the pet or
speed during operation, it may plant.
cause injury.
Operation without filters will
It is an air conditioner, not a
precision refrigeration system.
cause failure. o The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
• It is not sanitary and could
cause illness or personal
injury hazard.
• The chemicals in batteries could cause burns or
other health hazards. • The chemicals in batteries could cause burns or other health hazards.
6 Room Air Conditioner

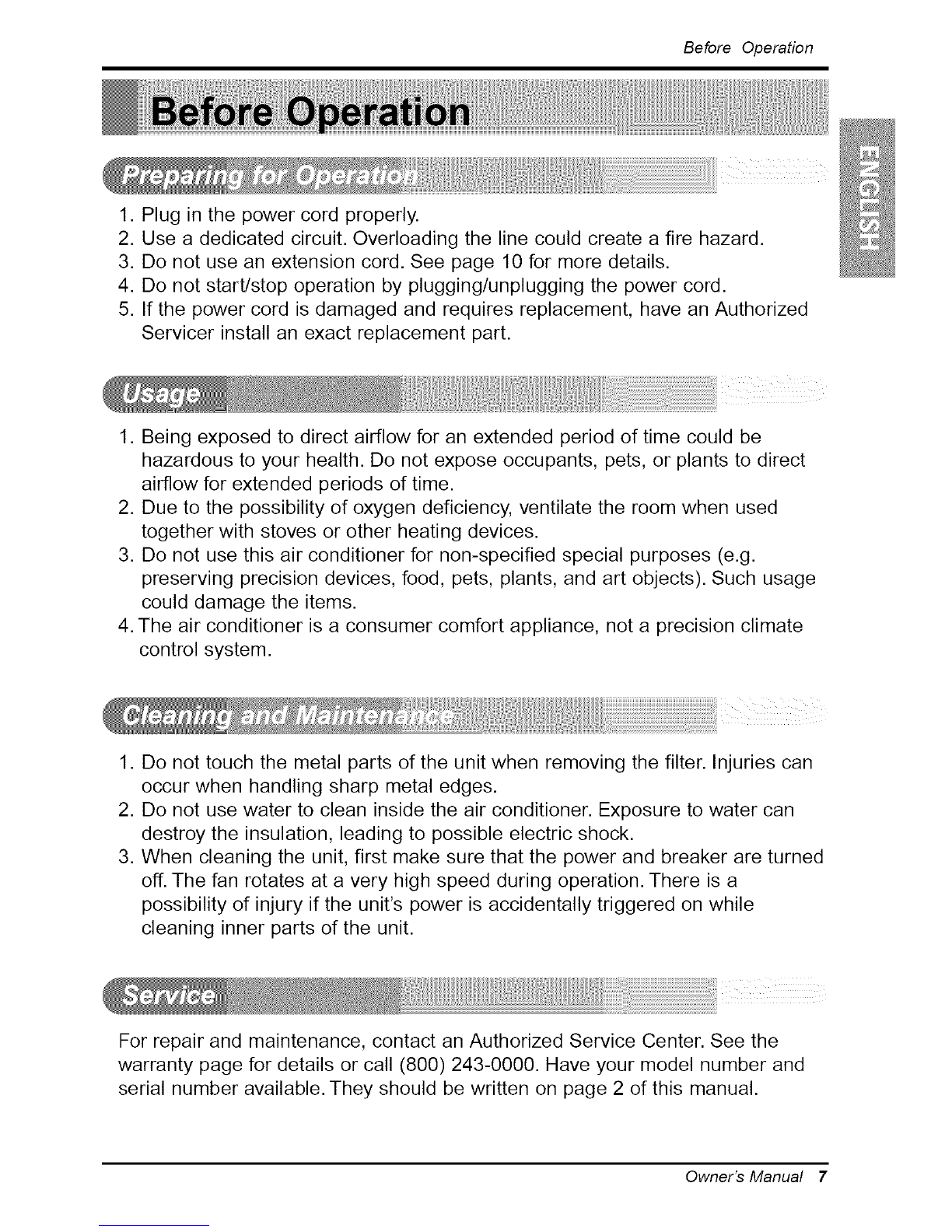

BeforeOperation
1. Plug in the power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 10 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call [phone]. Have your model number and
serial number available. They should be written on page 2 of this manual.
Owner's Manual 7

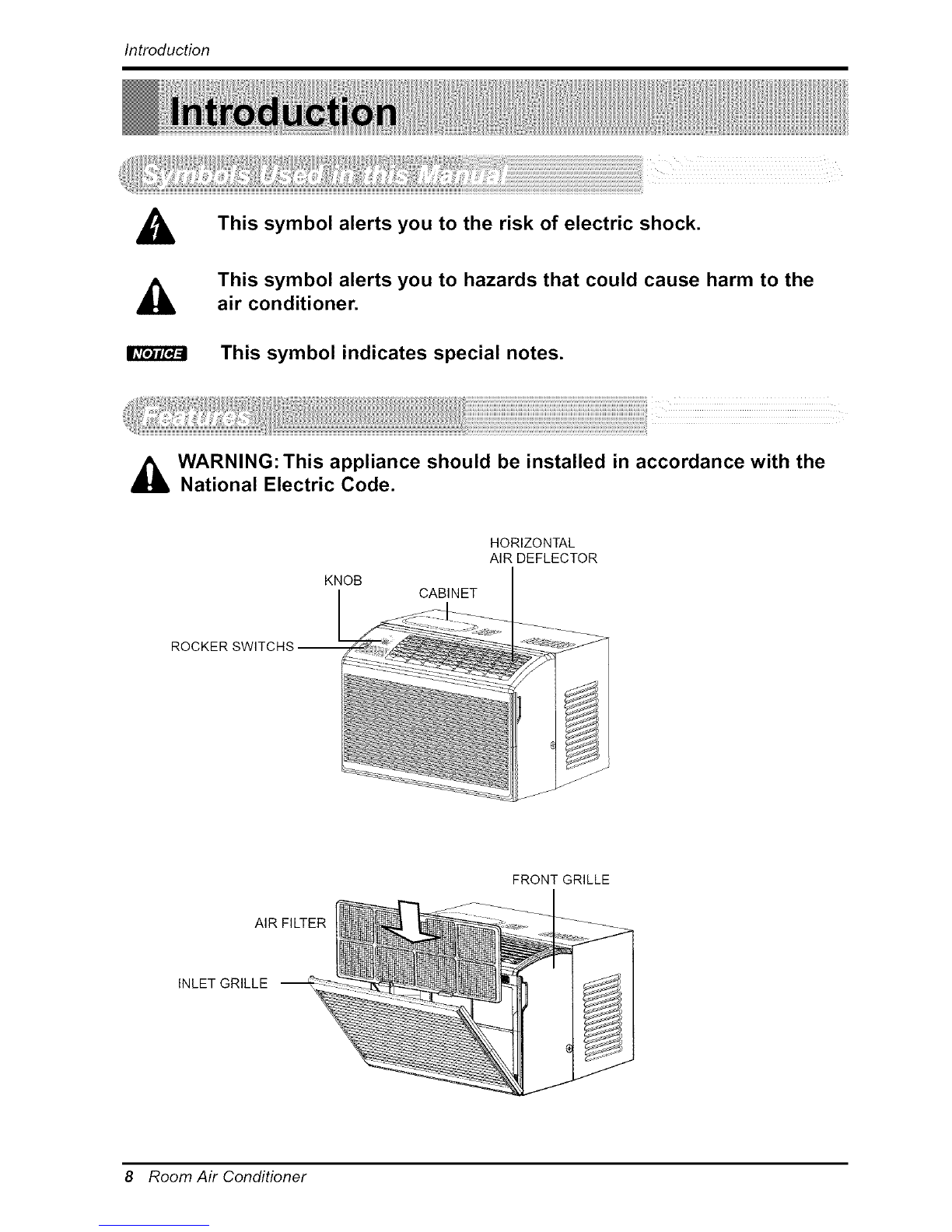

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
_L WARNING: This appliance should be installed in accordance with the
National Electric Code.
KNOB CABI NET
HORIZONTAL
AIR DEFLECTOR
ROCKER SWITCHS --
FRONT GRILLE
AIR FILTER
INLET GRILLE
8 Room Air Conditioner

Electrical Safety
\=J
115V~
T_T
........................./
230V~ Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP,
circuit breaker,
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Use of extension cords
Because of potential safety hazards, we
strongly discourage the use of an extension
cord. However, ifyou wish to use an
extension cord, use a CSA certified/UL-listed
3-wire (grounding) extension cord, rated 15A,
125V.
All wiring should be made in accordance with
local electrical codes and regulations.
Aluminum housewiring may pose special
problems.Consult a qualified electrician.
ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on
its power supply cord, which must be plugged into
properly grounded three-prong wall receptaclefor
your protection against possible shock hazard.
230, 208, and 230/208 VOLTUNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly grounded
three-prong wall receptaclefor your protection
against possible shock hazard. If such an outlet is
not present, one must be installed by a qualified
electrician in accordance with the National Electrical
Code and local codes and ordinances.
DO NOT USE AN EXTENSION CORD on 230,
208, and 230/208 Volt units.
Owner_ Manual 9

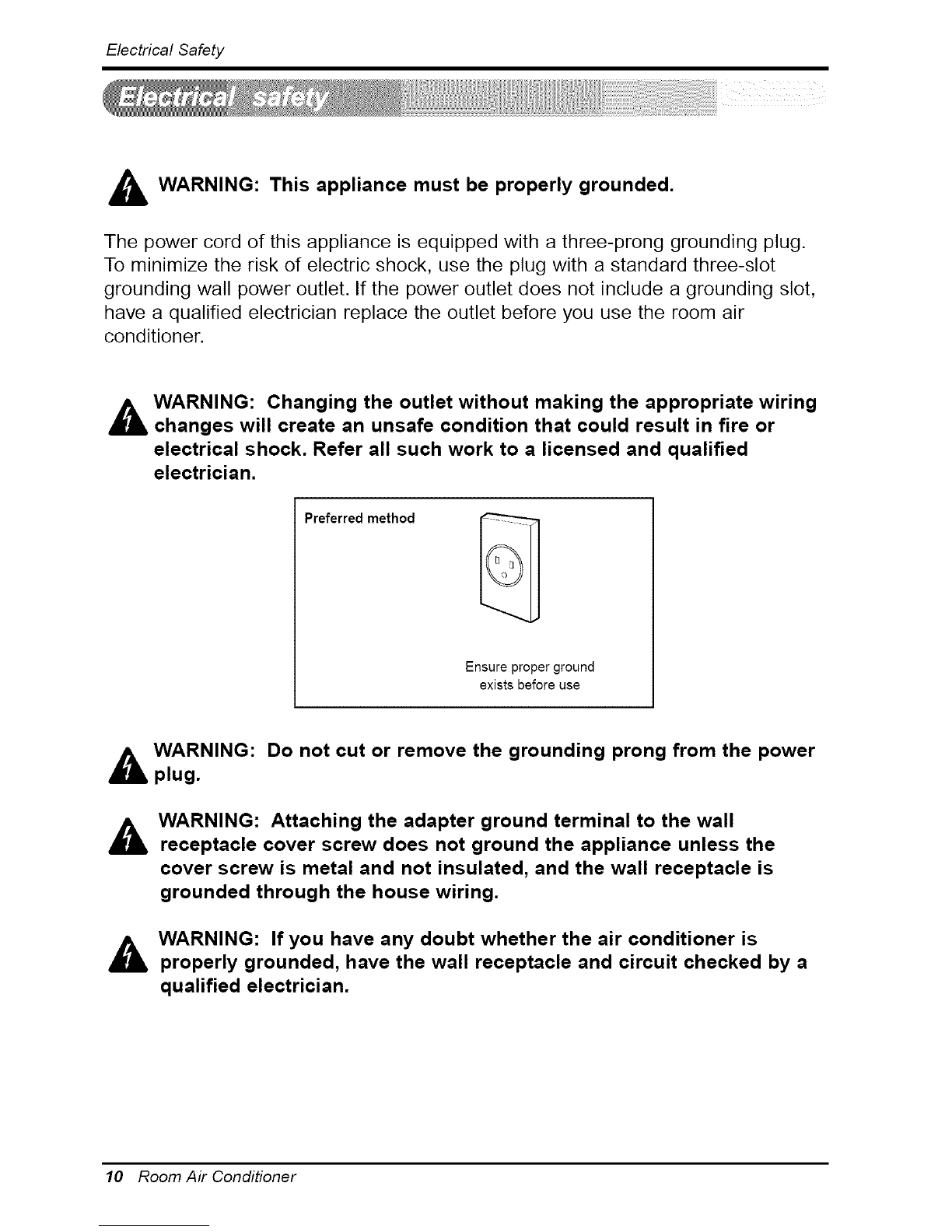

Electrical Safety
WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
WARNING: Changing the outlet without making the appropriate wiring
changes will create an unsafe condition that could result in fire or
electrical shock. Refer all such work to a licensed and qualified
electrician.
Preferred method
Ensure proper ground
exists before use
WARNING: Do not cut or remove the grounding prong from the power
plug.
&WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
10 Room Air Conditioner

ElectricalSafety
We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoid frequently unplugging the power cord as
this can lead to eventual ground terminal damage.
Temporary method
Adapter Plug_
Metal Screw
Receptacle Cover
WARNING: Never use the appliance with abroken adapter.
We strongly discourage the use of an extension cord due to potential safety
hazards. For temporary situations, use only CSA certified and UL listed 3-wire
grounded extension cords, rated 15 A, 125 V.
Owner's Manual 11

Installation
Type A: 14 EA Type B: 2 EA Type C: 2 EA Type D: 3 EA
(Short Screw) (Wood Screw) (Wood Screw) (L Bracket)
F_
E
E
(,o
r
Type E: 1 EA TypeF: 1EA TypeG: 2 EA Type H: 1EA
(Seal Strip) (SashSeal) (Guide Panel) (UpperGuide)
(Notadhesivebacked)
(Adhesive backed)
Have the following tools available for installation:
* Screwdriver (Slotted and Phillips) * Ruler
*Knife * Hammer
* Pencil * Level
Size
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 21" to 35".
The upper and lower window sash
must open sufficiently to allow a
clear vertical opening of 12" from the
bottom of the upper sash to the
window stool. I I
WARNING: This product is a WINDOW AIR CONDITIONER.
As such, a standard single-hung or double-hung window is required
for proper installation. Non-window installations, including using
sleeves, holes in walls, and other installations are not recommended.
12 Room Air Conditioner

Installation
Clearance
Proper clearance enhances the cooling efficiency of the unit and prevents heat
radiation of the condenser.
1. If a storm window presents interference, fasten a 2" wide wood strip to the inner
window sill across the full width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that the unit can be installed
without interference by the storm window frame.
2. See Figure. B.The top of the wood strip should be approximately 3/4"higher
than the storm window frame (Storm Window Frame) or wood strip (Outdoors)
to help condensation to drain properly to the outside.
3. Install a second wood strip (approximately 6" long by 11/2"wide and same
thickness as first strip) in the center of the sill flush against the back off the
inner sill. This will raise the L bracket as shown Figure. B.
4. If the distance between Storm Window Frame and Wood Strip Mounted on Top
of Inner Sill is more than 1", two of wood strips are not necessary.
Inner SilI
l " Sill
Indoors q lU Outdoors
Wood Strip Mounted 1" Max.
on Top of Inner Sill _"1 _ ^, 3/4"
_ ulearance
_ Storm A
_J I .,_v _ Window
Indoors I Ik.IOutdoors
Figure. A Figure. B
Owner's Manual 13

Installation
1. Insert the guide panels(Type G)
into the guides of the air conditioner
(Type H),Fasten the curtains to the
unit with screws (Type A).
: Use a long screwdriver and
installing the screws will be easier. rype A
2. Cut the adhesive-backed seal strip
(Type E) to the window width.
Remove the backing from the seal
strip and attach the seal strip to the
underside of the bottom window.
3. Locating unit in window
Open the window and mark center line
on the center of the inner sill. nner ;
RoomSide
4. Attach L bracket
4-1. Install the L brackets behind the
inner window sill, with short side of
bracket as shown. Use the 2 screws
(Type A) provided.
4-2. The bracket helps to hold unit
securely in place. Be sure to place
bracket edge flush against back of
inner sill.
Inner Sill
Outer Sill Type A Inside
\ Center Line
Outside
L Bracket
14 Room Air Conditioner

Installation

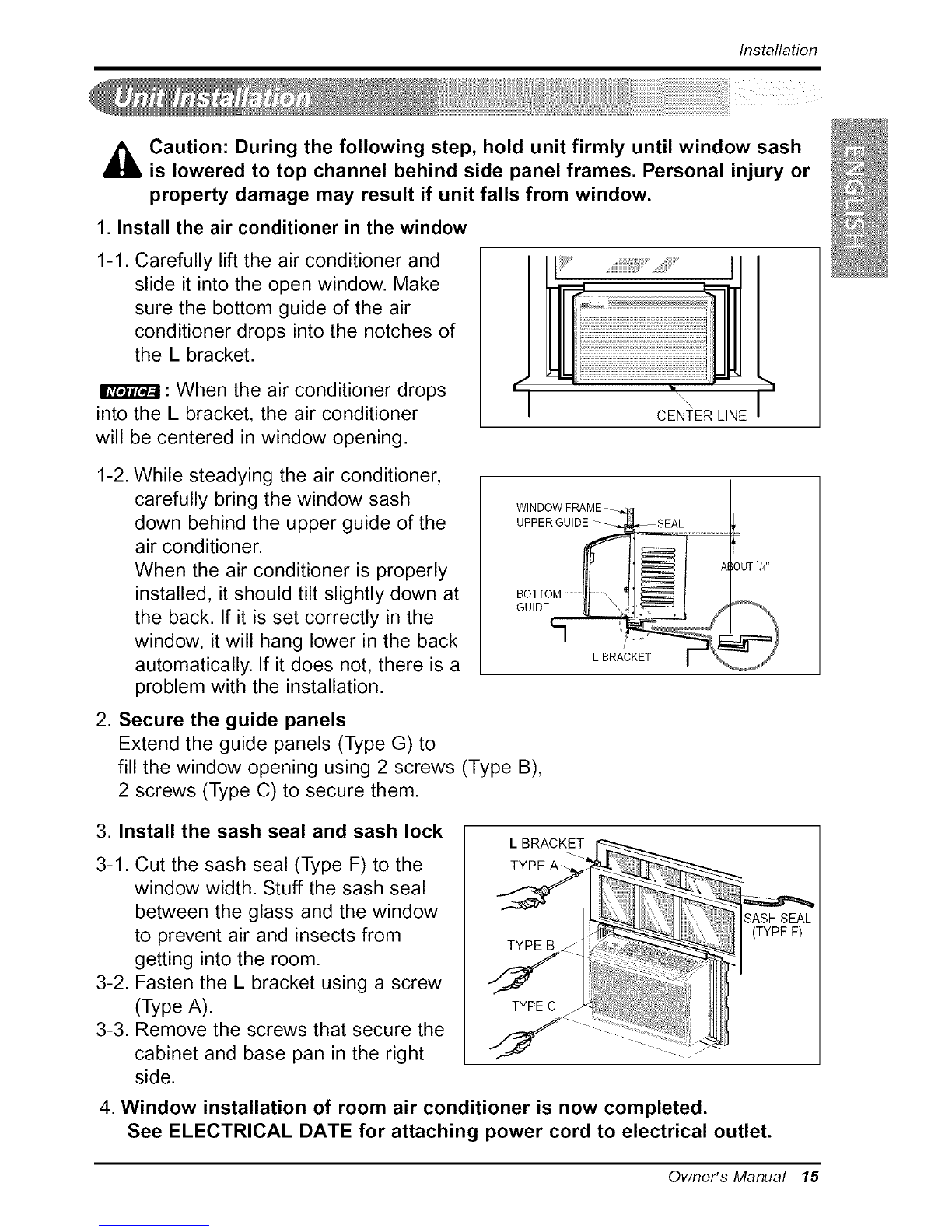

a,Caution: During the following step, hold unit firmly until window sash
is lowered to top channel behind side panel frames. Personal injury or
property damage may result if unit falls from window.
1. Install the air conditioner in the window
1-1. Carefully lift the air conditioner and
slide it into the open window. Make
sure the bottom guide of the air
conditioner drops into the notches of
the L bracket.
:When the air conditioner drops
into the Lbracket, the air conditioner
will be centered in window opening.
1-2. While steadying the air conditioner,
carefully bring the window sash
down behind the upper guide of the
air conditioner.
When the air conditioner is properly
installed, it should tilt slightly down at
the back. If it is set correctly in the
window, it will hang lower in the back
automatically. If it does not, there is a
problem with the installation.
2. Secure the guide panels
Extend the guide panels (Type G) to
fill the window opening using 2 screws (Type B),
2 screws (Type C) to secure them.
CENTER LINE
WINDOW FRAME -_
BOTTOM
GUIDE
L BRACKET
3. Install the sash seal and sash lock
3-1. Cut the sash seal (Type F) to the
window width. Stuff the sash seal
between the glass and the window
to prevent air and insects from
getting into the room.
3-2. Fasten the L bracket using a screw
(Type A).
3-3. Remove the screws that secure the
cabinet and base pan in the right
side.
L BRACKET
TYPE
TYPE B
TYPE C
4. Window installation of room air conditioner is now completed.
See ELECTRICAL DATE for attaching power cord to electrical outlet.
SASH SEAL
(TYPE F)
Owner's Manual 15

Operating Instructions
CAUTION: If you turn off the air conditioner or switch from cooling to
the fan, wait at least 3 minutes before setting to cooling again.
Power
Turns air conditioner on and off.
Fan Speed
Use toset thefan speedto LOWor HI.
Mode/Temp Control
Use to set the air conditioner to the Fan Only or the Cool On mode.
Fan Only Mode
Use Fan Only at HI or LOW Fan Speed to provide air circulation and filtering without cooling.
Cool On Mode
Use Cool On with HI or LOW Fan Speed for cooling. Turn the knob toward the cooler area for
the indoor air to become cooler. Turn the knob toward the Cool On area for the indoor air to
become warmer. The Mode/Temp control is used to maintain the room temperature.
When set in the Cool On mode, the compressor will cycle on and off to keep the room at the
same level of comfort.
Cooling Descriptions
For Normal Cooling - Select the Cool On mode with the Mode/Temp knob set at the midpoint.
For Maximum Cooling - Select the Cool On mode with the Mode/Temp knob set toward the
cooler area.
For Quieter & Nighttime Cooling - Select the Cool On mode with the Mode/Temp knob set
toward the Cool On area.
NOTE: If you move the Mode/Temp control knob from the Cool On setting to the Fan Only
setting, wait at least 3 minutes before switching back to a Cool On setting.
16 Room Air Conditioner

OperatingInstructions
Air Direction
Adjusting the air direction using the
horizontal air deflector control.
Using the control tabs, the air flow can
be directed to the left, right, straight
ahead, or any combination of these
directions.
Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow. To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing down and away from the fins
to avoid injury.
This air conditioner is equipped with a
slinger fan. (See drawing, below.)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep. That condensate is then
picked up by the fan and expelled
through the condenser, making the air
conditioner more efficient.
DRAIN
_ngi
DRAIN CAP
Ring
_AUTION: Be careful when inserting the drain pipe. Push away from
the sharp fin area to avoid slipping injuring yourself.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom of the guide
panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip
on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any condensate. Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. If you don't, it could run
out while you carry the unit,making a mess and creating a slipping hazard. This
simple step will save you much cleaning and make a safer work environment.
Owner's Manual 17

Maintenance and Service
Air Filter
Check the air filter at least twice a month to see if cleaning is necessary. Trapped
particles in the filter can build up and block the airflow, reducing cooling capacity
and causing an accumulation of frost on the evaporator. To clean the air filter:
1. Remove the air filter from the front grille by lifting the air filter up.
2. Wash the filter using lukewarm water below 40 ° C (104 °F).
3. Gently shake the excess water from the filter and replace.
Cleaning The Air Conditioner
The front grille and Inlet grille may be
wiped with a cloth dampened in a mild
detergent solution.
The cabinet may be washed with mild
soap or detergent and lukewarm
water, then polished with Liquid Wax
for Appliances.
To ensure continued peak efficiency,
the condenser coils (outside of unit)
should be checked periodically and
cleaned if clogged with soot or dirt
from the atmosphere.
•HOW TO REMOVE THE FRONT GRILLE
1. Remove the screws securing the Front Grille.
2. Push the grille upfrom the bottom and pull
the top of the grille away from the case as
the top tabs lift out of their slots.
18 Room Air Conditioner

MaintenanceandService
i
Before Calling for Service
If you have problems with your air conditioner, read the following information and
try to solve the problem. If you cannot find a solution, turn off the air conditioner
and contact your dealer.
Air conditioner does not operate
1. Ensure that the air conditioner is plugged into a proper outlet.
2. Check the fuse or circuit breaker.
3. Check whether the voltage is unusually high or low.
Air does not feel cold enough on the cooling setting
1. Ensure that the temperature settings are correct.
2. Check to see if the air filter is clogged with dust. If so, clean the filter.
3. Ensure that the air flow from the outside is not obstructed and that there is a
clearance of over 20" between the back of the air conditioner and the wall or
fence behind it.
4. Close all doors and windows and check for any source of heat in the room.
S
®N
Before calling for service, please review the following list of common
problems and solutions.
The air conditioner is operating normally when:
•You hear a pinging noise. This is caused by water being picked up by the fan on
rainy days or in highly humid conditions. This feature is designed to help remove
moisture in the air and improve cooling efficiency.
See the section on Slinger Fan, page 17.
• You hear the thermostat click. This is caused by the compressor cycle starting
and stopping.
• You see water dripping from the rear of the unit. Water may be collected in the
base pan in highly humid conditions or on rainy days. This water overflows and
drips from the rear of the unit.
• You hear the fan running while the compressor is silent. This is a normal
operational feature.
Owner's Manual 19

MaintenanceandService

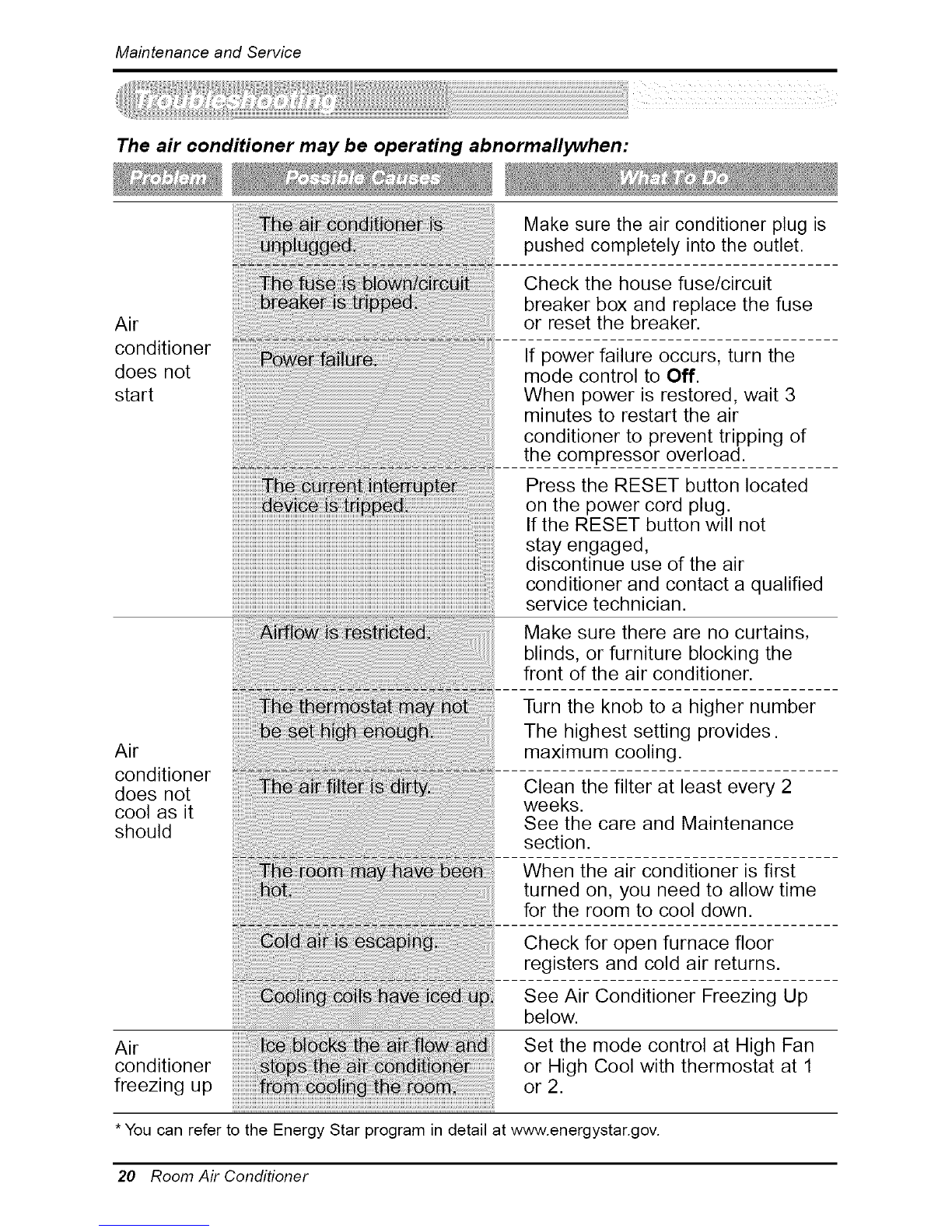

The air conditioner may be operating abnormallywhen:
Air
conditioner
does not
start
Air
conditioner
does not
cool as it
should
Air
conditioner
freezing up
Make sure the air conditioner plug is
pushed completely into the outlet.
Check the house fuse/circuit
breaker box and replace the fuse
or reset the breaker.
If power failure occurs, turn the
mode control to Off.
When power is restored, wait 3
minutes to restart the air
conditioner to prevent tripping of
the compressor overload.
Press the RESET button located
on the power cord plug.
If the RESET button will not
stay engaged,
discontinue use of the air
conditioner and contact a qualified
service technician.
Make sure there are no curtains,
blinds, or furniture blocking the
front of the air conditioner.
Turn the knob to a higher number
The highest setting provides.
maximum cooling.
Clean the filter at least every 2
weeks.
See the care and Maintenance
section.
When the air conditioner is first
turned on, you need to allow time
for the room to cool down.
Check for open furnace floor
registers and cold air returns.
See Air Conditioner Freezing Up
below.
Set the mode control at High Fan
or High Cool with thermostat at 1
or 2.
* You can refer to the Energy Star program in detail at www.energystar.gov.
20 Room Air Conditioner
