OWNER’S MANUAL
CHAIN SAW
115 40 22-38 (010)
G
B

GB-2
G6200
EXPLANATION OF SYMBOLS AND SAFETY WARNINGS
Contents
1. For Safe Operation.....................................................................3
2. Explanation of Symbols on the Machine....................................5
3. Installing Guide Bar and Saw Chain ..........................................6
4. Fuel and Chain Oil .....................................................................7
5. Operating the Engine.................................................................8
6. Sawing .....................................................................................10
7. Maintenance ............................................................................12
8. Maintenance of Saw Chain and Guide Bar..............................13
9. Troubleshooting Guide.............................................................14
10. Disposal ...................................................................................14
11. Specifications...........................................................................15

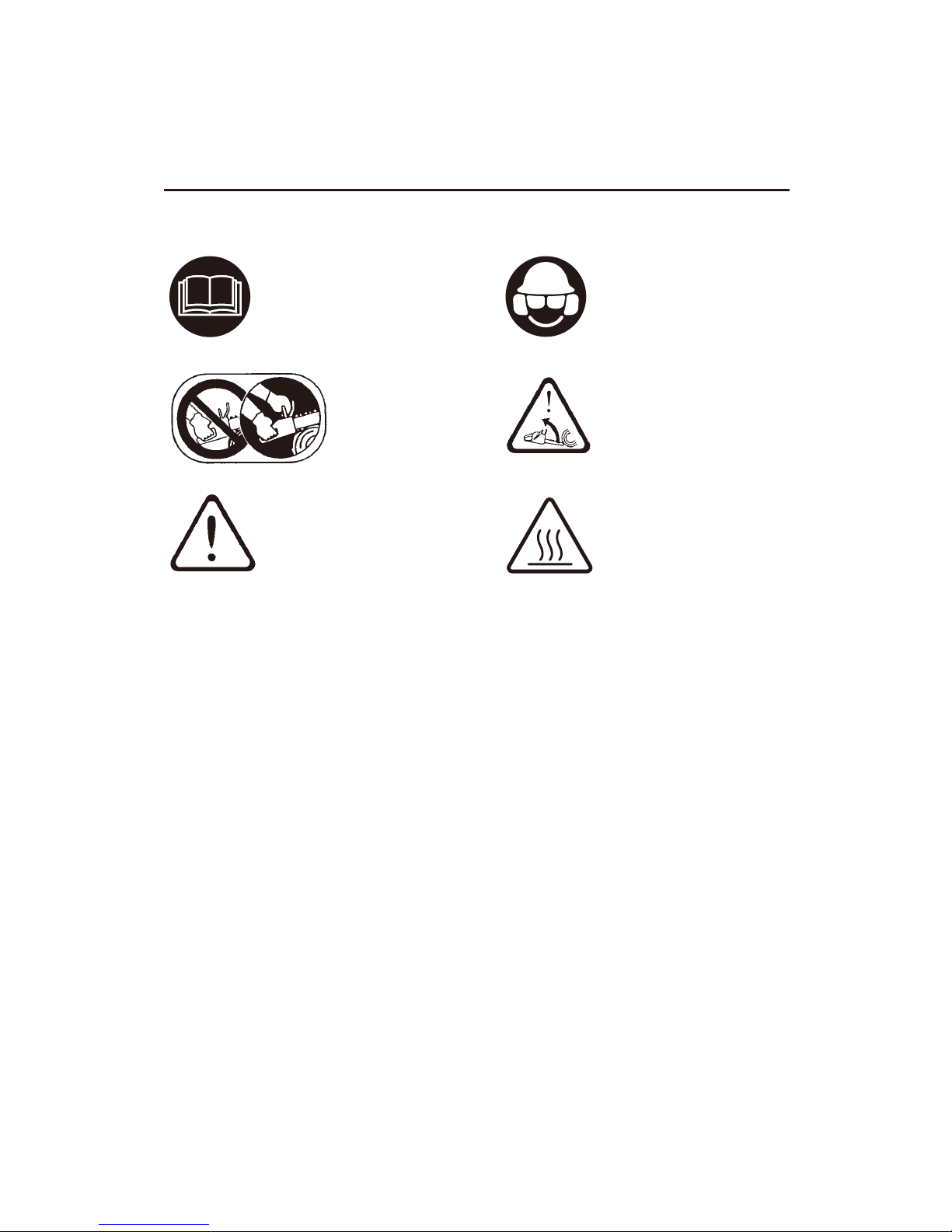

Read operator's instruction
book before operating this
machine.
Wear head, eye and ear
protection.
Use the chain saw
with two hands.
Warning! Danger of
kickback.
Read, understand and
follow all warnings. Never touch hot surface.

GB-3
G6200
G
B

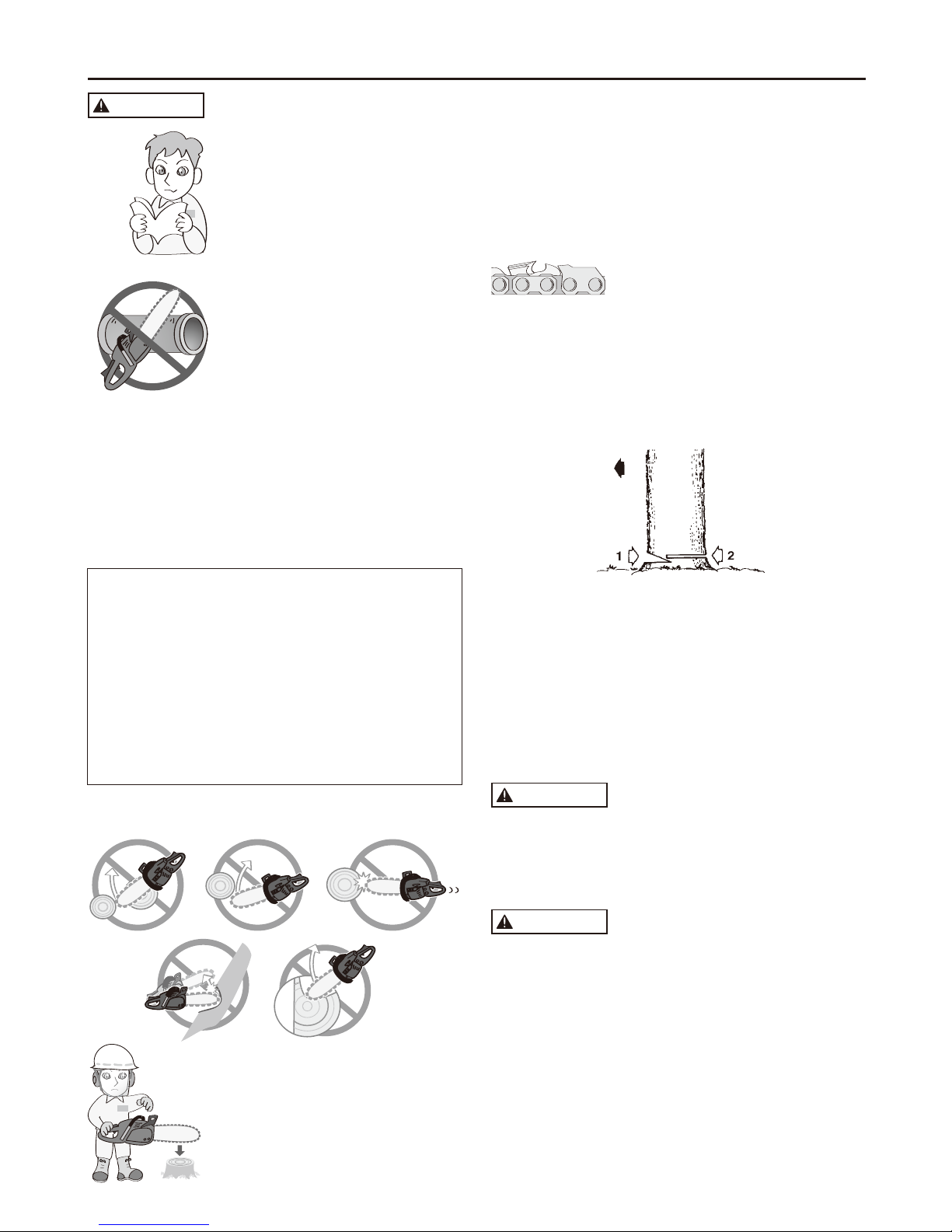

1. For safe operation
WARNING
This chainsaw has been especially designed for tree
maintenance and should therefore only be used by
trained operators when working on trees.
1. Never operate a chain saw when you
are fatigued, ill, or upset, or under
the influence of medication that may
make you drowsy, or if you are under
the influence of alcohol or drugs.
2. Use safety footwear, snug fitting
clothing and eye, hearing and head
protection devices.
Use the vibration-proof glove.
3. Keep the saw chain sharp and the
saw, including the AV system, well
maintained. A dull chain will increase
cutting time, and pressing a dull
chain through wood will increase the
vibrations transmitted to your hands.
A saw with loose components or with
damaged or worn AV buffers will also
tend to have higher vibration levels.
4. Always use caution when handling
fuel. Wipe up all spills and then move
the chain saw at least 3 m from the
fueling point before starting the en-
gine.
5. Eliminate all sources of sparks or
flame (i.e. smoking, open flames, or
work that can cause sparks) in the
areas where fuel is mixed, poured,
or stored.
6. Do not smoke while handling fuel or
while operating the chain saw.
7. Do not allow other persons to be
near the chain saw when starting or
cutting. Keep bystanders and ani-
mals out of the work area. Children,
pets and bystanders should be a
minimum of 10 m away when you
start or operate the chain saw.
8. Never start cutting until you have a
clear work area, secure footing, and
a planned retreat path from the fall-
ing tree.
9. Always hold the chain saw firmly with
both hands when the engine is run-
ning. Use a firm grip with thumb and
fingers encircling the chain saw
handles.
10. Keep all parts of your body away
from the saw chain when the engine
is running.
11. Before you start the engine, make
sure the saw chain is not contacting
anything.
12. Always carry the chain saw with the
engine stopped, the guide bar and
saw chain to the rear, and the muffler
away from your body.
13. Always inspect the chain saw before
each use for worn, Ioose, or dam-
aged parts. Never operate a chain
saw that is damaged, improperly
adjusted, or is not completely and
securely assembled. Be sure that the
saw chain stops moving when the
throttle control trigger is released.
14. All chain saw service, other than the
items listed in the Owner’s Manual,
should be performed by competent
chain saw service personnel. (E.g.,
if improper tools are used to remove
the flywheel, or if an improper tool is
used to hold the flywheel in order to
remove the clutch, structural dam-
age to the flywheel could occur
which could subsequently cause the
flywheel to disintegrate.)
15. Always shut off the engine before
setting it down.
16. Use extreme caution when cutting
small size brush and saplings be-
cause slender material may catch
the saw chain and be whipped to-
ward you or pull you off balance.
17. When cutting a limb that is under ten-
sion, be alert for spring- back so that
you will not be struck when the tension
in the wood fibers is released.
18. Never cut in high wind, bad weather,
when visibility is poor or in very high
or low temperatures. Always check
the tree for dead branches which
could fall during the felling opera-
tion.
19. Keep the handles dry, clean and free
of oil or fuel mixture.

GB-4
G6200
20. Operate the chain saw only in well
ventilated areas. Never start or run
the engine inside a closed room or
building and potentially explosive
atmosphere. Exhaust fumes contain
dangerous carbon monoxide.
21. Do not operate the chain saw in a tree
unless specially trained to do so.
22. Guard against kickback. Kickback
is the upward motion of the guide
bar which occurs when the saw
chain at the nose of the guide bar
contacts an object. Kickback can
lead to dangerous loss of control of
the chain saw.
23. When transporting your chain saw,
make sure the appropriate guide bar
scabbard is in place.
24. Never touch the cover, guide bar, saw
chain or nut with bare hands while
the engine is in operation or immedi-
ately after shutting down the engine.
Doing so could result in serious burns
because of high temperature.
KICKBACK SAFETY PRECAUTIONS
FOR CHAIN SAW USERS
WARNING
• Kickbackmayoccurwhenthenose
or tip of the guide bar touches an
object, or when the wood closes in
and pinches the saw chain in the cut.
Tip contact in some cases may cause
alightningfastreversereaction,kicking
the guide bar up and back towards
the operator. Pinching the saw chain
along the top of the guide bar may
push the guide bar rapidly back to-
wards the operator. Either of these
reactions may cause you to Iose
control of the saw, which could result
in serious personal injury.
• Donotrelyexclusivelyonthesafety
devices built into your saw. As a
chain saw user you should take sev-
eral steps to keep cutting jobs free
from accident or injury.
(1) With a basic understanding of kick-
back you can reduce or eliminate the
element of surprise. Sudden surprise
contributes to accidents.
(2) Keep a good grip on the saw with
both hands, the right hand on the rear
handle, and the left hand on the front
handle, when the engine is running.
Use a firm grip with thumbs and fin-
gers encircling the chain saw han-
dles. A firm grip will help you reduce
kickback and maintain control of the
saw.
(3) Make certain that the area in which
you are cutting is free from obstruc-
tions. Do not let the nose of the guide
bar contact a log, branch, or any
other obstruction which could be hit
while you are operating the saw.
(4) Cut at high engine speeds.
(5) Do not overreach or cut above shoul-
der height.
(6) Follow the manufacturer’s sharpening
and maintenance instructions for the
saw chain.
(7) Only use replacement bars and
chains specified by the manufacturer
or the equivalent.
(1) cover (2) guide bar
(3) saw chain (4) nut
WORSE EFFECTS OF VIBRATION
If you continue to use high-vibration tools these
symptoms will probably get worse, for example:
• thenumbnessinyourhandscouldbecomeperma-
nent and you won’t be able to feel things at all;
• youwillhavedifcultypickingupsmallobjectssuch
as screws or nails;
• thevibrationwhitengercouldhappenmorefre-
quently and affect more of your fingers.
FOR PROTECTING YOUR BODY FROM VIBRATION
Please observe the following matter, in order to
protect the health of your body.
1. Always use the right tool for each job (to do the job
more quickly and expose you to less hand-arm
vibration).
2. Check tools before using them to make sure they have
been properly maintained and repaired to avoid in-
creased vibration caused by faults or general wear.
3. Make sure cutting tools are kept sharp so that they
remain efficient.
4. Reduce the amount of time you use a tool in one
go, by doing other jobs in between.
5. Avoid gripping or forcing a tool or workpiece more
than you have to.
6. Store tools so that they do not have very cold
handles when next used.
7. Encourage good blood circulation by:
• keeping warm and dry (when necessary, wear
gloves, a hat, waterproofs and use heating pads if
available);
• giving up or cutting down on smoking because
smoking reduces blood flow; and massaging and
exercising your fingers
DISPOSAL
• Whenyoudisposeofthemachine,donotdisas-
semble the machine.
• Whenyoudisposeofthemachine,fuel,chainoil,
be sure to follow your local regulations.

GB-5
G6200
G
B

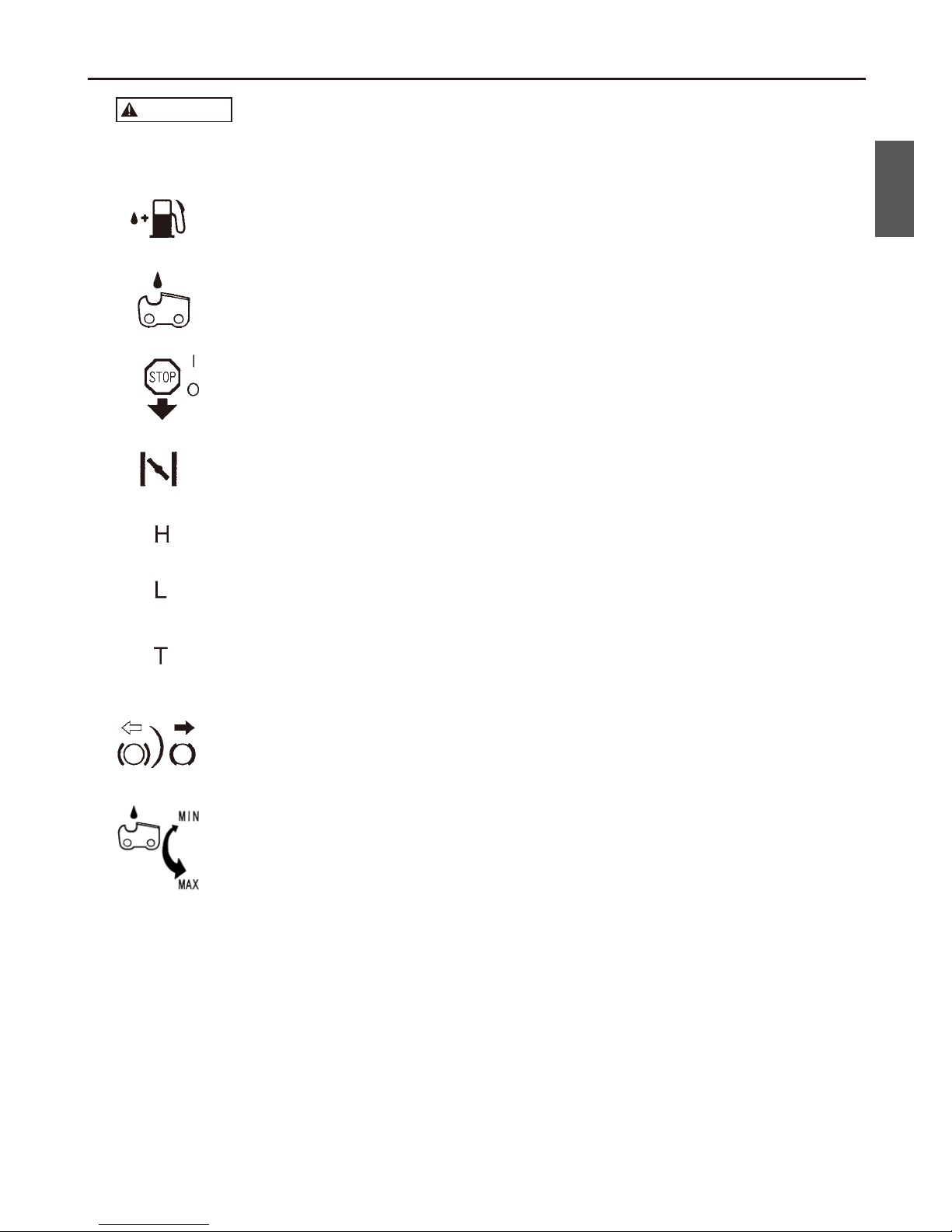

2. Explanation of Symbols on the Machine
• For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
The screw under the “H” stamp is The High-speed adjustment screw.
The port to refuel “MIX GASOLINE”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Setting the switch to the “ | ” position, the engine starts.
Setting the switch to the “O” position, the engine stops immediately.
Position: Rear-left of the unit
If you pull out the choke knob, you can set the choke as a cold start mode.
Position: Upper-right of the aircleaner cover
The screw at the left of the “T” stamp is the Idle adjustment screw.
Position: Left side of the rear handle
The screw under the “L” stamp is The Slow-speed adjustment screw.
Shows the directions that the chain brake is released (white arrow) and
activated (black arrow).
Position: Front of the chain cover
If you turn the knob by hand follow the arrow to the “MAX” position,
the chain oil flow more, and if you turn to the “MIN” position, less.
Position: Top of the cylinder cover
WARNING

GB-6
G6200
5. Fit the chain cover to the power unit and fasten the
nuts to finger tightness.
6. While holding up the tip of the bar, adjust the chain
tension by turning the tensioner screw until the tie
straps just touch the bottom side of the bar rail.
7. Tighten the nuts securely with the bar tip held up (12
~ 15 N·m). Then check the chain for smooth rotation
and proper tension while moving it by hand. If neces-
sary, readjust with the chain cover loose.
8. Tighten the tensioner screw.
(1) Loosen
(2) Tighten
NOTE
• Anewchainwillexpanditslengthinthebeginning
of use. Check and readjust the tension frequently as
a loose chain can easily derail or cause rapid wear
of itself and the guide bar.
Power unit
Bar protector
Guide bar
Saw chain
Plug wrench
Hexagon socket (S13/S19) +
Slotted driver)
Screwdriver for carburetor adjustment
(Slotted driver)
3. Installing Guide Bar and Saw Chain
A standard saw unit package contains the items as illustrated.
Open the box and install the guide bar and the saw
chain on the power unit as follows:
WARNING
• Thesawchainhasverysharpedges.Usethick
protective gloves for safety.
1. Pull the guard towards the front handle to check that
the chain brake is not engaged.
2. Loosen the nuts and remove the chain cover.
(1) Chain cover
(2) Chain Tensioner nut
3. Install the attached spike to the power unit.
4. Gear the chain to the sprocket and, while fitting the
saw chain around the guide bar, mount the guide
bar to the power unit. Adjust the position of chain
tensioner nut on the chain cover to the lower hole of
guide bar.
NOTE
• Payattentiontothecorrectdirectionofthesawchain.
Moving direction

GB-7
G6200
G
B
4. Fuel and Chain Oil
■FUEL
WARNING
• Gasoline is very ammable. Avoid smoking or
bringinganyameorsparksnearfuel.Makesure
tostoptheengineandallowitcoolbeforerefuel-
ing the unit. Select outdoor bare ground for fueling
andmoveatleast3m(10ft)awayfromthefueling
point before starting the engine.
• TheZenoahenginesarelubricated byoilspecially
formulated for air-cooled 2-cycle gasoline engine use.
If Zenoah oil is not available, use an anti-oxidant
added quality oil expressly labeled for air-cooled
2-cycle engine use (JASO FC GRADE OIL or ISO EGC
GRADE).
• DonotuseBIAorTCW(2-strokewater-coolingtype)
mixed oil.
■RECOMMENDED MIXING RATIO
GASOLINE 50 : OIL 1
(whenusingZENOAHgenuineoil)
• Exhaust emission are controlled by the funda
mental engine parameters and components (eq.,
carburation,ignitiontimingandporttiming)with-
outadditionofanymajorhardwareortheintroduc-
tion of an inert material during combustion.
• Theseenginesarecertiedtooperateonunleaded
gasoline.
• Make sure to use gasoline with a minimum octane
number of 89RON (USA/Canada: 87AL).
• If you use a gasoline of a lower octane value than
prescribed, there is a danger that the engine tem-
perature may rise and an engine problem such as
piston seizing may consequently occur.
• Unleaded gasoline is recommended to reduce the
contamination of the air for the sake of your health and
the environment.
• Poor quality gasolines or oils may damage sealing
rings, fuel lines or fuel tank of the engine.
■HOW TO MIX FUEL
WARNING
• Payattentiontoagitation.
1. Measure out the quantities of gasoline and oil to be
mixed.
2. Put some of the gasoline into a clean, approved fuel
container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for at least
one minute. As some oils may be difficult to agitate depend-
ing on oil ingredients, sufficient agitation is necessary for
the engine to last long. Be careful that, if the agitation is
insufficient, there is an increased danger of early piston
seizing due to abnormally lean mixture.
5. Put a clear indication on the outside of the container to avoid
mixing up with gasoline or other containers.
6. Indicate the contents on outside of container for easy iden-
tification.
■FUELING THE UNIT
1. Untwist and remove the fuel cap. Rest the cap on a
dustless place.
2. Put fuel into the fuel tank to 80% of the full capacity.
3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.
WARNING
1. Selectatandbaregroundforfueling.
2. Move at least 10 feet (3 meters) away from the
fueling point before starting the engine.
3. Stop the engine before refueling the unit. At that
time, be sure to sufciently agitate the mixed
gasoline in the container.
■FOR YOUR ENGINE LIFE, AVOID:
1. FUEL WITH NO OIL (RAW GASOLINE) – It will cause
severe damage to the internal engine parts very quickly.
2. GASOHOL – It can cause deterioration of rubber and/
or plastic parts and disruption of engine lubrication.
3. OIL FOR 4-CYCLE ENGINE USE – It can cause spark
plug fouling, exhaust port blocking, or piston ring
sticking.
4. Mixedfuelswhichhavebeenleftunusedforape-
riod of one month or more may clog the carburetor
and result in the engine failing to operate properly.
5. In the case of storing the product for a long period of
time, clean the fuel tank after rendering it empty. Next,
activate the engine and empty the carburetor of the
composite fuel.
6. In the case of scrapping the used mixed oil container,
scrap it only at an authorized repository site.
NOTE
• Asfordetailsofqualityassurance,readthedescrip-
tion in the section Limited Warranty carefully. More-
over, normal wear and change in product with no
functional influence are not covered by the warranty.
Also, be careful that, if the usage in the instruction
manual is not observed as to the mixed gasoline, etc.
described therein, it may not be covered by the war-
ranty.
■CHAIN OIL
Use motor oil SAE #10W-30 all year round or SAE
#30 ~ #40 in summer and SAE #20 in winter.
NOTE
Do not use wasted or regenerated oil that can cause
damage to the oil pump.

GB-8
G6200
7. Allow the engine to warm up with the throttle lever
pulled slightly.
WARNING
• Keepclearofthesawchainasitwillstartrotating
upon starting of engine.
■CHECKING THE OIL SUPPLY
WARNING
• Makesuretosetupthebarandthechainwhen
checking the oil supply.
 Ifnot,therotatingpartsmaybeexposed.Itisvery
dangerous.
After starting the engine, run the chain at medium speed
and see if chain oil is scattered off as shown in the figure.
Chain oil
The oil flow can be changed by turning the adjuster
knob on the top of the cylinder cover. Adjustment ac-
cording to your work conditions.
(1) Adjuster knob
NOTE
• Theoiltankshouldbecomenearlyemptybythetime
fuel is used up. Be sure to refill the oil tank every time
when refueling the saw.
■ADJUSTING CARBURETOR
The carburetor has been adjusted at the factory. Should
your unit need readjustment due to the changes in al-
titude or operating conditions, please let your skillful
dealer make the adjustment. A wrong adjustment may
cause damage to your unit. If you have to make the
adjustment yourself, please follow theprocedure below
carefully.
WARNING
• Besuretoadjustthecarburetorwiththebarchain
attached.
(1) L needle
(2) H needle
(3) Idle adjusting screw
WARNING
• Itisverydangeroustorunachainsawthatmounts
broken parts or lacks any parts.
Before starting engine, make sure that all the parts
including bar and chain are installed properly.
■STARTING THE ENGINE
1. Fill fuel and chain oil tanks respectively, and tighten
the caps securely.
(1) Chain oil
(2) Fuel
2. Set the switch to “I” position.
(1) Switch
3. While holding the throttle lever together with the trig-
ger safety, push in the side latch and release the
throttle lever to leave it at the starting position.
(1) Trigger safety
(2) Throttle lever
(3) Latch
4. Pull out the choke knob to the closed position.
(1) Choke knob
NOTE
• Whenrestartingimmediatelyafterstoppingtheen-
gine, leave the choke knob at the open position.
5. While holding the saw unit securely on the ground,
pull the starter rope vigorously.
WARNING
• Donotstarttheenginewhilethechainsawhangs
inonehand.Thesawchainmaytouchyourbody.
This in very dangerous.
6. When firing occur, push in the choke knob and pull
the starter again to start the engine.
5. Operating the Engine

GB-9
G6200
G
B
In case the brake is not effective, ask our dealer for
inspection and repairs.
If the engine keeps rotating at high speed with the brake
engaged, the clutch will overheat causing trouble.
When the brake engages during operation, immedi-
ately release the throttle lever to stop the engine.
■ICING PREVENTION SYSTEM
This system prevents icing of the carburetor which
sometimes happen while sawing in winter.
When your saw has stopped or slowed down abruptly,
use the system as follows:
1. Remove the air cleaner cover, air filter, and silencer.
(1) Cylinder cover
(2) Air cleaner cover
(3) Intake silencer
(4) Air filter
2. Unhook the hatch on the rear wall of the cylinder
cover and turn it upside down.
(1) Hatch
3. Install the covers as they are.
WARNING
• Never use the system in normal temperature
because that can cause starting failure due to
overheating of the carburetor.
■STOPPING THE ENGINE
1. Release the throttle lever to allow the engine to idle
for a few minutes.
2. Set the switch to the “O” (STOP) position.
(1) Switch
1. Stop engine and screw in both H and L needles
until they stop. Never force. Then set them back the
standard number of turns as shown below.
H needle: 1 ± 1/4
L needle: 11/2 ± 1/4
2. Start engine and allow it a few minutes warming up
in low speed.
3. Turn L needle slowly clockwise to find the position
where idling speed is maximum, set the needle back
a quarter (1/4) turn counter clockwise. L needle
should be set in 1/4 turn either wise from the standard
position.
4. Turn idle adjusting screw (T) counterclockwise so
that saw chain does not turn. If idling speed is too
slow, turn the screw clockwise.
5. The carburetor has been equipped with a governor.
Make a test cut and adjust the H needle for best
cutting power, not for maximum speed.
WARNING
• Over revolution of H needle causes a lack of
powerorapooracceleration.
In such a case please turn the H needle a little
counterclockwise.
■CHAIN BRAKE
This machine is equipped with an automatic brake to
stop saw chain rotation upon occurrence of kickback
during saw cutting. The brake is automatically operated
by inertial force, which acts on the weight fitted inside
the front guard.
This brake can also be operated manually with the front
guard turned down to the guide bar.
To release the brake, pull up the front guard toward the
front handle till a “click” sound is heard.
(1) Front handle
(2) Released
(3) Braking
(4) Brake lever
[Caution]
Be sure to confirm brake operation during daily inspec-
tion.
Howtoconrm:
1) Turn off the engine.
2) Holding the chain saw horizontally, release your
hand from the front handle, hit the tip of the guide
bar to a stump or a piece of wood, and confirm brake
operation. Operating level varies by bar size.

GB-10
G6200
6. Sawing
• Beforeproceedingtoyourjob,
read the section “For Safe
Operation”. It is recommend-
ed to first practice sawing
easy logs. This also helps you
get accustomed to your unit.
• Alwaysfollowthesafetyregu-
lations. The chain saw must
onlybeusedforcuttingwood.
It is forbidden to cut other
types of material. Vibrations
andkickbackvarywithdiffer-
ent materials and the require-
ments of the safety regula-
tionswouldnotberespected.
Donotusethechainsawasa
lever for lifting, moving or
splitting objects. Do not lock
itoverxedstands.Itisfor-
bidden to hitch tools or ap-
plications to the PTO other
than those specified by the
manufacturer.
■GUARD AGAINST KICKBACK
• Thissawis equipped withachain
brake that will stop the chain in the
event of kickback if operating prop-
erly. You must check the chain brake
operation before each usage by
running the saw at full the throttle for
I -2 seconds and pushing the front
hand guard forward. The chain
should stop immediately with the
engine at full speed. If the chain is
slow to stop or does not stop, re-
place the brake band and clutch
drum before use.
• It is extremely important that the
chain brake be checked for proper
operation before each use and that
the chain be sharp in order to main-
tain the kickback safety level of this
saw. Removal of the safety devices,
inadequate maintenance, or incor-
rect replacement of the bar or chain
may increase the risk to serious
personal injury due to kickback.
■FELLING A TREE
Felling direction
Notch cut Felling cut
1. Decide the felling direction considering the wind,
lean of the tree, location of heavy branches, ease of
completing the task after felling and other factors.
2. While clearing the area around the tree, arrange a
good foothold and retreat path.
3. Make a notch cut one-third of the way into the tree
on the felling side.
4. Make a felling cut from the opposite side of the notch
and at a level slightly higher than the bottom of the
notch.
WARNING
• Whenyoufellatree,besuretowarnneighboring
workersofthedanger.
Bucking and Limbing
WARNING
• Alwaysensureyourfoothold.Donotstandonthe
log.
• Bealerttotherollingoverofacutlog.Especially
whenworkingonaslope,standontheuphillside
of the log.
• Followtheinstructionsin“ForSafeOperation”to
avoidkickbackofthesaw.
Before starting work, check the direction of bending
force inside the log to be cut. Always finish cutting from
the opposite side of the bending direction to prevent
the guide bar from being caught in the cut.
WARNING
• Itisnotnecessary to forcethe saw into the
cut. Apply only light pressure while running
the engine at full throttle.
• Whenthesawchainiscaughtinthecut,do
not attempt to pull it out by force, but use a
wedge or a lever to open the way.
• If the guide bar and saw chain becomes
caught in wood while operating it, stop the
engine.
Do not pry the handle with excessive force.
Use a wedge to remove the chain instead.

GB-11
G6200
G
B
A log lying on the ground
Saw down halfway, then roll the log over and cut from
the opposite side.
A log hanging off the ground
In area A, saw up from the bottom one-third and finish
by sawing down from the top. In area B, saw down from
the top one-third and finish by sawing up from the bot-
tom.
Cutting the limbs of Fallen Tree
First check to which side the limb is bent. Then make
the initial cut from the bent side and finish by sawing
from the opposite side.
WARNING
• Bealerttothespringingbackofacutlimb.
Pruning of Standing Tree
Cut up from the bottom, finish down from the top.
WARNING
• Donotuseanunstablefootholdorladder.
• Donotoverreach.
• Donotcutaboveshoulderheight.
• Alwaysusebothyourhandstoholdthesaw.

GB-12
G6200
■PERIODICAL SERVICE POINTS
1. Cylinder fins
Dust clogging between the cylinder fins will cause
overheating of the engine. Periodically check and clean
the cylinder fins in the repair specialty store.
2. Fuel filter
(a) Using a wire hook, take out the filter from the filler
port.
Fuel filter
(b) Disassemble the filter and wash with gasoline, or
replace with a new one if needed.
(1) Weight
(2) Filter
(3) Strainer
(4) Retainer
NOTE
• Afterremovingthelter,useapinchtoholdtheend
of the suction pipe.
• When assembling the lter, take care not to allow
filter fibers or dust inside the suction pipe.
3. Oil tank
Drain the oil tank and clean the inside with gasoline.
4. Spark plug
0.6 ~ 0.7 mm
Champion
RCJ-7Y
Clean the electrodes with a wire brush and reset the
gap to 0.65 mm as necessary.
5. Sprocket
Check for cracks and for excessive wear interfering
with the chain drive. If the wear is considerable, replace
it with new one. Never fit a new chain on a worn sprock-
et, or a worn chain on a new sprocket.
6. Front and Rear dampers
Replace if adhered part is peeled or crack is observed
on the rubber part. Replace if the inside of the rear
damper metal has been beaten by the stopper bolt and
the clearance of the metal increased.
WARNING
• Before cleaning, the inspecting or repairing the
unit, make sure that engine has stopped and is cool.
Disconnect the spark plug to prevent accidental
starting.
■MAINTENANCE AFTER EACH USE
1. Air filter
Loosen the knob and remove the air cleaner cover. Take
off the filter element and brush off attached sawdust.
When the filter is clogged with dust, separate it in halves
and shake-wash with gasoline.
(1) Air filter
NOTE
• Whenservicingtheairlter,besuretoblocktheair
intake hole with cloth.
2. Oiling port
Dismount the guide bar and check the oiling port for
clogging.
Oiling port
3. Guide bar
When the guide bar is dismounted, remove sawdust in
the bar groove and the oiling port.
Grease the nose sprocket from the feeding port on the
tip of the bar.
Grease port
Sprocket
Oiling port
4. Others
Check for fuel leakage and loose fastenings and dam-
age to major parts, especially handle joints and guide
bar mounting. If any defects are found, make sure to
have them repaired before operating the saw again.
7. Maintenance

GB-13
G6200
G
B
WARNING
• Thissaw isequippedwith oneofthe following
lowkickbackbar/chaincombinations:
ZenoahPartNumber
Bar Size Guide Bar Saw Chain
20 3674-52114 848CC3LG72
24 3679-52103 848CC3LG84
WARNING
• Besuretoroundoffthefrontedgetoreducethe
chance of kickback or tie-strap breakage.
Make sure every cutter has the same length and edge
angles as illustrated.
Cutter length
Filing angle
Side plate angle
Top plate cutting angle
■Guide Bar
• Reverse the bar occasionally to prevent partial
wear.
• Thebarrailshouldalwaysbesquare.Checkforwear
of the bar rail. Apply a ruler to the bar and the outside
of a cutter. If a gap is observed between them, the
rail is normal. Otherwise, the bar rail is worn. Such
a bar needs to be corrected or replaced.
Ruler
Gap
Chain tilts
No gap
8. Maintenance of Saw Chain and Guide Bar
■ SawChain
WARNING
• Itisveryimportantforsmoothandsafeoperation
toalwayskeepthecutterssharp.
The cutters need to be sharpened when:
• Sawdustbecomespowder-like.
• Youneedextraforcetosawin.
• Thecutpathdoesnotgostraight.
• Vibrationincreases.
• Fuelconsumptionincreases.
Cutter setting standards:
WARNING
• Besuretowearsafetygloves.
Before filing:
• Makesurethesawchainisheldsecurely.
• Makesuretheengineisstopped.
• Usearoundleofpropersizeforthechain.
Chain type: 73LGX
File size: 7/32 in. (5.6 mm)
Place the file on the cutter and push straight forward.
Keep the file position as illustrated.
After each cutter has been filed, check the depth gauge
and file it to the proper level as illustrated.
Appropriate gauge checker
Make the shoulder round
Depth gauge standard
0.025″(0.64 mm)

GB-14
G6200
9. Troubleshooting Guide
Case 1. Starting failure
WARNING
• Makesuretheicingpreventionsystemisnotworking.
Case2. Lackofpower/Pooracceleration/
Rough idling
Case 3. Oil does not come out
If the unit seems to need further service, please consult
with an authorized service shop in your area.
10. Disposal
• When you dispose of the machine, do not disas-
semble the machine.
• Whenyoudisposeofthemachine,fuel,chainoil,
be sure to follow your local regulations.
Check fuel for water
or substandard mix-
ture.
Check for engine
flooding.
Check spark ignition.
Replace with proper
fuel.
Remove and dry the
spark plug.
Then pull the starter
again with no choke.
Replace with a new
plug.
Check fuel for water
or substandard mix-
ture.
Check air filter and
fuel filter for clog-
ging.
Check carburetor for
inadequate adjust-
ment.
Replace with proper
fuel.
Clean.
Readjust speed nee-
dles.
Check oil for sub-
standard quality.
Check oil passage
and ports for clog-
ging.
Replace.
Clean.

GB-15
G6200
G
B
11. Specications
Powerunit:
Displacement (cm3): ............................................................................................................................................62.0
Fuel:..................................................................................................................Mixture (Gasoline 50 : Two-cycle oil 1)
(whenusingZENOAHgenuineoil)
Fuel tank capacity (cm3):.........................................................................................................................................670
Chain oil:...................................................................................................................................Motor oil SAE# 10W-30
Oil tank capacity (cm3): ...........................................................................................................................................350
Carburetor: ..........................................................................................................................................Diaphragm type
ignition system:............................................................................................................................................... Pointless
Spark plug:................................................................................................................................... CHAMPION RCJ-7Y
Oil feeding system:........................................................................................................Automatic pump with adjuster
Sprocket (Teeth x Pitch): ................................................................................................................................ 7T x 3/8″
Dimensions (L x W x H) (mm):.............................................................................................................440 x 260 x 290
Dry weight
Power unit only (kg):.................................................................................................................................................5.7
Cutting head:
Guide bar
Type: ................................................................................................................................................. Sprocket nose
Size (in. (mm)):.............................................................................................................................20 (500), 24 (600)
Saw chain
Type: ................................................................................................................................................ Oregon 73LGX
Pitch (in. (mm)): ........................................................................................................................................ 3/8 (9.53)
Gauge (in. (mm)): ................................................................................................................................. 0.058 (1.47)
Power (kw/min-1) ...........................................................................................................................................3.03/9,500
Max speed (min-1)........................................................................................................................................ 13,000
Idle speed (min-1)........................................................................................................................................... 2,500
Specifications are subject to change without notice.

GB-16
G6200
Limited warranty
Should any failure occur on the product under normal
operating conditions within the applicable warranty
period, the failed part will be replaced or repaired free
ofchargebyaZENOAHauthorizeddealer.
WARRANTY PERIOD: Six (6) months after purchased
by end-user subject to 12 months from produced month.
(30 days If used for rental purpose)
THE PURCHASER SHALL BEAR COSTS OF TRANS-
PORTING THE UNIT TO AND FROM THE ZENOAH
DEALER.
THE PURCHASER SHALL NOT BE CHARGED FOR
DIAGNOSTIC LABOR WHICH LEADS TO THE DETER-
MINATION THAT A WARRANTED PART IS DEFECTIVE,
IF THE DIAGNOSTIC WORK IS PERFORMED AT THE
ZENOAHDEALER.
THE PURCHASER OR OWNER IS RESPONSIBLE FOR
THE PERFORMANCE OF THE REQUIRED MAINTE-
NANCE AS DEFINED BY THE MANUFACTURER IN THE
OWNER/OPERATOR MANUAL.
ANY WARRANTED PART WHICH IS NOT SCHEDULED
FOR REPLACEMENT AS REQUIRED MAINTENANCE,
OR WHICH IS SCHEDULED ONLY FOR REGULAR
INSPECTION TO THE EFFECT OF REPAIR OR “RE-
PLACE AS NECESSARY” SHALL BE WARRANTED FOR
THE WARRANTY PERIOD. ANY WARRANTED PART
WHICH IS SCHEDULED FOR REPLACEMENT AS RE-
QUIRED MAINTENANCE SHALL BE WARRANTED FOR
THE PERIOD OF TIME UP TO THE FIRST SCHEDULED
REPLACEMENT POINT FOR THE PART.
ANY REPLACEMENT PART THAT IS EQUIVALENT IN
PERFORMANCE AND DULABILITY MAY BE USED IN
NON-WARRANTY MAINTENANCE OR REPAIRS, AND
SHALL NOT REDUCE THE WARRANTY OBLIGATION
OF THE COMPANY.
THE COMPANY IS LIABLE FOR DAMAGES TO OTHER
ENGINE COMPONENTS CAUSED BY THE FAILURE OF
A WARRANTED PART STILL UNDER WARRANTY.
THE WARRANTY DOES NOT APPLY TO THOSE UNITS
WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF
INSTRUCTION LISTED IN THE OWNER/OPERATOR
MANUAL FOR PROPER USE AND MAINTENANCE OF
THE UNITS ACCIDENT MISHANDLING, ALTERATION,
ABUSE, IMPROPER LUBRICATION, USE OF ANY
PARTS OR ACCESSORIES OTHER THAN THOSE
SPECIFIED BY THE COMPANY, OR OTHER CAUSES
BEYOND THE COMPANY'S CONTROL.
THIS WARRANTY DOES NOT COVER THOSE PARTS
REPLACED BY NORMAL WEAR OR HARMLESS
CHANGES IN THEIR APPEARANCE.
THERE ARE NO OTHER EXPRESS WARRANTIES.
ANY IMPLIED WARRANTY is limited to the duration of
the limited warranty. Otherwise, this limited warranty is
in lieu of all other expressed or implied warranties, in-
cluding any warranty of FITNESS FOR A PARTICULAR
PURPOSE OR USE and any implied warranty MER-
CHANTABILITY otherwise applicable to this product.
LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE UNDER ANY AND ALL WARRANTIES ARE
EXCLUDED.
IF YOU NEED TO OBTAIN MORE INFORMATION,
PLEASE CALL YOUR NEAREST SERVICE CENTER, OR
CHECK PLEASE ZENOAH WEB SITE http://www.ze-
noah.net
