Zenty ZT-105 User manual

[phone] | www.zenty.com Page 1of 7Copyright © 2021 Zenty AV
User Manual [V1.0]
24 PORT GIGABIT ETHERNET SWITCH
ZT-105 | ZT-IPS24
Zenty | Professional A/V Solution Provider
ZENTY ®
9807 EMILY LANE
STAFFORD, TX 77477
[phone]
[email protected]

[phone] | [email protected] Page 2of 7Copyright © Zenty AV
Table of Contents
1. Introduction…………….........…….………………………………………..3
2. Key Features………….…………….………………………………………..3
3. Package Contents………………….………………………………………..4
4. Specifications....…………….……...………………………………………..4
5. Maintenance………………………………………………………………….6
6. Warranty………………...………….………………………………………..6
7. Mail-In Service...….……...……….………………………………….……..6
8. Limited Warranty Limits and Exclusions....……………………………..6

[phone] | [email protected] Page 3of 7Copyright © Zenty AV
1. Introduction

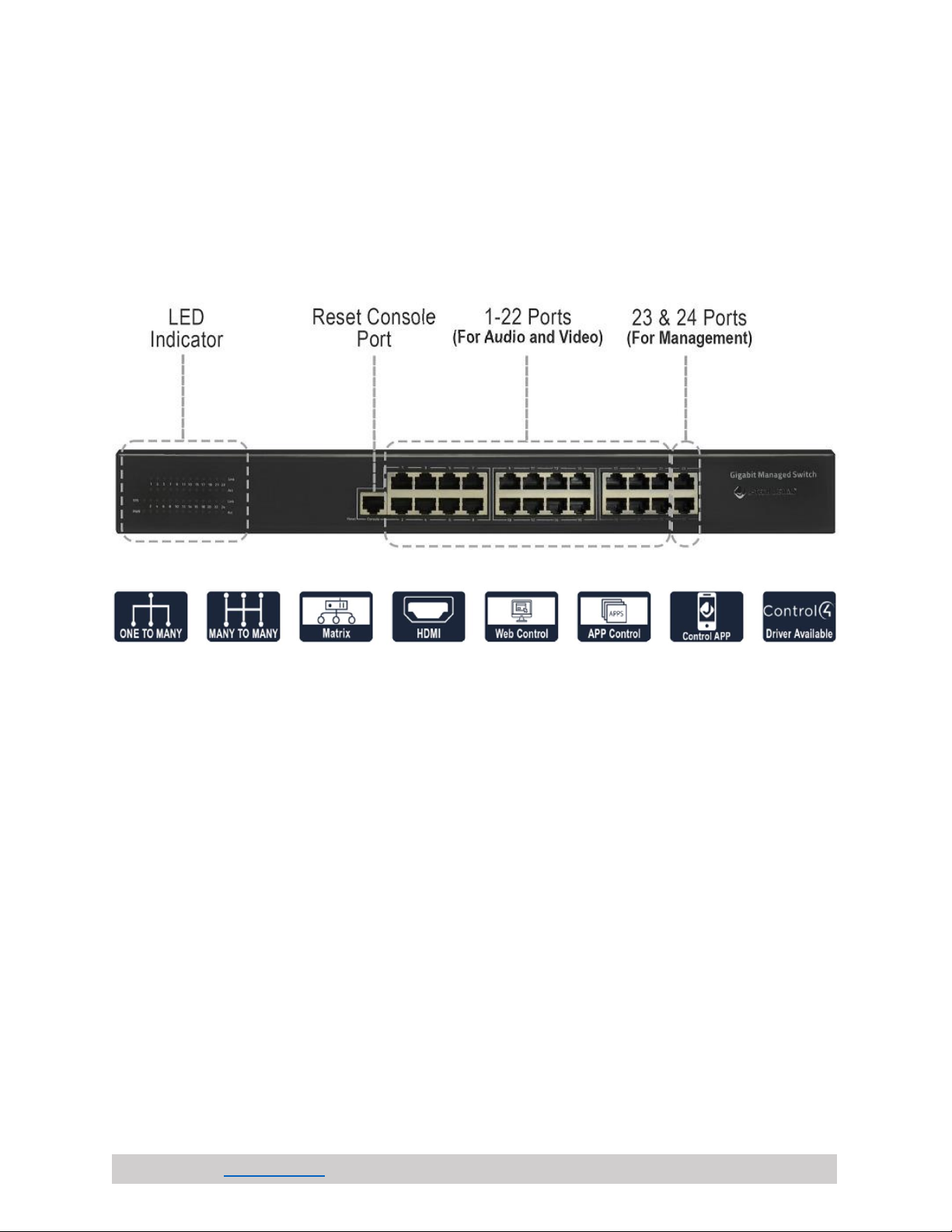

The ZENTY ZT-IPS24 provides 23 ports for you to customize as input or output ports (23 and 24 are for
management by default), and ultimately custom tailor your own AV over IP matrix. Use the ZT-IPS24 as a
standalone matrix or integrate the switch in to your existing network. Making routing changes and
creating routing presets has never been easier with the new and improved web GUI interface.
2. Key Features
❖23 customizable ports as Inputs or
Outputs | Port 24 for Management
❖Specifically designed to improve AV
data transmission and reception
❖Gigabit Data Transfer Rate | 2000 Mbps
❖Automatic VLAN creation for a many –
many setup
❖Supports Unknown Unicast / Broadcast
/ Multicast Storm Control
❖Control via web GUI or Zenty Control
App (available on Google Play and App
Store)
❖Control 4 and Crestron Drivers Available

[phone] | [email protected] Page 4of 7Copyright © Zenty AV
3. Package Contents
❖1x Zenty ZT-IPS24 Switch
❖2 x Rackmount Ears
❖1x Power Cord
❖1x User Manual
4. Specifications
Hardware Specifications
Ethernet Port
24 x 1000 Base-T RJ45
Optical Port
4 x SFP
(Can be modified to 4 x 1000 Base-T RJ45, or combo)
Control Port
1 x RJ45 –RS232 Serial Port (115200, 8, N, 1)
OOB Port
1 x 10/100 Base-TX RJ45 (only for web management)
Init Key
Press to restart
Press and hold for 5 seconds for Default Recovery
Data (Alarm)
Input/Output
2 x Digital Input for external alarm
2 x Digital Output for switch power failure cable link down and PoE link
off
Signal type: normal –open or normal –closed from relay
Standard
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,
IEEE802.3X, IEEE802.1Q, IEEE802.1p, IEEE802.3ad, IEEE802.1d,
IEEE802.1X
Exchange Capacity
56Gbps / non-blocking
Package Conversion rate
95.2Mbps @ 64bytes
Exchange Mode
Store and forward
Package Data Cache
4.1Mbit
Mac Address List
8K
Jumbo Frame
10k bytes
EMI
FCC Part 15, CISPR (EN55022) Class A
EMS
Surge level –4 execute: IEC61000-4-5
ESD level –4 execute: IEC61000-4-2
RS level –4 execute: IEC61000-4-3
EFT level –4 execute: IEC61000-4-4
CS level –3 execute: IEC61000-4-6
M/S level –5 execute: IEC61000-4-8

[phone] | [email protected] Page 5of 7Copyright © Zenty AV
Software Specifications:
Supported Functions:
❖802.1p COS/DSCP/TOS priority
❖IGMP Snooping
❖MLD Snooping
❖Multicast VLAN Registration (MVR)
❖IP, MAC, port VLAN binding combinations
❖IPv4 static route setup
❖Static ARP Add, Delete, Burn-in time setup/check
❖Group-broadcasting PIM, IGMP V1 / V2 / V3, MLD (IPv4)
❖DHCP client
❖Relay repeater, DHCP snooping
❖Duplex transfer check mechanism
Power
Power Supply
Dual Mode
AC 100 –240V 50/60Hz
DC 12V 3A
Power Consumption
36W
Environmental
Operating Temperature
-40–75 ℃
Storage Temperature
-40–85 ℃
Size (L x W x H)
440mm x 205mm x 44mm
Weight
4kg
Dimensions and Weight
Length
440mm / 17.33in
Width
205mm / 8.07in
Height
44mm / 1.73in
Weight
4kg / 8.8lbs
Regulatory
Safety and Emission
CE | FCC | ROHS

[phone] | [email protected] Page 6of 7Copyright © Zenty AV
5. Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean.
6. Warranty
If your product does not work properly because of a defect in materials of workmanship, our company
(referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (5)
Years”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
The decision to repair or replace will be made by the warrantor.
During the “Labor” limited warranty period, there will be no charge for labor. During the “Parts” warranty
period, there will be no charge for parts. You must mail-in your product during the warranty period. This
Limited Warranty is extended only to the original purchaser and only covers products purchased as new.
A purchase receipt or other proof of original purchase date is required for Limited Warranty service.
7. Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the
original carton. Include a letter detailing the complaint and provide a day time phone and/or email address
where you can be reached.
8. Limited Warranty Limits and Exclusions
This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by warrantor, or
failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration,
faulty installation, set-up adjustments, mis-adjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, or service by anyone other than a Factory Service center
or other Authorized Servicer, or damage that is attributed to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTAIL DAMAGES RESULTING FROM THE USE
OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel
to and from the service, loss of or damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY
THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
