Zeta ultra Z Astro User manual

NOTICE
# 120304
REQUIRES
Radio control system with 4 channels(Delta-mix.)
9g servo * 2pcs
KV2350(6*3 propeller) or
KV4500(64mm EDF) Brushless motors
Over 30A ESC
3S 11.1V 1800~2200mAh 25C Lipo battery
CONFIGURATION(astro/blaze)
Length: 29.1in(740mm)
Wing Span: 31.9in / 31.1in(810 / 790mm)
Wing Area: 1.61 / 1.53ft²(15 / 14.2dm²)
Flying Weight: 21oz(600g)

Warning
Battery Warnings
All instructions, warranties and other collateral documents are subject to change at the sole discretion of our company. For up-to-date product literature,
Visit our website and click on the support tab for this product.
# 120304 2
NOTICE
WARNING:
Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate
this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use
by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the
approval of our company. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions
and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Additional Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the
product or the property of others.
Age Recommendation: Not for children under 14 years. This is not a toy.
•This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of
control, so it is advisable to always keep a safe distance in all directions around your mode as this margin will help avoid collisions or injury.
•Always operate your model in open spaces away from full-size vehicles, traffic and people.
•Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery, package, etc.)
•Always keep all chemicals, small parts and anything electrical out of the reach of children
•Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture causes damage to electronics.
•Never place any portion of the model in your mouth as it could cause serious injury or even death.
•Never operate your model with low transmitter batteries.
The Battery Charger included with your aircraft is designed to safely charge the Li-Po battery.
CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a fire, personal injury, and/or property damage.
•By handling, charging or using the included Li-Po battery, you assume all
risks associated with lithium batteries.
•If at any time the battery begins to balloon or swell, discontinue the use of
immediately.
•Always store the battery at room temperature in a dry area for best results.
•Always transport or temporarily store the battery in a temperature range of
40–120º F. Do not store battery or model in a car or direct sunlight. If stored
in a hot car, the battery can be damaged or even catch fire.
•NEVER USE A Ni-Cd OR Ni-MH CHARGER. Failure to charge the batte-
ry with a compatible charger may cause fire resulting in personal injury
and/or property damage.
•Never discharge Li-Po cells to below 3.7V under load.
•Never cover warning labels with hook and loop strips.
•Never leave charging batteries unattended.
•Never charge batteries outside safe temperature range.
•Never charge damaged batteries.

# 120304
31.9in(810mm)
29.1in(740mm)
31.1in(790mm)
29.1in(740mm)
KIT
Included Optional parts
Parts List
Included
Included
Included
Congratulations on purchasing this RC airplane. To ensure your full enjoyment, please check the spare parts
prior to assembly.
C1
C2
H1
M1
L1
D1
D2
S1S2
M2
brushless outrunner motor
for 64mm EDF
Please contact with local shop
for another different wing.

# 120304

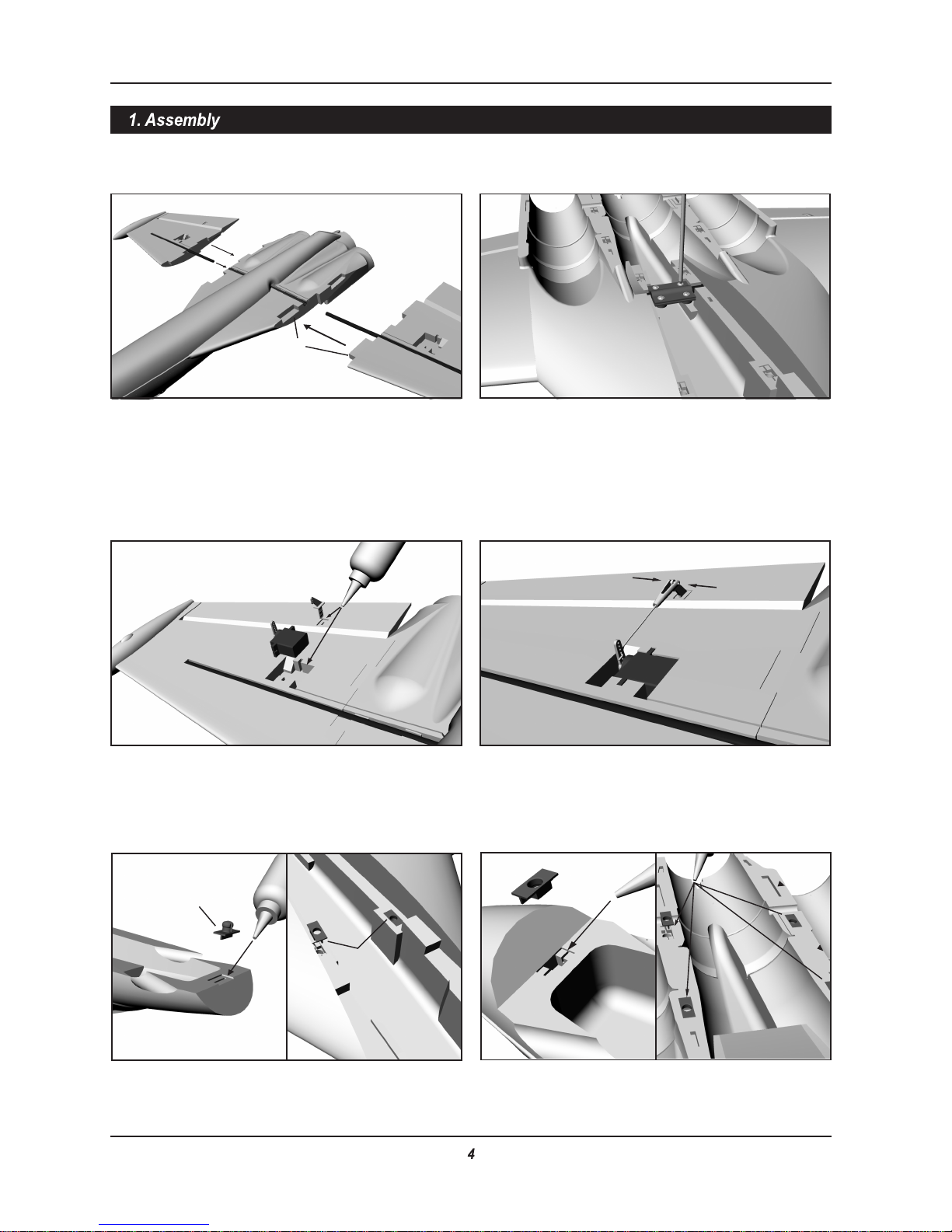

1.1 Wings assembly
1.2 Aileron servo
1.3 Plastic locks
A
To ensure the 2 wing sets remain interchangeable, assemble as follows:
▲ Glue two small carbon fiber spars to the wing panels .
▲ Slide them through the big carbon fiber spar (in the fuselage) and connect them with plastic joiner(L1). And lock it tightly with screwdriver.
A: Please use double sides adhensive tape to connect wing panels with fuselage.
▲ Stick the servo in the wing (glue) with the servo arm aligned
with the control horn.
▲ Connect the linkage between the servo and control horn.
▲ Glue the plastic locks C1 and C2.
C1
C2
C2
L1
D1
D2

# 120304
1.4 Tail Fins
1.5 Propulsion(EDF or Pusher Prop)
A
▲ Glue the tail fins on the fan duct top cover.
▲Glue four plastic locks C1
◄ Glue the upper part (foam cover) in the rear.
◄ Install the M1 to the fuselage with glue.
A: Use adhesive tape for future use.
▲Install and glue the ducted fan with its brushless motor and ESC
in the fuselage .
▲ Or install the motor on the motor mount(M2) and fix with screws(S1).
and install the motor mount with brushless motor to M1 and fix it
with 4 screws(S2).
◄ Install the rear side of the cockpit as depicted and fan duct top
cover on the fuselage.
C1
S1
S2
M1
M2

# 120304
Servo 1
Servo1 Servo2Servo1
Servo2
Servo 2

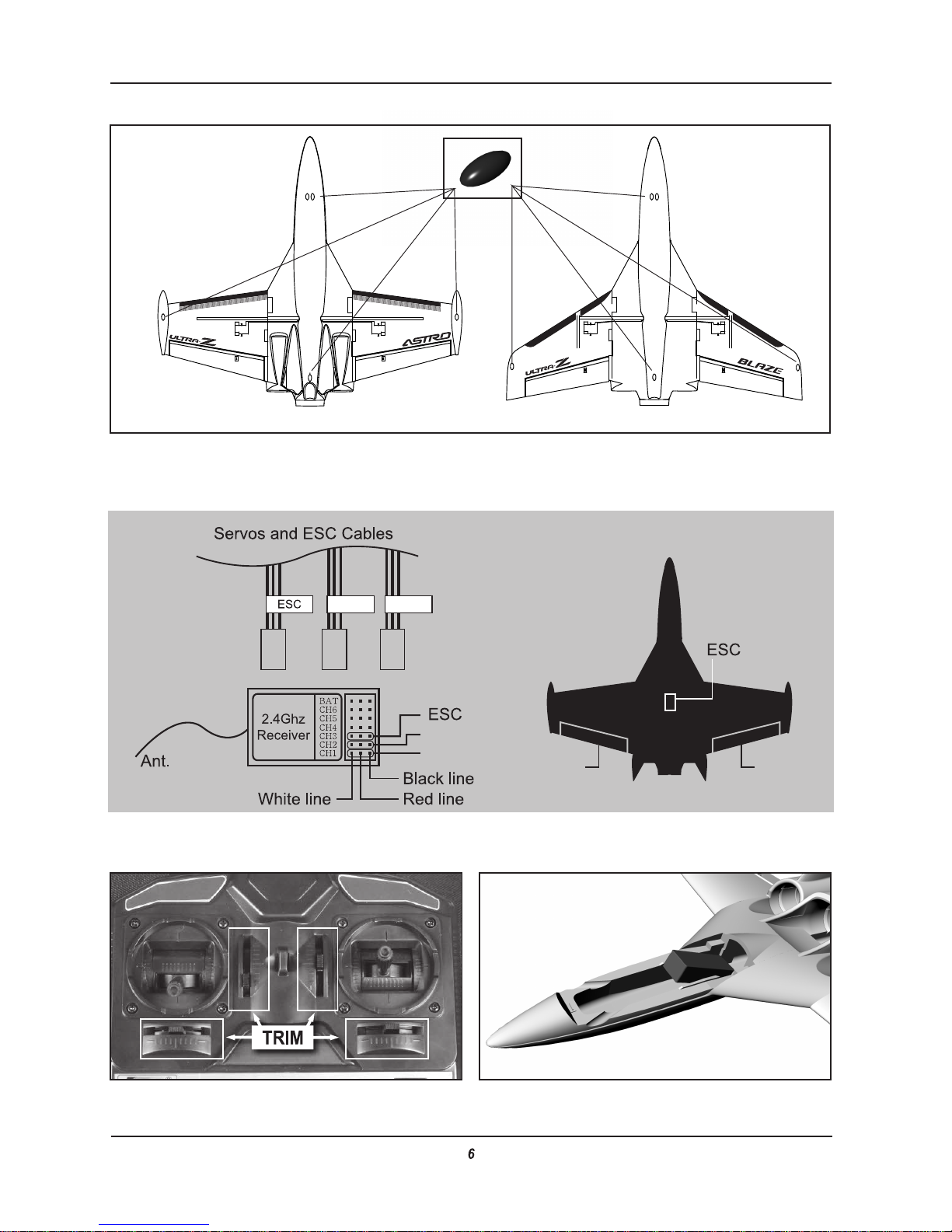

1.6 Plastic skid
1.7 Cable connection
1.8 Installing battery
▲ Turn on the transmitter.(Notice: Put the throttle stick and
trim in the lowest location and center other trims)
▲ Install the battery in the fuselage and complete the connection.
H1

# 120304

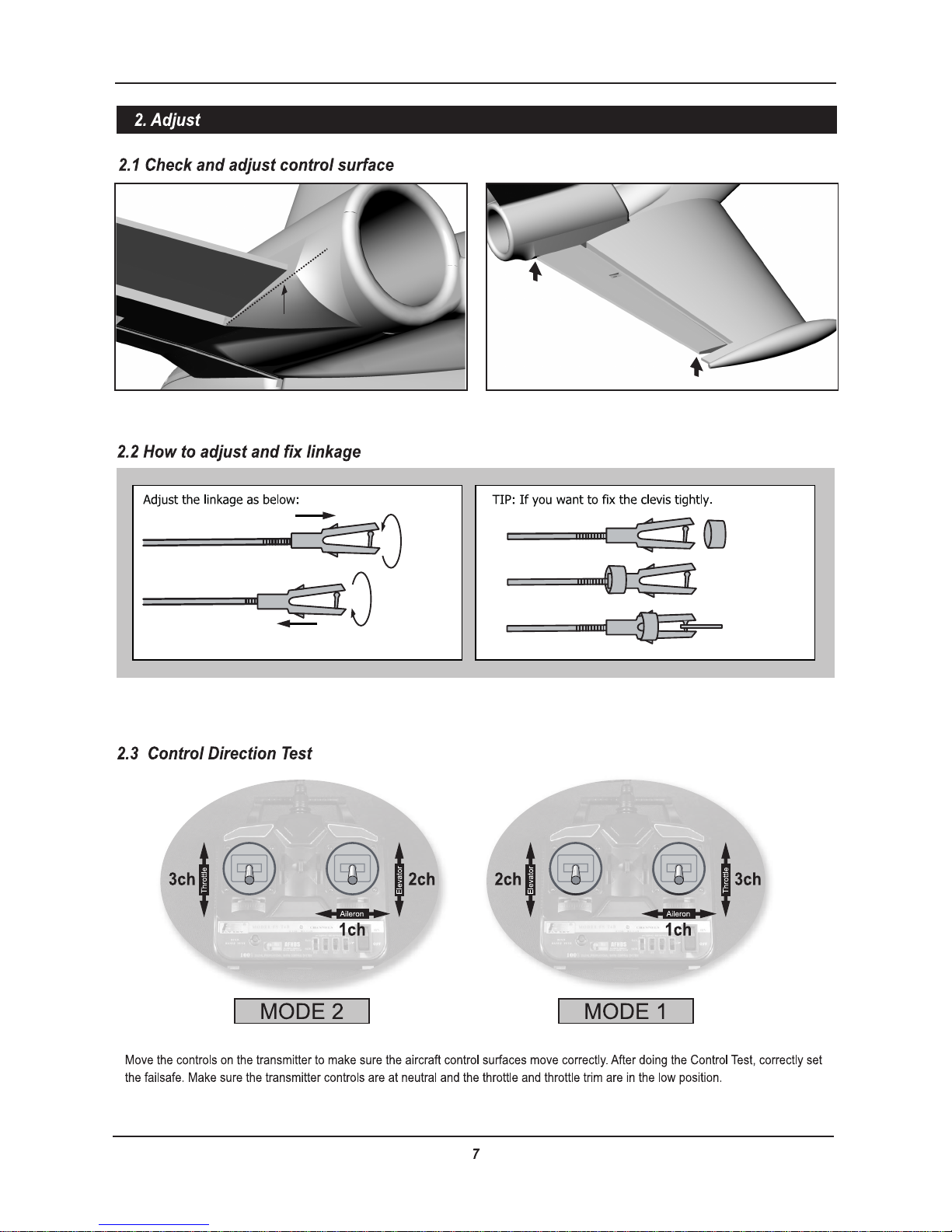

B
▲ Adjust the aileron control surface to guide line(B) ▲ Well Adjusted aileron(as depicted).
Guide line
▲ Notice: Turn on the delta mixer switch.

# 120304

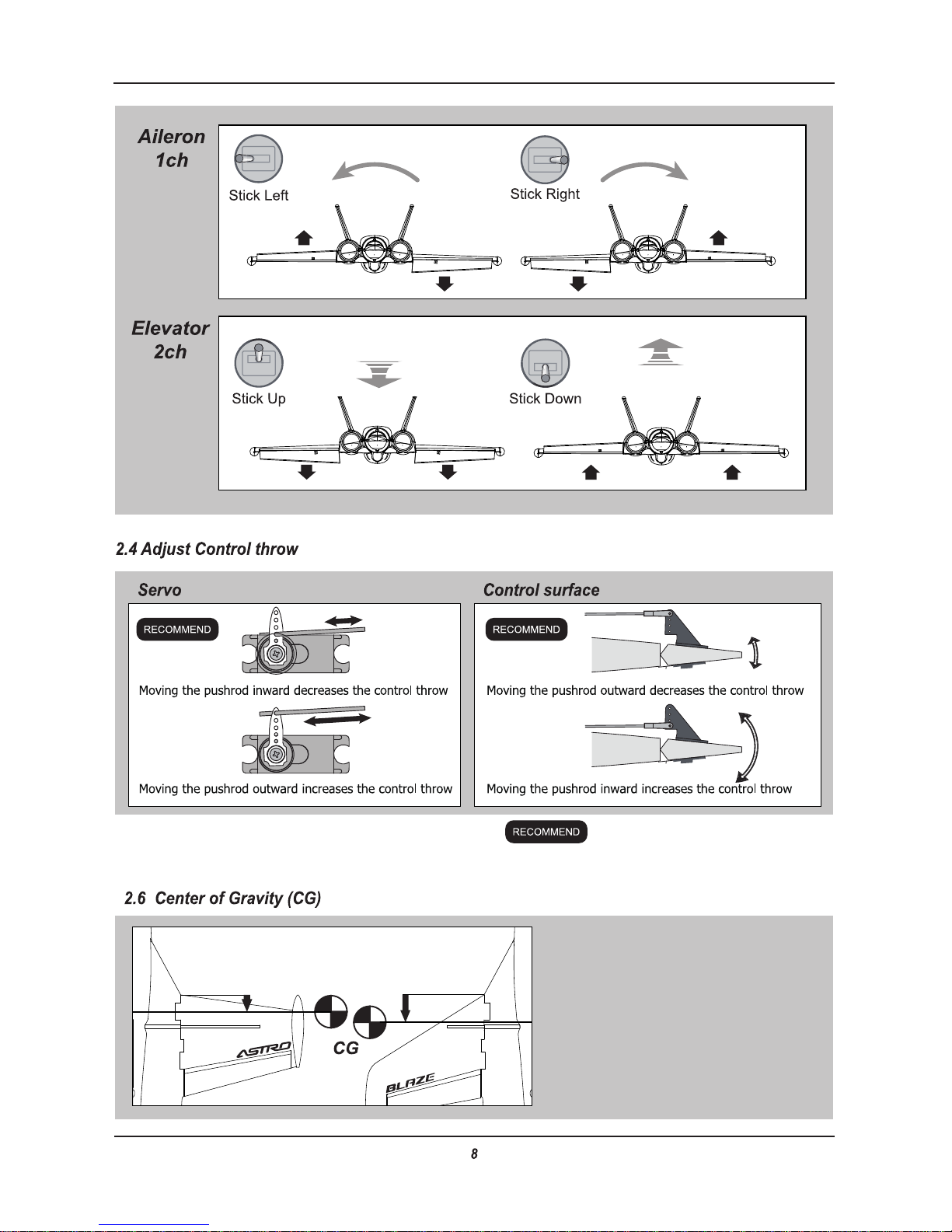

For the first try or beginners, please adjust control throw according to the Recommend.
27-30mm 60-63mm
Ultra-Z Astro:
27-30mm from the junction (wing& fuselage),
measured at the fuselage.
Ultra-Z Blaze:
60-63mm from the junction(wing & fuselage),
measured at the fuselage.
