ZGEMMA H3.2TC User manual
设 计
标准化
签 名
更改单号
阶段标记
镀 涂
质 量 比 例
共 张
第 张
日期
批 准
标记 数量
工 艺
审 核
底图总号
日 期
旧底图总号
签 名
媒体编号
格式（1） 制图： 描图： 幅面:A2
技术要求：
1.印刷不允许脏污、重影、错位、漏印及脱墨现象；
2.尺寸：142*210mm；
3.印刷颜色：单黑；
4.装订方式：骑马钉；
说明书 BC-4330H100011
1
谭建伟
1：1
封面150g书纸，内页80g
1
ZGEMMA H3.2TC
H3.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
2
ZGEMMA H3.2TC
H5.2TC
1. On/off button: Using this button, you can switch between on and standby mode of your STB.
3. Indicator: Display the current status of STB. Green is on, Red is deep standby.
2. 7-Segment Display.
4. IR Receiver : Receive the IR signal from remote controller.
5. USB: One front USB is provided.
6. Smartcard reader slot :
One Smartcard slot is provided.
3. Composite Video & Audio L/R: Connect to TV using AV cable. Yellow is Composite Video, Red is audio right, white is audio left
.
4. S/PDIF: Connect to a digital audio system using S/PDIF cable.
5. RF IN: Connect to Terrestrial cable or Cable TV.
6. LNB IN : One Satellite cable can be connected.
7. HDMI : Connect to TV using a HDMI cable for both audio and video signals.
8. Ethernet & USB: One Ethernet cable and one USB device can be connected.
Front Panel
Rear Panel
1.3 Product Descriptions
3
1 2 3 4 6 7 8
1237
46
5
2.0
1. DC Power Jack : Connect the provided AC/DC adapter (3A@12V).
2. ON/OFF: Power switch.
2
RF IN
5
4
INSERT
DIRECTING
1.4A Micro SD card (TF card) Slot
and program etc.
2.Plug SD card should be in shut down state.
ZGEMMA H3.2TC
ZGEMMA H3.2TC
1凵.:
2abc
2abc 3def
1凵.:
4ghi
5jkl
6mno
7pqrs 8tuv
9wxyz
0,?!
NEXT>
<PREV
BACK
INFO
EPG
EXIT
MENU
FILE
LIST
PAGE
CH
VOL
TEXT
AUDIO
SUBTITLE
TV
RADIO
TIMER
SLEEP
HELP
FAV
V.MODE
▶
▎▎
▶
▎
▶
▎
▶
▶
▶
▶

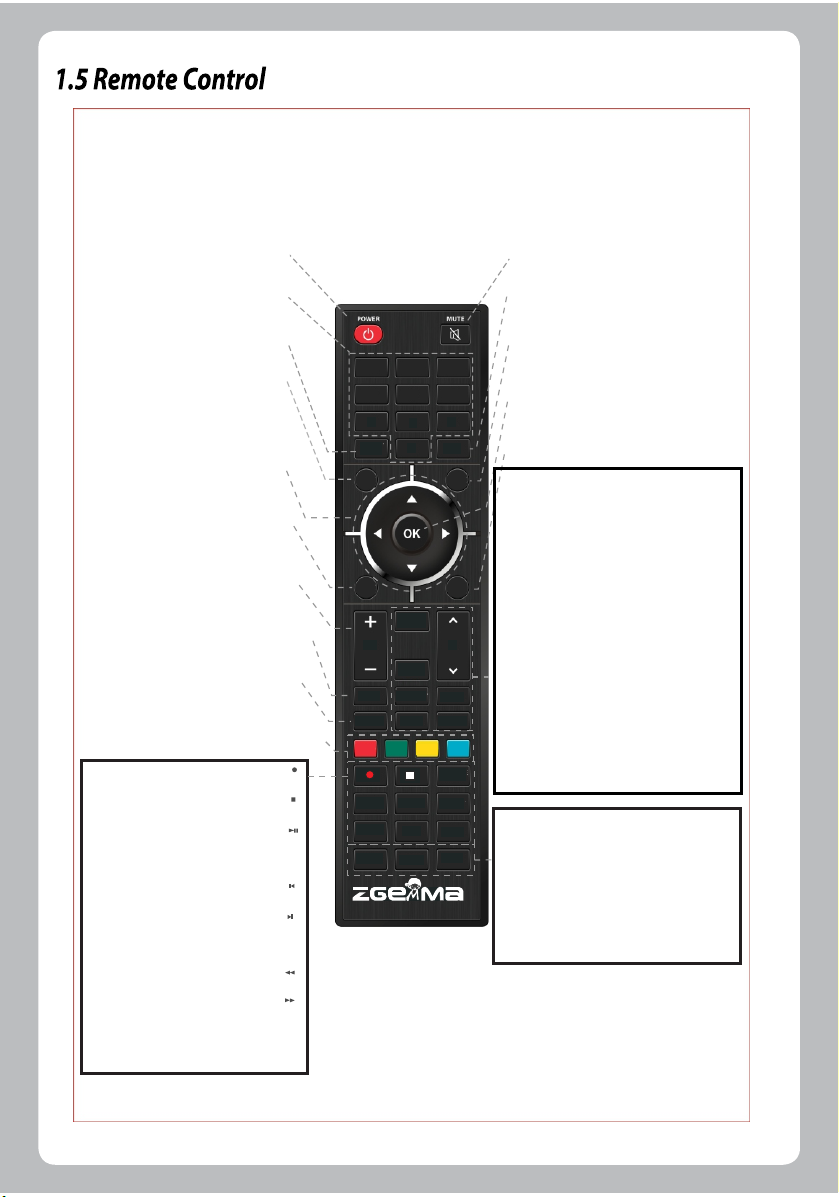

POWER
Press to turn the product on or standby MUTE
Press to mute the audio or un-mute
Numeric Keys
Press to enter a channel number or
nmbers according to the menu options
PREVIOUS
Press to go to Previous Page
BACK
Press to return to the previous service
or Menu
Navigation Keys
Press to navigate up/down and left/right on
the menu options.
up/down keys are used to call up the channel list
EXIT
Press to exit the current menu option into
the live mode, or switches one step back of
the menu.
Volume +/-
Press to adjust the audio volume
TEXT
Press to display the teletext information of the
current channel, if the channel provides teletext
data.
TV
Press to display the TV channel list
Color Keys
RED,Green,Yellow & Blue Each key is assigned
a specific function that may be different in each
manu
Recording[ ]
Press to start or stop recording media
Press to stop playing media
STOP[ ]
Play/Pause[ ]
Press to play the selected file(e.q.record-
ing)at the normal speed or pause the live
program or recording play
Previous Program[ ]
Press to move to previous program
Next Program[ ]
Press to move to Next program
TIMER
Press to view the Timer Schedule
Fast Rewind[ ]
Faster rewind than the normal speed
Fast Forward[ ]
Faster forward than the normal speed
SLEEP
Press to turn off the product sleep timer
by user
NEXT
Press to go to Next Page
INFO
Press to view the Program information
OK
Press to confirm the selected menu option
EPG
Press to display the EPG(Electronic Program
Guide) information if the channel provide
Channel(Page) up/down
Press to navigate through the scanned
channel list or move the channel/program
list in pages
MENU
FILE LIST
Press to main menu
Press to display the list of recordings stored
on the extenal HDD if any
AUDIO
SUBTITLE
PORTAL
RADIO
Press to select available audio language
and audio type
Press to display the subtitle of the current
channel, if the channel provides subtitle data
Press to go to Portal menu
PORTAL
Press to display the Radio channel
V.MODE
FAV
HELP
Press to change the display output ratio:
Wide Zoom or Original
Show the Favorite Lists available
Press to display major important operation
methods. This provides users with a quick
guide of product
5
*2
DVB-S2+DVB-T2/C*2 standard
(2 Ways)
7
(2 cores)
5
1 Keys Power
No
8
ZGEMMA H3.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
9
2.0
ZGEMMA H3.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
2.0
RF IN
10
ZGEMMA H3.2TC
the
language you want.
ZGEMMA H3.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
ZGEMMA H5.2TC
ZGEMMA H3.2TC
ZGEMMA H3.2TC
11
ZGEMMA H3.2TC
12
13
1 4
15
ZGEMMA H3.2TC
16
ZGEMMA H5.2TC
