Zhone TNE1544 User manual

1
TNE1544 and TNE1584
T1 Network Extenders Installation Instructions
Document Number TNE1-A2-ZN14-30
May 2007
Contents
Software and Firmware License Agreement.....................................................2
Introduction to the TNE1544 and TNE1584......................................................4
Package Contents .............................................................................................4
Release Notes...................................................................................................4
Powering Up the Network Extender..................................................................5
Connecting the T1 Lines....................................................................................7
Connecting the Ethernet Lines..........................................................................8
LED Indicators...................................................................................................9
Web Interface ..................................................................................................11
Command Line Interface.................................................................................15
Resetting the Network Extender to Factory Defaults ......................................16
Specifications ..................................................................................................19
EMI Notices .....................................................................................................20
ACTA Customer Information ...........................................................................20
Supplier's Declaration of Conformity...............................................................22
Notice to Users of the Canadian Telephone Network.....................................22
NEBS Compliance...........................................................................................23
Important Safety Instructions...........................................................................24
Product Documentation Online .......................................................................25

2
Software and Firmware License Agreement
ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS
TERMS, YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED
INTO THE ZHONE PRODUCT. BY USING THE ZHONE PRODUCT YOU SHOW
YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.
IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS
LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS
ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE
LOCATION WHERE YOU OBTAINED THE ZHONE PRODUCT OR THE LOCATION
FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU WILL
RECEIVE A REFUND OR CREDIT FOR THE ZHONE PRODUCT PURCHASED BY
YOU.
The terms and conditions of this License Agreement (the “Agreement”) will apply to the
software and/or firmware (individually or collectively the “Software”) incorporated into
the Zhone product (the “Product”) purchased by you and any derivatives obtained from
the Software, including any copy of either. If you have executed a separate written
agreement covering the Software supplied to you under this purchase, such separate
written agreement shall govern.
Zhone Technologies, Inc (“Zhone”) grants to you, and you (“Licensee”) agree to accept
a personal, non-transferable, non-exclusive, right (without the right to sublicense) to
use the Software, solely as it is intended and solely as incorporated in the Product
purchased from Zhone or its authorized distributor or reseller under the following terms
and conditions:
1. Ownership: The Software is the sole property of Zhone and/or its licensors. The
Licensee acquires no title, right or interest in the Software other than the license
granted under this Agreement.
2. Licensee shall not use the Software in any country other than the country in which
the Product was rightfully purchased except upon prior written notice to Zhone and
an agreement in writing to additional terms.
3. The Licensee shall not reverse engineer, decompile or disassemble the Software
in whole or in part.
4. The Licensee shall not copy the Software except for a single archival copy.

3
5. Except for the Product warranty contained in the manual, the Software is provided
“AS IS” and in its present state and condition and Zhone makes no other warranty
whatsoever with respect to the Product purchased by you. THIS AGREEMENT
EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, WHETHER EXPRESS
OR IMPLIED, OR ORAL OR WRITTEN, INCLUDING WITHOUT LIMITATION:
a. Any warranty that the Software is error-free, will operate uninterrupted in your
operating environment, or is compatible with any equipment or software
configurations; and
b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NON-INFRINGEMENT.
Some states or other jurisdictions do not allow the exclusion of implied warranties
on limitations on how long an implied warranty lasts, so the above limitations may
not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from one state or jurisdiction to another.
6. IN NO EVENT WILL ZHONE BE LIABLE TO LICENSEE FOR ANY
CONSEQUENTIAL, INCIDENTAL, PUNITIVE OR SPECIAL DAMAGES,
INCLUDING ANY LOST PROFITS OR LOST SAVINGS, LOSS OF BUSINESS
INFORMATION OR BUSINESS INTERRUPTION OR OTHER PECUNIARY LOSS
ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE,
WHETHER BASED ON CONTRACT, TORT, WARRANTY OR OTHER LEGAL
OR EQUITABLE GROUNDS, EVEN IF ZHONE HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY THIRD
PARTY.
7. The rights granted under this Agreement may not be assigned, sublicensed or
otherwise transferred by the Licensee to any third party without the prior written
consent of Zhone.
8. This Agreement and the license granted under this Agreement shall be terminated
in the event of breach by the Licensee of any provisions of this Agreement.
9. Upon such termination, the Licensee shall refrain from any further use of the
Software and destroy the original and all copies of the Software in the possession
of Licensee together with all documentation and related materials.
10. This Agreement shall be governed by the laws of the State of California, without
regard to its provisions concerning conflicts of laws.

4
Introduction to the TNE1544 and TNE1584
Zhone's TNE1544 and TNE1584 are loop bonding network extenders for Zhone's
12000 and 4000 IP Broadband Loop Carriers that provide up to 6 Mbps (TNE1544) or
12 Mbps (TNE1584) of symmetrical bandwidth using T1 lines.
The TNE1544 features four T1 ports, and the TNE1584 eight T1 ports, each capable of
up to 1.5 Mbps bandwidth. When used with any Zhone loop bonding compatible
product, one to eight ports may be used to deliver high-speed bandwidth at any given
distance. Zhone's loop bonded technology provides automatic load balancing and fail-
over for optimum redundancy and data throughput. In addition the TNE1544 and
TNE1584 support repeaters installed on the T1 loop, ensuring maximum distance and
flexibility.
The TNE1544 and TNE1584 can be connected to any combination of T1 uplink
interface modules, micro interface modules, and network extenders, so long as every
connection pairs a provider and a subscriber unit.
Provider and Subscriber Defaults
The following table highlights the differences between provider and subscriber units.
Table 1. Unit Defaults by Type
Feature Provider Unit Subscriber Unit
Default IP Address 192.168.254.252 192.168.254.251
Out of Band Management Over Ethernet Ports Over T1 Ports
Inband Management Over T1 Ports Over Ethernet Ports
Response to Broadcast ARP
Request by IP Address Unit answers. Unit does not answer on T1 ports; answers only to ARP
request on Ethernet ports
Package Contents
Unpack and Inspect the network extender. If there is any visible damage, do not
attempt to connect the device. Contact your sales or service provider.
Release Notes
Before installing your network extender, review the release notes for your
model. These are available on the “Service and Support” page under the
documentation heading at the Zhone website.

5
Powering Up the Network Extender
The DC power terminal block on the network extender has five terminals: two positive,
two negative, and one with no connection. Only one positive terminal and one negative
terminal pair need be connected for operational purposes. The second positive and
negative terminal pair may be connected to a backup DC power supply for redundancy.
There is also a system ground terminal on the back panel above the power connector.
Connect this terminal to a reliable source of ground. The ground terminal must always
be connected regardless of the powering connections... DO NOT OPERATE THE
NETWORK EXTENDER WITHOUT A GROUND CONNECTION.
Procedure
Ground Connection
1. Connect a copper wire of at least 18 AWG from a ground source to the ground lug
on the back of the case. In Telco central office installations, the ground source
must be a Common Bonding Network (CB-N)
2The ampacity of the ground conductor shall be equal to or greater than the
ampacity of the conductor connected to the DC power connection’s DC return.
3Strip the end of the ground wire. The bare stripped ends of the ground conductor
must be coated with an anti oxidation compound before crimp connections are
made to connector terminals. Crimp a connector, of a suitable size to fit the ground
lug on the chassis, on to the prepared wire end. Use only listed connection
terminals on the ground wire.
4 The ground lug on the unit has two nuts with a star washer between them.
Remove the outer nut and star washer, put the ground connector (prepared in step
3 above) over the ground stud on the chassis. Replace the star washer on the
stud, then the nut. Tighten the nut so that the ground connection is secure and will
not rotate.
Power Connection – DC Power
1. Loosen all screws at the top of the power terminal strip.
2. Insert your –48 VDC lead into the negative (–) terminal of a terminal pair. Tighten
the screw for that terminal.
3. Insert your 48 VDC return lead into the positive (+) terminal of the same terminal
pair as in Step 2. Tighten the screw for that terminal.
4. Repeat Step 2 and Step 3 for the free pair of power terminals if you have a
redundant power supply.
5 Plug the power terminal strip into the power connector on the back of the unit.
6. Verify that the Power LED on the front of the network extender is illuminated.

6

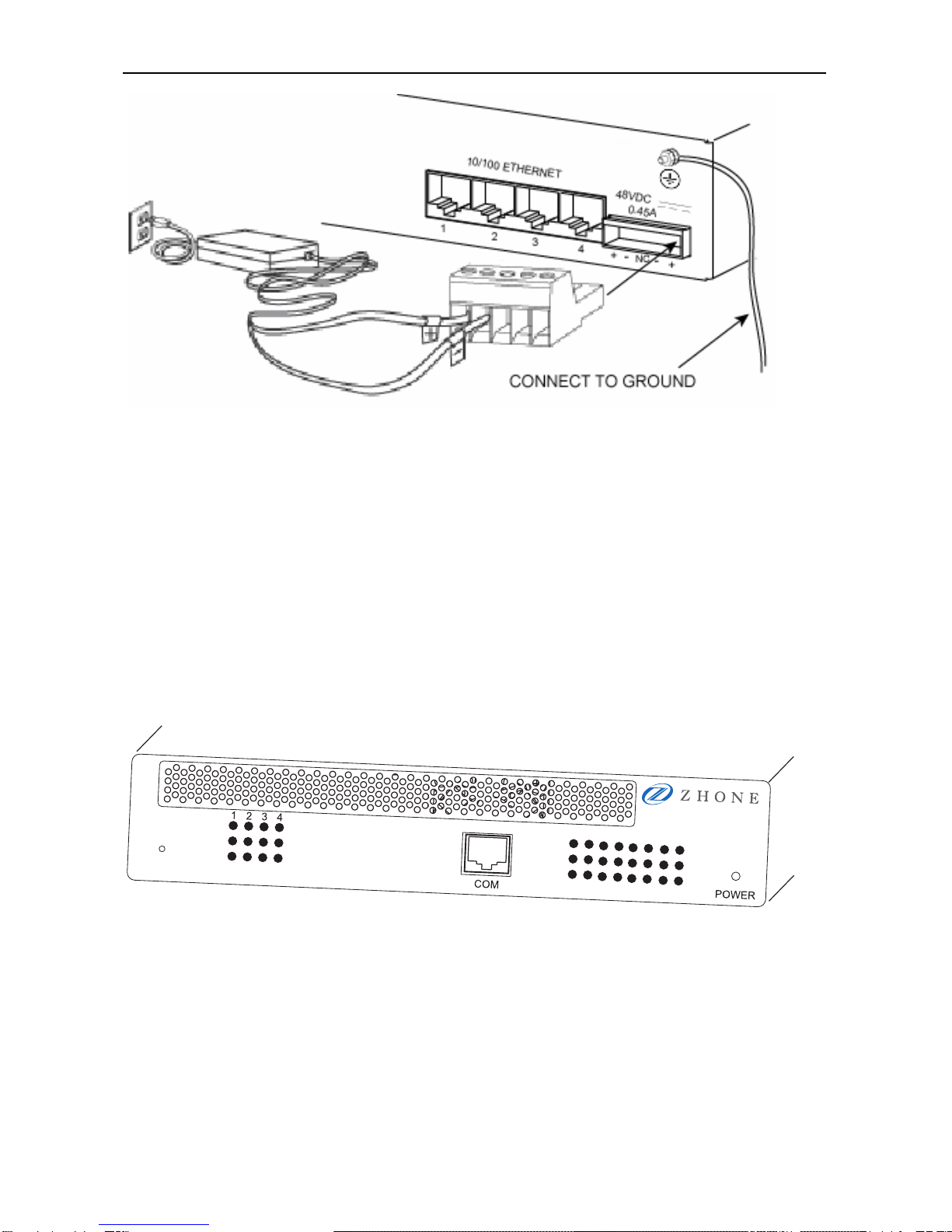

Power Connection – AC Power
1. The AC power supply is shipped with the power terminal strip already attached.
No AC power supply other than the one supplied with the TNE15x4-x-US or
TNE15x4-x-UK is approved for use in powering the unit. Using any other AC
power supply could cause the unit to be non-compliant to emissions and safety
regulations.
2 Plug the power terminal strip into the power connector on the back of the unit.
3 Plug the AC power cord into the AC power supply and into a compatible AC outlet.
4. Verify that the Power LED on the front of the network extender is illuminated.
TNE1584
345678
1
2
T1 Connections
Link/Alm
Tx
Rx
10/100 Ethernet Connections
Link/Act
Duplex/Collision
100

7
Connecting the T1 Lines
The primary feature of the network extender is loop bonding capability, although both
the provider and subscriber units are able to function with a single T1 connection.
Loop Bonded Connection
Using multiple T1 lines for one network connection (loop bonding) multiplies the speed
and data passing capability of the network extender. Multiple T1 lines also act as a
backup should any of the lines become disabled.
A network extender can only establish loop bonded connections with other Zhone
equipment with the loop bonding feature. See Product to Product T1 Loop Bonding
Compatibility (document number COMP-A2-GK43).
Procedure
1. Plug the T1 cables into the T1 Connections RJ48C ports on the back of the
network extender. The order of connection is not important.
+ -
NC - +
T1 or E1 Connections
10/100 Ethernet Connections
1
2
3
4
1
2
3
4
+ -
NC
- +
T1 or E1 Connections
5678
1
2
3
4
1
2
3
4
2. Verify all connections: the T1 Connections Lnk/Alm LEDs on the front of the
network extender will pulse green to indicate the connections are established and
operational.

8
Single T1 Connection
A single line connection can be established between a subscriber unit and any Zhone
T1 provider unit, regardless of loop bonding capability. Likewise, a single line
connection can also be established between a provider unit and any of Zhone's T1
subscriber units, regardless of loop bonding capability.
Procedure
1. Plug the T1 cable into any of the T1 RJ48C ports on the back of the network
extender.
2. Verify the connection: the related T1 Connections Lnk/Alm LED on the front of the
network extender corresponding to the connected port will pulse green to indicate
the connection is established and operational.
Connecting the Ethernet Lines
The 10/100BaseT Ethernet ports can auto-negotiate speed and duplex mode in
accordance with the remote equipment to which it is connected, or Ethernet speed and
duplex mode configurations can be configured using web management. (See Web
Interface on page 11.) For the best connection results, the remote devices (PCs, hubs,
or switches) should be set to auto-negotiate speed and duplex mode.
Procedure
1. Plug the Ethernet cable into one of the 10/100 Ethernet ports on the back of the
network extender. A straight-through cable can be used for all applications.
2. Verify the connection: solid green illumination of the corresponding
10/100 Ethernet Connection Lnk/Act (Link/Activity) LED on the front of the network
extender indicates a connection has been established. If the Ethernet Lnk/Act LED
is illuminated but not the Ethernet 100 LED, then a 10 Mbps connection has been
established. If the Ethernet Lnk/Act and 100 LEDs are both illuminated, then a
100 Mbps connection has been established.

9
LED Indicators
Table 2. LEDs (1 of 2)
LED State Indication Additional Information
Pulsing
Green Standard operation Traffic is flowing without any problems.
Solid
Green Ethernet connection is established If the Ethernet Lnk LED is illuminated but not the
Ethernet 100 LED then a 10
Mbps connection has been
established. If the Ethernet
100 LED is also illuminated,
then a 100 Mbps connection
has been established.
10/100
Ethernet
Connections
Lnk/Act
Not
Illuminated No Ethernet connection The Ethernet 100 and Act LEDs will remain unlit by
default.
Solid
Amber Full duplex Ethernet connection.
Not
Illuminated No link or functioning at half duplex.
10/100
Ethernet
Connections
Duplex/
Collision
Pulsing
Amber Half duplex link with packet collisions.
Solid
Green 100 Mbps Ethernet connection is
established
If the Ethernet 100 LED is
illuminated, the Ethernet
Lnk/Act LED will be green.
10/100
Ethernet
Connections
100 Not
Illuminated No 100 Mbps Ethernet connection If the Ethernet 100 LED remains unlit but the Ethernet
Lnk/Act LED is green, then a
connection has been
established at 10 Mbps rather
than 100 Mbps.

10
Table 2. LEDs (2 of 2)
LED State Indication Additional Information
Flashing
Green* T1 connection is established and active Traffic is flowing.
Solid Green T1 link A connection exists but there
is indication of a problem with
the T1 line.
Solid
Amber Remote Alarm Indication (RAI). The
outgoing connection
from the unit has been
lost; no data is being
transmitted.
Yellow alarm. The unit's
partner network extender has
lost its incoming connection
and has LOS.
T1
Connections
Lnk/Alm
(Ports 1–4 or
1–8)
Pulsing
Amber Alarm Indication Signal (AIS). An indirect
connection has been
lost; the unit may no
longer be receiving
data from its partner
network extender.
Blue alarm. The unit's partner
network extender has lost a
connection with an
intermediate device and has
LOS or RAI.
Flashing
Amber Data is being transmitted .T1 Connections
Tx (Ports 1–
4 or 1–8)
Not
Illuminated No data is being transmitted.
Flashing
Amber Data is being received.T1 Connections
Rx (Ports 1–
4 or 1–8)
Not
Illuminated No data is being received.
Power Solid Green The unit is powered If the Power LED is not
illuminated, it is unlikely that
the network extender is
receiving power and therefore
none of the LEDs will be
illuminated
* A pulsing LED blinks steadily at a rate of once per second. A flashing LED blinks at a
more rapid, less constant rate.

11
Web Interface
The network extender’s integral web management lets you configure and monitor the
network extender using a standard web browser.
To manage a Provider unit using web management, connect your PC to any Ethernet
port of the Provider unit.
By default, the Subscriber unit can be managed by the web management through its
Ethernet ports, but you must first create a static entry for the unit in your PC’s ARP
table in order to manage the unit through the T1 ports.
Establishing an ARP Table Entry for a Subscriber Unit
The subscriber unit will not respond to an ARP request containing the unit’s default IP
address from the T1 ports. In order to manage the subscriber unit using web
management you must create a static ARP table entry on your PC. To build a static
ARP table entry:
Procedure
1. Get the MAC address from the bottom label of the subscriber unit.
2. Open a command prompt. (Click on Start, and then Run. In the Open: window
type CMD and press Enter.) At the command line, type:
arp -s 192.168.254.251 xx-xx-xx-xx-xx-xx
Where the IP address is the default address of the subscriber unit and the MAC
address is the number on the bottom label. For example: if the MAC address on
the bottom label is 00-50-ca-01-28-86, the command will be:
arp -s 192.168.254.251 00-50-ca-00-01-28-86
Once the ARP table entry is configured, you can ping and manage the unit using web
management from the T1 side of the network.
If you change the IP address to anything other than the default, the subscriber unit
responds to ARP requests and does not require a static ARP table entry to manage it
using the web browser.
For security purposes you may want to turn off inband management of the unit to
prevent a local PC from managing the unit from the Ethernet ports.

12
Web Interface System Requirements
 Web Browser – Required for running web management. Compatible web
browsers include, but are not limited to, Microsoft Internet Explorer (v4.0 or higher)
and Netscape Navigator (v4.0 or higher). web management is optimized for use
with Internet Explorer.
Use your browser's default settings when running web management. JavaScript
must be enabled.


 Screen Resolution – 1024 x 768 pixels is the minimum resolution required for all
web management views to fit within the dimensions of most monitors and laptops.
Lower screen resolutions (such as 800 x 600 pixels) may cause web management
screens to exceed the width or height of the screen. To verify screen resolution on
a Windows system:
— Right click on your desktop
— Select Properties
— Click the Settings tab
— Adjust the Screen Resolution as needed
Configuring Your Windows PC to Communicate with Web Management
To communicate with web management, your PC’s Ethernet interface must be on the
same subnet as the network extender. For example, to configure the IP address under
Windows XP:
Procedure
1. In the Windows task bar, click on the Start button, and then click on Control Panel.
2. Double-click on the Network Connections icon.
3. In the LAN or High-Speed Internet window, right-click on the icon corresponding to
your network interface card (NIC) and select Properties. (Often this icon is labeled
Local Area Connection.) The Local Area Connection dialog box is displayed with a
list of currently installed network items.
4. Ensure that the check box to the left of the item labeled Internet Protocol (TCP/IP)
is checked, and click on Properties.
5. Write down the current IP Address and Subnet Mask in the Internet Protocol
(TCP/IP) Properties dialog box. When you are done using web management, you
will need to reconfigure your PC with these values.
6. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio button
labeled “Use the following IP address” and type 192.168.254.x (where x is any
number between 3 and 250, inclusive) in the IP Address field.
7. Type 255.255.255.0 in the Subnet Mask field.
8. Click on OK twice to confirm your changes, and close the Control Panel.
9. Start your web browser. Type 192.168.254.252 (for a provider unit) or

13
192.168.254.251 (for a subscriber unit) into the Address field and press Enter. The
web server opening screen appears.
10. Click on >> Next >>. The login dialog box appears. Log in using:
Username:
superuser
Password:
Password
The web management home page appears. The Subscriber unit is shown.

14
From this screen you can:
Click on . . . To configure . . .
Management Config. IP Address, Subnet Mask, Default Gateway,
Inband Management VLAN ID and Priority.
VLAN Flood Configuration and Membership
Advanced Config. System Name and Location, Management IP
Address Filter, TFTP and Telnet access. MAC
Address Mode (Trusted/Untrusted)
HTTP Password General and Superuser Passwords
SNMP Config. SNMP Notification IP Addresses and SNMP
Traps
SNMP Community SNMP Community Names
Ethernet Connections Lnk/Act
LEDs Ethernet Duplex Mode and Speed. Native/Backbone VLAN ID and Priority
T1 Connections Lnk/Alm LEDs T1 Data Rate, Frame Type, Line Code,
TX Buildout, and Clock Source (Provider only),
Filter Configuration, DSCP Rules, IP Rules,
MAC Rules, VLAN Rules, Ether Type, Port
Statistics, and Port Copy

15
Command Line Interface
The network extender can be managed with a Command Line Interface (CLI) through
either a direct PC to COM (Communication) Port connection or from a remote network
connection via Telnet.
CLI System Requirements
 Straight-Through 8-Pin Modular Ethernet Cable – Required for establishing a
direct connection from the COM port to a DB9 adapter.
 DB9 Female to 8-Pin Modular Male Adapter – Required for conversion of your
PC's RS232 serial port for use with the Ethernet cable.
 Terminal Emulation Program – Required for running the CLI over a direct
connection. The program must emulate a VT100 terminal.
 Telnet Client – Required for remote management with the CLI. Microsoft Windows
Operating Systems (98, 2000, NT, and XP) include a Telnet client which is run
using the Windows command prompt (cmd.exe). If you are using an operating
system other than Windows, you may need to install a Telnet client.
Connecting a PC Directly
Initial configuration using the CLI requires a direct physical connection from your PC to
the COM port of the network extender you are configuring. (However, the web interface
is recommended for subsequent configuration.)
Procedure

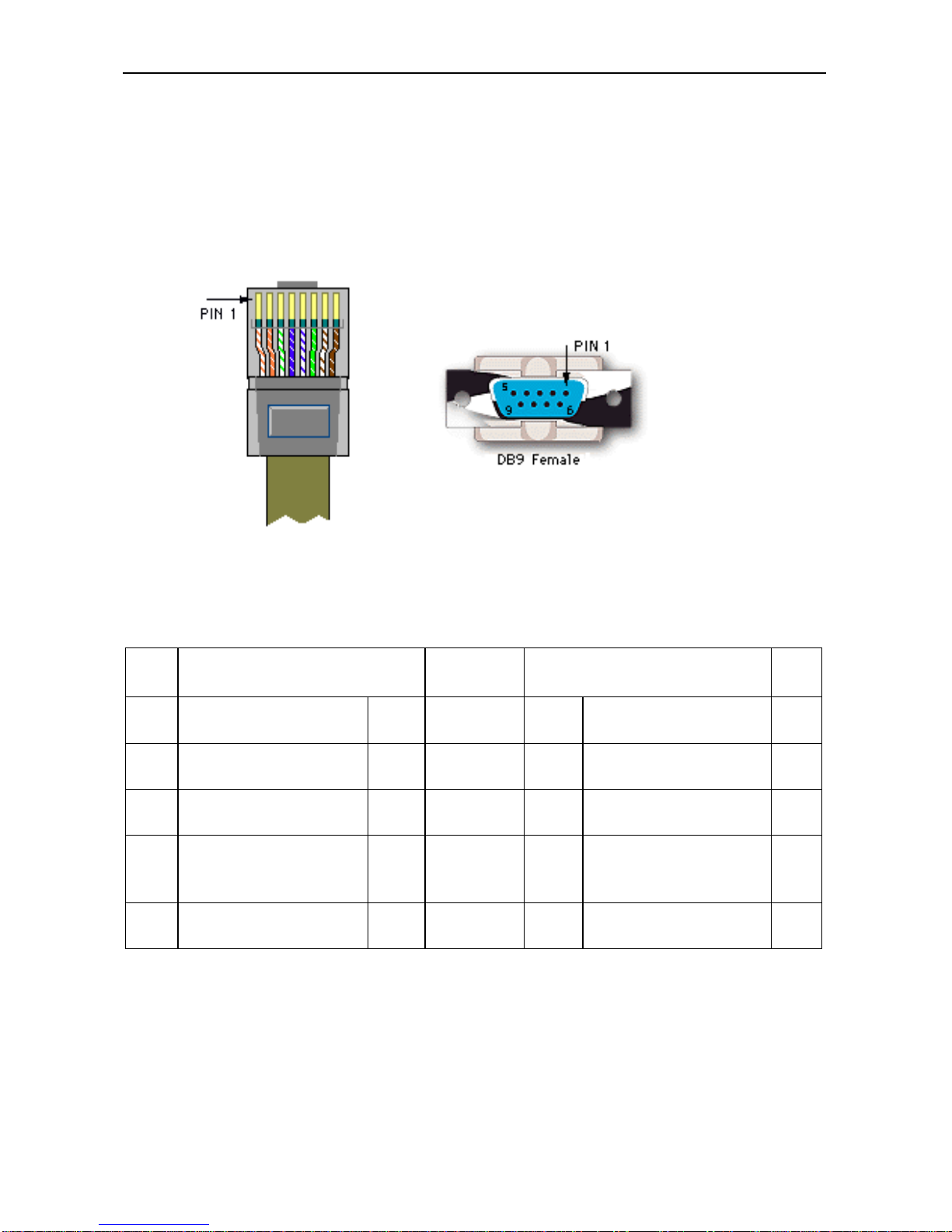

1. Plug a DB9 to 8-pin modular adapter into the RS232 serial port on your PC. See
DB9 to 8-Pin Modular Adapter Pinouts on page 19.
2. Connect one end of a straight-through Ethernet cable into the adapter plugged into
your PC, and the other end of the cable into the COM port on the face of the
network extender.
Launching the Terminal Emulation Program
Launch the terminal emulation program on your PC and configure the program
settings. Actual configurations will depend upon the program being used, though
settings should be modeled after the list below; most are standard defaults.
Baud:
9600 Port:
Com 1
Data Bits:
8 Stop Bits:
1
Flow Control:
None, Software or
XON/XOFF Transmit Delay:
n/a
Parity:
none

16
Refer to your terminal emulation program’s user manual for further information.
Logging Into the CLI
Once your terminal emulation program has been launched, device information is
displayed, followed by a request for username and password. You must log in as a
superuser in order to make configuration changes.
Username:
superuser
Password:
Password
After you have logged in, enter a question mark (?) to list the available commands.
CLI Set commands are used to establish inband management. For example:
set slot 1 ip_address 137.182.10.251
set slot 1 subnet_mask 255.255.255.0
set slot 1 default_gateway 137.182.10.10
The Subscriber unit in this example can now be managed with web management by
attaching a PC to one of the network extender’s Ethernet ports and opening the
address 137.182.10.251 in a web browser.
Resetting the Network Extender to Factory Defaults
The network extender supports a reset process that may be used to delete the current
configuration and return it to the factory defaults, including the default password.
Procedure
To return the network extender to its factory default configuration:
1. The reset button is located behind a small hole on the left side of the faceplate of
the network extender. Use a straightened paper clip to gently push the button and
let it go.
2. Wait a few seconds until the T1 Port LEDs flash green starting at Port 1 and
ending at Port 4 or 5, depending on the TNE15x4 model that you have. Gently
push the reset button again during the time that the LEDs are flashing between
Ports 1 and 5. After the unit boots back up, NVRAM is cleared, and all
configurations on the unit are set to the factory defaults.

17
Connector Pin Assignments
T1 RJ48C Pin Assignments
Table 3. T1 RJ48C Pin Assignments
Pin Function
Pin 1 Rx Ring
Pin 2 Rx Tip
Pin 3 not used
Pin 4 Tx Ring
Pin 5 Tx Tip
Pin 6 not used
Pin 7 not used
Pin 8 not used
Ethernet Pin Assignments
Table 4. Ethernet Pin Assignments
Pin Function
Pin 1 Rx+
Pin 2 Rx–
Pin 3 Tx+
Pin 4 not used
Pin 5 not used
Pin 6 Tx–
Pin 7 not used
Pin 8 not used

18
DB9 to 8-Pin Modular Adapter Pinouts
To connect the COM port to the DB9 serial port of a PC, use an adapter wired as
shown:
Table 5. DB9 to 8-Pin Modular Adapter Pinouts
Pin 8-Pin Modular Port Direction PC RS232 Serial Port Pin
1 Transmit Data TxD RxD Receive Data 2
2 Data Set Ready DSR RTS Request to Send 7
4 Receive Data RxD TxD Transmit Data 3
5 Ground GN
D GND
Ground 5
6 Data Terminal Ready DTR CTS Clear to Send 8
Pins not shown are unused.

19
Specifications
Specifications are subject to change without notice.
Table 6.Specifications
Specification Criteria
Bandwidth/Distance Up to 1.5 Mbps per T1 port
TNE1544: Up to 6 Mbps using loop bonded T1 circuits
TNE1584: Up to 12 Mbps using loop bonded T1 circuits
Dimensions 1.25" (3.2 cm) High x 8.5" (21.6 cm) Wide x 4.75" (12.1 cm)
Deep
Interfaces TNE1544: 4 T1 RJ48C 8-position jacks (Unchannelized T1)
TNE1584: 8 T1 RJ48C 8-position jacks (Unchannelized T1)
4 10/100BaseT 8-position jacks
Operating
Environment Temperature: 32 F to 122 F (0 C to 50 C)
Non-operating temperature: –40 F to 158 F (–40 C to 70 C)
Humidity: 5% to 95%, non-condensing
Altitude: –200 ft to 16,500 ft (–60 m to 5,000 m)
Power TNE1544: –48 VDC, 0.2 A, 11 W
TNE1584: –48 VDC, 0.3 A, 15 W
Protocols Supported Transparent 802.1D Bridging
T1 Frame Type: ESF, SF
T1 Line Code: B8ZS, AMI
Regulatory
Compliance EMC: FCC Part 15; ICES-003; EN 300 386-2; CE Marking
Safety: UL1950, CSA C22.2 No. 950; EN60950; IEC950; CE
Marking
Telecom: FCC Part 68; Industry Canada CS-03
Standards Supported
IEEE 802.3 Ethernet
IEEE 802.1p Priorities
IEEE 802.1Q VLAN
Weight 1.0 lbs (0.45 kg)

20
EMI Notices
United States – EMI Notice:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
The authority to operate this equipment is conditioned by the requirements that no
modifications will be made to the equipment unless the changes or modifications are
expressly approved by Zhone Technologies, Inc..
If the equipment includes a ferrite choke or chokes, they must be installed per the
installation instructions.
Canada – EMI Notice:
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil num rique de la classe A est conforme la norme NMB-003 du Canada.
ACTA Customer Information
This equipment complies with Part 68 of the FCC rules and the requirements adopted
by the Administrative Council for Terminal Attachments (ACTA). On the bottom of the
network extender is a label that contains, among other information, a product identifier
in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the
telephone company.
The T1 network connections should be made using a Universal Service Order Code
(USOC) type RJ48C jack. The Service Order Code 6.0F should be specified to the
telephone company when ordering the T1 line. In addition, the proper Facility Interface
Code must be specified to the Telephone Company. The network extender can be
configured to support any of the following framing format and line signaling techniques.
The network extender's configuration must correspond to the T1 line's parameters.
Facility Interface Codes Code Description
04DU9-BN 1.544 Mbps superframe format (SF) without line power
04DU9-DN 1.544 Mbps SF and B8ZS without line power
04DU9-1KN 1.544 Mbps ANSI ESF without line power
04DU9-1SN 1.544 Mbps ANSI ESF and B8ZS without line power
