Zhone BSX8000 User manual

BSX8-A2-GZ40-20 June 2005 1
BSX8000-5 Broadband Services Switch
Installation Instructions
Document Number BSX8-A2-GZ40-20
June 2005
Contents
Software and Firmware License Agreement ...................................................... 1
Product Documentation Online .......................................................................... 3
Release Notes ................................................................................................... 3
BSX8000-5 Overview ........................................................................................ 3
Unpacking and Inspecting the Equipment ......................................................... 4
Installing a Micro Interface Module (MIM) in the BSX8000-5 ............................ 4
Installing the BSX8000-5 in a BLC .................................................................... 5
Connect the MIM to the Network ....................................................................... 5
BLC Management .............................................................................................. 6
Web Interface (NMS) ......................................................................................... 6
Command Line Interface (CLI) .......................................................................... 10
LED Indicators ................................................................................................... 13

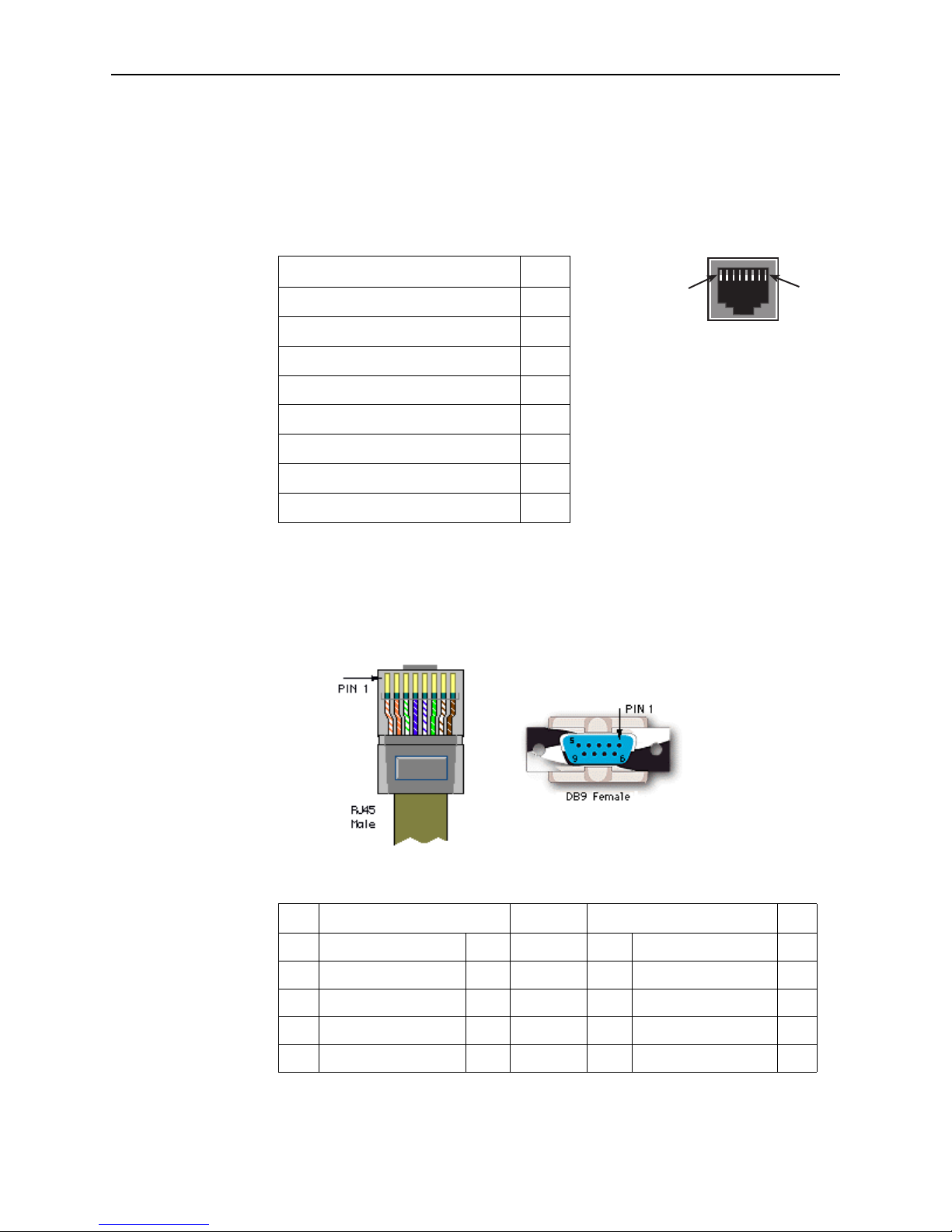

10/100/1000BaseT Connectors ......................................................................... 14
DB9 to RJ45 Adapter Pinouts ............................................................................ 14
Regulatory Compliance for Class A Equipment ................................................. 15
Warranty, Sales, Service, and Training Information ........................................... 15
Software and Firmware License Agreement
The terms and conditions of this License Agreement (the “Agreement”) will apply to the
software and/or firmware (individually or collectively the “Software”) incorporated into the
Paradyne product (the “Product”) purchased by you and any derivatives obtained from the
ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS TERMS,
YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED INTO THE
PARADYNE PRODUCT. BY USING THE PARADYNE PRODUCT YOU SHOW YOUR
ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.
IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS
LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS
ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE
LOCATION WHERE YOU OBTAINED THE PARADYNE PRODUCT OR THE
LOCATION FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU
WILL RECEIVE A REFUND OR CREDIT FOR THE PARADYNE PRODUCT
PURCHASED BY YOU.

2June 2005 BSX8-A2-GZ40-20
Software, including any copy of either. If you have executed a separate written agreement
covering the Software supplied to you under this purchase, such separate written
agreement shall govern.
Paradyne Corporation (“Paradyne”) grants to you, and you (“Licensee”) agree to accept a
personal, non-transferable, non-exclusive, right (without the right to sublicense) to use the
Software, solely as it is intended and solely as incorporated in the Product purchased from
Paradyne or its authorized distributor or reseller under the following terms and conditions:
1. Ownership: The Software is the sole property of Paradyne and/or its licensors. The
Licensee acquires no title, right or interest in the Software other than the license
granted under this Agreement.
2. Licensee shall not use the Software in any country other than the country in which the
Product was rightfully purchased except upon prior written notice to Paradyne and an
agreement in writing to additional terms.
3. The Licensee shall not reverse engineer, decompile or disassemble the Software in
whole or in part.
4. The Licensee shall not copy the Software except for a single archival copy.
5. Except for the Product warranty contained in the manual, the Software is provided “AS
IS” and in its present state and condition and Paradyne makes no other warranty
whatsoever with respect to the Product purchased by you. THIS AGREEMENT
EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, WHETHER EXPRESS OR
IMPLIED, OR ORAL OR WRITTEN, INCLUDING WITHOUT LIMITATION:
a. Any warranty that the Software is error-free, will operate uninterrupted in your
operating environment, or is compatible with any equipment or software
configurations; and
b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NON-INFRINGEMENT.
Some states or other jurisdictions do not allow the exclusion of implied warranties on
limitations on how long an implied warranty lasts, so the above limitations may not
apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from one state or jurisdiction to another.
6. In no event will Paradyne be liable to Licensee for any consequential, incidental,
punitive or special damages, including any lost profits or lost savings, loss of business
information or business interruption or other pecuniary loss arising out of the use or
inability to use the Software, whether based on contract, tort, warranty or other legal or
equitable grounds, even if Paradyne has been advised of the possibility of such
damages, or for any claim by any third party.
7. The rights granted under this Agreement may not be assigned, sublicensed or
otherwise transferred by the Licensee to any third party without the prior written
consent of Paradyne.
8. This Agreement and the license granted under this Agreement shall be terminated in
the event of breach by the Licensee of any provisions of this Agreement.
9. Upon such termination, the Licensee shall refrain from any further use of the Software
and destroy the original and all copies of the Software in the possession of Licensee
together with all documentation and related materials.
This Agreement shall be governed by the laws of the State of Florida, without regard to its
provisions concerning conflicts of laws.

BSX8-A2-GZ40-20 June 2005 3

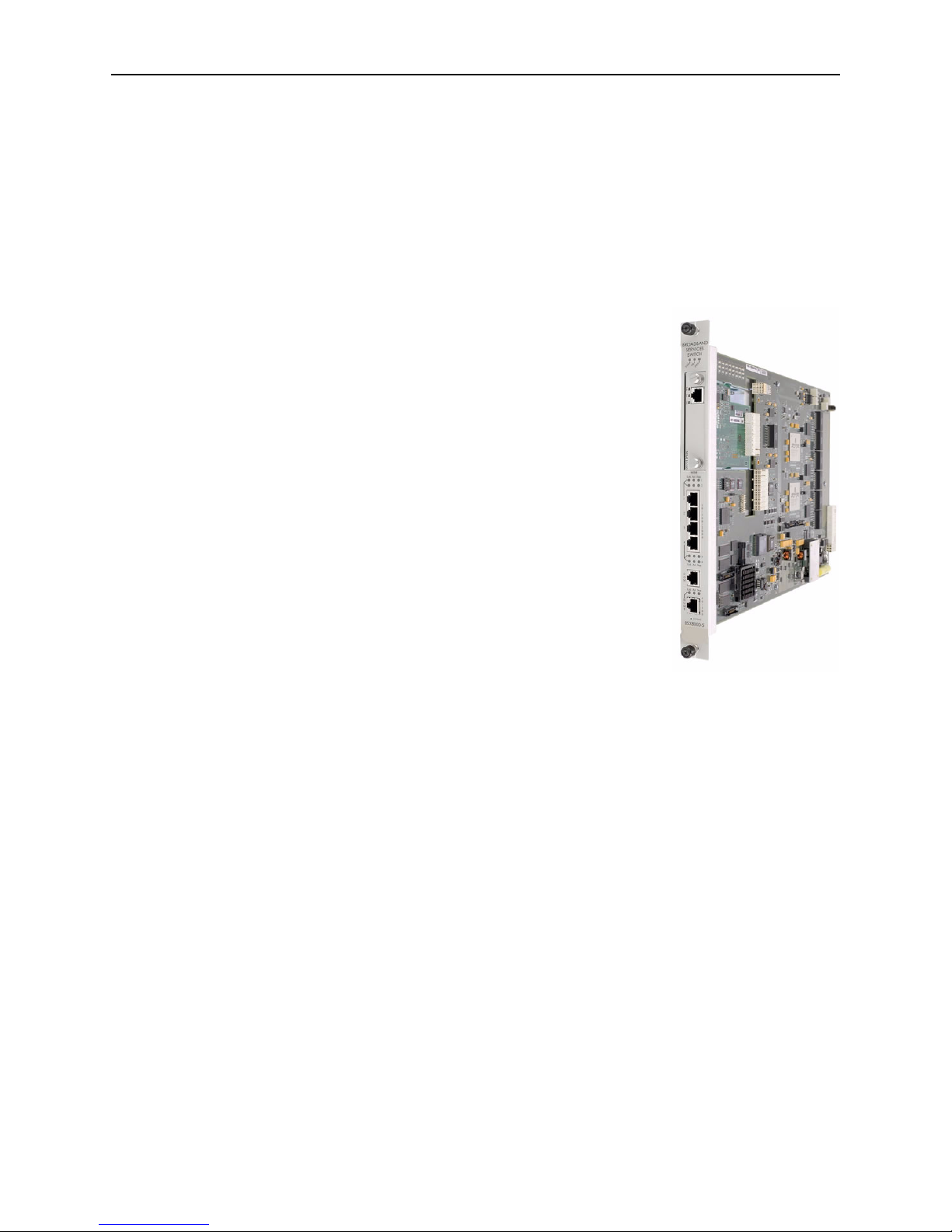

BSX8000-5 Overview
The BSX8000-5 Broadband Services Switch provides multi-gigabit Ethernet uplink
support capability, full-nonblocking switching throughput, and enhanced
management functionality for the 4000E and 12000E Broadband Loop Carriers
(BLCs).
The BSX8000-5 supports four fixed 10/100/1000 RJ45 Ethernet interfaces and
one MIM (Micro Interface Module) slot. Multiple MIM varieties are supported.
The BSX8000-5 delivers a full 1 Gbps full duplex
backplane connection to each access module in the
BLC. This ensures that the aggregate access bandwidth
cannot exceed the backplane speed of the chassis.
When two BSX8000 modules are used in the 12000E,
the backplane speed is doubled, providing a 2 Gbps
connection to each access module.
The BSX8000-5 supports the following access modules:
AAM8000-24
AIM24000-48
EIM2000-12
EIM2000-24
SIM2000-24
TIM1500-12
TIM1500-24
The BSX8000-5 supports 576 DSL ports.
Product Documentation Online
Complete documentation for Paradyne products is available at
www.paradyne.com. Select Support →Technical Manuals.
To order a paper copy of a Paradyne document, or to speak with a sales
representative, please call 1-727-530-2000.
Release Notes
Release notes for this product are available in the subscriber firmware area of
www.paradyne.com. Select Support →Subscriber Firmware.
Always review the relevant release notes before installing a new card.

4June 2005 BSX8-A2-GZ40-20
Unpacking and Inspecting the Equipment
HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage
due to electrostatic discharge (ESD) during normal operation. When
performing installation procedures, however, take proper static control
precautions to prevent damage to equipment. If you are not sure of the
proper static control precautions, contact your nearest sales or service
representative.
If there is any visible damage, do not attempt to connect the device. Contact your
sales or support representative
Installing a Micro Interface Module (MIM) in the BSX8000-5
A MIM provides the upstream network connection for the BLC. Any of Paradyne's
available MIM models may be installed on the BSX8000-5 uplink module.
Procedure
1. Remove the cover plate from the MIM port.
CAUTION: Cover plates should be stored for possible future use. If a MIM is
removed from a BSX8000-5, it must be replaced with either another MIM or a
cover plate. Do not operate a BSX8000-5 with an open MIM port.
2. Carefully slide the faceplate of the MIM into the BSX8000-5 uplink module
faceplate. Ensure that the mounting holes on the MIM are lined up with the
BSX8000-5 uplink module.
3. Secure the MIM circuit board to the BSX8000-5 uplink module with the two
thumbscrews.
!

BSX8-A2-GZ40-20 June 2005 5
Installing the BSX8000-5 in a BLC
The 12000E is a 14-slot Broadband Loop Carrier (BLC). Slots 1–12 are reserved
for access modules (such as the AIM24000-48) and slots U1 and U2 are reserved
for uplink modules. Although not required for operational purposes, if redundancy
is desired, two BSX8000-5 modules may be installed in the 12000E, in slots U1
and U2. (Note: For redundancy, the two uplink modules in the chassis must be
identical models.)
The 4000E is a five-slot BLC. Slots 1–4 are reserved for access modules and slot
U1 is reserved for a single uplink module.
Procedure
1. Align the BSX8000-5 uplink module with the slot module guides of the chosen
slot for installation (either slot U1 or U2 on the 12000E or slot U1 on the
4000E).
2. Slide the BSX8000-5 uplink module into the chassis. Do not use excessive
force.
3. Tighten the fastening screws on the BSX8000-5 uplink module faceplate.
4. Verify that the PWR (Power) LED on the BSX8000-5 faceplate is illuminated.
Connect the MIM to the Network
Connect to the core network by using one of the fixed GigE interfaces or by using
an interface from the added MIM. See 10/100/1000BaseT Connectors on page 14.
MIM-10/100
Plug your Ethernet cable into the RJ45 Ethernet port on the MIM-10/100 faceplate.
The MIM-10/100 connects to a router or a PC with a straight-through cable and to
a hub or a switch with a crossover cable.
Verify the connection: solid illumination of the Lnk (link) LED on the MIM-10/100
faceplate indicates an Ethernet uplink connection has been established. The
MIM-10/100 Ethernet port is 10/100 auto-negotiating.
NOTE: Configure the remote device with which you are connecting to
auto-negotiate (if applicable) prior to establishing your Ethernet connection.
MIM100F
Plug your Ethernet Fiber Optic Cable into the port on the MIM100F faceplate.
MIM-2000F
The MIM-2000F is a two-port fiber gigabit Ethernet interface, which connects to
the Fast Ethernet Bus of the BLC. This will function but is not recommended for
use with the BSX8000-5 Uplink Interface.

6June 2005 BSX8-A2-GZ40-20
MIM-4000F
The MIM-4000F is a four-port fiber gigabit Ethernet interface connecting directly to
the gigabit Ethernet switch in the BSX8000-5 uplink module.
MIM-2E1 or MIM-4E1
Plug your E1 cable into one of the RJ45 E1 ports on the MIM faceplate. The
MIM-2E1 or MIM-4E1 connects to an E1 network extender provider unit, or an
interface module in another BLC, via a standard E1 line.
Verify the connection: the Lnk (link) LED on the MIM faceplate flashes green to
indicate a network connection has been established.
MIM-2T1 or MIM-4T1
Plug your T1 cable into one of the RJ45 T1 ports on the MIM faceplate. The
MIM-2T1 or MIM-4T1 connects to a T1 network extender provider unit, or an
interface module in another BLC, via a standard T1 line.
Verify the connection: the Lnk (link) LED on the MIM faceplate flashes green to
indicate a network connection has been established.
BLC Management
The BSX8000-5 uplink module provides BLC management capability via the
Command Line Interface (CLI), Simple Network Management Protocol (SNMP),
and the web-based Network Management System (NMS).

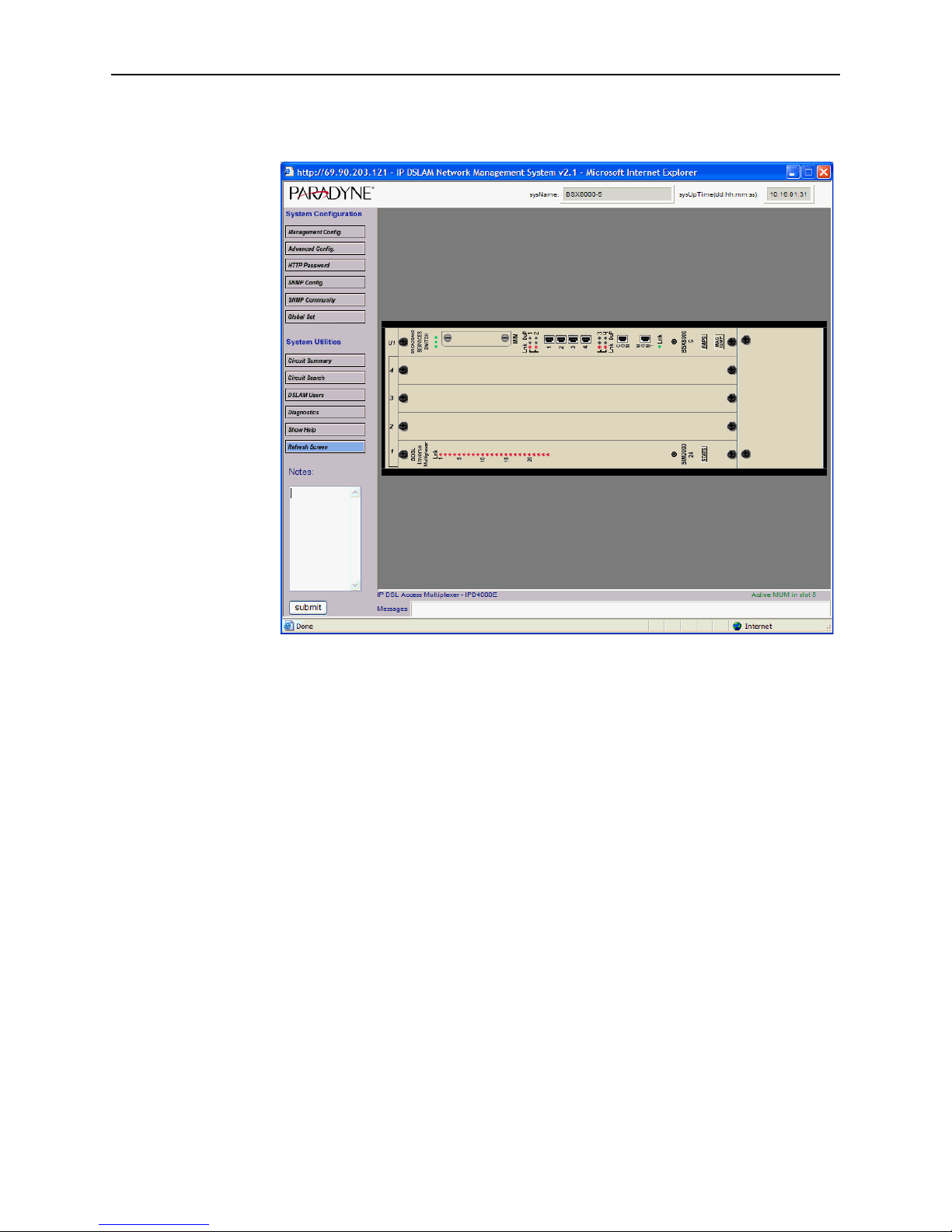

Web Interface (NMS)
The following are required for use of the NMS:
Web Browser – Required for running NMS. Compatible web browsers
include, but are not limited to, Microsoft Internet Explorer (version 6.0 or
higher) and Netscape Navigator (version 6.0 or higher). NMS is optimized for
use with Internet Explorer.
Use your browser's default settings when running NMS. JavaScript must be
enabled.
Screen Resolution – 1024 x 768 pixels is the minimum resolution required for
all NMS views to fit within the dimensions of most monitors and laptops. Lower
screen resolutions (such as 800 x 600 pixels) may cause NMS screens to
exceed the width or height of the screen. To verify screen resolution on a
Windows system:
— Right click on your desktop
— Select Properties
— Click the Settings tab
— Adjust the Screen Resolution as needed

BSX8-A2-GZ40-20 June 2005 7
Configuring Your Windows PC to Communicate with NMS
To communicate with NMS, your PC’s Ethernet interface must be on the same
subnet as the BSX8000-5. For example, to configure the IP address under
Windows XP:
Procedure
1. In the Windows task bar, click on the Start button, and then click on Control
Panel.
2. Double-click on the Network Connections icon.
3. In the LAN or High-Speed Internet window, right-click on the icon
corresponding to your network interface card (NIC) and select Properties.
(Often this icon is labeled Local Area Connection.) The Local Area Connection
dialog box is displayed with a list of currently installed network items.
4. Ensure that the check box to the left of the item labeled Internet Protocol
(TCP/IP) is checked, and click on Properties.
5. Write down the current IP Address and Subnet Mask in the Internet Protocol
(TCP/IP) Properties dialog box. When you are done using NMS, you will need
to reconfigure your PC with these values.
6. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio button
labeled “Use the following IP address” and type 192.168.254.x (where x is any
number between 3 and 250, inclusive) in the IP Address field.
7. Type 255.255.255.0 in the Subnet Mask field.
8. Click on OK twice to confirm your changes, and close the Control Panel.
9. Start your web browser. Type the default IP address into the Address field and
press Enter. The default IP address of a BSX8000-5 in Slot 13 of a 12000E
BLC or Slot 5 of a 4000E BLC is 192.168.254.252. The default IP address of a
BSX8000-5 in Slot 14 of a 12000E BLC is 192.168.254.253.
The web server opening screen appears.
10. Click on >> Next >>. The login dialog box appears. Log in using:
Username: superuser
Password: Password

8June 2005 BSX8-A2-GZ40-20
The NMS home page appears.

BSX8-A2-GZ40-20 June 2005 9
NMS Management Configuration
Use the Management Configuration screen to set the unit’s IP address and other
management parameters.
Procedure
To configure management parameters:
1. From the home screen, click on the Management Config button. The
Management Configuration screen appears.
2. Select or enter the following parameters:
Parameter Description
IP Address Specify the management IP address for the DSLAM.
Subnet Mask Specify the subnet mask for the IP address.
Gateway Specify the first-hop gateway address.
EtherType Select the type of packets supported by your router.
This is used only for backbone VLAN (Q in Q) traffic.
Inband MGMT Check this box if you will use inband management
(that is, you will allow the device to be contacted by
ports other than the MGMT port)..
VLAN Id Specify a VLAN identifier for inband management.
Priority Specify a priority (0–7) for inband management traffic.

10 June 2005 BSX8-A2-GZ40-20
3. Click on Submit.
Command Line Interface (CLI)
CLI System Requirements
Straight-Through RJ45 to RJ45 Ethernet Cable – Required for establishing
a direct connection from the COM port to a DB9 adapter.
DB9 Female to RJ45 Male Adapter – Required for conversion of your PC's
RS232 serial port for use with the RJ45 to RJ45 Ethernet cable.
Terminal Emulation Program – Required for running the CLI over a direct
connection. The program must emulate a VT100 terminal.
Telnet Client – Required for remote management with the CLI. Microsoft
Windows Operating Systems (98, 2000, NT, and XP) include a Telnet client
which is executed using the Windows command prompt (cmd.exe). If you are
using an operating system other than Windows, you may need to install a
Telnet client.
Flood Configuration Flood refers to the method in which interface modules
handle unknown unicasts, unknown broadcasts, and
unknown multicasts for each port.
Uplink – Any traffic with VLAN IDs that match a
VLAN ID that has been configured to Uplink flood
(default) will be allowed to flow from DSL ports to
uplinks only (not DSL port to DSL port).
VLAN – Any traffic with VLAN IDs that match a
VLAN ID that has been configured to VLAN flood
will be allowed to flow from DSL port to uplinks and
DSL port to DSL port.
Flood Membership
Configuration
Specify the VLAN membership of the uplink ports
(four fixed ports and any MIM ports).
By default all uplinks are members of all VLANs.
However you can change it such that an uplink port is
a member of only a certain set of VLAN IDs. In this
case any ingress or egress traffic on an uplink port
with a VLAN ID that the uplink port is not a member of,
will be dropped.
Parameter Description

BSX8-A2-GZ40-20 June 2005 11
Connecting a PC Directly
To connect a PC directly to the DSLAM to use the CLI:
Procedure
1. Plug a DB9 to RJ45 adapter into the RS232 serial port on your PC. See DB9
to RJ45 Adapter Pinouts on page 14.
2. Connect one end of a straight-through RJ45 to RJ45 Ethernet cable into the
adapter plugged into your PC, and the other end of the cable into the COM
port on the face of the BSX8000-5.
Launching the Terminal Emulation Program
Launch the terminal emulation program on your PC and configure the program
settings. Actual configurations will depend upon the program being used, though
settings should be modeled after the list below; most are standard defaults. Refer
to your terminal emulation program’s user manual for further information.
Logging Into the CLI
Once your terminal emulation program has been launched, device information is
displayed, followed by a request for username and password. You must log in as a
superuser in order to make configuration changes.
After you have logged in, enter a question mark (?) to list the available commands.
CLI Commands
The CLI supports the following commands:
Baud: 9600 Port: Com 1
Data Bits: 8 Stop Bits: 1
Flow Control: none Transmit Delay: n/a
Parity: none
Username: superuser
Password: Password
Table 1. CLI Commands (1 of 2)
Command Description
? Lists available commands and their syntax.
ALLOW Controls by IP address those hosts for which traffic is
permitted on the DSLAM. ALL (the default) permits all
traffic.
Syntax:
allow [ALL, IP_ADDRESS [IP address]]

12 June 2005 BSX8-A2-GZ40-20
CLEAR_NVRAM If no interface modules are present in the chassis, clears
Non-Volatile Random Access Memory, restoring the
DSLAM to factory defaults.
DISABLE_TELNET Disables access to the DSLAM using Telnet.
DISABLE_TFTP Disables access to the DSLAM using Trivial File Transfer
Protocol.
DISABLE_WEB_SERVER] Disables access to the DSLAM using the web server.
ENABLE_TELNET Enables access to the DSLAM using Telnet.
ENABLE_TFTP Enables access to the DSLAM using Trivial File Transfer
Protocol.
ENABLE_WEB_SERVER Enables access to the DSLAM using the web server.
HELP Lists available commands and their syntax.
LOGOUT Ends the CLI session.
SET Sets a configuration option. Most SET commands require
that slot be specified, and allow port optionally to be
specified. Exceptions are the two system SET commands
for session timeout and system name.
Syntax:
set cli_session_timeout seconds
set system_name name
set slot 1 [[port] [all, port_number]] [item] [value]
Items and values for SET commands are shown in the CLI
help.
SHOW Shows a configuration option. SHOW commands require
that slot be specified, and allow port optionally to be
specified.
Syntax:
show slot 1 [[port] [all, port_number]] [item] [value]
Items and values for SHOW commands are shown in the
CLI help.
WHO Shows who is logged in the system.
Table 1. CLI Commands (2 of 2)
Command Description

BSX8-A2-GZ40-20 June 2005 13
LED Indicators
Table 2. LED States and Meanings
LED State Indication Additional Information
PWR (Power) Solid green BSX8000-5 uplink module is
receiving power
Both BLC power terminals are connected.
Solid amber BSX8000-5 uplink module is
receiving power
Only one of the BLC power terminals is
connected.
No illumination No power The BSX8000-5 uplink module is not receiving
power (the BLC may or may not be receiving
power).
OK Pulsing green* BSX8000-5 uplink module is
operational
Fan Solid green All fans are functioning All four of the fans on the BLC fan card are
functioning.
Solid amber Non-functioning fan At least one of the four fans on the BLC fan card
is no longer functioning.
Lnk (Link)
Uplink Ports
and MGMT
Solid green GigE link established The MGMT port does not support GigE.
Solid amber Link established at 10 or
100 Mbps
No illumination No link is established
Act (Activity)
Uplink Ports
and MGMT
Flashing green* Traffic flowing on link
Dup (Duplex)
Uplink Ports
and MGMT
Solid green Full duplex mode
No illumination Half duplex mode
[MIM] Lnk
(Link)
Solid green MIM-10/100, MIM100F,
MIM-2000F, or MIM-4000F
uplink connection is
established
For further information regarding MIM LEDs,
please refer to the corresponding MIM Installation
Instructions.
Flashing green*
*A pulsing LED blinks steadily at a rate of once per second. A flashing LED blinks at a more rapid,
less constant rate.
MIM-2T1 MIM-4T1,
MIM-2E1, or MIM-4E1
uplink connection is
established
For further information regarding MIM LEDs,
refer to the corresponding MIM Installation
Instructions.
No illumination No uplink connection is
established
Applicable to all MIM model types.

14 June 2005 BSX8-A2-GZ40-20
10/100/1000BaseT Connectors
The uplink ports are 8-pin unkeyed modular jacks for a 10/100/1000BaseT
interface. The MGMT port is an 8-pin modular jack supporting 10/100BaseT.
DB9 to RJ45 Adapter Pinouts
To connect the COM port to the DB9 serial port of a PC, use an adapter wired as
shown:
Pins not shown are unused.
Table 3. 10/100/1000 Pinouts
Signal Pin
Transmitted Data + 1
Transmitted Data – 2
Received Data + 3
Unused 4
Unused 5
Received Data – 6
Unused 7
Unused 8
97-15449
Pin 1 Pin 8
Table 4. DB9 to RJ45 Adapter Pinouts
Pin RJ45 Port Direction PC RS232 Serial Port Pin
1TransmitData TxD →RxD Receive Data 2
2 Data Set Ready DSR ←RTS Request to Send 7
4 Receive Data RxD ←TxD Transmit Data 3
5Ground GND ↔GND Ground 5
6 Data Terminal Ready DTR →CTS Clear to Send 8

BSX8-A2-GZ40-20 June 2005 15
Regulatory Compliance for Class A Equipment
The following regulatory compliance information applies to a BSX8000-5 as
installed in a Paradyne BLC.
US Federal Communications Commission (FCC)
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Caution: Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du
Canada.
Europe
This Class A product complies with European Norm EN55022.
Warning: In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures to correct the
situation.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor
directly for any help needed. For additional information concerning warranty, sales,
service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:
Internet: Visit the Paradyne World Wide Web site at www.paradyne.com.
(Be sure to register your warranty at www.paradyne.com/warranty.)
Telephone: Call our automated system to receive current information by fax or
to speak with a company representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Copyright 2005 Paradyne Corporation. Printed in U.S.A.

16 June 2005 BSX8-A2-GZ40-20
*BSX8-A2-GZ40-20*
*BSX8-A2-GZ40-20*
