Zigen Zigen ZIG-RAE User manual

1
Zigen ZIG-RAE
18G HDMI Repeater and Audio Extractor
4K 60 Hz 4:4:4
HDCP 2.2
ZigNet, Full Web Interface and System Diagnostics

2
Important Safety Instructions
1. Do not use this product near water.
2. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
3. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
4. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
5. Only use attachments/accessories specified by the manufacturer.
6. To reduce the risk of electric shock and/or damage to this product, never handle or
touch this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
9. Batteries that may be included with this product and/or accessories should never be
exposed to open flame or excessive heat. Always dispose of used batteries
according to the instructions.

3
Warranty Information
Powered Product Warranty
Zigen, Inc. warrants its powered products against any defects in materials and
workmanship for a period of three years from the date of invoice. Touchscreen displays
carry a one year parts and labor warranty. If a malfunction occurs during the warranty
period, Zigen, Inc. will repair or replace a product to its original operating condition. A
return authorization number must be obtained from Zigen, Inc. before products are
returned for service.
Non-Powered and Cable Products - Lifetime Limited Performance Warranty
Zigen, Inc. warrants that its non-powered products and cable products will be free from
defects in material and workmanship for as long as you or your customer owns the
product. All Zigen non-powered products and cables are designed and engineered to
meet and exceed performance specifications. If, at anytime, the product fails due to
manufacturer defect, Zigen will repair or replace the product to ensure that it meets
original performance specifications. Reduced performance due to normal wear and tear,
or damages caused by misuse or negligence will not be covered. Zigen will test and
evaluate all non-powered and cable products claimed defective. Products must be
shipped to Zigen, prepaid along with proof of purchase only after obtaining a Return
Merchandise Authorization (RMA) number from the Zigen. This statement of policy is in
lieu of any other policy expressed or implied and no representative or person is
authorized to assume any other liability or adopt any other policy for Zigen without our
written consent.
Return Policy
If you would like to return a Zigen product, it can be done within 30 days of purchase for
a full refund, less shipping and handling. Zigen will not be responsible for shipping and
handling of product returns. Returns will only be accepted of products with proof of
purchase, products in the original packaging with zero to minimal use and a Return
Merchandise Authorization RMA number provided by Zigen.

4
Contacting Zigen
Technical Support
Tel: [phone]
Fax: [phone]
9:00AM - 5:00PM (PST)
Email
[email protected]
Web
www.zigencorp.com
Mailing Address
Zigen Corp.
c/o Customer Service
6934 Canby Avenue
Suite 107
Reseda CA 91335
USA

5
Features
Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.
Supports three audio modes: PASS, BITSTREAM, and PCM.
HDMI input supports HDCP2.2, and the output supports HDCP1.4.
Supports HDMI2.0 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through.
The transmission rate is up to 18Gbps.

6
Packing List
The ZIG-RAE is packaged with the following items:
• 1 x ZIG-RAE HDMI Repeater and Audio Extractor
• 1 x Power Adaptor(12VDC,1A)
• 1 x 5-pin Phoenix Connector
• 4 x Plastic Cushions
• 1 x User Manual
If any of these products are not present upon first opening of the package,
please contact Zigen or your reseller.
© 2017 Zigen, Corp. All Rights Reserved.
All trademarks are the property of their respective owners.
Zigen, Corp. reserves the right to make changes in the hardware, packaging,
and any accompanying documentation without prior written notice.

7
Table of Contents
ZIG-RAE Introduction ……………………………………………………………………. 8
Front Panel Description ........................................................................................... 9
Back Panel Description ............................................................................................ 10
Application Diagram ................................................................................................. 11
Specifications ........................................................................................................... 12

8
ZIG-RAE Introduction
The ZIG-RAE is a simple HDMI2.0 audio de-embedder and extractor. Audio is extracted
from HDMI input and the output on stereo balanced L/R audio, analog RCA, and coaxial
digital audio connectors.
It supports 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through, transmission rate is up to
18Gbps. The slide switch on the front panel allows selection of different audio modes to
ensure compatibility with different receivers.
* The ZIG-RAE extracts 2-Channel PCM audio only.

9
T
ZIG-RAE Front Panel Description
Front Panel
1Bicolor LED: RED when powered on, GREEN when HDMI signal input.
2Audio Modes Switcher:
PASS (default): The source device obtains its EDID from display.
BITSTREAM: If the display only supports PCM, and the format of audio source is
DTS/Dolby, the switcher should be turned to BITSTREAM to ensure the DTS/Dolby audio
can be sent via HDMI and coaxial digital audio ports (⑥&⑨), there will be no audio output
on analog ports(⑦&⑧).
BITSTREAM: If the format of source audio is PCM, and needs to be DTS/Dolby: Slide
switch to PASS mode⑦&⑧).
PCM: If the digital audio need to be output via analog audio ports (⑦&⑧), the switcher
should be positioned to PCM, and the coaxial audio port (⑨) will also output PCM audio.
3HDMI IN: Connect to HDMI source.
4FW: Firmware upgrade.
②5DC 12V: Connect with the included power adaptor.

10

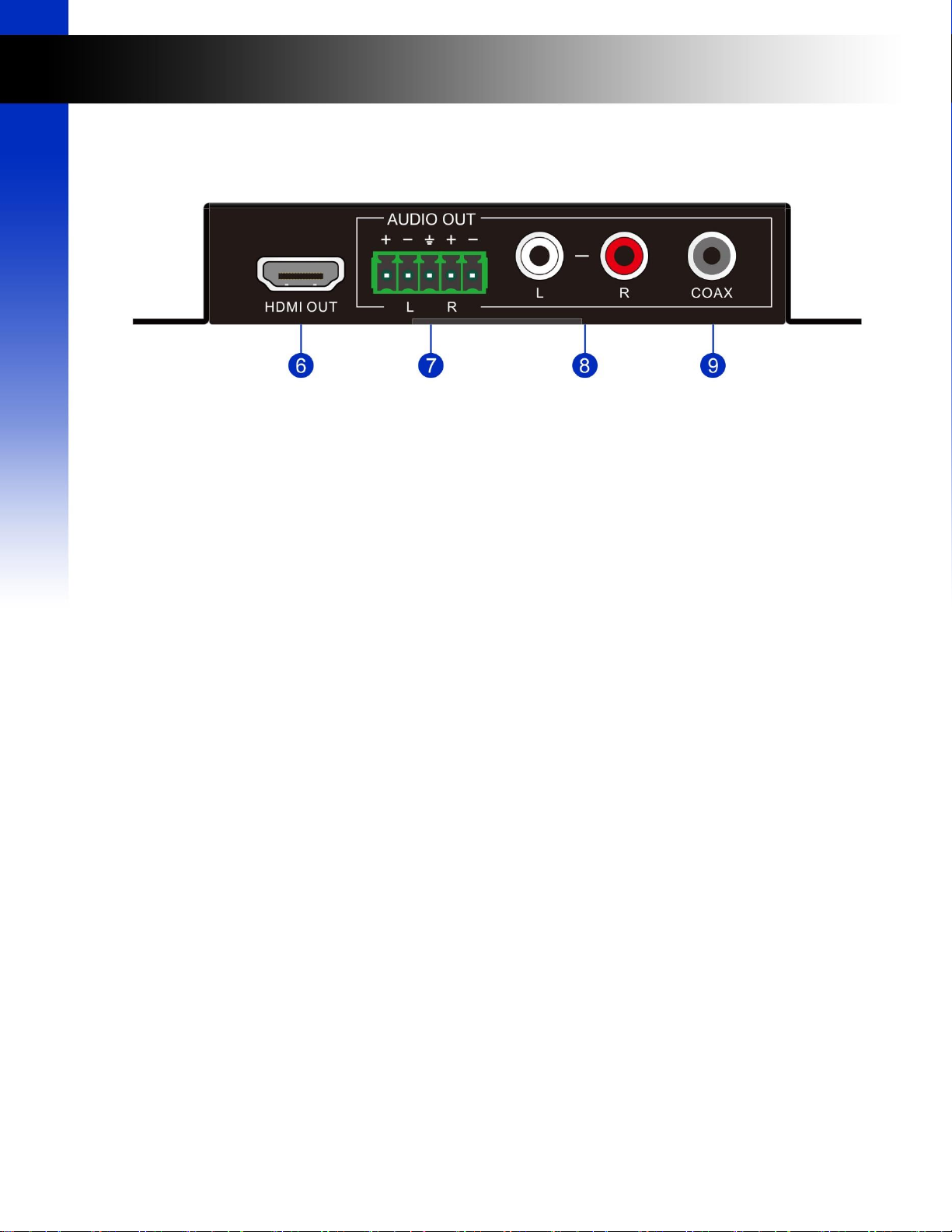

ZIG-RAE Back Panel Description
Back Panel
6HDMI OUT: Connect with HDMI display.
7BALANCED AUDIO: Stereo balanced L/R audio output.
8RCA (L+R): analog RCA audio output..
9COAX: Coaxial digital audio output.

11
Application Diagram (sample)

12
Specifications
