Zio Ciro Subito Cotto 60 User manual
page. 1
TEK REF SRL
Z.I. Loc. Feurredda - 09088 SIMAXIS / ORISTANO / ITALY
Phone+39 0783 406005
SUBITO COTTO OVENS
USER MANUAL
Doc 5_MI Rev.0 date 19.10.2021
USER MANUAL
Non professional gas or wood fired oven
FOR YOUR SAFETY: READ THIS MANUAL
KEEP THIS MANUAL FOR FUTURE REFERENCE
THE MANUFACTURER RESERVES TO CHANGE THE GRAPHICS AND CHARACTERISTICS OF THE
PRODUCT AT ANY TIME WITHOUT NOTICE: THE IMAGES REFER TO THE MATERIAL AVAILABLE AT
THE MOMENT.
page. 2
Summary
SPECIFICATIONS................................................................................................................................................................................ 3
GENERAL INFORMATION.................................................................................................................................................................. 7
ADDITIONAL WARNINGS FOR GAS MODELS ................................................................................................................................. 9
REMOVE PACKAGING........................................................................................................................................................................ 9
INSTALLATION.................................................................................................................................................................................... 9
CONNECTION MODELS TO LPG or PROPANE.............................................................................................................................. 10
CONNECTION OF METHANE MODELS .......................................................................................................................................... 11
SOSTITUZIONE BATTERY IGNITION AA 1.5 Volt (GAS MODELS ONLY) .................................................................................. 12
ASSEMBLING THE SUPPORT AND POSITIONING THE OVEN .................................................................................................... 13
SPECIFIC STABILITY INSTRUCTIONS............................................................................................................................................ 13
OVEN CLEANING AND MAINTENANCE.......................................................................................................................................... 14
IGNITION OVEN WOOD-BURNING MODELS ................................................................................................................................. 15
IGNITION OVEN GAS MODELS ....................................................................................................................................................... 16
OVEN CONTROLS ............................................................................................................................................................................ 16
WARRANTY (CUSTOMIZE) .............................................................................................................................................................. 17
MOCA REGULATION ........................................................................................................................................................................ 17
page. 3
SPECIFICATIONS
Thank you for choosing SUBITO COTTO!
Subito Cotto is a real small and light wood-burning oven, ideal for residential use, with a roof and dome made entirely of high
quality refractory concrete. Available in combined wood-gas version.
As in traditional wood-burning ovens, once the cooking temperature is reached, the oven maintains this temperature for a long
time, even after the fire or flame has gone out. Immediately cooked it is ideal for cooking Italian pizza, but it is also suitable for
cooking other foods such as bread, meat, fish, vegetables
and sweets.
All Subito Cotto models are ready to use. They must not be assembled, insulated or finished. They are lightweight and can be
transported and used even in small spaces such as terraces, kitchens or gardens. Their consumption of wood and gas is also
very low. Both wood and gas versions reach a cooking temperature of:
•450 °C (850 °F) in just 30 minutes for IMMEDIATELY COOKED 60
•450 °C (850 °F) in just 40 minutes for IMMEDIATELY COOKED 80
•450 °C (850 °F) in just 55 minutes for IMMEDIATELY COOKED 100
•450 °C (850 °F) in just 30 minutes for SUBITO COTTO MINI
The gas version of the oven is equipped with a Made in Italy burner and can be used with propane, LPG or methane.
SUBITO COTTO
Model
SUBITO COTTO 60 (Mod. 60 cm Ø)
Gas or wood-burning model
SUBITO COTTO 80 (Mod. 80 cm Ø)
Gas or wood-burning model
SUBITO COTTO 100 (Mod. 100 cm Ø)
Gas or wood-burning model
SUBITO COTTO MINI (Mod. 40 cm Ø)
Gas-only model
Gas models technical details
MINI
Thermal Potential > MIN 2KW –MAX 6KW
GAS Pressure > From 15 -25 mbar
GAS Pipe Size > ½ Inches
Burner Weight > 1,7 Kg
60 / 80
Thermal Potential > MIN 7KW –MAX 15KW
GAS Pressure > From 15 to 25 mbar (methane)
GAS Pressure > From 25 to 50 mbar (LPG)
GAS Pipe Size > ½ Inches
Burner Weight > 7 Kg
100
Thermal Potential > MIN 8KW –MAX 24KW (methane)
Thermal Potential > MIN10 KW –MAX 24KW (LPG)
GAS Pressure > From 15 to 25 mbar (methane)
GAS Pressure > From 25 to 50 mbar (LPG)
GAS Pipe Size > ½ Inches
Burner Weight > 7 Kg
page. 4
Limitation and use conditions
Installation
The SUBITO COTTO is not a construction product (EU
Regulation 305/2011) and is not designed to be incorporated in
a building. The product is designed, built and sold as
"transportable"
Use intended for
Non-professional
Areas of use
Outdoor use only
Fuel
Use only with:
•Wood Only (wood-fired variant)
•Methane, LPG, Propane (gas models)
Minimum storage temperature (without gas connection)
- 40°C
GAS models operating range temperature
+4°C to +40°C (39.20°F –104.00°F)
Maximum cooking temperature
450°C (850.00°F)
page. 5

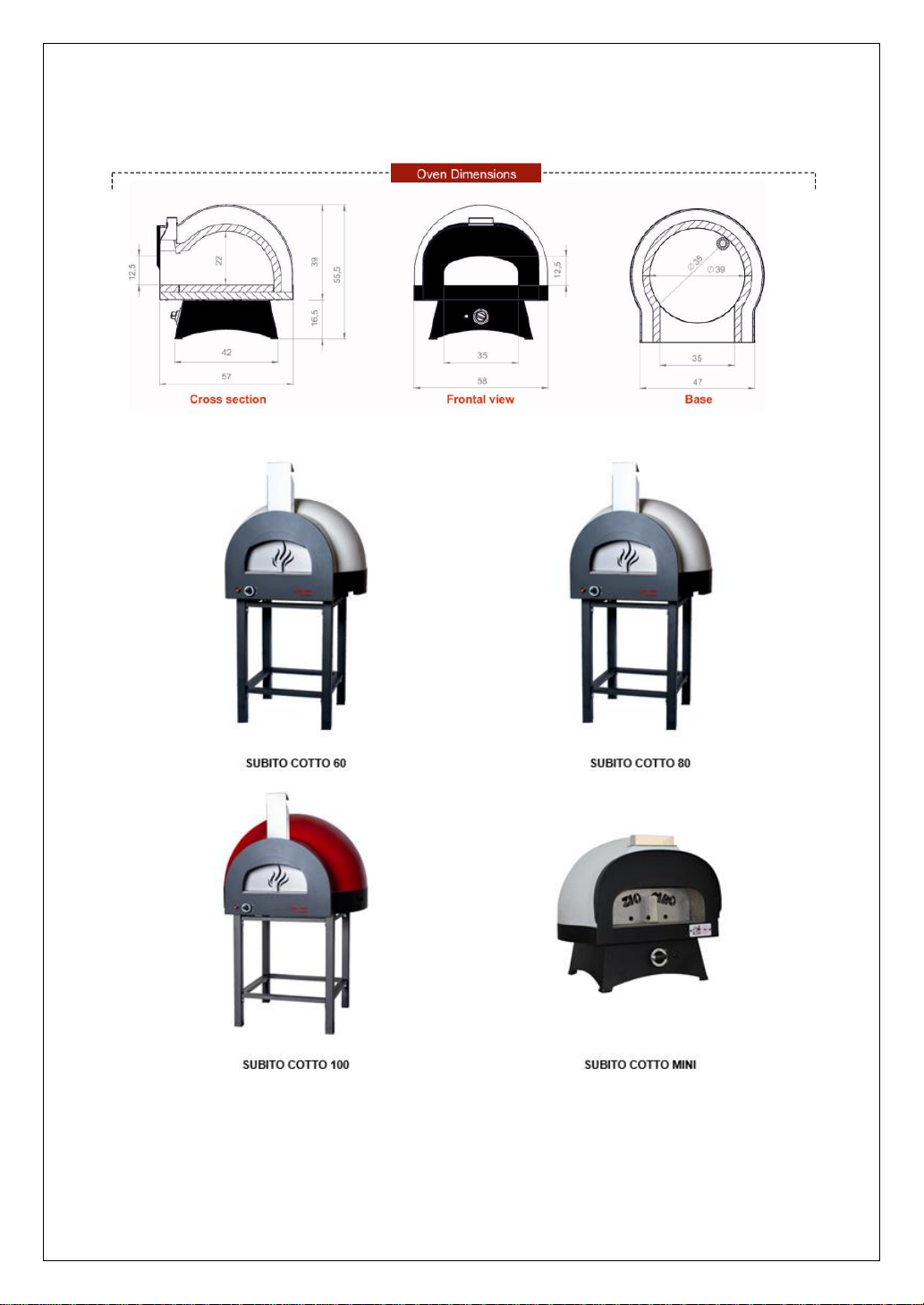

DIMENSIONS (cm)
IMMEDIATELY COOKED 60
IMMEDIATELY COOKED 80
IMMEDIATELY COOKED MINI
IMMEDIATELY COOKED 100
page. 6
IMMEDIATELY COOKED MINI
Pictures (colors and accessories may be different)
page. 7
GENERAL INFORMATION
WARNING
READ ALL INSTRUCTIONS AND WARNINGS BEFORE INSTALLING AND USING THE PRODUCT
Incorrect behavior may cause damage to property and persons and death.
Please consult the territorial competent authorities for any installation and use restrictions
WARNING
The oven becomes very hot during use, particularly, at the cooking door, the oven body and at the flue.
Do not leave child and domestic animals unattended while the oven is in use.
At the first ignition of the SUBITO COTTO, smoke of acrid odor may develop, caused by the first heating of the insulation panels,
concrete and glue.
If it occurs, don't worry, it is a normal behavior due to the still new materials. In that case, before introducing food, it is necessary
to wait until the emanation of smoke and smell ceases.
High temperatures could change the colors of the oven; don't worry this is a normal reaction of materials.
WARNING Hot surfaces
The oven is equipped with insulating layers, but the external parts could still overheat; always use suitable clothing and protective
gloves against heat.
Always open the door with the special handle and using protective heat-resistant gloves.
Do not touch the external surfaces and the flue during use.
page. 8
PLEASE READ THE FOLLOWING WARNINGS FOR A SAFE USE
•The oven has an identification label with technical details and serial number written on it
•Do not remove labeling
•Upon purchase, the SUBITO COTTO oven is protected by materials to prevent damage during transport.
•Before using the oven, it is mandatory to remove all parts of the packaging and any protective films
•Dispose packaging in accordance with current legislation
•Use the product only outside
•When not in use, store the oven indoors or protecting it with a waterproof cloth that still allows free access to air
•Place the oven on a flat and stable surface suitable to withstand the weight of the product
•The product must be positioned in such a way that easy and safe use is guaranteed
•Place the oven away from objects could be damaged
•Place the oven away from electrical cables and other electrical parts
•Do not park cars or other vehicles near the oven during use
•The oven is a transportable product. Do not incorporate the oven into building.
•Do not put the plastic in the hot oven. The plastic could melt and burn causing damage to the oven and causing health
and safety hazards
•To cooking Use only high temperatures resistant tools
•Never put flammable substances or objects into the oven
•Keep flammable materials, objects, and liquids away from the oven
•When the flame is lit do not leave the oven unattended
•Don't expose yourself to heat for too long time
•Never keep the gas burner at maximum for too long time
•Don’t disconnect the gas pipe or other gas connection while the oven is using
•Do not color or painting the oven
•Do not apply or attach object on the oven
•Keep children away from the oven during use
•Keep pets away from the oven during use
•To ignite the gas oven, use the built-in piezoelectric only
•Use only natural charcoal for wood-burning models
•Do not burn wood on gas oven models
•Do not use the oven if damaged or malfunctions
•Do not move the oven during use. The oven should be moved by 3-4 adult people when is cold and turned off
•To move the oven, use trans pallet or other mechanical equipment (especially for models without wheels)
•Do not move the oven on inclined surfaces, the oven could fall, damaging it and causing serious injuries to people
•keep the oven away from external fires
•Do not climb or lean on the oven. The oven is very heavy and could fall, causing serious injury to people and animals
•Do not touch the external surfaces and the flue during use
•If the fire is out of control, remove the food from the oven
•Follow the cleaning instructions to keep the oven safe and efficient
•In the event the food or greasy from the food burns, close the oven door and wait a few minutes until the fire is completely
extinguished and the oven has cooled down.
•If the oven is equipped with wheels, keep them locked with the brake to avoid unwanted movements
•Do not use the gas oven in windy weather
•Do not use the gas oven in case of very low temperatures
•Do not connect more equipment to the same flue
•Never cover the flue
•Do not modify the flue
•Do not use the oven under gazebos, pergolas, canopies, etc ...
•Do not modify or tamper the oven
•The oven is only for cooking use
page. 9
LEFT
ADDITIONAL WARNINGS FOR GAS MODELS
Gas can be extremely dangerous and may cause explosions, fires, damage property, serious injuries and death.
If you feel the smell of gas:
1) Close the gas immediately
2) Extinguish any open flames
3) Do not use electrical or electronic equipment
4) Open the oven door
5) Consult a specialized technician immediately
Additional warnings
•Installation of the product must be carried by specialized technician.
•Close the gas supply valve when the oven is not in use
•the oven must only be connected to gas systems or gas cylinders that comply with laws and regulations
•Read the gas cylinder and gas system instruction before connecting the oven.
•Keep any cylinders (even empty) away from the oven
•To avoid damage, protect the gas burner to mechanical stress or impact
•See the color of the flame; a yellow flame is bad combustion: contact a specialized technician immediately
•Use only recommended gas
REMOVE PACKAGING
Before using the oven remove the packaging, shock absorber material and the supporting wooden footboard.
To remove the packaging and footboard use mechanical hazard protective gloves (EN 388) and protective goggles (EN 166) to
avoid injuries.
INSTALLATION
During use, the external temperatures of the oven can exceed 50 ° C. Keep away flammable materials and substances,
combustibles and objects that could be damaged by heat. Place the oven at a distance as in the picture below.
All models must be placed on a stable and non-flammable plane.
Minimum distance from walls and flammable materials
RIGHT 50 cm
LEFT 50 cm
BACK 50 cm
RIGHT
BACK
page. 10
CONNECTION MODELS TO LPG or PROPANE
For installation, call a specialized technician. Make and check all connections before using the oven
General information
WARNING
LPG is heavier than air and can settle on the ground
Beware empty gas cylinders. Some gas may still in the cylinder
•Avoid shocks and any mechanical stress to the cylinders
•Place the cylinder away from other objects
•Place the cylinder in ventilated environments
•Place the cylinders away from sources of heat and sunlight
•The LPG cylinder must be transported, installed, and stored in vertical position.
•Never place the replacement gas cylinder near the oven
•Never subject LPG cylinders to temperatures of 50 ° C (120 ° F) or higher
•Always close the gas valve before disconnecting the cylinder
•Check gas valve is closed when the oven is not in use or during cleaning and/or maintenance operations
•Replace the cylinder only when the oven is off and away from fire and heat sources
•Connect the oven to LPG cylinders only, not to gas systems or fixed tanks
•Replace the gas pipe Periodically
•Do not twist the gas pipe
•Before each use the oven, check gas pipe does not have cracks, cuts, abrasions and / or other damage
•Do not use the oven if gas pipe is damaged
What you need for installation:
•(a) CE EN 14800 diameter DN 12mm flexible pipe length 1.5 meters (not supplied)
•(b) Pressure regulator with a flow rate of up to 4 kg per hour (not supplied). Pressure regulator outlet pressure:
- 1. Gas G30 between 25 to 45 mbar
- 2. Gas G31 25 a 45 mbar
•(c) Teflon tape (not supplied)
(a)
(b)
(c)
Procedure
1) Insulate the LPG gas connection of the oven with Teflon tape and screw in the connection connector
2) Connect the pipe to the oven
3) Screw the gas regulator into the gas cylinder valve and with your hands turn the bolt counterclockwise.
4) Use a special LPG regulator key to tighten perfectly without damaging the valve gasket compromising its
watertightness
5) Connect the pipe with the pressure regulator from the gas
6) Screw the hose to the oven and help yourself with a special key to tighten perfectly
7) Apply a little soap and water solution to all connection points.
8) Open the valve of the gas cylinder, but without turning on the oven.
9) Check that no air-bubbles are where the soap and water solution has been applied
10) If you see bubbles, replace the parts where you see it
11) If no bubbles are seen, place the opening of the LPG cylinder valve facing the back of the oven. Now you can turn on
the oven
CAUTION: Only if no bubbles are seen you can turn on the oven
page. 11
CONNECTION OF METHANE MODELS
For installation, call a specialized technician. Make and check all connections before using the oven. Please check your gas
system comply with the 22 January 2008 n°37 Ministerial Decree.
General information
•Check all gas connections before using the oven.
•Ensure that the gas shut-off tap is closed when the oven is not in use or during cleaning and/or maintenance operations
•Replace the gas pipe every 2-3 years
•Do not twist the gas pipe.
•Before each use of the oven, make sure that the gas pipe does not have cracks, cuts, abrasions and other damage.
•Do not use the oven if the pipe is damaged.
What you need:
•(a) UNI EN 15266:2007 flexible pipe diameter or (b) galvanized pipe Ø 1/2'' or equivalent copper tube Ø 1/2'' in steel or
copper (not supplied)
•(c) Interception tap DIN EN 331 (not supplied)
•(d) Teflon tape (not supplied)
(a)
(b)
(c)
(d)
Procedure
1) Insulate the methane gas connection of the oven with Teflon tape
2) Screw the connecting connector.
3) There must be a DIN EN 331 immersion tap between the wall power supply and the connection pipe to the oven
4) Connect the pipe to the wall power supply
5) Screw the pipe to oven and help yourself with a special key to tighten perfectly
6) Apply a little soap and water solution to all connection points.
7) Open the gas valve without turning on the oven.
8) Check that no bubbles are where the soap and water solution has been applied
9) If you see air bubbles you replace the parts where you see it
10) If no bubbles are seen, you can turn on the oven
CAUTION: Only if no bubbles are seen you can turn on the oven
page. 12
SOSTITUZIONE BATTERY IGNITION AA 1.5 Volt (GAS MODELS ONLY)
WARNING: Perform the procedure with the oven off
To replace the battery proceed as described below:
Passage
What to do
Figure
1
Unscrew and remove the power button "A"
2
Remove the old battery and insert the new one
into compartment "B" respecting the indicated
polarity.
3
Reinsert andtrim the "A" button
4
Dispose of the old battery in accordance with
current legislation
Step
Action
1
Unscrew the power button “A”
2
Remove the old battery and insert a new
battery in the compartment “B”, complying with
the polarity
3
Tighten the button “A”
4
Dispose of the replaced battery correctly.
page. 13
ASSEMBLING THE SUPPORT AND POSITIONING THE OVEN
The metal support (Stand) supplied with the Subito Cotto oven is studied and designed specifically for these models and support
the weight of the oven. Without the stand it is necessary to place the oven on a stable and safe plane.
ASSEMBLY PHASE
1. Preassemble the entire support, taking care to mount all the screws supplied, without tightening them strongly.
2. Once the stand is placed exactly upright, tighten the screws tightly.
The simple procedure is shown in the photos below:
Once the support is assembled you can place the oven (with 4 legs in the base) above the metal support, adapting the legs to the
leg
SPECIFIC STABILITY INSTRUCTIONS
1. Make sure that the metal support is well assembled (it is important to mount the support following the instructions as
shown in the previous paragraph "assemblyand positioning oven".
2. The oven is equipped with 4 handles, move the oven preferably 4 people or using a forklift. This task must be carried
out by professionals trained in this type of work.
3. Improper use of the oven and equipment may cause damage to the oven or personal injury.
4. Place the oven above the tripod as described in the "Tripod mounting and oven placement" section.
FLOOR OR SUPPORT BASE
The floor on which the oven is placed must have a resistance of at least 10 kg/cm2 and have a slope of less than 1%.
CAUTION: Check the tightening of the wheel (optional) sealing bolts periodically. Tightening should be solid.
page. 14
OVEN CLEANING AND MAINTENANCE
CAUTION: always clean when the oven is off and cold
Clean the oven to ensure its hygiene, safety, and durability.
•Never use strongly abrasive objects, steel sponges, brushes and / or scrapers so as not to damage the surfaces
•For cleaning use wooden or plastic utensils
•For cleaning do not use chemicals and / or aggressive substances
•Rinse thoroughly with water and dry with a soft microfiber cloth
•Do not wet the gas burner
•Clean the burner with a dry cloth
•Clean the inside of the chimney periodically to avoid deposit of grease and / or soot could cause fire
Protect respiratory tract and eyes during cleaning
OVEN CLEANING
Part to clean
To do
Interval
Oven interior / cooking
chamber
Maintain the maximum temperature 450 ° C (850.00 ° F)
for 2-3 minutes. The heat will reduce the organic
compounds to dust. When the oven is cold, remove the
residues with a delicate brush and finally with a damp
cloth
Before and after each use
Exterior of the oven
Clean with a cloth dampened with water or use non-
aggressive products such as water and mild soap. Wash
off the remaining soap and dry with a dry cloth
Weekly
Gas Burners
Clean with a mild brush and then vacuum the dust
residues taking care to not damage the gas burner
Monthly
When the oven is not use, protect with a waterproof cloth without sealing it completely or storing it indoors.
WARNING: do not cover the oven when it is hot
page. 15
IGNITION OVEN WOOD-BURNING MODELS
Maximum permissible temperature
450°C(850.00°F)
ATTENTION
Follow the instructions before turning on the oven
Do not use flammable liquids or other fuels to ignite the oven
Make sure there are no flammable materials near the oven
Ensure that the minimum safety distance is respected
Do not use wood treated, painted, resinous and / or with nails, staples, etc ...
WHICH WOOD TO USE
•Use natural charcoal or small dry wood
•Do not use damp or wet wood
IGNITION PROCEDURE
1. Put a small amount of wood in the center of the combustion chamber or slightly to the side
2. Light the fire with a few straw-tablet "light fire"
3. Do not leave lighters or other flammable materials nearby
4. When the flame is a lively flame, close the door to allow air to enter the combustion chamber
5. Add larger pieces of wood gradually to get a livelier flame.
6. Add wood gradually for about 10-15 minutes depending on the size of the SUBITO COTTO. Larger ovens need more
time to warm up
7. Don't put too much wood at once
8. When you have a good layer of burning coal move it with the help of a special metal tool to make room for food.
9. When the temperature of the refractory hob is correct you can start cooking food
HOW TO PUT OUT THE FIRE
1. To turn off the heat close the oven door and wait for complete cooling.
2. When the fire is off, and the oven is completely cold you can remove the embers perform the cleaning
CAUTION
Never put hot coals or ashes on the ground, on the patio or near plants or trees.
page. 16
IGNITION OVEN GAS MODELS
Maximum permissible temperature
450°C(850.00°F)

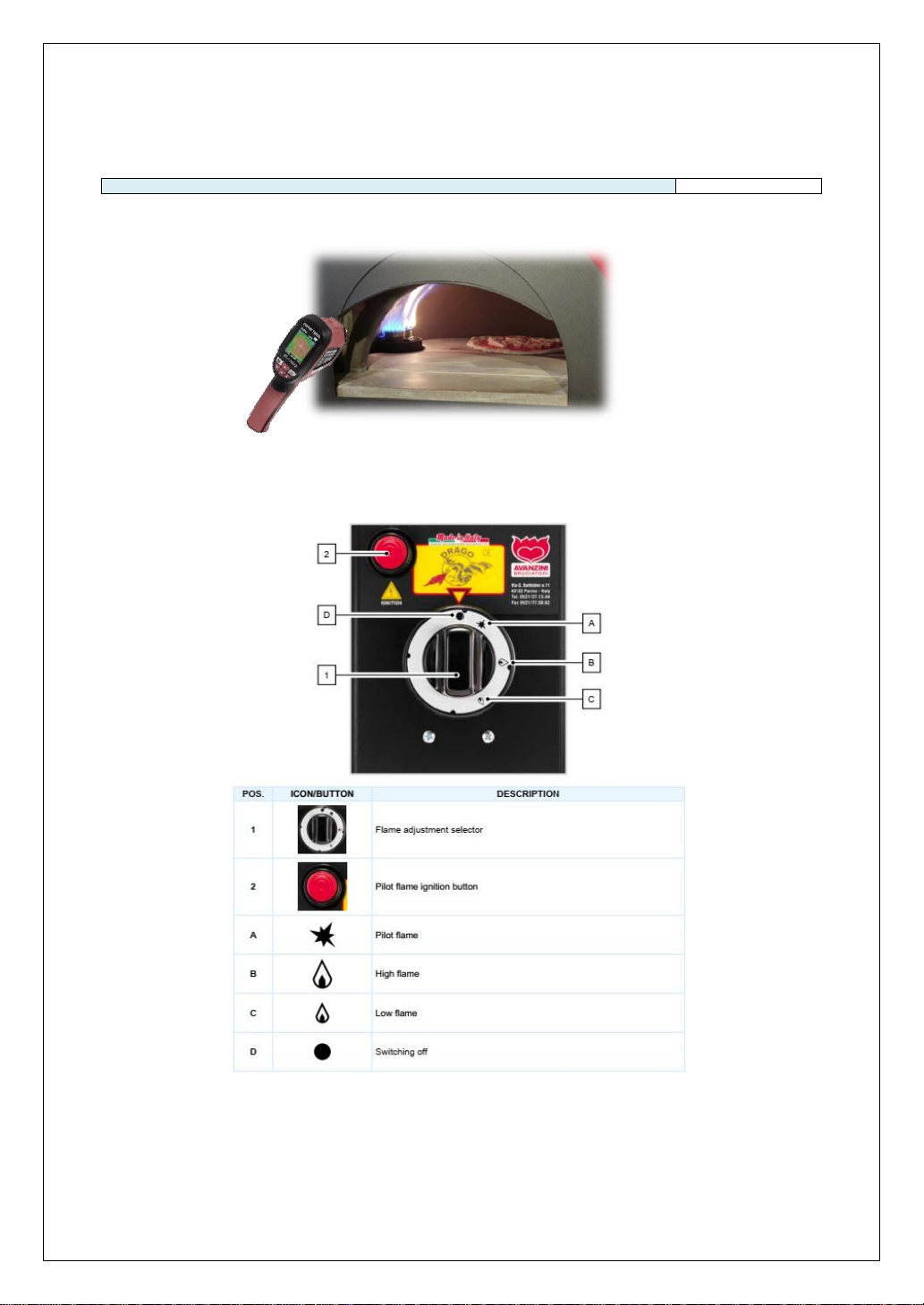

OVEN CONTROLS
page. 17
CAUTION
Follow the instructions before turning on the oven.
Check all gas connections before using the oven
The gas control must be in the (D) "OFF" position
Turn on the oven only with the door open
During the ignition keep body and face at one
distance of at least 50 cm from the opening of the oven door
In the first ignitions it may be necessary to keep the knob pressed in the position of
ignition for a few seconds to allow the gas to flow inside the pipes.
IGNITION PROCEDURE
1. To ignite the pilot flame (ignition) it is necessary to press and rotate the burner knob (1) from the off position (D) to the
spark symbol (A)
2. At the same time press the power button (2)
3. At this point a small pilot flame will be visible.
4. You can then release the power button (2) by keeping the burner knob (1) pressed for a few more seconds.
5. Release the burner knob (1) and turn it counterclockwise from the symbol to the large flame symbol (B) to preheat the
oven
6. You can adjust the flame by turning the burner knob from the small flame symbol (C) to the large flame symbol (B) and
vice versa
SHUTDOWN PROCEDURE
•To extinguish the flame of the main burner and leave only the pilot on, place the knob on the symbol (A)
•To completely extinguish the main burner and the pilot flame you need to place the knob at position (D)
WARRANTY
In compliance with Italian and EU regulations, subito COTTO ovens by TEK REF s.r.l. enjoy a legal guarantee of 24 months from
the date of purchase. At the end of the warranty period, any repair will be borne by the consumer. To take advantage of the
warranty it is necessary to keep the invoice or the purchase receipt.
The warranty does NOT cover damages related to:
•Improper use of the oven
•Voluntary and/or involuntary tampering
•Use of fuels other than those recommended
•Lack of cleanliness and/or maintenance
•Poor state of conservation attributable to the Customer
•Damage caused by aggressive cleaning substances
•Damage to burners and / or other parts of the oven attributable to the Customer
•Damage due to exceeding the expected temperature
MOCA REGULATION
This equipment, in the parts intended to come into contact with food substances, complies with the requirements of Regulation
(EU) 2023/2006 and Regulation (EU) 1935/2004
Parts in contact with food: Refractory internal base
TEK REF SRL
Z.I. Loc. Feurredda - 09088 SIMAXIS / ORISTANO / ITALY
Phone+39 0783 406005
page. 18
Other manuals for Subito Cotto 60
2
This manual suits for next models
3
Table of contents
Other Zio Ciro Oven manuals
