300Mbps Wireless N Range Extender
Model : EX200
SKT Standard UI Flipbook v0.8
Web site www.totolink.net | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China
E-MAIL sales@zioncom.net | Information in this document is subject to change without prior notice

2
CREATIVE AGENCY VINYL
SKT Standard UI Direction
WWW.TOTOLINK.NET | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China | E-MAIL sales@zioncom.net l Copyright 2015 ZIONCOM Technology., All Rights Reserved
INDEX
Document Control
Etc
TOTOLINK Model
EX200
Product Category
300Mbps Wireless N Range Extender
Release Date
2015-09-23
Version
Date
Description
Author
Verifier
V1.0
2015-09-23
Spec
Nancy
Model No.: EX200

3
CREATIVE AGENCY VINYL
SKT Standard UI Direction
WWW.TOTOLINK.NET | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China | E-MAIL sales@zioncom.net l Copyright 2015 ZIONCOM Technology., All Rights Reserved

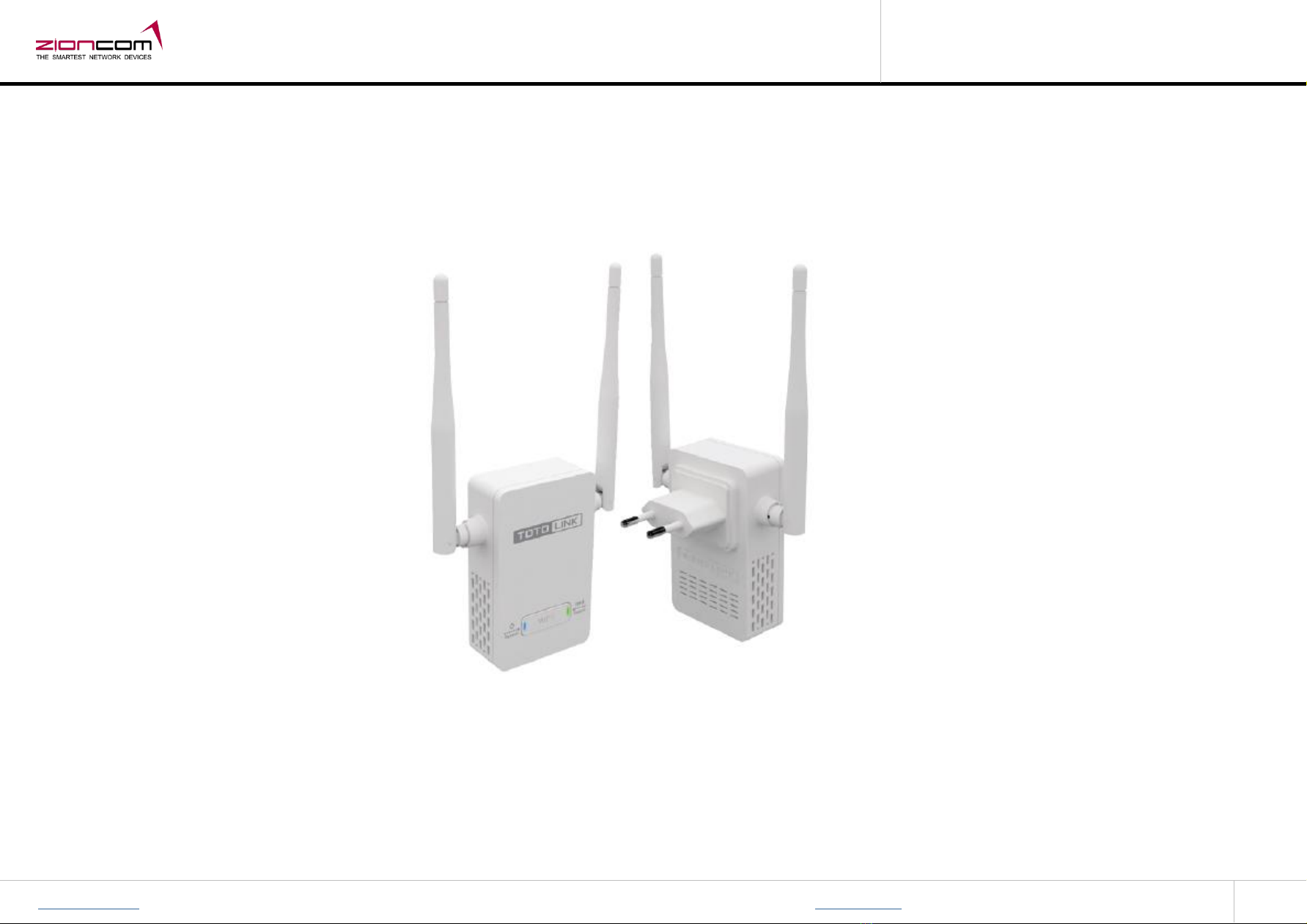

Product Design
Model No.: EX200

4
CREATIVE AGENCY VINYL
SKT Standard UI Direction
WWW.TOTOLINK.NET | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China | E-MAIL sales@zioncom.net l Copyright 2015 ZIONCOM Technology., All Rights Reserved
Overview
EX200 is a 2.4G wireless N range extender designed to expand the coverage of existing Wi-Fi network to eliminate "dead spots". By
pressing the WPS button on both EX200 and router in two minutes, Wi-Fi network could be extended quickly and easily. With wall-
plugging design, two high performance antennas, up to 300Mbps wireless N speed, EX200 can meet users’ demands for wireless Internet
access on hard-to-reach areas.
Lights Up Your Wi-Fi Everywhere
EX200 can extend your wireless network to every corner of your house, ensuring your mobiles devices and PCs a reliable connection to
the Internet.
One Click Wireless Secure Extension
Simply Press the WPS button on both EX200 and wireless router, secured home Wi-Fi network can be established quickly to extend the
coverage of your existing WLAN network.
300Mbps Wireless N Speed
With two high performance antennas, EX200 delivers Wi-Fi speed up to 300Mbps, making Wi-Fi coverage more wider.
Advanced Security
The easy WPS connection always adopts the most advanced WPA/WPA2 (TKIP/AES) encryption to secure your wireless extension.
users needn’t worry about being occupied by unauthorized users.
Phase 01. EX200 Model No.: EX200

5
CREATIVE AGENCY VINYL
SKT Standard UI Direction
WWW.TOTOLINK.NET | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China | E-MAIL sales@zioncom.net l Copyright 2015 ZIONCOM Technology., All Rights Reserved
Features
- Complies with 802.11b/g/n standards.
- Up to 300Mbps date rate for Wi-Fi network.
- Two external antennas enhance the throughput’s stability.
- Portable and compact stylish design.
- Supports WPS (Wi-Fi Protected Setup) Wi-Fi extension by one-click.
- One Ethernet port for connecting wired devices to wireless network.
- Energy saving and environmental protection.
Phase 02. EX200 Model No.: EX200

6
CREATIVE AGENCY VINYL
SKT Standard UI Direction
WWW.TOTOLINK.NET | Address BLDG A1&A2, Lantian Technology Park, Xinyu Rd, Xinqiao Henggang Block, Shajing St, Baoan District, Shenzhen 518125, China | E-MAIL sales@zioncom.net l Copyright 2015 ZIONCOM Technology., All Rights Reserved
Specifications
Hardware
Interface
- 1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port
Power Supply
- 5V /1A internal power
Antenna
- 2 *4dBi External Antennas
Button
- 1* WPS Button, 1*RST Button
LED Indicators
- 1 *SYS, 1* Wi-Fi
Dimensions (W x D x H)
- 2.0 x 3.4 x 1.2 in. (52 x 85.7 x 30.9mm)
Wireless
Standards
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency
- 2.4~2.4835GHz
Data Rate
- Up to 300Mbps
EIRP
< 20dBm
Wireless Security
- 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity
- 11b 11M: - 81 dBm
- 11g 54M: - 68 dBm
- 11n HT20: - 65 dBm
HT40: - 62 dBm
Others
Package Contents
- EX200 Wireless Extender *1
- Ethernet Cable *1
- Quick Installation Guide *1
Environment
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Phase 03. EX200 Model No.: EX200
