ziva INFINITY Use and care manual

OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS
INFINITY
TRAINING TOWER

2
INDEX
1
3
5
7
2
4
6
8
9-10
11-12
13-15
16-18
19-28
29-30
31-32
3-8
SAFETY INFORMATION
AND GENERAL USER MANUAL
PRODUCT
COMPONENTS
ASSEMBLING
TOOLS
CONTROL
AND MAINTENANCE
INFINITY TRAINING TOWER
OVERALL VIEW
FIXING
COMPONENTS
ASSEMBLY
INSTRUCTION
WARRANTY

3
SAFETY
INFORMATION
AND
GENERAL USER MANUAL
1

4
The purchaser of ZIVA products alone is responsible for safety:
s/he must read the manual and warning labels carefully and
instruct users ( both end users and the staff responsible for
supervising final users) on the correct use of ZIVA products.
Please respect all warnings. If you have any doubts about one
or more warnings, please ask for more info and clarifications
by contacting the ZIVA CUSTOMER SERVICE via email.
We invite all users of ZIVA products to read and follow
carefully all the instructions included in this manual.
Our equipment is classified under Class of ISO 20957-1.
Therefore, it is meant for commercial and/or institutional use
and/or research purposes. It is not meant for domestic use.
To clean the walls and panels use delicate soap and, if neces-
sary, water. In alternative, you can use a non-abrasive cleaner
with a soft cotton cloth to clean all exterior surfaces: put the
cleaner on the cloth before cleaning. Attention: do not use
abrasive products, ammonia or acid-based cleaners.
It is recommended to use all ZIVA equipment in a monitored
area or in an area whose access is monitored. The owner is
responsible for the monitoring.
Before it is used, all ZIVA equipment must be assembled and
anchored to the floor. This has to be done by an assembler
authorized by ZIVA: you should therefore ask the assembler to
provide the installation certificate authorized by ZIVA.
Using the equipment in any other manner than the one it is
meant for is forbidden. Use the equipment correctly to avoid
injuries: improper and excessive exercise can cause injuries.
Before starting a training program, we recommend to complete
a medical examination.
Stop the training and consult your doctor if you feel weakness,
dizziness or pain during training.
Attention: ZIVA shall not be held liable for installations made by installers/assemblers who are not authorized by ZIVA.
In case of any doubts, do not hesitate to contact the ZIVA CUSTOMER SERVICE.
SAFETY
INFORMATION
AND
GENERAL USER MANUAL

1 INSTRUCTION
USE THE EQUIPMENT ONLY AS INDICATED IN THE
INSTRUCTIONS AND ONLY FOR THE EXERCISES IT IS
MEANT FOR.
5
2 EQUIPMENT
- DO NOT ALTER OR MODIFY THE EQUIPMENT.
- ENSURE THAT THE EQUIPMENTS ARE CORRECTLY
PLACED AT A DUE DISTANCE ONE ANOTHER AND THAT
THERE IS ENOUGH ROOM TO EXERCISE.
- IF NECESSARY, REPLACE THE NECESSARY
COMPONENTS AND MAKE SURE THAT THE EQUIPMENT
IS APPROPRIATELY KEPT.
3 AUDIT
CHECK THE EQUIPMENT DAILY BEFORE USE.
DO NOT USE THE EQUIPMENT IF IT IS DAMAGED.
4 MEDICAL CONTROL
BEFORE STARTING A TRAINING PROGRAM, COMPLETE
A MEDICAL EXAMINATION.
5 KIDS
TO USE THE EQUIPMENT USERS HAVE TO BE AGED 14
AND ABOVE: CHILDREN CANNOT USE IT.
6 WEARING
- WEAR APPROPRIATE SPORT FOOTWEAR AND CLOTH-
ING WHEN USING THE EQUIPMENT. DO NOT WEAR
HELMETS OR OTHER ACCESSORIES.
- KEEP BODY, HAIR AND CLOTHES AT SAFETY DIS-
TANCE FROM THE MOBILE PARTS OF THE EQUIPMENT
TO AVOID INJURIES.
SAFETY
INFORMATION
AND
GENERAL USER MANUAL

6
7 CLIMBING
DO NOT CLIMB UP THE EQUIPMENT: THIS MAY CAUSE
SERIOUS INJURY OR DEATH.
8 INSTALLATION
- IF THE EQUIPMENT IS INSTALLED ON HARD SUR-
FACES (E.G. ASPHALT, CONCRETE OR CLAY COURT),
SERIOUS INJURY OR DEATH CAN OCCUR IN CASE OF
FALLING OFF.
- THE EQUIPMENT HAS TO BE INSTALLED ON A STABLE
AND APPROPRIATELY LEVELED BASE.
- THE RESPONSABILITY FOR ASSESSING THE NEC-
ESSARY LOADS FOR INSTALLATION (LOADING CARRY
CAPACITY OF CEILINGS, FLOORS, ETC.) LIES ON THE
PURCHASER ALONE
- THIS ASSESSMENT HAS TO BE CARRIED OUT BY THE
PURCHASER RESORTING TO TECHNICIANS OF HIS/HER
CHOICE.
9 LABEL
- PLEASE DO NOT REMOVE THE LABEL: A
DAMAGED LABEL HAS TO BE REPLACED.
- TO IDENTIFY THE PRODUCER AND TO WARN
AGAINST INJURIES, ALL EQUIPMENTS MUST
DISPLAY THEIR LABEL.
- ENSURE THAT ALL LABELS ARE PLACED AND
EASILY READABLE: IF NECESSARY, REPLACE THEM
IMMEDIATELY.
10 CUSTOMER CARE
IF YOU HAVE ANY QUESTIONS AND/OR DOUBTS, PLEASE
CONTACT THE ZIVA CUSTOMER SERVICE.
SAFETY
INFORMATION
AND
GENERAL USER MANUAL

7
12 STABILITY
CHECK STABILITY: THE STANDING STRUCTURE HAS TO
BE STABLE.
13 CORROSION
CHECK CORROSION: ALUMINIUM AND STEEL PARTS
MUST NOT SHOW ANY SIGNS OF CORROSION.
14 LEVELING
CHECK LEVELING: THE EQUIPMENT DOES NOT HAVE TO
SHOW SIGNS OF LOWERING AND/OR INCLINING.
15 ALIGNING
CHECK ALIGNMENT: SUPPORTING PARTS, PLATFORM,
BEAM, STAIRS AND SLIDING ELEMENTS HAVE TO BE
ALIGNED.
16 DETERIORATION
CHECK DETERIORATION: THERE HAVE TO BE NO
HOLES OR DETERIORATIONS OF ANY KIND.
11 CHECK
- BEFORE USE CHECK IF ANY ELEMENT IS LOOSENED,
WORN, OR DAMAGED.
- CHECK WELDED JOINTS FOR POSSIBLE WEAR.
- ENSURE THAT THERE ARE NO PROTRUDING BOLTS,
SCREWS, EDGES, NUTS, ETC.
- ENSURE THAT ALL CAPS ARE PLACED: ANY MISSING
CAP HAS TO BE REPLACED.
SAFETY
INFORMATION
AND
GENERAL USER MANUAL

8
18 SUPPORTS
19 CLEANING
20 DAMAGE
21 COMPONENTS
CHECK IF THE SUPPORTS CAN SUPPORT
APPROPRIATELY.
THE SURFACES CAN BE CLEANED USING NEUTRAL
SOAP.
MAKE SURE THERE ARE NO CRACKS, CUTS, EXCESSIVE
WEAR OR SIMILAR DAMAGES.
CHECK IF ALL COMPONENTS ARE INSTALLED
AT THE ENVISAGED HEIGHT (FOR MORE DETAILED
INFORMATION SEE THE INSTALLATION INSTRUCTIONS).
Many potential accidents can be avoided by carrying
out regular audits. The primary safety measure to
take once the equipment has been installed is to
appoint a member of the staff to the process of
inspection and control of the equipment.
The first step of this inspection and control process
is the full revision of all necessary measures: this
manual therefore contains a reporting sheet with a
time table to carry out the necessary audit measures.
SAFETY
INFORMATION
AND
GENERAL USER MANUAL
17 CAUTION
- TO AVOID INJURIES, EXAMINE IF THERE ARE ANY
PROTRUDING PARTS OR SHARP EDGES THAT COULD
GET CAUGHT ONTO CLOTHING OR OTHER OBJECTS.
- ENSURE THERE ARE NO DAMAGES AT THE PAINTING.

2
9
INFINITY
TRAINING TOWER

1
2
3
4
5
6
COLUMN
BASE PLATE
UPPER PLATE
TRAINING TOWER PEG
CAP
COVER
INFINITY
TRAINING TOWER
10
1
2
3
4
5
6

3PRODUCT
COMPONENTS
11

COLUMN 2500mm
BASE PLATE
UPPER PLATE
RIGHT COVER FOR COLUMN
LEFT COVER FOR COLUMN
FIXING SUPPORT FOR COVER
PLASTIC CAP KIT FOR PEG
TRAINING TOWER PEG
INFINITY
TRAINING TOWER
PLASTIC SPACER FOR PEG
FIXING SUPPORT FOR TRAINING TOWER PEG
CIRCULAR DECAL 49 mm
DECAL STRIPE FOR COLUMN 1 TO 6
DECAL STRIPE FOR COLUMN 7 TO 12
ASSEMBLY KIT
GROUND FIXING KIT
2
24
1
1
2
2
12
48
48
48
4
4
1
1
48
12
QTYDESCRIPTION QTYDESCRIPTION

4FIXING
COMPONENTS
13

14
FIXING
COMPONENTS
FLOOR FIXING
EXPANSION ANCHOR
TENSILE
STREGHT
Nmax
(kN)
ANCHOR SIZE

FIXING
COMPONENTS
FLOOR FIXING
CHEMICAL ANCHORS
HARDENING AND APPLICATION TIME
RESIN TEMP APPLICATION TIME HARDENING TIME
UNIVERSAL CHEMICAL ANCHOR
APPLICATION AREAS:
- Heavy anchors in full supports
- Universal use: one anchor for all types of support
- High resistance to atmospheric agents
- High resistance to high temperatures
ENSURE THAT THE FLOOR:
- IS ABLE TO SUPPORT THE MAXIMUM WEIGHT OF THE STRUCTURE.
- IS COMPATIBLE WITH THE RECOMMENDED ANCHORAGES.
- IS COMPATIBLE WITH THE FASTENING OF THE STRUCTURE.
CHECK THE HEIGHT OF THE ROOM AND ANY CONSTRUCTIVE OBSTACLES.
WARNING:
15

5ASSEMBLING
TOOLS
16

BETA 920/22
EXTENSION 250mm ½”
cod.009200826
BETA 720/21
EXTENSION 125mm ½”
cod.007200822
BETA 42
KEY COMBINED 22mm
cod.000420022
BETA 42
KEY COMBINED 19mm
cod.000420019
BETA 42
KEY COMBINED 17mm
cod.000420017
BETA 720
KEY COMBINED ½” 22mm
cod.007200022
BETA 720
KEY COMBINED ½” 17mm
cod. 007200017
BETA 720ME
HEX KEY ½” M.10
cod.007200510
BETA 720ME
HEX KEY ½” M.6
cod.007200506
BETA 720/25
WRENCH ½”
cod.007200831
BETA 1203/D8P
SET
SCREWDRIVER
BETA 42
KEY COMBINED 13mm
cod.000420013
BETA 720
KEY COMBINED ½” 19mm
cod.007200019
BETA 720
KEY COMBINED ½” 13mm
cod.007200013
BETA 720ME
HEX KEY ½” M.8
cod.007200508
BETA 96BPC/SC9
SET
HEX KEY
ARIEX DIAM.42
HAMMER
RUBBER
MAURER MAGNETIC
LEVEL
50cm
ASSEMBLING
TOOLS
BETA 920/50
RATCHET ½”
cod.009200871
STANLEY TYLON
FLEX-YARDSTICK
5MT
17

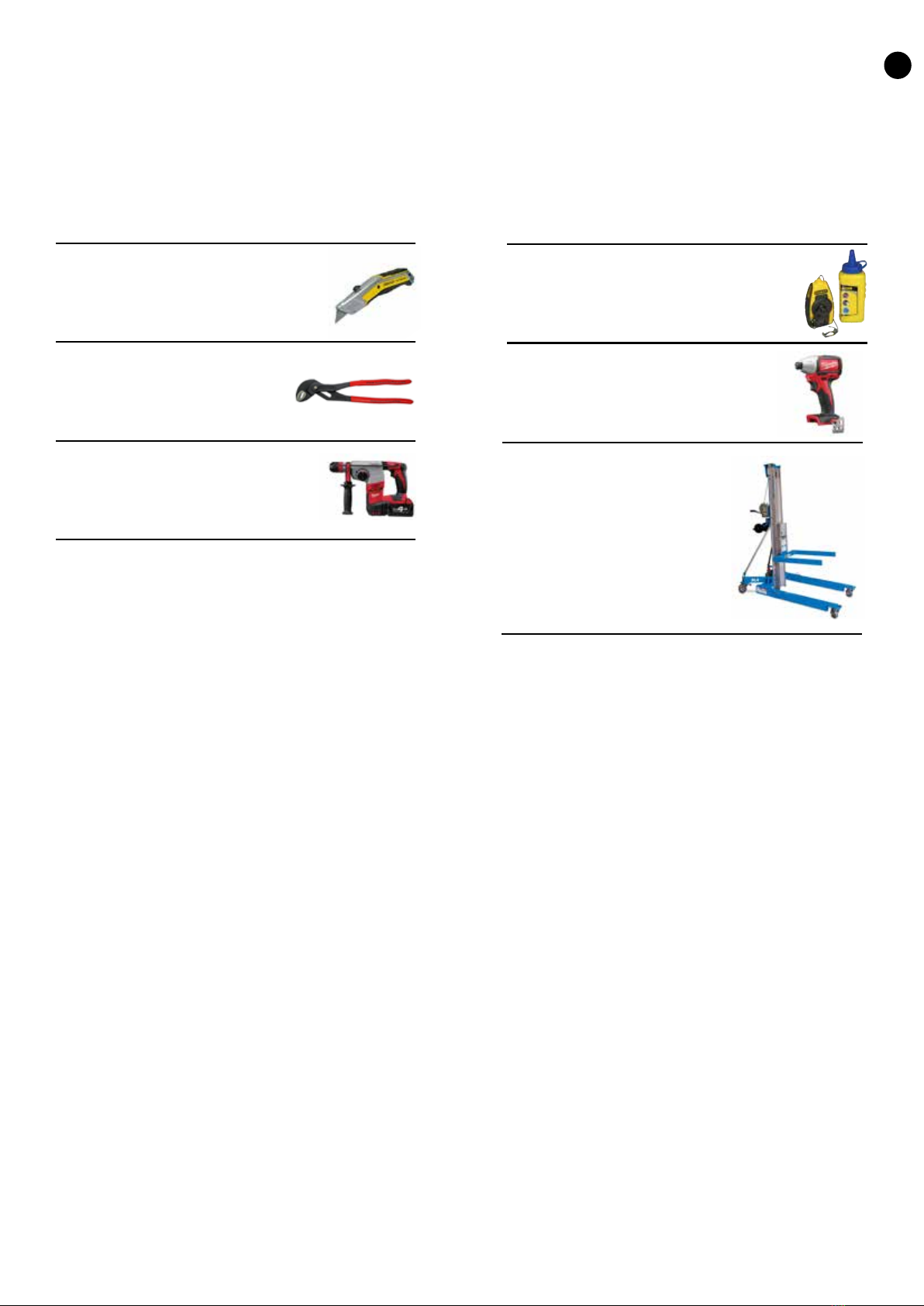

1-10-280 MM.18
CUTTER
STANLEY
COBRA MM.250
TONGS
KNIPEX
STANLEY
STRIPER
M18 CHX-OX
CORDLESS ROTARY
MILWAUKEE
M18 FIW P 12 –OX
ELETRIC SCREWDRIVER
MILWAUKEE
GENIE LIFT
SLA 10
GENIE
ASSEMBLING
TOOLS
18

6ASSEMBLY
INSTRUCTION
19

INSERT THE SCREWS AND BOLTS ON THE BASE PLATE AND PLACE ON THE BOTTOM OF THE COLUMNS
ASSEMBLY
INSTRUCTION
20
STEP 1
FIX THE SCREWS AND BOLT TO SECURE THE BASE PLATE AND COLUMNS
STEP 2
