ZLAN ZLAN5102-3 User manual

ZLAN5102-3 User
Manual
RS232/485/422 to TCP/IP
Converter
CopyRight©2008 Shanghai ZLAN Information Technology Co.,

Ltd. All right reserved
Document DI: ZL DUI 20121230.1.0
CopyRight©2008 Shanghai ZLAN Information Technology Co., Ltd. All right reserved
Version Information
The History of the revision to this document:
histroy
Date
Version
Document ID
Revising content
2012-12-30
Rev.1
ZL DUI 20121230.1.0
First release
Copyright information
Information in this document is subject to change without notice. It is against the law to copy
the document on any medium except as specifically allowed in the license or nondisclosure
agreement. The purchaser may make one copy of the document for backup purposes. No part of
this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, or through information storage and retrieval
systems, for any purpose other than for the purchaser’s personal use, without the express written
permission of ZLAN information, Inc.

DIRECTLY
1. SUMMARY.......................................................................................................4
1.1. Feature ............................................................................................................. 5
1.2. Technical Parameters ....................................................................................... 7
1.3. Hardware description....................................................................................... 8
2. CONFIG...........................................................................................................9
2.1. web configuration ............................................................................................ 9
2.2. windows tool config........................................................................................11
3. SUPPORT .......................................................................................................12

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
1. Summary
ZLAN5102-3 is a high performance serial server device. It converts
RS232/485/422 protocol to TCP/IP protocol. It can conveniently let your legend
serial device connect to Ethernet and Internet, and upgrade the serial device with
networking.
The RS232/RS485/RS422 port of ZLAN5102-3 supports
Full-duplex/Half-duplex, uninterrupted communication. It embedded with lightning
protection circuits. It supports DHCP, DNS. It supports virtual serial driver, and
user’s previous PC software using serial communication need not change.

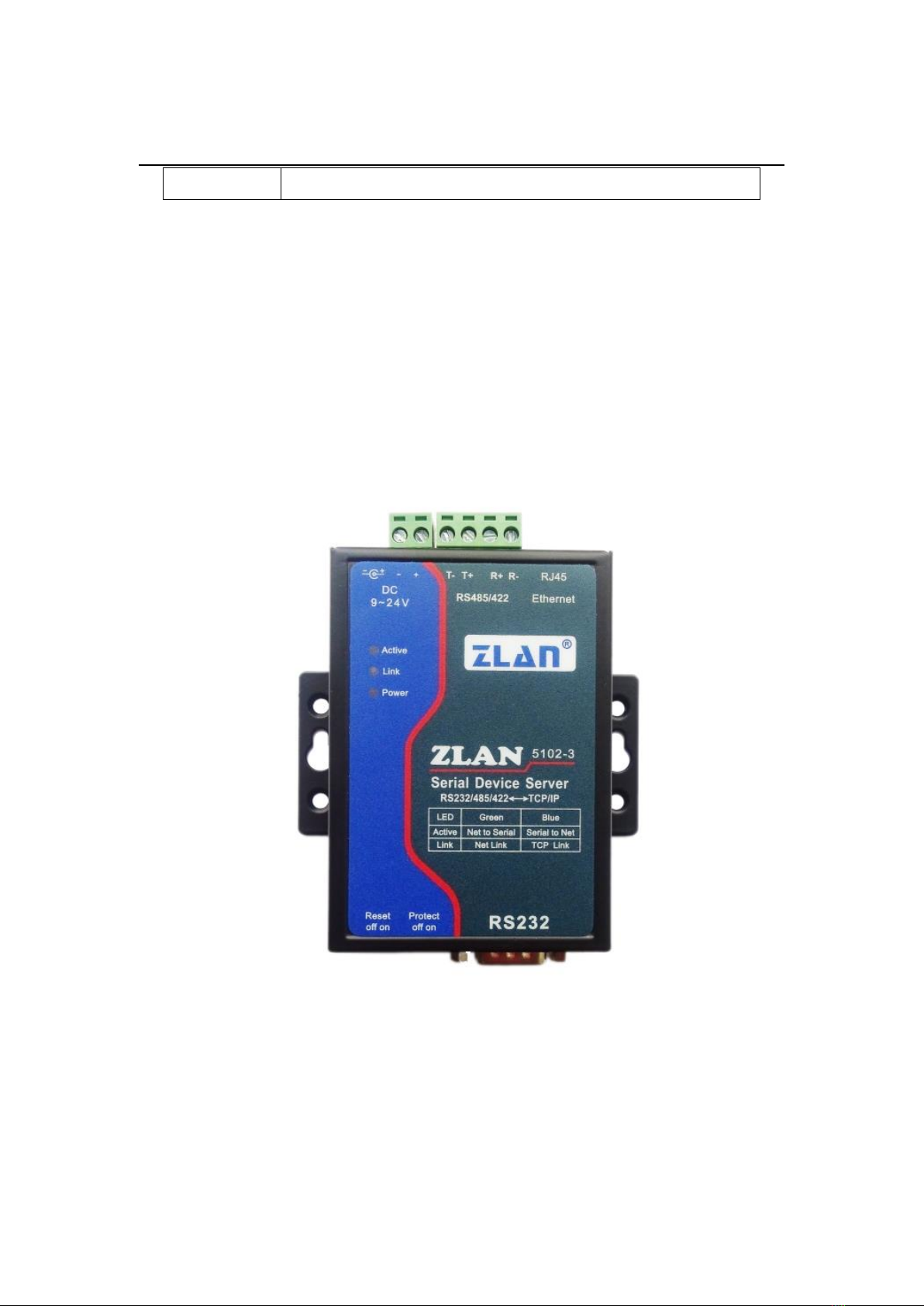

Figure 1 ZLAN5102-3 converter
It can be applied to:
building/e-guard system/security system;
bank/medical automation system;
dealing in securities system;

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
industry automation system;
Point of Sells (POS) system;
Information Appliance.
The typical application is slowed in Figure 2. The serial device is connected to
ZLAN5102-3 serial port, and then connects ZLAN5102-3 to Ethernet.
Figure 2
1.1. Feature
1. Support full duplex, high speed converting, and no packet lost.
ZLAN5102-3 is the first type of full duplex, continuous, and low cost serial
server in industry. It support simultaneously converting between Ethernet &Serial

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
with large bulk of data with no pause, and also no data is lost.
2. Hight cost performance.
ZLAN5102-3 is designed by concept of intensification, after ensure the stability.
It highly takes the cost of networking upgrading in count
3. Support TCP Server, TCP Client, UDP mode, and if communicating with
ZLVirCom (our software), it automatically change to Real Com Driver Mode.
4. Support band rate 1200~460800bps, data size 5~8bits, parity of None, Odd, Even,
Mark, Space. Support CTS/RTS hardware flow control.
5. Equipped freely with our Windows Virtual Serial & Device Management Tool
ZLVirCom. It supports virtual serial and searching device or modifying
parameters with ZLVircom.
6. Provide device management library (Window DLL library). It will help user to
develop program with VC, VB, Delphi, C++ Builder. User need only use read()
or write() function to communicate with ZLAN5102-3.
7. The innovative disconnecting detecting method. Whether it running in TCP
Server mode or TCP Client mode, once network is disconnected by some reason,
the disconnecting detecting method will detected it and reestablished the
connecting.
8. With build-in Web server, its parameters can be modified by web browser.
9. Support DHCP, easy for IP management and solve IP confliction.
10. Support DNS. It fulfills the need of access data server through domain name.
11. Flexible serial data framing setting. It fulfills all kinds of serial data frame
requirement.
12. UDP mode support dynamic destination address mode. It helps for multi-user
mange one serial server.
13. Real Com Driver mode support using the 9-th bit to facilitate communication
with milt-device. (the 9-th bit being 0 means data frame and 1 means address
frame).
14. Support searching serial servers and modifying parameters through Internet
remotely
15. Support parameter modifying protection, preventing modifying by accident.

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
Support running with default parameters.
16. Build-in 2 KV electrical plus protection in RJ45.
17. High protection of electromagnetic interference, with its high electromagnetic
interference protection SECC external shell.
1.2. Technical Parameters
Figure
Interface:
Serial:DB9 Male for RS232, 2 PIN terminal for RS485/RS422; RJ45
Networking connecter; Power plug-in or terminal
Size:
L x W x H = 9.4cm x 6.5cm x 2.5cm
Communicate interface
Ethernet:
10M/100M, 2KV electrical plus protection
Serial
RS232/RS485/422×1：RXD，TXD，GND，CTS，RTS
Serial parameters
Band rate:
1200~460800bps
Parity:
None, Odd, Even, Mark, Space
Data size:
5~9
Flow control:
CTS/RTS,DTR/DSR,XON/XOFF
Software
protocol:
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS,
Setting
method :
ZLVirCom, WEB browser, device management library
Net
communication
method:
Socket, Virtual serial , device management library
Work mode
TCP server, TCP client, UDP, Real Com Driver
Power
Power:
9~24V DC.
Environment
Running
temperature:
-40~85℃
Storage temp:
-40~120℃

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
Humidity:
5~95%RH
1.3. Hardware description
The top view of ZLAN5102-3 is show in Figure 3.
Panel:
1．ACT: the ACT light indicates if there is data transform between serial and
Ethernet.
2．LINK: LINK light indicates if Ethernet line is plug in.
3．POWER. power on.
Figure 3

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
Figure 4
The front view is show in Figure 4.
1．RS845/RS 422is used to connect user RS485 /RS422device.
2．Power is a standard power plug-in (inner pin is positive).
3．RJ45 networking interface.
The back view is show in Figure 5:
Figure 5
1．DEF switch: When DEF is push to 1, serial server will start with default
parameter (default IP is 192.168.0.254)
2．RS232 port. DB9 mail interface.
2. Config

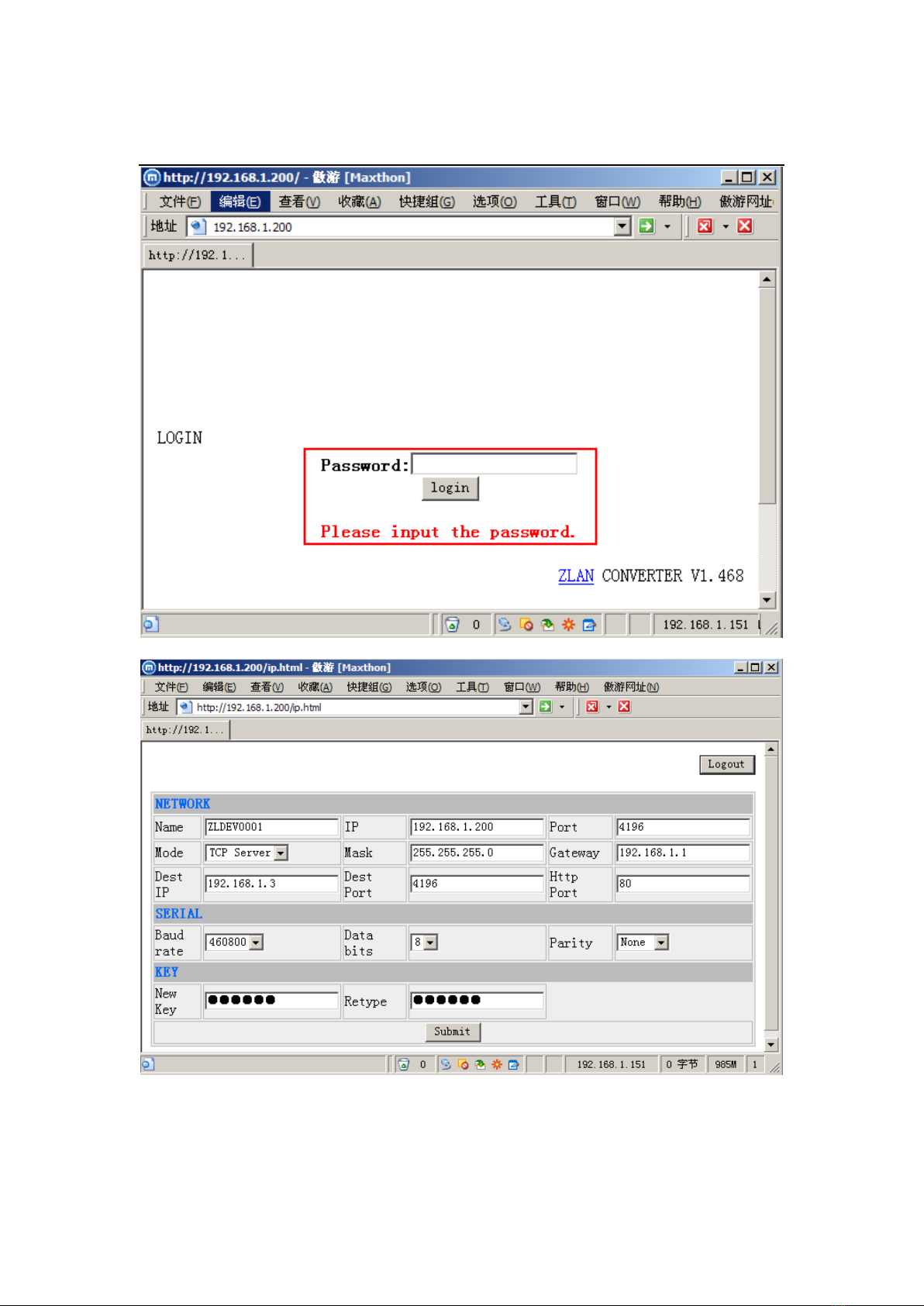

2.1. web configuration
Input the IP of ZLAN5102-3 in the web browser and open the login web. Input
the password of 123456 and login. Then you open a configuration web and you can
change IP, baud rate and so on.

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com

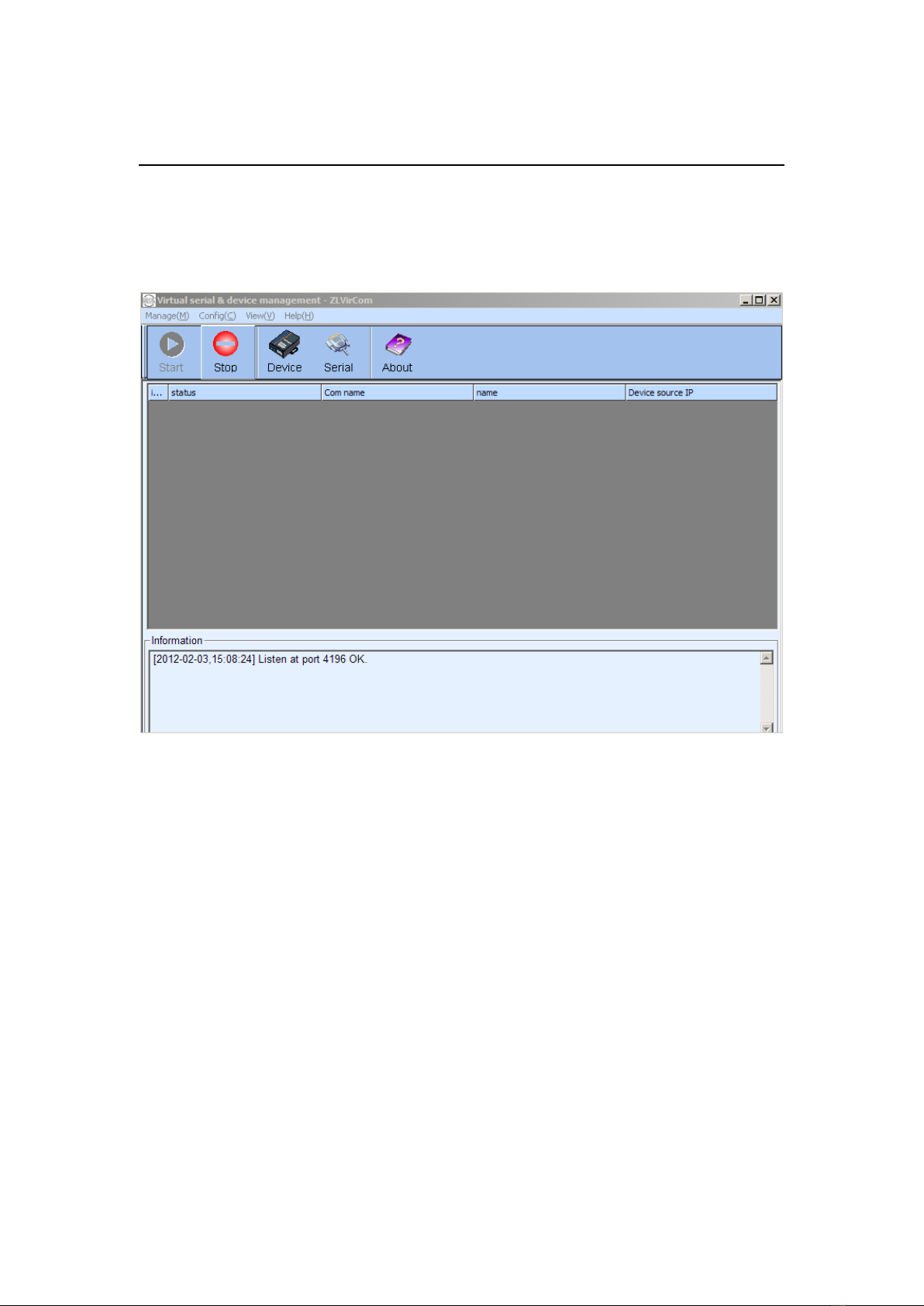

2.2. windows tool config
Please run the English version of zlvircom software. Then press Device button.
In the next press search button and find the device then press Edit button to edit this
device.

ZLAN Information Inc. Tel:[phone] http://www.zlmcu.com
3. Support
ZLAN Information Technology Co., Ltd.
12 floor D building No. 80 CaoBao road Xuhui District Shanghai City China
Phone: [phone]
Fax: [phone]
Web: http://www.zlmcu.com
Email: [email protected]
