1. Summary
ZLAN5102 is a high performance serial server device. It converts RS485/232
protocol to TCP/IP protocol. It can conveniently let your legend serial device connect
to Ethernet and Internet, and upgrade the serial device with networking.
The RS232/RS485 port of ZLAN5102 supports Full-duplex/Half-duplex,
uninterrupted communication. It embedded with lightning protection circuits. It
supports DHCP, DNS. It supports virtual serial driver, and user’s previous PC
software using serial communication need not change.
Figure 1 ZLAN5102 converter
It can be applied to:
building/e-guard system/security system;
bank/medical automation system;
dealing in securities system;
industry automation system;
Point of Sells (POS) system;
Information Appliance.

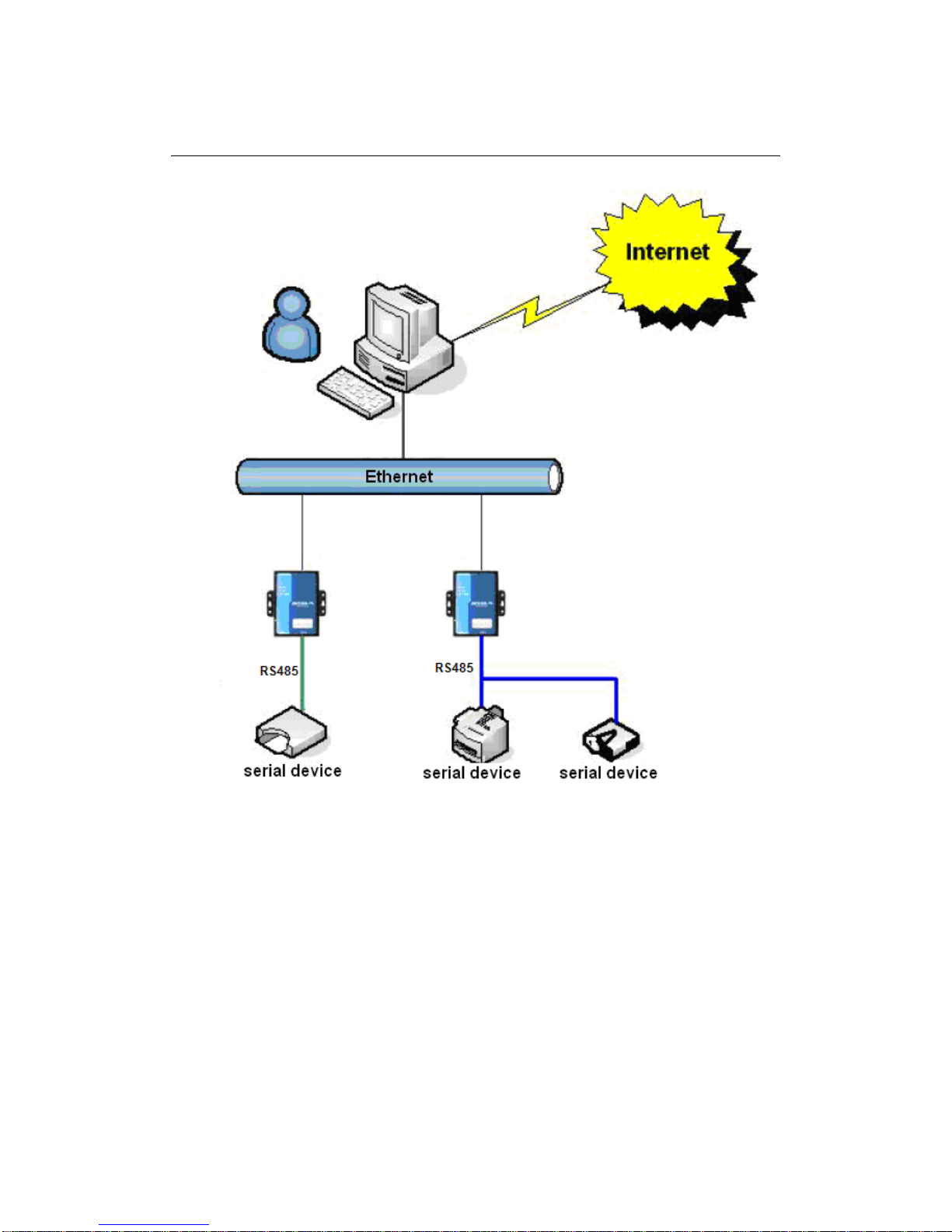

The typical application is slowed in Figure 2. The serial device is connected to

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
ZLAN5102 serial port, and then connects ZLAN5102 to Ethernet.
Figure 2
1.1. Feature
1. Support full duplex, high speed converting, and no packet lost.
ZLAN5102 is the first type of full duplex, continuous, and low cost serial server
in industry. It support simultaneously converting between Ethernet &Serial with
large bulk of data with no pause, and also no data is lost.
2. Hight cost performance.
ZLAN5102 is designed by concept of intensification, after ensure the stability. It
highly takes the cost of networking upgrading in count

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
3. Support TCP Server, TCP Client, UDP mode, and if communicating with
ZLVirCom (our software), it automatically change to Real Com Driver Mode.
4. Support band rate 1200~460800bps, data size 5~8bits, parity of None, Odd, Even,
Mark, Space. Support CTS/RTS hardware flow control.
5. Equipped freely with our Windows Virtual Serial & Device Management Tool
ZLVirCom. It supports virtual serial and searching device or modifying
parameters with ZLVircom.
6. Provide device management library (Window DLL library). It will help user to
develop program with VC, VB, Delphi, C++ Builder. User need only use read()
or write() function to communicate with ZLAN5102.
7. The innovative disconnecting detecting method. Whether it running in TCP
Server mode or TCP Client mode, once network is disconnected by some reason,
the disconnecting detecting method will detected it and reestablished the
connecting.
8. With build-in Web server, its parameters can be modified by web browser.
9. Support DHCP, easy for IP management and solve IP confliction.
10. Support DNS. It fulfills the need of access data server through domain name.
11. Flexible serial data framing setting. It fulfills all kinds of serial data frame
requirement.
12. UDP mode support dynamic destination address mode. It helps for multi-user
mange one serial server.
13. Real Com Driver mode support using the 9-th bit to facilitate communication
with milt-device. (the 9-th bit being 0 means data frame and 1 means address
frame).
14. Support searching serial servers and modifying parameters through Internet
remotely
15. Support parameter modifying protection, preventing modifying by accident.
Support running with default parameters.
16. Build-in 2 KV electrical plus protection in RJ45.
17. High protection of electromagnetic interference, with its high electromagnetic
interference protection SECC external shell.

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
1.2. Technical Parameters
Figure
Interface:
Serial:DB9 Male for RS232, 2 PIN terminal for RS485; RJ45
Networking connecter; Power plug-in or terminal
Size:
L x W x H = 9.4cm x 6.5cm x 2.5cm
Communicate interface
Ethernet:
10M/100M, 2KV electrical plus protection
Serial
RS485/RS232 x 1:RXD,TXD,GND
Serial parameters
Band rate:
1200~460800bps
Parity:
None, Odd, Even, Mark, Space
Data size:
5~9
Flow
control:
CTS/RTS,DTR/DSR,XON/XOFF
Software
protocol:
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS,
Setting method :
ZLVirCom, WEB browser, device management library
Net communi-
cation method:
Socket, Virtual serial , device management library
Work mode
TCP server, TCP client, UDP, Real Com Driver
Power
Power:
9~24V DC.
Environment
Running
temperature:
-40~85℃
Storage temp:
-40~120℃
Humidity:
5~95%RH
1.3. Hardware description
The top view of ZLAN5102 is show in Figure 3.
Panel:
1．ACT: the ACT light indicates if there is data transform between serial and
Ethernet.
2．LINK: LINK light indicates if Ethernet line is plug in.

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
3．POWER. power on.
Figure 3
Figure 4

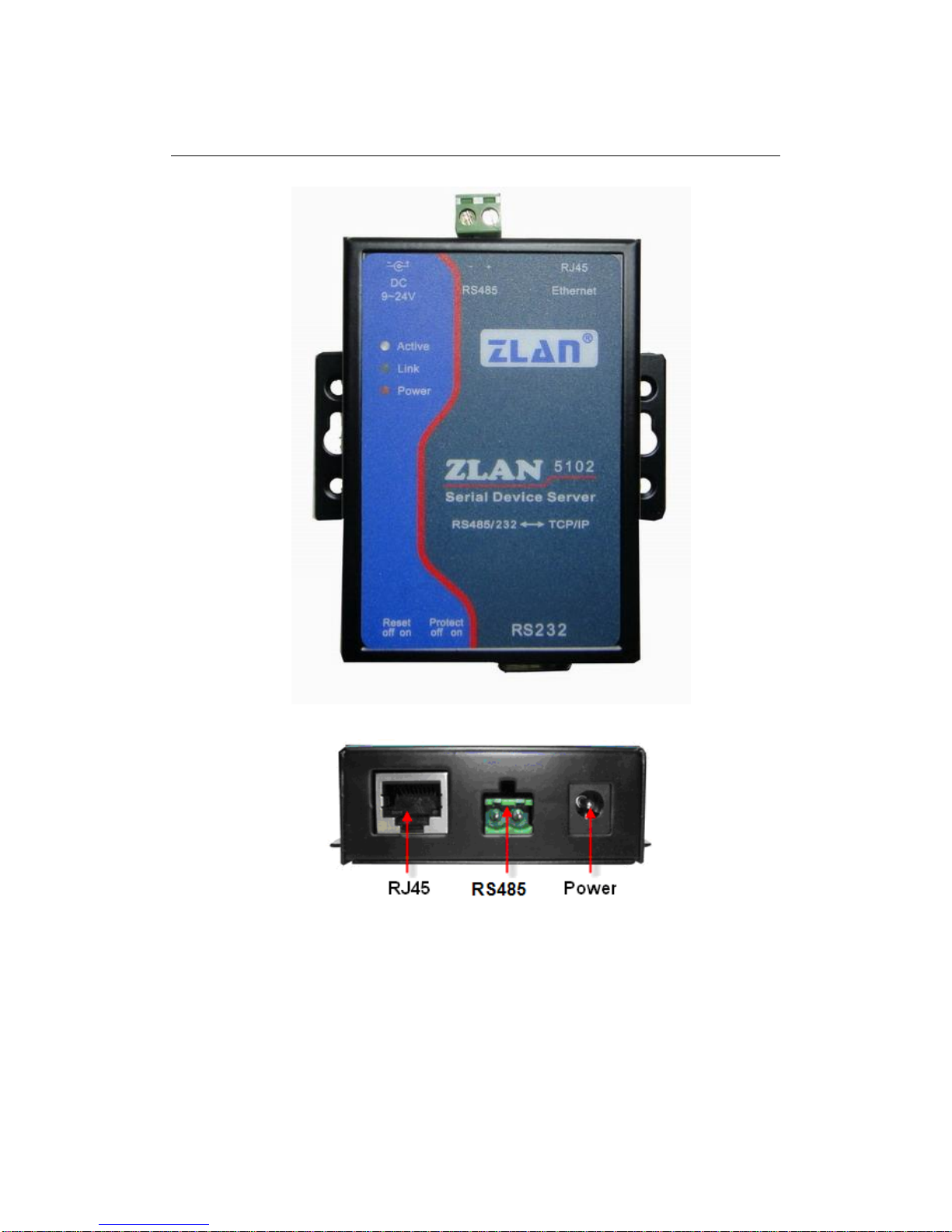

The front view is show in Figure 4.
1．RS845 is used to connect user RS485 device.
2．Power is a standard power plug-in (inner pin is positive).
3．RJ45 networking interface.

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
The back view is show in Figure 5:
Figure 5
1．DEF switch: When DEF is push to 1, serial server will start with default
parameter (default IP is 192.168.0.254)
2．RS232 port. DB9 mail interface.
2. Config
2.1. web configuration

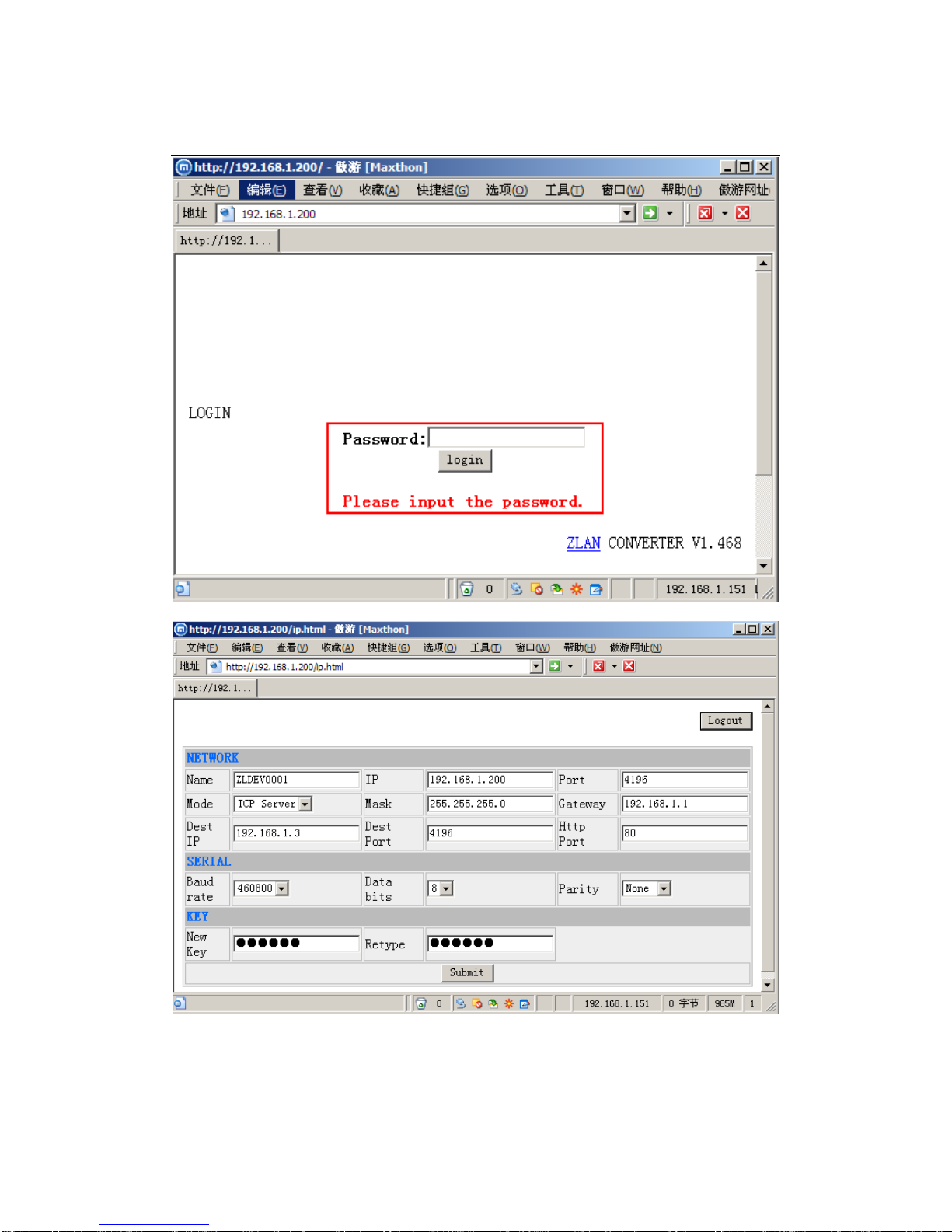

Input the IP of ZLAN5102 in the web browser and open the login web. Input the
password of 123456 and login. Then you open a configuration web and you can
change IP, baud rate and so on.

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
2.2. windows tool config

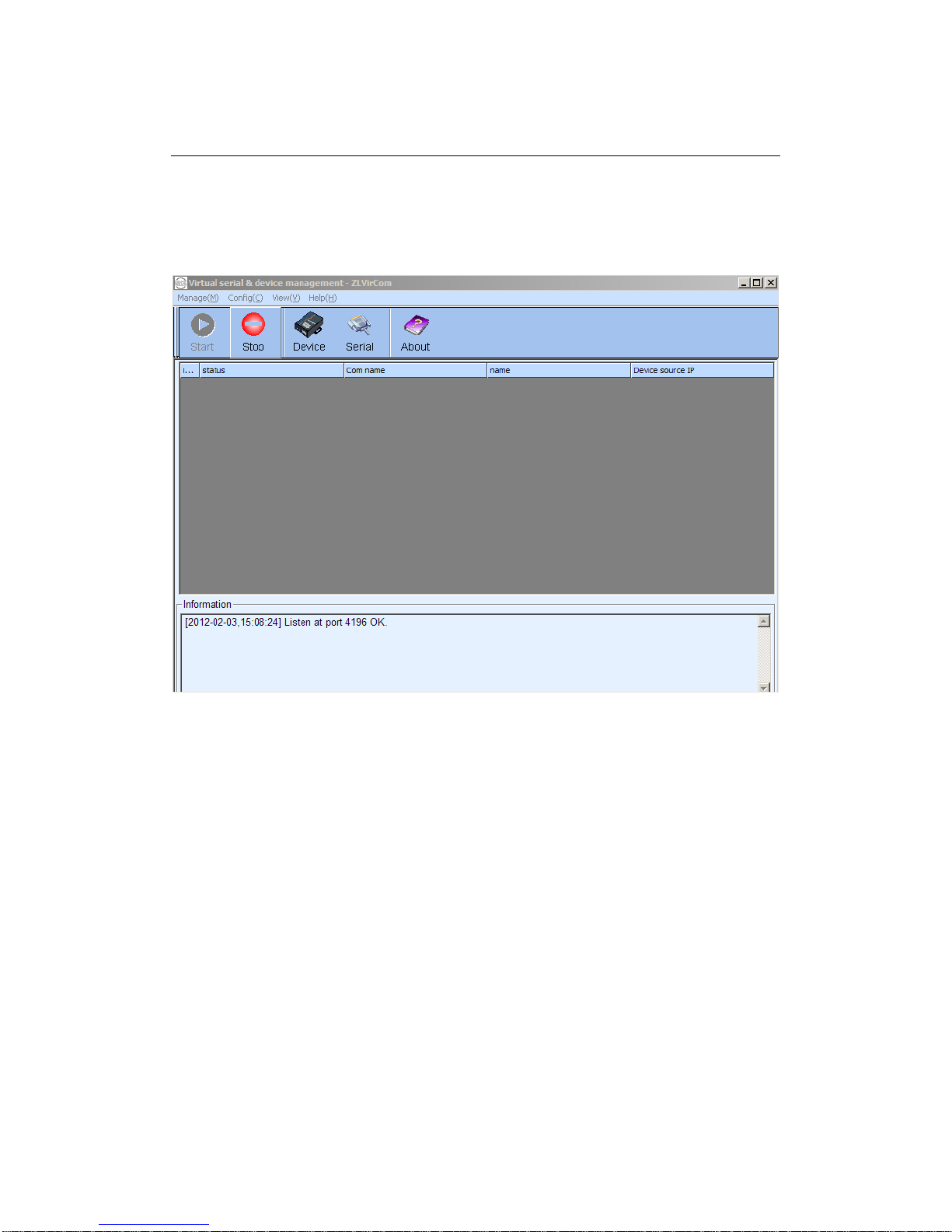

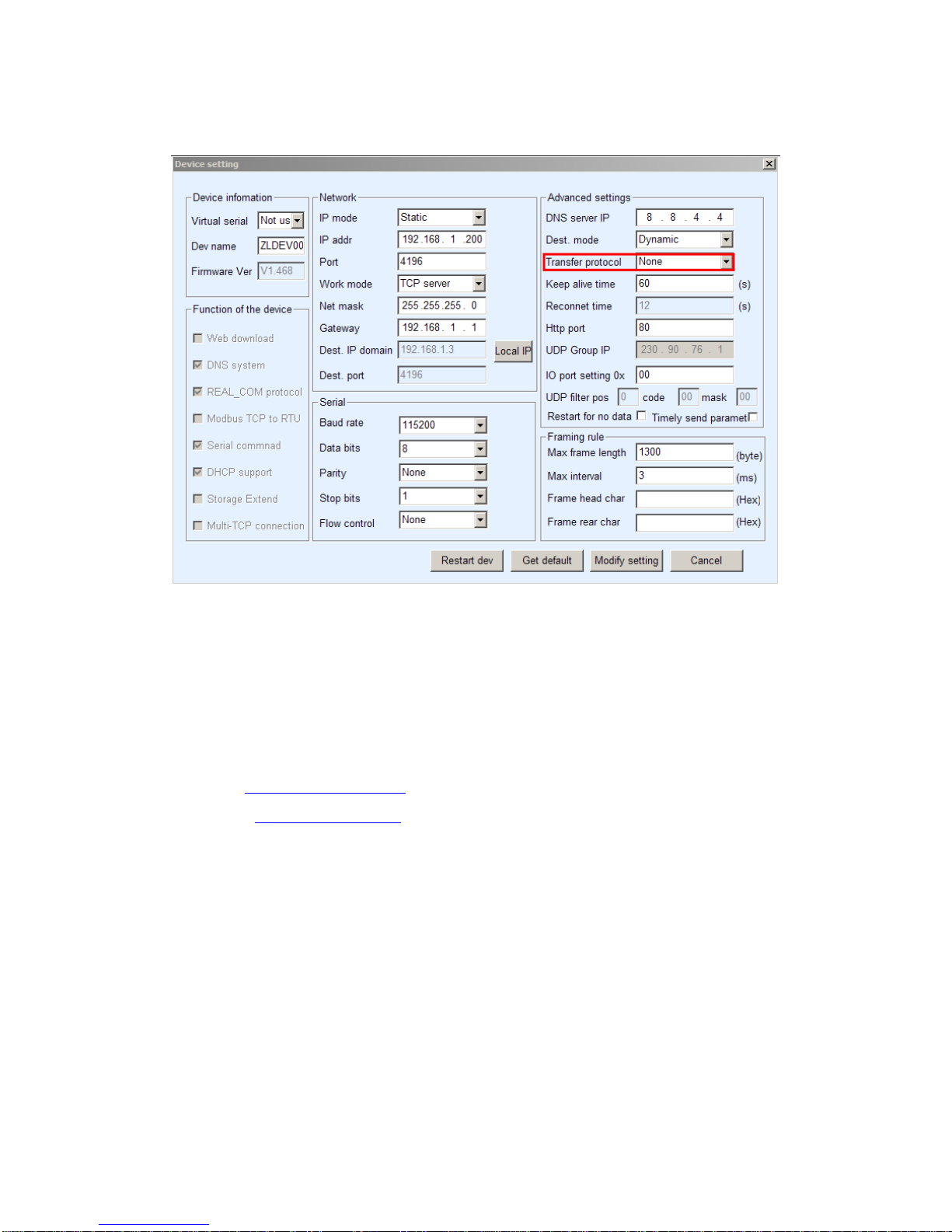

Please run the English version of zlvircom software. Then press Device button.
In the next press search button and find the device then press Edit button to edit this
device.

Zorlan Information Inc. Tel:[phone] http://www.zlmcu.com
