Zline RK62342 Assembly instructions

Range Hood
Installation Guide
and Users Manual

WARNING: This product can expose you to chemicals including
nickel, which is known to the State of California to cause cancer.
For more information, go to www.P65Warnings.ca.gov.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing
the highest end luxury designs and professional features into everyone's
homes. Because we continually strive to improve our products, we may
change specifications and designs without prior notice.

Often the center attraction of a kitchen, ZLINE range hoods can add
surprising value to your property, by providing both an impressive,
aesthetic look to your home, excellent ventilation, and additional
kitchen lighting. ZLINE range hoods blend superior performance with
elegant design.
ZLINE motors are incredibly powerful, yet quiet compared to the
competitors. This is achieved through the highly durable steel-on-steel
construction and unique centrifugal design. At the highest setting,
ZLINE motors max out at 56 decibels, producing sound so quiet it
will never command the attention of your dinner party.
ZLINE is fueled by a passion for innovation; A relentless pursuit of
bringing the highest end luxury designs and professional features
into everyone’s homes. Because we continually strive to improve our
products, we may change specifications and designs without prior
notice.

WARRANTY
PROPER VENTING REGULATIONS
Please verify with your local, city, and state regulations on the proper venting method
for your hood. Many agencies have CFM rating specifications for your hood, as well.
You may have to purchase additional items on your own to vent the hood in accor-
dance with your local city and state specifications. Our ZLINE dual motor range
hoods come with an 8” metal transition piece without a backdraft damper and a
piece of 4’ metal ducting. Our ZLINE single motor units come with a plastic 6” plastic
transition piece with a backdraft damper and a 4’ long piece of flexible ducting.
THREE YEAR PARTS WARRANTY
For three years from the date of original purchase, we will provide free of
charge, non-consumable replacement parts for the components that failed due to
manufacturing defects. Subject to the conditions and limitations set forth below at its
option, either repair or replace any part of its products that prove defective by reason
of improper workmanship or material. Repaired parts or replacement products will be
provided by www.therangehoodstore.com on an exchange basis and will be either
new or refurbished to be functionally equivalent to new. The consumer is responsible
for shipping costs. Consumable parts not covered by this warranty include, but are
not limited to: light bulbs, metal, aluminum, and charcoal filters.
WHO IS COVERED
This warranty is extended to the original purchaser for products purchased for
ordinary home use in the continental USA.

WARRANTY
THIS WARRANTY WILL BE VOID WHEN
Product damaged through negligence, improper installation, accident, abuse, misuse,
and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical
or environmental conditions or any unauthorized disassembly repair, modifications
or failure to follow the installation instructions or when product is used commercially
or other than its intended purpose or damaged because of improper connection
with equipment of other manufacturers. Repaired or modified by anyone other than
authorized agents This limited warranty does not apply to any product on which
the original identification information has been altered, obliterated or removed, has
not been handled or packaged correctly, has been sold as second-hand or resold
contrary to the US regulations.
WHAT IS NOT COVERED
Consumable parts such as light bulbs, metal and charcoal filters. The natural wear
of finish, and wear due to improper maintenance, use of corrosive and abrasive
cleaning products, pads and cleaning products. Chips, dents or cracks due to abuse,
misuse, freight damage (not reported), or improper installation. Damage of product
caused by accident, fire, flood, or act of God, we are not liable for and is not
covered by warranty, any loss of properties or any cost associated with removing,
servicing, installing or determining the source of problems with our products.
This warranty is valid in the United States. It is non-transferable and applies only
to the purchaser and does not extend to subsequent owners of this product, any
applicable implied warranties, including the warranty of merchantability are limited
in duration to a period of express warranty as provided herein beginning with the
date of original purchase at retail and no warranties, whether express or implied shall
be applied to this product. All shipping charges for returns are the responsibility of the
purchaser.

Carefully inspect all items for damages before accepting delivery. Customer
should note any damages on the freight bill or express receipt. Request the name
and signature of the carrier’s agent and keep a copy to support your claim. Upon
acceptance of items, owner assumes responsibility for its safe arrival. Report
damages to the carrier and file a claim immediately. Failure to do so may result in
the denial of your claim. The carrier will furnish you with necessary forms for filing a
claim.
Please inspect contents of package(s) carefully upon receiving them! We must be
notified of any damages and/or missing parts within (5) days upon your receipt of
package(s). Claims will not be accepted after (5) days.
NOTE: Items were thoroughly tested and carefully packed in our facility before
shipping. Products must be returned in good working condition with ALL original parts
and documentation packed in all original cartons, fillers and shipping cartons. A
restocking fee of 15% will be charged for all approved returns. Exchanges or returns
may not be accepted if any packaging is missing. Make certain to inspect the hood
for damages and defects before installation. Appearance flaws of the hood found
after installation and not affecting the hood’s performance is not covered under our
warranty for returns or exchanges. Service visits not covered under warranty will
carry a service charge.
Before installing your unit, please test the item(s) for proper functionality by plugging
it into the wall and testing the fan and lights. If unit does not work, please contact
customer service right away. Have a question? Call us at 1-614-777-5004.
Before Installation: Return for exchange or refund.
After Installation: No exchange or refund.
DISCLAIMER

IMPORTANT SAFETY INSTRUCTIONS 1
WALL RANGE HOOD INSTALLATION 4
WALL CROWN MOLDING INSTALLATION 9
DESIGNER WALL RANGE HOOD INSTALLATION 10
WALL CROWNSOUND®INSTALLATION 15
ISLAND RANGE HOOD INSTALLATION 17
DESIGNER ISLAND RANGE HOOD INSTALLATION 21
ISLAND CROWNSOUND®INSTALLATION 25
UNDER CABINET INSTALLATION 27
RANGE HOOD INSERT INSTALLATION 30
REMOTE BLOWER INSTALLATION 32
BUTTON/CONTROL PANEL OPERATION 34
HOW TO CHANGE PARTS 35
TROUBLESHOOTING AND FAQ 46
MOUNTING SPECIFICATIONS 53
TABLE OF CONTENTS

1
General Safety
SAFETY INSTRUCTIONS
This is the safety alert symbol. This symbol alerts you to potential hazards
that can hurt you and others. All safety messages will follow the safety alert
symbol.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS
APPLIANCE.
• The installation instructions in this manual are intended for qualified installers,
service technicians, or persons with similar qualified background. Installation
and electrical wiring must be done by qualified professionals and in accordance
with all applicable codes and standards, including first-rated construction. DO
NOT attempt to install this appliance yourself. Injury could result from installing
the unit due to lack of appropriate electrical and technical background. Due to
the size and weight of this range hood, two people installation is recommended.
• Range hood may have very sharp edges; please wear protective gloves if it is
necessary to remove any parts for installing, cleaning or servicing.
• Activating any switch ON before completing installation may cause ignition or
an explosion.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
• For general ventilating use only. DO NOT use to exhaust hazardous or explosive
materials and vapors. The combustion air flow needed for safe operation of
fuel-burning equipment may be affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American
Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
the local code authorities. Sufficient air is needed for proper combustion and
exhausting of gases through the duct to prevent back drafting.
• Before servicing or cleaning unit, switch power OFF at service panel and lock
service panel to prevent power from being switched ON accidentally.
• Metal ductwork may be required based on local codes. Complimentary
ductwork in either heat-resistant PVC or flexible metal may be included as a
courtesy and can be omitted in favor of required ductwork.
WARNING

2
General Safety
SAFETY INSTRUCTIONS
• Ducted fans MUST ALWAYS be vented to the outdoors. At the point where the
duct work ends, add an external damper to prevent air from entering the home
when the hood is not in use. This also prevents small animals and rain water from
entering the duct work.
• When cutting or drilling into a wall or ceiling, be careful not to damage electrical
wiring or other hidden utilities.
• Your safety and the safety of others is very important. We have provided many
important safety messages in this manual and on your appliance. Always
read and obey all safety messages. All safety messages will tell you what the
potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
• All electrical wiring must be properly installed, insulated, and grounded.
• Old duct work should be cleaned or replaced, if necessary, to avoid the
possibility of a grease fire. Check all joints on duct work to insure proper
connection, all joints should be properly taped.
• Use this unit only in the manner intended by the manufacturer. If you have any
questions, contact the vendor.
• When the range hood ventilates the air out of the room, the air vented must be
replaced, this is called make-up air. If a makeup air system is needed, but not
used, a hood may not function as expected due to negative air pressure. We do
not currently provide a make-up air unit. Always consult any applicable building
codes in your area in regards to minimum and maximum air flow rates. Certain
states may require additional items such as make-up air for larger CFM range
hoods (typically over 300 CFM).
• Keep all fans, baffle, spaces, filter, grease tunnel, oil container and grease-
laden surfaces clean. Grease should not be allowed to accumulate on fan,
baffle, spaces, filter, grease tunnel or oil container. Clean grease-laden surfaces
frequently.
• To reduce the risk of fire and to disperse air properly, make sure to vent air
outside. DO NOT vent exhaust into spaces between walls, crawl spaces,
ceilings, attics or garages.

3
General Safety
SAFETY INSTRUCTIONS
• All ZLINE range hoods are ETL and UL listed, ensuring all parts were tested for
safety and meet industry standards and regulations. NOTE: This ensures all
included plastic ducting pieces were tested for safety and are flame retardant.
• Always turn the range hood ON when cooking at high heat or when cooking
flaming foods. Use high settings on the cooking range only when necessary.
Never leave surface units unattended at high settings. Boil overs cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Clean ventilating fan frequently.
• Always use appropriate cookware and utensils size. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A STOVE
TOP GREASE FIRE:
• Smother flames with a close fitting lid, cookie sheet or metal tray, then turn OFF
the burner. Never pick up a flaming pan—you may be burned.
• Keep flammable or combustible material away from flames. If the flames do not
go out immediately, evacuate and call the fire department. DO NOT use water,
including wet dishcloths or towels—a violent steam explosion will result.

4
Wall Hood Installation
WALL HOOD INSTALLATION
Installation Tutorial Video

5
WALL HOOD INSTALLATION
A
B
C
D
6
E
F
A B C
D
E F
1. Main Hood with All Lights and
Button Banks Pre-Installed
2. Adjustable Stainless Steel
Chimney Cover
3. Transition Piece (for 6” or 8”)
4. Baffle Filters
5. Flexible Duct (for 6” or 8”)
6. Packet of Screws and Anchors
7. Top Mounting Bracket
8. Grease Cup
Please unpack your range hood when it is delivered and inspect to ensure all parts
are included.
NOTE: Wall range hoods with single motors will come with a square to 6˝ round
transition piece and will include a back draft damper. The ducting with these range
hoods is 6˝. Dual motor wall hoods will come with a square to 8˝ round transition
piece without a back draft damper. The ducting with these range hoods is 8˝ in
diameter.
Use rigid ducting wherever possible. Try and minimize the use of elbows. More
elbows and longer runs create higher static pressure. No more than two to three
elbows are recommended. Use 40 feet of ductwork max. The hood comes with a
grounded three prong plug that can either be direct wired or plugged into a 20 amp
circuit.
Wall Hood Installation

6
Wall Hood Installation

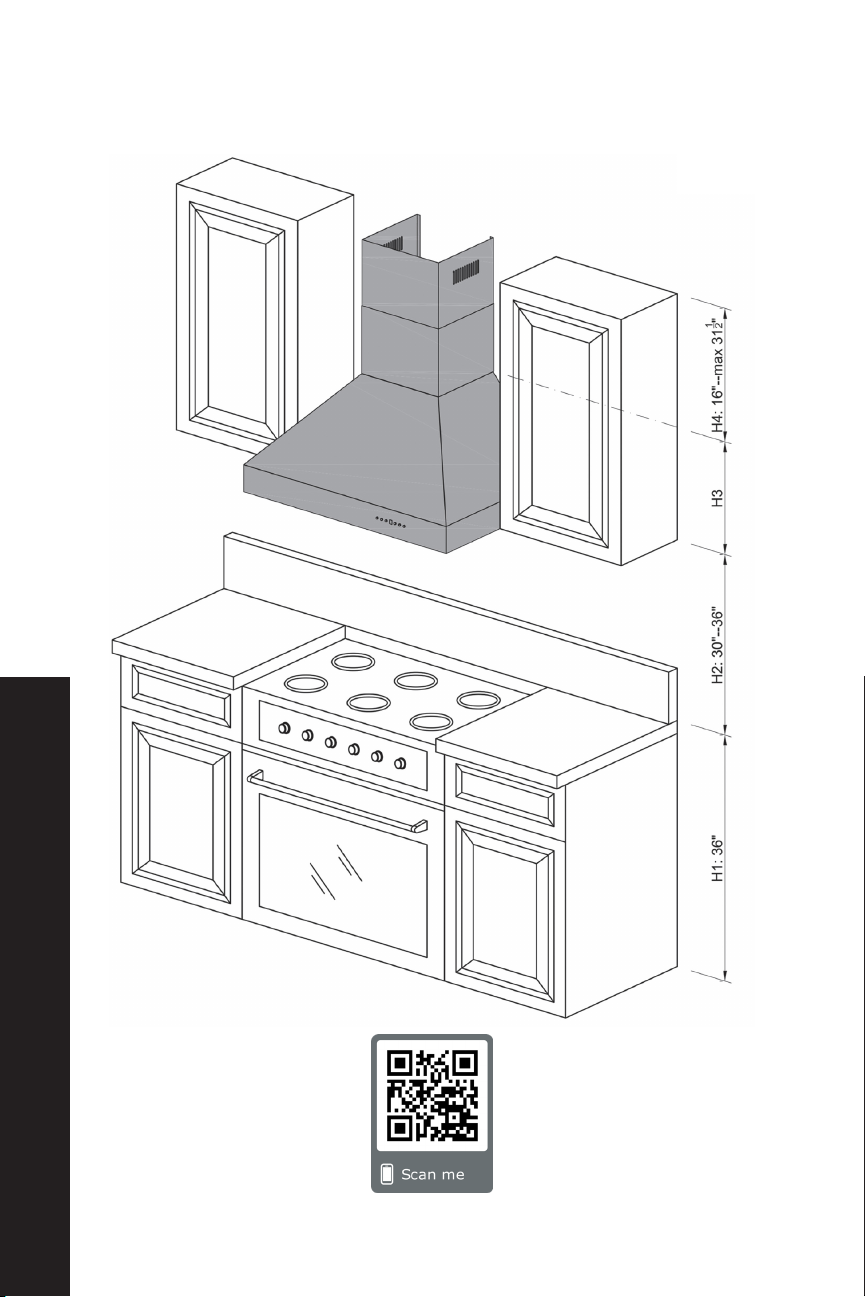

The recommended height to install your hood is 30˝ minimum and 36˝ maximum
above the cooktop. For Outdoor (304 Series) hood installation, the unit must be
installed at a minimum of 36˝ and a maximum of 42” above the grill.
1. Find the center of the wall where you are installing the hood. Make sure there
is sufficient bracing to hold the weight of the hood. Mark your center line and
measure out from the center to find your two mounting points. Make sure your
mounting points are level when you mark them. It is recommended to install the
hood directly into wood supports. Figure 1
2. Mark the mounting points and install the two mounting screws provided leaving
the heads out ¼˝ to mount the hood. Figure 1
3. Mount the main body of the hood to the two screws and screw into place. Figure
2
4. Mount the top chimney mounting bracket centering it above the hood. Figure 3
WALL HOOD INSTALLATION
Figure 3Figure 1
Figure 2
C
D

7
Wall Hood Installation
WALL HOOD INSTALLATION
5. Install the transition piece securing it with the screws provided. Figure 4
6. Make your electrical and ducting connections. Try and minimize the use of
elbows. More elbows and longer runs create higher static pressure. The hood
comes with a grounded three prong plug that can either be direct wire or
plugged into a 20 amp circuit. The cord is 45” long. Figure 5
7. Connect the ducting to the transition piece using foil-backed tape to hold it into
place. Attach the ducting to the range hood. Before installing baffle filters, make
sure that you insert the clear, plastic grease cup under the motor blower.
NOTE: ZLINE provides a ducting ring for the 8” metal ductwork. The ring for the PVC
6” can be found at the local hardware store.
NOTE: Place the cord behind the chimney or in the attic. An
outlet behind the chimney, to either the left or right is ideal.
Shown left.
Figure 4
Figure 5

8
Wall Hood Installation
WALL HOOD INSTALLATION
8. Install the two part chimneys on top of the hood. Slide the inside section up until
the vertical vent slots are visible, attach top portion to mounting bracket with
screws. Secure lower chimney portion to the hood with screws provided. Figure 6
9. Install the grease cup by sliding into brackets located at the bottom of the motor.
Install baffle channel and baffle filters. Not all models include baffle channels.
Figure 7
Figure 8
Figure 6
Figure 7

9
Wall Crown Molding Installation
Installation Tutorial Video

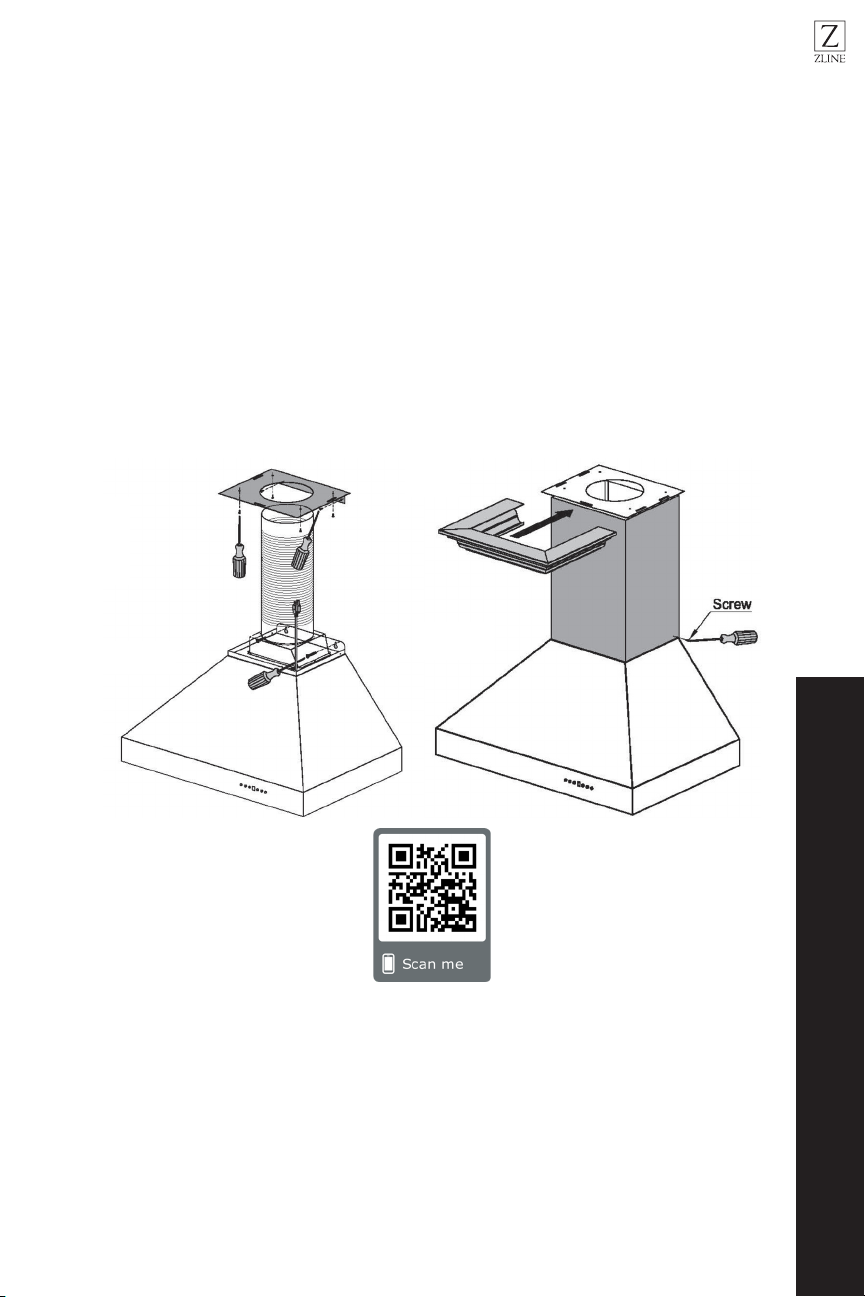

If using a crown molding, follow instructions before attaching ducting and chimney
sections.
1. Attach crown molding bracket to ceiling using hardware provided.
2. Attach ducting and electrical connections.
3. Attach chimney sections to the range hood, then connect to crown molding
bracket.
4. Slide crown molding onto crown bracket and secure into place.
WALL CROWN MOLDING INSTALLATION

10
Designer Wall Hood Installation
DESIGNER WALL HOOD INSTALLATION
Installation Tutorial Video

11
Designer Wall Hood Installation
A
B
C
D
6
E
F
Please unpack your range hood when it is delivered and inspect to ensure all parts
are included.
PARTS SUPPLIED
NOTE: Wall range hoods with single motors will come with a square to 6˝ round
transition piece and will include a back draft damper. The ducting with these range
hoods is 6˝. Dual motor wall hoods will come with a square to 8˝ round transition
piece without a back draft damper. The ducting with these range hoods is 8˝ in
diameter.
Use rigid ducting wherever possible. Try and minimize the use of elbows. More
elbows and longer runs create higher static pressure. No more than two to three
elbows are recommended. Use 40 feet of ductwork max. The hood comes with a
grounded three prong plug that can either be direct wired or plugged into a 20 amp
circuit.
DESIGNER WALL HOOD INSTALLATION
A B C
D
E F
1. Main Hood with All Lights and
Button Banks Pre-Installed
2. Chimney
3. Transition Piece (for 6” or 8”)
4. Baffle Filters
5. Flexible Duct (for 6” or 8”)
6. Packet of Screws and Anchors
7. Top Mounting Bracket
8. Crown Molding Bracket
9. Crown Molding
10. Grease Cup

12
Designer Wall Hood Installation
DESIGNER WALL HOOD INSTALLATION
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
above the cooktop. For Outdoor (304 Series) hood installation, the unit must be
installed at a minimum of 36˝ and a maximum of 42” above the grill.
1. Find the center of the wall where you are installing the hood. Make sure there
is sufficient bracing, such as wooden beams, to hold the weight of the hood.
Mark your center line and measure out from the center to find your two mounting
points. Make sure your mounting points are level when you mark them. It is
recommended to install the hood directly into wood supports. Figure 1
2. Mark the mounting points and install the two mounting screws provided leaving
the heads out ¼˝ to mount the hood. Figure 1
3. Mount the main body of the hood to the two screws and screw into place. Figure
2
4. Mount the crown molding bracket, centering it above the hood. Figure 3
Figure 1
Figure 2
C
D
Figure 3
