Zoomyo AFS 21-A User manual

ID: #05007
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
M
A
N
U
A
L
D
E
V
E
L
O
P
E
D
I
N
G
E
R
M
A
N
Y
User-friendly
Manual
PAPER SHREDDER WITH
AUTOMATIC FEED
User Manual

QR codes take you where you want to go
quickly and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales services, or if you want to watch a
product demonstration video, our QR codes will take you there in no
time at all.
What is a QR code?
A QR code (QR = Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You do not need to manually enter a website address or
contact details.
How it works
To scan the QR code, all you need is a smartphone with QR code reader
software and an internet connection. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and find
out more about the Aldi product you have purchased.
Your Aldi Service Portal
All details mentioned above can also be found in
the Aldi Service Portal at www.aldi.com.au.
Depending on your tariff plan you may be charged for the connection.

Dok./Rev.-Nr. 94191_20161011
Overview .............................................................................4
Use........................................................................................5
Product contents/ device parts..........................................6
General information............................................................ 7
Reading and storing the user manual ..................................7
Explanation of symbols ...........................................................7
Safety ...................................................................................9
Proper use................................................................................. 9
Safety instructions................................................................... 9
First use.............................................................................. 14
Checking the paper shredder and pack contents............. 14
Assembly.................................................................................. 14
Start-up.............................................................................. 15
Using the paper shredder................................................. 15
Automatic paper feed slot..................................................... 17
Manual paper feed slot .......................................................... 17
Credit card feed slot................................................................18
Emptying the waste bin.................................................... 18
Paper or credit card jam ................................................... 19
Fault LEDs ........................................................................... 19
When not in use.................................................................20
Cleaning and maintenance...............................................20
Cleaning the housing............................................................. 21
Cleaning the cutting unit ...................................................... 21
Storage .............................................................................. 22
Troubleshooting................................................................ 22
Technical data ................................................................... 23
Declaration of conformity................................................. 24
Disposal..............................................................................24
Disposing of the packaging ..................................................24
Disposing of old appliances ..................................................24
Warranty details................................................................ 25
Repair and refurbished goods or parts notice................ 26
Contents

4
A
2
1
3
4
5
10
11
12
9
8
6
7
13
14
15
16
17

5
D
B C

6
Product contents ⁄ device parts
1Automatic paper feed slot (for max. 50 sheets, A4, 80 g / m2)
2Power cord
3Twist lock
4Manual paper feed slot (for max. 7 sheets, A4, 80 g / m2/ credit card feed slot)
5Slide switch (AUTO / OFF/ REV)
6Cover lid /paper support
7Main unit
8Safety contact (on the inside)
9Carrying handle for the main unit, 2×
10 Waste bin
11 Fill level sensor (on the inside)
12 Cutting unit (on the inside)
13 Emptying LED ( )/overheat LED ( )
14 Power LED (POWER)/overload LED ( )
15 Arrow for sensor position, 2×
16 Shutter for the main unit
17 Paper sensor (on the inside)

General information
7
General information
Reading and storing the user manual
This user manual accompanies the paper shredder with automatic feed
(hereinafter referred to only as the “paper shredder”) and it contains
important information on start-up and use.
Carefully read through the user manual before using the paper shredder.
This particularly applies to the safety instructions. Otherwise, you could injure yourself
or damage the paper shredder.
Store the user manual for further use. If you pass the paper shredder on to third par-
ties, be absolutely sure to include this user manual.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the paper
shredder or on the packaging.
WARNING! This signal symbol / word designates a hazard with
moderate risk, which may result in death or severe
injury if not avoided.
CAUTION! This signal symbol / word designates a hazard with
low risk that, if not avoided, may result in minor or
moderate injury.
NOTICE! This signal word warns against potential damages to
property.
This symbol provides you with useful supplementary information on
use.
Declaration of conformity (see chapter “Declaration of conformity”):
Products marked with this symbol meet all applicable regulations for the
European Economic Area.
The symbol indicates that the construction of the product corresponds
to the protection class II (double insulation). A safety connection to the
electric ground is not necessary.

General information
8
Only use the paper shredder indoors.
The RCM Mark (Regulatory Compliance Mark) indicates that the
product complies with the relevant guidelines of the ACMA as well as
corresponding government requirements for the safety of electrical
devices.
Important safety information.
Before using the paper shredder for the first time, carefully read through
the user manual and hold onto it for subsequent reference.
Do not insert more than 50 sheets of paper in the automatic paper feed
slot (A4, 80 g/m2)!
Do not insert more than 7 sheets of paper in the manual paper feed slot
(A4, 80 g/m2)!
Only insert one credit card into the credit card feed slot at a time!
Do not reach into the paper feed slots with your hands!
Keep loose clothing such as ties and scarves away from the paper feed
slots!
Do not allow children to play with the paper shredder. The paper shred-
der may only be used by children if they are supervised by adults!
Make sure that accessories that hang down (such as necklaces) do not
come near the paper feed slots.
Make sure that no paper clips, staples or similar end up in the paper feed
slots of the paper shredder.
Keep long, loose hair away from the paper feed slots!

Safety
9
Do not use any spray cans /aerosols near the paper shredder!
Never use the automatic and manual paper / credit card feed slot at the
same time! Only insert the maximum allowed amount of paper in the
corresponding paper feed slot.
The waste bin holds 21 litres. Once the fill level is reached, the paper
shredder automatically stops.
The paper shredder is not designed for continuous operation! The paper
shredder automatically switches off if it overheats as the result of contin-
uous operation. Do not use the manual paper feed slot for more than 3
minutes and the automatic paper feed slot for more than 7 minutes.
To open the main unit, turn the twist lock from left to right.
Safety
Proper use
The paper shredder is only designed for shredding paper and credit cards. It is only
intended for private use and is not suitable for commercial use.
Only use the paper shredder as described in this user manual. Any other use is
considered improper and may result in damage to property. The paper shredder is
not a children’s toy.
The manufacturer or vendor accepts no liability for damage caused by improper or
incorrect use.
Safety instructions
WARNING!
Risk of electric shock!
A faulty electrical installation, excessive mains voltage or incorrect
operation may result in an electric shock.
− Only connect the paper shredder to an alternating current
supply with AC 220–240V. Make sure that the voltage
corresponds to the voltage data on the device.

Safety
10
− Only connect the paper shredder to an easily accessible socket
so that you can quickly pull the power plug in an emergency.
− Do not operate the paper shredder if it is visibly damaged or if
the power cord or power plug is defective.
− If the power cord of the paper shredder is damaged, the
manufacturer, its After Sales Support or a person with similar
qualifications must replace it.
− Do not open the housing. Instead, have repairs performed
by a qualified expert. Contact a qualified workshop for this.
Liability and warranty claims are waived in the event of repairs
performed by the user, improper connection or incorrect
operation.
− Only parts that comply with the original device data may be
used for repairs. This device contains electrical and mechanical
parts which are essential for providing protection against
sources of danger.
− The paper shredder must not be operated with an external
timer or separate telecontrol system.
− Do not submerge the paper shredder or the power cord in
water or other liquids.
− Do not touch the power plug with damp or wet hands.
− Do not use the paper shredder if you are standing on wet
ground or if your hands or the paper shredder are wet.
− When disconnecting the power plug from the socket, do not
pull on the cord. Instead, pull directly on the plug.
− Never move, pull or carry the paper shredder by its power
cord.
− Keep the paper shredder and power cord away from open
flames and hot surfaces.
− Lay the power cord so that it does not pose a tripping hazard.
− Do not kink the power cord and do not lay it over sharp edges.
− Do not bend the power cord and do not wrap it around the
paper shredder, as this may lead to a broken cord.

Safety
11
− Only use the paper shredder indoors. Do not use the paper
shredder in damp rooms or in the rain.
− Never store the paper shredder such that there is a risk of it
falling into a tub or a basin.
− Never reach to retrieve an electrical device if it has fallen in
water. In such a case, immediately disconnect the power plug.
− Do not insert any objects in the housing.
− Always switch the paper shredder off and unplug it when you
are not using it, when you intend to clean it, or in the event of
a malfunction.
− Plug adapters or extension cords must also be equipped with
a protective conductor.
− Do not perform any other work (such as cleaning) on the
paper shredder while it is operating.
WARNING!
The paper shredder and its power cord must be kept away
from children. Danger for persons with impaired physical,
sensory or mental capacities (e.g. partially disabled persons,
older persons with reduced physical and mental capacities) or
lack of experience and knowledge.
− If they are supervised or have been instructed in how to
safely use the paper shredder and have understood the risks
associated with operating it, this paper shredder may be
used by persons with impaired physical, sensory or mental
capacities or those lacking experience and knowledge.
− Ensure that children do not play with the paper shredder. It is
not a children’s toy.
− Do not let children use the paper shredder. Keep children
away from the paper shredder and the power cord.
− Do not leave the paper shredder unattended while in
operation.
− Keep the paper shredder away from pets.

Safety
12
− Ensure that children do not play with the plastic wrapping.
Children may get caught in it when playing and suffocate.
WARNING!
Risk of injury!
Handling the paper shredder improperly may result in injury.
− Do not reach into the feed slots with your hands.
− Keep long hair away from the feed slots.
− Keep ties, scarves, loose clothing, and long necklaces or
bracelets away from the feed slots.
− Keep the feed slots away from aerosols.
− Set up the paper shredder in the vicinity of a properly installed
socket. The socket must be freely accessible.
− Regularly remove any shredded paper and credit card residue
from the underside of the cutting unit using a suitable tool
(e.g. a brush).
− Always switch the paper shredder off and unplug the power
plug before emptying the waste bins.
− After pulling out the waste bins, sharp and pointed parts of the
cutting unit are exposed. Be careful.
− Lay the power cord so that it does not pose a tripping hazard.
− Only use the paper shredder when it is fully and correctly
assembled.
− Never disassemble the paper shredder for cleaning or storage.
NOTICE!
Risk of damage!
Improper handling of the paper shredder may result in damage to
the paper shredder.
− Place the paper shredder on an easily accessible, level, dry,
heat-resistant and sufficiently stable work surface. Do not
place the paper shredder on the edge of the work surface.

Safety
13
− Protect the paper shredder from direct sunlight.
− Never place the paper shredder on or near hot surfaces
(e.g. stovetops, heaters etc.).
− Ensure that the power cord does not come into contact with
hot parts.
− Do not operate the paper shredder for more than 3minutes
(for the manual paper feed slot) or 7 minutes (for the
automatic paper feed slot). Let it cool down to room
temperature before operating it again.
− Do not drop paper clips or staples into the feed slots.
− Do not compress the shredded paper in the waste bin with
your hands or feet. The pressure could damage the waste bin.
− Only insert paper or credit cards, but not other items into the
paper / credit card feed slot.
− Do not insert more than one credit card in the feed slot
at a time. Otherwise the cutting unit could be irreparably
damaged.
− Empty the waste bins at regular intervals. If it overfills there
is danger that shredded paper and credit card residue will
be drawn up from underneath into the respective shredding
system.
− Never expose the paper shredder to high temperatures
(heaters etc.) or to effects of the weather (rain etc.).
− Only use the paper shredder at room temperature
(approx. 10–25°C).
− Never fill the paper shredder with liquid.
− Do not sit on the paper shredder and do not place any objects
on the paper shredder.
− Stop using the paper shredder if its plastic parts exhibit cracks
or breaks or are deformed. Only replace damaged parts with
corresponding original spare parts.

First use
14
First use
Checking the paper shredder and pack contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a sharp
knife or other pointed object, you may quickly damage the paper
shredder.
− Therefore, be very careful when opening the packaging.
1. Take the paper shredder out of the packaging.
2. Make sure that all pack contents are present (see fig. A).
3. Check whether the paper shredder or the individual parts exhibit damage. If this
is the case, do not use the paper shredder. Contact the manufacturer at the service
address specified on the warranty card.
Assembly
CAUTION!
Risk of injury!
Handling the paper shredder improperly may result in injury.
− During assembly, do not connect the paper shredder to a
socket.
− The main unit of the paper shredder has sharp edges. Be very
careful when assembling the paper shredder.
1. Carefully remove the main unit 7and the waste bin 10 from the packaging.
Ensure that the fill level sensor 11 is located on the bottom of the main unit.
Always be very careful when setting the main unit down. Otherwise the fill level
sensor could be damaged or break off!
2. Before first use, be absolutely sure to remove the adhesive strip serving as a trans-
port guard from the fill level sensor. The fill level sensor must be folded down.

Start-up
15
3. Remove also the cardboard cover of the cutting unit below the main unit.
Risk of injury! Do not touch the cutting unit as it is very sharp.
4. Place the main unit on the waste bin.
For transport, always carry the main unit by its carrying handles 9.
Make sure that the safety contact 8is fitted in the designated indentation on the
back of the waste bin. You will hear a gentle click indicating that the main unit is
correctly seated on the waste bin.
5. Then fold the cover lid 6, also serving as a paper support, up.
You have now successfully assembled the paper shredder.
Start-up
1. Make sure that the paper shredder is switched off (slide switch 5in the OFF
position) before connecting it to a socket.
2. Connect the power cord 2to a socket.
3. Set the slide switch to the AUTO position.
The power LED (POWER) 14 will turn green and the paper shredder is now ready
for use.
Using the paper shredder
WARNING!
Risk of injury!
Handling the paper shredder improperly may result in injury.
− If an object (sleeves, tie etc.) is unintentionally taken into the
paper feed slots, immediately disconnect the power plug.
− Hold both sides of the paper firmly when inserting it in the
feed slot. Make sure that your fingers do not get too close to
the feed slot.
− Hold the credit card by its narrow side when inserting it into
the feed slot. Make sure that your fingers do not get too close
to the feed slot.

Using the paper shredder
16
NOTICE!
Risk of damage!
Improper handling of the paper shredder may result in damage to
the paper shredder.
− The paper shredder is only intended for short operation and
not for continuous operation. After an operating time of no
more than 3 minutes for the manual paper feed slot and
7 minutes for the automatic paper feed slot, let the paper
shredder remain idle for 60 minutes to prevent the paper
shredder from overheating.
− Do not insert any damp paper in the feed slot. It could wrap
around the cutting unit and cause a blockage.
− Do not feed paper with paper clips in the paper shredder. The
cutting unit could be damaged.
− Avoid overloading the motor by not inserting more than 50
sheets (80 g / m2) in the automatic paper feed slot and no more
than 7 sheets of paper (80 g/m2) in the manual paper feed
slot.
− Avoid overloading the motor by never operating the automat-
ic and manual paper feed slot at the same time.
− Only shred credit cards one at a time.
− Do not shred any formats larger than A4 or continuous paper.
− Do not use the manual paper feed slot to shred any paper
smaller than credit card format.
− Do not use the automatic paper feed slot to shred any paper
smaller than A5.
− Remove any staples and paper clips or similar before starting
the shredding process.
− Unplug the power plug if the motor switches off due to over-
loading. Make sure that the slide switch is set to OFF. Let the
motor cool down to room temperature for approx. 60 minutes
before you insert the power plug back in the socket. After-
wards, you can continue with operation.

Using the paper shredder
17
• The paper shredder has a safety contact 8, which stops the
operation of the paper shredder when it is activated. The safety
contact is activated when the main unit has 7not been completely
inserted in the waste bin 10 . You will hear a click sound confirming
that the safety contact is activated or deactivated.
• The paper sensor 17 is located on the left side of the paper feed slots
(1and 4) and aligned with the arrows for the sensor position 15 .
It detects the paper that is fed in and activates the cutting unit in the
paper shredder. For this reason, always insert smaller paper formats in
the feed slot such that they are left aligned (minimal size: credit card,
85.60 mm × 53.98 mm).
Automatic paper feed slot
With the automatic paper feed slot 1, you can shred up to 50 sheets of paper
(min. A5 to max. A4, 80 g/ m2) at the same time.

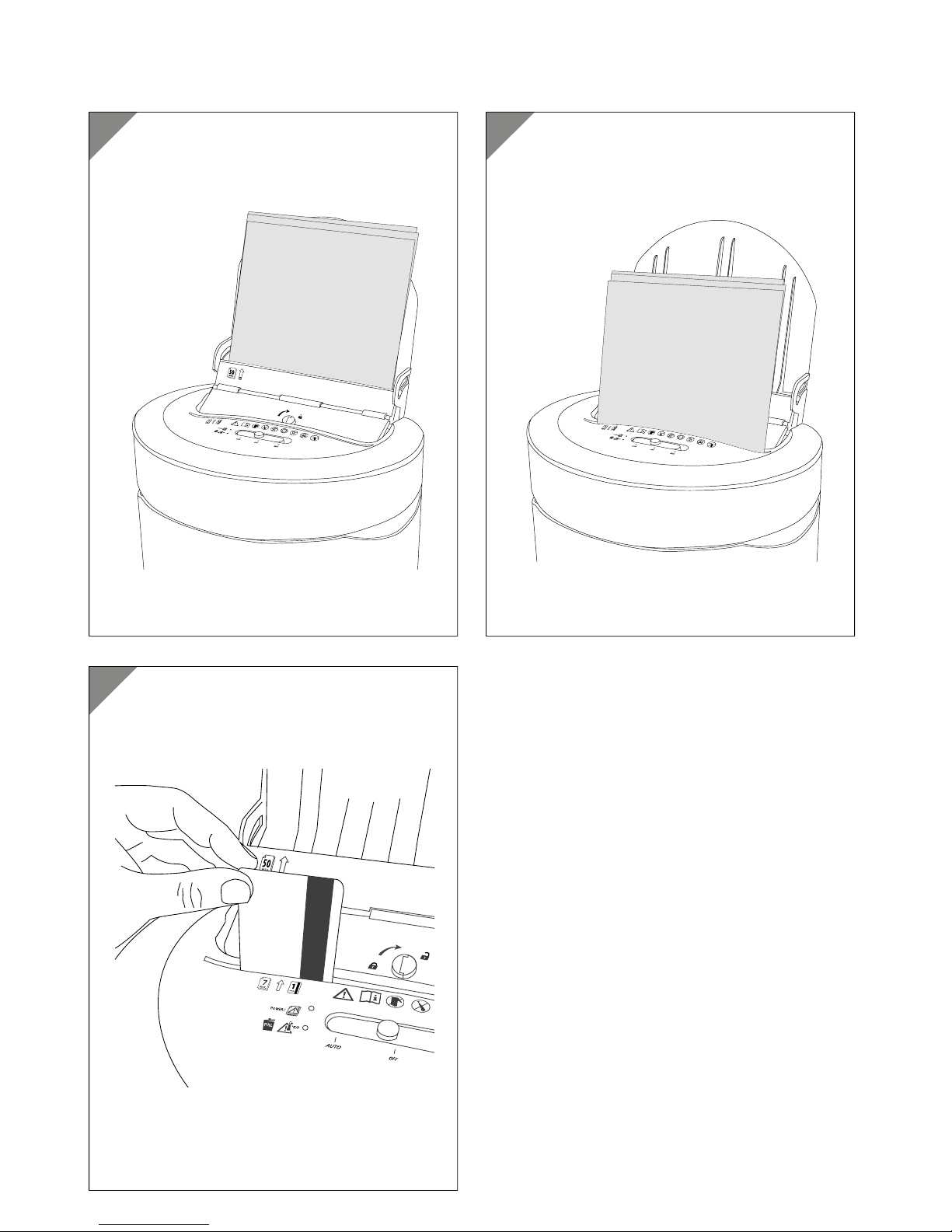

− Feed up to 50 sheets of paper left aligned into the rear automatic paper feed slot
(see fig. B).
The paper support 6enables you to safely feed in paper without having to hold
it during the shredding process.
− The paper shredder automatically switches on and draws in the paper. The
shredding process will start after a delay of 7–10 seconds.
Approx. 1–2 seconds after processing the paper, the paper shredder will
automatically stop.
Manual paper feed slot
With the manual paper feed slot 4, you can shred up to 7 sheets of paper
(min. credit card format up to max. A4, 80 g/m2) at the same time.
− Feed up to 7 sheets of paper left aligned into the front manual paper feed slot
(see fig. C).
− The paper shredder automatically switches on and draws in the paper.
Approx. 1–2 seconds after processing the paper, the paper shredder will
automatically stop.

Emptying the waste bin
18
Credit card feed slot
You can only feed one credit card into the paper shredder’s credit card feed slot 4
for each shredding process.
− Always insert the credit card upright into the credit card feed slot (see fig. D).
The arrow for the sensor position 15 of the credit card feed slot must always point
to the middle of the credit card. The sensor for shredding credit cards is located
here.
− The paper shredder automatically switches on and draws in the credit card.
Approx. 1–2 seconds after processing the credit card, the paper shredder will auto-
matically stop.
Emptying the waste bin
WARNING!
Risk of injury!
Handling the paper shredder improperly may result in injury.
− Do not touch the cutting unit with your fingers.
For proper waste disposal, shred credit cards only when there is no
processed paper in the waste bin. Only shred paper when there are no
processed credit cards in the waste bin.
Empty the waste bin regularly to prevent paper or credit card residue from being
drawn up from underneath into the cutting unit.
1. Switch the paper shredder off (move the slide switch 5to the OFF position) and
disconnect the power cord 2from the socket.
2. Lift the main unit 7off of the waste bin 10 .
3. Empty the waste bin.
4. Place the main unit back on the waste bin.
You must insert the main unit completely in the waste bin until you hear a click
sound. This indicates that the safety contact 8has been deactivated for normal
operation.

Paper or credit card jam
19
Paper or credit card jam
WARNING!
Risk of injury!
Handling the paper shredder improperly may result in injury.
− Never use objects of any kind to clear jammed credit cards or
paper. Do not insert objects such as knives, scissors etc. into
the feed slots.
To clear a jam:
1. Set the slide switch 5to the REV position. The paper shredder runs in reverse
direction.
2. The paper or credit card is discharged through the respective feed slot.
3. Allow the paper shredder to cool down to room temperature before you restart it.
Fault LEDs
The paper shredder is equipped with fault LEDs. If one of these LEDs lights up, this in-
dicates that there is a fault affecting the paper shredder.
Fault Cause Solution
The overload LED 14
( ) is illuminated in red.
The paper shredder will
automatically switch off.
Too much paper or more
than one credit card was
fed into the cutting unit
at the same time.
Set the slide switch 5to
the REV position. The cutting
unit 12 will run in the
reverse direction and push
the paper back out of the
paper feed slot.
Reduce the amount of paper
and switch back to AUTO.
The manual and
automatic paper feed
slot has been operated
at the same time.
Move the slide switch to the
OFF position and disconnect
the power cord 2from
the socket. Use the twist
lock 3to open the main
unit 7and then manually
remove the paper residue
(see chapter “Cleaning the
cutting unit”).

When not in use
20
Fault Cause Solution
The overheat LED 13
( ) is illuminated in
red. The paper shredder
will automatically switch
off.
The manual paper
feed slot 4was
operated for longer
than 3 minutes or the
automatic paper feed
slot 1was operated
for longer than
7 minutes.
Move the slide switch to the
OFF position and disconnect
the power cord from
the socket. Only use the
paper shredder after it has
remained idle for at least 60
minutes.
The emptying LED 13
( ) is illuminated in blue.
The paper shredder will
automatically switch off.
The waste bin 10 has
reached the maximum
fill level.
Move the slide switch to the
OFF position and disconnect
the power cord from the
socket. Lift the main unit off
of the waste bin. Dispose
of the paper residue with
waste paper.
When not in use
If you do not use the paper shredder for a prolonged period of time, proceed as
follows:
1. Set the slide switch 5to the OFF position. The power LED (POWER) 14 will go
out.
2. Disconnect the power cord 2from the socket.
Cleaning and maintenance
WARNING!
Risk of electric shock!
Incorrect operation can cause an electrical shock.
− Before cleaning, always switch the paper shredder off and
disconnect the power cord.
CAUTION!
Risk of injury!
Improperly cleaning the paper shredder may result in injury.
− The paper shredder will become hot during operation. Let the
paper shredder dry completely before you clean it.
