Introduction
The Premier Elite 1 & 2 zone panels have been designed to meet the
requirement of a low cost easy to use fully functional fire alarm control panel.
It is available as either a 1 zone panel, or a 2 zone panel.
Each version has 2 sounder circuits, and an alarm relay.
There is no configuration, simply connect the detectors & sounders and apply
power.
The Premier Elite range also includes 4,6 and 8 zone panels. These panels
are NOT covered in this manual. They have a separate manual.
The 4,6 & 8 zone panels have the option to fit a hard wired repeater, as well
as having a fault output, and a sounder delay option.

INSTRUCTION MANUAL: 1-2 ZONE FIRE ALARM PANEL
Approved Document No: GLT.MAN-118 PAGE 4
Issue : 1.1 Author: NRPJ Date: 22/11/2006
Mains & Battery
Connecting the mains.
The Mains supply to the FACP is fixed wiring, using Fire resisting 3-core
cable (Between 1 mm² and 2.5mm²) or a suitable 3-conductor system, fed
from an isolating double pole switch fused spur, fused at 3A. IT SHOULD
NOT BE CONNECTED THROUGH AN RCD. This should be secure from
unauthorised operation and be marked ‘FIRE ALARM: DO NOT SWITCH
OFF’. The supply must be exclusive to the Fire Panel. MAKE SURE ANY
SPARE ENTRY HOLES ARE COVERED WITH THE GROMMETS
PROVIDED

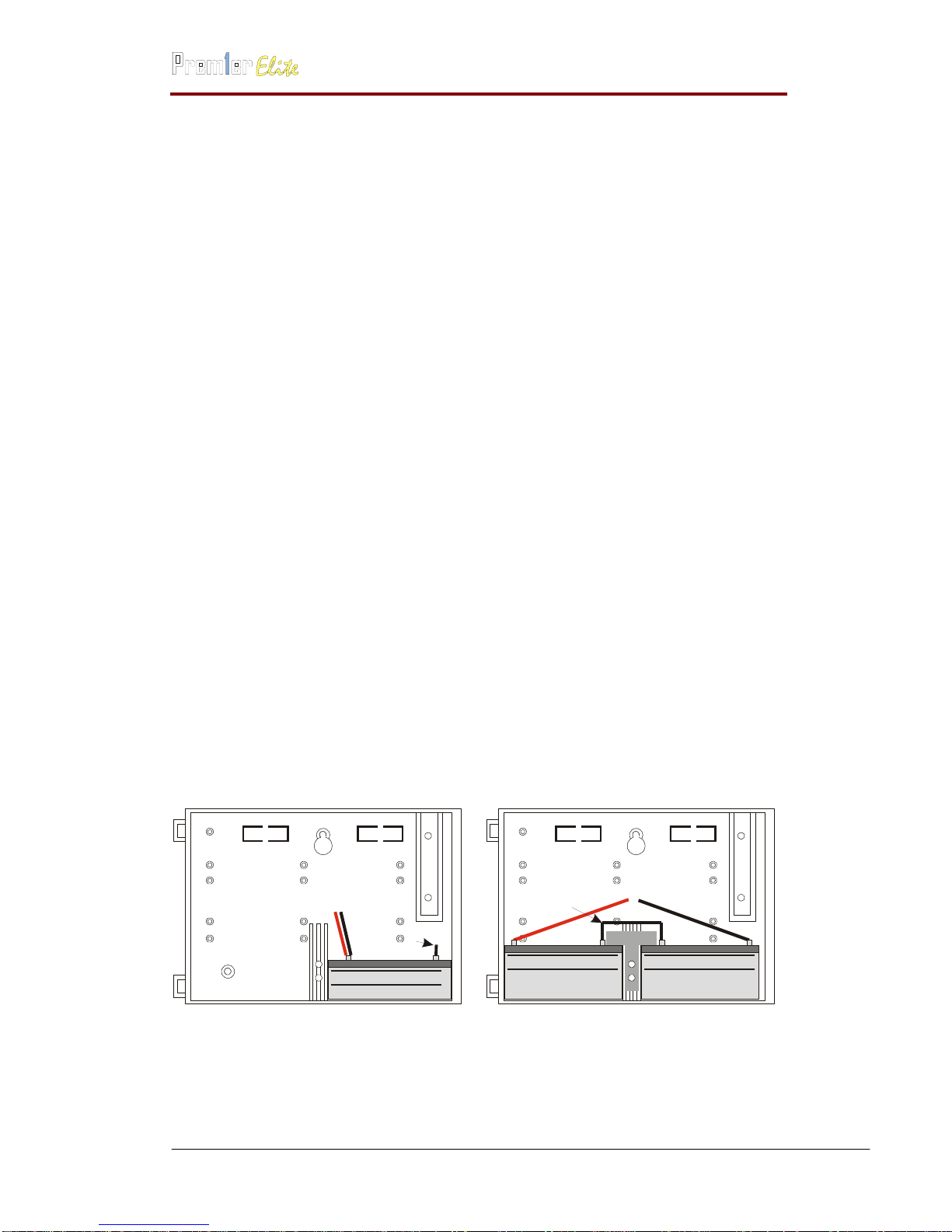

Connecting the batteries
The Premier Elite requires 2 x 12 V sealed lead acid (SLA) batteries
The two batteries are wired in series.
The +ve of one battery is connected to the red battery lead.
The –ve of the other battery is connected to the black battery lead.
The –ve of the first battery is connected to the +ve of the second battery using
the link wire supplied.
Although there are many sizes of suitable battery, the sizes we usually
recommend are 12V 2Ah for standard backup, or 12V 7Ah for extended
backup (72 hour or more) , and the enclosure has been designed to hold
these two battery sizes.
SEALED LEAD ACID BATTERY
12V / 2 Ah
TO PCB
2 x 2Ah Batteries
BATTERY
INTERCONNECTING
CABLE
SEALED LEAD ACID BATTERY
12V / 7 Ah
SEALED LEAD ACID BATTERY
12V / 7Ah
TO PCB
CLAMP
BATTERY
INTERCONNECTING
CABLE

INSTRUCTION MANUAL: 1-2 ZONE FIRE ALARM PANEL
Approved Document No: GLT.MAN-118 PAGE 5
Issue : 1.1 Author: NRPJ Date: 22/11/2006
Detectors & sounders
Wiring the detectors
The Premier Elite has been designed to use a 10K resistor end of line on the
detector zones.
L1IN
L1OUT
EARTH
L2
-R
L1IN
L1OUT
EARTH
L2
-R
L1IN
L1OUT
EARTH
L2
-R
Zone -
Zone +
Call points should be connected to the start of the zone, so that removing a
detector head will not remove power from the call points.
Also note that detector bases with a continuity diode will not be compatible
with this panel. The diode should be removed to allow detector head removal
indicator to work.
Wiring the sounders
The Premier Elite has 2 sounder circuits with a combined rating of 800mA.
Each sounder circuit must be fitted with a 10k end of line resistor
+
--
+
+
--
+
SND+
SND-
SOUNDER SOUNDER
+
--
+
SOUNDER
+
--
+
SOUNDER
10K
End of
Line Resistor
