ZOSI PoE NVR Series User manual

PoE NVR User Manual
Please read instructions thoroughly before operation and retail it for
future reference.

Welcome to use this product, this manual will help you set up, operate and use
its key functions. Certain features and services may not be available in all areas.
For more information, please contact your supplier.
During the preparation of this manual, every effort has been made to make the
content correct and complete, but we cannot guarantee that there are no errors
or omissions. We insist on continuously optimizing and improving our products
and services, and therefore reserve the right to modify the products and content
described in this product manual at any time without prior notice.
Notes:
! Do not place objects on this device!
! Do not let any solid or liquid enter the NVR!
! Clean the circuit board, connectors, fans and case with a brush regularly but
remember to turn off the power and pull the plug before cleaning .
! Do not disassemble, maintain the device, or replace parts by yourself.
! Avoid knocking this NVR. Do not drop the device.
Operational Environment
! Place and use the product at a temperature of 0 ℃ ~ 40 ℃ . Avoid direct
sunlight and be away from heat sources.
! Do not install the device in a damp environment;
! Do not expose the device to smoky and dusty environment.
! Keep the device be installed horizontal and in a stable place. Take care to
prevent it from falling.

1 Production Introduction.....................................................................................
1.1Product overview..............................................................................................
2 Open-package check and cable connections....................................................
2.1 Open-package check........................................................................................
2.2 Introduce the NVR............................................................................................
2.3 Device connection............................................................................................
2.4 Access the System via Smartphone or PC......................................................
3 Basic Operation...................................................................................................
3.1 Turn on..............................................................................................................
3.2 System login.....................................................................................................
3.3 Preview..............................................................................................................
3.4 Desktop shortcut menu...................................................................................
3.4.1 Single Screen.................................................................................................
3.4.2 Multi Screen...................................................................................................
3.4.3 PTZ..................................................................................................................
3.4.4 Start Scan.......................................................................................................
3.4.5 Colour.............................................................................................................
3.4.6 E -Zoom..........................................................................................................
3.4.7 Audio..............................................................................................................
3.4.8 Snap................................................................................................................
3.4.9 Start/stop record ...........................................................................................
3.5.0 Playback.........................................................................................................
3.5.1 Intelligent Alarm............................................................................................
3.5.2 IPC Channel Configuration...........................................................................
3.5.3 Main Menu......................................................................................................
4 Main Menu...........................................................................................................
4.1 Main menu navigation.....................................................................................
4.2 Configuration Management............................................................................
4.2.1 Basic Configuration.......................................................................................
4.2.2 Live Configuration.........................................................................................
4.2.3 Recording Configuration..............................................................................
1
1
1
1
2
2
3
4
4
4
4
5
5
6
6
6
7
7
7
8
8
8
9
10
10
11
11
12
13
15
16
Contents

19
21
25
26
28
28
29
29
30
30
31
32
33
33
34
34
35
35
36
36
36
4.2.4 Schedule.......................................................................................................
4.2.5 Alarm Configuration....................................................................................
4.2.6 Network Configuration................................................................................
4.2.7 User Management........................................................................................
4.2.8 PTZ................................................................................................................
4.2.9 Advanced Configuration.............................................................................
4.3 Data Retrieval..................................................................................................
4.3.1 Time Search..................................................................................................
4.3.2 Event Search.................................................................................................
4.3.3 Image............................................................................................................
4.4 Backup .............................................................................................................
4.5 View Information.............................................................................................
4.5.1 System..........................................................................................................
4.5.2 Event list.......................................................................................................
4.5.3 Log list...........................................................................................................
4.5.4 Network........................................................................................................
4.5.5 Online Users list...........................................................................................
4.6 Disk Management...........................................................................................
4.7 Log User off.....................................................................................................
4.8 Manual Maintenance......................................................................................
4.9 Upgrade Maintenance....................................................................................
Contents

1
Production Introduction
Open-package check and cable connections
1.1 Product overview
The series NVR is designed specially for security and defence field and is an outstanding
surveillance product. It introduces embedded LINUX operating system which is very stable.
It introduces standard H.265 mp video compressed format and unique temporal and
spatial filtering algorithm which insures the high quality image and low bit rate
synchronous audio and video surveillance. It introduces TCP/IP network technology which
achieves the strong network data transmission capability and remote control capability.
The series NVR can be used individually or online applied as a part of a safety surveillance
network. With the professional network video surveillance software it achieves the strong
network communication ability and telecommunication ability.
The series NVR can be applied in the bank, telecom, electric power system, judicial system,
transportation, intelligent housing, factory, storehouse, water conservancy and so on.
2.1 Open-package check
When you receive the product, please confirm whether it is consistent with the product
model you ordered and check carefully whether there is any obvious damage of the
product. After opening the casing, check whether the connection between the internal
data wire, power wire, fan power wire and so on and the main board are firm .Please
protect the labels afifxed to the floor or rear panel , which is very important to our
aftersales service work. When you contact our company for after-sales service, we need
you to provide the model and serial No. on the label.

2
AUDIO OUT
NETWORK
VGA
POE 15POE 13
POE 11POE 9POE 7POE 5POE3POE 1
POE 16POE 14
POE 12POE10POE 8POE 6POE 4POE 2
⑦
DC 48-52V
ON OFF
NOTE: To ensure the device works properly, it is recommended to power on the PoE NVR
first for testing before a final installation.
USB2.0 Port
HD Network Video Recorder
POWER LAN HDD
AUDIO OUT
NETWORK
VGA
Power Port PoE Interface LAN Port
Audio Output HDMI Port
VGA Port
POE 15
POE 13
POE 11POE 9POE 7POE 5POE 3POE 1
POE 16POE 14
POE 12POE 10POE 8POE 6POE4POE 2
USB2.0 Port
Power Switch
⑧
DC 48-52V
ON OFF
2.2 Introduce the NVR
2.3 Device connection

3
NOTE: To ensure the device works properly, it is recommended to power on the PoE
NVR first for testing before a final installation.
② Connect the PoE NVR to the Router with 3ft(1m) Ethernet Cable.
③ Connect the PoE NVR to the Monitor with VGA or HDMI Cable.
④ Connect the USB Mouse to the USB2.0 Port.
⑤ Connect the PoE NVR to the Power Outlet.
⑥ Turn on the power switch and enjoy live view.
⑦ The monitor will display live view of the camera.
① Connect the Cameras to the PoE NVR with 60ft(18.3m) Ethernet Cable.
Smartphone
Search “ZOSI Smart” in the APP Store or use a browser to scan the QR code below,
download and install the app and follow the instructions to register an account.
2.4 Access the System via Smartphone or PC
PC
Download path: Go to https://www.zositech.com/pages/app.
App video operaon link

4
Basic Operation
3.2 System login
3.3 Preview
When the DVR boots up, the user must login and the system provides the corresponding
functions with the user purview.
The default user name of the factory equipment is admin, and the default password is
blank. You can directly log in to the system when you log in to the system for the first
time after starting up.
After entering the preview status , double-click the left mouse button to choose the
switch between the windows. The system date, time and channel name are shown in
each viewing window. The surveillance video and the alarm status are shown in each
window.
3.1 Turn on
Plug the power supply, the power indicator
light will illuminate and the video recorder
turns on, you will hear a beep at this time.
After startup, the default setting of the
system is multiple-screen output mode and
video recording starting up automatically.
Mouse Operation：
Left Button：
• Preview or Playback Interface:
Double-click a single channel to enter full
screen and double-click again to exit full screen.
• Navigation Menu: Left click to select a menu option.
Right Button：
• Right click to bring up the main menu when the mouse is on the preview interface.
• Navigation Menu: Right click to exit the menu or return to previous menu option.
Right ButtonLeft Button
Green
Yellow
Manual recording
or Trigger recording
Intelligent detection
recording
Timing recording
Network
disconnection
Blue

5
3.4 Desktop shortcut menu
3.4.1 Single Screen
In preview mode you can right click mouse to get a desktop shortcut menu and right
click mouse again to ESC the desktop shortcut menu.
Select a channel for single-screen viewing.
• Single - Select single channel for live viewing

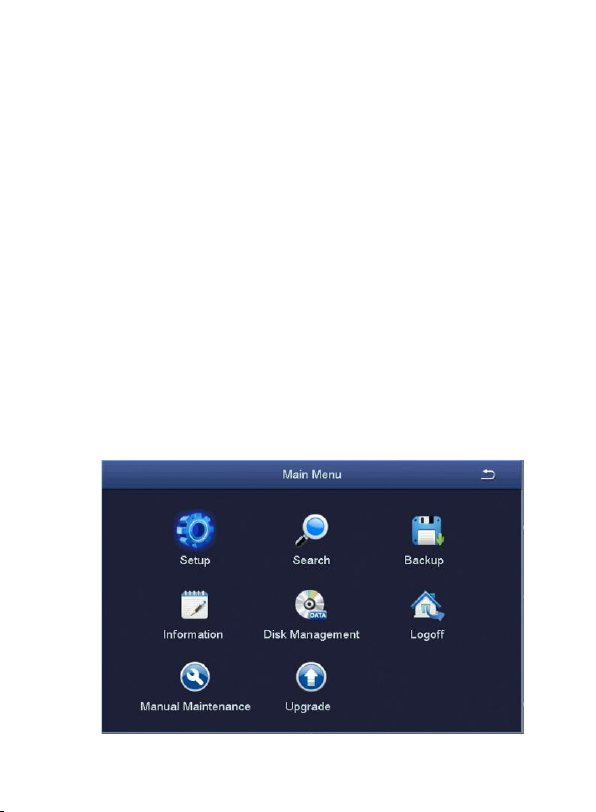

• Main Menu - Enter the Main Menu
• IPC Channel Configuration - IPC channel
configuration management
• Intelligent Alarm - Set up Human Detection and
Siren-Light Alarm
• Playback - Search Video playback and quick playback
• Start/stop record
• Snap - Snap and save the live view images
• E-Zoom - E-Zoom the preview interface
• Audio - Adjust the camera volume
• Colour - Adjust colour and image settings
• Start Scan - Start/Stop Scan
• PTZ: Control the rotation of PTZ camera
• Multi - Select multi-channel for live viewing

6
3.4.2 Multi Screen
Select the corresponding different multi-screen mode to watch.
3.4.3 PTZ
3.4.4 Start Scan
Control the rotation of the PTZ camera and set the automatic cruise/preset point cruise.
Start Scan means the system will show each live picture in order automatically
according to the order of the video devices in the channel grouping. Only when the

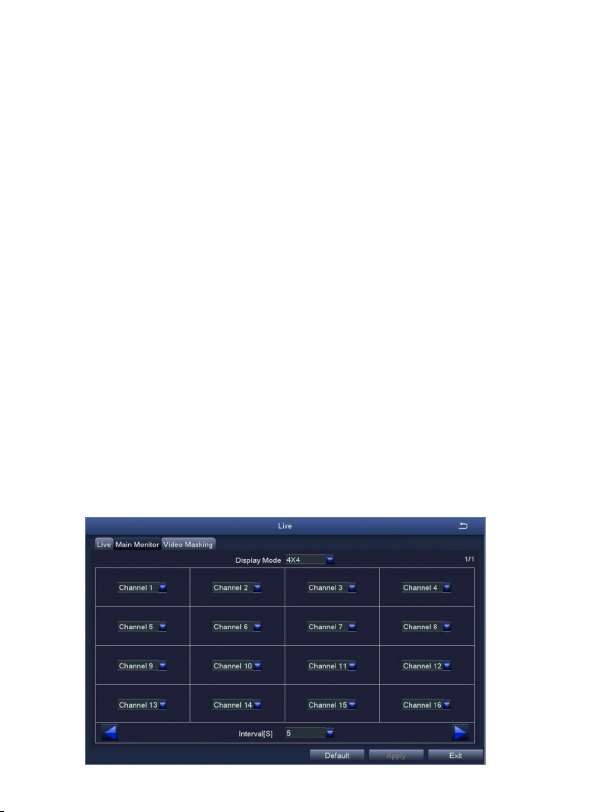

user selects the channel grouping under the display mode[main menu]>[configuration
management]>[live], and it can not show all channels completely under the current
preview, this button is available.

7
3.4.5 Colour
Set image parameters for all channels. The image parameters include: brightness,
contrast, saturation and hue.
3.4.6 E -Zoom
E-Zoom for big picture of single channel.
3.4.7 Audio
Set startup, turn-off and silent mode of audio for the channel, and adjust the
volume ..After select (automatic), it will start up audio of the big picture channel
automatically.

8
3.4.8 Snap
Snap a screenshot of the current channel.
3.4.9 Start/stop record
After clicking start recording, the system will start full-time recording; after clicking
stop recording, the system will stop full-time recording.
3.5.0 Playback
Right click the mouse - Playback - Video Playback/Quick Playback, Video Playback:
Playback the video clips via time search or event search. Quick Playback: Quick
playback of the first 30 minutes of video.

9
3.5.1 Intelligent Alarm
Set up Intelligent Alarm and Siren-Light Alarm.
Play/Pause Fast
Forward
Rewind Multi-screen display
Previous Record Next Record
Previous Video: Play the previous video.
Next Video: Play the next video.
Fast forward:You can play the video clips at 1/4 time speed to 16 times speed.
Rewind: You can rewind the video clips at 1 time speed, 8 times speed, 16 times
speed, and 32 times speed.
Screen Modes: Single Channel Playback/Multi-channel Playback. Channels
without video playback will show a black screen.

10
3.5.2 IPC Channel Configuration
View camera version information, add cameras, upgrade cameras, etc.
3.5.3 Main Menu
Enter the system main menu interface.

11
View
information
Search equipment operation log according to time, it can also
be exported
Display network settings and status
Display the current network users accessing the device
Event Info
System log
Network
status
Online users
4.1 Main menu navigation
Main Menu
Main menu
configuration
management
Data retrieval
Backup
Submenu
Basic
configuration Set the system time, date format, time format, language, the device number, video format, standby time, daylight saving time
Set the channel name, color, display mode, privacy mask, etc.
Start up video recording , set up the video stream, position of
channel name, video circulation, snapshot, etc
Set timer recording, motion alarm recording,period of intelligent
recording
Set motion detection, video loss, other alarms, intelligent alarms,
sound and light alarms, etc.
Modify users, change passwords, add users and delete users
Set the preset point of the PTZ camera
Restore the factory settings, import and export the device
parameters,system maintenance
Search specified period of time recording , playback the video
of this period
Search motion detection, human shape detection, face detection,
vehicle detection, playback Videos of this period
Channel screenshots captured by search
Search for recorded video files, which can be backed up via U disk
Display the device name, serial number, version, release date
Inquiry and export of motion detection, video loss, sensor alarm
and other events
Set basic network parameters,email
Live
configuration
Recording
configuration
Recording
Plan
Alarm
configuration
Network
configuration
User
management
Advanced
configuration
Time search
Event search
System Info
PTZ
Function

12
4.2 Configuration Management
Set every function parameters for the device, including: basic configuration, live
configuration, recording configuration, recording plan, alarm configuration, network
configuration, user management, PTZ configuration, advanced configuration.
Hard disk
management Show hard disk’s total space, free space, read and write status and to format. the hard disk
After log-off , exit system and log in
After manual maintenance, the system will automatically restart
The system version can be upgraded online
After log-off ,
exit system
and log in
Manual
maintenance
Upgrade

13
4.2.1 Basic Configuration
Basic configuration includes three sub menus: system, date and time, daylight
saving time.
1. The system
[Device Name] Client or system name displayed.
[Device Number]Client system number.
[Password Check] Choosing this item means user must enter user name and
password in the system Settings, and have corresponding purview before
corresponding operations.
[Show System Time] Choose whether to display time in the field or not.
[Max Online Users] Set the number of network users visiting the device.
[Video Output] Users can choose 1027*768, 1280*1024, 1920*1080, 2560*1440,
3840*2160 and other output resolutions.
[Logout After (Minutes)] When there is no action exceeding the set time, the system
will automatically log out.
[Startup Wizard ] Whether to display wizard or not when turn on the machine.

14
2. Date & Time
3. DST(Day Light Saving)
In this interface, set the date format, time format, time zone; you can also adjust the
system time manually.
Set the start and end time of daylight saving time by week or date.
Note: the default time zone of the system is GMT.
You can select [Time Synchronization] to correct time. Network time server can be set.

15
4.2.2 Live Configuration
Live configuration includes three submenu: Live, Main Monitor, Video Blind.
[Camera Name] Click channel Name, the system will pop up a soft keyboard, users
can change the channel name if necessary. Clicking the “shift “ key to switch input
methods [Colour] Users can adjust the brightness, hue, saturation, and contrast of
the corresponding channel
[Interval] The time interval between one channel picture and the next one channel.
1. Live
2. Main Monitor

16
4.2.3 Recording Configuration
Record configuration includes six submenus: Enable,Record Bitrate,Stamp,Recycle
Record,Snap.
1. Enable
Users can cover up some areas of the live picture, maximum of five areas per channel.
[Setting] After entering the live picture , press and hold the left mouse button, drag the
mouse to set the blocked area , then click [apply]to save the settings; Double-click on
the area you want to delete, later changed into a black area, right-click, Exit. then click
[apply] can delete the blocked area.
3. Video Blind
