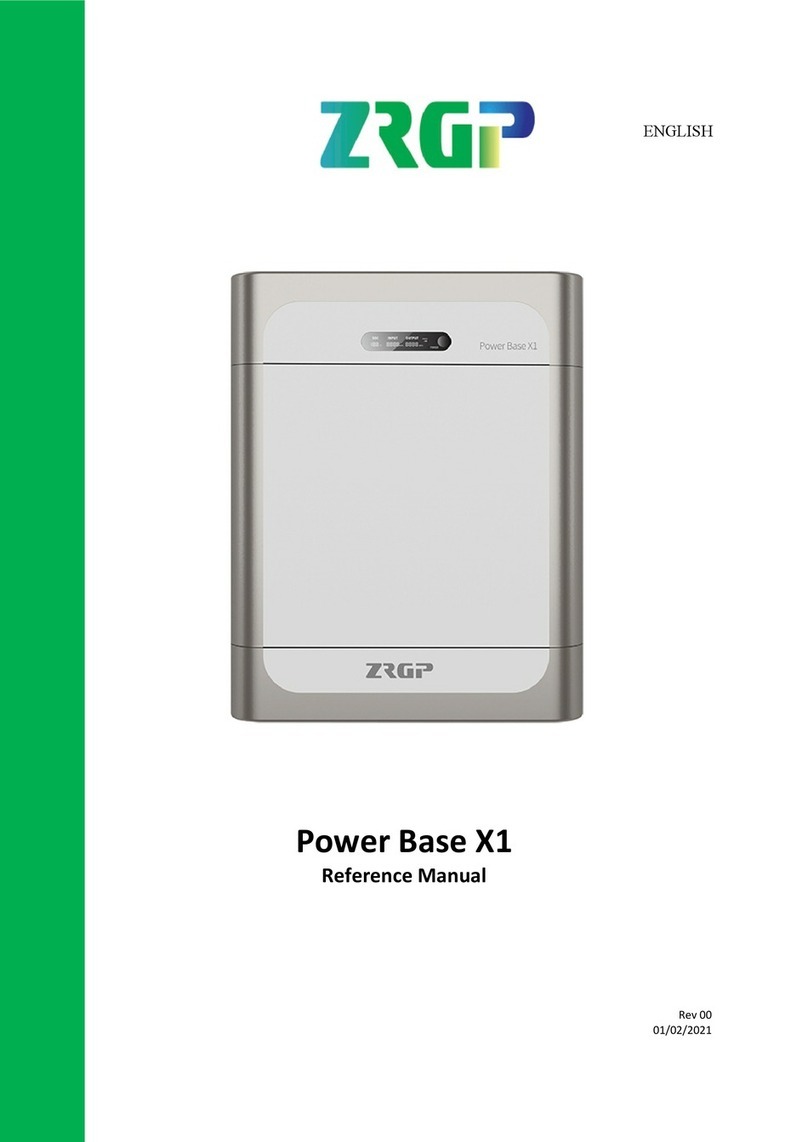

ZRGP PowerBase X1 User manual

Residential Energy Storage Unit
Powerbase X1
Reference Manual

About this manual
 This manual introduces how to install the energy storage system battery pack. Please read
this manual before trying to install the product Installation process. If you are not sure about
any requirements, Please contact ZRGP or your local distributors.
 The information contained in this manual is accurate in publication. The specifications of this
product are more than subject to notice. In addition, the illustrations in this manual are intended
to help explain the system configuration concepts and installation instructions. The project may
be in a project that is in a different location.
Introduction
 All information in this document is the property of the equipment manufacturer. No part of this
document may be reproduced in any commercial manner. Allow internal use.
 The equipment manufacturer makes no express or implied warranty or guarantee for this
document or any equipment and / or software that may be described in this document.
 This includes, but is not limited to, any implied warranties of practicality, commerciality, or
fitness for any particular purpose. Expressly disclaim all such representations or guarantee
under no circumstances shall the equipment manufacturer or its distributors or distributors be
liable for indirect, incidental, or indirect losses.
 Under certain regulations, the exclusion of implied warranties may not apply, so the above
exclusion may not apply.
 The specifications in this document are subject to change without notice. We have made every
effort to make this document complete, accurate and up to date.
 In some cases, the supplier may need to make some improvements without notice. The
equipment manufacturer shall not be liable for any loss caused by this document
 Any liability, including but not limited to omissions, typographical errors, arithmetic errors, or
listed errors in this document.

3
Table of Contents
1.
Safety and Warning ............................................................................................................................... 5
1.1
LABEL ICONS EXPLANATION .............................................................................................................. 5
1.2
GENERAL WARNING .......................................................................................................................... 6
1.3
CHARGE AND DISCHARGE WARNINGS.............................................................................................. 8
1.4
TRANSPORTATION WARNINGS ......................................................................................................... 8
1.5
DISPOSAL OF LITHIUM BATTERIES .................................................................................................... 9
1.6
BEFORE CONNECTION ....................................................................................................................... 9
1.7
WHEN IN USE .................................................................................................................................... 9
2.
Installation requirement ..................................................................................................................... 10
2.1
Installation location ........................................................................................................................ 10
2.2
Installation clearance ...................................................................................................................... 11
3.
Product description ............................................................................................................................. 12
3.1
Introduction .................................................................................................................................... 12
3.2
Lithium Iron Phosphate Battery ...................................................................................................... 12
3.3
Power Base X1 FEATURES ............................................................................................................... 12
3.4
Datasheet ........................................................................................................................................ 13
3.5
Operation Conditions ...................................................................................................................... 14
3.6
Power cable requirements .............................................................................................................. 14
3.7
Physical characteristic ..................................................................................................................... 15
3.8
Warranty ......................................................................................................................................... 15
3.9
Certification..................................................................................................................................... 15
3.10
Communication / Connection ..................................................................................................... 16
3.11
Battery Indicator Description ...................................................................................................... 17
4.
Installation .......................................................................................................................................... 17
4.1
Package contents ............................................................................................................................ 17
4.2
Tools ................................................................................................................................................ 18
4.3
Safety gear ...................................................................................................................................... 18
4.4
Instructions for installing the mounting bracket ............................................................................ 19
5.
Electrical installation instructions ....................................................................................................... 20
5.1
Making a BMS to inverter cable ...................................................................................................... 21
5.2
Electrical connections ..................................................................................................................... 23

4
5.3
Installing BMS to inverter cable ...................................................................................................... 23
5.4
Connecting power cables ................................................................................................................ 24
6.
Startup/Shutdown procedure ............................................................................................................. 25
6.1
Startup steps ................................................................................................................................... 25
6.2
Shutdown steps............................................................................................................................... 25
6.3
SLEEP AND WAKE UP ...................................................................................................................... 25
7.
Troubleshooting .................................................................................................................................. 27
7.1
STATUS CODE .................................................................................................................................. 27
7.
Maintenance and Storage ................................................................................................................... 30
8.
Transportation .................................................................................................................................... 30
9.
Emergency Situations ......................................................................................................................... 30

5
1.
Safety and Warning
1.1
LABEL ICONS EXPLANATION
Risk of electric shock!
Risk of fire!
Corrosive materials!
Risk of explosion!
Hot surface. Do not touch.
Read the instructions and keep them for future reference.
Wear protective eyeglasses and clothing.
Keep the battery away from open flame or ignition sources.
It is very important and necessary to read the user manual carefully (in the
accessories) before installing or using battery. Failure to do so or to follow any of the
instructions or warnings in this document can result in electrical shock, serious
injury, or death, or can damage battery, potentially rendering it inoperable.
It is required to read the user manual carefully before installing or using the battery.
Failure to do so or to follow any of the instructions or warnings in this document can
result
in electrical shock, serious injury, or death, or can damage the battery, potentially
making it inoperable.
CAUTION！

6
1.2
GENERAL WARNING
•
WARNING! The voltage of this battery is strong enough to cause electric shock.
•
Use the battery only as intended. The system must only be used to store electrical power.
•
Work on a lithium battery should be carried out by qualified personnel only.
•
Use insulated tools. Do not wear any metallic items such as watches, bracelets, etc.
•
Terminals of the lithium battery are always alive. Therefore, do not place items or tools on the
lithium battery.
•
Do not allow the battery connectors to touch conductive objects such as wires.
•
Avoid short circuits, too deep discharges and too high charge currents.
•
Any uncovered battery material such as electrolyte or powder on the skin or in the eyes must
be flushed with plenty of clean water immediately. Then seek medical assistance. Stains on
clothing
should be rinsed out with water.
•
If the battery casing is damaged, do not touch the exposed electrolyte or powder because it is
corrosive.
•
The battery is intended for indoor use only. Do not expose the cables outdoor.
•
Do not open, dismantle, or repair the battery. Electrolyte is very corrosive. In normal working
conditions, contact with the electrolyte is impossible.
•
Lithium batteries are heavy. If involved in an accident, they can become a projectile! Ensure
adequate mounting, secure it, always use suitable handling equipment for transportation.
•
Handle with care. A lithium battery is sensitive to mechanical shock.
•
Do not touch the battery with wet hands.
CAUTION！

7
•
Keep out of the reach of children and pets.
•
Do not expose the battery to flammable or harsh chemicals or vapors.
•
Do not paint any part of the battery, including any internal or external components. The
battery may explode. Do not drop, deform, impact, cut, crush or puncture it.
•
Do not drag or step on the battery. Do not subject it to any strong force.
•
Do not expose the battery to heat, fire, direct sunlight, liquids and moisture.
•
Do not use a damaged battery.
•
Contact the supplier within 24 hours if you observe abnormal operation.
•
It is prohibited to insert any foreign object into any part of the battery.
•
Servicing must be performed by qualified personnel only. All the battery terminals
must be disconnected for maintenance.
•
Do not use cleaning solvents to clean the battery.
•
In case of fire, you must use a type D, foam or CO2 fire extinguisher.
•
The warranty claims are excluded for direct or indirect damage due to items above. The
manufacturer does not undertake any consequences or related responsibility which results from
violation of safety operation or violating of design, production and equipment safety standards.
•
At the end of its useful life, do not dispose of the device with your normal household waste. For proper
treatment, recovery and recycling, take this product to a designated collection point.

8
1.3
CHARGE AND DISCHARGE WARNINGS
•
If the battery is stored for a long time, it is required to charge it every 6 months, and the
SOC should be at least 90%.
•
After full discharge, the battery needs to be recharged within 12 hours.
•
Do not connect the battery to PV solar wiring directly.
•
Use only with an approved BMS.
•
If the lithium battery is charged after being discharged below the "Discharge Cut-off Voltage",
or when the lithium battery is damaged or overcharged, it can release a harmful mixture of gases
such as phosphate.
•
The temperature range within which the battery can be charged is 0 °C to 55 °C. Charging the
battery at temperatures outside this range may cause severe damage to the battery and/or reduce
battery life expectancy.
•
The temperature range within which the battery can be discharged is -20 °C to 55 °C.
Discharging the battery at temperatures outside this range may cause severe damage to the
battery and/or reduce battery
life expectancy.
1.4
TRANSPORTATION WARNINGS
•
The battery must be transported in its original or equivalent package and in an upright
position. If the battery is in its package, use soft slings to avoid damage.
•
Do not stand below the battery when it is hoisted.
•
Never lift the battery at the terminals or the BMS communication cables. Only lift the
battery at the handles.
NOTE
For transport, the batteries fall within the category UN3480, Class 9, Packaging Group IIand must be
transported according to this regulation. This means that for land and sea transport (ADR, RID, I
MDG), they must be packed according to the packaging instructionP903 and for air transport (IATA)
according to packaging instruction P965. The original packaging complies with these instructions.
Batteries are tested according to the UN Manual of Tests and Criteria, part III,
subsection 38.3 (ST/SG/AC.10/11/Rev.7).

9
1.5
DISPOSAL OF LITHIUM BATTERIES
Batteries marked with the recycling symbol must be processed via a recognized recycling
agency. By agreement, they may be returned to the manufacturer.
Batteries must not be mixed with domestic or industrial waste.
Do not throw the battery into fire.
1.6
BEFORE CONNECTION
•
After unpacking, check the product and the package content first. If the product is
damaged or its parts are missing, contact your local supplier.
•
Before installation, be sure to cut off the grid power and make sure the battery is turned off.
•
Wiring must be correct. Do not switch the positive and negative cables.
•
Do not short-circuit with the external device.
•
It is prohibited to connect the battery and AC power directly.
•
The embedded BMS in the battery is designed for 51.2 VDC. Do not connect the battery in
series circuit.
•
ZR-PBX1 does not have an grounding terminal for the enclosure as the battery system
output voltage is less than 60Vdc.
•
Ensure that the electrical parameters of the battery system are compatible with the
related equipment.
•
Do not install the battery in wet locations and in areas at risk of explosion.
1.7
WHEN IN USE
•
If the battery system needs to be moved or repaired, the power must be cut off and the
battery completely shut down.
•
It is prohibited to connect the battery with batteries of different types.
•
It is prohibited to make the batteries work with faulty or incompatible inverter.
•
It is prohibited to disassemble the battery (QC tab removed or damaged).
•
In case of fire, only dry powder fire extinguishers can be used. Liquid fire extinguishers are
prohibited.
•
Do not open, repair, or disassemble the battery. This can be done only by authorized personnel.
•
ZR-PBX1 does not have an grounding terminal for the enclosure as the battery system
output voltage is less than 60Vdc.

10
2.
Installation requirement
2.1
Installation location
Make sure that the installation location meets the following conditions:
• The area is completely waterproof.
• The floor is flat and level.
• There are no flammable or explosive materials around.
• The ambient temperature is within the range from 15 "C to 30 "C (recommended).
• The temperature and humidity are maintained at a constant level.
• There is minimal dust and dirt in the area.
• The distance from a heat source is more than 2 meters.
• The distance from air outlet of the battery is more than 0.5 meter.
• The battery is installed directly indoors only.
• Do not cover or wrap the battery case or cabinet.
• Install the battery far from the reach of children and pets.
• The installation area is not exposed to direct sunlight.
• There are no mandatory ventilation requirements for the battery but avoid installing it in a
confined area.
• The area should not be exposed to high salinity, humidity and temperature.
Make sure that the installation position meets the following conditions:
•
Power Base X1 should be mounted on a solid surface suitable for its size and weight.
•
Power Base X1 should be installed vertically or at the angle of 15 degrees maximum.
•
The installation position should protect the Power Base X1 in the indoor shade conditions.
•
Power Base X1 should be installed at eye level for easy maintenance.
•
The product label on the Power Base X1 should be clearly visible after installation.
•
The distance from heat source is more than 2 meters.
If the ambient temperature is outside the operating range, the battery stops
operating to protect itself.
Frequent exposure to harsh temperatures may deteriorate the performance and life of
the battery.
CAUTION

11
2.2
Installation clearance
Make sure to leave a space of at least 9 mm between the battery pack and the wall. A clearance of at
least 9 mm must be left around the battery pack for proper cooling.
Make sure that the battery pack is always exposed to the ambient air. The battery
pack
is cooled by natural convection. If the battery pack is entirely or partially covered or
shielded, it may cause the battery pack to stop operating.
NOTE

12
3.
Product description
3.1
Introduction
Power Base X1 series lithium iron phosphate battery is one of new energy storage products
developed and produced by ZRGP, it can be used to support reliable power for various types of
equipment and systems. Power Base X1 series is especially suitable for application scene of high
power, limited installation space, and restricted load- bearing and long cycle life.
Power Base X1 series has built-in BMS battery management system, which can manage and
monitor cells information including voltage, current and temperature. What’s more, BMS can
help extending cycle life by balancing cells during charging and discharging.
Multiple batteries are allowed to be connected in parallel to expand capacity and power to
meet the requirements of longer power supporting duration and higher power consumption.
3.2
Lithium Iron Phosphate Battery
The lithium iron phosphate battery (LiFeP04 or LFP) is the safest of the mainstream lithium
battery types. A single LFP cell has a nominal voltage of 3.2 V. A 51.2 V LFP battery consists of
16 cells connected in series.
LFP is the chemistry of choice for very demanding applications. Some of its features are:
•
Durable and resistant - it can operate in deficit mode for long periods of time.
•
High cycle efficiency.
•
High energy density - more capacity with less weight and volume.
•
High charge and discharge currents - fast charging and discharge is possible.
•
Flexible charge voltages.
3.3
Power Base X1 FEATURES
•
The whole module is non-toxic, non-polluting and environmentally friendly;
•
Equipped with LCD display, it can provide basic data visualization, which makes it more
convenient to observe the system operation.
•
Battery management system (BMS) has protection functions against over-
discharge, overcharge, overcurrent and high / low temperature;
•
The system can automatically manage charge and discharge state and balance

13
current and voltage of each cell;
•
The adopted self-cooling mode significantly reduces noise of the entire system;
•
The module has less self-discharge, up to 6 months without charging, no memory effect,
excellent performance of shallow charge and discharge;
•
Working temperature range is from -20 *C to 55 °C: charging from 0 °C to 55 °C,
discharge from - 20 °C to 55 °C with excellent discharge performance and cycle life.
3.4
Datasheet
NO Item Value Remark
01 Cell model/Battery Model Name 100Ah 3.2V/
ZR-PBX1
02 Combination Mode 1P16S
03 Nominal Capacity 100Ah
04 Usable Capacity ≥97Ah
05 Rated energy 5.12KWh
06 Initial Internal Resistance <50mΩ AC 1KHz
07 Rated Voltage 51.2V
08 Recommend Charge Voltage
56.8V
Unit cell max.
charge voltage not
exceed 3.55V

14
09 Recommend Discharge Cut-off Voltage 46.8V
Unit cell min.discharge
voltage not lower than
2.93V
10 Standard Charge Current 20A 0.2C
11 Max. Charge Current ≤100A
12 Standard Discharge Current 50A
13 Max. Discharge Current ≤100A
14 Short Circuit Current ≥2670A 18mS
15 Rated DC Power 5.12kW Voltage:51.2V
16 Depth Of Discharge 97%
17 Operating Temperature
0~+55℃ Charge
-20~ +55℃ Discharge
18 Open Circuit Voltage 44.8~57.6V
19 Shell Type Painted metal
20 IP Code IP20
3.5
Operation Conditions
Installation Location Indoor (wall-
mounted)
Operating Temperature -20 ~ +55 °C
Recommended Ambient
Operating
+15 ~ +30 °C
Storage Temperature +15 ~ +35 °C
Humidity 10-90%
Altitude Max. 2000 m
Cooling System Passive
Noise <30dB
Enclosure Protection Rating IP20
3.6
Power cable requirements
Nominal
Cable specification

15
Model
voltage(Vdc) AWG mm2
BPML-10 51.2Vdc 1 25
3.7
Physical characteristic
Weight 50 士1 kg
Dimensions (L x W x H) 600 x480 x135
mm
Enclosure Type Painted metal
Enclosure Color Grey
3.8
Warranty
3.9
Certification
3.11 Display
No. Item No. Item
1 Animated streamline 6 Hardware version
2 Discharge power 7 Software version
3 Charging power 8 Capacity of a new
battery
4 Battery state of health (SOH) 9 Energy throughput
5 Battery state of charge (SOC) 10 Current voltage level
Product

16
No. Item No. Item
1 Alarm (warning) 4 Display screen
2 Fault (error) 5 Power switch
3 Status code
3.10
Communication / Connection
No. Item No. Item
1 Battery positive terminal 6 Multi-device parallel
2 Battery negative terminal 7 RS232 communication port
3 CAN/RS485 communication port 8 Address dial switch
4 Reset button 9 Dry contact
5 Muti-device parallel connection 1

17
3.11
Battery Indicator Description
NOTE:
4.
Installation
4.1
Package contents
Parts Description PCS
Positive power cable 1.5 m (4 ft 11 in) long, red with M8 lug 1
Negative power cable 1.5 m (4 ft 11 in) long, black with M8 lug 1
Positive plug Spare power connector (Orange) 1
Negative plug Spare power connector (Black) 1
Parallel communication
cable
2 m long T56B 1
User's manual Product introduction 1
SOC Indicator Description: Table 1 Page 7
Status Indicator Description: Table 2 Page
7
Indicator Blink Description: Table 3 Page 7
When the system is being charged, the display streamline gathers in the middle.
When it is being discharged, the display streamline disperses to both sides.

18
RJ45 plugs Spare parts 2
Mounting nails M8 x 80 mm (3.15 in) metal mounting nails 4
Mounting bracket Bracket for mounting the battery on the wall 1
Fixing screws M6 with spring and flat washer 2
4.2
Tools
These tools are required to install the battery pack.
Use properly insulated tools to prevent accidental electric shock or short circuits. Use adjustable tools and
measuring instruments that are certified for precision and accuracy
4.3
Safety gear
Wear the following safety gear when dealing with the battery pack. Installers must meet the
relevant requirements of international standards, such as IEC 60364 or the domestic legislation

19
4.4
Instructions for installing the mounting bracket
1、 Please have this bracket and screws in
hand
2、 Mark the installation point on the wall
3、 Drill holes at the marked locations.
4、 Insert the expandable bolts.

20
5、 Make sure the screws are locked (9NM).
6、 Put the ZR-PBX1 on the bracket.
7、 Lock the ZR-PBX1 onto the bracket with the
supplied bolts.
5.
Electrical installation instructions
The product must be installed by a qualified electrician only and must be
accompanied by a document confirming this. Do- it-yourself installation will void the
warranty and may damage the battery resulting in electric shock, fire or loss of life.
CAUTION
