ZRGP PowerBase X1 User manual

Residential Energy Storage Unit
PowerBase X1
Reference Manual
Rev 1.58
11/20/2021

About this manual
l This manual introduces how to install the energy storage system battery pack.
Please read this manual before trying to install the product Installation process. If
you are not sure about any requirements, suggest
l The information contained in this manual is accurate in publication. The specifications of
this product are more than subject to notice. In addition, the illustrations in this manual are
intended to help explain the system configuration concepts and installation instructions.
The project may be in a project that is in a different location.
Introduction
l All information in this document is the property of the equipment manufacturer. No
part of this document may be reproduced in any commercial manner. Allow internal
use.
l The equipment manufacturer makes no express or implied warranty or guarantee
for this document or any equipment and / or software that may be described in this
document.
l This includes, but is not limited to, any implied warranties of practicality,
commerciality, or fitness for any particular purpose. Expressly disclaim all such
representations or guarantee under no circumstances shall the equipment
manufacturer or its distributors or distributors be liable for indirect, incidental, or
indirect losses.
l Under certain regulations, the exclusion of implied warranties may not apply, so the
above exclusion may not apply.
l The specifications in this document are subject to change without notice. We have
made every effort to make this document complete, accurate and up to date.
l In some cases, the supplier may need to make some improvements without notice.
The equipment manufacturer shall not be liable for any loss caused by this document
l Any liability, including but not limited to omissions, typographical errors, arithmetic
errors, or listed errors in this document.

Table of Contents
1. Safety Precautions ................................................................................................................ 3
1.1 LABEL ICONS EXPLANATION ............................................................................................... 3
1.2 GENERAL WARNING .............................................................................................................. 4
1.3 CHARGE AND DISCHARGE WARNINGS ............................................................................. 6
1.4 TRANSPORTATION WARNINGS ......................................................................................... 6
1.5 DISPOSAL OF LITHIUM BATTERIES ................................................................................... 7
1.6 BEFORE CONNECTION .......................................................................................................... 7
1.7 WHEN IN USE .......................................................................................................................... 8
2. STORAGE, TRANSPORTATION, AND EMERGENCY SITUATIONS ................................ 9
2.1 STORAGE .................................................................................................................................. 9
2.2 TRANSPORTATION ............................................................................................................... 9
2.3 EMERGENCY SITUATIONS ................................................................................................... 9
3. Product Introduction ........................................................................................................... 11
3.1 Introduction ........................................................................................................................... 11
3.2 Lithium Iron Phosphate Battery ....................................................................................... 11
3.3 Power Base X1 FEATURES ................................................................................................. 11
4. Product Description ............................................................................................................. 13
4.1 Product Description .............................................................................................................. 13
4.2 Battery Indicator Description ............................................................................................ 16
4.3 SLEEP AND WAKE UP ........................................................................................................ 18
5. Installation ............................................................................................................................ 20
5.1 The package includes: ......................................................................................................... 20
5.2 Installation location ............................................................................................................. 20
5.3 Tools ....................................................................................................................................... 22
5.4 Safety gear ........................................................................................................................... 22
5.5 Making network cable ........................................................................................................ 22
5.6 Installation clearance ......................................................................................................... 24
5.7 Cable connections ................................................................................................................ 24
6. Trouble Shooting ................................................................................................................. 27
6.1. Determine the problem based on whether the battery can be turned on or not: .. 27
6.2. Preliminary determination steps .................................................................................... 27
7. Battery Indicator Description ............................................................................................ 30

3
1. Safety Precautions
1.1 LABEL ICONS EXPLANATION
Risk of electric shock!
Risk of fire!
Corrosive materials!
Risk of explosion!
Hot surface. Do not touch.
Read the instructions and keep them for future reference.
Wear protective eyeglasses and clothing.
Keep the battery away from open flame or ignition sources.
NOTE:
It is very important and necessary to read the user manual carefully (in the
accessories) before installing or using battery. Failure to do so or to follow any of the
instructions or warnings in this document can result in electrical shock, serious injury,
or death, or can damage battery, potentially rendering it inoperable.
CAUTION！
It is required to read the user manual carefully before installing or using the battery.
Failure to do so or to follow any of the instructions or warnings in this document can
result in electrical shock, serious injury, or death, or can damage the battery,
potentially making it inoperable.

4
1.2 GENERAL WARNING
• WARNING! The voltage of this battery is strong enough to cause electric shock.
• Use the battery only as intended. The system must only be used to store electrical
power.
• Work on a lithium battery should be carried out by qualified personnel only.
• Use insulated tools. Do not wear any metallic items such as watches, bracelets, etc.
• Terminals of the lithium battery are always alive. Therefore, do not place items or
tools on the lithium battery.
• Do not allow the battery connectors to touch conductive objects such as wires.
• Avoid short circuits, too deep discharges and too high charge currents.
• Any uncovered battery material such as electrolyte or powder on the skin or in the
eyes must be flushed with plenty of clean water immediately. Then seek medical
assistance. Stains on clothing should be rinsed out with water.
• If the battery casing is damaged, do not touch the exposed electrolyte or powder
because it is corrosive.
• The battery is intended for indoor use only. Do not expose the cables outdoor.
• Do not open, dismantle, or repair the battery. Electrolyte is very corrosive. In normal
working conditions, contact with the electrolyte is impossible.
CAUTION！
The product must be installed by a qualified electrician only and must be accompanied
by a document confirming this. Do- it-yourself installation will void the warranty and
may damage the battery resulting in electric shock, fire, or loss of life.

5
• Lithium batteries are heavy. If involved in an accident, they can become a projectile!
Ensure adequate mounting, secure it, always use suitable handling equipment for
transportation.
• Handle with care. A lithium battery is sensitive to mechanical shock.
• Do not touch the battery with wet hands.
• Keep out of the reach of children and pets.
• Do not expose the battery to flammable or harsh chemicals or vapors.
• Do not paint any part of the battery, including any internal or external components.
The battery may explode. Do not drop, deform, impact, cut, crush or puncture it.
• Do not drag or step on the battery. Do not subject it to any strong force.
• Do not expose the battery to heat, fire, direct sunlight, liquids and moisture.
• Do not use a damaged battery.
• Contact the supplier within 24 hours if you observe abnormal operation.
• It is prohibited to insert any foreign object into any part of the battery.
• Servicing must be performed by qualified personnel only. All the battery terminals
must be disconnected for maintenance.
• Do not use cleaning solvents to clean the battery.
• In case of fire, you must use a type D, foam or CO2 fire extinguisher.
• The warranty claims are excluded for direct or indirect damage due to items above.
The manufacturer does not undertake any consequences or related responsibility which
results from violation of safety operation or violating of design, production and
equipment safety standards.
At the end of its useful life, do not dispose of the device with your normal household
waste. For proper treatment, recovery and recycling, take this product to a designated
collection point.

6
1.3 CHARGE AND DISCHARGE WARNINGS
• If the battery is stored for a long time, it is required to charge it every 6 months, and
the SOC should be at least 90%.
• After full discharge, the battery needs to be recharged within 12 hours.
• Do not connect the battery to PV solar wiring directly.
• Use only with an approved BMS.
• If the lithium battery is charged after being discharged below the "Discharge Cut-off
Voltage", or when the lithium battery is damaged or overcharged, it can release a harmful
mixture of gases such as phosphate.
• The temperature range within which the battery can be charged is 0 °C to 55 °C.
Charging the battery at temperatures outside this range may cause severe damage to
the battery and/or reduce battery life expectancy.
• The temperature range within which the battery can be discharged is -20 °C to 55 °C .
Discharging the battery at temperatures outside this range may cause severe damage
to the battery and/or reduce battery life expectancy.
1.4 TRANSPORTATION WARNINGS
• The battery must be transported in its original or equivalent package and in an
upright position. If the battery is in its package, use soft slings to avoid damage.
• Do not stand below the battery when it is hoisted.
• Never lift the battery at the terminals or the BMS communication cables. Only lift the
battery at the handles.

7
For transport, the batteries fall within the category UN3480, Class 9, Packaging Group II
and must be transported according to this regulation. This means that for land and sea
transport (ADR, RID, I MDG), they must be packed according to the packaging instruction
P903 and for air transport (IATA) according to packaging instruction P965. The original
packaging complies with these instructions.
1.5 DISPOSAL OF LITHIUM BATTERIES
Batteries marked with the recycling symbol must be processed via a recognized
recycling agency. By agreement, they may be returned to the manufacturer.
Batteries must not be mixed with domestic or industrial waste.
Do not throw the battery into fire.
1.6 BEFORE CONNECTION
• After unpacking, check the product and the package content first. If the product is
damaged or its parts are missing, contact your local supplier.
• Before installation, be sure to cut off the grid power and make sure the battery is
turned off.
• Wiring must be correct. Do not switch the positive and negative cables.
NOTE：
Batteries are tested according to the UN Manual of Tests and Criteria, part III,
subsection 38.3 (ST/SG/AC.10/11/Rev.7).

8
• Do not short-circuit with the external device.
• It is prohibited to connect the battery and AC power directly.
• The embedded BMS in the battery is designed for 51.2 VDC. Do not connect the
battery in series circuit.
• The battery system must be well grounded, and the resistance must be less than
0.1Q.
• Before operating the battery, make sure the grounding connection is set correctly.
• Ensure that the electrical parameters of the battery system are compatible with the
related equipment.
• Do not install the battery in wet locations and in areas at risk of explosion.
1.7 WHEN IN USE
• If the battery system needs to be moved or repaired, the power must be cut off and
the battery completely shut down.
• It is prohibited to connect the battery with batteries of different types.
• It is prohibited to make the batteries work with faulty or incompatible inverter.
• It is prohibited to disassemble the battery (QC tab removed or damaged).
• In case of fire, only dry powder fire extinguishers can be used. Liquid fire
extinguishers are prohibited.
• Do not open, repair, or disassemble the battery. This can be done only by authorized
personnel.

9
2. STORAGE, TRANSPORTATION, AND EMERGENCY SITUATIONS
2.1 STORAGE
Recharge and maintain the battery every 3 months to ensure it is in the best condition.
The recommended storage temperature is from 15 ℃to 35 ℃.
2.2 TRANSPORTATION
The battery needs to be packed before it can be shipped. Protect it from severe impact,
compression, direct sunlight and rain during transportation.
2.3 EMERGENCY SITUATIONS
Leaking Batteries
If the battery leaks electrolyte, avoid contact with the leaking liquid or gas. If you are
exposed to the leaked substance, immediately perform actions described below.
Inhalation: Evacuate the contaminated area, and seek medical attention.
Contact with eyes: Rinse your eyes with running water for 15 minutes, and seek medical
attention.
Contact with skin: Wash the affected area thoroughly with soap and water, and seek
medical attention.
Fire
In case of fire, do not use water! Only dry powder fire extinguishers can be used. To
prevent the battery from catching fire, locate it in a fire-safe area.
WARNING
If the battery catches fire, it will produce noxious and poisonous gases. Do not
approach.
Only firefighters wearing proper protective clothing (including gloves, masks, and
breathing apparatus) may enter the room with the burning power storage system.

10
Damaged Batteries
Damaged batteries may leak electrolyte or produce flammable gas.
Damaged batteries are dangerous and must be handled with the utmost care. They
are not fit for use and may pose a danger to people or property. If the battery seems
to be damaged, pack it in its original container and return it to authorized personnel
or the supplier.
CAUTION
NOTE
In case a damaged battery needs recycling, it shall follow the local recycling
regulations (Regulation (EC) No 1013/2006 in the European Union) to dispose of it
and use the best available techniques to achieve relevant recycling efficiency.

11
3. Product Introduction
3.1 Introduction
Power Base X1 series lithium iron phosphate battery is one of new energy storage
products developed and produced by ZRGP, it can be used to support reliable power for
various types of equipment and systems. Power Base X1 series is especially suitable
for application scene of high power, limited installation space, and restricted load-
bearing and long cycle life.
Power Base X1 series has built-in BMS battery management system, which can
manage and monitor cells information including voltage, current and temperature.
What’s more, BMS can help extending cycle life by balancing cells during charging and
discharging.
Multiple batteries are allowed to be connected in parallel to expand capacity and power
to meet the requirements of longer power supporting duration and higher power
consumption.
3.2 Lithium Iron Phosphate Battery
The lithium iron phosphate battery (LiFeP04 or LFP) is the safest of the mainstream
lithium battery types. A single LFP cell has a nominal voltage of 3.2 V. A 51.2 V LFP
battery consists of 16 cells connected in series.
LFP is the chemistry of choice for very demanding applications. Some of its features
are:
• Durable and resistant - it can operate in deficit mode for long periods of time.
• High cycle efficiency.
• High energy density - more capacity with less weight and volume.
• High charge and discharge currents - fast charging and discharge is possible.
• Flexible charge voltages.
3.3 Power Base X1 FEATURES
• The whole module is non-toxic, non-polluting and environmentally friendly;
• Cathode material is made from LiFeP04 with safety performance and long cycle life
• Equipped with LCD display, it can provide basic data visualization, which makes it
more convenient to observe the system operation.
• Battery management system (BMS) has protection functions against over-
discharge, overcharge, overcurrent and high / low temperature;
• The system can automatically manage charge and discharge state and balance
current and voltage of each cell;

12
• The adopted self-cooling mode significantly reduces noise of the entire system;
• The module has less self-discharge, up to 6 months without charging, no memory
effect, excellent performance of shallow charge and discharge;
• Working temperature range is from -20 *C to 55 °C : charging from 0 °C to 55 °C,
discharge from -20 °C to 55 °C with excellent discharge performance and cycle life.

13
4. Product Description

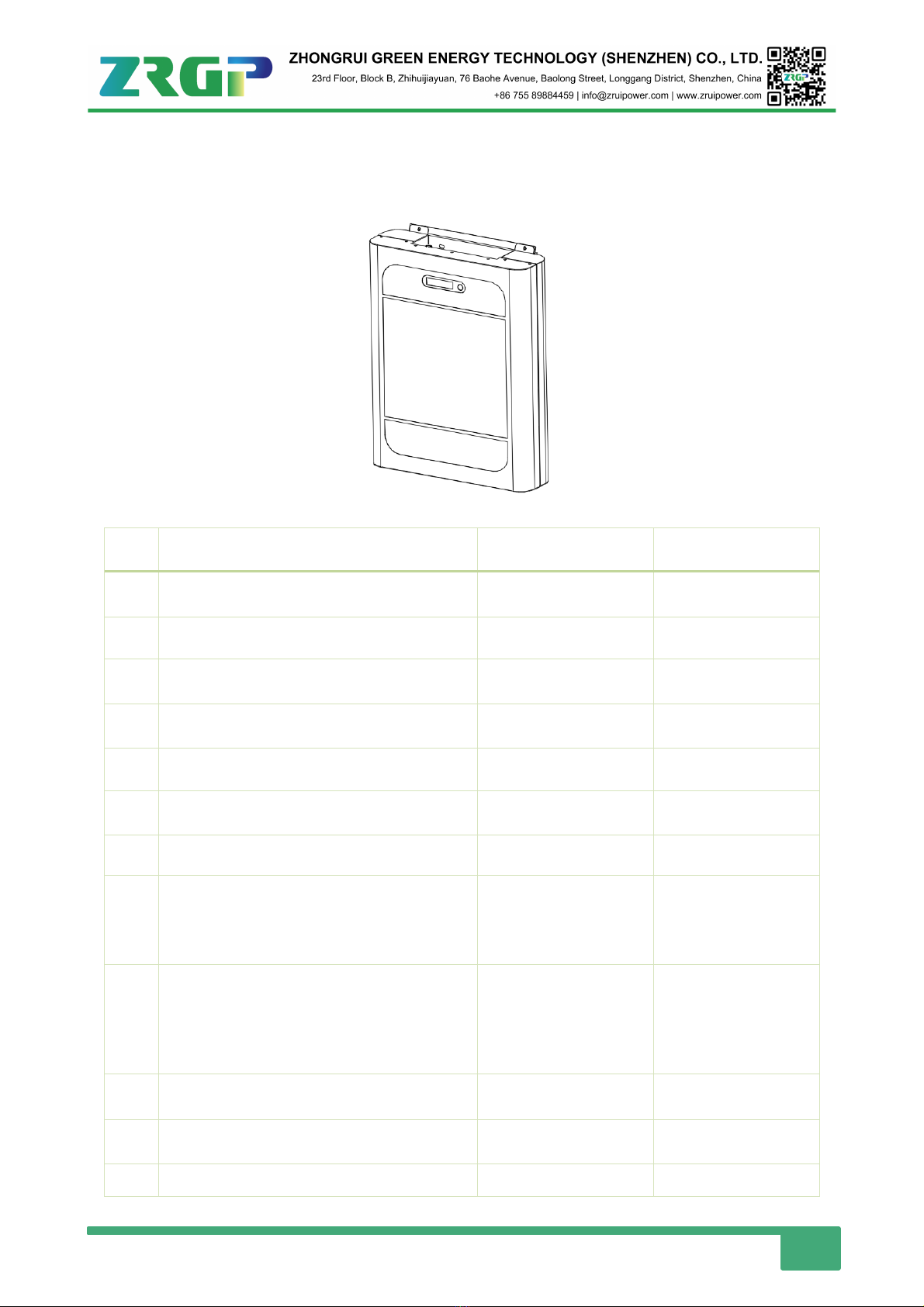

4.1 Product Description
NO
Item
Value
Remark
01
Cell model
100Ah/3.2V
02
Combination Mode
1P16S
03
Nominal Capacity
100Ah
04
Usable Capacity
≥97Ah
05
Rated energy
5120Wh
06
Initial Internal Resistance
<50mΩ
AC 1KHz
07
Rated Voltage
51.2V
08
Recommend Charge Voltage
57V
Unit cell max.
charge voltage not
exceed 3.55V
09
Recommend Discharge Cut-off Voltage
46.88V
Unit cell min.
discharge voltage
not lower than
2.93V
10
Standard Charge Current
20A
0.2C
11
Max. Charge Current
≤100A
12
Standard Discharge Current
50A

14
13
Max. Discharge Current
≤100A
14
Short Circuit Current
≥2670A
18mS
15
Max. Charge/ Discharge Power
5120W
Voltage:51.2V
16
Depth Of Discharge
97%
17
Operating Temperature
0~+55℃
Charge
-20~ +55℃
Discharge
18
Open Circuit Voltage
44.8~57.6V
19
Shell Type
Painted metal
20
IP Code
IP20
4.1.2 Operation Conditions
Installation Location
Indoor (wall-mounted)
Operating Temperature
-20 ~ +55 °C
Recommended Ambient Operating
Temperature
+15 ~ +30 °C
Storage Temperature
+15 ~ +35 °C
Humidity
10-90%
Altitude Max.
2000 m
Cooling System
Passive
Noise
<30dB
Enclosure Protection Rating
IP20
4.1.3 Charging cable requirements
Model
Nominal
voltage(Vdc)
Cable specification
AWG
mm2
BPML-10
51.2Vdc
1
25
4.1.4 Physical characteristic
Weight
50 士1 kg
Dimensions (L x W x H)
600 x480 x135 mm
Enclosure Type
Painted metal
Enclosure Color
Grey

15
4.1.5 Communication / Connection
Communication Method
RS485, RS232, CAN
Connection Method
RJ45/RJ11
Display
LCD screen with button
4.1.6 Warranty
Warranty
10 years or 15 MWh energy throughput
4.1.7 Certification
Product
UL1973,CE, I EC 62619:2017, UN38.3throughput
No.
Item
No.
Item
1
Animated streamline
6
Hardware version
2
Discharge power
7
Software version
3
Charging power
8
Capacity of a new battery
4
Battery state of health (SOH)
9
Energy throughput
5
Battery state of charge (SOC)
10
Current voltage level
No.
Item
No.
Item

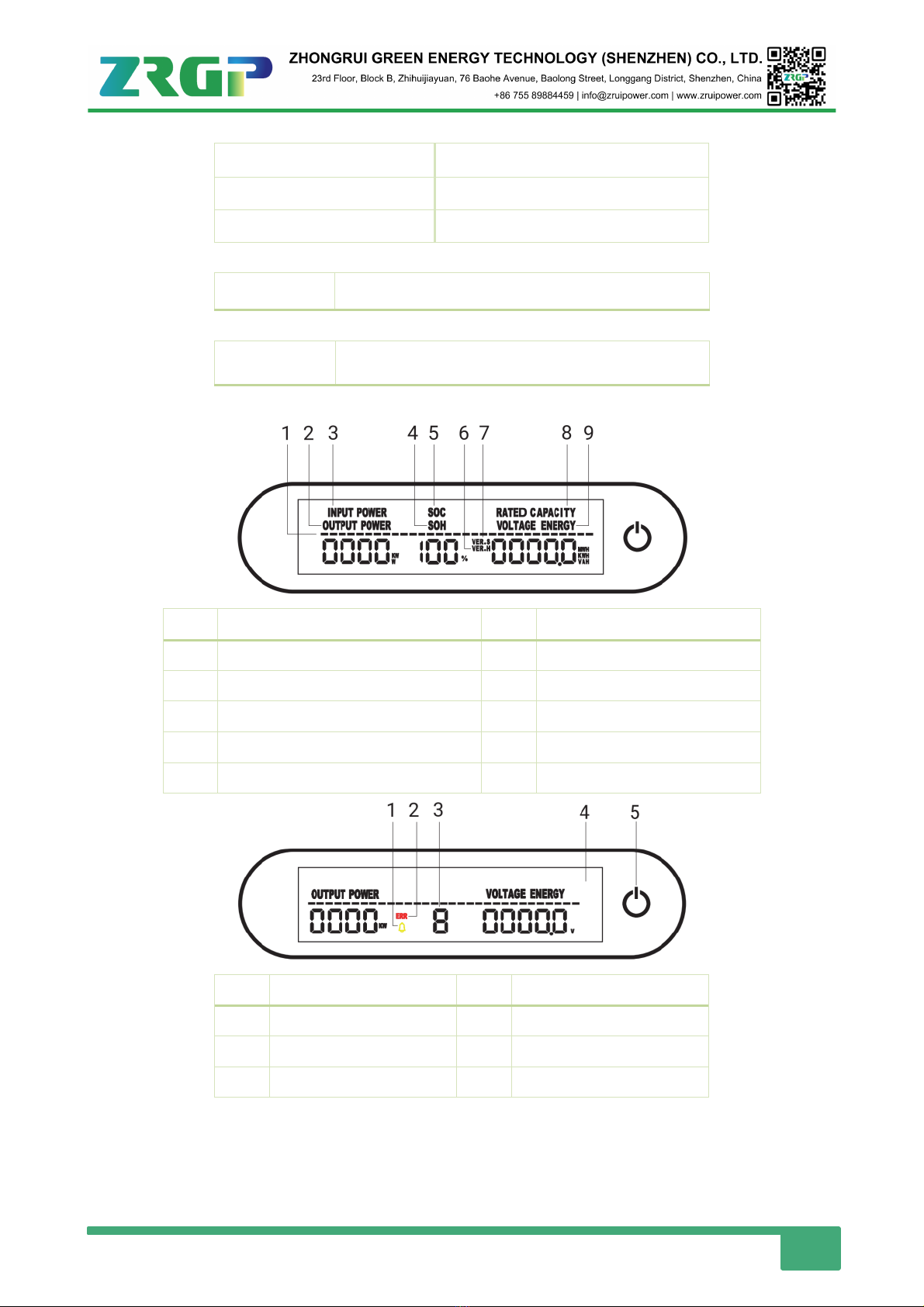

1
Alarm (warning)
4
Display screen
2
Fault (error)
5
Power switch
3
Status code

16
No.
Item
No.
Item

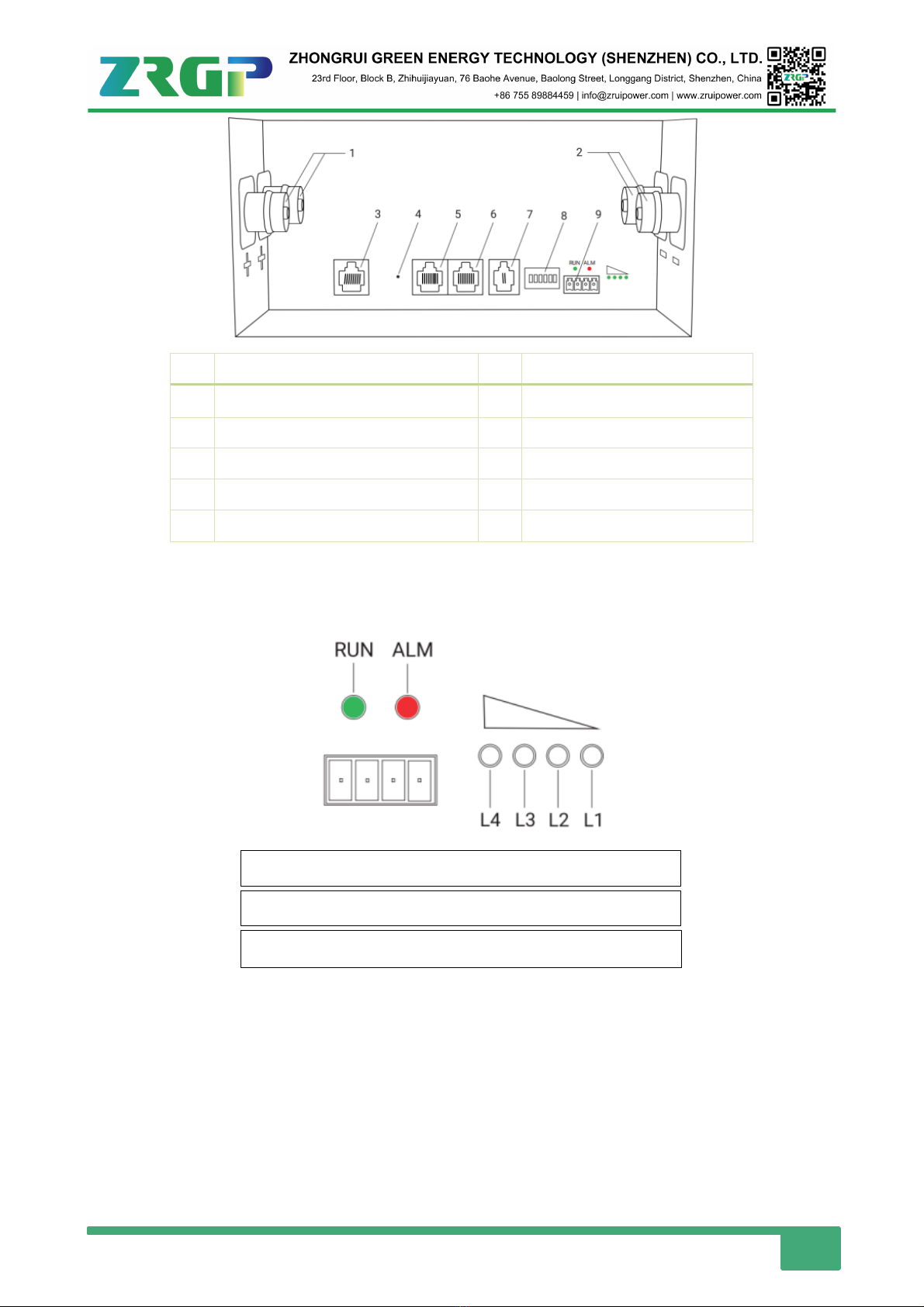

1
Battery positive terminal
6
Multi-device parallel
connection 2
2
Battery negative terminal
7
RS232 communication port
3
CAN/RS485 communication port
8
Address dial switch
4
Reset button
9
Dry contact
5
Muti-device parallel connection 1
4.2 Battery Indicator Description
POWER SWITCH
To turn the battery on: Press the switch for 3 seconds, until the dis¬play lights up.
To turn the battery off: Press the switch for 5 seconds until the display goes out, BMS is
in shutdown mode, and there is no output power.
DISPLAY SCREEN
Information displayed on the screen include input and output power, SOC, SOH, rated
capacity, voltage, energy and system status code (alarm and fault indication).
SOC Indicator Description: Table 1 Page 7
Status Indicator Description: Table 2 Page 7
Indicator Blink Description: Table 3 Page 7

17
STATUS CODE
When the system status code is displayed as protection (alarm) in¬formation, bell
symbol and code will be displayed. When the system status code is displayed as fault
information, ERR and code value (13 or higher) will be displayed. The explanation of
alarm and fault codes is provided in the table:
Numerical
Value
Alarm Indication
Numerical
Value
Alarm Indication
1
Over voltage protection
13
Discharge circuit failure
2
Low voltage protection
14
Charging circuit fault
3
Charging over current protection
15
Cell failure
4
Discharge overcurrent protection
16
NTC failure
5
Short circuit protection
17
Voltage acquisition fault
6
Charging high temperature
21
Parallel connection failed
7
High discharge temperature
25
Failed communication between
screen and device
8
Low charging temperature
51
Total pressure overcharge
protection
9
Low discharge temperature
52
Total pressure over discharge
protection
11
High ambient temperature
53
Low ambient temperature
protection
12
Excessive differential pressure
54
MOS overtemperature protection
RESET BUTTON
When the battery is in sleep mode, press the button for 3 seconds and release it. The
battery will be activated, the LED indicators will light up from left to right, and then the
SOC of the battery will be displayed.
NOTE:
When the system is being charged, the display streamline gathers in the middle.
When it is being discharged, the display streamline disperses to both sides.
.

18
When the battery is in the active state, press the button for 3 seconds and release it. The
battery will go into the sleep mode, the LED indicators will light up from right to left, and
then all the indicators will be off.
When the battery is in the active state, press the button for 6 seconds and release it.
Then, the battery parameters are restored to the factory settings, and all LED lights are
on for 1.5 seconds.
4.3 SLEEP AND WAKE UP
SLEEP
When any of the following conditions is met, the battery enters the low-power mode:
• Undervoltage protection is not released within 90 seconds.
• The reset button is pressed for 3 seconds and then released.
• The lowest cell voltage is lower than the sleep voltage, and the duration of such
state reaches the sleep delay time (while meeting the requirements of no
communication, no protection, no equilibrium, and no current).
• Standby mode lasts for more than 24 hours (no communication, no charge or
discharge, no mains power, minimum cell voltage is less than 3.2 V).
• Forced shutdown from the EMS Tools level.
Before entering the sleep mode, make sure no charger is connected. Otherwise, it will
not be able to enter the low-power mode.
WAKE UP
When the system is in the low-power mode, and any of the following conditions is met,
the system will exit the low-power mode and enter the normal operation mode:
• A charger is connected and the output voltage of the charger is greater than 51.2 V.
• The reset button is pressed for 3 seconds and then released.
• The communication line is connected and the EMS Tools opened (if the battery
enters sleep mode due to over-release protection, this method cannot wake up the
battery).
NOTE:
If there are other batteries in the output state in parallel application scenario, the
current battery cannot be set to sleep through the reset button, because it will be
charged and awakened by other batteries with normal output.

19
• The power switch is used.
NOTICE
After battery over-discharge protection is activated, the battery enters the low-power
mode, wakes up every 4 hours, and switches to charging or discharging. If it can be
charged, it will exit the sleep mode and enters the normal charging slate. If the single
cell voltage is below 2.5 V the battery will no longer auto wake up.
