ZUCCHETTI AMBROGIO 3000 User manual

I
GB
F
D
E
NL
Italiano
English
Français
Deutsch
Español
Nederlands
C141500900.fm
Manuale d’uso
Rasaerba Robot
User's manual
Lawn Mower Robot
Manuel d’utilisation
Tondeuse à gazon Robot
Bedienungshandbuch
Rasenmähroboter
Manual de uso
Cortadora de césped Robot
Gebruiksaanwijzingen
Grasmaaimachine
Congratulazioni per aver acquistato il rasaerba AMBROGIO 3000.
L'aver scelto questo prodotto potrà soddisfare le vostre
esigenze e aspettative. Questo progetto nasce da ZUCCHETTI
CENTRO SISTEMI S.p.A. (Azienda certificata UNI EN ISO 9001)
software house che, dal 1982, ha consolidato la propria attività
e la propria presenza sul mercato internazionale. Le soluzioni
applicative del software abbinate al settore industriale di
automazione, fanno nascere prodotti nuovi che ottimizzano le
procedure di lavoro. È così che è nato, dai laboratori di ricerca,
AMBROGIO 3000.
Congratulations for having purchased the AMBROGIO 3000
lawn mower. This choice will surely meet your needs and
expectations. This product is the result of research at the
ZUCCHETTI CENTRO SISTEMI S.p.A. (certified UNI EN ISO
9001) software house that, since 1982, has been
consolidating its role on the international market. Innovative
software solutions applied to the industrial automation sector
introduce new products that optimise working procedures.
AMBROGIO 3000 was developed on the basis of this research.
Tous nos compliments pour avoir acheté la tondeuse à gazon
AMBROGIO 3000. Vous avez choisi un produit qui répondra à
vos besoins et à vos attentes. Ce projet naît au ZUCCHETTI
CENTRO SISTEMI S.p.A. (Entreprise certifiée UNI EN ISO 9001)
software house qui, depuis 1982, a consolidé son activité et sa
présence sur le marché international. Les solutions
d’application du logiciel, jumelées au secteur industriel
d’automation, ont permis la naissance de nouveaux produits qui
optimisent les procédures de travail. C’est ainsi que, dans nos
laboratoires de recherche, est né AMBROGIO 3000.
Wir gratulieren zum Kauf des Rasenmähers AMBROGIO 3000.
Ihre Bedürfnisse und Erwartungen werden durch die Wahl
dieses Produkts mit Sicherheit erfüllt. Die Firma ZUCCHETTI
CENTRO SISTEMI S.p.A. (mit UNI EN ISO 9001 ausgezeichneter
Betrieb) Software House, die ihre Produktion seit 1982 festigt
und damit auf dem internationalen Markt vertreten ist, zeichnet
für dieses Produkt verantwortlich. Die angewandten
Softwarelösungen führen in Kombination mit der industriellen
Automatisierung zur Entstehung neuer Produkte für eine
Optimierung von Arbeitsprozessen. Auf diese Weise entstand
in den Forschungslabors AMBROGIO 3000.
Felicidades por haber adquirido la cortadora de césped
AMBROGIO 3000. Podrá satisfacer sus exigencias y
expectativas al haber elegido este producto. Este producto
nace de ZUCCHETTI CENTRO SISTEMI S.p.A. (Empresa
certificada UNI EN ISO 9001) software house que, desde
1982, ha consolidado su propia actividad y su propia presencia
en el mercado internacional. Las soluciones de aplicación del
software combinadas con el sector industrial de
automatización, hacen nacer nuevos productos que optimizan
los procedimientos de trabajo. Es así que ha nacido, en los
laboratorios de investigación, Ambrogio 3000.
Wij wensen u van harte geluk met de aanschaf van uw
AMBROGIO 3000. Wij zijn er zeker van dat deze machine
voldoet aan al uw verwachtingen en vereisten. AMBROGIO
3000 is een project van ZUCCHETTI (met UNI EN ISO 9001
certificaties), een softwarebedrijf dat sinds 1982 met haar
activiteiten een eigen plaats verwierf op de internationale
markt. De combinatie van de oplossingen die worden geboden
door softwaretoepassingen en de industriële automatisering
resulteert in nieuwe producten om de bedrijfsprocessen te
optimaliseren. Zo ontstond in onze onderzoekscentra
Ambrogio 3000.

C141500900.fm
Dichiarazione di conformità (98/37 CE allegato II punto A)
ZUCCHETTI Centro Sistemi S.p.A. Via dell’Olmo 99 A/B Ter-
ranuova B.ni (AR) ITALIA, dichiara che la macchina, identifica-
bile dai dati riportati in calce, da utilizzare per rasare prati in
ambienti domestici e non, è conforme alle direttive: 98/37
CE - 78/23 CEE - 89/336 CEE. Per queste ultime sono com-
presi i successivi emendamenti.
Declaration of conformity (98/37 CE annex II paragraph A)
ZUCCHETTI Centro Sistemi S.p.A., Via dell’Olmo 99 A/B Ter-
ranuova B.ni (AR) ITALY, declares that the machine, identified
by the data included hereafter, to be used for lawn mowing in
household and other environments, complies with directives:
98/37 EC - 78/23 EEC - 89/336 EEC and amendments
thereto.
Déclaration de conformité (98/37 CE annexe II paragraphe A)
ZUCCHETTI Centro Sistemi S.p.A. Via dell’Olmo 99 A/B Terra-
nuova B.ni (AR) ITALIE, déclare que la machine, identifiable par
les données rapportées plus bas, servant à tondre les pelou-
ses en milieu domestique et non, est conforme aux directives :
98/37 CE - 78/23 CEE - 89/336 CEE. Pour ces dernières,
sont inclus les amendements additionnels.
Konformitätsbestätigung (98/37 CE Beilage II Punkt A)
Die Firma ZUCCHETTI Centro Sistemi S.p.A., Via dell’Olmo 99
A/B Terranuova B.ni (AR) ITALIEN, erklärt, daß die mit den un-
ten angegebenen Daten gekennzeichnete Maschine, die dazu
bestimmt ist, zum Mähen von Rasenflächen in Wohn- und an-
derer Umgebung eingesetzt zu werden, folgenden Richtlinien
entspricht: 98/37 CE - 78/23 CEE - 89/336 CEE. Letztere
schließen nachfolgende Abänderungen mit ein.
Declaración de conformidad (98/37 CE anexo II punto A)
ZUCCHETTI Centro Sistemi S.p.A. Via dell’Olmo 99 A/B Te-
rranuova B.ni (AR) ITALIA, declara que la máquina, que se pue-
de identificar por los datos al pie de la página, y que tiene como
uso cortar prados tanto en ambientes domésticos como no
domésticos, es conforme a las directivas: 98/37 CE - 78/23
CEE - 89/336 CEE. Para estas últimas están incluidas las en-
miendas sucesivas.
Verklaring van overeenstemming (98/37 EG bijlage II punt A)
ZUCCHETTI Via dell'Olmo 99 A/B Terranuova B.ni (AR) ITALIA,
verklaart dat de machine waarvan de identificatiegegevens
hiernaast worden vermeld en die bedoeld is om gras te
maaien in huishoudelijke en andere omgevingen, voldoet aan
de richtlijnen: 98/37 EG - 78/23 EEG - 89/336 EEG. In de
laatste richtlijnen zijn ook de latere wijzigingen inbegrepen.
Modello/serie - Model/Series
Modèle/série - Modell/Serie
Modelo/serie - Model/serie
Bernini Fabrizio
(Amministratore delegato) - (Managing director)
(Administrateur délégué) - (Geschäftsführer)
(Administrador delegado) - (Afgevaardigd beheerder)
.............................................................................................................

- 3 -
C141500900.fm
User's manualAMBROGIO 3000
GB
GENERAL INFORMATION ......................................................................... 4
TECHNICAL INFORMATION .......................................................................5
SAFETY INFORMATION................................................................................7
INSTALLATION ..................................................................................................9
OPERATING INSTRUCTIONS..................................................................18
MAINTENANCE INFORMATION ...........................................................27
TROUBLE SHOOTING..................................................................................31
AAdjustment, cutting height, 20
Adjustment, mower balance, 20
Area without perimeter cable and without garage,
work, 22
BBattery recharging with winter recharging kit, 30
CChecking the cutting disc, 28
Clamps and contact plates, 28
Cleaning and maintenance of the mower, 27
Control, cutting disc, 28
Cutting disc - replacement, 28
Cutting height - setting, 20
DDate and time, settings, 24
Description of keyboard controls, 18
Display, description, 19
EEmergency stop, 19
GGarage transformer, installation, 16
Garage, perimeter cable connections, 16
General machine description, 5
General safety, 7
General suggestions, 21
General warnings, 8
IIdentification of manufacturer and appliance, 4
Installation of transformer and recharging base, 16
Installation procedure, 9
KKeyboard, control descriptions, 18
LLanguage selection, settings, 24
Lawn mower balancing-- adjustment, 20
Lawn mower storage, 30
MMachine, general description, 5
Machine, manufacturer’s identification and, 4
Manual, purpose of, 4
OOptionals, 7
PPackaging and unpackaging, 9
Password, settings, 26
Perimeter cable - recharging base connection, 16
Perimeter cable, work area with, 11
Perimeter, settings, 26
Problems, causes, solutions, 31
Programming procedure, 23
Purpose of the manual, 4
RRain sensor adjustment, 21
Rain sensor, settings, 26
Rapid return to garage, settings, 15
Recharging base cleaning, 27
Remote control use, 27
Replacement, cutting disc, 28
Replacing the batteries, 29
Resumption for work after storage, 30
SSafety signals, 9
Secondary settings, 25
Separate closed areas, work, 22
Service procedure, 5
Set Date and Time, 24
Set Language, 24
Set Password, 26
Set Perimeter, 26
Set Rain Sensors, 26
Set working schedule, 24
Setting the rapid return to the recharging base, 15
Starting, 19
Stop, 19
Storage, restarting work after, 30
TTechnical specifications, 7
UUnpacking, packaging and, 9
WWinter recharging Kit, battery recharging, 30
Work area without perimeter cable and automatic
return, 14
Work area without perimeter cable and manual
return, 15
Work area, preparation, 9
Work in areas without perimeter cable or
recharging base, 22
Work in separate closed areas, 22
Work in small areas without perimeter cable and
with the presence of an operator, 22
Working area settings, 9
Working area with perimeter cable, 11
Working hours, settings, 24
Working phase commands, 20
CONTENTS
ANALYTICAL CONTENTS
Reproduction, even partial, of this document without written permission by the manufacturer is forbidden. The manufacturer assumes a policy of continual improvement and reserves the right to modify
this document without prior notice on condition that modifications do not constitute safety risks.
© 2002 - Text, illustrations and page setting by: IDM experts in technical communications - Forlì - Texts may be partially or totally reproduced if the author is cited.

- 4 -
C141500900.fm
User's manualAMBROGIO 3000
GB
PURPOSE OF THE MANUAL
The constructor has produced this man-
ual, which forms an integral part of the
appliance, to provide the necessary infor-
mation for those authorised to interact
with it during its working life.
As well as adopting good practices for
use, the manual's intended readers
must read it thoroughly and apply its in-
structions to the letter. The constructor
supplies this information in its own lan-
guage (Italian), but it may be translated
into other languages to meet legal and/
or commercial requirements. A little
time taken to read this information will al-
low the prevention of risks to health and
safety, and the risk of economic losses.
Keep this manual in a clearly identified
safe place throughout the working life of
the appliance, so that it will always be
available when required for consultation.
The constructor reserves the right to
make changes without any obligation to
provide any prior notice.
A number of symbols have been used to
highlight particularly important parts of
the text or important specifications.
Their meaning is as defined below.
Danger - Attention
Indicates critically dangerous situa-
tions that, if neglected, can result in se-
rious personal safety and health
hazards.
Warning - Caution
Indicates that suitable procedures
must be adopted to avoid putting peo-
ple's health and safety at risk or caus-
ing economic losses.
Important
Indicates particularly important tech-
nical information which must not be
overlooked.

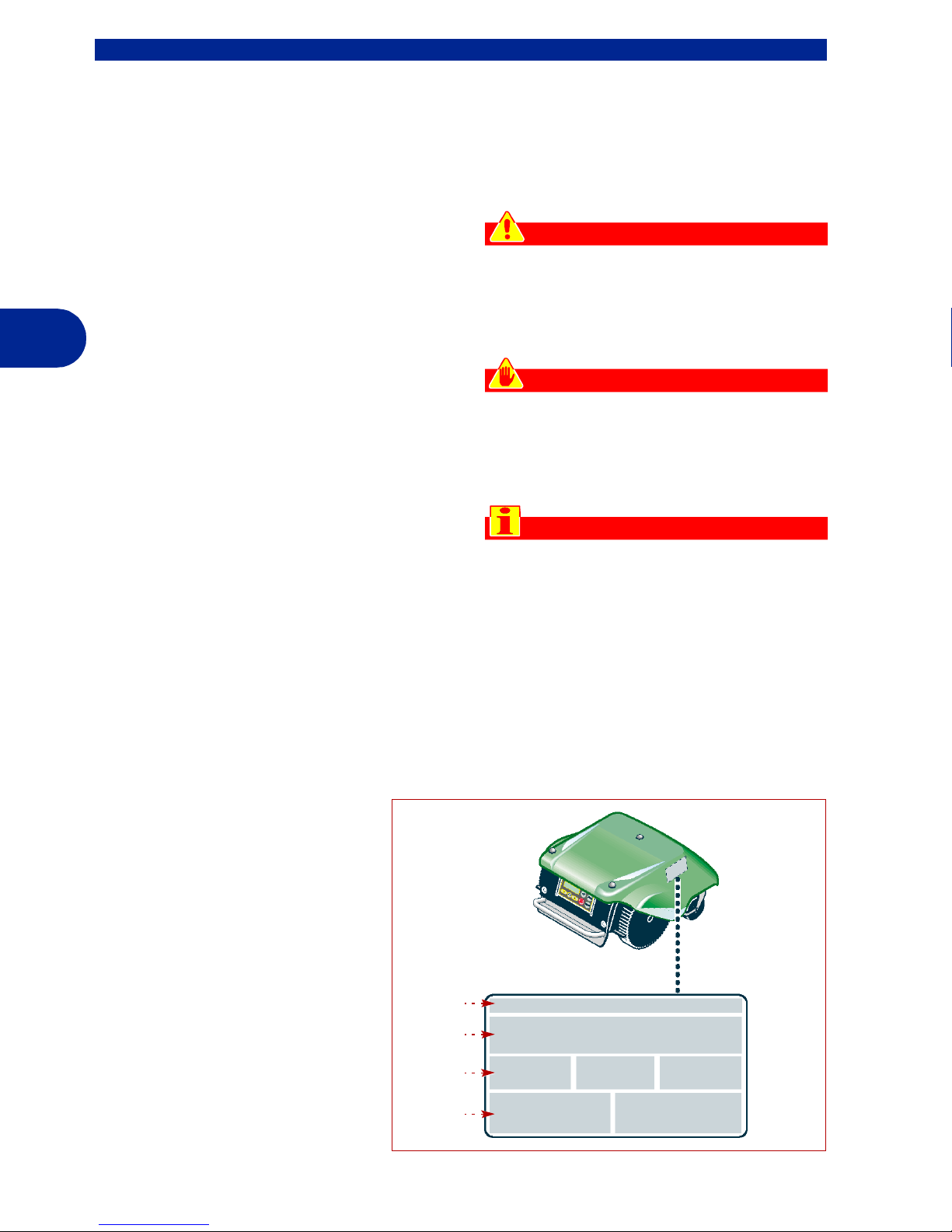

IDENTIFICATION OF MANUFACTURER AND APPLIANCE
The dataplate shown here is fitted direct-
ly to the appliance. It features references
and all essential information for
operating safety.
A) Manufacturer identification.
B) CE conformity label.
C) Serial model/number year of
construction.
D) Technical specifications.
GENERAL INFORMATION
IDM - 41500300100.tif
D
C
B
A

- 5 -
C141500900.fm
User's manualAMBROGIO 3000
GB
SERVICE PROCEDURE
Please refer to the Manufacturer’s serv-
ice centres for any need.
For every technical service request re-
garding the machine, please indicate the
data found on the identification plate, the
approximate hours of use and the type of
fault detected.
GENERAL MACHINE DESCRIPTION
This machine is a robot that auto-
matically mows the grass in your
garden.
It is small, compact, silent and
easy to transport.
It can freely move within an en-
closed area, detecting the signal
transmitted by the perimeter ca-
ble located on the ground all
around the area to be mowed; it
can also work without a perime-
ter cable as long as the working
area is enclosed by a fence at
least 10 cm. high.
When work autonomy has ex-
pired (see technical specifica-
tions), the robot returns to the
base to automatically recharge
the batteries. When this opera-
tion is over, the machine restarts
mowing.

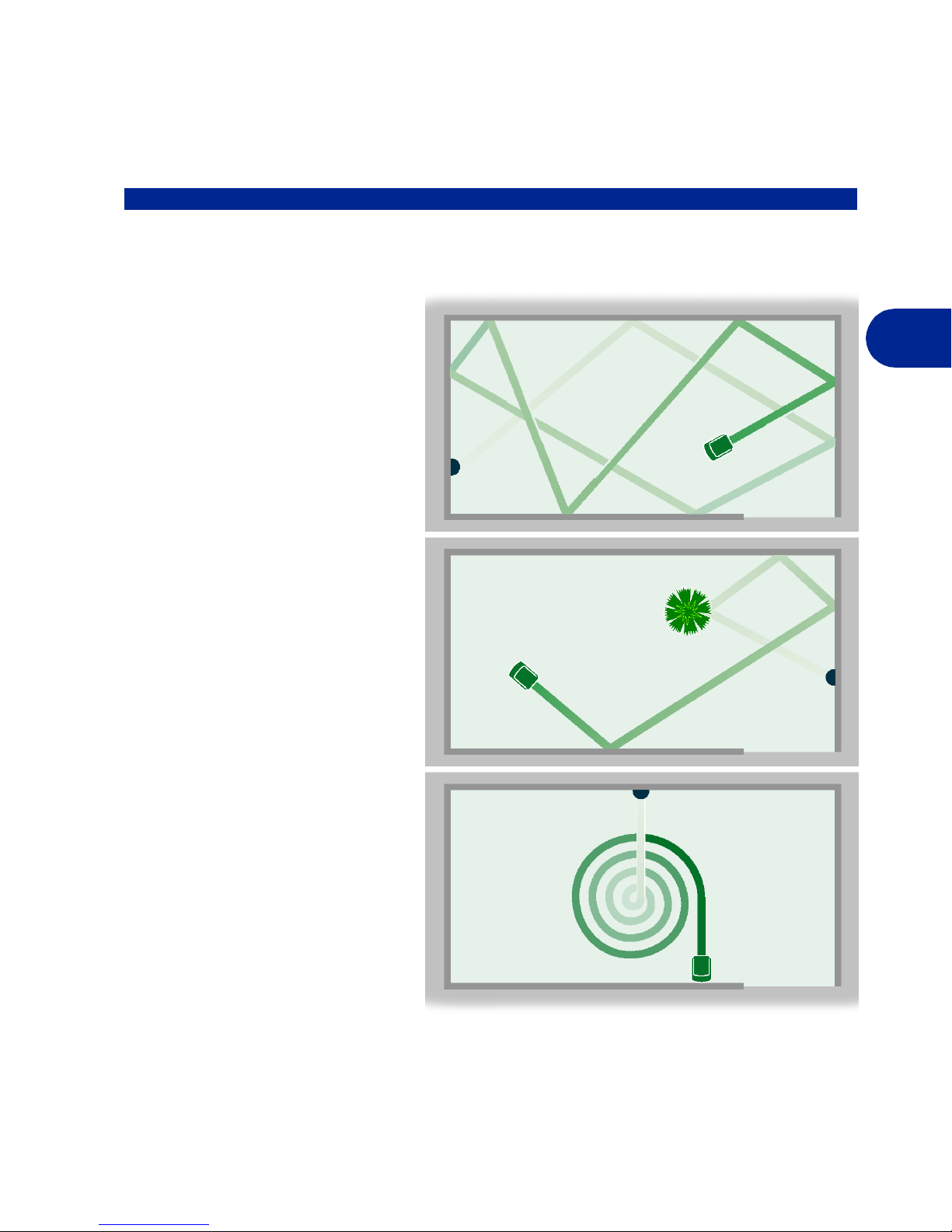

It follows a "random" pattern, with
no fixed plan; periodically and ran-
domly, the spiral function, particu-
larly efficient on obstacle free
areas, is activated.
It covers an area of up to 3000 m2;
two or more robots can work simul-
taneously to cover a wider area.
According to the various operat-
ing requirements, the robot can
be produced in several models
whose differences are indicated
in the technical specifications.
It is equipped with a keyboard with
a user-friendly and easy-to-program dis-
play. It can operate day and night; only
working time start and finish including
work days for intended use need to be
set.

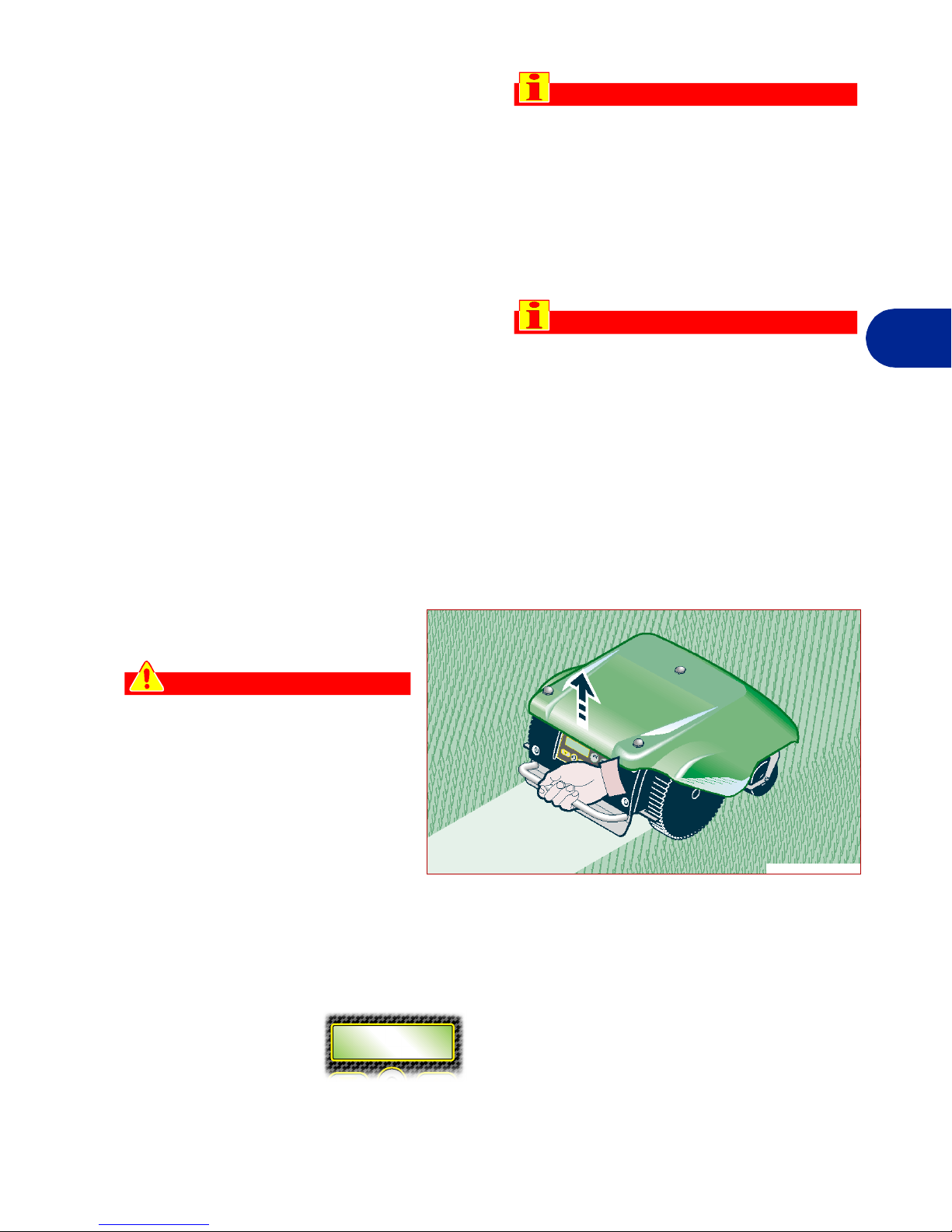

If the lawn mower is lifted or overturned
the blade stops to prevent hazards to
people and/or pets.
TECHNICAL INFORMATION
IDM - 41500300200.tif

- 6 -
C141500900.fm
User's manualAMBROGIO 3000
GB
It is fully water-resistant and can there-
fore operate in all weather conditions.
Important
It is not water-proof therefore it must
not be submerged under water.
The grass in your garden will always be
at the desired height, to guarantee an
even lawn all year round.
IDM - 41500900100.tif
Winter recharge Kit (optional): to
recharge or keep batteries
charged without using the garage.
Rain sensor (DELUXE model only):
detects rain and returns the ma-
chine to the garage.
Remote control (DELUXE
model only): permits the
machine to be used in manual
mode.
Cutting disc with 4 blade;
reversible
Pivoting front wheels
Driving wheels: they drive the lawn mower, powered by
electrical motors.
Recharging base: where the lawn mower is placed
when it needs to be recharged.
Protection cover: allows reaching
internal components.
Batteries: guarantee a specific working
range (see technical data).
Contact devices: provide connection
to the base for
recharging.
Keyboard for programming
and set-up.
Handle: to lift and move the
lawn mower.
Trasformer with cable: supplies
the recharging base.
Nails pocket: to fix the perimeter
cable and the recharging base to
the ground.
Electronic card with microprocessor for
function control.
Supporting frame: supports all main
components of the lawn mower.
Low voltage perimeter cable: to be fixed to the ground or
underground to delimit the working area.

- 7 -
C141500900.fm
User's manualAMBROGIO 3000
GB
TECHNICAL SPECIFICATIONS
OPTIONALS
– lithium battery
– recharge for winter garaging
(*) If the chosen installation requires cables laid under-
ground, a suitable cable must be used. Consult your dealer
or the manufacturer.
GENERAL SAFETY
Important
Safety information, general indications
and notes to be considered when using
the machine are mentioned below. It is
understood that this does not exempt
the user from reading the entire manual.
–During design and construction, the
manufacturer has carefully consid-
ered the possible hazards and per-
sonal risks that may result from
interaction with the machine. In addi-
tion to observing the specific laws in
force, the manufacturer has adopted
all “exemplary construction technique
principles”. The purpose of this infor-
mation is to advise the users to use
extreme caution to avoid risks. How-
ever, discretion is invaluable. Safety is
also in the hands of all the operators
who interact with the machine.
–Carefully read the instructions pub-
lished in the supplied manual and
found directly on the machine while
strictly observing those concerning
safety. Time dedicated to reading will
prevent unfortunate accidents; re-
PROFESSIONAL DELUXE
Cutting disc with 4 blades
Cutting speed 20 m/min
Cutting height 2÷7 cm
Cutting width 30 cm
Maximum coverage 3000 m2
Average coverage 125 m2
(for each programmed hour)
Working range 1÷1 hours and 30 min (approximate)
Size 57 x 42 x 26 (mm)
Total weight (without batteries) 9,5 Kg
Lead batteries (2) 12 V/12 Ah
Recharging base 24 V/3,5 A
Transformer 110/220 V (double insulation)
Perimeter cable (*) ø min 1.5 mm /l = 150 meters
Remote control NO YES
Rain sensor NO YES
Recharge for wither storage NO YES
SAFETY INFORMATION
C141500900.fm Page 7 Monday, October 14, 2002 1:18 PM

- 8 -
C141500900.fm
User's manualAMBROGIO 3000
GB
membering what one was supposed
to do when the damage is already
done is always too late.
–Pay attention to the meanings of the
symbols on the applied stickers; their
shape and colour are significant to
safety ends. Keep them legible and ob-
serve the indicated information.
–Never tamper, dodge, eliminate or by-
pass the safety devices installed on
the machine. Neglect to respect this
requirement may cause serious risk
to personal safety and health.
–Personnel who are to perform any
type of work on the machine during its
lifetime must possess specific techni-
cal skills, abilities and have acquired
certified experience in the specific
field. Neglect to observe these re-
quirements may prove hazardous to
personal safety and health.
–When using the machine, make sure
there are no risks especially for chil-
dren, pets and things.
–Perform lifting and handling observing
the information found directly on the
packaging, on the machine and in the
instructions furnished by the manu-
facturer.
–Only use the machine for the purpos-
es specified by the manufacturer. Use
of the machine for other purposes
may be hazardous to personal safety
and health and provoke economic
loss.
–All maintenance procedures that re-
quire precise technical competency
or specific skills must be exclusively
performed by qualified personnel with
acquired certified experience in the
specific field.
–Replace deteriorated parts with origi-
nals to ensure functionality and the
foreseen safety level.
–Do not litter the environment with pol-
lutant material; perform disposal ac-
cording to the pertinent laws in force.
–Do not place hands or feet under the
machine when running especially in
the wheel area.
GENERAL WARNINGS
–The lawn mower may be used only by
those who know how to operate it af-
ter reading and understanding the in-
structions in this manual.
–Before using the lawn mower make
sure that no objects are on the lawn
(toys, tree branches, items of cloth-
ing, etc.).
–Keep the lawn mower in perfect oper-
ating conditions by performing the
maintenance procedures outlined by
the manufacturer. Good maintenance
guarantees better performance and
longer service life.
–Before maintenance and setting pro-
cedures are performed – also by the
user, if possessing the necessary
technical skills – disconnect the pow-
er supply. The user must in any case
operate in full safety conditions, espe-
cially when working on the lower part
of the lawn mower, following the pro-
cedures as illustrated by the manu-
facturer.
–All interventions on the recharging
base must be performed after discon-
necting the power supply.
–Use personal protections as recom-
mended by the manufacturer, espe-
cially the protective gloves when
handling blades and cutting discs.
–Always remove the blade before re-
placing the batteries.

- 9 -
C141500900.fm
User's manualAMBROGIO 3000
GB

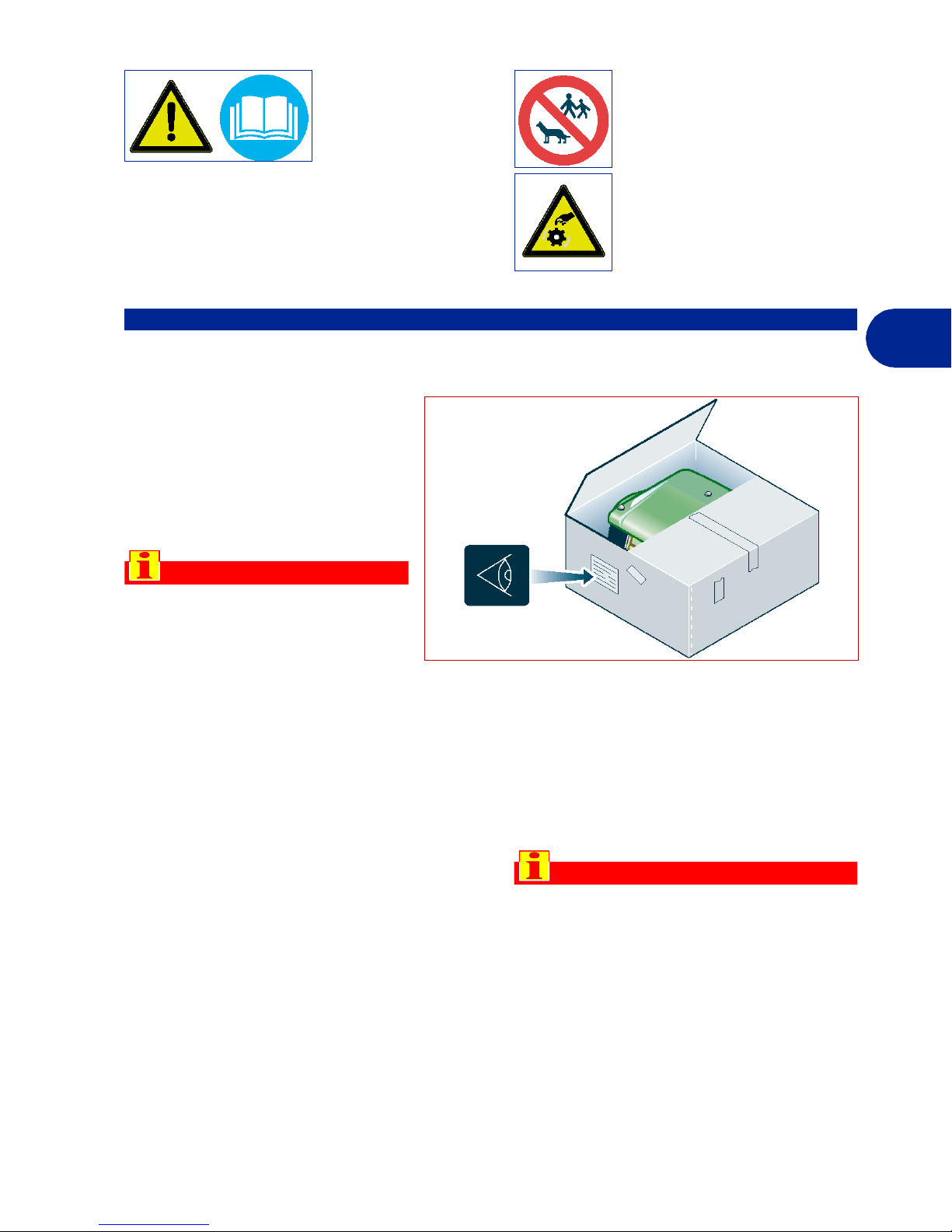

SAFETY SIGNALS
Safety signal: indicates that the user
should carefully read the manual before
operating the lawn mower.
Prohibiting signal: indicates
that the lawn mower should
not be used in the presence
of children and/or pets.
Danger signal: indicates
that the user should not ap-
proach to the blades while
the lawn mower is operating.
PACKAGING AND UNPACKAGING
The machine is delivered suitably
packaged. When unpacking, re-
move carefully and check compo-
nent integrity.
All the necessary information for
handling is found on the packag-
ing.
Important
Keep the packaging for future
usage.
INSTALLATION PROCEDURE
Installation procedures depend on the
working area to be covered, for this rea-
son the chapter is divided into the follow-
ing paragraphs:
1) working area settings (p. 9)
-working area with perimeter cable
(p. 11)
- Work area without perimeter ca-
ble and automatic return (p. 14)
- Work area without perimeter ca-
ble and manual return (p. 15)
2) transformer and recharging base in-
stallation (p. 16)
3) perimeter cable - recharging base
connection (p. 16)
Important
Rigorously respect indicated proce-
dures, since an incorrect installation
limits the quality of lawn mower opera-
tions.
Working area settings
Prior to installation, all obstacles or ir-
regularities that could obstruct lawn
mower movements need to be consid-
ered, and, if necessary, protected as indi-
cated in the following paragraphs.
Before describing installation proce-
dures, some machine function charac-
teristics that must always be taken into
consideration when setting the working
area.
INSTALLATION
IDM - 41500300400.tif

- 10 -
C141500900.fm
User's manualAMBROGIO 3000
GB

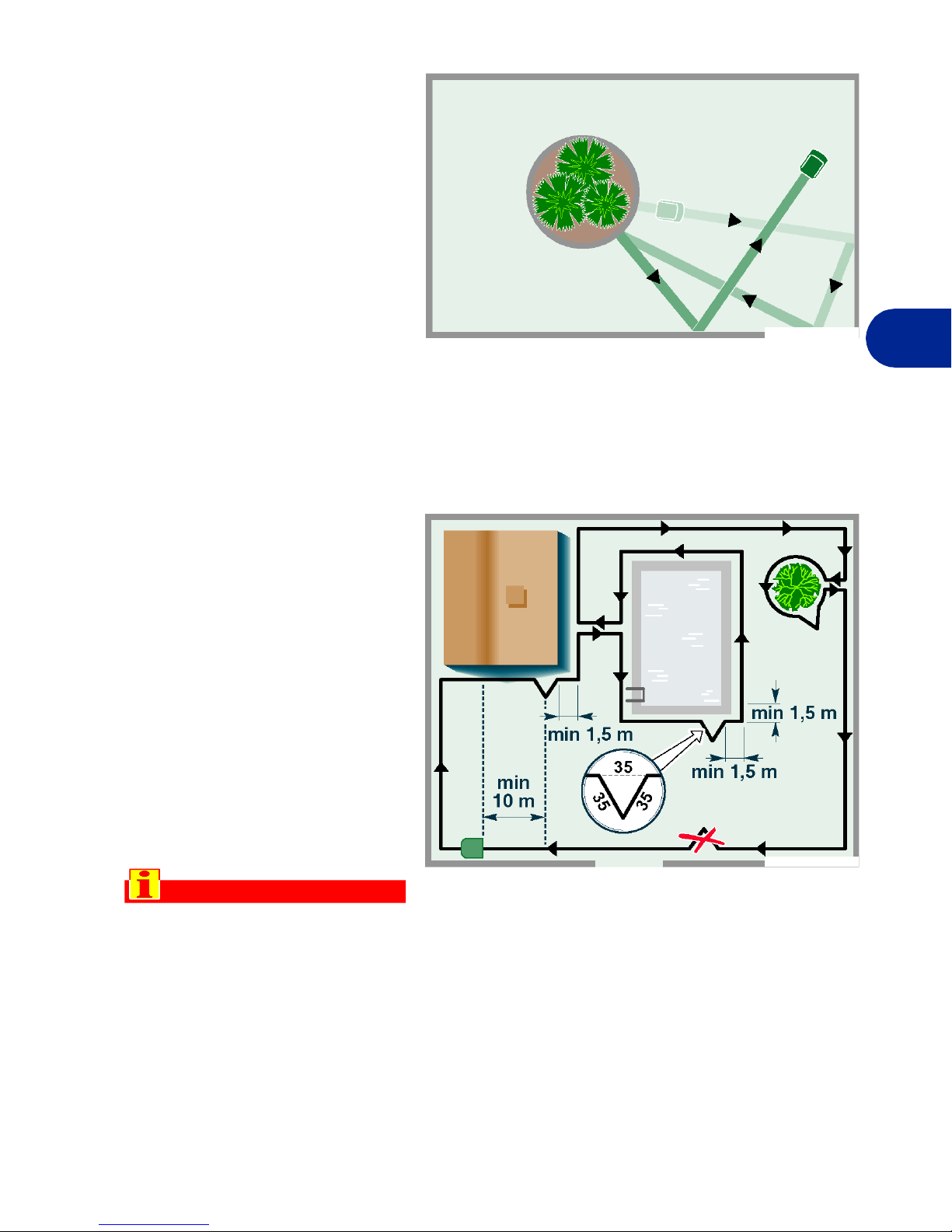

When the lawn mower intercepts
the perimeter cable signal or col-
lides with the fence, it stops and
moves immediately backwards
changing direction.
If the garden path is level with the
lawn and free of obstacles, it is
not necessary to delimit it.
If the crossing lane forms a step
it must be bordered.
Do not delimit trees, fences or
other objects that can tolerate
the impact with the frame.
If obstacles that can support the
body's collision are surrounded
by flower beds or roots that can
obstruct the lawn mower func-
tion or damage it, they must be
bordered.
IDM - 41500902000.tif
IDM - 41500902100.tif
IDM - 41500902200.tif
IDM - 41500902300.tif

- 11 -
C141500900.fm
User's manualAMBROGIO 3000
GB
Working area with perimeter cable
Before installing the cable, decide
the best location for the recharg-
ing base and the transformer
(see p. 16).
The cable can be placed at ground
level or underground. The signal
quality and intensity could be com-
promised if cables are under-
ground, as a matter of fact, with
the cable at ground level the lawn
mower detects the signal at a dis-
tance of 650÷750 cm., while with
a cable 40 cm. underground this
distance is reduced to 450 cm. For fur-
ther information contact your dealer.
Start placing the cable from the point es-
tablished for the recharging base and
continue along the perimeter of the area
following the ground irregularity. To allow
the lawn mower to correctly enter the
recharging base, the input end of the ca-
ble must be straight and perpendicular
for at least 2 meters, and the output end
of the cable must end at least 30 cm.
away from the recharging base.
Important
If the cable is placed at ground level, it
must not be exceedingly taut and it
must be secured with the proper nails
supplied.
The illustration provides a typical
installation example.
Important
Respect the rotation direction
around flower beds (counter
clockwise).
Example: separate working area installation
It is at times advisable to divide the work-
ing area into separate areas, as in the
following cases:
– when lawns are not connected;
– when one area is considerably larger
than the other and the two areas are
connected by a passage that is too
narrow.
IDM - 41500902400.tif
IDM - 41500902500.tif
Settings for a rapid return to the re-
charging base (see p. 15)

- 12 -
C141500900.fm
User's manualAMBROGIO 3000
GB
In these cases, the recharging
base must be positioned in the
larger area, connecting the perim-
eter cable to the secondary area
with a passage, bearing in mind
that the distance between the two
cables must not be below 70 cm.
It will be like a ”separate working
area”; to mow the secondary ar-
ea, the lawn mower must be pro-
grammed accordingly (see
“Managing secondary areas”).
Example: closed separate working area installation
In case of closed working areas
separated by a fence or other ob-
stacles that block the lawn mow-
er passage, both areas can be
connected as shown in the figure.
To mow the secondary area, the
lawn mower must be manually
transferred (see instructions on
p. 22).
Note: if the main area cannot be connect-
ed with the closed secondary area, an ad-
ditional recharging base can be bought for
the secondary area.
According to certain conditions
(ex.: border walls, hedges, etc.),
the perimeter cable must be in-
stalled at an adequate distance;
illustrations show the installation
distances of some typical condi-
tions.
If the cable is placed near hedges,
plant growth should be consid-
ered beyond the indicated 30
cm., or else provide periodical
pruning. IDM - 41500902800.tif
IDM - 41500902600.tif
Secondary area
min. 70 cm
Main area
Settings for a rapid return to the re-
charging base (see p. 15)
IDM - 41500902600.tif
max 1 cm
Main area
Closed secondary
area
Settings for a rapid return to the re-
charging base (see p. 15)

- 13 -
C141500900.fm
User's manualAMBROGIO 3000
GB
If mowing is required up to the limits
of the area - with paving limits level
with the lawn - position the perime-
ter cable at a distance of 5 cm.
Example of flower bed limits: re-
duce the distance between the
cables to a minimum.
Minimum passage area: 2 m.
If public areas are at the lawn lev-
el (e.g. roads, water bodies, etc.),
it is advisable to increase the bor-
der distance to 40 cm., or to bor-
der areas with a barrier at least
15 cm high (e.g. fence, wall) to
prevent the lawn mower from go-
ing beyond the perimeter cable.
IDM - 41500902900.tif
IDM - 41500903000.tif
IDM - 41500903100.tif
IDM - 41500903200.tif

- 14 -
C141500900.fm
User's manualAMBROGIO 3000
GB
To avoid interference to the cable
signal, keep it away from metallic
objects (metallic drains or normal
drains with electrical connections
inside). Use specific clamps to
add junctions, if necessary.
Important
Do not use insulating tape.

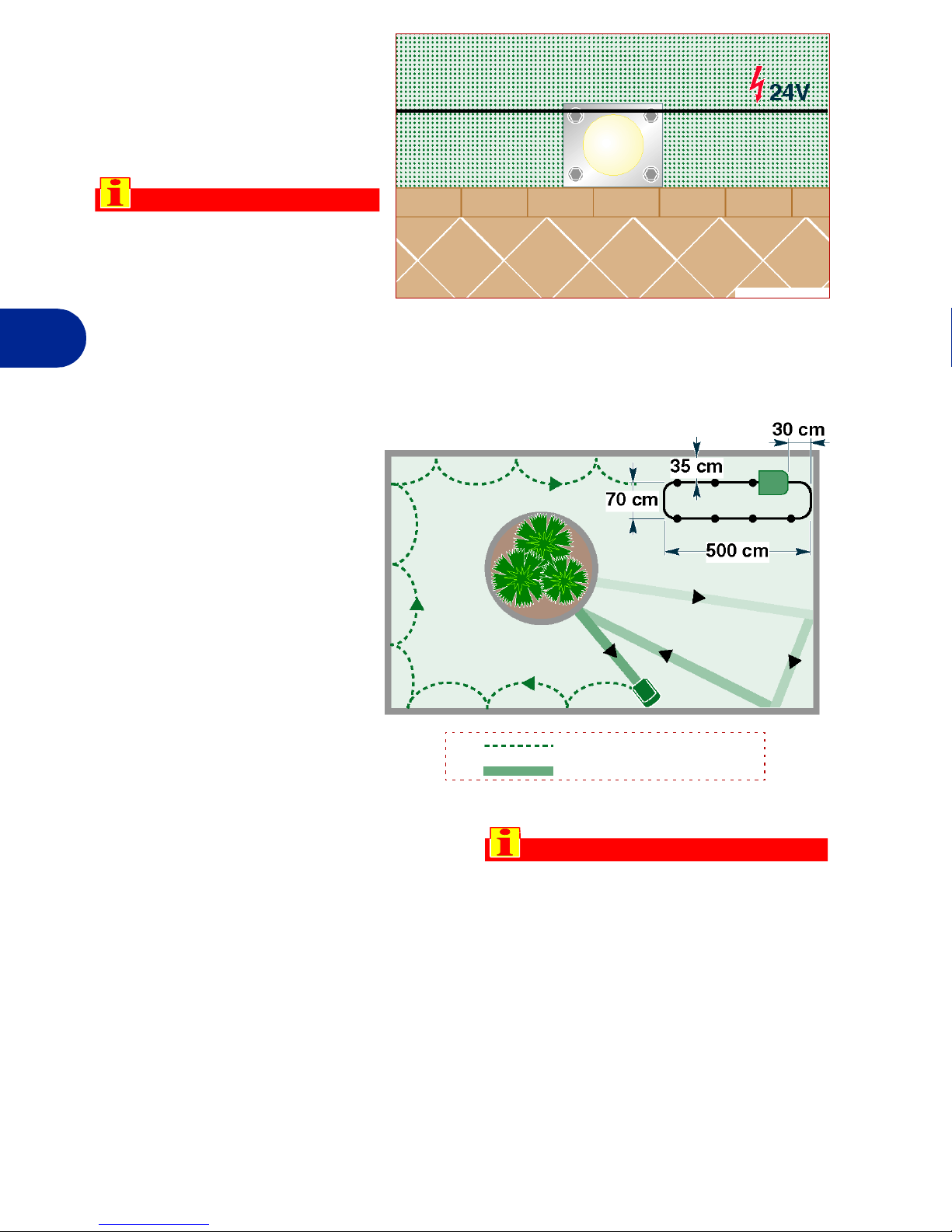

Work area without perimeter cable and automatic return
If the area is bordered by a wall
or a fence at least 10 cm. high,
the lawn mower can work with-
out a perimeter cable.
Decide the best position for the
recharging base and the trans-
former (see p. 16).
The cable can be placed at
ground level or underground.
The signal quality and intensity
could be compromised laying
cables underground, as a mat-
ter of fact, with the cable at
ground level the lawn mower
detects the signal at a distance
of 650÷750 cm., while with a
cable 40 cm. underground this
distance is reduced to 450 cm.
For further information contact your
dealer.
Install the cable respecting distances in-
dicated in the figure.
To allow the lawn mower to correctly en-
ter the recharging base, the input end of
the cable must be in straight and per-
pendicular.
Important
If the cable is placed at ground level, it
must not be exceedingly taut and it
must be secured with the proper nails
supplied.
To mow the area, program the lawn
mower selecting "no perimeter" from
the menu (see p. 26).
IDM - 41500903300.tif
IDM - 41500903400.tif
Return for recharge
Work

- 15 -
C141500900.fm
User's manualAMBROGIO 3000
GB
Work area without perimeter cable and manual return
If the area is bordered by a wall or
a fence at least 10 cm. high, the
lawn mower can work without a
perimeter cable.
To mow the area, program the
lawn mower selecting "no perim-
eter" from the menu (see p. 26)
and press the start button; once
the working time is over the lawn
mower stops without searching
the recharging base.
To recharge batteries, manually
move the lawn mower to the
main area.
Setting the rapid return to the recharging base
Some settings can be done along
the perimeter cable that allow
the lawn mower to change direc-
tions reducing the distance cov-
ered and the time to return to the
charging base.
To do so, an equilateral triangle of
35 cm. should be formed with
the perimeter cable. The illustra-
tion shows some useful indica-
tions to determine the right
location of the setting for the rap-
id return to the charging base.
Note: when the lawn mower follows the
perimeter to reach a secondary area it
does not consider the settings for a rapid
return.
Important
If the setting for a rapid return
is incorrectly placed, the lawn mower
may not be able to return to the re-
charging base.
IDM - 41500903500.tif
IDM - 41500903600.tif

- 16 -
C141500900.fm
User's manualAMBROGIO 3000
GB
Installation of transformer and recharging base
The transformer must be protected
from weather conditions, possibly by an
adequately insulating cover (e.g. IP67), it
must be kept away from children and
connected to the electric power line. In-
stallation must be carried out correctly
and according to current legislation.
To connect the transformer to the pow-
er supply line, a standard electric plug is
needed.
Danger - Attention
The transformer connection to
the recharging base must be
performed with the power sup-
ply disconnected.
Important
The distance between the trans-
former and the garage or perim-
eter cable should not be less
than 3 meters and the cables
should never be entangled.
The best position for the recharg-
ing base is at the limit of the work-
ing area, on a flat, stable surface,
with good drainage to avoid flood-
ing.
Perimeter cable - recharging base connection
1-Remove recharging base pro-
tection
2-Place recharging base in the
pre-established area.
IDM - 41500900200.tif
IDM - 41500903700.tif
IDM - 41500901100.tif

- 17 -
C141500900.fm
User's manualAMBROGIO 3000
GB
Danger - Attention
Remove the power cord to per-
form connections.
3-Insert cable as indicated.
4-Connect the two ends of the
wire to the clamps of the base
(see illustration).
5-Fasten the recharging base to
the surface with nails (A); if
necessary, use expansion
dowels (B).
6-Fasten the protection cover
with the screws.
IDM - 41500901200.tif
IDM - 41500901400.tif
black red
red black
black red
IDM - 41500901300.tif
nails (A)
anchors (B)
IDM - 41500901100.tif

- 18 -
C141500900.fm
User's manualAMBROGIO 3000
GB
7-Connect the base to the trans-
former by plugging in the con-
nectors.
8-Insert the power supply cable
plug (C)in the wall socket.
Now the lawn mower is ready to
be programmed at desired times
and modes.
DESCRIPTION OF KEYBOARD CONTROLS
OPERATING INSTRUCTIONS
IDM - 41500900300.tif
plug (C)
IDM - 41500300400.tif
PAUSE: press to stop the lawn mower,
the display is in “stand-by”; it is now possi-
ble to program the lawn mower. When
pressed again, the lawn mower resumes
working. If the key is pressed during bat-
tery recharging, the lawn mower does
not resume working until the key is
pressed again and 'Pause' disappears
from the display.
Key (+): when working, press to restart the previously
stopped blade. When programming press to increase
the items indicated by the menu.
Display: shows all functions.
Key (-): when working, press to stop the
blade. When programming press to
decrease items indicated by the menu.
ENTER: when working, press to start the spi-
ral function. When programming press to
confirm and save the selection performed.
ON: press to turn on the lawn mower.
CHARGE: press to bring the lawn mow-
er back to the base and recharge the
battery in advance. If the key is pressed
while the lawn mower is recharging, re-
charging is interrupted and the lawn
mower resumes working.
OFF/STOP: press to stop the lawn
mower; the display turns off.

- 19 -
C141500900.fm
User's manualAMBROGIO 3000
GB
STARTING
Before starting the lawn mower control
that the garden is free of obstacles that
could damage functional units (stones,
toys, etc.).
1-Regulate the cutting height (pag. 20).
2-Make sure the cutting disc is in-
stalled correctly (p. 28).
3-Regulate the lawn mower balance (p.
20).
4-Place the lawn mower within the pe-
rimeter.
5-Press ON to turn it on.
6-Enter the saved password (only if it's
not 0000) and press ENTER.
To set the antitheft password see pro-
gramming procedures (p. 26).
Important
The first start of the lawn mower must
be done on the recharging base and it
must be recharged (pressing the
PAUSE key) for at least 12 hours; this
allows batteries to be perfectly
charged and efficient, ready for use.
7-Press PAUSE to start the automatic
working cycle.
Important
If batteries are sufficiently charged, the
lawn mower starts the working cycle, if
they need to be recharged the lawn
mower is positioned in "recharging".
An blinking light placed on the front of
lawn mower automatically turns on dur-
ing night work to point out its working po-
sition.
STOP
To stop the lawn mower press the
PAUSE key, then the STOP key.
Danger - Attention
It is possible to stop the lawn
mower by lifting it and a sensor
halts all functions. However, this
procedure should be avoided.
EMERGENCY STOP
To stop the lawn mower in the event of
emergency press STOP.
Display description
While the lawn mow-
er works, the display
shows the following
data:
Sx) left wheel motor speed;
La) blade motor speed;
Dx) right wheel motor speed;
Battery) battery voltage.
While the lawn mower is recharging the
display shows "recharging".
If the lawn mower off work, the display
shows work start day and time.
Sx=00 La=00 Dx=00
Battery 0000
IDM - 41500903800.tif

- 20 -
C141500900.fm
User's manualAMBROGIO 3000
GB
Working phase commands
During the working phase the following
functions can be performed by the lawn
mower using the indicated buttons:
– press PAUSE to stop the lawn mow-
er, press it again to restart it;
– press CHARGE to send the lawn
mower to the recharging base to re-
charge batteries.
When the lawn mower is recharging
press the same button to make it leave
the recharging base and restart work-
ing.
– Press the Key (-) to stop the blade;
– press the Key (+) to start the blade;
–pressENTER to start the "spiral"
working program.

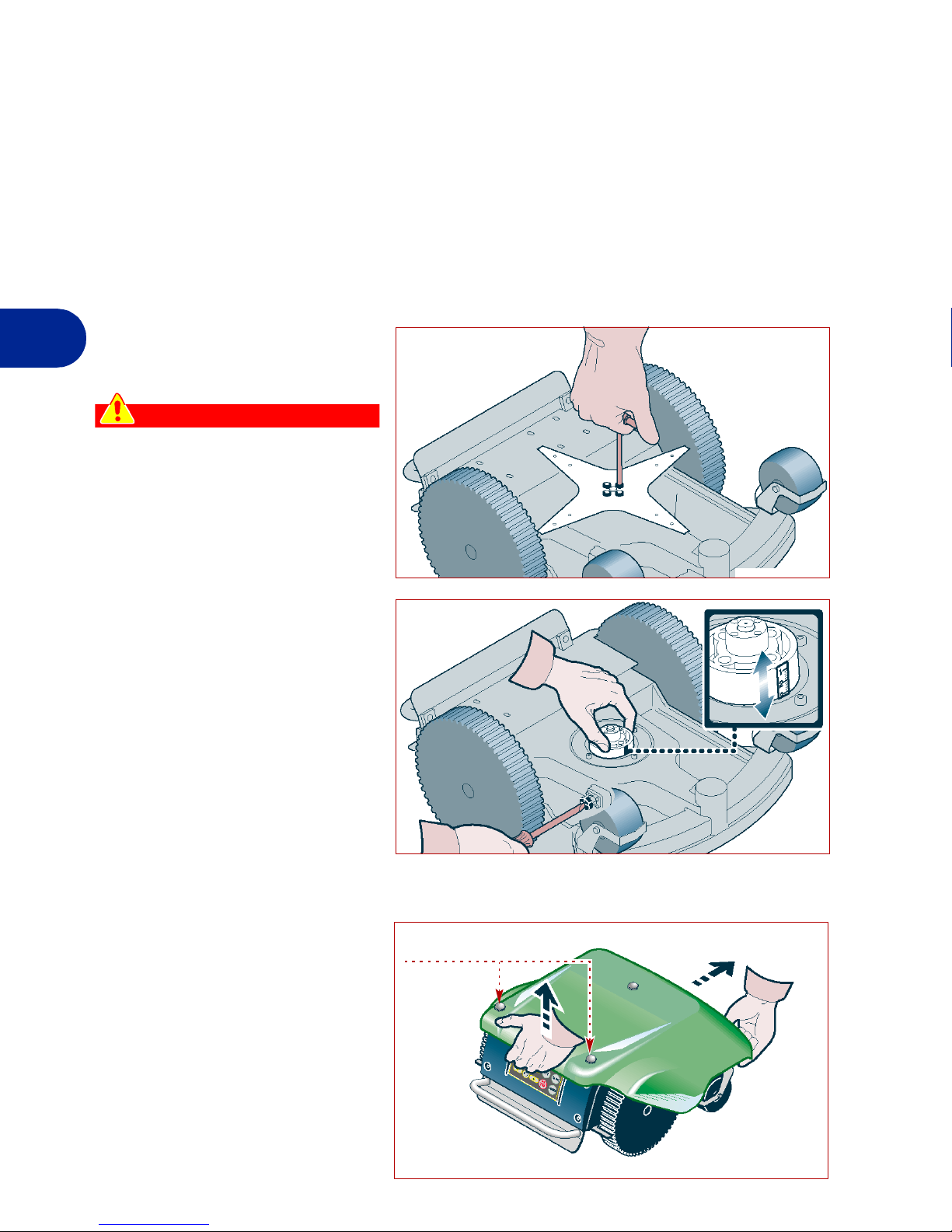

CUTTING HEIGHT - SETTING
Cutting height can vary from 2 to
7 cm, according to the desired
height of the grass.
Danger - Attention
Before performing this setting
turn the mower off by pressing
OFF/STOP.
1-Remove the cutting blade.
2-Unscrew the locking screw.
3-Manually lift or lower the cut-
ting unit until desired height is
reached, as indicated on the
graduated plate.
4-When adjustment is conclud-
ed tighten fastening screws
and reassemble the blade.
LAWN MOWER BALANCING-- ADJUSTMENT
The lawn mower is supplied with
balance adjusted for flat grounds.
In case of sloped grounds, the
lawn mower balance can be mod-
ified by moving both batteries for-
wards or backwards.
1-Unscrew both nuts (A)and re-
move the top hood.
IDM - 41500901500.tif
IDM - 41500900400.tif
IDM - 41500904300.tif
nuts (A)
