ZUUM B4MP-IP-3.6-IR20-WH User manual
B4MP-IP-3.6-IR20-WH
IP White Bullet Camera 4 Mega Pixel, 3.6MM Lens, P2P, UPnP, PoE
This is a great cost effective IP bullet 4MP camera. B4MP-IP-3.6-IR20-WH will work with the ZUUM APP as a standalone
camera, no DVR required for access. You can set it up in seconds with our P2P network. This IP camera also supports UPnP.
You can quickly add to our Hybrid TVR (DVR) without ever setting up in the network router or accessing the web browser of
the camera. Just set mode switch and select open UPnP in the TVR menu and camera will add automatically to the open
network channel you set.
Features:
> 1/3” 4 Mega Pixel progressive scan CMOS camera
> H.264, MJPEG, 4MP real-time recording
> Supports intrusion detection
> 2D,3D,DNR,DWDR, Anti-fog, IR-Cut
> Triple Stream, Mobile APP, P2P
> Supports PoE, ONVIF
> IP66 rated for outdoor use
Package Includes:
IP Bullet Camera 1 piece
Mounting screw pack x 1 piece
Mounting Template x 1 piece
Weather proof RJ45 Housing x 1 piece
Instructions
Warning:
- Please use the required power supply in accordance of IEC60950-1. Power should comply with rated voltage 12 VDC for
standard power supply connecting to number 6 in diagram below. If connecting by PoE number 5 in diagram below please
make sure it meets the PoE standards.
- Camera is rated at IP66. Camera can withstand rain or moisture based on IP66 rating. Camera is not designed to be
installed in direct rain or submerged into water. Please see the rating chart for details of the IP66 rating.
- Installation of this device should be done by an experienced professional and comply with safety and local regulations.
Attention:
– Before connecting the camera make sure you have selected the correct power supply. Using incorrect power supply will
damage the camera.
- Please do not drop or strike camera to avoid permanent damage.
- Please do not touch the image sensor optical element. If necessary to clean, use a soft clean cloth with alcohol to wipe
dust.
- Avoid pointing camera toward glare such as direct sunlight or bright lights. It will effect picture quality and effect the life of
the product.
- Install in temperature range -14° F ~ + 140°F, and avoid strong electromagnetic radiation etc.
- Maintain ventilation flow around the camera
Factory Reset:
When camera is powered up or restarts hold the “RESET” button (8 in diagram below) for 10 seconds. All parameters of the
camera will be restored to factory default settings, including username, password, IP address, port number etc.

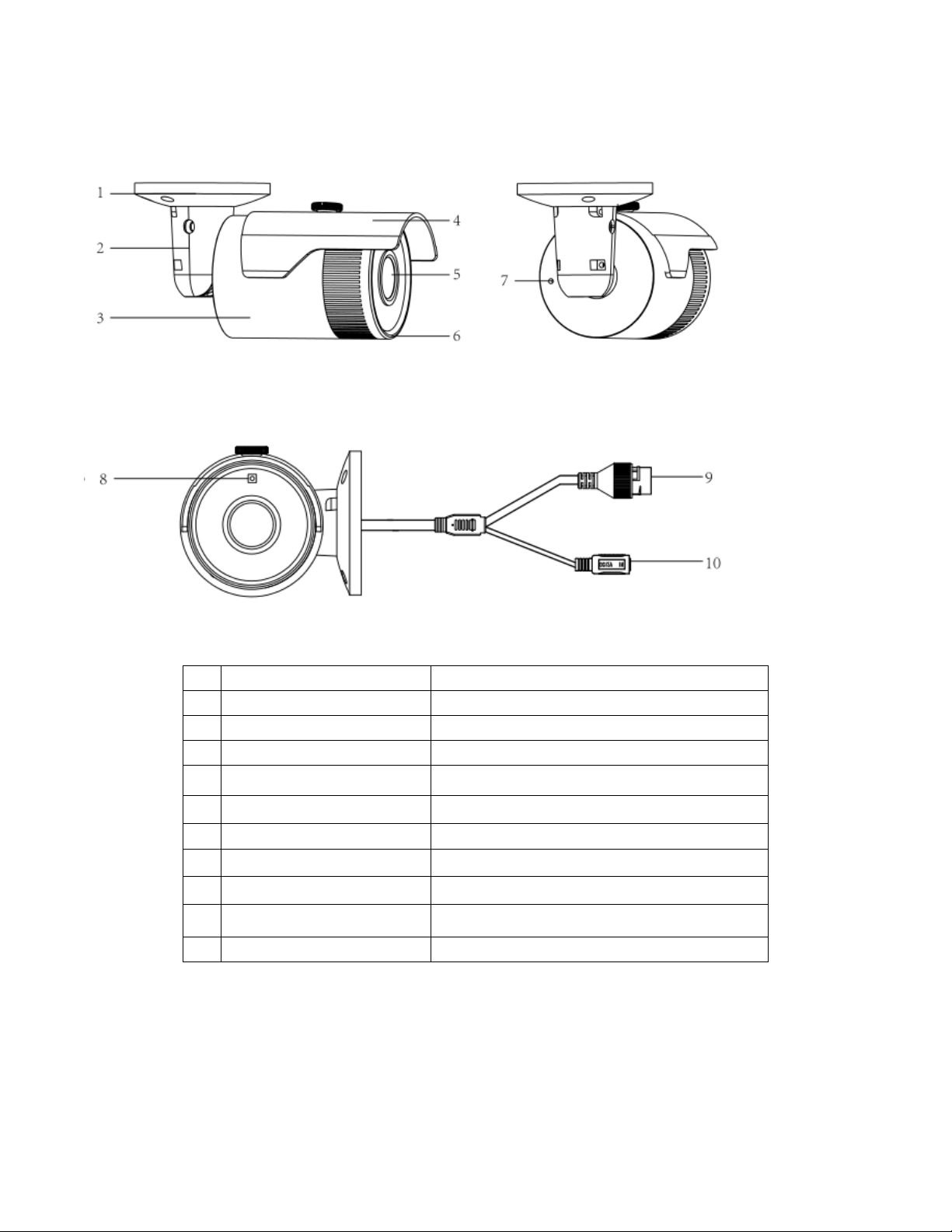

No.
Name
Described Function
1
Base
Device Mounting
2
Adjustable bracket
Support three-axis adjustable bracket
3
Rear Cover
The back cover of camera body
4
Sun Shade
Protect from sun glare
5
Double-ring Glass
Prevent water from leaking into the lens
6
Front Cover
The front cover of camera body
7
Grounding
Grounded for anti-thunder and anti-interference
8
RESET：Instant Recovery
Restore to the factory setting
9
10M/100M Ethernet Network Port
Connect the Ethernet cable, POE optional
10
Power Port
Power supply DC 12V
Sticker Installation: Take out the attached Installation sticker and paste on the wall for mounting hole guidance.
Camera Fixation: Please use 3 screws to fix the basement of the camera to the installation location.
Three-axis bracket adjustment: Loosen the camera body’s screws to adjust the three-axis. Adjust the connection between
brackets and basement by axis to implement 0º~360º in the horizontal direction; Adjusting the spherical joint of brackets can
achieve 0º~90º in the vertical direction and 0º~360º in the rotational direction. Please tighten the screws after adjusting the
camera image to the desired scene.
Ceiling
Install screws
Bracket’s adjustable
screws
Barrel body’s adjustable
screws
Viewing Camera:
You have a couple ways to view the ZUUM IP camera.
1) First way and (MOST CONVENIENT) way when using our IP camera Model: B4MP-IP-3.6-IR20-WH is to connect to
our Hybrid TVR’s by built in switch. Basically plug the IP cameras into the network or POE switch attached to the
network so IP cameras receive power. Then go to your compatible TVR (DVR) and go to the Mode Switch section.
This is where you can determine how many analog cameras and IP cameras can connect to the TVR. So for
example on a 4 channel TVR you can only have 4 cameras total but they can be any mix of analog, HD analog or IP
camera. If you will have just one IP camera connect to the TVR then select which channel that will be in the Mode
Switch. After that has been completed then go to the NET Channel Mgt. section where you will see a list of items on
your network. Open UPnP. Once you do that you can select the IP camera from the list and it will automatically add
it to the TVR. In this example DHCP does not have to be on or any configuration on the IP camera. It is designed to
be plug n play using UPnP.
2) The camera is set up as DHCP by default. So if you plug IP camera into your network or router then you can see if it
is in the list when you log onto your router. You can also use other tools to scan your network for device detection
like Mobile apps. (Fing for example). The name of our network interface card (NIC) is Hangzhou Zenointel. This
should be the name you see for our TVR’s and IP cameras. You can also use our ZUUM IPC Update tool to search
for cameras on the network and make firmware updates using this tool like assigning static IP addresses. You can
find this tool on our website when you select Model: B4MP-IP-3.6-IR20-WH under the RESOURCES tab.
Once you have IP address that was assigned via DHCP please enter into your browser. You will then see a log on screen as
shown below. (Default username: admin) case sensitive (Default Password:123456)
The following interface should pop up a link. (Please download the plug-in by clicking here) when you log in. Please click it
and install plug-in then restart your browser to log in.
Model:
D4MP-IP-3.6-IR20-WH
Sensor
1/3” 4MP Progressive Scan CMOS
Minimum Illumination
Color: 0.05Lux/F1.2, 0 Lux/F1.2 (IR On)
Lens
3.6mm
IR Distance
Up to 65’ (20 meters)
PoE
Power over Ethernet Capability (yes)
Browser Supported
Windows (IE, Firefox)
Power
12VDC 3W Max
Temperature
Operation: 14˚ to 140˚F
Operation Humidity
10% ~ 90%
Dimensions – Inches
2.72” x 2.72” x 6.10”
Weight – lbs.
1.17

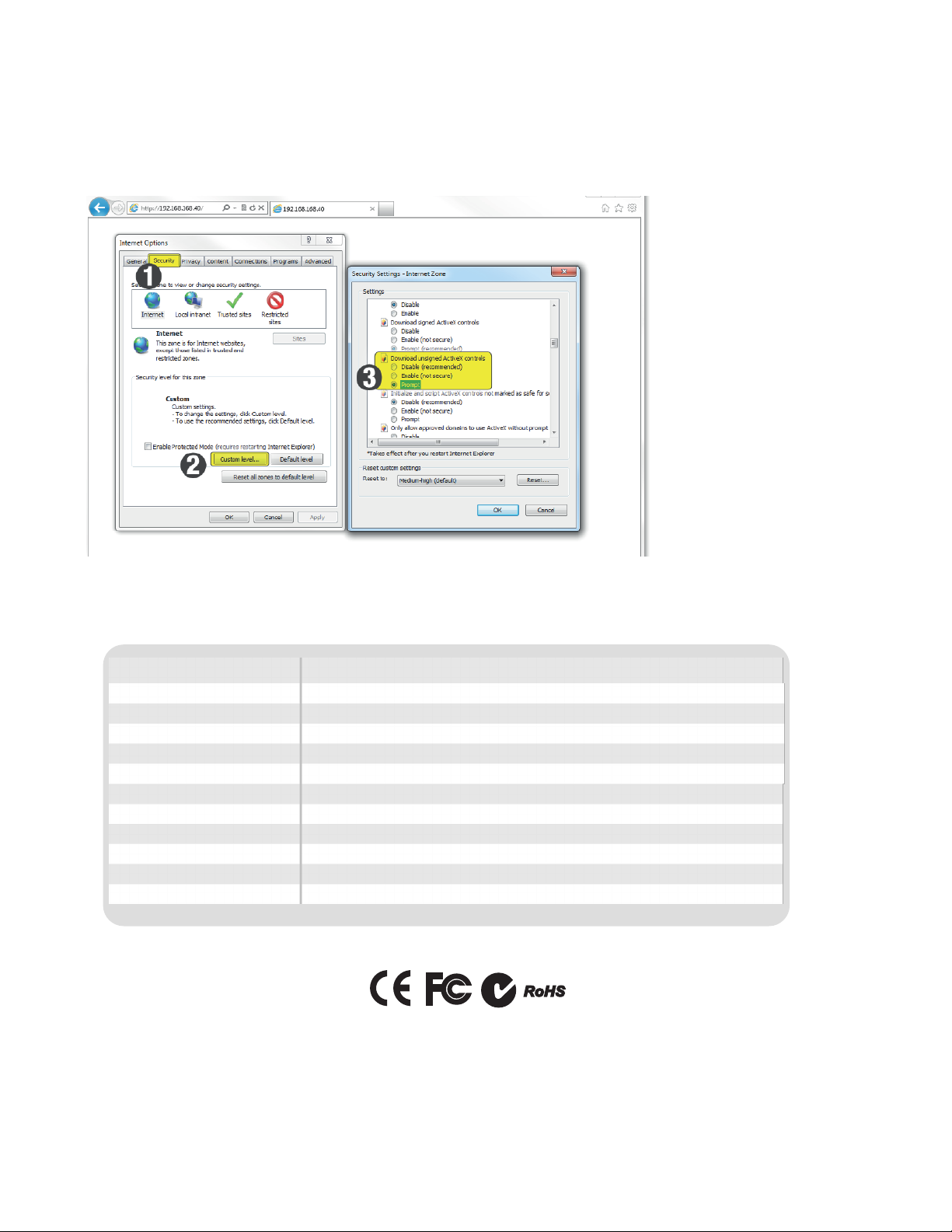

NOTE: If there is an ActiveX Control plug in problem open your Internet Explorer and choose Tools/Internet
Options/Security/Custom Level, then check “Enabled” or Pop Up” under “ActiveX Control and plug-in” and set the security
level lower.
Specification:
Do you Need Technical Support?
ZUUM is proud to offer free technical support to ensure your product is operating correctly.
If you are experiencing difficulties setting up this product, please call us for assistance 1-888-861-7351 or visit
www.zuum.life
Here for You 24/7
