Zylight F8-200 User manual

Zylight F8 LED Fresnel
User Instructions
v1.3
*
F8-D*, F8-T*, F8-B
F8-200
The

10718 McCune Avenue
Los Angeles, CA 90034
[email protected]
www.zylight.com
F8-200 Fresnel Introduction
Introduction: The multiple award-winning F8 LED Fresnel platform
from Zylight is the next generation of Fresnel lights. By incorporating a
special blend of Quantum nanoparticles with traditional phosphor, the
F8-200 boasts a high CRI (color rendering index) and a quality of light
matched only by traditional sunlight and incandescent bulbs, while
using a fraction of the energy. The F8-200 LED Fresnel is part of
Zylight’s pursuit of high quality, affordable, intelligent xtures. The unit
can be controlled manually, wirelessly or via DMX controller.
Every F8-200 LED Fresnel has been thoroughly tested and has been
shipped in optimal operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all accessories necessary to operate the unit have
arrived intact. If damage has been found or parts are missing, please
contact our customer support number for further instructions. Do not
return this unit to your dealer without rst contacting customer
support.
Your F8 includes the following items:
• One - Zylight F8-200 LED light head
• One – F8 4-way barn door
• One - Yoke bar with 5/8” baby pin adapter
• One - Yoke adjustment knob
• One – Slotted thumbscrew
• Two - 1/4" x .69" OD nylon washers (g 1)
• Three - 1/2" x .75" OD nylon washers (g 2)
• One - Serrated #10/M5 x .36" OD, .02" Stainless Washer (g 3)
• One - Worldwide AC adapter
• One - AC adapter hanging pouch (for light stand use)
• One - Barn door safety cable
• One – F8 User Guide
Page 1
g 2 g 3g 1

Optional Accessories:
# 26-02012- F8 Chimera Kit # 19-02028- F8 Egg Crate (50 deg.)
# 26-02036- F8-200 Batt. Module (Gold Mt) # 26-02037- F8-200 Batt. Module (V-Mt)
# 26-02019- DMX Interface Box # 19-02041- F8 Handle Kit
# 19-01012- F8 Snoot (Black) # 19-01013- F8 Snoot (White)
# 19-02039- F8 Single Head Case # 19-02040- F8 Dual Head Case
# 13-17009- Flange mount IP65 AC Supply # 26-02039- Flange mount AC Brackets
# 26-02014- F8 Pole Yoke Mount
Customer Support: Zylight provides a customer support line, to
provide set up help and to answer any question should you encounter
problems during your set-up or initial operation. You may also visit us
on the web at www.zylight.com for any comments or suggestions.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Eastern Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself; doing so will void your manufacturer's
warranty. In the unlikely event your unit may require service please
contact Zylight customer support.
PLEASE recycle the shipping carton whenever possible.
General Instructions
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit for future reference.
Warranty Registration
The F8-200 Fresnel carries a two year limited warranty. Please go to
www.zylight.com/product-registration to register your product and
validate your purchase. All returned service items whether under
warranty or not, must be freight pre-paid and accompany a return
merchandise authorization (R.A.) number. The R.A. number must be
Page 2

clearly written on the outside of the return package. A brief description
of the problem as well as the R.A. number must also be written down
on a piece of paper included in the shipping carton. If the unit is under
warranty, you must provide a copy of your proof of purchase invoice.
You may obtain an R.A. number by contacting our customer support
team through our customer support number. All packages returned to
the service department not displaying a R.A. number on the outside of
the package will be returned to the shipper.
Safety Precautions
Ultraviolet Radiation Warning (F8-B Only):
The F8-B (blacklight) xture contains a high
intensity LED ultraviolet emitter which is
concentrated with a Fresnel lens. When this
xture is used in accordance with the
manufacturers operating instructions, no hazards
exist to most people standing within the beam of the xture. However,
individuals suffering from a range of sunlight exposure disorders,
aphakic and pseudophakic, or those individuals receiving
photosensitive medication may receive discomfort if exposed to
ultraviolet light. For reective, not direct use. Avoid frequent or lengthy
exposure. Exposure can cause eye and skin injury and allergic
reactions. Repeated exposure may cause chronic sun damage and
skin cancer. Do not look directly into the xture while in operation.
Wear protective eyewear. Failure to use protective eyewear may result
in severe burns or long-term injury to the eyes.
IP Rating (All F8s):
The F8-200 is rated IP54 for weather resistance, including the silent
operation fan located on the back of the xture. Ingress of dust is not
entirely prevented, but it will not interfere with satisfactory operation.
Splashing water or light rain or snow will also have no harmful effect.
While the F8-200 is protected against light moisture and dust
exposure, the standard AC power supply is not. (If you require AC
power in wet or damp conditions, use the optional ange mounted
IP65 rated supply.) Please protect the instrument when shooting in
extreme conditions and note that the instrument is not rated to be
submerged in water, or exposed to prolonged periods of moisture.
Always use your best judgment and protect the instrument from
sustained moisture exposure.
Page 3

Safety Precautions Cont.
The F8-200 is equipped with a temperature sensor and fan control. In
the unlikely event that the fan malfunctions or the xture operates at
too high a temperature, the xture will put itself into a safe mode and
limit the light output. At rst, the xture will drop its maximum power
to 80% of full output. The display will ash a warning for
“TEMPERATURE” to let the operator know it is running at reduced
power. If the temperature continues to be out of range, the unit will
continue to protect itself and operate at 50% of maximum output and
display a “TEMPERATURE” mode warning. All of these extreme use
case power reductions are rare. The light will return to normal
operation when cool and power cycled. The unit can and will operate
at 50% power without the assistance of a fan. In the unlikely event the
temperature reaches a critical state, the xture will turn itself off. “FAN
FAULT” will display in the unlikely event of a fan obstruction or failure.
Please refer any error codes to Zylight’s service department.
• To reduce the risk of electrical shock or re, do not submerge this xture in water.
• Do not spill large amounts of water or other liquids into or on to your xture.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not
attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the lens under any conditions. There are no user serviceable parts inside.
• Never operate this xture if the Fresnel lens is removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this xture in an area that will allow proper ventilation. Allow at
least 6" (15cm) between this device and a wall.
• Do not attempt to operate this xture if it becomes damaged.
• During long periods of non-use, disconnect the xture's main power.
• Always mount this xture in safe and stable matter. Always use a safety cable as part of
a secure installation. This includes securing the barn doors with a safety cable.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the xture.
• Cleaning: The xture should be cleaned only as recommended by the manufacturer. See
page 10 for cleaning details.
• Heat: The instrument should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliance (including ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the instrument.
C. The instrument has been submerged in water.
D. The standard AC power supply has been exposed to water, prolonged weather, or
dampness.
E. The instrument does not appear to operate normally or exhibits a marked change in
performance.
Page 4

First Set Up – Assembly Instructions
To optimize the correct performance of your xture, please follow these simple
assembly instructions, and refer to this manual if you ever need to reattach the
yoke assembly to your xture.
In some instances, the yoke assembly will be shipped separated from your
xture. There are several nylon washers that are be used to correctly space the
metal parts from one another. This will also allow the F8-200 to be adjusted and
tightened with only one lock point on the left or right side of the yoke. Proper
installation of the washers on the pivot points and the lock points are essential
to maintain the correct operation of the xture.
The lock point (yoke knob) can be mounted on the left or right side of the
instrument, although it is recommended in most common set ups to keep the
lock point on the right side of the xture (righty tighty). To install the yoke, lay
the instrument on top of a protected surface. Layout your components to
mimic the conguration shown in Figure 1. The side with the thumbscrew
should have the Serrated # 10/M5 x .36 OD, stainless washer and two of the
1/2" x .75 nylon washers. The side with the knob lock should have one 1/2" x
.75 nylon washer and the two 1⁄4” x .69 nylon washers. First place a 1/2" x .75
nylon washer around each side of the pivot located on each of the yoke ears
(Fig 2).
Next, set the yoke orientation to “lean forward.” You will notice that the base of
the yoke has been shaped so when the yoke mount is vertical in a stand or
perpendicular to the ground, the yoke will sit at an angle towards the front of
the light. This is so the xture can be pointed further down towards your
subject when placed on a stand (Fig 3).
Install the center of the yoke and capture each side of the pivot point screws.
You may need to gently stretch the yoke to engage the pivot point screws. Slide
the small serrated stainless washer onto the slotted thumbscrew (Fig 4). Note
the slight bend in the washer’s prole. The outer edge should touch the
thumbscrew (convex side), while the center points towards the pivot point
(concave side). Then take the third 1⁄ 2” x .75 nylon washer and install on the
top of the yoke on the side that will have the thumbscrew (Fig 5). Install the
slotted thumbscrew into the pivot point, being sure to properly capturing the
nylon washer. Tighten the thumbscrew with a coin or other device only nger
tight. (Fig 6). Now ip the instrument to the other yoke point. Slide a 1⁄4” x .69
nylon washer under the yoke at the lock point where the threaded hole will
accept the 1⁄4-20“ yoke knob (Fig 7). Place the other 1⁄4” x .69 nylon washer
onto the yoke knob and tighten into the threaded hole, being sure to capture
the nylon washer below (Fig 8). This completes the proper installation of the
yoke assembly to the F8-200.
Page 5

Fig 2Fig 1
Fig 4Fig 3
Fig 6Fig 5
Fig 7 Fig 8
Page 6

fig 3
Page 7
Fig 1 – open Fig 2 – locked
Fig 4Fig 3
Barn Door Installation
The F8 includes a set of compact 4-way barn doors as part of the kit. The barn
doors are installed by way of 4 barn door ears. There are two positions for the
barn door ears – open (the packed position) and locked (or the forward
position). Please refer to gures 1 and 2 to understand the different positions
of the barn door ears.

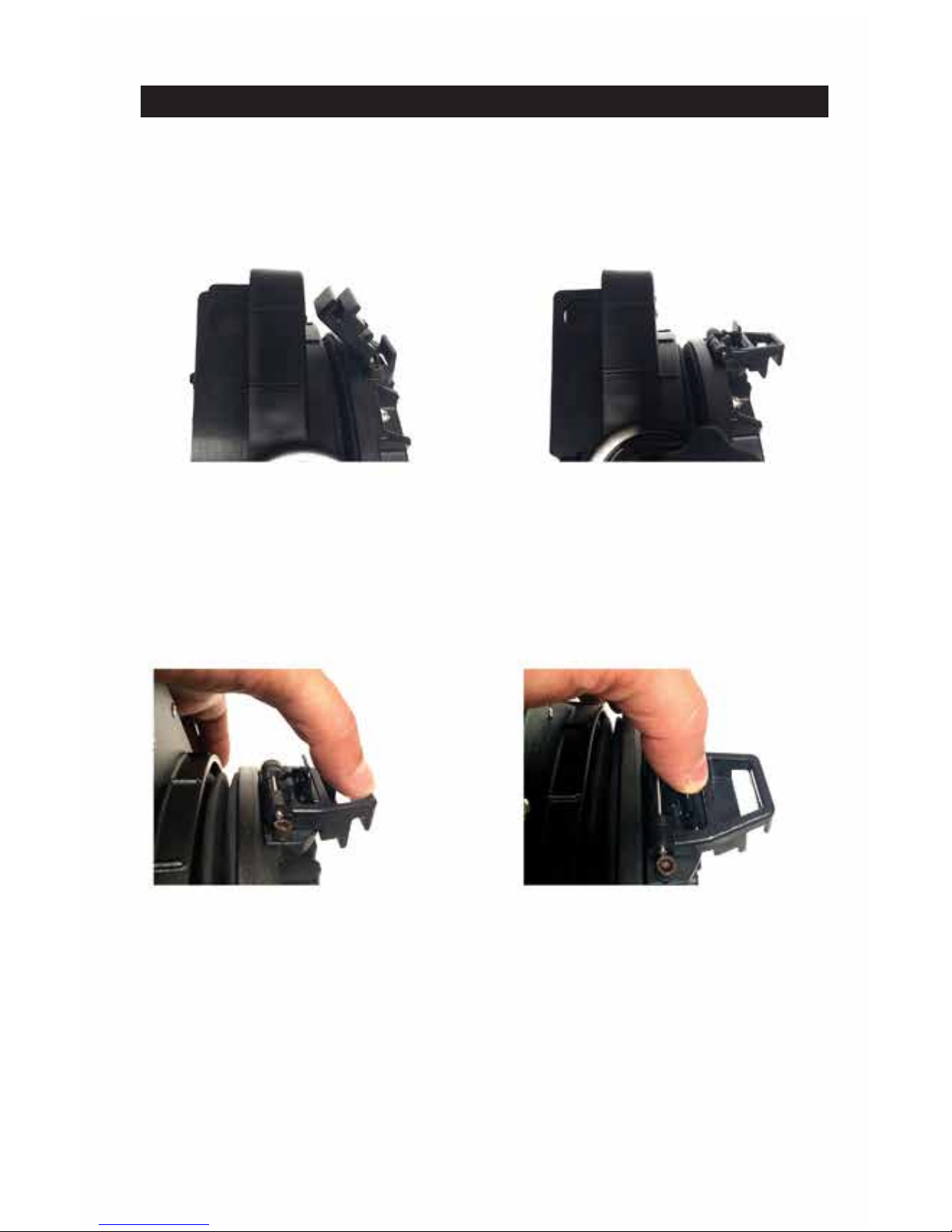

To lock the barn doors ears in place to securely hold the barn doors or any
scrims or gels, push the barn door ears forward (towards the front of the light).
Each barn door ear will ‘click’ into a locked position (Fig 3). To release each
barn door ear, push center tab of the barn door ear towards the back of the
xture and the barn door ear will release (Fig 4). Make sure that each barn door
ear is securely locked into position before proceeding to the next one.
To properly install the barn doors, clip and lock the two lower barn door ears
(the two closest to the ground). Clip and lock the top barn door ear that is
furthest from your reach. This will leave one barn door ear still in its ipped
back (packed) position (Fig 5). Loop and attach a safety cable to a high secure
point within your xture, grid, or stand (Fig 6). Attach the other end to one of
the top holes found on the four corners of the face of the center portion of the
barn door (Fig 7). This tethers the barn door so in case of an accidental
release, the barn doors will hang next to the xture and not fall away from the
xture. Failure to properly tether the barn doors can create a dangerous
circumstance for anyone positioned below the xture.

Always tether the barn doors with a safety cable to prevent accidental
separation!
There are two holding positions on the barn door ears (Fig 8). The smaller clip,
closest to the Fresnel lens position has a 9” circumference and is for holding
scrims, rigid gels and other accessories. The forward most and slightly wider
9.5” circumference position clip, is for securing the barn doors. Slide your barn
door, facing forward, into the open ear, being sure to safely guide the edge ring
on the circle portion of the barn doors behind each of the 3 locked barn door
ears (Fig 9). Once the barn doors have been secured behind the 3 locked barn
door ear positions, lock the 4th barn door ear securely into place (Fig 10).
Page 8
Fig 5 Fig 6
Fig 7 Fig 8
Fig 9 Fig 10

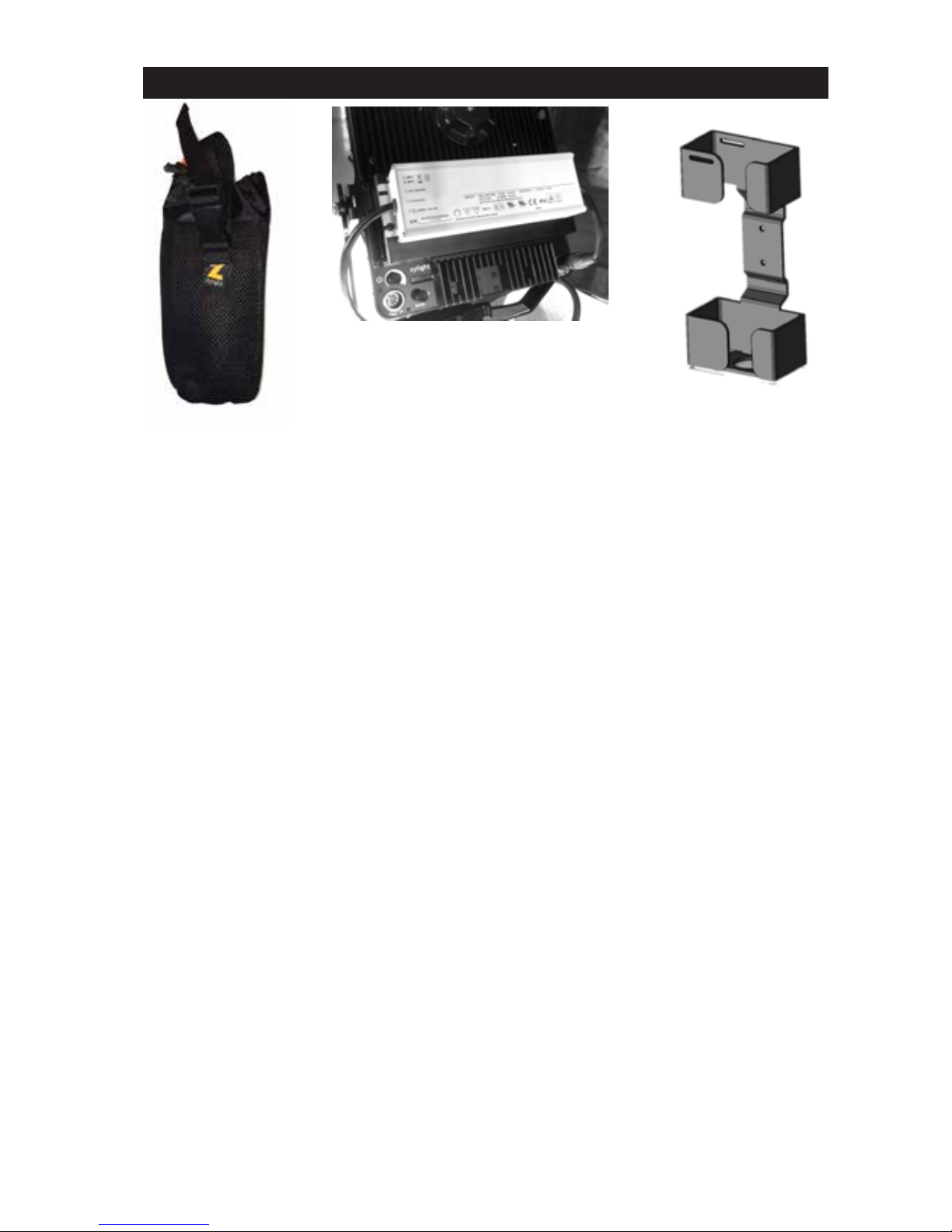

Flange mount IP65 AC Supply (P/N 13-17009)
Side AC Adapter Bracket (P/N 26-02038)
AC Adapter Bag (P/N 19-02042)
F8-200 Fresnel Operations
Power Supply: The Zylight F8 Fresnel is powered through a standard 4-pin
XLR connector by either the included F8-200 Worldwide AC Adapter, or by the
Zylight F8-200 Battery Module.
AC Operation: Use only the included F8-200 Worldwide AC Adapter (P/N
13-17006). During use the AC Adapter can be held by either the AC Adapter
Bag, or the Side AC Adapter Bracket.
NOTE: Some regions ship with the Flange Mount IP65 AC Supply as a
standard conguration (P/N# 13-17009). In this conguration, the AC
Adapter Bag and Side AC Adapter Bracket are replaced by (2) Flange mount
AC Brackets (P/N# 26-02039).
The AC Adapter Bag (P/N #19-02042) can hang on your light stand or another
secure location via the attached quick release strap. The AC cord passes
through the bottom of the bag with the 4-pin XLR exiting at the top. Be sure to
tighten the cinch cord to secure the Power Supply.
The Side AC Adapter Bracket (P/N #26-02038) can be used to mount the
Power Supply directly to the xture’s yoke. Mount the bracket on either side
of the yoke via the two thumbscrews, place the AC Adapter into the bracket
with the AC connection facing downward, and secure with the Velcro strap.
Battery Operation: The F8-200 accepts DC voltage between 24 to 34 volts.
Input voltages of more than 34 volts will cause damage to the fixture! For
battery operation use only the Zylight F8-200 Battery Module (P/N #26-02036
for Gold Mount batteries, or P/N #26-02037 for V-Mount batteries) and two
fully charged 14.4v batteries with adequate rated output of at least 8.3 amps.
Failure to provide recommended voltages and amperages to the unit may
result in failure of the xture or power sources. Please also observe correct
polarity. For reference, pin #1 is negative and pin #4 is positive.
Page 9

Page 10
On/Off & Dimming
To turn on the F8-200 press and release the Dimmer knob. Press and release
again to turn the light off. Turn the Dimmer knob to the right to increase
brightness and to the left to decrease brightness.
LED Display: The LED display will shut off after 5 seconds of inactivity. To
make the display reappear, press either button.
Focus Adjustment
The focus knob contains a passive braking system that allows the bellows to
stay in place when the light is in a downward position. For this system to
work properly, there will be a small amount of rotational movement that
engages and disengages the brake at the focus knob without moving the
bellows. This is normal operation. The center screw that holds the focus
knob in place should not be overtightened or the braking system will not
work properly.
Turn the focus knob on the back of the unit to change the output between
spot and ood. At ood position the lens housing will automatically extend
approximately 1” [25mm]. Compress the lens housing below this level by
hand for packing & transport only. CAUTION: Do not move the lens housing
by hand between the ood & spot positions. Do not force the focus knob
past its end stops.
Focus Knob
Yoke/Handle
Mount
Dimmer
DMX Breakout Jack
Yoke/Handle
Mount
Power Input
MODE Knob to set
DMX Address & ZyLink

ZyLink Wireless Control
The F8-200 has built-in wireless control for adjustment up to 50’ (15m) away
using the Zylight Remote or other Zylight instrument (available separately).
ZyLink Operation: To enable ZyLink control, push & quickly release the
MODE knob, then turn the knob to select the desired wireless channel (1-10).
A wireless symbol will appear in the display when ZyLink is enabled. To
disable ZyLink turn the knob until the display shows OFF.
NOTE: DMX control and ZyLink cannot be enabled at the same time.
About DMX
DMX is a language allowing all makes and models of different manufactures
xtures to be linked together and operate from a single controller, as long as
all xtures and the controller are DMX compliant. A DMX controller sends DMX
data instructions from the controller to the instrument. DMX is the control data
from the DMX controller sent via 5 pin DMX cable to a single xture, multiple
lighting xtures or instruments utilizing the DMX Data IN and DMX Data OUT
jacks located on all DMX enabled instruments.
To ensure proper DMX data transmission, when using several DMX xtures, try
to use the shortest cable path possible. The order in which xtures are
connected in a DMX line does not inuence the DMX channel addressing. For
example; a xture assigned to a DMX address of 1 may be placed anywhere
in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, it will “listen” for any DATA command
sent by the DMX controller to channel 1 and respond accordingly no matter
where it is located in the DMX chain.
Page 11

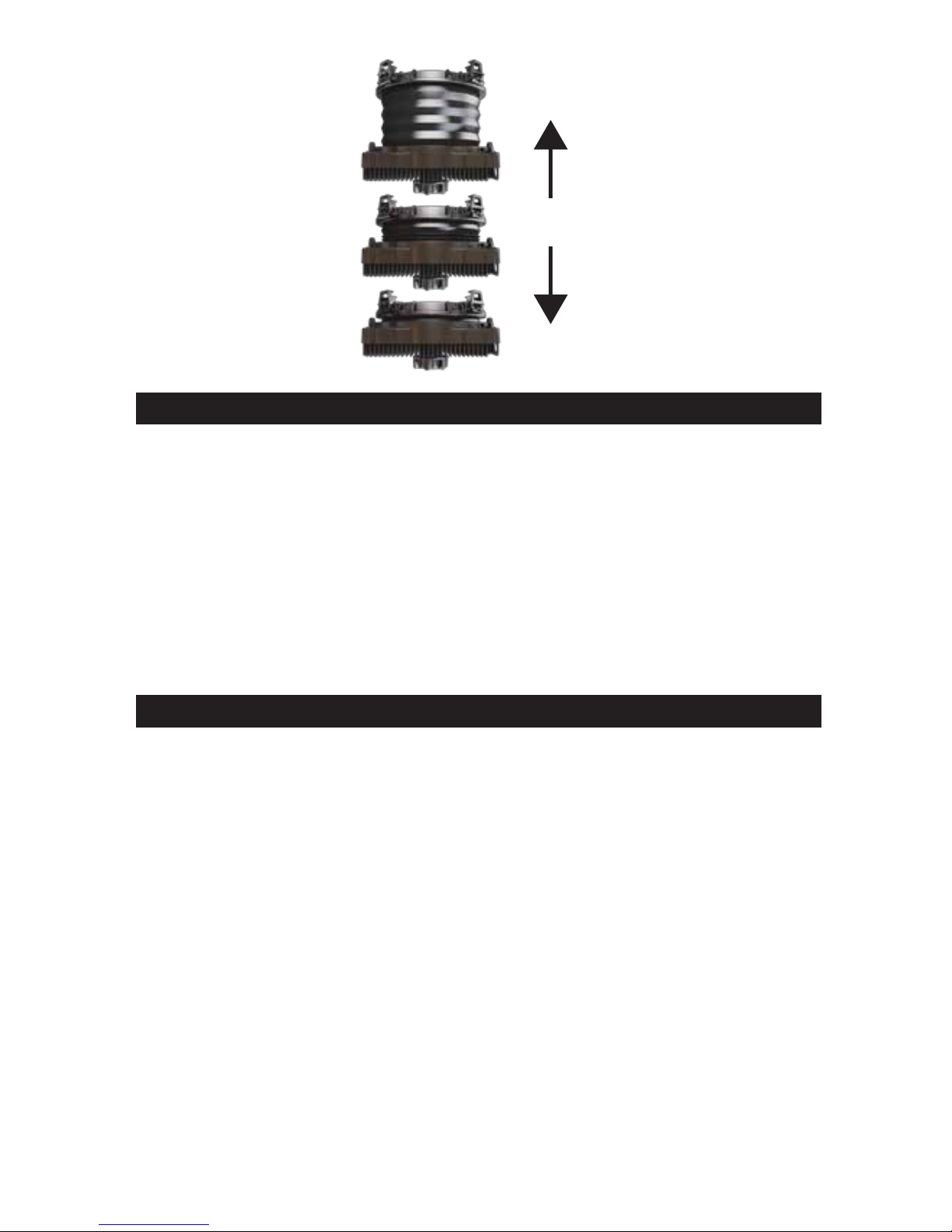

Pack
Flood
Spot

Page 12
DMX Control
Operating the F8-200 LED Fresnel from a DMX controller gives users the
option to create unique lighting looks. The F8 has a single 5-pin DMX Breakout
connector on the rear of the light to link DMX connections between lights
when used in a DMX chain. The use of a DMX Interface Box (P/N 26-02019) is
necessary to integrate the F8-200 into DMX chain installations by providing
connections for looping through both DMX IN and DMX OUT data.
The F8 DMX Interface Box plugs directly into the 5-pin DMX Breakout
connector built in to the rear of the F8-200. If the F8-200 will be the last light
in your DMX chain, you may plug a 5-pin XLR DMX cable directly into the 5-pin
DMX Breakout Jack. The F8 is a self-terminating device and the use of a DMX
terminator or Zylight DMX interface box will not be necessary when the F8 is
the last light in your DMX chain, or if you are running separate lines to each of
your xtures.
When connecting from xture to xture, use of the DMX Interface Box is
necessary for correct DMX connections. Not following these steps for DMX
connection can result in erratic behavior. The DMX Interface Box mounts to
the bottom of either side of the F8 yoke. (see image below)
Zylight DMX Interface Box (P/N 26-02019)

DMX cables must be acceptable for DMX data transmission (not microphone
cable) and should follow the standard pin-out. The maximum DMX data run
from any DMX source to the last xture in a chain is 1000 feet (300m).
DMX-512 pin-out:
1 Common (Shield)
2 Data –
3 Data +
4 not connected
5 not connected
NOTE: Connecting pin 4 to pin 5 out of the F8 unterminates the instrument.
To enable DMX mode on the F8-200, press and hold down the “MODE” button
for 5 seconds. The instrument will enter DMX mode and display “DMX: ###.”
Release the button and turn the “MODE” knob to select a start address
number for the xture. A start address of 1 to 512 can be selected for each
light. The Dimmer knob will now be disabled while in DMX mode. All control of
the xture will happen on your DMX console, including turning the instrument
on and off as well as all dimming control. Plug in a standard 5-pin XLR cable
into the DMX Breakout Jack on the F8 ( if it is the last light in your DMX chain)
or into the F8 DMX Interface Box to daisy-chain multiple xtures.
PLEASE NOTE: While in DMX mode all other F8-200 controls are disabled. To
restore dimming and on/off control to the light, you must take the unit out of
DMX mode. To do this, simply press and hold the “MODE” button for 5
seconds, and the F8-200 will go back to manual mode, giving the user local
control of the instrument.
Notice: Do not use the ground lug on the XLR connector. Do not connect the
cable's shield conductor to the ground lug or allow the shield conductor to
come in contact with the XLR's outer casing. Grounding the shield could
cause a short circuit and erratic behavior.
DMX Channel Assignments
Page 13
Channel Function Values
1
2
Power
Brightness
OFF = 0 - 49%
ON = 50 - 100%
0 - 100%

Warranty
2-YEAR LIMITED WARRANTY
Zylight LLC warrants to the original end user customer of its products that its products are free from
defects in material and workmanship under normal use for two (2) years from the date of purchase.
Except as provided herein, Zylight LLC makes no express warranties, and any implied warranties,
including those of merchantability and tness for a particular purpose, are limited in duration to the
duration of the written limited warranties contained herein. Except as provided herein, Zylight LLC
shall have no liability or responsibility to its customer or any other person or entity with respect to
any liability, loss or damage caused directly or indirectly by use or performance of the product or
arising out of any breach of this warranty, including, but not limited to, any damages resulting from
inconvenience, loss of time, data, property, revenue or prot or any indirect, special, incidental or
consequential damages, even if Zylight LLC has been advised of the possibility of such damages.
In the event of a product defect during the warranty period, you must contact Zylight LLC at the
phone number or address listed in the product’s user manual or on the internet at www.zylight.com
to obtain a return merchandise authorization (R.M.A.) number. After obtaining an RMA number, send
the product fully insured, with proof of purchase, to the address given to you by the Customer
Service representative. Zylight LLC will, at its option, repair or replace the defective product.
All replaced parts and products become the property of Zylight LLC. Repaired or replacement parts
and products are warranted for the remaining term of the original warranty period. You will be
charged for materials and labor or replacement of the product after the expiration of the warranty
period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, drops, misuse, improper or abnormal usage, failure to follow instruction, improper
installation or maintenance, alteration, lightning or other incidence of excess or reverse voltage or
current, exposure to excess dampness or moisture; (b) removal of, or tampering with any attached
stickers, decals, knobs, enclosures, protective windows, hardware, or fasteners; (c) use of power
supply equipment, power adapters, or cables not supplied by Zylight LLC for specic use with the
equipment for which it was specied; (d) any unauthorized disassembly, repair, or modication; (e)
cosmetic damage; (f) transportation, shipping, or insurance costs; (g) costs of product removal,
installation, set-up, service adjustment, or reinstallation; (h) cracking, abrasion, scratching, coating
wear, or breakage of protective windows or lenses; (i) abnormal mechanical or environmental
conditions; (j) product that has been has been sold as second-hand; (k) product that has been
transported, shipped, purchased, or resold contrary to US export regulations; (l) product that has
been transported, shipped, purchased, or resold outside countries for which it has received
electronic product compliance certication.
A.
B.
C.
D.
Cleaning
Due to fog residue, smoke, and dust, cleaning the internal and external optical
lenses must be carried out periodically to optimize light output.Cleaning
frequency depends on the environment in which the xture operates
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft cloth
as necessary.
3. Always be sure to dry all parts completely before plugging
the unit back in.
Page 14

This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic
check-up. During the period specied above, Zylight will replace defective parts at its expense, and
will absorb all expenses for warranty service and repair labor by reason of defects in material or
workmanship. The sole responsibility of Zylight under this warranty shall be limited to the repair of
the product, or replacement thereof, including parts, at the sole discretion of Zylight. All products
covered by this warranty were manufactured after April 1, 2014, and bear identifying marks to that
effect.
Zylight reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with products described above. Except to the extent prohibited by applicable law, all implied
warranties made by Zylight in connection with this product, including warranties of merchantability
or tness, are limited in duration to the warranty period set forth above. And no warranties, whether
expressed or implied, including warranties of merchantability or tness, shall apply to this product
after said period has expired. The consumer's and or dealer's sole remedy shall be such repair or
replacement as is expressly provided above.
This warranty is the only written warranty applicable to Zylight Products and supersedes all prior
warranties and written descriptions of warranty terms and conditions heretofore published. Under
no circumstances shall Zylight be liable for any loss or damage, direct or consequential, arising out
of the use of, or inability to use, this product.
This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Changes or
modications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.

Per FCC 15.105(a), Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.


F.
G.
H.
I.
Register your instrument at - www.zylight.com/product-registration
E.
Warranty Cont.
Page 15

F8-200 Fresnel Parts Diagram
Page 16
3
4
1
2
9
7
12
7
20
11
6
18
8
15
10
17
16
21
5
14
19
13

Page 17
Optical Dimension
Size
Weight
Power Requirement
Power Consumption
Power Input Plug
AC Power Supply
Color Temperature
CRI Index
Beam Angle
Method of Focus
Intensity/Dimming
Cooling
Operating Range
Electrical Option
Mounting
Wireless Frequency
Wireless Channels
Assembly Materials
Calibration
IP Rating
DMX
PWM
LED Life
Flicker Free
F8-200 Fresnel Parts Diagram

Page 18
8” Round Schott glass Fresnel lens [203mm]
15” x 12.6” x 4.6” [382mm x 319mm x 97mm]
11.0 lbs [4.4Kg] w/ Yoke
24-34 VDC
200W max. [8.0A @ 26VDC]
XLR 4-pin
120 – 240V AC, 50/60Hz
Fixed. F8-T200 (#26-01044-Blk, #26-01046-White) 3200K
F8-D200 (#26-01043-Black, #26-01045-White) 5600K
F8-B (#26-01055)365nm
F8-T (3200K) 94+ CRI, F8 D (5600K) 92+ CRI
16°- 70°, Variable Spot-Flood
Rear knob. Continuously variable.
No modifying lenses needed
0-100%
Active / Whisper quiet fan
-20 – +40 C
Worldwide AC power supply (included)
(2) x 14.4VDC (8 AMP) camera battery powering:
Gold-Mount Module (#26-02036)
V-Mount Module (#26-02037)
Manual yoke, 5/8” Female spigot (included)
Pole yoke (26-02014)
Handle Kit (19-02041)
2.45 GHz
10, User Selectable
Machined aluminum and high impact plastic
Factory
54
2 Channels
11.8 KHz
50,000 hrs.
Up to 5,600 fps tested (full brightness)
Specifications
1. Fresnel Lens (14-01009)
2. Barn Door Ear Kit (x1) (26-03028)
3. Fresnel Retainer Clip Kit (x4) (26-03026)
4. Antenna (13-14001)
5-9. Yoke Washers, Knob and Thumbscrew Kit (26-03022)
10-13. Focus Knob and Brake Assembly (26-03023)
14. On/Off or MODE Knob (x1) (12-03006)
15. Yoke Bar (19-01005)
16-21. Yoke Mount Kit (26-02015)

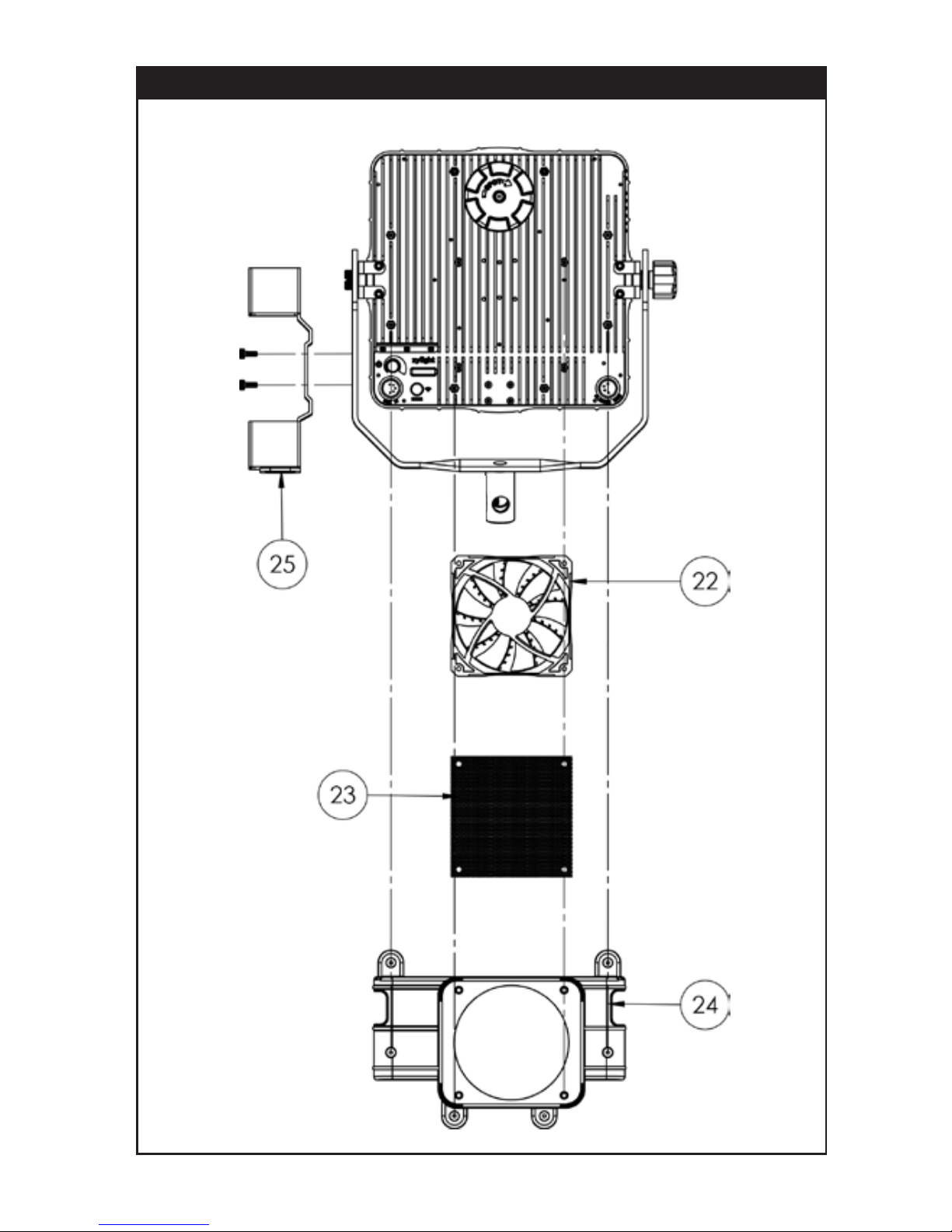

22. IP54 Rated 12 Volt Fan (19-02052)
23. Fan Grill (11-06021)
24. Fan Cover (12-01096)
25. AC Side Arm Bracket Assembly (26-02038)
Replacement Parts Key
Optical Dimension
Size
Weight
Power Requirement
Power Consumption
Power Input Plug
AC Power Supply
Color Temperature
CRI Index
Beam Angle
Method of Focus
Intensity/Dimming
Cooling
Operating Range
Electrical Option
Mounting
Wireless Frequency
Wireless Channels
Assembly Materials
Calibration
IP Rating
DMX
PWM
LED Life
Flicker Free

10718 McCune Avenue
Zylight LLC
World Headquarters:
Los Angeles, CA 90034
978-244-0011
[email protected]
