ZyXEL Communications MC1000-SFP User manual

MC1000-SFP
100/1000 Base-T UTP to 1000
Base-X Fiber SFP Media Converter
User’s Guide
Version 1.0
11/2004

MC1000-SFP User’s Guide
2
Copyright
Copyright © 2004 by ZyXEL Communications
Corporation.
The contents of this publication may not be reproduced in any part or as
a whole, transcribed, stored in a retrieval system, translated into any
language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of ZyXEL
Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or
use of any products, or software described herein. Neither does it
convey any license under its patent rights nor the patent rights of others.
ZyXEL further reserves the right to make changes in any products
described herein without notice. This publication is subject to change
without notice.
Trademarks
Trademarks mentioned in this publication are used for identification
purposes only and may be properties of their respective owners.
Federal Communications
Commission (FCC)
FCC Interference Statement
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.

MC1000-SFP User’s Guide
3
(2) This device must accept any interference received, including
interference that may cause undesired operations.
FCC Warning
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE Mark Warning:
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Taiwanese BSMI (Bureau of Standards,
Metrology and Inspection) A Warning:
Certifications
Refer to the product page at www.zyxel.com.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is
free from any defects in materials or workmanship for a period of up to
two years from the date of purchase. During the warranty period, and

MC1000-SFP User’s Guide
4
upon proof of purchase, should the product have indications of failure
due to faulty workmanship and/or materials, ZyXEL will, at its
discretion, repair or replace the defective products or components
without charge for either parts or labor, and to whatever extent it shall
deem necessary to restore the product or components to proper
operating condition. Any replacement will consist of a new or re-
manufactured functionally equivalent product of equal value, and will
be solely at the discretion of ZyXEL. This warranty shall not apply if
the product is modified, misused, tampered with, damaged by an act of
God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive
remedy of the purchaser. This warranty is in lieu of all other warranties,
express or implied, including any implied warranty of merchantability
or fitness for a particular use or purpose. ZyXEL shall in no event be
held liable for indirect or consequential damages of any kind of
character to the purchaser.
To obtain the services of this warranty, contact ZyXEL's Service Center
for your Return Material Authorization number (RMA). Products must
be returned Postage Prepaid. It is recommended that the unit be insured
when shipped. Any returned products without proof of purchase or
those with an out-dated warranty will be repaired or replaced (at the
discretion of ZyXEL) and the customer will be billed for parts and
labor. All repaired or replaced products will be shipped by ZyXEL to
the corresponding return address, Postage Paid. This warranty gives you
specific legal rights, and you may also have other rights that vary from
country to country.
Safety Warnings
1. Do not use this product near water, for example, in a wet basement or
near a swimming pool.
2. Avoid using this product during a thunderstorm. There may be a risk
of electric shock from lightening.

MC1000-SFP User’s Guide
5
General Syntax Conventions
 For brevity’s sake, we will use “e.g.” as shorthand for “for
instance”, and “i.e.” as shorthand for “that is” or “in other words”
throughout this manual.
 The MC1000-SFP may be referred to as the MC1000, media
converter or device in this manual.
ZyXEL Web Site
The ZyXEL download library at www.zyxel.com contains additional
support documentation and an online glossary of networking terms.
Table of Contents
Copyright .....................................................................................2
Federal Communications Commission (FCC) .........................2
ZyXEL Limited Warranty ............................................................3
Introduction .................................................................................7
Key Features ...............................................................................7
Example Applications ................................................................8
Hardware .....................................................................................9
Front Panel ..................................................................................9
Rear Panel .................................................................................15
Specifications ...........................................................................16
Troubleshooting........................................................................18

MC1000-SFP User’s Guide
6
Customer Support
Please have the following information ready when you contact customer
support.
WORLDWIDE NORTH AMERICA GERMANY
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.com
http://www.zyxel.com.tw
Tel: [phone]
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.us.zyxel.com
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.de
SPAIN FRANCE DENMARK
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.es
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.fr
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.dk
NORWAY SWEDEN FINLAND
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.no
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.se
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.zyxel.fi

MC1000-SFP User’s Guide
7
Introduction
The 100/1000 Base-T UTP to 1000 Base-X Fiber SFP Media Converter
allows seamless integration between a Fast/Gigabit Ethernet network
using unshielded twisted pair (UTP) copper cabling and a Gigabit fiber
network.
Use the LEDs to quickly check status and the DIP switches to set
transmission settings and “link loss forwarding”.
There is a slot for an SFP (Small Form-factor Pluggable) transceiver
module with an LC-type connector.
Key Features
The media converter has the following key features:
 Converts speed and media type
 Auto-crossover Ethernet port (auto MDI/MDI-X detection allows
use of either straight-through or crossover Ethernet cables)
 Auto-negotiating Ethernet port (can detect and adjust to the
optimum speed (100/1000Mbps) and mode (full duplex or half
duplex) of the connected device)

MC1000-SFP User’s Guide
8
 Can insert an SFP (Small Form-factor Pluggable) transceiver
module with LC-type connector
 DIP switches to configure fiber link negotiating defaults and Link
Loss Forwarding
 Link Loss Forwarding to notify the peer link if a link goes down
 LED status display
Fiber Modes
Multi-Mode Fiber (MMF) allows more than one mode of light to
propagate through the cable at one time. It is usually used as horizontal
cable (cable from your equipment room to each designated outlet or
work area) and sometimes as backbone cable (between equipment
closets or rooms).
Light in a Single-Mode Fiber (SMF) travels straight down the fiber and
does not bounce off the surrounding cladding as it travels. This is most
commonly used by telephone companies and as backbone cable.
Example Applications

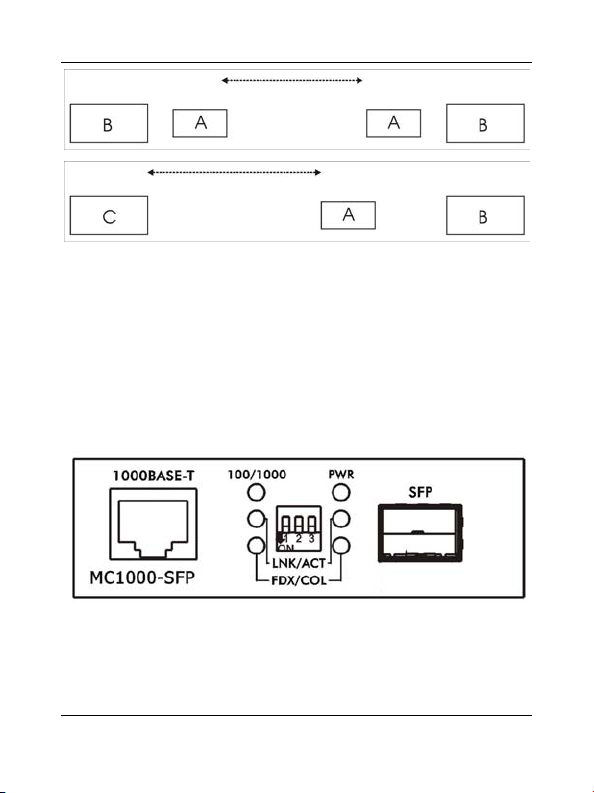

In the following figures, “A” is the media converter, “B” is a 100/1000
Mbps Ethernet switch and “C” is a layer-3 switch with 1000Mbps fiber
module.
Maximum distance obtained on the fiber link between media
converters depends on the transceiver module you install.

MC1000-SFP User’s Guide
9
Hardware
The media converter can be placed on a desktop. Make sure that there is
proper heat dissipation from and adequate ventilation around the device.
Do not place heavy objects on the media converter.
Front Panel

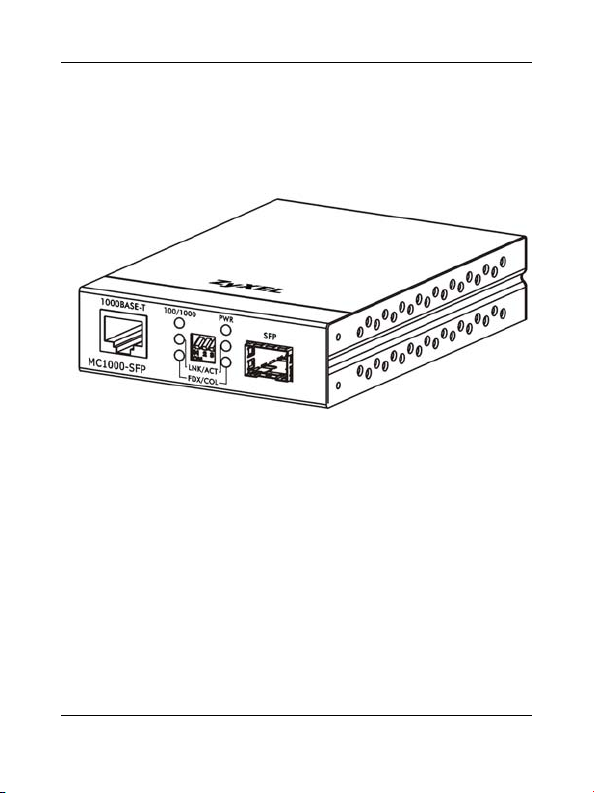

The front panel consists of an RJ-45 port for 100/1000 Mbps UTP
connections, LED indicators, DIP switches and an SFP slot for an SFP
transceiver module with an LC-type connector.
1000Base-T Port
Connect an Ethernet cable from a switch to this port. This port is auto-
negotiating and auto-crossover.
Transceiver slot

MC1000-SFP User’s Guide
10
An auto-negotiating port can detect and adjust to the optimum Ethernet
speed (100/1000Mbps) and duplex mode (full duplex or half duplex) of
the connected device. An auto-crossover (auto-MDI/MDI-X) port
automatically works with a straight-through or crossover Ethernet cable.
LED Indicators
The following table describes the LEDs in detail.
LED STATUS DESCRIPTION
PWR Green The media converter is on.
Off The media converter is off.
100/1000 Green The media converter has a 1000Mbps Ethernet
connection.
Orange The media converter has a 100Mbps Ethernet
connection.
Off The media converter has a 10Mbps Ethernet
connection or no connection.
LNK/ACT
(Ethernet)
Green The media converter Ethernet link is up.
Blinking The media converter Ethernet port is
transmitting or receiving.
Off The media converter Ethernet link is down.
FDX/COL
(Ethernet)
Orange The Ethernet port is operating in full-duplex
mode.
Off The Ethernet port is operating in half-duplex
mode or the Ethernet link is down.

MC1000-SFP User’s Guide
11
LNK/ACT
(Fiber)
Green The media converter fiber link is up.
Blinking The media converter is transmitting or
receiving on the fiber link.
Off The media converter fiber link is down.
FDX/COL
(Fiber)
Orange The fiber port is operating in full-duplex mode.
Off The fiber port is operating in half-duplex mode
or the fiber link is down.

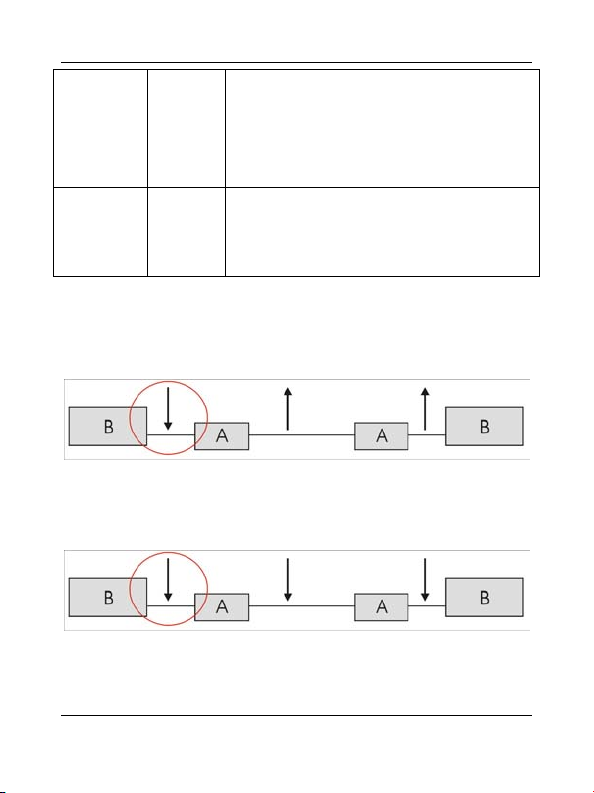

Link Loss Forwarding
Without Link Loss Forwarding, if one side of a link fails (), the
other side will keep on transmitting packets () and wait for responses
that will never arrive.
With Link Loss Forwarding, a link down () detected on the Ethernet
port will force a link down on the fiber port and vice-versa. The up link
() will stop transmitting and turn "off" as soon as the remote link is
down.
DIP Switches
The DIP switches are all off by default.

MC1000-SFP User’s Guide
12
DIP
Switch 1
The fiber link is auto-negotiating when the switch is off. Turn it
on to force the fiber link to be up at only 1000Mbps in full
duplex mode.
DIP
Switch 2
Turn this switch on to have the Ethernet port send a Link Loss
Forwarding message to the fiber port in the event that the
Ethernet link goes down (that would then force the fiber link
down).
DIP
Switch 3
Turn this switch on to have the fiber port send a Link Loss
Forwarding message to the Ethernet port in the event that the
fiber link goes down (that would then force the Ethernet link
down).
Do not turn a DIP switch on or off when a port is transmitting
or receiving data as it may cause data error or loss.
SFP Transceiver Slot
Insert a 3.3V SFP (Small Form-factor Pluggable) transceiver module
with an LC-type connector into the SFP slot.
Use DIP switch 1 to change the default fiber connection
settings.
SFP transceiver modules are static sensitive. To prevent damage from
electrostatic discharge (ESD), it is recommended you attach an ESD
preventive wrist strap to your wrist and to a bare metal surface when
you install or remove an SFP transceiver module.
SFP transceiver modules are dust sensitive. Avoid getting dust and other
contaminants into them.
SFP transceiver modules are equipped with a Class 1 laser, which emits
invisible radiation. To avoid possible eye injury, do not look into an
operating fiber-optic module’s connectors. Laser radiation is also
present when the media converter is turned on.
Installing and Removing a Module

MC1000-SFP User’s Guide
13
Disconnect all fiber-optic cables from an SFP transceiver module before
installing or removing it. Do NOT remove and install an SFP
transceiver module more often than is absolutely necessary. Doing so
may shorten the useful life of the SFP transceiver module.
Installing an SFP Transceiver Module
Refer to your SFP transceiver module user’s guide for
specific installation and removal instructions. The
instructions outlined here are meant as an example.
1. Attach an ESD preventive wrist strap to your wrist and to a bare
metal surface.
2. Remove the SFP transceiver module from its protective
packaging.
3. Locate the transmit (Tx) and the receive (Rx) markings on the SFP
transceiver module.
4. Align the SFP transceiver module in front of the slot opening on a
device.
5. Insert the SFP transceiver module into the slot until the SFP
transceiver module snaps into place.
SFP transceiver module installation orientation varies depending on
your device. Your SFP transceiver module comes with a mechanism
that prevents incorrect insertion.

MC1000-SFP User’s Guide
14
Do NOT force or twist the SFP transceiver module into a slot.

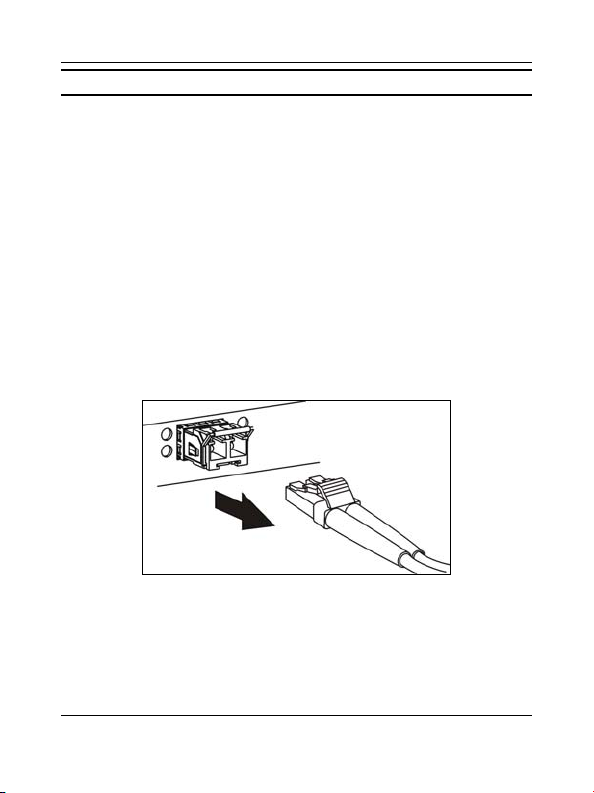

Connecting a Fiber-optic Cable
Follow the steps described to connect a fiber-optic cable to the SFP
transceiver module.
1. Remove the dust plugs from the SFP transceiver module and the
cables.
2. Identify the signal transmission direction of the fiber-optic cable
and the SFP transceiver module. Insert one end of the fiber-optic
cable into the SFP transceiver module.
3. Insert the other end of the fiber-optic cable into a remote device.
Removing an SFP transceiver module
1. Attach an ESD preventive wrist strap to your wrist and to a bare
metal surface on the chassis.
2. Disconnect all fiber-optic cables from the SFP transceiver module.
3. Insert the dust plug into the ports on the SFP transceiver module.
4. Pull out the latch and down to unlock the SFP transceiver module.

MC1000-SFP User’s Guide
15
5. Using your thumb and index finger, grasp the tabs on both sides of
the module and carefully slide it out of the slot.
Do NOT force or twist the module out of a slot.
Rear Panel
The rear panel contains a power port. Connect the included power
adapter (9V DC voltage with minimum 0.7A current) to the port labeled
9VDC and connect the power adaptor to a power supply (outlet).

MC1000-SFP User’s Guide
16
Specifications
ITEM SPECIFICATION
Ethernet
Standards
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000Base-T
IEEE802.3x Flow Control and Back pressure
Ethernet Port CAT-5 (100/1000Mbps) unshielded twisted pair
cable.
Auto-crossover (MDI/MDI-X) and auto-negotiation
support.
Fiber Port SFP 3.3V with LC connector.
LEDs PWR, 100/1000, 2 LNK/ACT, 2 FDX/COL
Power External adapter: 9V DC at minimum 0.7A
Dimensions 119 x 85 x 26 Millimeters
4.68504 x 3.34646 x 1.02362 Inches
Safety UL; cUL

MC1000-SFP User’s Guide
17
ITEM SPECIFICATION
Temperature Operating: 0 ~ 45oC (32 ~ 113 oF)
Storage: -10 ~ 70 oC (14 ~ 158 oF)
Humidity Operating: 10 ~ 90% (non-condensing)
Storage: 10 ~ 90% (non-condensing)
EMC FCC Part15 (Class A)
CE EMC (Class A)

MC1000-SFP User’s Guide
18
Troubleshooting
Use the LEDs to identify possible problems and then take corrective
action.
PROBLEM POSSIBLE CAUSES AND REMEDIES
The PWR LED
is off
Make sure you are using the supplied power adaptor
and that it is plugged in to an appropriate power source.
Check that the power source is turned on.
If the problem persists, you may have a hardware
problem. In this case, you should contact your local
vendor.
The
100/1000M
LED is off
Check if the media converter has a connection with a
10Mbps Ethernet device.
Check the Ethernet cable connection between the
media converter and the Ethernet device. The distance
between them should not be more than 100 meters
Check for faulty Ethernet cables.
Check that the Ethernet device supports auto-
negotiating at half/full duplex and 100/1000MBps
speed.
If Link Loss Forwarding is enabled on the fiber port
(DIP switch 3), then check if the fiber link is down
(thereby forcing the Ethernet link down).

MC1000-SFP User’s Guide
19
PROBLEM POSSIBLE CAUSES AND REMEDIES
The LNK/ACT
(Ethernet) LED
is off
Check the Ethernet cable connection between the
media converter and the Ethernet device. The distance
between them should not be more than 100 meters
Check for faulty Ethernet cables.
Check that the Ethernet device supports auto-
negotiating at half/full duplex and 100/1000MBps
speed.
If Link Loss Forwarding is enabled on the fiber port
(DIP switch 3), then check if the fiber link is down
(thereby forcing the Ethernet link down).
The FDX/COL
(Ethernet) LED
is off
The RJ-45 port is operating in half-duplex mode or the
Ethernet link is down. See the preceding for possible
causes and remedies.
The LNK/ACT
(Fiber) LED is
off
Check the fiber cable connection between the media
converter and the remote device. Check that the
distance between them does not exceed limits for
single mode or multi mode fiber.
Check for faulty cables.
If the remote device does not support auto-negotiating,
but does support full duplex, 1000MBps speed, then
turn on DIP switch 1.
If Link Loss Forwarding is enabled on the Ethernet port
(DIP switch 2), then check if the Ethernet link is down
(thereby forcing the fiber link down).
The FDX/COL
(Fiber) LED is
off
The fiber port is operating in half-duplex mode or the
fiber link is down. See the preceding for possible
causes and remedies.
