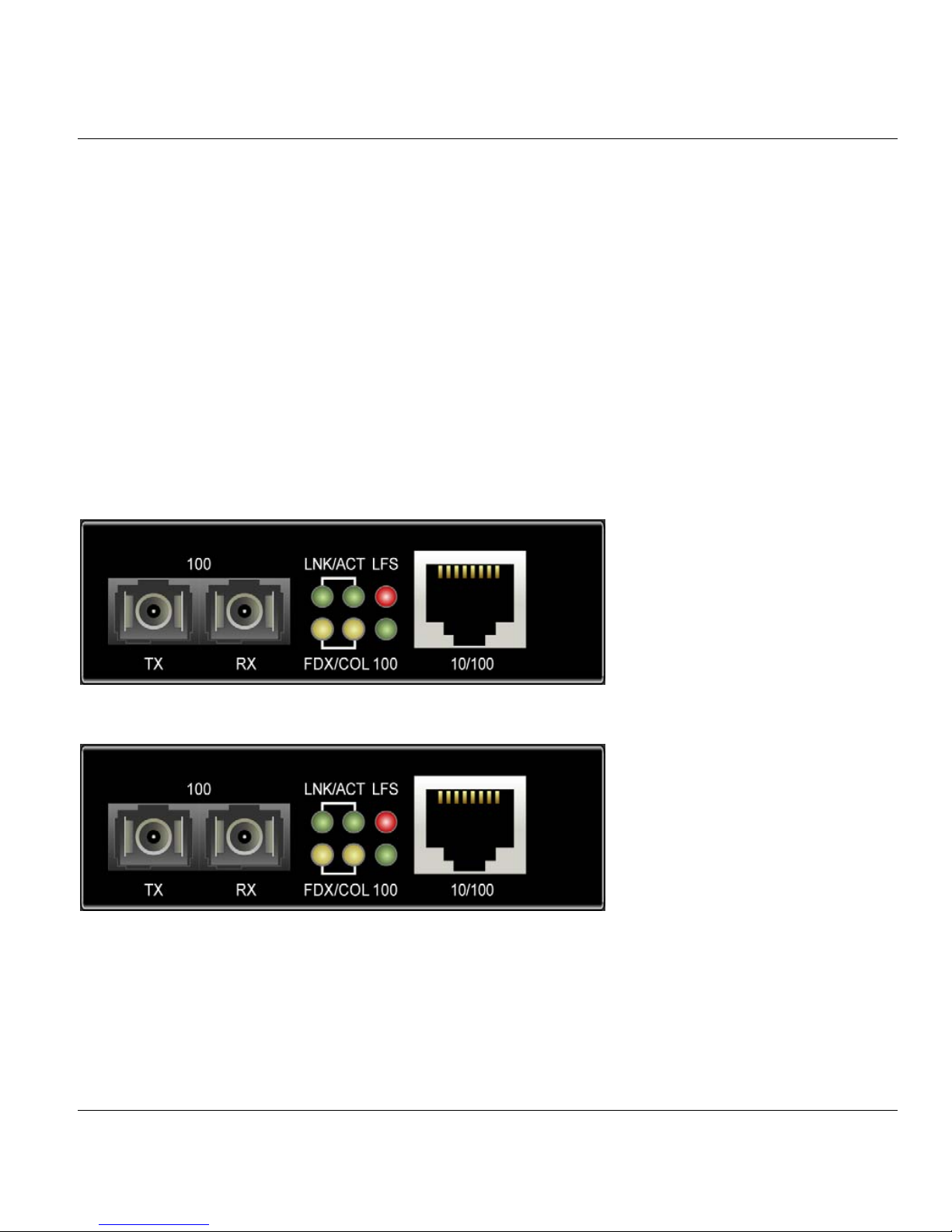

ZyXEL Communications MC100FX-SC2-A User manual

MC100FX-SC2-A
MC100FX-SC30-A
100Base-TX UTP to 100Base-FX
Fiber SC Media Converters
User’s Guide
Version 1.0
10 / 2006

MC100FX-SC2/30-A User’s Guide
i
Copyright
Copyright © 2006 by ZyXEL Communications Corporation
The contents of this publication may not be reproduced in any part or as a whole, transcribed,
stored in a retrieval system, translated into any language, or transmitted in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise,
without the prior written permission of ZyXEL Communications Corporation. Published by
ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products, or
software described herein. Neither does it convey any license under its patent rights nor the patent
rights of others. ZyXEL further reserves the right to make changes in any products described
herein without notice. This publication is subject to change without notice.
Certifications
Federal Communications Commission (FCC) Interference Statement
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operations.
FCC Warning
This device has been tested and found to comply with the limits for a Class A digital switch,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a commercial environment. This device generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this device in a
residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
CE Mark Warning:
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:

MC100FX-SC2/30-A User’s Guide
ii
Notices
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASS 1
PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11.
PRODUIT CONFORME SELON 21 CFR 1040.10 ET 1040.11.
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions.
Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
Do NOT expose your device to dampness, dust or corrosive liquids.
Do NOT store things on the device.
Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of
electric shock from lightning.
Connect ONLY suitable accessories to the device.
Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high
voltage points or other risks. ONLY qualified service personnel should service or disassemble
this device. Please contact your vendor for further information.
Make sure to connect the cables to the correct ports.
Place connecting cables carefully so that no one will step on them or stumble over them.
Always disconnect all cables from this device before servicing or disassembling.
Use ONLY an appropriate power adaptor or cord for your device.
Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North
America or 230V AC in Europe).

MC100FX-SC2/30-A User’s Guide
iii
Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product
where anyone can walk on the power adaptor or cord.
Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
If the power adaptor or cord is damaged, remove it from the power outlet.
Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new
one.
Do not use the device outside, and make sure all the connections are indoors. There is a remote
risk of electric shock from lightning.
Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
This product is recyclable. Dispose of it properly.

MC100FX-SC2/30-A User’s Guide
iv
Viewing Certifications
1 Go to http://www.zyxel.com.
2 Select your product on the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this page.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects
in materials or workmanship for a period of up to two years from the date of purchase. During
the warranty period, and upon proof of purchase, should the product have indications of failure
due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the
defective products or components without charge for either parts or labor, and to whatever extent
it shall deem necessary to restore the product or components to proper operating condition. Any
replacement will consist of a new or re-manufactured functionally equivalent product of equal or
higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the
product has been modified, misused, tampered with, damaged by an act of God, or subjected to
abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser.
This warranty is in lieu of all other warranties, express or implied, including any implied warranty
of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held
liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact ZyXEL's Service Center for your Return
Material Authorization number (RMA). Products must be returned Postage Prepaid. It is
recommended that the unit be insured when shipped. Any returned products without proof of
purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of
ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will
be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty gives you
specific legal rights, and you may also have other rights that vary from country to country.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information at
www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

MC100FX-SC2/30-A User’s Guide
v
Table of Contents
Chapter 1 Introduction....................................................................................................................................1
Key Features.................................................................................................................................................2
Chapter 2 Applications ....................................................................................................................................3
Application Diagram I.................................................................................................................................3
Application Diagram II...............................................................................................................................3
Chapter 3 Hardware........................................................................................................................................5
Front Panel...................................................................................................................................................5
100Base-TX port..........................................................................................................................................6
100Base-FX port ..........................................................................................................................................6
LED Indicators.............................................................................................................................................6
Link Fault Signaling....................................................................................................................................7
Rear Panel ....................................................................................................................................................7
DIPSwitches.................................................................................................................................................8
Loop-back Testing........................................................................................................................................8
Local Loop-back ..........................................................................................................................................9
Remote Loop-back.......................................................................................................................................9
NWay DIP-switch Setting..........................................................................................................................10
Chapter 4 Specifications................................................................................................................................12
Chapter 5 Troubleshooting............................................................................................................................13

MC100FX-SC2/30-A User’s Guide
vi
Customer Support
Please have the following information ready when you contact customer support.
Required Information
• Product model and serial number.
• Warranty Information.
• Date on which you received your device.
• Brief description of the problem and the steps you took to try and solve it.
Corporate Headquarters (Worldwide)
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.com, www.europe.zyxel.com
• FTP Site: ftp.zyxel.com, ftp.europe.zyxel.com
• Regular Mail: ZyXEL Communications Corp., 6 Innovation Road II, Science Park,
Hsinchu 300, Taiwan
Costa Rica
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.co.cr
• FTP Site: ftp.zyxel.co.cr
• Regular Mail: ZyXEL Costa Rica, Plaza Roble Escazú, Etapa El Patio, Tercer Piso, San
José, Costa Rica
Czech Republic
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.cz
• Regular Mail: ZyXEL Communications, Czech s.r.o., Modranská 621, 143 01 Praha 4 -

MC100FX-SC2/30-A User’s Guide
vii
Modrany, Ceská Republika
Denmark
• Support E-mail: [email protected]
• Sales E-mail: [e-mail]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.dk
• Regular Mail: ZyXEL Communications A/S, Columbusvej, 2860 Soeborg, Denmark
Finland
• Support E-mail: [email protected]
• Sales E-mail: [e-mail]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.fi
• Regular Mail: ZyXEL Communications Oy, Malminkaari 10, 00700 Helsinki, Finland
France
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.fr
• Regular Mail: ZyXEL France, 1 rue des Vergers, Bat. 1 / C, 69760 Limonest, France
Germany
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.de
• Regular Mail: ZyXEL Deutschland GmbH., Adenauerstr. 20/A2 D-52146, Wuerselen,
Germany
Hungary
• Support E-mail: [email protected]

MC100FX-SC2/30-A User’s Guide
viii
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.hu
• Regular Mail: ZyXEL Hungary, 48, Zoldlomb Str., H-1025, Budapest, Hungary
Kazakhstan
• Support: http://zyxel.kz/support
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.kz
• Regular Mail: ZyXEL Kazakhstan, 43, Dostyk ave.,Office 414, Dostyk Business Centre,
050010, Almaty, Republic of Kazakhstan
North America
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.us.zyxel.com
• FTP Site: ftp.us.zyxel.com
• Regular Mail: ZyXEL Communications Inc., 1130 N. Miller St., Anaheim, CA 92806-
2001, U.S.A.
Norway
• Support E-mail: [email protected]
• Sales E-mail: [e-mail]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.no
• Regular Mail: ZyXEL Communications A/S, Nils Hansens vei 13, 0667 Oslo, Norway
Poland
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.pl.zyxel.com

MC100FX-SC2/30-A User’s Guide
ix
• Regular Mail: ZyXEL Communications, ul. Okrzei 1A, 03-715 Warszawa, Poland
Russia
• Support: http://zyxel.ru/support
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.ru
• Regular Mail: ZyXEL Russia, Ostrovityanova 37a Str., Moscow, 117279, Russia
Spain
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.es
• Regular Mail: ZyXEL Communications, Arte, 21 5ª planta, 28033 Madrid, Spain
Sweden
• Support E-mail: [email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.zyxel.se
• Regular Mail: ZyXEL Communications A/S, Sjöporten 4, 41764 Göteborg, Sweden
Ukraine
• Support E-mail: [email protected]
• Sales E-mail: [email protected]yxel.com
• Telephone: [phone]
• Fax: [phone]
• Web Site: www.ua.zyxel.com
• Regular Mail: ZyXEL Ukraine, 13, Pimonenko Str., Kiev, 04050, Ukraine
United Kingdom
• Support E-mail: [email protected]
• Sales E-mail: [e-mail]
• Telephone: [phone] (UK only)

MC100FX-SC2/30-A User’s Guide
x
• Fax: [phone]
• Web Site: www.zyxel.co.uk
• FTP Site: ftp.zyxel.co.uk
• Regular Mail: ZyXEL Communications UK, Ltd.,11 The Courtyard, Eastern Road,
Bracknell, Berkshire, RG12 2XB, United Kingdom (UK)
“+” is the (prefix) number you dial to make an international telephone call.

MC100FX-SC2/30-A User’s Guide
1
Chapter 1
Introduction
The MC100FX-SC2/30-A media converter allows seamless integration between a (Fast) Ethernet
network using unshielded twisted pair (UTP) copper cabling and a fiber network.
The MC100FX-SC2-A media converter comes with a built-in multimode fiber transceiver module
with SC connector that can be used for distances of up to 2km.
The MC100FX-SC30-A media converter comes with a built-in single-mode fiber transceiver
module with SC connector that can be used for distances of up to 30km.
Use the LEDs to quickly check the status and the DIP switches to set the transmission settings
and Link Fault Signaling.

MC100FX-SC2/30-A User’s Guide
2
Key Features
Each media converter has the following key features:
•Automatic MDI/MDI-X selection on RJ-45 port
•Link Fault Signaling
•Store-and-forward at full-wire speed
•Auto-negotiation, NWay support
•Half / Full duplex mode selection
•Remote and local Loop-back Testing via DIP switch
•Extends distances to up to 2km (6600 feet) with multi-mode fiber and up to 30km (99000 feet)
with long-haul single-mode fiber
•Compatible with other 10Base-T & 100Base-TX /FX devices
•FCC Class A & CE approved

MC100FX-SC2/30-A User’s Guide
3
Chapter 2
Applications

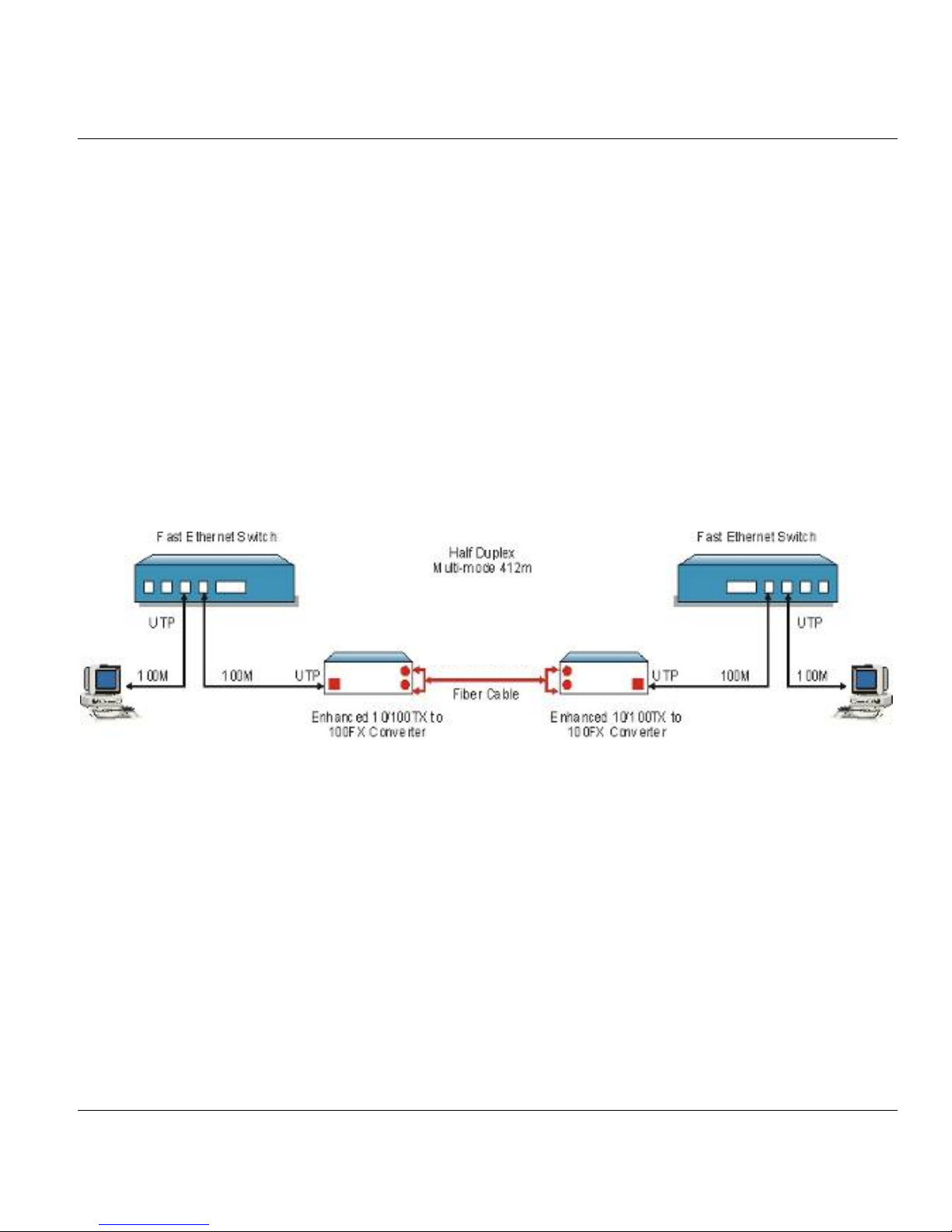

To effectively expand a Fast Ethernet network, position two converters back-to-back as
illustrated.
Application Diagram I
In the next figure, the converter is functioning as a high-speed bridge between switches, creating
increased capacity for each user (node) on the local area network.
Switch ↔CONVERTER ↔CONVERTER ↔Switch
Application Diagram II
In the next figure, the converter is functioning as a server aggregation for an enterprise
configuration. It is providing a 100Mbps full-duplex link to workgroups of 10/100 switches
located on separate floors within a single building.
Switch ↔CONVERTER ↔CONVERTER ↔Server
Multi-mode 2Km
Single Mode 30Km

MC100FX-SC2/30-A User’s Guide
4
Multi-mode 2Km
Single Mode 30Km

MC100FX-SC2/30-A User’s Guide
5
Chapter 3
Hardware
The media converter can be placed on a desktop. Make sure that there is proper heat dissipation
from and adequate ventilation around the device.
Do not place heavy objects on the media converter.
Front Panel
The front panel consists of an RJ-45 port for 100 Mbps UTP connections, LED indicators, and a
built-in fiber transceiver with SC connector.
MC100FX-SC2-A
MC100FX-SC30-A

MC100FX-SC2/30-A User’s Guide
6
100Base-TX port
The 10/100BASE-TX port supports network speeds of either 10Mbps or 100Mbps, and can
operate in half- and full-duplex transfer modes. This port also offers automatic MDI/MDI-X
crossover detection that gives the device true "plug-n-play" capability – just plug the network
cable into the port and the port will adjust according to the end-node device automatically. The
RJ-45 connector is suitable for UTP cable of Category 3, 4, 5 or better.
100Base-FX port
The 100BASE-FX port has a fiber Fast Ethernet link to your network device. Compliant with
IEEE 802.3u, this port can transmits data at 100Mbps in full duplex mode across distances of up
to 2km over multi-mode fiber-optic cable, and 30km over single-mode fiber-optic cable. The fiber
port has SC fiber connectors.
LED Indicators
This Converter has LED indicators located at the front of the device.
The LEDs have been designed to give at-a-glance readings of different conditions and provides
‘real-time’ connectivity information. Below is an interpretation of their functions:
Port and Unit LEDs
LED Condition Status
On (Green) The port is operating at 100Mbps
100 Off The port is operating at 10Mbps
On (Green) Illuminated when connectors are attached
Flashing (Green) Data traffic passing through port
LNK/ACT
Off No valid link established on port
On (Amber) Port is operating at full-duplex
Flashing (Amber) Indicates collisions
FDX/COL
Off Port is operating at half-duplex
On (Green) converter is receiving power
PWR
Off Power off or failure
On (Red) Disruption of connection in copper or fiber segment
LFS Off Copper / fiber segment is normal

MC100FX-SC2/30-A User’s Guide
7
Link Fault Signaling
LFS is a function that is extremely beneficial in terms of network status monitoring. The LFS
LED will immediately light to indicate when a cable has been severed or when some other cause
of disruption in service has occurred. The LFS function monitors both copper and fiber segments
giving a total connection status report.
Set LFS to ON position for normal operational use.
Set LFS to OFF position when installing cables or when testing the network connection.
Note: The LFS feature influences both fiber and copper segments. Therefore, when disruption
occurs on either segment, the LFS feature will be activated and the LED will light to indicate that
the entire connection is down.

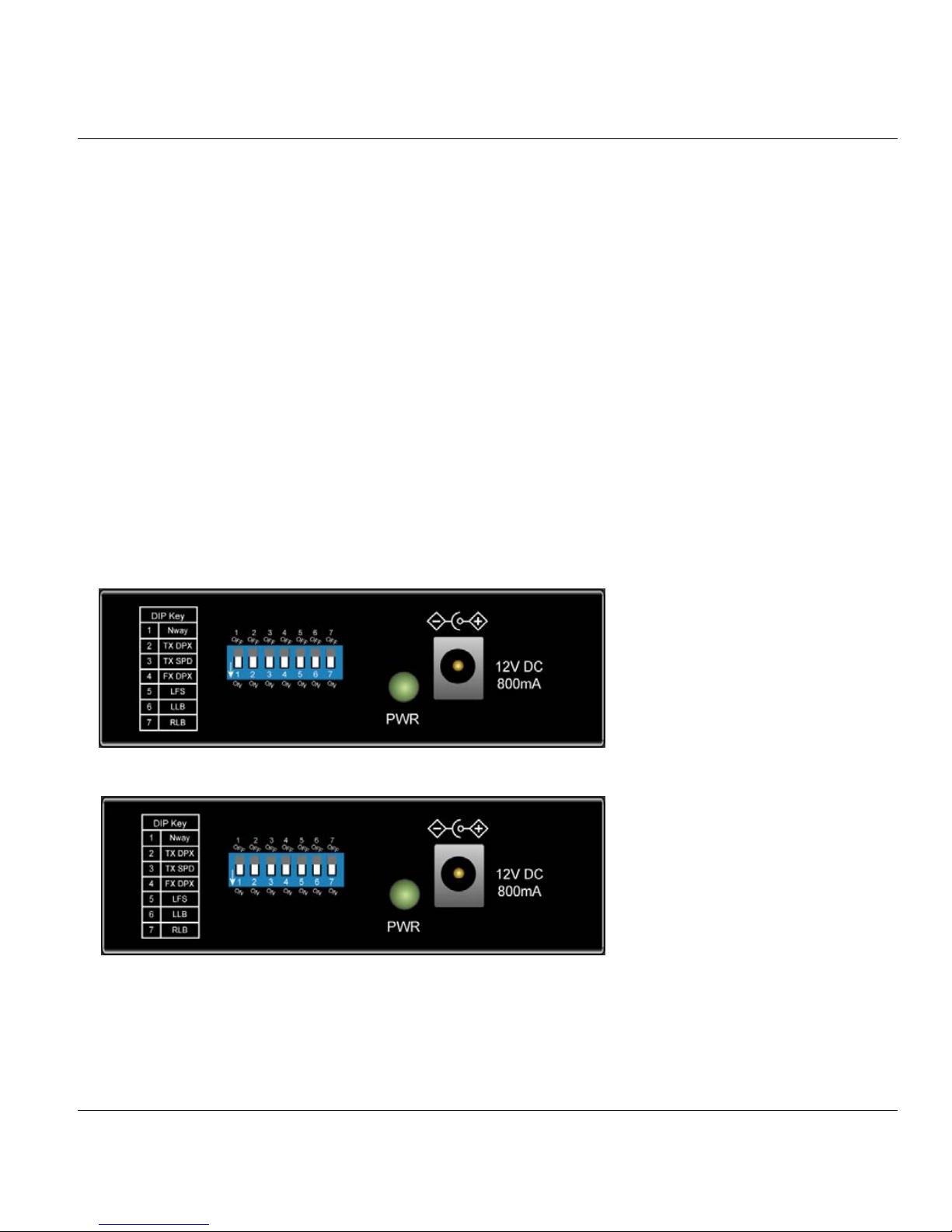

Rear Panel
The rear panel contains a power port, a power LED, and DIP Switches. Connect the included
power adapter (12V DC voltage with minimum 0.8A current) to the port labeled 12VDC 800mA
and connect the power adaptor to a power supply (outlet).
MC100FX-SC2-A
MC100FX-SC30-A

MC100FX-SC2/30-A User’s Guide
8
DIP Switches
DIP 1 Enables / disables auto-negotiation (RJ-45)
DIP 2 Copper port (RJ-45) duplex mode: full- or
half-duplex
DIP 3 Copper port (RJ-45) data bit rate: 10Mbps or
100Mbps
DIP 4 Fiber port duplex mode: full-duplex or
half-duplex
DIP 5 Enables / disables Link Fault Signaling(LFS)
DIP 6 Enables / disables Local Loop-back (LLB)
DIP 7 Enables / disables Remote Loop-back (RLB)

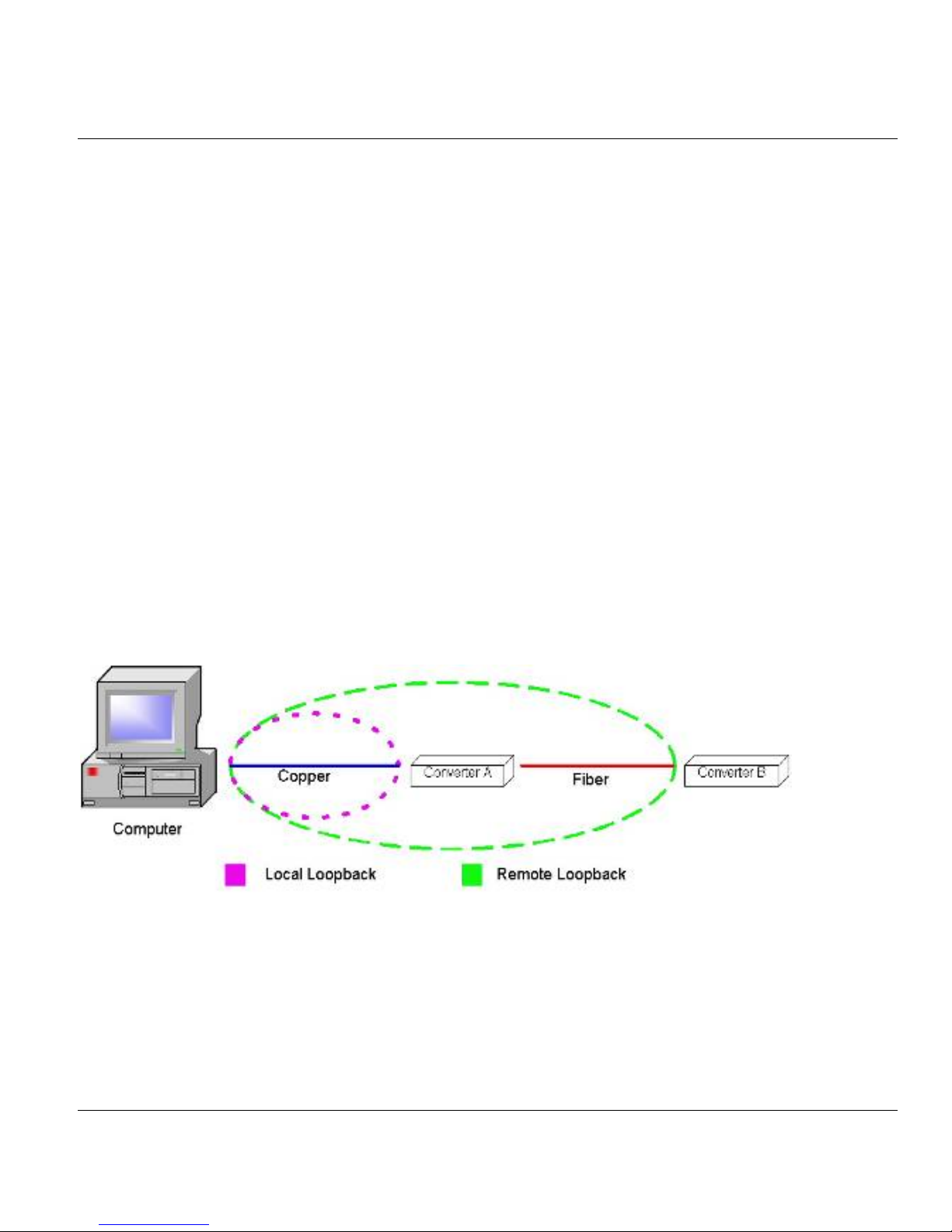

Loop-back Testing
This Converter features DIP switches for activating local and remote loop-back diagnostic test
functions. Use local loop-back to check if the copper segment is connected properly, and use
remote loop-back to check if the fiber segment is connected properly. Please see the figure below:
Dip Switch 6 ON: enables local loop back function
OFF: disables local loop back function
Dip Switch 7 ON: enables remote loop back function
OFF: disables remote loop back function

MC100FX-SC2/30-A User’s Guide
9
Make sure that the cables are connected properly before getting started. Conduct either the local
or remote test, not both at the same time. Follow the steps below to perform the diagnostic tests.
Local Loop-back
1. Test Condition set-up – for an accurate result, be sure to set the DIP switches according to
the table below:
Test Condition
2. Launch a loop-back or diagnostics testing program and follow the instructions given.
Typically, the instructions will be similar to the following:
zEnter the number of test messages (frame packets) to be sent (between 1 and 1000).
zClick on the START button.
zThe program will send a testing message that will loop in the copper segment – it will then
display a pass/fail result.
Remote Loop-back
1. Test Condition set-up – to produce an accurate result, set switches according to the table
below: Test Condition
DIP Switches 1 2 3 45 6 7
Converter A OFF FD 100 FD OFF OFF OFF
Converter B OFF FD 100 FD OFF OFF ON
DIP Switches 1 2 3 4 5 6 7
Converter A OFF FD 100 FD OFF ON OFF
Converter B OFF FD 100 FD OFF OFF OFF
