3Com OfficeConnect 3CRWDR101A-75 User manual

OfficeConnect®
ADSL Wireless 54 Mbps
11g Firewall Router
3CRWDR101A-75
www.3com.com
Part No. 10015036
Model Number: WL-552
Published March 2006
Installation Guide
Guía de instalación
Guide d’installation
Manuale di installazione
Installationsanleitung
Installations Guide
Guia de Instalação
Jerry2_QIG 17/3/06 10:01 am Page 1

Jerry2_QIG 17/3/06 10:01 am Page 2

1
Introducing the Router
INTRODUCING THE ROUTER
This Guide takes you through the basic steps necessary to install and configure
your OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router, and establish
a connection from your computers to the Internet. Throughout this Guide, the
OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router is simply referred
to as the Router.
Note: 3Com recommends that you use wired (Ethernet) connection to perform
the initial setup.
• One OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router
• One 12V power adapter for use with the Router
• Four rubber feet
• One RJ11 cable
• One CD-ROM containing the User Guide
• This Installation Guide
• One Support and Safety Information Sheet
• One Warranty Flyer
Before starting, ensure that:
• You already have an ADSL broadband account.
• You have a computer that has an Ethernet connection available and is
already correctly configured for communication with the Internet. Your
computer must be able to connect to the Internet via the modem, and
must have a Web browser installed.
• There are no other DHCP server devices on your local network that are
responsible for allocating IP addresses to your computers and other network
connected devices. Your Router will perform this function by default.
• If you require wireless access, you have a computer that has a wireless
802.11b or 802.11g adapter card installed.
If one or more of these conditions are not met, refer to the OfficeConnect
ADSL Wireless 54Mbps 11g Firewall Router User Guide provided on the
accompanying CD-ROM for further guidance.
Your Package Contains:
System Requirements
GB
Jerry2_QIG 17/3/06 10:01 am Page 1

Front Panel
2

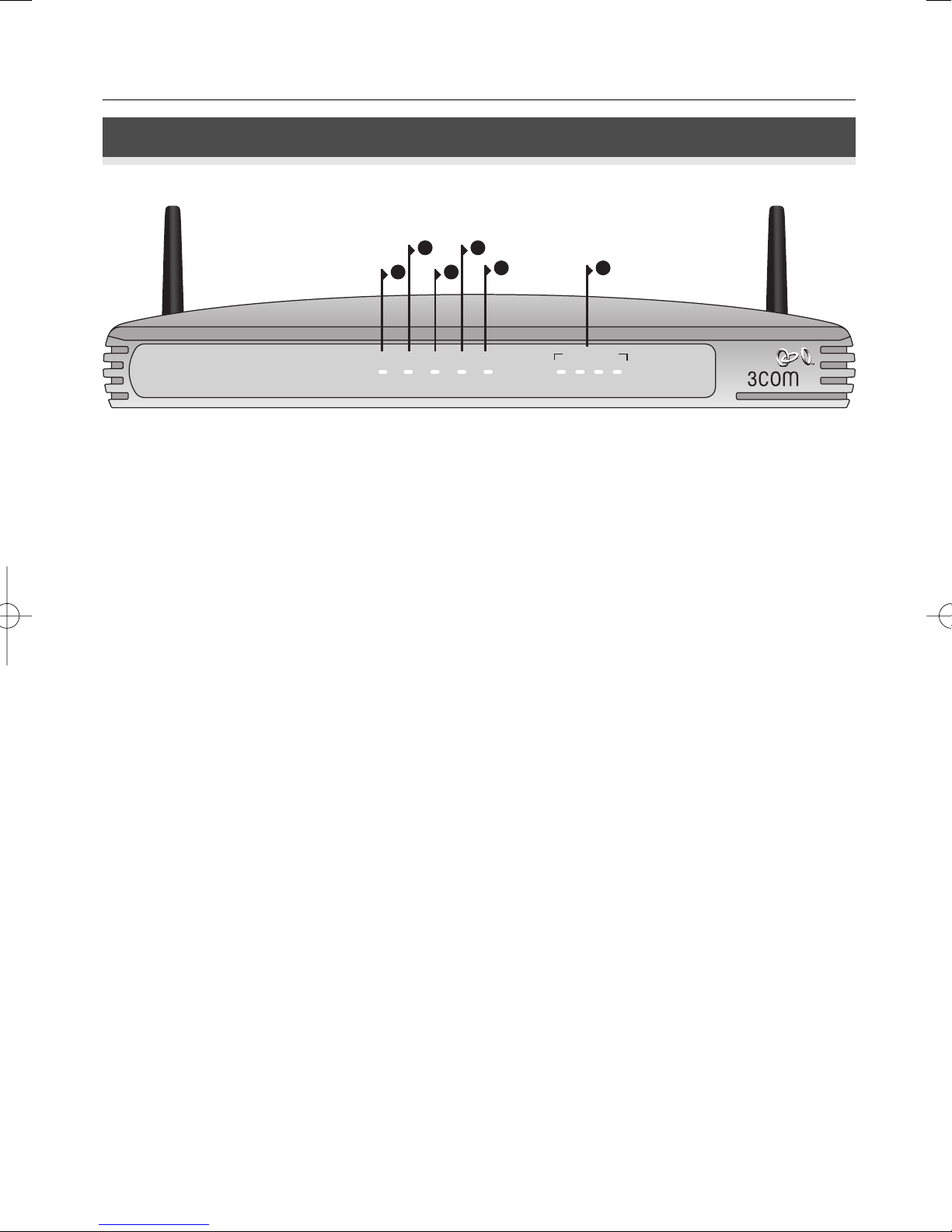

FRONT PANEL
1. Alert LED amber
This LED has a number of functions:
• It will flash rapidly during the power up self test. If it then remains on the unit self test has failed
(refer to the User Guide).
• It will flash rapidly during software upgrade.
• It will flash rapidly during the reset to Factory defaults. If the reset button on the rear panel has been
used to reset the unit to Factory defaults the Alert LED will then slow flash until power is removed.
• It will flash on for 2 seconds when the firewall detects a hacker attack.
2. Power LED green
If the LED is on, it indicates that the Router is powered on.
3. SYNC LED green
If the LED is on, it indicates that the DSL connection is present. This LED flashes during configuration at
power up.
4. Online LED green
If the LED is on, it indicates that your Username/Password has been authenticated successfully with your ISP.
5. Wireless LAN (WLAN) Status LED green
If the LED is on, it indicates that wireless networking is enabled. If the LED is flashing, the link is OK and
data is being transmitted or received. If the LED is off, the wireless LAN has been disabled on the Router,
or there is a problem (refer to the User Guide).
6. LAN Status LED green
If the LED is on, the link between the port and the next piece of network equipment is OK. If the LED is
flashing, the link is OK and data is being transmitted or received. If the LED is off, nothing is connected,
or the connected device is switched off, or there is a problem with the connection (refer to the User
Guide). The port will automatically adjust to the correct speed and duplex.
OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router
3CRWDR101A-75 LAN Status
Alert Power SYNC Online WLAN 1 2 3 4
Green = Link, Flash = Activity
165
2 4
3
Jerry2_QIG 17/3/06 10:01 am Page 2

3
Rear Panel

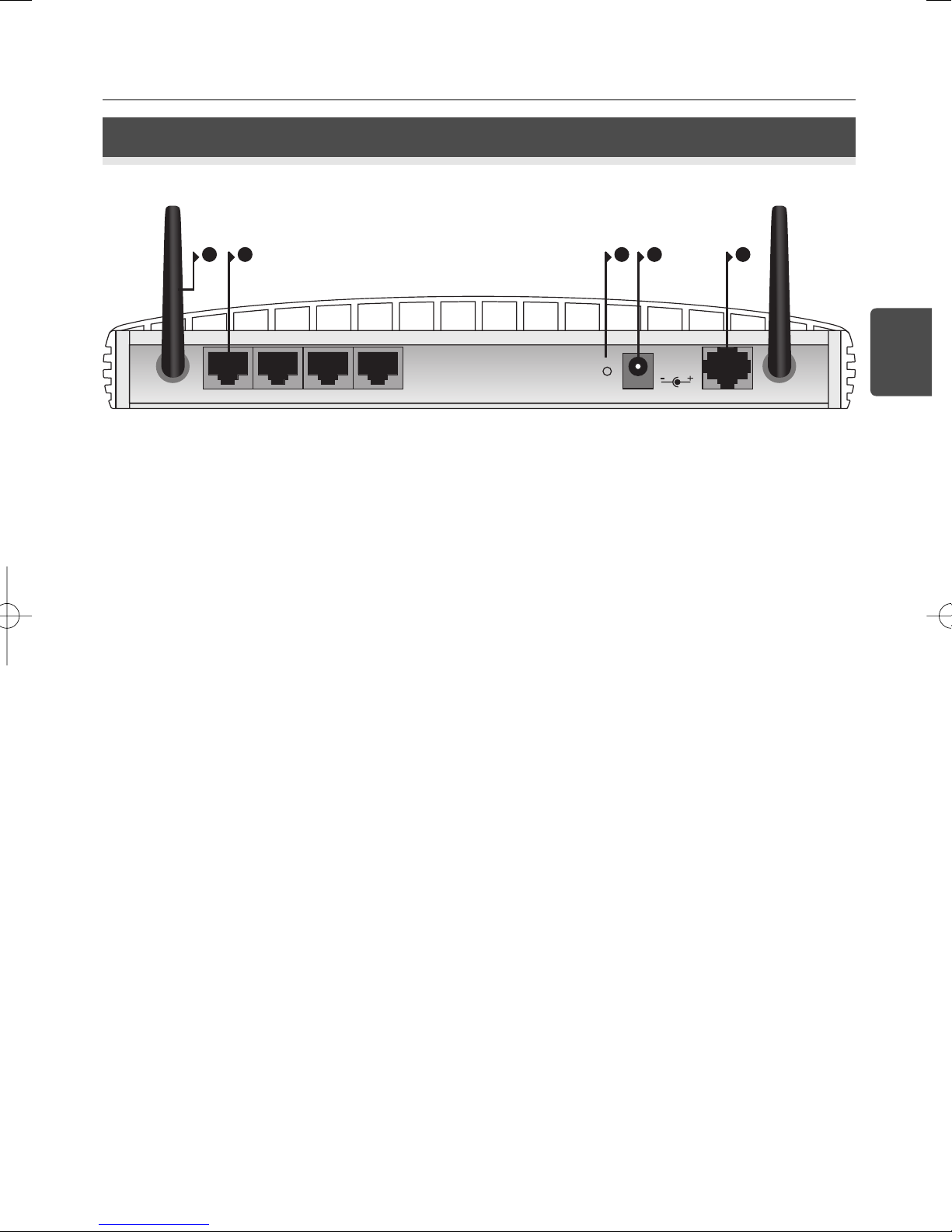

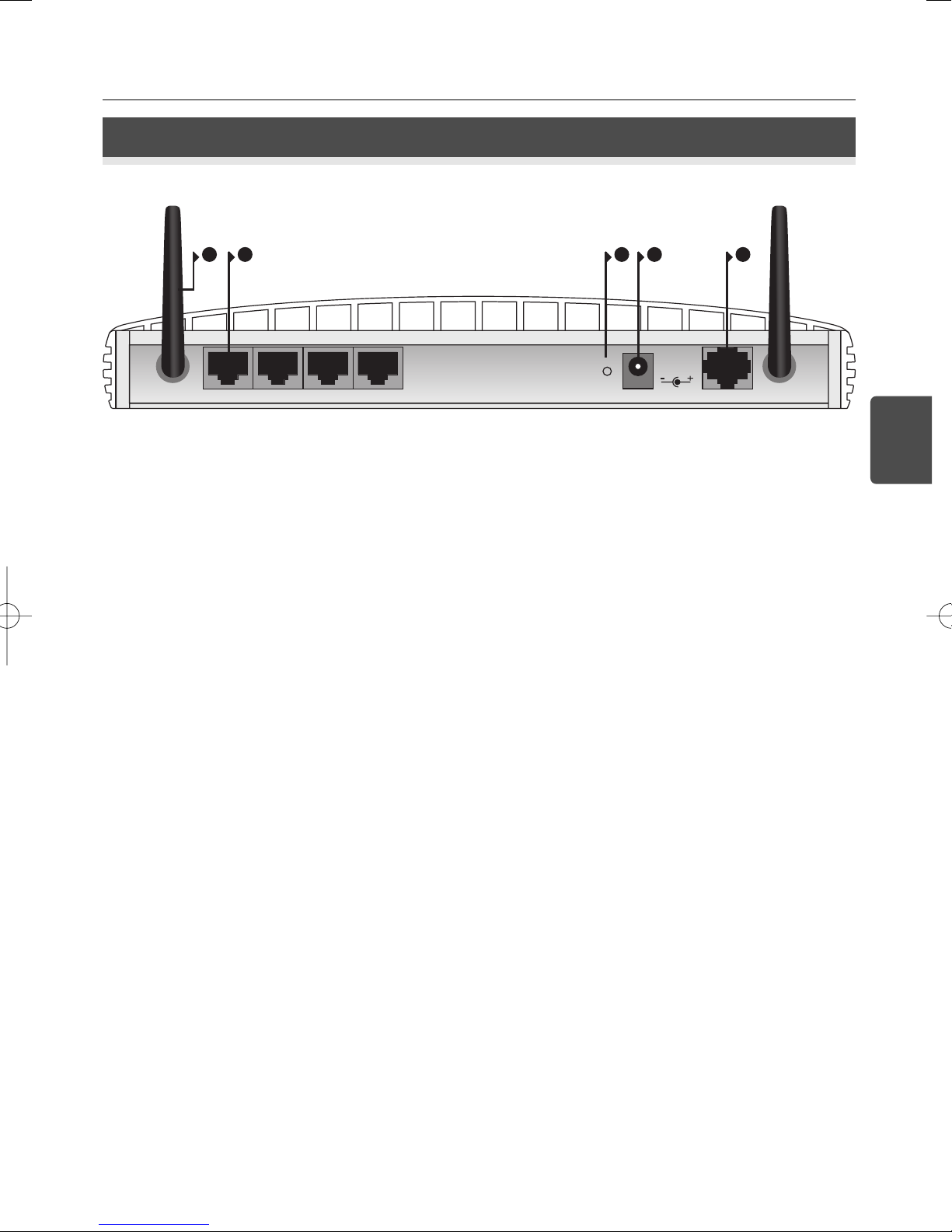

REAR PANEL
7. Wireless Antennae
For optimum wireless coverage, place the antennae in a ‘V’ position.
8. Ethernet Ports
Using suitable RJ45 cables, you can connect your Router to a computer, or to any other piece of equip-
ment that has an Ethernet connection (for example, a hub or a switch). These ports have an automatic
MDI/MDIX feature, which means you can use either a straight-through or a crossover cable.
9. Reset Button
To reboot the Router, press the reset button for 1 second. If you want to reset the Router to factory
defaults or if you cannot access the Web management interface (for example, due to a lost password),
press the reset button for 5 seconds.
10. Power Adapter Socket
Only use the 12V power adapter that is supplied with the Router. Do not use any other adapter.
11. ADSL
The ADSL port is used to connect the Router to the ADSL wall socket connection. Use an RJ11 cable to
connect from the ADSL port to the ADSL wall connection.
GB
RESET
LAN
ADSL4 3 2 1
12 VDC
1A MAX
8109117
Jerry2_QIG 17/3/06 10:01 am Page 3

Positioning and Installing Your Router
4
1. POSITIONING AND INSTALLING YOUR ROUTER
WARNING: Please read the ‘Important Safety Information’ section in
the Support and Safety Information sheet before you start.
VORSICHT: Bitte lesen Sie den Abschnitt „Wichtige
Sicherheitsinformationen” sorgfältig durch, bevor Sie das Gerät in
Betrieb nehmen.
AVERTISSEMENT: Lisez attentivement le paragraphe “Remarques
relatives à la sécurité” avant de mettre votre routeur sous tension.
When positioning your Router, ensure that:
• The Router is centrally located to the wireless computers that will connect
to it. A suitable location might be on top of a high shelf or similar furni-
ture to optimize wireless connections to computers in both horizontal and
vertical directions, allowing coverage throughout.
• It is out of direct sunlight and away from sources of heat.
• Cabling is away from power lines, fluorescent lighting fixtures, and
sources of electrical noise such as radios, transmitters and broadband
amplifiers.
• To meet FCC radiation exposure regulations, the Router should be located
in a position that maintains a minimum distance of 20 cm (8 inches) from
any personnel (refer to the User Guide for details).
• Water or moisture cannot enter the case of the unit.
• Air flow around the unit and through the vents on the side of the case is
not restricted. 3Com recommends that you provide a minimum of 25 mm
(1 in.) clearance.
Use the four self-adhesive rubber feet to prevent your Router from moving
around on your desk or when stacking with other flat top units. Only stick
the feet to the marked areas at each corner of the underside of your Router.
Using the Rubber Feet
Safety Information
Jerry2_QIG 17/3/06 10:01 am Page 4

5
Positioning and Installing Your Router
1. Connect the power adapter to the Router and wait for the WLAN LED to
illuminate.
2. Ensure that your computer is switched on.
3. Connect your computer to one of the 10/100 LAN ports on the Router.
The LAN Port Status LED should turn green.
4. Connect the RJ11 cable from the ADSL port on the Router to your ADSL
socket on the wall.
To share your Router with more than four users, you will need an additional
hub or switch. Connect a LAN port on your Router to the hub or switch (for
example, OfficeConnect Dual Speed Switch 8).
GB
Internet
Power
Supply Unit
Your PC
Wireless
Users
Telephone
Socket
Splitter/
Microfilter Block
3Com OfficeConnect
ADSL Wireless 11g Firewall Router
Example Network with OfficeConnect ADSL Wireless 11g Firewall Router
Connecting to a Hub or
Switch
Connecting Your Router
Jerry2_QIG 17/3/06 10:01 am Page 5

Installing a Splitter and Micro-filter
6

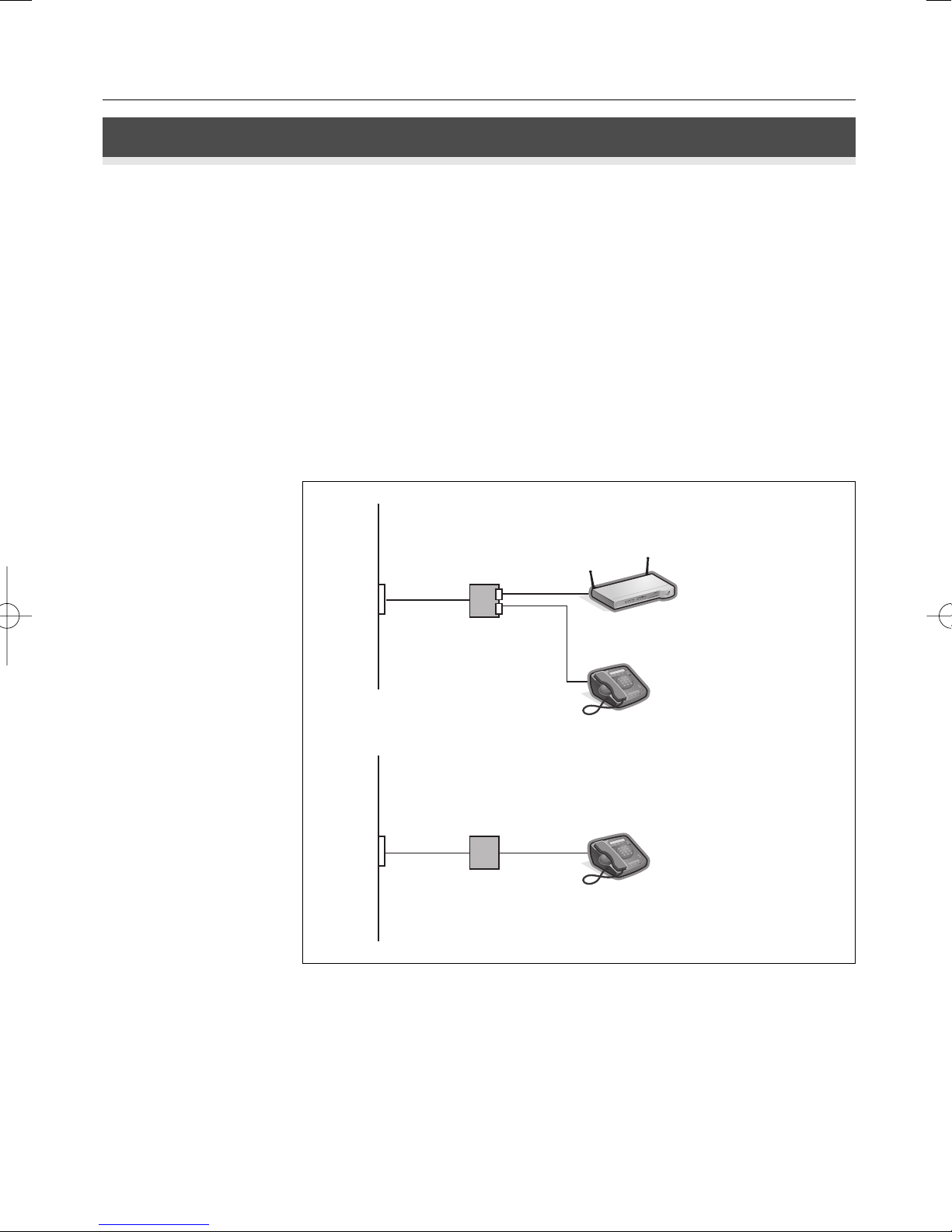

2. INSTALLING A SPLITTER AND MICRO-FILTER
A splitter and micro-filter allow you to use your Router and telephone at the
same time. The splitter connects to the ADSL wall connection, and then pro-
vides two connectors:
•An RJ11 connector which connects to the Router with the RJ11 cable
•A telephone jack connector which can be connected to your telephone
There must also be a micro-filter between the splitter and the telephone. The
micro-filter ensures that DSL data signal does not interfere with the telephone
voice signal. A micro-filter must be installed inline with each telephone to
prevent signal interference. Splitters are now available with built in microfil-
ters, which simplifies the setup as shown in the diagram below. Splitters and
micro-filters can be obtained from your ISP or a computer store.
OfficeConnect
®
ADSL Wireless
11g Firewall Router
Phone
Combind Splitter
and Micro-filter
Wall
socket
Micro-filter
For Telephone Extensions
Wall
socket
Phone
Jerry2_QIG 17/3/06 10:01 am Page 6

7
Connecting to Your ISP
GB
3. CONNECTING TO YOUR ISP
Before you can configure the Router, you need to know the IP allocation
method used by your ISP. There are four different methods that the Router
can use to connect to the Internet, as described below. For all methods, you
need to know the VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier)
and the Encapsulation (LLC or VC Mux). The Router defaults for the VPI and
VCI should cater for most ISPs. Your ISP can provide you with the required
information.
1. PPPoE
To configure the gateway, you will need to know the user name and password
to log in to your ISP account. If you have been using a PPPoE client on
your computer, you can disable it as it is no longer needed. If your ISP
provides you with a static IP address, enter this IP address in the Internet
Settings section of the Router Web interface. Otherwise, your ISP will
automatically assign your Router an IP address.
2. PPPoA
This is similar to PPPoE but is used mainly in the UK. To configure the
gateway, you will need to know the user name and password to log in to
your ISP account. If your ISP provides you with a static IP address, enter
this IP address in the Internet Settings section of the Router Web interface.
Otherwise, your ISP will automatically assign your Router an IP address.
3. Bridge Mode for a Single Computer (RFC 1483 Bridging Mode)
In this mode, the Router is set into a bridging mode to connect the LAN
and WAN networks. Traffic is limited between the two networks based on
hardware addresses and so limits the LAN side to a single computer.
4. Routing Mode over ATM (RFC 1483 Bridging Mode)
Routing mode over ATM means that the Router has a fixed IP address to
connect to the Internet. Your ISP will provide the Router with a fixed IP
address, the subnet mask and the ISP’s gateway address. You need to
enter this information in the Internet Settings section of the Router Web
interface.
Jerry2_QIG 17/3/06 10:01 am Page 7

Running the Setup Wizard
8
4. RUNNING THE SETUP WIZARD
1. If you have not already done so, restart your computer.
2. Launch your Web browser and try to connect to the Router by typing the
following URL in the address or location bar: http://192.168.1.1. If you
can access the login page, then your computer has correctly received an IP
address from the Router.
3. Log in using the default password <admin>. The Wizard will attempt to
launch automaticallyIf it fails, select Wizard from the menu.
Where possible, the Wizard will recommend settings for most parameters.
However, there are some settings that you must provide. Most of these will
have been provided to you by your ISP when you set your account up.
When the Wizard has completed, attempt to browse to an Internet Web site,
such as www.3com.com. If you can successfully access this site, then you
computer and Router have been configured correctly.
Connecting to
the Internet
Jerry2_QIG 17/3/06 10:01 am Page 8

9
Connecting to the Wireless LAN
GB
5. CONNECTING TO THE WIRELESS LAN
1. Now that you have configured the Router via the wired computer, you can
connect to the Router via a wireless computer.
The Router and wireless clients must have both the same SSID and the
same encryption settings. All wireless clients must use Infrastructure mode.
The default wireless settings for the Router are:
2. If you do not have a wireless LAN, you can use the Router’s default settings.
Ensure that your wireless clients have the default SSID, channel and
encryption settings as detailed above.
If you have an existing wireless LAN, configure the Router to use the same
SSID and encryption settings to be compatible with your existing wireless
network.
3. If your computer has both a wired and wireless NIC installed, you must
ensure that only one NIC is used to communicate with the LAN. To use the
wireless NIC, unplug the Ethernet cable, and then reboot your computer.
4. Launch your Web browser and attempt to browse to an Internet Web site
such as www.3com.com. If you can successfully access this site, then
your wireless computer and Router have been configured successfully.
To improve the security of your wireless network, 3Com strongly recommends
that you enable WPA2 or WPA encryption and that you change the SSID to
something other than the default. Consult the online help or the User Guide
for details.
SSID is 3Com Channel 11 Encryption is off.
SSID ______________________________
Channel Number ______________________________
Jerry2_QIG 17/3/06 10:01 am Page 9

Problem Solving
10
PROBLEM SOLVING
If you are experiencing difficulties with your installation, try the following.
•Ensure all networking equipment is switched on.
The Router should be showing a green Power LED. If it is not, check the
power adapter connection. Do not use any power adapter with your
Router other than the one supplied.
•Ensure that the computer is connected to the Router.
The Router should be displaying a green LAN Status LED. If it is not, verify
that the computer is connected to one of the Router’s LAN ports with an
Ethernet cable.
•Ensure that you do not have a Web proxy enabled on your computer.
Go to the Control Panel and click on Internet Options. Click the
Connections tab, and then click the LAN Settings button at the bottom.
Make sure that the Use Proxy Server option is unchecked.
•If you are unable to access the Router’s Web interface.
Launch a Web browser, and then enter http://192.168.1.1. If you chose a
different IP address, use that instead. Ensure that you include the http://
prefix.
•Ensure your computer is configured correctly.
Make sure that the computer obtains an IP address automatically from the
Router’s DHCP server.
• If you have an existing DSL line and have PPPoE client software installed
on your computer, you need to disable it.
• It is important that you set up the correct VPI/VCI parameters and
Encapsulation (LLC or VC Mux) method to match up with your DSL line.
These parameters can be obtained from your ISP.
• Check that the PPPoE/PPPoA settings are correct (for example, user name,
password and IP address configuration).
• You must use a splitter to separate the Router from your telephone. A
micro-filter can then be used in line with the telephone to ensure that the
Router and telephone do not interere with each other. Ensure that a
microfilter is not fitted directly inline with the Router.
DSL Internet
Connections
Jerry2_QIG 17/3/06 10:01 am Page 10

11
Problem Solving
• Ensure that the wireless client is set to infrastructure mode.
• If you have both wired and wireless NICs on the same computer, ensure
that the wired NIC is disabled.
• Ensure that the SSID is the same for the wireless client and the Router.
• Ensure that the Router WLAN LED is on. If not, go to the Wireless Settings
menu, and then enable Wireless Networking.
• Ensure that wireless encryption is the same for the wireless client and the
Router. If there are problems, turn encryption off on the client and the
Router until you have established a wireless connection.
GB
Wireless Configuration.
If you are unable to
access the wireless LAN.
Jerry2_QIG 17/3/06 10:01 am Page 11

12
Jerry2_QIG 17/3/06 10:01 am Page 12

13
Introducción
INTRODUCCIÓN
Este manual le guiará a lo largo de los pasos básicos para instalar y configurar
su OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router, y establecer
una conexión a Internet desde sus PCs. A lo largo de esta guía, nos referire-
mos al OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router simple-
mente como el router.
Nota: 3Com le recomienda que utilice una conexión cableada (Ethernet) para
realizar la configuración inicial.
• Un OfficeConnect ADSL Wireless 11g Firewall Router
• Un adaptador de alimentación de 12V para usar con el router
• Cuatro pies de goma
• Un cable RJ11
• Un CD-ROM con la Guía de usuario
• Esta Guía de instalación
• Una hoja de información de soporte y seguridad
• Un folleto de garantía
Antes de empezar, debe asegurarse de lo siguiente:
• Ya dispone de una cuenta ADSL de banda ancha.
• Tiene un PC con una conexión Ethernet disponible y adecuadamente
configurado para su comunicación con Internet. Su PC debe poder conec-
tarse a Internet mediante el módem, y ha de disponer de un navegador
web instalado.
• No hay ningún otro dispositivo de servidor DHCP en su red local responsable
de la asignación de direcciones IP a sus PCs y a otros dispositivos conectados
a la red. Su router se encargará en adelante de realizar esta función por
defecto.
• Si necesita un acceso inalámbrico, deberá disponer de un PC con una tarjeta
adaptadora inalámbrica 802.11b o 802.11g instalada.
Si una o varias de estas condiciones no se cumple, consulte la guía de usuario
del OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router facilitada en el
CD-ROM que se adjunta y que incluye una información completa al
respecto.MENSIONES Y ESTÁNDARES
Contenido de la caja
Requisitos del sistema
E
Jerry2_QIG 17/3/06 10:01 am Page 13

Panel frontal
14
PANEL FRONTAL
1. LED de alerta ámbar
Este LED tiene varias funciones:
• Parpadea rápidamente durante la fase de autocomprobación de arranque. Si a continuación permanece
encendido, indica un fallo de la autocomprobación (consulte la Guía de usuario).
• Parpadea rápidamente durante una actualización del software.
• Parpadea rápidamente durante el reseteo de los valores por defecto de fábrica. Si se utiliza el botón
de reset en el panel trasero para resetear la unidad a los valores por defecto de fábrica, entonces el
LED de Alerta parpadeará lentamente hasta que se desconecte la alimentación.
• Parpadea durante 2 segundos cuando el firewall detecta un ataque de hacker.
2. LED de alimentación verde
Si el LED está encendido, indica que el router está encendido.
3. LED SYNC verde
Si el LED está encendido, indica que la conexión DSL está presente. Este LED parpadea durante la config-
uración de arranque.
4. LED Online verde
Si el LED está encendido, indica que su Nombre de usuario/Contraseña ha sido autenticado con éxito por
su ISP.
5. LED de estado de LAN inalámbrica (WLAN) verde
Si el LED está encendido, significa que la conectividad inalámbrica está habilitada. Si el LED está parpadeando,
indica que el enlace es correcto y que se están transmitiendo o recibiendo datos. Si el LED está apagado,
significa que la LAN inalámbrica ha sido inhabilitada en el router, o que hay un problema (consulte la Guía
de usuario).
6. LED de estado de LAN verde
Si el LED está encendido, el enlace entre el puerto y el siguiente equipo de red es correcto. Si el LED está
parpadeando, el enlace es correcto y se están transmitiendo o recibiendo datos. Si el LED está apagado,
no hay ningún dispositivo conectado, o el dispositivo conectado está apagado, o bien hay un problema
con la conexión (consulte la Guía de usuario). El puerto ajustará automáticamente la velocidad y el modo
dúplex correctos.
OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router
3CRWDR101A-75 LAN Status
Alert Power SYNC Online WLAN 1 2 3 4
Green = Link, Flash = Activity
165
2 4
3
Jerry2_QIG 17/3/06 10:01 am Page 14

15
Panel trasera
PANEL TRASERA
7. Antena inalámbrica
Para una optima cobertura inalámbrica, la antena debe colocarse en forma de ‘V’.
8. Puertos Ethernet
Si utiliza cables RJ-45 adecuados, podrá conectar su router a un PC o a cualquier otro equipo que disponga
de una conexión Ethernet (por ejemplo, un hub o un switch). Estos puertos se auto-configurarán
automáticamente como MDI o MDIX, lo que significa que puede usar cables tanto directos como cruzados.
9. Botón de reset
Para reiniciar el router, pulse el botón de reset durante 1 segundo. Si desea reiniciar el router a sus valores
por defecto de fábrica, o si no puede acceder a la interfaz de administración web (por ejemplo, por pérdida
de contraseña), pulse el botón de reset durante 5 segundos.
10. Toma de adaptador de alimentación
Utilice únicamente el adaptador de alimentación de 12V suministrado con este router. No use ningún otro
adaptador.
11. ADSL
El Puerto ADSL se usa para conectar el router con la toma de pared ADSL. Use un cable RJ11 para la
conexión entre el puerto ADSL y la toma de pared ADSL.
E
RESET
LAN
ADSL4 3 2 1
12 VDC
1A MAX
8109117
Jerry2_QIG 17/3/06 10:01 am Page 15

Ubicación e instalación de su router
16
1. UBICACIÓN E INSTALACIÓN DE SU ROUTER
ADVERTENCIA: Antes de empezar, por favor lea atentamente la sec-
ción ‘Información importante de seguridad’ en la hoja de información
de soporte y seguridad.
WARNING: Please read the ‘Important Safety Information’ section in
the Support and Safety Information sheet before you start.
VORSICHT: Bitte lesen Sie den Abschnitt „Wichtige
Sicherheitsinformationen” sorgfältig durch, bevor Sie das Gerät in
Betrieb nehmen.
AVERTISSEMENT: Lisez attentivement le paragraphe “Remarques
relatives à la sécurité” avant de mettre votre routeur sous tension.
Cuando vaya a ubicar su router, asegúrese de que:
• La unidad se sitúa en una posición central respecto de los PCs inalámbri-
cos que se conectarán al router. Una ubicación adecuada podría ser enci-
ma de una estantería alta o de un mueble similar, para optimizar las
conexiones inalámbricas de los PCs, tanto en el plano horizontal como
vertical, permitiendo así una cobertura total.
• El router no está expuesto directamente a la luz del sol y está alejado de
cualquier fuente de calor.
• El cableado está alejado de cables eléctricos, lámparas fluorescentes y
fuentes de ruido eléctrico tales como radios, transmisores y amplificadores
de banda ancha.
• Para poder cumplir con las normativas de exposición a radiaciones del
FCC, el router debe estar situado a una distancia mínima de 20 cm (8 pul-
gadas) de cualquier persona (para una información detallada, consulte la
Guía de usuario).
• El agua o la humedad no puede penetrar en la carcasa de la unidad.
• El flujo de aire alrededor de la unidad, y a través de las pequeñas aber-
turas en el panel lateral de la unidad, no está restringido. Le recomen-
damos que deje un espacio libre mínimo de 25 mm (1 pulgada).
Use los cuatro pies de goma auto-adhesivos para impedir que su router res-
bale por la superficie de su mesa o cuando vaya a apilarlo con otras unidades
de superficie plana. Sólo tiene que pegar los pies de goma en las zonas mar-
cadas en cada esquina en la parte inferior de su router.
Uso de los pies de goma
Información
de seguridad
Jerry2_QIG 17/3/06 10:01 am Page 16

17
Ubicación e instalación de su router
E
1. Conecte el adaptador de alimentación al router y espere a que el LED de
WLAN esté encendido.
2. Compruebe que su PC está encendido.
3. Conecte su PC a uno de los puertos de LAN 10/100 en el router. Al hacer-
lo, el LED de estado de puerto de LAN debería encenderse en color verde.
4. Conecte el cable RJ11 entre el puerto ADSL en el router y su toma ADSL
en la pared.
Para poder compartir su router entre más de cuatro usuarios, necesitará un
hub o un switch adicional. Conecte un puerto de LAN de su router al hub o
switch, como por ejemplo el OfficeConnect Dual Speed Switch 8.
Internet
Unidad de fuente
de alimentación
Su PC
Usuarios inalámbricos
Toma de teléfono
Bloque de
splitter/microfiltro
3Com OfficeConnect ADSL
Wireless 54Mbps 11g Firewall Router
Ejemplo de red con el OfficeConnect ADSL Wireless 54 Mbps 11g Firewall Router
Conexión a un hub
o a un switch
Conexión de su router
Jerry2_QIG 17/3/06 10:01 am Page 17

Instalación de un splitter y de un microfiltro
18
2. INSTALACIÓN DE UN SPLITTER Y DE UN MICROFILTRO
Un splitter y un microfiltro le permiten usar su router y un teléfono al mismo
tiempo. El splitter se conecta a la conexión ADSL de pared, y proporciona a
continuación dos conectores:
•Un conector RJ11 que se conecta al router con el cable RJ11
•Un conector de teléfono que puede conectarse a su teléfono
También tiene que haber un microfiltro entre el splitter y el teléfono. El micro-
filtro garantiza que la señal de datos DSL no interfiere con la señal de voz del
teléfono. Hay que instalar un microfiltro en línea con cada teléfono para pre-
venir interferencias de señal. Los splitters están ahora disponibles con microfil-
tros integrados, lo que permite simplificar la configuración, tal como se mues-
tra en el diagrama que aparece a continuación. Podrá conseguir los splitters y
microfiltros a través de su ISP, o bien en una tienda informática.
OfficeConnect
®
ADSL Wireless
54Mbps 11g Firewall Router
Teléfono
Splitter y microfiltro
combinados
Toma
de pared
Microfiltro
Para teléfonos adicionales
Toma
de pared
Teléfono
Jerry2_QIG 17/3/06 10:01 am Page 18
