3Com Baseline 2016 User manual

E terprise-class,
Layer 2 u ma aged
switches for small a d
medium busi esses

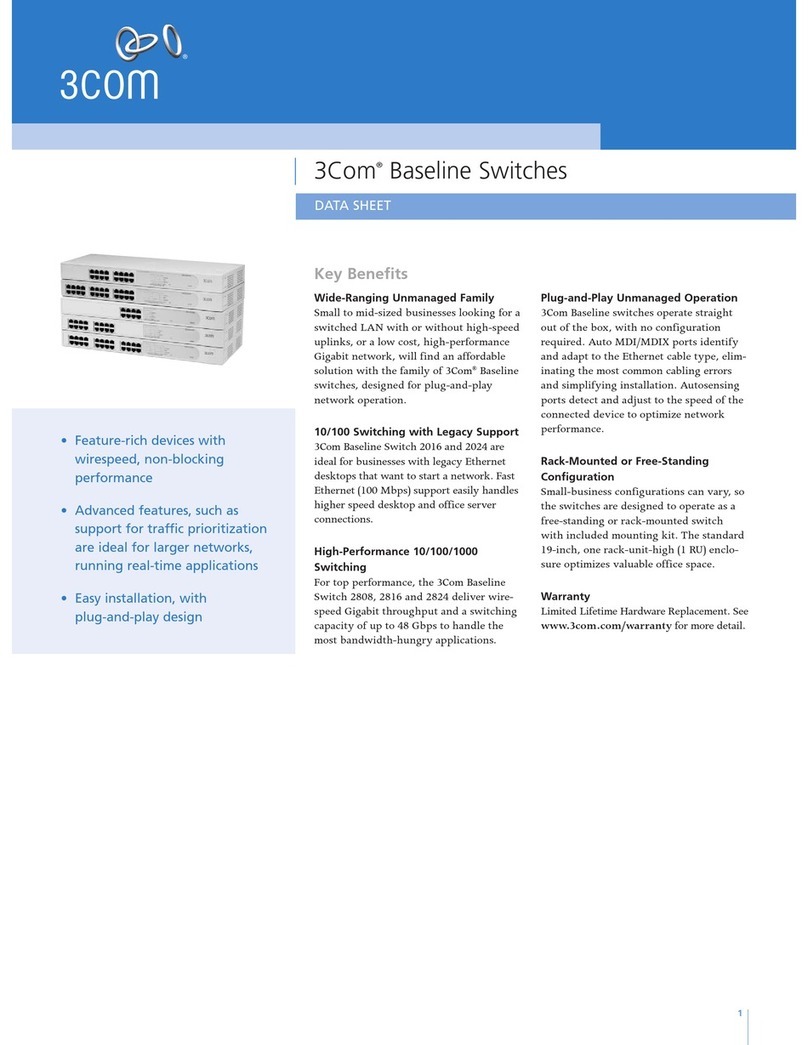

DATA SHEET
OVERVIEW
3Com®Baseline switches provide cost-effective Layer 2 10/100 and
10/100/1000 Ethernet switching for LANs that don't need management
capabilities. Simple to install and economical to own, they feature
wirespeed performance on fixed-configuration, rack-mountable platforms.
KEY BENEFITS
WIDE-RANGING UNMANAGED FAMILY
Small to mid-sized businesses looking for a switched LAN with or
without high-speed uplinks, or a low cost, high-performance Gigabit
network, will find an affordable solution with the family of 3Com
Baseline switches, designed for plug-and-play network operation.
10/100 SWITCHING WITH LEGACY SUPPORT
3Com Baseline Switch 2016 and 2024 are ideal for businesses with legacy
Ethernet desktops that want to start a network. Fast Ethernet (100 bps)
support easily handles higher speed desktop and office server connections.
HIGH-PERFORMANCE 10/100/1000 SWITCHING
For top performance, the 3Com Baseline Switch 2816 and 2824 deliver
wirespeed Gigabit throughput and a switching capacity of up to 48 Gbps
to handle the most bandwidth-hungry applications.
PLUG-AND-PLAY UNMANAGED OPERATION
3Com Baseline switches operate straight out of the box, with no
configuration required. Auto DI/ DIX ports identify and adapt to
the Ethernet cable type, eliminating the most common cabling errors
and simplifying installation. Autosensing ports detect and adjust to
the speed of the connected device to optimize network performance.
RACK-MOUNTED OR FREE-STANDING CONFIGURATION
Small-business configurations can vary, so the switches are designed
to operate as a free-standing or rack-mounted switch with included
mounting kit. The standard 19-inch, one rack-unit-high (1 RU) enclosure
optimizes valuable office space.
THREE-YEAR HARDWARE WARRANTY
3Com gives a Three-Year Limited Hardware Warranty on the Baseline
Switch Family. Advance Hardware Replacement, with Next Business
Day shipment in most regions, is also provided.
3Com®Base ine Switches
3Com Baseline S itch Family, from left, top: Baseline S itch 2016, S itch 2024;
from right, top: Baseline S itch 2126-G, S itch 2816, S itch 2824

3COM®BASELINE SWITCHES
Visit www.3com.com for more inform tion bout 3Com secure converged network solutions.
3Com Corporation, Corporate Headquarters, 350 Campus Drive, arlborough, A 01752-3064
3Com is publicly traded on NASDAQ under the symbol CO S.
Copyright © 2007 3Com Corporation. All rights reserved. 3Com and the 3Com logo are registered trademarks of 3Com Corporation. All other company and product
names may be trademarks of their respective companies. While every effort is made to ensure the information given is accurate, 3Com does not accept liability for
any errors or mistakes which may arise. Specifications and other information in this document may be subject to change without notice. 400838-008 12/07
PRODUCT DESCRIPTION 3COM SKU
3Com Base ine Switch 2016 3C16470B
3Com Base ine Switch 2024 3C16471B
3Com Base ine Switch 2126-G 3C16472
3Com Base ine Switch 2816 3C16478
3Com Base ine Switch 2824 3C16479
ORDERING
INFORMATION
All information in this section is
relevant to all members of the 3Com
Baseline Switch family, unless
otherwise stated.
CONNECTORS
Switch 2016
16 auto-negotiating 10BASE-T/
100BASE-TX ports configured as auto
DI/ DIX
Switch 2024
24 auto-negotiating 10BASE-T/
100BASE-TX ports configured as auto
DI/ DIX
Switch 2126-G
24 auto-negotiating 10BASE-T/
100BASE-TX and 2 10BASE-T/
100BASE-TX/1000BASE-T ports
configured as auto DI/ DIX
Switch 2816
16 auto-negotiating 10BASE-T/
100BASE-TX/1000BASE-T ports
configured as auto DI/ DIX
Switch 2824
24 auto-negotiating 10BASE-T/
100BASE-TX/1000BASE-T ports
configured as auto DI/ DIX
MEDIA INTERFACES
10/100/BASE-TX RJ-45 or
10/100/1000BASE-T RJ-45,
depending on model
PERFORMANCE
Wirespeed performance across
all ports
Store-and-forward switching
LAYER 2 SWITCHING
AC addresses:
• Switch 2016, 2024 and 2126G– 4K
• Switch 2816 and 2824– 32K
Auto-negotiation of port speed and
duplex
IEEE 802.3x full-duplex flow control
CONVERGENCE
(Switch 2816 a d 2824 o ly)
4 hardware queues per port
IEEE 802.1p Class of Service/Quality
of Service (CoS/QoS) on egress
LED INDICATORS
Link status/speed, duplex status, power
POWER SUPPLY
Input voltage: 100-240 VAC, 50/60 Hz
Current rating: 1A, max.
Power inlet: IEC 320
Power consumption, max:
• Switch 2016– 10W
• Switch 2024– 16W
• Switch 2126-G– 13 W
• Switch 2816– 37W
• Switch 2824– 46W
Power dissipation, max:
• Switch 2016– 34 BTU/hr
• Switch 2024– 55 BTU/hr
• Switch 2126-G– 43 BTU/hr
• Switch 2816– 125 BTU/hr
• Switch 2824– 156 BTU/hr
DIMENSIONS
Height: 4.4 cm (1.7 in or 1 RU)
Width: 44.0 cm (17.3 in)
Depth: 17.3 cm (6.8 in)
Weight:
• Switch 2016– 1.5 kg (3.1 lb)
• Switch 2024 and 2126-G– 1.6 kg
(3.6 lb)
• Switch 2816– 1.9 kg (4.1 lb)
• Switch 2824– 2.0 kg (4.3 lb)
ENVIRONMENTAL REQUIREMENTS
Operating temperature: 0° to 40°C
(32° to 104°F)
Operating humidity: 10 to 95%
(non-condensing)
Standard: EN 60068 (IEC 68)
REGULATORY AND AGENCY
APPROVALS
Safety
UL 60950-1
CSA 22.2 60950
EN 60950
IEC 60950
Emissio s
EN 55022 Class A, FCC Part 15 Subpart
B Class A, ICES-003 Class A, VCCI
Class A, AS/NZS 3548 Class A
CNS 13438 Class A
(not applicable to Switch 2126-G)
E viro me tal: EN 60068 (IEC 68)
Immu ity: EN 55024
IEEE STANDARDS SUPPORTED
IEEE 802.1d AC Bridges
IEEE 802.1p Priority Tags
(Switch 2816 and 2824 only)
IEEE 802.3 Ethernet
IEEE 802.3ab Gigabit Ethernet
(Switch 2126-G, 2816 and 2824 only)
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3z Gigabit Ethernet
(Switch 2126-G, 2816 and 2824 only)
ISO 8802-3
PACKAGE CONTENTS
Switch unit, power cord, 4 self-adhesive
rubber pads, rack-mount kit, user
guide, warranty flyer
WARRANTY AND OTHER SERVICES
Three Year Limited Hardware Warranty,
including fans and power supply
Limited Software Warranty for 90 days
Advance Hardware Replacement
with Next Business Day shipment in
most regions
90 days of telephone technical support
Refer to www.3com.com/warra ty
for details.
