Service and Electronic/Vacuum
Operating Instructions
403248 12/21/07 10:32 AM Page 1
8020746_Service Vac Manual.indd 1 6/10/08 12:05:18 PM
8020746_Service Vac Manual.indd 2 6/10/08 12:05:18 PM
23M™ Service Vacuum Operating Instructions © 3M 2008
Power Cord Replacement:
To reduce the risk of fire
or electric shock, use
appliance only with 3M Part
No. SV-PC8 or SV-PC15
supply cord. If cord is
damaged or lost, replace
only with 3M Part No. SV-PC8
or SV-PC15 supply cord.
SV-PC8 Stock No. 80-6104-7964-6
SV-PC15 Stock No. 80-6104-7965-3
403248 12/21/07 10:33 AM Page 4
U.L. Listed (U.S. and Canada)

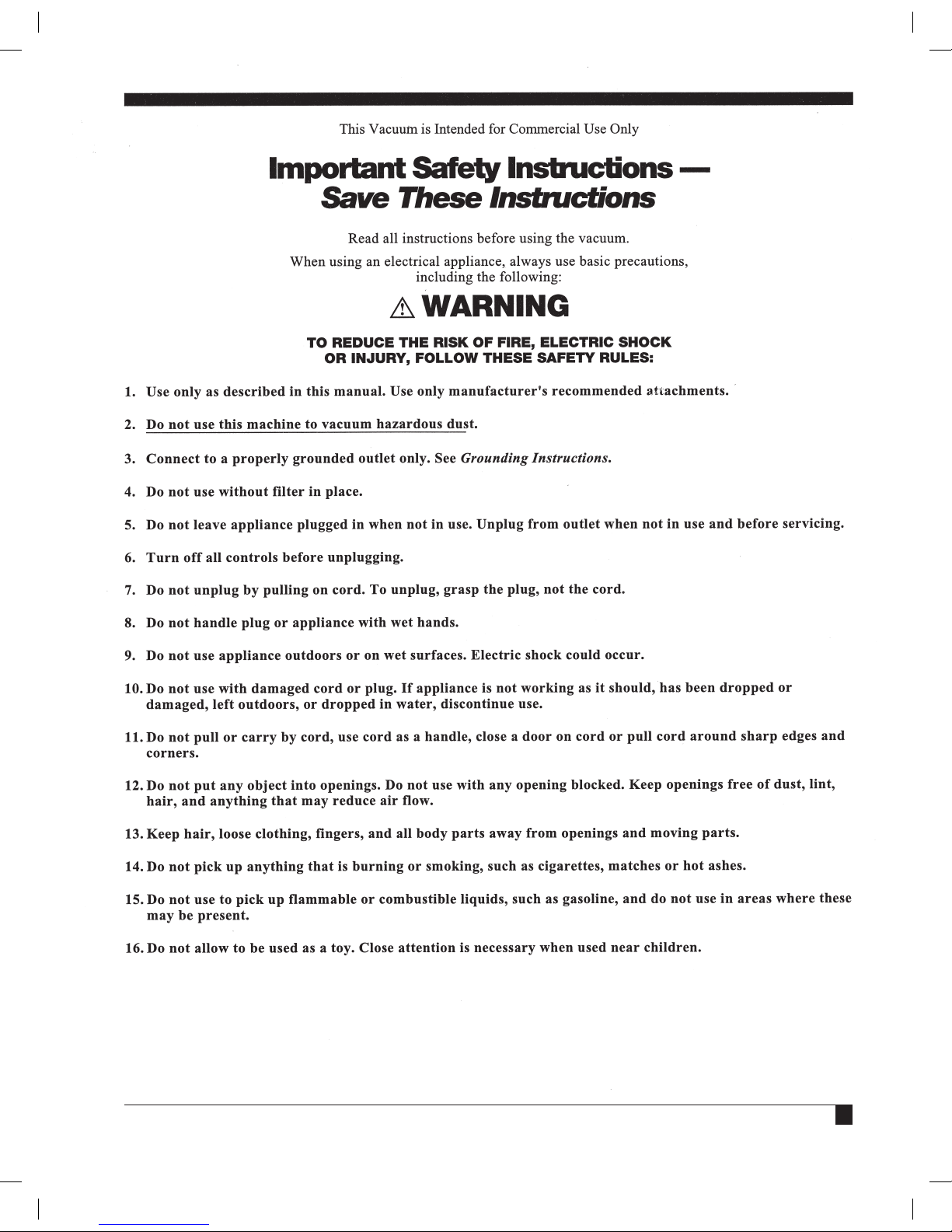

WARNING!
120
Continuous duty rated sealed ball
bearings lubricated for life. Internal
8020746_Service Vac Manual.indd 3 6/10/08 12:05:21 PM
3
© 3M 2008 3M™ Service Vacuum Operating Instructions

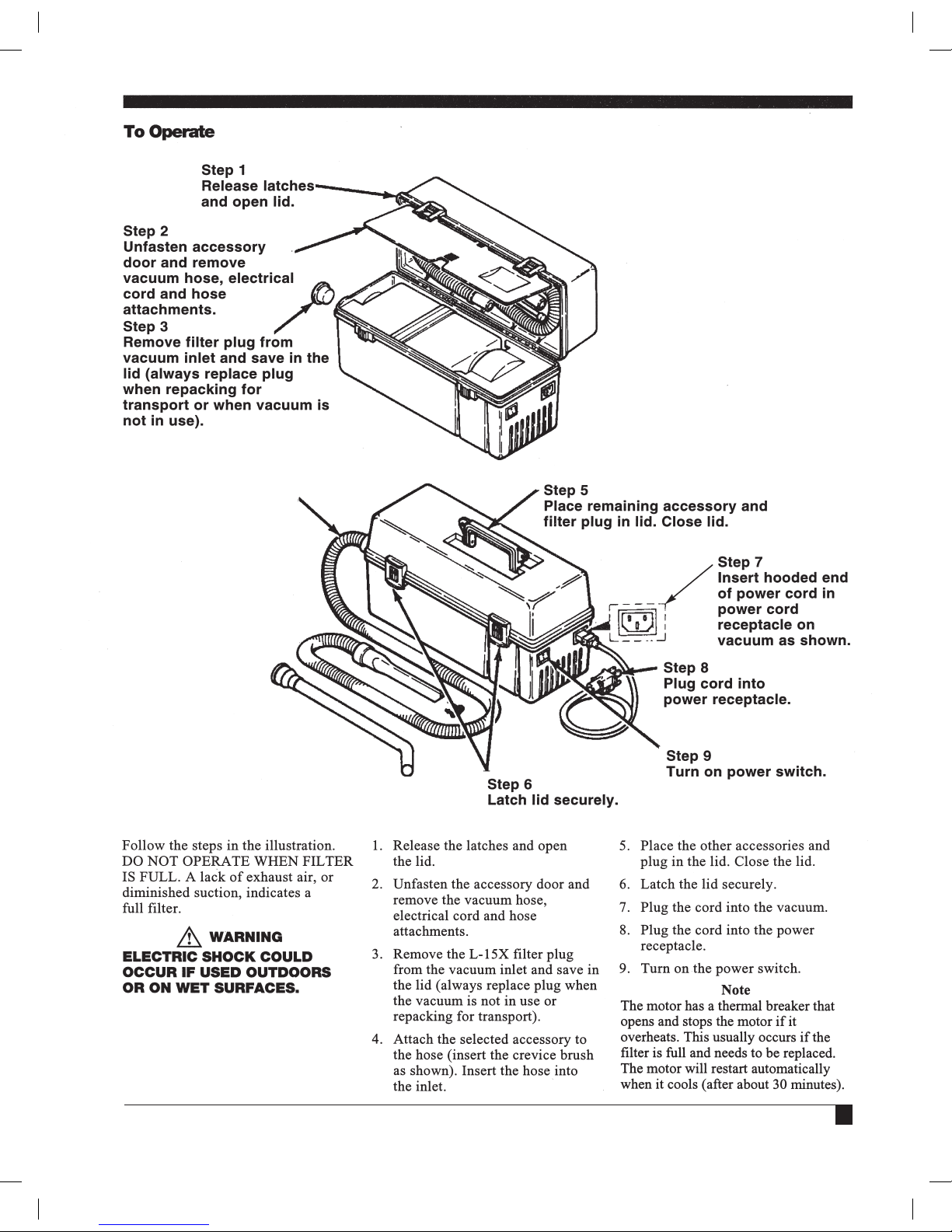

Step 4
Attach selected
accessory to hose (insert
crevice brush as shown).
Insert other end of hose
into inlet.
403248 12/21/07 10:33 AM Page 5
8020746_Service Vac Manual.indd 4 6/10/08 12:05:25 PM
43M™ Service Vacuum Operating Instructions © 3M 2008
4. Detach the hose nozzle from
the base.
5. Place the hose, power cord and
attachments into the lid and close
the accessory door.
6. Close the lid and securely fasten
the latches.

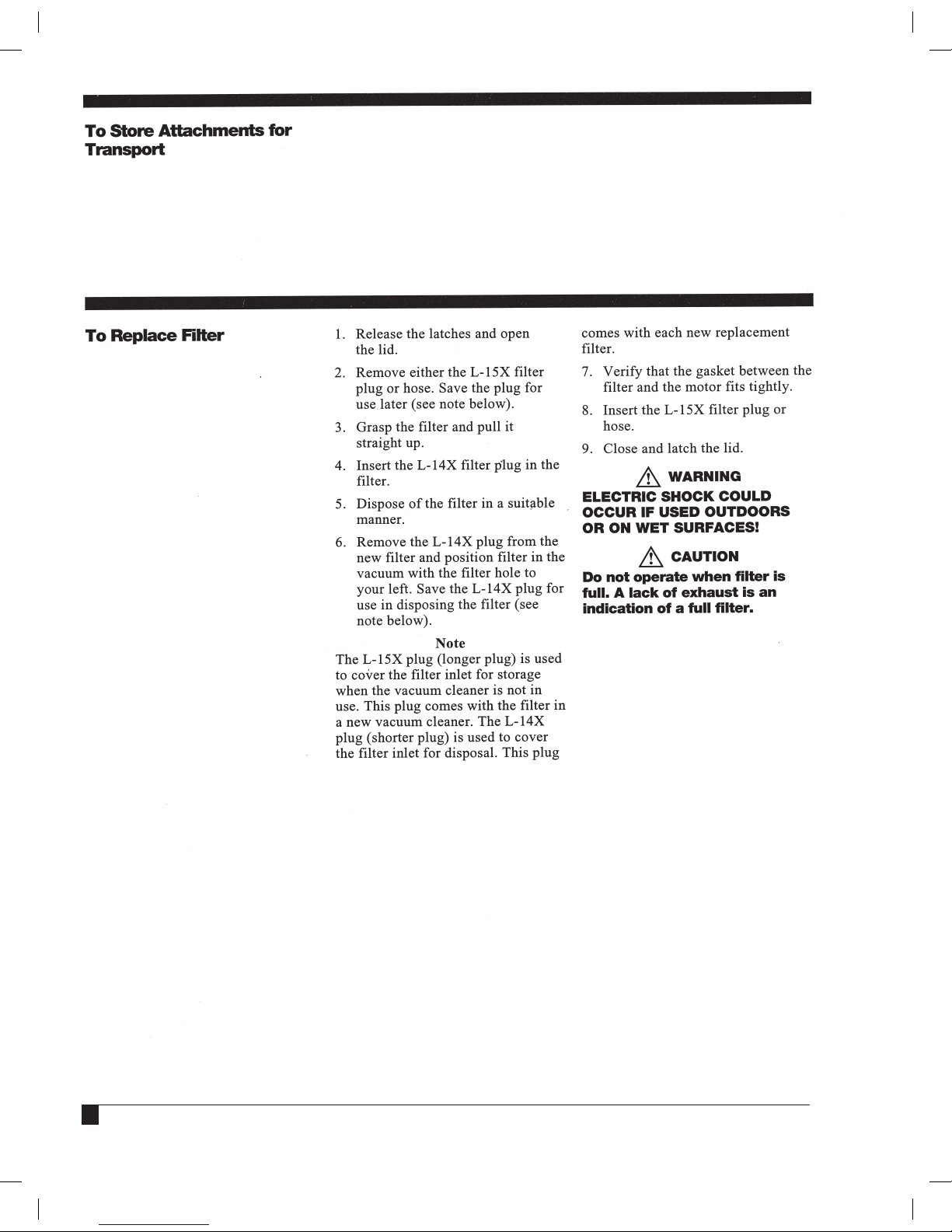

1. Unplug the power cord from the
outlet and the vacuum.
2. Open the lid and retrieve the
L-15X filter plug.
3. Remove the hose from the inlet
and insert the L-15X filter plug.
403248 12/21/07 10:33 AM Page 6
8020746_Service Vac Manual.indd 5 6/10/08 12:05:29 PM
5
© 3M 2008 3M™ Service Vacuum Operating Instructions
15 12
1 80-6104-7963-8 Power Cord Receptacle (SV-PCR) Service
2 78-8063-1874-3 Power Cord Receptacle with RFI Filter (SV-PCR3) Electronics
scinortcelE/ecivreS)8CP-VS(toof8,droCrewoP6-4697-4016-083
scinortcelE/ecivreS)23HS-VS(esoHmuucaV8-8142-3608-874
scinortcelE/ecivreS)1NC-VS(elzzoNeciverC8-8597-4016-085
6 78-8063-1540-0 Curved Wand Nozzle (SV-WA2) Service/Electronics
8 78-8005-5350-1 Type 2 Filter, Toner/Dust (SV-MPF2) Service/Electronics
scinortcelE/ecivreS)1BC-VS(hsurBeciverC0-7597-4016-089
10 78-8079-9435-1 Needle Nose Nozzle (SV-NN) Electronics
scinortcelE)1DSBD-VS(hsurBgnitsuD4-0697-4016-0811
scinortcelE/ecivreS)H-VS(eldnaH2-1697-4016-0821
13 80-6104-7640-2 Short Red Filter Plug L-14X (SV-SRP) Service/Electronics
14 80-6104-7639-4 Long Red Filter Plug L-15X (SV-LRP) Service/Electronics
scinortcelE/ecivreS)SL-VS(hctaL0-2697-4016-0851
Store service technician
tools in tool pockets in
top tool pallet and
second tool pallet.
Use second
tool pallet as
a workstation.
403248 12/21/07 10:33 AM Page 7
8020746_Service Vac Manual.indd 6 6/10/08 12:05:38 PM
63M™ Service Vacuum Operating Instructions © 3M 2008

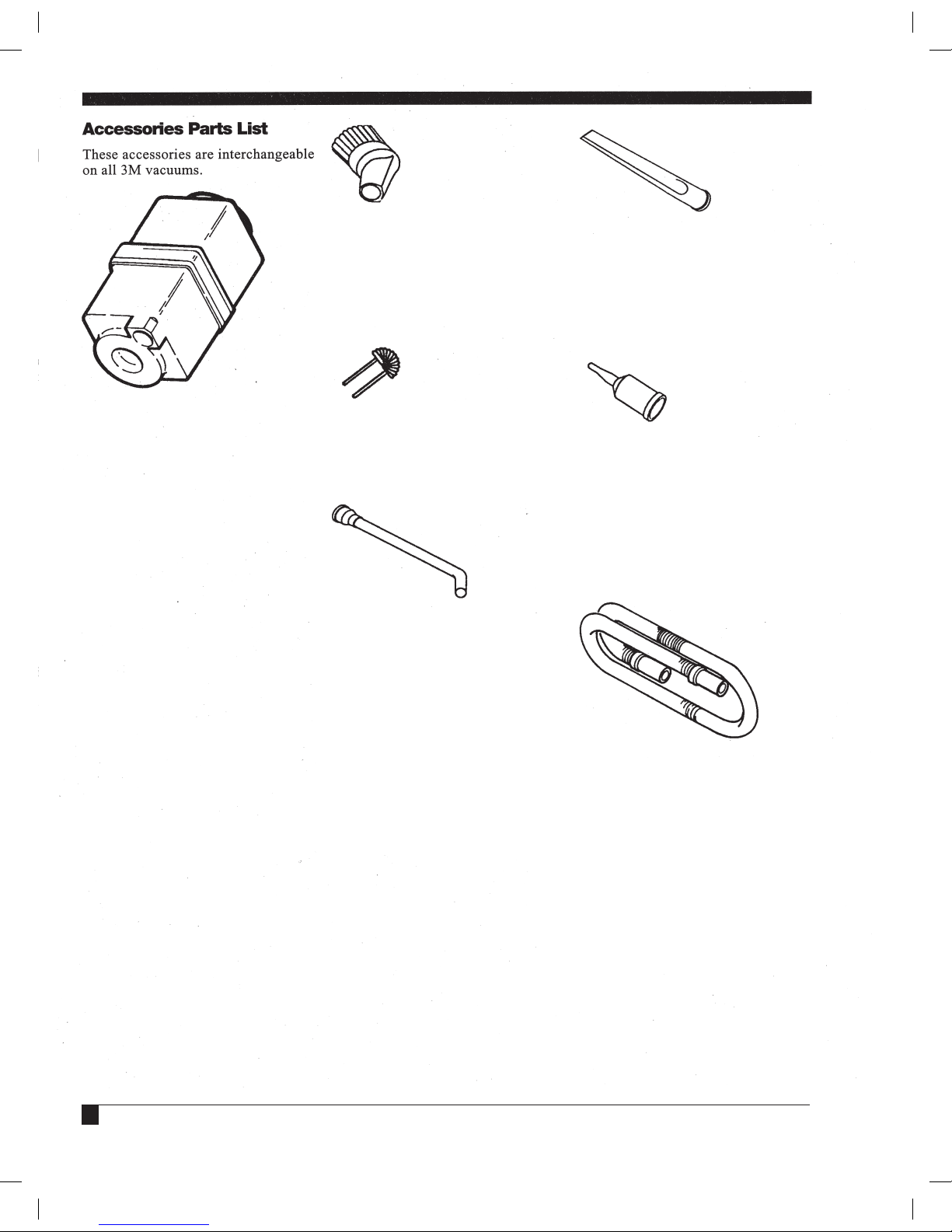

3M™ Dusting Brush, Static
Dissipative (SV-DBSD1)
80-6104-7960-4. Used for applications
involving static sensitive electronic
components (such as circuit boards) to
prevent static buildup.
3M™ Crevice Nozzle, Static
Dissipative (SV-CN1)
80-6104-7958-8. Used for general
cleaning of loose materials in
accessible areas. Prevents static
buildup.
3M™ Crevice Brush (SV-CB1)
80-6104-7957-0. Used with crevice
nozzle for general cleaning where a
brush is needed to loosen foreign
material. (NOT static dissipative.)
3M™ Curved Wand Nozzle, Static
Dissipative (SV-WA2)
78-8063-1540-0. Used for general
cleaning on hard to reach areas. Static
dissipative properties prevent static
buildup.
3M™ Needle Nose Nozzle, Static
Dissipative (SV-NN)
78-8079-9435-1. Used primarily for
cleanign circuit boards. Needle nose
design permits cleaning in very small
areas, and static dissipative properties
prevent static buildup.
3M™ Stretch Hose, 32-Inch (SV-SH32)
78-8063-2418-8. Used for general
applications. Stretches to
approximately 10 feet.
3M™ Stretch Hose, 50-Inch (SV-SH50)
78-8068-5818-5. Used where vacuum
cannot be brought close to the object
or area being cleaned.
403248 12/21/07 10:33 AM Page 8
3M™ Type 1 Filter, Fine Particle
(SV-SPF1)
78-6969-6211-3. A thinner, more
concentrated weave (HEPA media) for
trapping extremely fine particles to 0.3
microns. Typical applications are color
laser printers, color copiers and highly
sensitive equipment. (Disposable)
3M™ Type 2 Filter, Toner/Dust
(SV-MPF2)
78-8005-5350-1. Specifically designed
for trapping unwanted toner from
copiers and laser printers. Also ideal
for cleaning data processing equipment.
(Disposable)
8020746_Service Vac Manual.indd 7 6/10/08 12:05:45 PM
7
© 3M 2008 3M™ Service Vacuum Operating Instructions
3M™ Carrying Strap (SV-CS1)
80-6104-7959-6. Used where hands-
free transport of vacuum is preferred.
3M™ Power Cord, 8-Foot (SV-PC8)
80-6104-7964-6. Standard power
cord supplied with vacuum.
3M™ Power Cord, 15-Foot (SV-PC15)
80-6104-7965-3. Used where
electrical outlet cannot be reached
with standard 8-foot cord. Optional.
403248 12/21/07 10:33 AM Page 9
8020746_Service Vac Manual.indd 8 6/10/08 12:05:47 PM
83M™ Service Vacuum Operating Instructions © 3M 2008
3M™ Service Vacuum Cleaner and Tool Case
Limited Warranty and Limitation of Liability
Limited Warranty: To the first user purchasing this 3M Service Vacuum Cleaner and Tool
Case, 3M warrants that the 3M Service Vacuum will be free of defects in material and
manufacture for a period of three (3) years from the time of purchase and the Tool Case
will be free of defects in material and manufacture for a period of one (1) year from the
date of purchase. Should any failure to conform to this warranty appear within this period
upon notice to 3M within said three (3) years for the service vacuum cleaner and one (1)
year for the tool case from the date of purchase, and upon proof of purchase, 3M shall, at
its option, either repair or replace the defective product. It will be the purchaser’s responsi-
bility to return the product, freight prepaid, to the service location specified by 3M. These
remedies are the purchaser’s exclusive remedies for breach of this warranty.
Exclusions to Warranty Coverage: The above warranty shall not apply to any 3M Service
Vacuum Cleaner that has been modified without the approval of 3M, or has been damaged
by negligence, misuse, accident, failure to follow 3M’s written operating instructions or
use of any filter which does not meet 3M specifications. Consumable supplies, such as fil-
ters, are not covered by the above warranty.
Disclaimer of Warranty: EXCEPT FOR THE IMPLIED WARRANTIES OF TITLE
AND AGAINST PATENT INFRINGEMENT, 3M MAKES NO OTHER WARRANTIES
WITH RESPECT TO THE 3M SERVICE VACUUM CLEANER, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Limitation of Liability: 3M SHALL NOT BE LIABLE UNDER ANY CIRCUM-
STANCES FOR ANY INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES,
OR ECONOMIC LOSS, BASED UPON BREACH OF WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY IN TORT OR ANY OTHER LEGAL
THEORY, EVEN IF 3M HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE,
EQUIPMENT USE, DATA OR INFORMATION OF ANY KIND. THE LIABILITY OF
3M SHALL NOT UNDER ANY CIRCUMSTANCES, EXCEPT AS EXPRESSLY PRO-
VIDED HEREIN, EXCEED THE PRICE OF THE 3M SERVICE VACUUM CLEANER.
These limitations do not apply to damages caused by breach of the implied warranties of
title and against infringement, nor to claims for personal injury. Some states have laws
which require liability rights different from those stated above. In such states, the mini-
mum required liability terms shall apply.
403248 12/21/07 10:33 AM Page 10
8020746_Service Vac Manual.indd 9 6/10/08 12:05:50 PM
1
© 3M 2008 3M™ Service Vacuum Operating Instructions
403248 12/21/07 10:33 AM Page 3
Keep cord away from heated surfaces.
8020746_Service Vac Manual.indd 10 6/10/08 12:05:53 PM
