4RF Aprisa LTE User manual

User Manual
February 2021
Version 2.1 (released with software build 2.1.00811003)

| 3
Aprisa LTE User Manual 2.1
Copyright
Copyright © 2021 4RF Limited. All rights reserved.
This document is protected by copyright belonging to 4RF Limited and may not be reproduced or republished
in whole or part in any form without the prior written permission of 4RF Limited.
Trademarks
Aprisa and the 4RF logo are trademarks of 4RF Limited.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries. All
other marks are the property of their respective owners.
Disclaimer
Although every precaution has been taken preparing this information, 4RF Limited assumes no liability for
errors and omissions, or any damages resulting from use of this information. This document or the equipment
may change, without notice, in the interests of improving the product.
RoHS and WEEE Compliance
The Aprisa LTE is fully compliant with the European Commission’s RoHS (Restriction of Certain Hazardous
Substances in Electrical and Electronic Equipment) and WEEE (Waste Electrical and Electronic Equipment)
environmental directives.
Restriction of hazardous substances (RoHS)
The RoHS Directive prohibits the sale in the European Union of electronic equipment containing these
hazardous substances: lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls (PBBs),
and polybrominated diphenyl ethers (PBDEs).
4RF has worked with its component suppliers to ensure compliance with the RoHS Directive which came into
effect on the 1st July 2006.
End-of-life recycling programme (WEEE)
The WEEE Directive concerns the recovery, reuse, and recycling of electronic and electrical equipment.
Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
4RF has instigated a programme to manage the reuse, recycling, and recovery of waste in an environmentally
safe manner using processes that comply with the WEEE Directive (EU Waste Electrical and Electronic
Equipment 2002/96/EC).
4RF invites questions from customers and partners on its environmental programmes and compliance with
the European Commission’s Directives ([email protected]m).

4|
Aprisa LTE User Manual 2.1
Compliance General
The Aprisa LTE router operates within frequency bands that are controlled through spectrum license
managed by the carriers
1
. Devices using these frequencies must meet the regional regulatory requirements
in addition to any requirements put in place by the carriers.
It is the responsibility of the user, before operating the equipment, to ensure that where required the
appropriate regulatory and regional carrier requirements have been met.
Changes or modifications not approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Equipment authorizations sought by 4RF are based on the Aprisa LTE router being installed at a fixed
restricted access location and operated within the environmental profiles defined in Table 1; operation
outside these criteria may invalidate the authorizations and / or license conditions.
Table 1 General Compliance
Environmental
Storage: EN 300 019-1-1 Class 1.2
Transportation: EN 300 019-1-2 Class 2.3
Stationary use: EN 300 019-1-3 Class 3.3
Mobile use: EN 300 019-1-5 Class 5.1
Vehicle
ISO 7637-2, ISO 16750-2 (12V Code D 24V Code E)
Shock & Vibration: SAE J1455
Safety
UL 62368-1, Class 1 division 2, Groups ABCD for
hazardous locations
1
The carriers are the mobile phone carriers such as Verizon, AT&T, Vodafone etc.

| 5
Aprisa LTE User Manual 2.1
Compliance United States of America FCC
The Aprisa LTE router may contain an LTE module and/or a WLAN Network module certified to Federal
Communications Commission (FCC) specifications defined in Table 2:
Table 2 USA Compliance
HOST ONLY
(Aprisa LTE without
modules)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
WWAN (LTE)
This product may contain an LTE Module of type:
Sierra Wireless EM7565 FCC ID: N7NEM75
Sierra Wireless EM7511 FCC ID: N7NEM75S
Sierra Wireless EM7455 FCC ID: N7NEM7455
47 CFR Parts 22, 24, 27, 90 and 96
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
WLAN (Network)
This product may contain a Network Module of type:
Wi-Fi Module FCC ID: SQG-60SIPT
47 CFR Parts 15C and 15E
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
EMC
47 CFR Part 15B
LTE
PTCRB, CBRS End Device, AT&T, Verizon Wireless, Anterix

6|
Aprisa LTE User Manual 2.1
Compliance Canada ISED
(future compliance)

| 7
Aprisa LTE User Manual 2.1
Compliance Hazardous Locations Notice
This product is suitable for use in Class 1, Division 2, Groups ABCD hazardous locations or non-hazardous
locations. A Nationally Recognized Testing Laboratory (NRTL) listed Safety Extra Low Voltage / Limited
Power Source (SELV/LPS) power supply with a maximum rating of 32V d.c., 100W is required to power the
equipment.
The following text is printed on the Aprisa LTE:
WARNING: EXPLOSION HAZARD - Do not connect or disconnect while circuits are live unless area is known to
be non-hazardous.
The following text is printed on the Aprisa LTE where the end user is in Canada:
AVERTISSEMENT: RISQUE D'EXPLOSION - Ne pas brancher ou débrancher tant que le circuit est sous tension,
à moins qu'il ne s'agisse d'un emplacement non dangereux.

8|
Aprisa LTE User Manual 2.1
Symbols
ISO 7000-0434B
Exposure Warning
Avertissement d'exposition
IEC 60417-5041
Potential hot surface hazard
Risque potentiel de surface chaude
ISO 7000-0434B
Read the instructions
Lis les instructions

| 9
Aprisa LTE User Manual 2.1
RF Exposure Warning
WARNING:
At least 20 cm separation distance between the antennas of the collocated transmitters
and the user’s body must be maintained at all times.
To comply with FCC/IC regulations limiting both maximum RF output power and human
exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-
only exposure condition must not exceed the limits stipulated in Table 3.
The radiated power of a collocated transmitter must not exceed the EIRP limit
stipulated in Table 3:
ATTENTION:
Une distance de séparation d'au moins 20 cm entre les antennes des émetteurs
colocalisés et le corps de l'utilisateur doit être maintenue à tout moment.
Pour se conformer aux réglementations FCC / IC limitant à la fois la puissance de sortie
RF maximale et l'exposition humaine au rayonnement RF, le gain d'antenne maximal, y
compris la perte de câble dans une condition d'exposition uniquement mobile, ne doit
pas dépasser les limites stipulées dans le tableau 3.
La puissance rayonnée d'un émetteur colocalisé ne doit pas dépasser la limite indiquée
dans le tableau 3:
Table 3 Antenna Compliance Requirements
Operating mode
Tx Freq Range
(MHz)
Max Time-Avg
Cond. Power
(dBm)
Maximum Antenna Gain c
EIRP
Limits
(dBm)
Standalone
(dBi)
Collocated
(dBi)
LTE B2
1850 - 1910
24
6
4
30
LTE B4
1710 –1755
24
6
4
30
LTE B5
824 –849
24
6
4
30
LTE B7
2500 –2570
23.8 a
9
4
32.8
LTE B12
699 –716
24
6
4
30
LTE B13
777 –787
24
6
4
30
LTE B26
814 –849
24
6
4
30
LTE B41
2496 –2690
23.8 a
9
4
32.8
LTE B48 b
3550 –3700
23
0
0
23
LTE B66
1710 –1780
24
6
4
30
Co-located Transmitters
WLAN 2.4 GHz
2400 - 2500
21.4
2.79
2.79
30
WLAN 5 GHz
5150 - 5850
21.6
3.9
3.9
30
a Includes 0.8 dB offset from single-cell tolerance for UL CA.
b Important: Airborne operations in LTE Band 48 are prohibited.
c Standalone refers to LTE operation where the Wi-Fi module is not fitted. Antenna gain above the
collocated maximum gain value must not be used when the Wi-Fi module is fitted.

Contents | 11
Aprisa LTE User Manual 2.1
Contents
1. Introduction .............................................................................15
About This Manual ................................................................................15
What It Covers .............................................................................15
Who Should Read It........................................................................15
Contact Us ..................................................................................15
What’s in the Box.................................................................................16
LTE Product Overview ...........................................................................17
Key Features ...............................................................................17
Front Panel Connections .................................................................18
Rear Panel Connections ..................................................................19
LED Indicators ..............................................................................20
Ethernet / Serial Port LED Indicators ..................................................21
Interfaces ...................................................................................22
Antenna Interfaces .................................................................22
Ethernet Interface..................................................................22
RS-232 / RS-422 / RS-485 Interface .............................................22
USB Interface........................................................................22
SFP Module Socket .................................................................22
LTE Architecture Overview .....................................................................23
LTE Applications ..................................................................................25
Smart SCADA Applications................................................................25
Transportation Applications .............................................................29
Smart City Applications...................................................................31
Network Backhaul Applications .........................................................32
Industrial Communication Applications ................................................33
Leased Line Applications .................................................................34
DMVPN Service Applications .............................................................35
Dynamic Routing Applications ...........................................................36
MP/BGP ..............................................................................36
OSPF ..................................................................................37
LTE Product options..............................................................................38
LTE Modules ................................................................................38
Network Modules ..........................................................................38
Processor....................................................................................38
Power Supply ...............................................................................39
Tamper Protection ........................................................................39
Tethered ....................................................................................40
Wi-Fi Region ................................................................................40
LTE Accessories ...................................................................................41
SFP Modules ................................................................................41
Antennas ....................................................................................42
Cables .......................................................................................43

12 | Contents
Aprisa LTE User Manual 2.1
2. LTE Router Installation................................................................ 44
Basic Hardware Setup............................................................................44
Installing a SIM ......................................................................44
Attach the Cellular LTE, GNSS and Wi-Fi Antennas ...........................44
Connect the LTE to the Power Source ..........................................44
Installing an SFP Module...........................................................45
Hardware Restoring of Factory Defaults ........................................45
Basic Software Setup.............................................................................46
Software Upgrade ................................................................................47
Bench Setup .......................................................................................50
Power Supply ......................................................................................51
Cooling .............................................................................................52
Earthing ............................................................................................53
LTE Earthing ................................................................................53
Mounting Options .................................................................................54
DIN Rail Mounting..........................................................................55
Antenna Selection ................................................................................56
LTE Antenna Requirements ..............................................................56
GNSS Antenna Requirements ............................................................57
Wi-Fi Antenna Requirements ............................................................57
RF Connector Adapters ...................................................................58
Interface Connection and Cabling .............................................................59
Ethernet Interface Connections .........................................................59
Fibre Optic Connections ..................................................................59
Serial RS-232 Interface Connections....................................................60
Serial RS-422 / RS-485 Interface Connections ........................................61
USB...........................................................................................61
GPIO .........................................................................................62
Spares ..............................................................................................63
Spare Fuses .................................................................................63
Power Connectors .........................................................................63
3. Managing the LTE.......................................................................64
SuperVisor .........................................................................................64
SuperVisor Management Overview .............................................................65
Connecting to SuperVisor ................................................................65
Login to SuperVisor........................................................................66
Logout of SuperVisor ...............................................................67
SuperVisor Page Layout...................................................................68
SuperVisor Menu Access ..................................................................69
SuperVisor Menu Items...........................................................................71
Terminal ....................................................................................71
Terminal > Summary ...............................................................71
Terminal > Details ..................................................................72
Terminal > Device ..................................................................74
Cellular......................................................................................75
Cellular > Summary ................................................................78
Cellular > General ..................................................................83
Cellular > Carrier/Redundancy ...................................................85
Cellular > SIM 1 & 2 ................................................................88
Cellular > SMS .......................................................................89
Location.....................................................................................90
Location > Summary ...............................................................90
Location > General .................................................................92
Interfaces/Networking....................................................................93

Contents | 13
Aprisa LTE User Manual 2.1
Interfaces/Networking > Summary ..............................................93
Interfaces/Networking > Ethernet ...............................................94
Interfaces/Networking > SFP .....................................................96
Interfaces/Networking > Serial...................................................97
Interfaces/Networking > USB ................................................... 103
Interfaces/Networking > WiFi .................................................. 104
Interfaces/Networking > Logical Interfaces.................................. 109
Interfaces/Networking > Static Routes ....................................... 131
Interfaces/Networking > DHCP and DNS ...................................... 134
Interfaces/Networking > Firewall.............................................. 137
Interfaces/Networking > QoS ................................................... 145
Services ................................................................................... 149
Services > Summary .............................................................. 149
Services > SuperVisor ............................................................ 150
Services > DDNS................................................................... 151
Services > Date & Time.......................................................... 152
Services > Management.......................................................... 155
Security ................................................................................... 157
Security > Summary .............................................................. 157
Security > Setup .................................................................. 158
Security > Users................................................................... 159
Security > RADIUS ................................................................ 162
Security > VPN .................................................................... 165
Security > SSH..................................................................... 177
Security > HTTPS ................................................................. 178
Security > SNMPv2/v3............................................................ 180
Maintenance.............................................................................. 184
Maintenance > General .......................................................... 184
Maintenance > Files .............................................................. 186
Maintenance > Cellular .......................................................... 190
Maintenance > Networking...................................................... 192
Events ..................................................................................... 193
Events > Alarm Summary ........................................................ 193
Events > History Log ............................................................. 194
Events > Setup .................................................................... 195
Events > Action Setup............................................................ 197
Events > Trap Setup .............................................................. 199
Events > Alarm I/O Setup ....................................................... 202
Events > Syslog.................................................................... 204
Events > Defaults ................................................................. 206
Software .................................................................................. 207
Software > Summary ............................................................. 207
Software > Setup ................................................................. 209
Software > File Transfer......................................................... 210
Software > Manager .............................................................. 212
Monitoring ................................................................................ 214
Monitoring > Terminal ........................................................... 214
Monitoring > Cellular............................................................. 215
Monitoring > Ethernet............................................................ 217
Monitoring > Serial ............................................................... 219
Monitoring > WiFi ................................................................. 220
Monitoring > VPN ................................................................. 221
Monitoring > DHCP................................................................ 222
Monitoring > Firewall ............................................................ 223
Monitoring > Routes .............................................................. 224
Monitoring > Address Tables .................................................... 225

14 | Contents
Aprisa LTE User Manual 2.1
Command Line Interface ...................................................................... 226
Connecting to the CLI via SSH ......................................................... 226
CLI Commands ........................................................................... 228
SNMP Management ............................................................................. 235
SNMPv2c and TRAP/Informs............................................................ 235
SNMP MIB Structure ..................................................................... 235
Standard SNMP MIBs Supported........................................................ 236
Aprisa LTE Proprietary MIBs Supported .............................................. 236
4. Maintenance........................................................................... 237
Spare Fuses ...................................................................................... 237
5. Alarm Events .......................................................................... 239
Alarm Events ............................................................................. 239
GNSS Alarm Events ...................................................................... 240
6. Product Specifications .............................................................. 241
LTE router ....................................................................................... 241
LTE router ................................................................................ 241
Protocols .................................................................................. 241
Wi-Fi ....................................................................................... 241
Security ................................................................................... 242
Interface Specifications ....................................................................... 243
Ethernet Interface....................................................................... 243
Ethernet Interface (with SFP) ......................................................... 243
RS-232 Asynchronous Interface........................................................ 244
General Purpose I/O (GPIO) Pin Interface ........................................... 245
Power Specifications ........................................................................... 246
Power Supply ............................................................................. 246
General Specifications ......................................................................... 246
Environmental............................................................................ 246
Mechanical................................................................................ 246
7. Open Source License Statement .................................................. 247
8. Trademarks and Service ............................................................ 247
Trademarks ...................................................................................... 247
Service............................................................................................ 247
9. Product End Of Life .................................................................. 248
End-of-Life Recycling Programme (WEEE) ........................................... 248
The WEEE Symbol Explained ........................................................... 248
WEEE Must Be Collected Separately .................................................. 248
YOUR ROLE in the Recovery of WEEE................................................. 248
EEE Waste Impacts the Environment and Health ................................... 248

Introduction | 15
Aprisa LTE User Manual 2.1
1. Introduction
About This Manual
What It Covers
This user manual describes how to install and configure an Aprisa LTE router.
It specifically documents an Aprisa LTE router running system software version 2.1.
It is recommended that you read the relevant sections of this manual before installing or operating the LTE
router.
Who Should Read It
This manual has been written for professional field technicians and engineers who have an appropriate level
of training and experience. Only such persons shall install and service the Aprisa LTE.
Contact Us
If you experience any difficulty installing or using Aprisa LTE after reading this manual, please contact
Customer Support or your local 4RF representative.
The 4RF New Zealand head office is:
4RF Limited
26 Glover Street, Ngauranga
PO Box 13-506
Wellington 6032
New Zealand
E-mail
[email protected]
Website
www.4rf.com
Telephone
[phone]
Facsimile
[phone]
The 4RF United States sales office is:
4RF USA, Inc.
2301 Blake Street
Denver
Colorado 80205
United States of America
E-mail
[email protected]
Website
www.4rf.com
Telephone
[phone]

16 | Introduction
Aprisa LTE User Manual 2.1
What’s in the Box
Inside the box you will find:
•One Aprisa LTE router
•One power cable one metre fitted with 4 pin Molex Micro-Fit 3.0 female connector and wire ended
see ‘Power Supply’ on page 51.
•One power connector, power retention clip and screw
The Aprisa LTE Quick Start Guide is available on the 4RF website at the URL Aprisa LTE Quick Start Guide

Introduction | 17
Aprisa LTE User Manual 2.1
LTE Product Overview
The 4RF Aprisa LTE is a 3GPP LTE router for critical infrastructure monitoring and control for smart SCADA
(e.g. electricity, water, oil and gas industries), transportation, smart city, backhaul, and industrial
communication hardened for both mission and business critical applications.
Key Features
•LTE wireless data services providing broadband enhanced LTE data rates and latency
•Supports strong CSNA complaint encryption, authentication and hashing algorithms (eg RSA4096 and
SHA384).
•GRE VPN, and IPSec support, the Aprisa LTE protects against vulnerabilities and malicious attacks
•Serial and Ethernet ports with an SFP port for additional electrical / optical connection
•Integrates into a wide range of industrial and utility applications with redundant carrier connections
for public and private networks
•Mobility and Wi-Fi supporting advanced remote visibility in vehicle networks with GNSS location
•GNSS navigation and 2x2 MIMO Wi-Fi access point/client for robust workforce mobility and
communication
•Advanced L2 / L3 capabilities: selectable L2 or L3 modes with VLAN, QoS, NAT, IPv4, and IPv6
•Transition support to maximize performance and prioritize mission critical traffic while meeting
tough security and IP network policy imperatives
•A wide temperature range using full specification industrially rated components and shared Aprisa
family heritage
•Easily managed with SuperVisor GUI local element management via HTTPS
•Element management over the air via SNMP to allow network-wide monitoring
•Control, and orchestration via a variety of supported third party network management systems
•Failover: single LTE router, dual SIM with switch over, and interface failover to provide alternate
path routing on WAN or FAN failure

18 | Introduction
Aprisa LTE User Manual 2.1
Front Panel Connections
The front panel connections to the LTE are:
Designator
Description
9 - 32 VDC---3A
+9 to +32 VDC (negative ground) DC power input using pins 1 & 2 of the 4 pin
Molex Micro-Fit 3.0 connector. See ‘Power Supply’ on page 51.
GPIO pins
General Purpose I/O with one input and one output using the power connector
pins 3 & 4 of the 4 pin Molex Micro-Fit 3.0 connector. See ‘GPIO’ on page 62.
USB Port using a USB type C connector.
Used for software upgrade. See ‘Software Upgrade’ on page 47.
ETHERNET 1 & 2
Integrated 100Base-TX layer-3 Ethernet switch/router using RJ45 connectors.
Used for Ethernet user traffic and product management. See ‘Ethernet Interface
Connections’ on page 59.
SERIAL
One port of RS-232 / RS-422 / RS-485 serial using RJ45 connector.
See ‘Serial RS-232 Interface Connections’ on page 60 and ‘Serial RS-422 / RS-485
Interface Connections’ on page 61.
SFP
SFP module socket see ‘SFP Modules’ on page 41. The LTE router supplied with
dust plug fitted to SFP socket.
MAIN
Main cellular LTE MIMO antenna using 50 ohm QMA female connector.
GNSS
GNSS (Global Navigation Satellite System) antenna using 50 ohm QMA female
connector.
DIVERSITY
Diversity cellular LTE MIMO antenna using 50 ohm QMA female connector.
Wi-Fi 1 & Wi-Fi 2
(when Wi-Fi fitted)
For connection of Wi-Fi MU-MIMO antennas, see ‘Wi-Fi Antenna Requirements’
on page 57.

Introduction | 19
Aprisa LTE User Manual 2.1
Rear Panel Connections
The rear panel connections to the LTE are:
Designator
Description

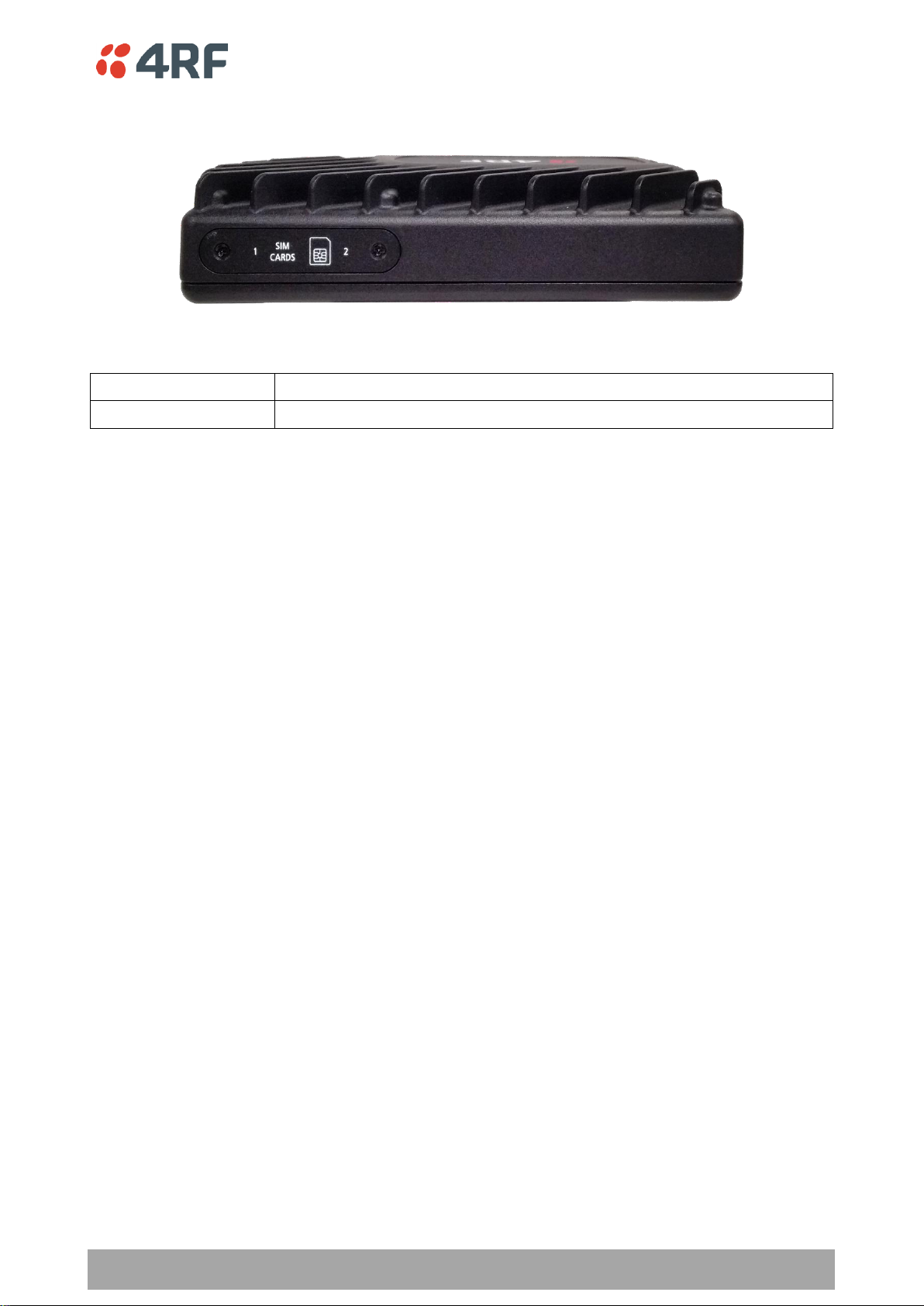

SIM cards 1 & 2
Removable plate for fitting of SIM cards. See ‘Installing a SIM’ on page 44

20 | Introduction
Aprisa LTE User Manual 2.1
LED Indicators
The Aprisa LTE LEDs indicate the following conditions:
OK
AUX
SFP
TX (LTE)
RX (LTE)
Wi-Fi
Off
No input power
detected
USB disabled or
no USB device
detected and
GNSS disabled or
not present
Disabled, SFP
not fitted, no
link or link
failed
No LTE TX link
No LTE RX link
Wi-Fi not
enabled, Wifi
not linked (in
client mode
only) or no
module fitted
Solid
Green
All OK
no alarms
USB device is
detected OK or
last GPS position
valid
SFP fitted, and
link detected OK
LTE TX link OK
LTE RX link OK
Wi-Fi enabled
(access point
mode)
Wi-Fi linked
with AP (client
mode)
Flashing
Green
SFP TX or RX
traffic detected
LTE TX traffic
detected
LTE RX traffic
detected
Wi-Fi RX or TX
traffic detected
Solid
Orange
Warning & minor
alarm
Device detect on
the USB host
port
(momentary)
and GPS position
of poor quality
(hdop > 5) when
GNSS receiver
enabled
SFP LOS (loss of
signal) detected
LTE TX link in
fallback to
secondary SIM
LTE RX link in
fallback to
secondary SIM
Wi-Fi in client
mode and
connected OK
Flashing
Orange
Troubleshooting
/maintenance,
OTA software
upgrade
Management
traffic on the
USB port or
receive invalid
position from
GNSS
LTE TX traffic
when link in
fallback
LTE RX traffic
when link in
fallback
Wi-Fi RX or TX
traffic detected
(client mode)
Solid
Red
Critical & major
alarm active,
HW fail
GNSS is enabled
but last known
position is
invalid
SFP module
reports an error
LTE TX link fail
LTE RX link fail
Wi-Fi not
connected
(client mode)
Flashing
Red
GNSS Hardware
Failure
SFP module HW
failure
LTE module HW
failure
LTE module HW
failure
Wi-Fi module
HW failure
LED Colour
Severity
Green
No alarm (all OK) or Wi-Fi in AP mode
Orange
Warning alarm or LTE in fallback or Wi-Fi in client mode
Red
Critical, major or minor alarm
