A-Neuvideo ANI-HDR-100 User manual
AUDIO / VIDEO MANUFACTURER
ANI-HDR-100
HDMI 18Gbps Extender Over CAT5e/CAT6
TRANSMITTER & RECEIVER
INSTRUCTION MANUAL
A-NeuVideo.com
Frisco, Texas 75034
(469) 277-7606
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
TABLE OF CONTENTS
ANEUVIDEO
1
CONTENTS
INTRODUCTION & PACKAGE CONTENTS .................................1
FEATURES & CABLE TERMINATION ......................................... 2
SPECIFICATIONS ........................................................................ 3
OPERATION CONTROLS & FUNCTIONS ................................... 4
DESCRIPTIONS............................................................................6

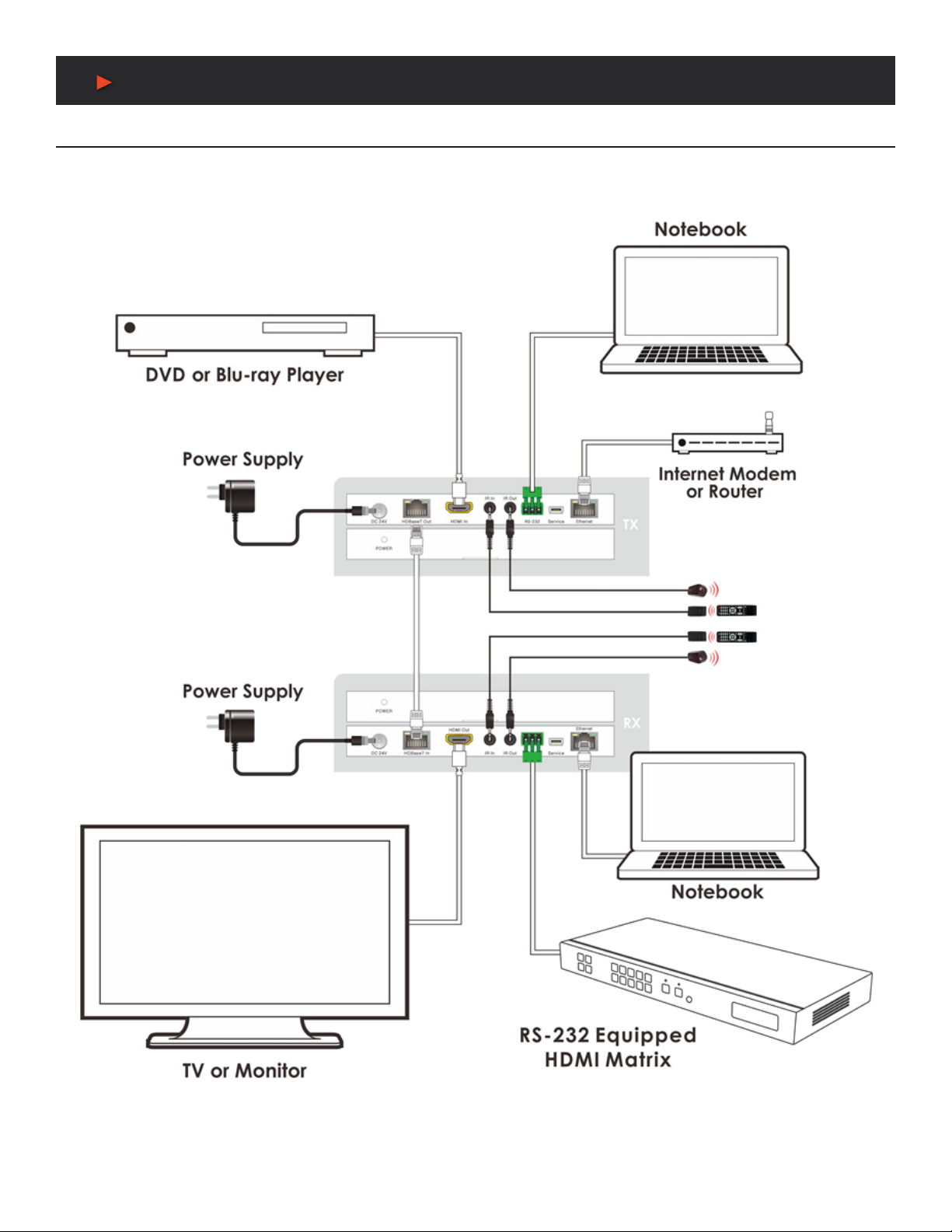

CONNECTION DIAGRAM ........................................................... 8

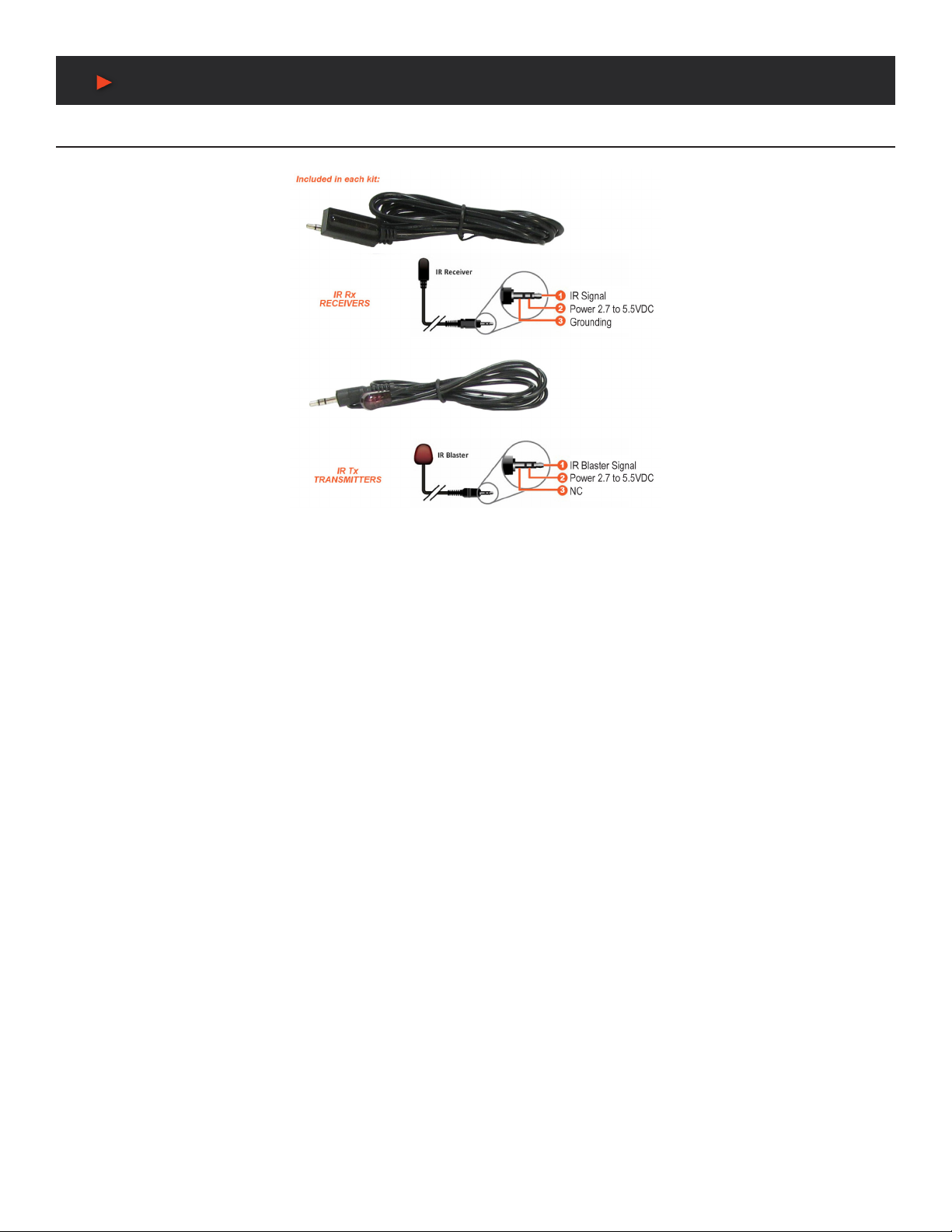

WIDEBAND IR .............................................................................. 9
INTRODUCTION
The ANI-HDR-100 18Gbps HDMI Extender is a tool which can
extend your HDMI signal over 328ft (100M) to a compatible display.
It is designed to convert HDMI signal to standard HDBaseT™signal
which can be transmitted by LAN cable. It also supports Transfer
Bidirectional infrared control signal together with the HDMI signal,
so you can control the Source in the Sink side which is 328ft
outside, also you can control the Sink in the Source side which is
328ft outside by using the HDMI Extender. This product come with
a 3 year warranty.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
• ANI-HDR-100 HDMI 18Gbps Transmitter
• ANI-HDR-100 HDMI 18Gbps Receiver
• (2) Wideband IR Tx
• (2) Wideband IR Rx
• 24V/1A Power Adaptor
• Users Guide
Surge protection device recommended
This product contains sensitive electrical components that
may be damaged by electrical spikes, surges, electric shock,
lightning strikes, etc. Use of a surge protection systems is highly
recommended in order to protect and extend the life of your
equipment.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without the express written permission and consent.
© Copyright 2018. All Rights Reserved.
Version 1.2 JAN 2018
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
2
FEATURES & cable termination
FEATURES
• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• 10bits HDR (High Dynamic Range) pass through
• Supports HDMI High Bit Rate (HBR) audio pass through
• Supports CEC bypass
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• POC (Power Over Cable) function is supported, either the TX or RX is powered by 24V@1A power supply, the other does not need
a power supply from the DC jack. POC power consumption is less than 10W.
• Transfer Bidirectional infrared control signal together with the HDMI signal.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.
• Transmission distance: Over CAT6 cable
• 328ft (100M): 1080p@60Hz 36bit; 3D1080p@30Hz 36bit
• 230ft (70M): 1080p@60Hz@48bit; 1080p@120Hz@24bit; 3D-1080p@60Hz@36bit; 4K2K@30Hz@24bit;
4K2K@50/60Hz (YUV420); 4K2K@50/60Hz (YUV444)
cable termination
CAUTION: The extender using UTP termination, which follows the standard of direct interconnection method.
ANEUVIDEO
3
SPECIFICATIONS
Specifications
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18 Gbps
• Video Resolutions: up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz,1080p@120Hz and 1080p 3D@60Hz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 10-bit, 12-bit
• HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master
Audio, Dolby Atmos, DTS:X
• Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• ESD Protection: Human body model: ±8KV (air-gap discharge) ±4KV (contact discharge)
• Inputs:
• Transmitter:
• HDMI Type A [19-pin female]
• IR INPUT [3.5mm Stereo Mini-jack]
• RS-232 [Phoenix jack]
• Service [Mini-USB jack]
• Ethernet In/Out [RJ45]
• Receiver:
• HDBaseT™In [RJ45]
• Ethernet In/Out [RJ45]
• IR INPUT [3.5mm Stereo Mini-jack]
• RS-232 [Phoenix jack]
• Service [Mini-USB jack]
• Outputs:
• Transmitter:
• HDBaseT™Out [RJ45]
• IR OUTPUT [3.5mm Stereo Mini-jack]
• Receiver:
• HDMI Type A [19-pin female]
• IR INPUT [3.5mm Stereo Mini-jack]
• Transmission Distance: Over CAT6 cable
• 328ft (100M): 1080p@60Hz 36bit; 3D1080p@30Hz 36bit
• 230ft (70M): 1080p@60Hz@48bit; 1080p@120Hz@24bit; 3D-1080p@60Hz@36bit; 4K2K@30Hz@24bit;
4K2K@50/60Hz (YUV420); 4K2K@50/60Hz (YUV444)
• Dimensions (WxDxH): 6.2 x 3.5 x .8 in (157x90x20mm)
• Weight: 333g / 0.75 lb
• Housing: Metal Enclosure
• Color: Black
• Power Supply: Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certied)
• Operating Temperature: 32˚F~104˚F (0˚C~40˚C)
• Storage Temperature: −4˚F~140˚F (−20˚C~60˚C)
• Relative Humidity: 20~90% RH (no condensation)
• Power Consumption: 24W (Max)
As product improvements are continuous, specications are subject to change without notice.
ANEUVIDEO
4
OPERATION CONTROLS & FUNCTIONS

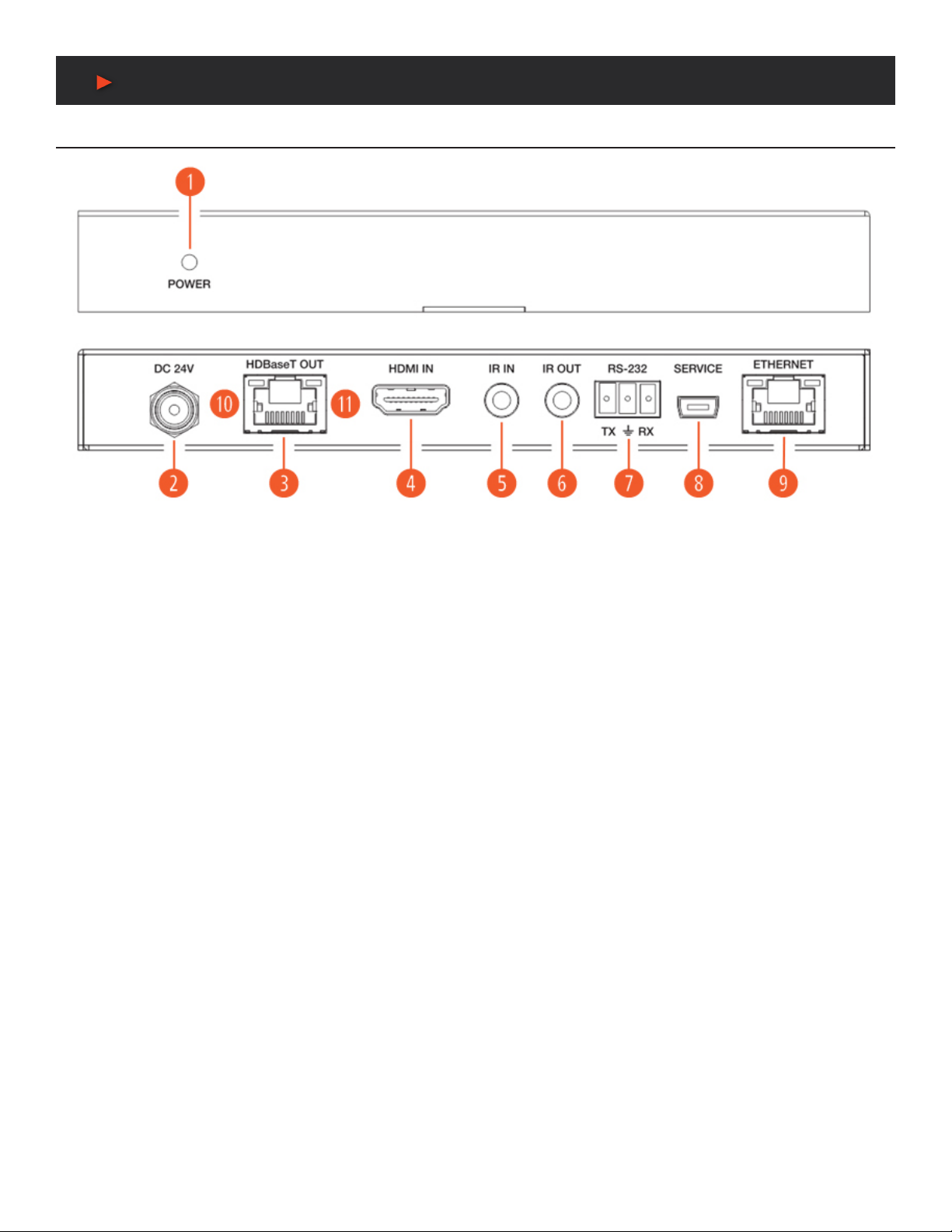

Transmitter
qPOWER LED: System power indicator.
wDC 24V: Connect the 24V/1A adaptor to the AC wall outlet for power.
eHDBaseT™ OUT: Standard HDBaseT™signal output port. Connects the HDBaseT™receiver with a UTP cable following the standard
direct interconnection method.
rHDMI IN: Connects to the HDMI source device such as a Blu-ray or PS4 player.
tIR IN: Channel 2 IR Receiver. Connects with a Wideband IR Rx.
yIR OUT: Channel 1 IR Transmitter. Connects with a Wideband IR Tx.
uRS-232: Phoenix jack provides serial port control signal from a receiver or to a receiver.
iSERVICE: Manufacturer use only.
oETHERNET: This slot provides Internet signal from transmitter or to transmitter.
aCONNECTION SIGNAL INDICATOR LAMP:
• Illuminated: The Transmitter and Receiver have good connections.
• Flashing: The Transmitter and Receiver have poor connection status.
• Dark: The Transmitter and Receiver are not connected.
sDATA SIGNAL INDICATOR LAMP:
• Illuminated: The HDMI signal has HDCP.
• Flashing: The HDMI signal is without HDCP.
• Dark: No HDMI signal.
ANEUVIDEO
5
OPERATION CONTROLS & FUNCTIONS
Receiver
qPOWER LED: System power indicator.
wDC 24V: Connect the 24V/1A adaptor to the AC wall outlet for power.
eHDBaseT™ IN: Standard HDBaseT™signal input port. Connects the HDBaseT™Transmitter with a UTP cable following the standard
direct interconnection method.
rHDMI OUT: HDMI output port where you connect the HDTV or monitor with HDMI cable.
tIR IN: Channel 1 IR Receiver. Connects with a Wideband IR Rx.
yIR OUT: Channel 2 IR Transmitter. Connects with a Wideband IR Tx.
uRS-232: Phoenix jack provides serial port control signal from a receiver or to a receiver.
iSERVICE: Manufacturer use only.
oETHERNET: This slot provides Internet signal from transmitter or to transmitter.
aCONNECTION SIGNAL INDICATOR LAMP:
• Illuminated: The Transmitter and Receiver have good connections.
• Flashing: The Transmitter and Receiver have poor connection status.
• Dark: The Transmitter and Receiver are not connected.
sDATA SIGNAL INDICATOR LAMP:
• Illuminated: The HDMI signal has HDCP.
• Flashing: The HDMI signal is without HDCP.
• Dark: No HDMI signal.
ANEUVIDEO
6
Description
Description 1
POC (Power Over Cable) Application Example
Description 2
Bidirectional Infrared Control Application Example
Description 3
Bidirectional RS-232 Control Application Example
ANEUVIDEO
7
Description
Description 4
Bidirectional Ethernet Signal Application Example
ANEUVIDEO
8
CONNECTION DIAGRAM
Connection Diagram
ANEUVIDEO
9
CONNECT & OPERATE
Wideband IR (30KHz---60KHz) introduction
IR RECEIVER (RX):
• To control the source: Plug IR Receiver into the IR RX port of the receiver unit; place the receiver at or near the display.
• To control the display: Plug the IR Receiver into IR RX port of the transmitter unit; place the receiver in position where it is able to
receive remote signals.
IR BLASTER (TX):
• To control the source: Plug the IR Blaster into IR TX port of the transmitter unit; place the blaster in front of the IR eye of the source.
• To control the display: Plug the IR Blaster into IR TX port of the receiver unit; place the blaster in front of the IR eye of the display.
ANEUVIDEO
END OF DOCUMENT
10
TERMS & CONDITIONS OF USE
PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED
BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your
agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at
the return address set forth on the Product’s packing label at your expense. A-NeuVideo, Inc. may modify these Terms and Conditions at anytime, without notice
to you.
RESTRICTIONS ON USE OF THE PRODUCT
It is your responsibility to read and understand the installation and operation instructions, both verbal and in writing, provided to you with respect to the Product.
You are authorized to use the Product solely in connection with such instructions. Any use of the Product not in accordance with such instructions shall void any
warranty pertaining to the Product. Any and all damages that may occur in the use of the Product that is not strictly in accordance with such instructions shall be
borne by you and you agree to indemnify and hold harmless A-NeuVideo, Inc. from and against any such damage.
The Product is protected by certain intellectual property rights owned by or licensed to A-NeuVideo. Any intellectual property rights pertaining to the Product are
licensed to you by A-NeuVideo, Inc. and/or its afliates, including any manufacturers or distributors of the Product (collectively, “A-NeuVideo”) for your personal use
only, provided that you do not change or delete any proprietary notices that may be provided with respect to the Product.
The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only.
A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual
property rights therein. All trademarks and logos are owned by A-NeuVideo or its licensors and providers of the Product, and you may not copy or use them in any
manner without the prior written consent of A-NeuVideo, which consent may be withheld at the sole discretion of A-NeuVideo.
The functionality and usability of the Product is controlled by A-NeuVideo, Inc. from its ofces within the State of Texas, United States of America. A-NeuVideo
makes no representation that materials pertaining to the Product are appropriate or available for use in other locations other than the shipping address you provided
with respect thereto. You are advised that the Product may be subject to U.S. export controls.
DISCLAIMERS AND LIMITATION OF LIABILITY
A-NeuVideo may change or modify the Product at any time, from time to time.
THE PRODUCT IS PROVIDED “AS IS” AND WITHOUT WARRANTIES OF ANY KIND EITHER EXPRESS OR IMPLIED. A-NEUVIDEO DOES NOT WARRANT OR
MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE PRODUCT’S CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE.
A-NeuVideo has no duty or policy to update any information or statements pertaining to the Product and, therefore, such information or statements should not be
relied upon as being current as of the date you use the Product. Moreover, any portion of the materials pertaining to the Product may include technical inaccuracies
or typographical errors. Changes may be made from time to time without notice with respect to the Product.
TO THE FULLEST EXTENT PERMISSIBLE PURSUANT TO APPLICABLE LAW, A-NEUVIDEO DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.
A-NEUVIDEO DOES NOT WARRANT THE ACCURACY, COMPLETENESS OR USEFULNESS OF ANY INFORMATION WITH RESPECT TO THE PRODUCT.
A-NEUVIDEO DOES NOT WARRANT THAT THE FUNCTIONS PERTAINING TO THE PRODUCT WILL BE ERROR-FREE, THAT DEFECTS WITH RESPECT TO
THE PRODUCT WILL BE CORRECTED, OR THAT THE MATERIALS PERTAINING THERETO ARE FREE OF DEFECTS OR OTHER HARMFUL COMPONENTS.
A-NEUVIDEO WILL USE ITS REASONABLE EFFORTS TO CORRECT ANY DEFECTS IN THE PRODUCT UPON TIMELY WRITTEN NOTICE FROM YOU NOT
TO EXCEED 10 BUSINESS DAYS AFTER RECEIPT BY YOU OF THE PRODUCT, BUT YOU (AND NOT A-NEUVIDEO) ASSUME THE ENTIRE COST OF ALL
NECESSARY SERVICING, REPAIR AND CORRECTION THAT WAS CAUSED BY YOU UNLESS OTHERWISE AGREED TO IN A SEPARATE WRITING BY
A-NEUVIDEO.
UNDER NO CIRCUMSTANCES, INCLUDING, BUT NOT LIMITED TO, NEGLIGENCE, SHALL A-NEUVIDEO BE LIABLE FORANY SPECIAL OR CONSEQUENTIAL
DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE THE PRODUCT IN ACCORDANCE WITH ITS SPECIFICATIONS, EVEN IF
A-NEUVIDEO OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL A-NEUVIDEO’S TOTAL
LIABILITY TO YOU FROM ALL DAMAGES, LOSSES, AND CAUSES OF ACTION (WHETHER IN CONTRACT, OR OTHERWISE) EXCEED THE AMOUNT YOU
PAID TO A-NEUVIDEO, IF ANY, FOR THE PRODUCT.
ANEUVIDEO
Table of contents
Other A-Neuvideo Receiver manuals
