Instruction manual BFC 3
gis
Read this manual carefully Warning
Read this manual carefully before starting up the water heater. Failure to
read this manual and to follow the instructions in this manual may lead to
accidents, personal injury, and damage to the appliance.
Copyright © 2008 A.O. Smith water Products Company
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by whatsoever means, without the prior
written approval of A.O. Smith water Products Company.
A.O. Smith water Products Company reserves the right to modify specifications
stated in this manual.
Trademarks Any brand names mentioned in this manual are registered trademarks of their
respective owners.
Liability A.O. Smith water Products Company accepts no liability for claims from third
parties arising from improper use other than that stated in this manual and in
accordance with the General Conditions registered at the Eindhoven Chamber
of Commerce.
Refer further to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and suitably
comprehensive description of all relevant components, the manual may
nonetheless contain errors and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be
grateful if you would inform us. This helps us to further improve our
documentation.
More information If you have any comments or queries concerning any aspect related to the
appliance, then please do not hesitate to contact:
A.O. Smith water Products Company
PO Box 70
5500 AB Veldhoven
Netherlands
Telephone: (free) 0870 - AOSMITH
0870 - 267 64 84
General: [phone]
Fax: [phone]
E-mail : [e-mail]
Website: www.aosmithinternational.com
In the event of problems with connecting to the gas, electricity or water supply,
please contact your installation's supplier/installation engineer .

4Instruction manual BFC
gis

Instruction manual BFC 5
Table of contents
1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
1.1 About the appliance - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
1.2 What to do if you smell gas- - - - - - - - - - - - - - - - - - - - - - - - - 9
1.3 Regulations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
1.4 Target groups - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
1.5 Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
1.6 Forms of notation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
1.7 Overview of this document - - - - - - - - - - - - - - - - - - - - - - - - 11
2 Working principle of the appliance- - - - - - - - - - - - - - - 13
2.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
2.2 General working principle of the appliance - - - - - - - - - - - - - - - - 13
2.3 The appliance's heating cycle - - - - - - - - - - - - - - - - - - - - - - 14
2.4 Protection for the appliance - - - - - - - - - - - - - - - - - - - - - - - 14
2.5 Safety of the installation - - - - - - - - - - - - - - - - - - - - - - - - - 16
3 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
3.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
3.2 Packaging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
3.3 Environmental conditions- - - - - - - - - - - - - - - - - - - - - - - - - 17
3.4 Technical specifications - - - - - - - - - - - - - - - - - - - - - - - - - 19
3.5 Installation diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
3.6 Water connections, Vented- - - - - - - - - - - - - - - - - - - - - - - - 24
3.7 Water connections, Unvented - - - - - - - - - - - - - - - - - - - - - - 25
3.8 Gas connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
3.9 Air supply and flue - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
3.10 Electrical connection - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
3.11 Checking the supply pressure and burner pressure - - - - - - - - - - - - 35
4 Conversion to a different gas category - - - - - - - - - - - - 39
5 Filling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41
5.1 Filling the appliance - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
6 Draining - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
6.1 Draining unvented installations - - - - - - - - - - - - - - - - - - - - - - 44
6.2 Draining vented installations - - - - - - - - - - - - - - - - - - - - - - - 44
7 The control panel- - - - - - - - - - - - - - - - - - - - - - - - 47
7.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47
7.2 Controls - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47
7.3 Meaning of icons- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47
7.4 Electronic controller ON/OFF switch - - - - - - - - - - - - - - - - - - - 47
7.5 Navigation buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47
7.6 PC connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
8 Status of the appliance - - - - - - - - - - - - - - - - - - - - - 49
8.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49
8.2 Operating modes - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49
8.3 Error conditions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 50
8.4 Service condition- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 51
gis

Table of contents
6Instruction manual BFC
9 Starting and running - - - - - - - - - - - - - - - - - - - - - - 53
9.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 53
9.2 Starting and running- - - - - - - - - - - - - - - - - - - - - - - - - - - - 53
9.3 The appliance's heating cycle - - - - - - - - - - - - - - - - - - - - - - - 53
10 Shutting down - - - - - - - - - - - - - - - - - - - - - - - - - 55
10.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 55
10.2 Shut the appliance down for a brief period ("OFF mode")- - - - - - - - - - 55
10.3 Electrically isolating the appliance - - - - - - - - - - - - - - - - - - - - - 55
10.4 Shutting the appliance down for a long period - - - - - - - - - - - - - - - 55
11 Main menu - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
11.1 Notational convention for menu-related instructions - - - - - - - - - - - - 57
11.2 Switching on the "ON mode" - - - - - - - - - - - - - - - - - - - - - - - 57
11.3 Setting the water temperature - - - - - - - - - - - - - - - - - - - - - - - 57
11.4 Week program - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
11.5 Starting and stopping the week program - - - - - - - - - - - - - - - - - - 58
11.6 Changing the appliance's standard week program - - - - - - - - - - - - - 58
11.7 Adding times to a week program- - - - - - - - - - - - - - - - - - - - - - 59
11.8 Deleting times from a week program- - - - - - - - - - - - - - - - - - - - 60
11.9 Extra period- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 61
11.10 Programming an extra period - - - - - - - - - - - - - - - - - - - - - - - 61
11.11 Settings- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 62
12 Service program - - - - - - - - - - - - - - - - - - - - - - - - 65
12.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 65
12.2 Setting the hysteresis - - - - - - - - - - - - - - - - - - - - - - - - - - - 65
12.3 Displaying the error history - - - - - - - - - - - - - - - - - - - - - - - - 65
12.4 Displaying the appliance history - - - - - - - - - - - - - - - - - - - - - - 66
12.5 Display the selected appliance - - - - - - - - - - - - - - - - - - - - - - 66
12.6 Switching the pump on or off - - - - - - - - - - - - - - - - - - - - - - - 66
12.7 Setting the service interval - - - - - - - - - - - - - - - - - - - - - - - - 66
12.8 Setting the display contrast - - - - - - - - - - - - - - - - - - - - - - - - 66
12.9 Setting the display backlight time - - - - - - - - - - - - - - - - - - - - - 66
12.10 Setting the display scroll speed - - - - - - - - - - - - - - - - - - - - - - 66
13 Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - 67
13.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 67
13.2 Troubleshooting table for general errors - - - - - - - - - - - - - - - - - - 68
13.3 Displayed errors - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 70
14 Maintenance frequency - - - - - - - - - - - - - - - - - - - - - 81
14.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 81
14.2 Determining service interval - - - - - - - - - - - - - - - - - - - - - - - - 81
15 Performing maintenance - - - - - - - - - - - - - - - - - - - - 83
15.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 83
15.2 Preparation for maintenance - - - - - - - - - - - - - - - - - - - - - - - 83
15.3 Water-side maintenance - - - - - - - - - - - - - - - - - - - - - - - - - 85
15.4 Gas-side maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - 86
15.5 Finalizing maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - 86
16 Warranty (certificate) - - - - - - - - - - - - - - - - - - - - - - 87
16.1 General warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 87
16.2 Tank warranty- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 87

Instruction manual BFC 7
16.3 Conditions for Installation and use - - - - - - - - - - - - - - - - - - - - 87
16.4 Exclusions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 88
16.5 Scope of the warranty - - - - - - - - - - - - - - - - - - - - - - - - - - 88
16.6 Claims - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 88
16.7 Obligations of A.O. Smith - - - - - - - - - - - - - - - - - - - - - - - - 88
17 Appendices- - - - - - - - - - - - - - - - - - - - - - - - - - - 89
17.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 89
17.2 BFC Electrical Diagram. - - - - - - - - - - - - - - - - - - - - - - - - - 90
17.3 Week program card - - - - - - - - - - - - - - - - - - - - - - - - - - - 93

Table of contents
8Instruction manual BFC

Instruction manual BFC 9
gis
1 Introduction
1.1 About the appliance This manual describes how to install, service and use the BFC appliance. The
BFC appliance is a condensing water heater with a fan in the air intake. The
BFC can be installed as either an open or room-sealed appliance. A concentric
chimney connector is fitted standard to the appliance. Alternatively, the
appliance can be connected using a parallel system.
The alternative installation types are B23, C13, C33, C43, C53 and C63.
The information in this manual applies to the: BFC 80 and BFC 100.
The appliance has been manufactured and equipped in accordance with the
European standard for gas-fired storage water heaters for the production of
domestic hot water (EN 89). The appliances are therefore compliant with the
European Directive for Gas Appliances, and and are entitled to bear the CE
mark.
Warning
Read this manual carefully before starting up the water heater. Failure to
read the manual and to follow the printed instructions may lead to personal
injury and damage to the appliance.
1.2 What to do if you
smell gas
Warning
If there is a gas smell:
No naked flames! No smoking!
Avoid causing sparks! Do not use any electrical equipment or switch, i.e. no
telephones, plugs or bells!
Open windows and doors!
Shut off the mains gas supply valve!
Warn occupants and leave the building!
After leaving the building, alert the gas distribution company or your installation
engineer.
1.3 Regulations As the (end) user, installation engineer or service and maintenance engineer,
you must ensure that the entire installation complies, as a minimum, with the
official local:
• building regulations;
• energy supplier's directives for existing gas installations;
• directives and technical guidelines for natural gas installations;
• safety requirements for low-voltage installations;
• regulations governing the supply of drinking water;
• regulations governing ventilation in buildings;
• regulations governing the supply of air for combustion;
• regulations governing the discharge of products of combustion;
• requirements for installations that consume gas;
• regulations governing indoor waste water disposal;
• regulations imposed by fire brigade, power companies and municipality.
0063

Introduction
10 Instruction manual BFC
1gis
Furthermore, the installation must comply with the manufacturer's instructions.
Note
Later amendments and/or additions to all regulations, requirements and
guidelines published on or prior to the moment of installing, will apply to the
installation.
1.4 Target groups The three target groups for this manual are:
• (end) users;
• installation engineers;
• service and maintenance engineers.
Symbols on each page indicate the target groups for whom the information is
intended. See the table.
Target group symbols
1.5 Maintenance A service should be carried out at least once a year, both on the water side and
on the gas side. Maintenance frequency depends, among other things, on the
water quality, the average burning time per day and the set water temperature.
Note
To determine the correct maintenance frequency, it is recommended to
arrange for the service and maintenance engineer to check the appliance on
both the water and gas side within three months following installation. Based on
this check, the best maintenance frequency can be determined.
Note
Regular maintenance extends the service life of the appliance.
Note
Both the end user and the service and maintenance engineer are
responsible for regular maintenance. They will need to establish clear
agreements on this.
Note
If the appliance is not regularly maintained, the warranty will become void.
1.6 Forms of notation The following notation is used in this manual:
Note
Important information.
Caution
Ignoring this information can lead to the appliance being damaged.
Warning
Failure to carefully read this information may lead to personal injury and
serious damage to the appliance.

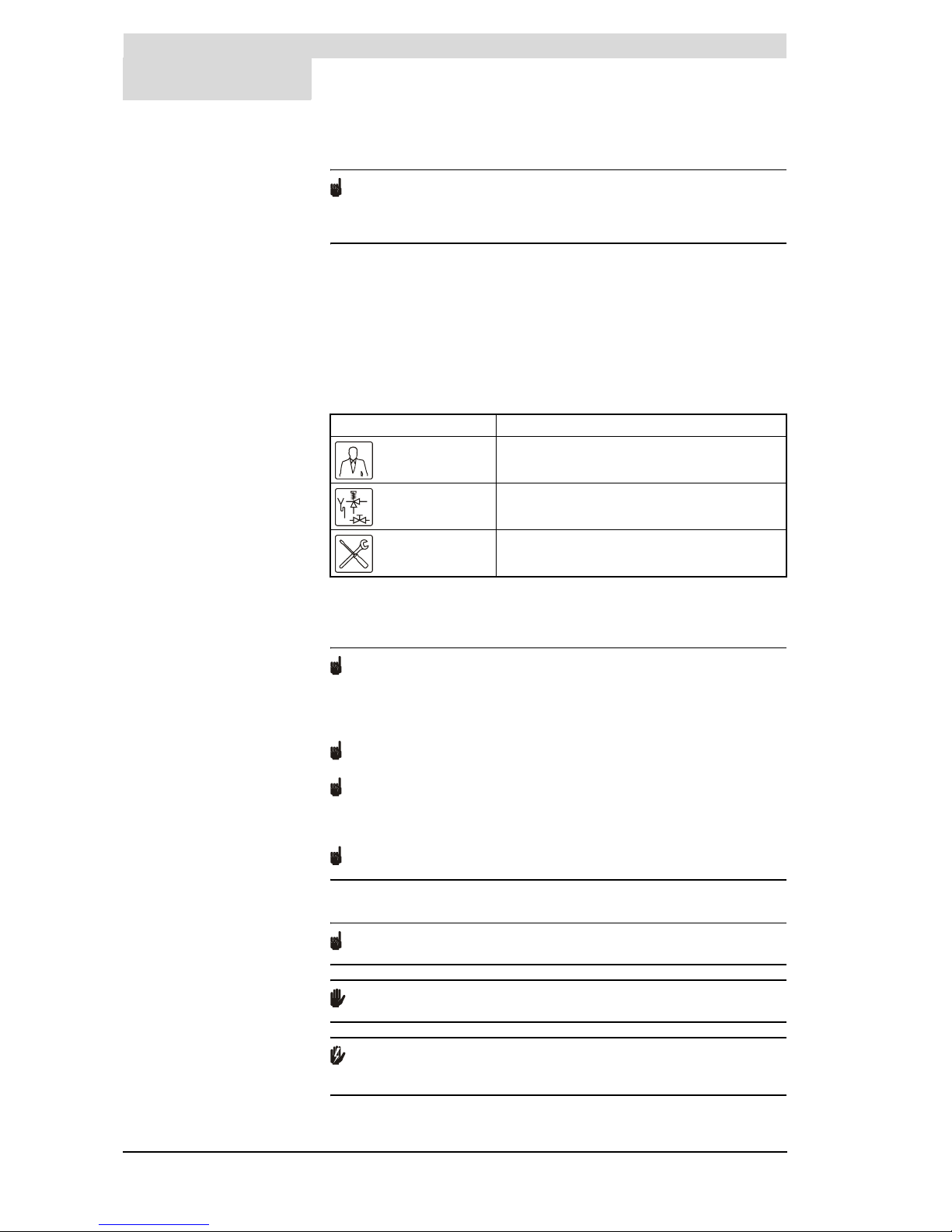

Symbol Target group
(End) user
Installation engineer
Service and maintenance engineer

Instruction manual BFC 11
gis
1.7 Overview of this
document
The table provides an overview of the contents of this document.
Contents of this document
Chapter Target groups Description
Working principle of the
appliance
This chapter describes how the appliance functions.
Installation This chapter describes the installation activity to be
completed before you actually start up the appliance.
Filling This chapter describes how to fill the appliance.
Draining This chapter describes how to drain the appliance.
The control panel This chapter describes the general control of the
appliance using the display.
Status of the appliance This chapter describes the status (mode or condition) that
the appliance may have, and possible actions to take.
Starting and running This chapter describes how to start the appliance running.
The general heating cycle of the appliance is also
described.
Shutting down This chapter describes how to shut the appliance down for
a brief or long period of time.
Main menu This chapter describes the main menu of the display. This
is the actual menu for the user, however the installation
engineer and service and maintenance engineers will also
need to use this menu.
Service program This chapter describes the service menu. It is mainly
intended for the installation engineer and service and
maintenance engineers. End users may also refer to this
chapter for additional information about the appliance.
Troubleshooting This chapter is mainly intended for the installation
engineer and the service and maintenance engineer. It
describes appliance errors. These errors are indicated on
the display. A troubleshooting table of possible causes
and solutions is provided. End users may also refer to this
chapter for additional information about the appliance.
Maintenance frequency This chapter describes how to determine the optimum
frequency at which to carry out maintenance. Both the
end user and the service and maintenance engineer are
responsible for regular maintenance. They need to reach
clear agreement on this.
Note
If the appliance is not regularly maintained, the
warranty will become void.
Performing maintenance This chapter sets out the maintenance tasks to be carried
out during a service.
Warranty (certificate) This chapter states the warranty terms and conditions.

Introduction
12 Instruction manual BFC
1gis

Instruction manual BFC 13
gis
2 Working principle of
the appliance
2.1 Introduction Topics covered in this chapter:
•General working principle of the appliance;
•The appliance's heating cycle;
•Protection for the appliance;
•Safety of the installation.
2.2 General working
principle of the
appliance
The figure shows a cut-away view of the appliance.

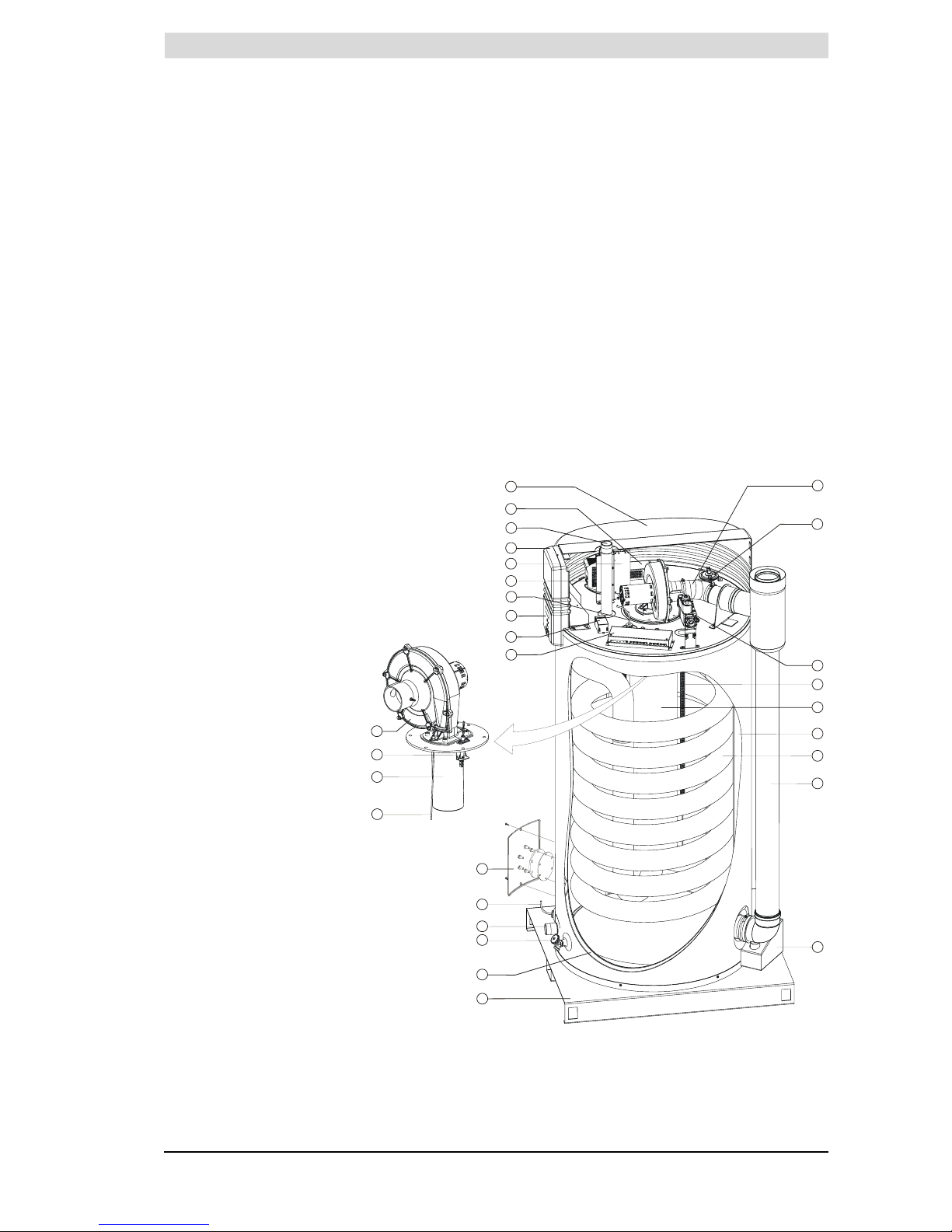

Cut-away view of the appliance
Legend
Only applicable numbers are
mentioned.
1. cover
2. hot water outlet
3. electrical connector block
4. electronic controller
5. pressure switch
6. control panel
7. temperature sensor T1
8. combustion chamber
9. anode
10. tank
11. heat exchanger
12. inspection and cleaning opening
13. temperature sensor T2
14. cold water inlet
15. drain valve
16. gas control
17. burner
18. fan
19. air supply hose
20. hot surface igniter
21. flame probe
22. chimney pipe
23. siphon
24. insulation layer
25. mains power choke
26. EMC filter
27. frequency controller
28. potentiostat
29. pallet
IMD-
0
21
9
R2
1
25
19
16
10
11
22
23
5
9
26
27
28
2
4
7
6
3
8
18
20
21
17
12
13
14
15
24
29

Working principle of the appliance
14 Instruction manual BFC
2gis
The appliance is equipped with a gas/air premix burner (17). The air is drawn in
through the fan (18). The gas is supplied via the gas control (16) on the intake
side of the fan. The gas/air mixture is then blown into the burner. The modulated
supply of gas and air ensures that the optimum gas/air mixture is always
achieved.
In this appliance the cold water enters the bottom of the tank via the cold water
inlet (14). Once heated by the combustion chamber (8) and heat exchanger
(11), the hot tapwater leaves the tank through the hot water outlet (2). Once the
appliance is completely filled with water, it remains constantly under water
supply pressure. As hot water is drawn from the appliance, it is immediately
replenished with cold water.
The air required for combustion is forced into the burner (17) by the fan (18).
The gas is fed to the burner via the gas valve (16). Thanks to the modulated
supply of gas and air, the optimum gas/air mixture is always achieved. The
special construction of the burner causes the mixture to form a vortex (the
cyclone effect), before it becomes ignited. This vorticity improves the ignition on
the hot surface igniter (20), as well as ensuring optimum combustion efficiency.
Through the special design of the heat exchanger (11), the flue gases are first
led downwards via the combustion chamber, then upwards again via the heat
exchanger, then once more downwards beside the water in the tank. In this
process, the flue gases gradually become cooler. Because the cooled flue
gases flow alongside the cold water lower down in the tank, they start to
condense. This condensation causes latent heat energy to be released, which
is transferred to the cooler water, thereby increasing the energy performance of
the unit. The condensate yielded by this process is discharged via the siphon
(23).
The insulation layer (24) prevents heat from escaping. The inside of the tank is
enamelled to protect against corrosion. The anodes (9) provide extra protection
against corrosion.
For use during maintenance, the appliance has an inspection and cleaning
opening (12).
2.3 The appliance's
heating cycle <The entire appliance is controlled (and monitored) by the ThermoControl
(electronic controller).The water temperature is measured by temperature
sensors T1 (7) in the top of the tank (10) and T2 (13) at the bottom of the tank.
These temperatures are sent to the electronic controller. Based on these two
observations, the electronic controller calculates a net water temperature: Tnet.
The value of Tnet lies between the temperatures at the top and bottom of the
tank. As soon as Tnet falls below the set water temperature (Tset), the electronic
controller registers a "heat demand". The gas control (16) is opened, and the
gas is mixed with air. This mixture is ignited by the hot surface igniter (20) and
the water becomes heated. As soon as Tnet rises above Tset the heat demand
ends, and the electronic controller stops the heating cycle.
The electronic controller assumes a certain margin both when registering and
ending heat demand. We refer to this margin as the hysteresis (12.2 "Setting
the hysteresis").
2.4 Protection for the
appliance
2.4.1 Introduction
The electronic controller monitors the water temperature and ensures safe
combustion. This is achieved by:
• the Water temperature protection;
•theGas valve;
• the Fan;

Instruction manual BFC 15
gis
•thePressure switch;
•theFlame probe.
2.4.2 Water temperature protection
The electronic controller uses temperatures sensors T1 (7) and T2 (13) to
monitor three temperatures that are important for safety. The table explains the
functioning of the temperature sensors.
Temperature protection
2.4.3 Gas valve
The electronic controller opens the gas valve so that gas can be supplied to the
burner. As a safety measure, the gas valve has a double shut-off. The double
shut-off guarantees complete isolation of the appliance from the gas supply.
To help ensure smooth ignition, the gas valve opens gradually ('softlite").
2.4.4 Fan
The fan (18) provides an optimum air supply when there is a heat demand. As
a safety feature, the fan ensures that any gases present in the combustion
chamber are removed, both before and after combustion. We refer to this as
pre- and post-purge.
The fan speed is continuously monitored by the electronic controller (4). The
electronic controller takes control if the speed of rotation varies too much from
the set value.
2.4.5 Pressure switch
The pressure switch ensures the discharge of flue gases and the supply of
incoming air during the pre-purge and normal running of the appliance. The
default state of the pressure switch is open. When sufficient pressure difference
is reached, the pressure switch closes. However, in the event of a fault, the
pressure switch is tripped open, and the heating cycle is interrupted. The table
shows the trip point per appliance.
Note
The trip point of the pressure switch is not adjustable.
Pressure switch trip points
Protection Description
Against frost
(T1 < 5°C or T2 < 5°C)
The frost protection cuts in. The water is heated to 20°C.
For maximum water temperature
(T1 > 85°C or T2 > 85°C)
The high-limit safeguard serves to prevent overheating and/or excessive
formation of scale in the appliance. If the high-limit safeguard is activated, the
heating is stopped. This causes the water in the tank to cool down. Once the
water has cooled sufficiently (T1 < 78°C), the electronic controller resets the
appliance.
For extra safety
(T1 > 93°C or T2 > 93°C)
A lockout error of the water heater controller takes place. The controller must
be manually reset before the appliance can resume operation (8.3 "Error
conditions"). The reset may only be performed if T1<78°C.
Appliance Closing pressure difference Opening pressure difference
BFC 80 > 1005 Pa < 975 Pa
BFC 100 > 1145 Pa < 1115 Pa

Working principle of the appliance
16 Instruction manual BFC
2gis
2.4.6 Flame probe
To ensure that no gas can flow when there is no combustion, the water heater
is fitted with a flame probe (21). The electronic controller uses this probe to
detect the presence of a flame, by means of ionisation detection. The electronic
controller closes the gas control the instant it detects that there is a gas flow but
no flame.
2.5 Safety of the
installation In addition to the appliance's standard built-in safety monitoring, the appliance
must also be protected by an expansion vessel, expansion valve, pressure
reducing valve, non-return valve and a T&P valve.
The use of an expansion vessel, expansion valve and/or pressure reducing
valve depends on the type of installation: unvented or vented.
2.5.1 Unvented installation
With an unvented installation, an expansion valve valve and expansion vessel
prevent the buildup of excessive pressure in the tank. This prevents damage
being caused to the enamelled coating (in the appliance) or to the tank. A non-
return valve prevents excessive pressure buildup in the water supply system.
This valve also prevents water from flowing backwards from the tank into the
cold water supply system. The pressure reducing valve protects the installation
against an excessively high water supply pressure (> 8 bar). These components
are fitted to the cold water pipe (3.6 "Water connections, Vented").
2.5.2 Vented installation
With a vented installation, excess pressure is taken up by the open cold water
head tank. The height of the head tank determines the working pressure in the
water heater, which may not exceed 8 bar. The installation must also be fitted
with a vent pipe from the hot water pipe, that opens into the cold water tank.
Ideally, the vent pipe should discharge into a separate tundish/drain or
otherwise to the open cold water head tank. The water heater should also be
fitted on the hot water side with a stop valve (3.7.2 "Hot water side").
2.5.3 T&P valve
A T&P valve is only mandatory in an unvented installation. However, A.O. Smith
also recommends the use of a T&P valve in vented installations.
A T&P (Temperature and Pressure Relief) valve monitors the pressure in the
tank and the water temperature at the top of the tank. If the pressure in the tank
becomes excessive (> 10 bar) or the water temperature is too high (> 97°C), the
valve will open. The hot water can now flow out of the tank. Because the
appliance is under water supply pressure, cold water will automatically flow into
the tank. The valve remains open until the unsafe situation has been rectified.
The appliance is fitted standard with a connecting point for a T&P
valve (3.7.2 "Hot water side").

Instruction manual BFC 17
is
3 Installation
Warning
Installation work should be carried out by an approved installation engineer
in compliance with the general and local regulations imposed by the gas, water
and power supply companies and the fire service.
The appliance may only be installed in a room that complies with the
requirements stated in national and local ventilation
regulations (1.3 "Regulations").
3.1 Introduction This chapter describes the installation activities to be carried out before you
actually start using the appliance (9 "Starting and running"), namely:
•Packaging;
•Environmental conditions;
•Technical specifications;
•Water connections, Unvented;
•Water connections, Vented;
•Gas connection;
•Air supply and flue;
•Electrical connection;
•Checking the supply pressure and burner pressure;
In the event of conversion to a different gas category, see
conversion (4 "Conversion to a different gas category").
3.2 Packaging To avoid damaging the appliance, remove the packaging carefully.
We recommend unpacking the appliance at or near its intended location.
Caution
The appliance may only be manoeuvred in an upright position. Take care
that the appliance is not damaged after unpacking.
3.3 Environmental
conditions
The appliance is suitable for either open or room-sealed combustion. If
installed as a room-sealed appliance, then the availability of the necessary
external air supply will depend on the place of installation. In this event, there
are no additional ventilation requirements.
If the appliance is to be installed as an open system, then it will be subject to
the guidelines and ventilation regulations that are in force locally.
The alternative installation types are B23, C13, C33, C43, C53 and C63.
Caution
The appliance may not be used in rooms where chemical substances are
stored or used, due to the risk of explosion and/or corrosion of the appliance.
Some propellants, bleaching agents, degreasing agents etc. disperse vapours
which are explosive and/or which cause accelerated corrosion. If the appliance
is used in a room in which such substances are present, the warranty will be
void.

Installation
18 Instruction manual BFC
3is
3.3.1 Air humidity and ambient temperature
The boiler room must be frost-free, or be protected against frost. The table
shows the environmental conditions that must be adhered to for correct
functioning of the electronics present in the appliance to be guaranteed.
Air humidity and ambient temperature specifications
3.3.2 Maximum floor load
Allow for the appliance's weight with respect to the maximum floor load; refer to
the table.
Weight specifications related to maximum floor load
3.3.3 Water composition
The appliance is intended for heating drinking water. The drinking water must
comply with the regulations governing drinking water for human consumption.
The table gives an overview of the specifications.
Water specifications
Note
If the water specifications deviate from those stated in the table, then the
tank protection cannot be guaranteed (16 "Warranty (certificate)").
3.3.4 Working clearances
For access to the appliance it is recommended that the following clearances
are observed (see figure):
• AA: around the appliance's control column and cleaning openings: 100cm.
• BB: all sides of the appliance: 50cm.
Note
When installing the appliance, be aware that any leakage from the tank
and/or connections can cause damage to the immediate environment or floors
below the level of the boiler room. If this is the case, then the appliance should
be installed above a wastewater drain or in a suitable metal leak tray.
The leak tray must have an appropriate wastewater drain and must be at least
5cm deep with a length and width at least 5 m greater than the diameter of the
appliance.
Air humidity and ambient temperature
Air humidity max. 93% RV at +25°C
Ambient temperature Functional: 0 < T < 60°C
Weight of the appliance filled with water
BFC 80, BFC 100 940 kg
Water composition
Hardness
(alkaline earth ions)
> 1.00 mmol/l:
• German hardness> 5.6° dH
• French hardness > 10.0° fH
• English hardness > 7.0° eH
Conductivity > 125 µS/cm
Acidity (pH value) 7.0 < pH value < 9.5

Instruction manual BFC 19
is
Working clearances
3.4 Technical
specifications
The appliance is supplied without accessories. Check the
dimensions (3.4.1 "Dimensions of the appliance"), gas data (3.4.3 "Gas data")
and other specifications (3.4.2 "General and electrical specifications") of any
accessories you plan to use.
BB
AA
A
A
IMD-
0
227 R2

Installation
20 Instruction manual BFC
3is

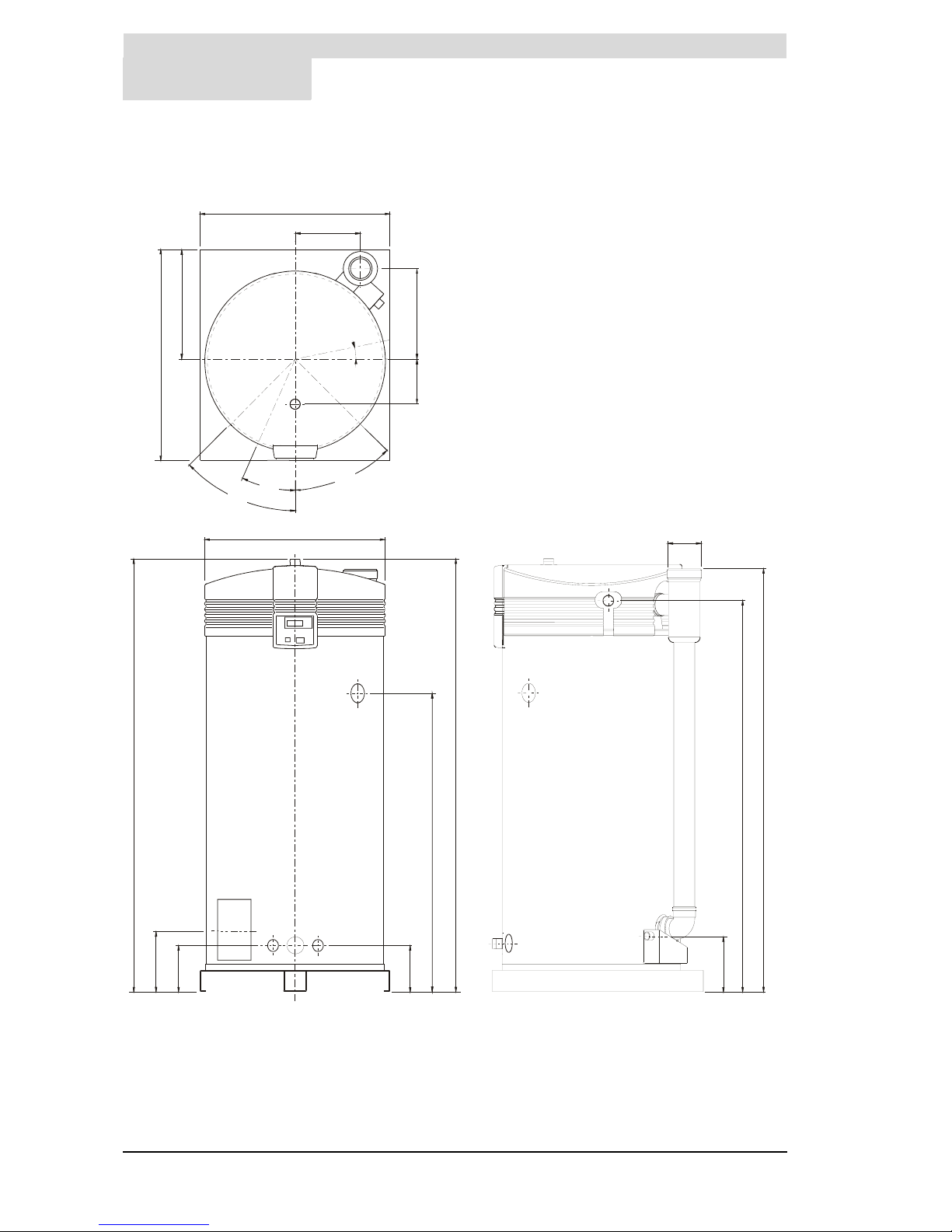

3.4.1 Dimensions of the appliance
Plan and elevation of appliance (legend: see the table)
45º
18º
45º
3
5
4
F
E
2
6
11º
Hy
Hx
C
Ny
D
2
5
PM
6
1
4
R
S
N
A
G
7
K
W
H
3
IMD-
0
22
0
R4
