A.O. Smith T-H2S-DV User manual

TroubleshootingGuide

1|Page


CondensingModels
On‐DemandWaterHeater
TroubleshootingGuide

























9/12/11321922‐000
A.O. SmithWaterProductsCompany
500TennesseeWaltzParkway
AshlandCity,TN37015
TollFree:1‐877‐737‐2840
Outdoormodels
(520Outdoor(T‐H2‐DV),
320Outdoor(T‐H2S‐DV))
DirectVentIndoormodels
(520Indoor(T‐H2‐DV),
320Indoor(T‐H2S‐DV))
http://waterheatertimer.org/Troubleshoot-Rheem-Tankless-water-heater.html

TroubleshootingGuide

2|Page

TableofContents

1. SPECIFICATIONS.…………………………………………………………………………………………………………3
2. INTRODUCTION……………………….………………………………….……..………………………………………4
3. NORMALOPERATION……………………………………………………………………….…………………..……5
Activation……………….…………………………………….………………………………………….…….5
Operation..……………………………………………………………...……………………………………..5
Shutdown…………………………………………………….…….………….……….……………………….5
4. INSTALLATION….…………………………………………………………….……………………………………….….6
Venting……………………………………………………….……….…………………………………….……6
GasLine………………………………………………….…………….…………………………………………6
WaterLine………………………………………………….…………………..…….………………………..7
PowerSupply…………………………………………………...……………………………………………..7
5. TROUBLESHOOTING………………………………………………………….....……………………………………8
PreliminaryChecklist……………………………………………………………..…………………..…..8
GeneralProblems…………………………………………………..…….…………………………………9
ErrorCodes……………………………………………………………………………….………………..….13
Procedures…………………………………………………………..………………………………………….22
VerifyingproperDipswitchsettings……………………………………………….....…22
Drainingtheunit…………………………………………………..……………………………..23
Cleaningthefilter………………………………………………….…………………………….23
CheckingforaCrossConnection………………………………………………….………24
CheckforReverseConnection……………………………………………….…………….24
Checkgassupplypressure……………………………………………….………………….24
Purgethegaslineofair………………………………………………….………………….. 24
Adjustingmanifoldpressure……………………………………………….……………….25
Resettingthecomputerboard……………………………………………….……………26
CheckingtheOHCF……………………………………………….…………………………….26
6. MAINTENANCE……………………………………………………………….…..………………………………………27
RodAssembly………………………………………………………………………………………………..…27
Burner&RodAssembly………………..………………………………….…..……………….………..28
HeatExchanger…………………………………………..……….…..….…………….………….…..…..31
FlowSensor………………………………………………..……..….…………………………………………34
DescalingtheUnit………………………………………..………….……………………………………...35




TroubleshootingGuide

TroubleshootingGuide

3|Page

Table1:  SPECIFICATIONS‐520(T‐H2)/320(T‐H2S)DirectVentIndoor*andOutdoor 
Model520DirectVent
Indoor(T‐H2‐DV)
520Outdoor
(T‐H2‐OS)
320DirectVent
Indoor(T‐H2S‐DV)
320Outdoor
(T‐H2S‐OS)
DimensionsH25.6"×W18.5"×D12.4"
Weight73lbs.71lbs.73lbs.71lbs.
Combustion
INPUT
BTU/h
Max199,000180,000
Min13,000
CombustionSystemPowervent
InstallationDirect‐ventOutdoorDirect‐ventOutdoor
FanmotorPWMturbofan
Manifold
Pressure**
MaxLP4.9”WC
Natural3.6”WC
LP4.6”WC
Natural2.8”WC
LP4.3”WC
Natural2.5”WC
LP3.6”WC
Natural1.9”WC
MinLP1.0”WC
Natural0.7”WC
LP0.9”WC
Natural0.6”WC
LP1.0”WC
Natural0.7”WC
LP0.9”WC
Natural0.6”WC
Watercontrol
Flowrate0.5GPMto9.0GPM
Availableset
temperatures
100°Fto185°F
default:120°F
Temperatureon
theunitsettings
100°F,105°F,110°F,115°F,120°F,125°F,135°F,140°F,
145°F,150°F,155°F,160°F,165°F,170°F,175°F,185°F
BypassvalveYes
Thermistors4thermistors
(In,Out,Mixing,Exhaust)
3thermistors
(In,Out,Mixing)
4thermistors
(In,Out,Mixing,Exhaust)
3thermistors
(In,Out,Mixing)
Operation
Remotecontroller
modelPart# 9007603005(TM‐RE30)
PCBmodelT‐H2(Part#319143‐126)T‐H2S(Part#319143‐196)
IndicatorsRedLEDonPCBduringoperation&3‐digit7‐SEGLED
Powersupply
controlSurgeabsorber&PowerON‐OFFswitch
Features
FreezeprotectionCeramicheatersandAuto‐firingsystem
Self‐combustion
improvementAir‐FuelRatioDetectionSystem
Easy‐LinksystemYes(Upto4units)N/A
Multiple‐systemN/A
*The520DirectVentIndoor(T‐H2‐DV)and320DirectVentIndoor(T‐H2S‐DV)meansthe520Indoor(T‐H2‐DV)
and320Indoor(T‐H2S‐DV)inthetext.
**Themanifoldpressuremeasurementisbasedonconditionswithoutfrontcover.

TroubleshootingGuide

4|Page

2.INTRODUCTION

Thismanualprovidesthenecessaryinformationfortroubleshootingthe520(T‐H2)and320(T‐H2S)
tanklesswaterheaters.Thismanualwillbeeffectiveinhelpingyourtroubleshootingneedsaslongas
theinstructionsarefollowedintheintendedorder.Hereishowtousethismanual:
•Firstrefertothe520(T‐H2)and320(T‐H2S)InstallationManualastheprimarysourceof
information.Refertoitalongsidethismanualthroughoutthetroubleshootingprocess.
•Beforetroubleshooting,ifyouareunfamiliarwithhowatanklessunitoperates,readtheNormal
Operationsection(p.5).
•Todouble‐check/troubleshootanewinstallation,usetheProperInstallationsection(p.6).
•Whenbeginningtroubleshooting,firstgothroughthePreliminaryChecklist(p.8);itisdesigned
tofixthemostcommonandfrequentproblems,andprovideyouwithbackgroundinformation
tohelpnarrowdowntheinformationyouneed.
•AfterthePreliminaryChecklist,movetotheErrorCodessection(p.13)ifyouhavereceivedan
errorcode,ortoGeneralProblems(p.9)ifyouhavenotreceivedanerrorcode.
Ifyouhaveanyproblemsorquestionsregardingthisequipment,oratanypointbecomeconfusedor
uncomfortablewithanyoftheprocedures,consultwiththetechnicalservicedepartmentorthelocal
serviceagent.
IMPORTANT
•Installationandservicemustbeperformedbyaqualifiedinstaller(for
example,alicensedplumberorgasfitter).Otherwisethewarrantywill
bevoid.
•Theinstaller/serviceagent(licensedprofessional)isresponsiblefor
correctlyinstallingorservicingyourwaterheaterandforcompliance
withallnational,state/provincial,andlocalcodes.
*ForallunitsinstalledinthestateofMassachusetts,itisrequiredthattheinstallereitherbea
licensedplumberorlicensedgasfitter.
GENERALINSTALLATIONGUIDELINES
1. Followalllocalcodes,orintheabsenceoflocalcodes,followthemostrecenteditionofthe
NationalFuelGasCode:ANSIZ223.1/NFPA54intheUSAorCAN/CSAB149.1NaturalGas,Propane
InstallationCodeinCanada.
2. Properlygroundtheunitinaccordancewithalllocalcodesorintheabsenceoflocalcodes,with
theNationalElectricalCodes:ANSI/NFPA70intheUSAorCSAstandardC22.1CanadaElectrical
CodePart1inCanada.
3. Carefullyplanwhereyouintendtoinstallyourwaterheater.
4. ChecktheratingplateforthecorrectGASTYPE,GASPRESSURE,WATER
PRESSUREandELECTRICRATING.
*Ifthisunitdoesnotmatchyourrequirements,donotinstall.
5. Ifanyproblemshouldoccur,turnoffallhotwatertapsandturnoffthe
gas.Thencallatrainedtechnicianorthegascompany.

WARNING
RATINGPLATE
Figure1

TroubleshootingGuide

5|Page


3.NORMALOPERATION
Becomingfamiliarwithhowatanklesswaterheaternormally
operatesmayhelptotroubleshootit.Assumingitisproperly
installedwithappropriategas,water,andelectric
connections,thefollowingishowitshouldoperate:
1) ACTIVATION
a. Ahotwatertapisopenedenoughthattheflow
sensordetectsaflowratethroughtheheatergreater
thantheactivationpointof0.5gpm.
b. Thefanactivatesafterflowisdetected.
c. Thecomputerchecksforanyproblemswiththeunit
beforestartup.
d. Igniteractivates.Youcanhearthebuzzingofthe
sparkigniter.
e. Maingasvalve,proportionalvalve,andsolenoidgas
valveswillopen.Youwillhearadeep“clunkclunk”
noise.
f. Onceaflameisdetected,theredLEDlocatedon
thecomputerboardwillactivate.
g. Inamulti‐heatersetup,thecontrollerwill
activatethenextheaterin2‐4gpmincrements,
dependingonthesettemperature.

2) OPERATION
a. Theproportionalgasvalvewillmodulatebasedontheamountofhotwaterdemandedandthe
temperatureriseneeded.Thefanspeedwillmodulateaswelltocreateanefficientburn.
b. Youwillnoticethatonlypartialsectionsoftheburnerwillbelit.Thisisnormaloperation;there
arethreesectionsontheburnerassembly,andthecomputercontrolstheamountofsections
neededbasedontheflowrateandtemperatureriserequired.

3) SHUTDOWN
a. Theheaterwillshutdownwhenthewaterflowratedropsbelowthedeactivationpointof
0.4gpm.
b. Theheaterwillclosethemaingasvalveandsolenoidgasvalves,extinguishingtheflame.
c. WhentheflamedisappearstheredLEDwillturnoff.
d. Thefanwillincreaseinspeedtopurgetheventingofanyremainingexhaustgases.Thelength
ofpost‐purgecanlastupto1½minutes.
e. Theheatergoesintostandbywaitingfortheprocesstobeginagain.


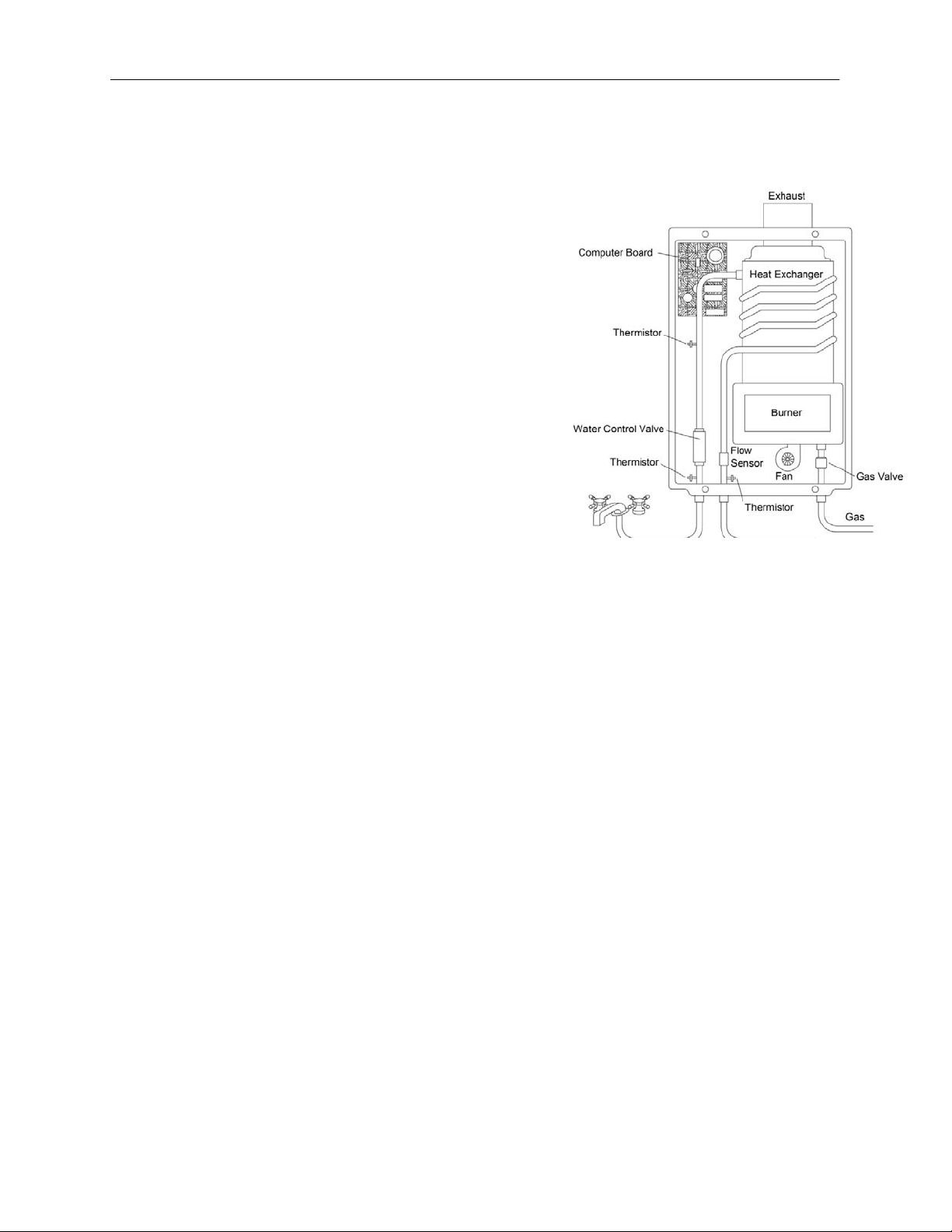

*Thepurposeofthisdiagramistoillustratetanklesswater
heaterdesignconcepts,andmaynotbeaccuratetothe
unit’sphysicaldescription.
Figure2

TroubleshootingGuide

6|Page

*Foreach90degreeelbowadded,deduct5ft.frommax.vent

4.INSTALLATION
Theseguidelinesarequickoverviewsonthemainpointsofinstallation–Forallinstallationdetails,refer
tothe520(T‐H2)or320(T‐H2S)InstallationManualthatispackagedwitheveryheater.Followallcodes
pertainingtotheinstallationofagasappliance.

VENTING
OUTDOORMODELINSTALLATION:
•OutdoorinstallationsfallundertheDirectVentClearancespublishedbyANSIZ223.1/NFPA54or
CAN/CSA‐B149.1
•Choosealocationthatmeetsallclearancesrequiredbycode.Thetwomostcommonare:
o1ft.fromanyopeningintothebuilding,e.g.doors,windows,etc.
oThetopmustbeatleast3ft.belowasoffit,ventilatedornon‐ventilated,orbelowan
overhang.
INDOORMODELINSTALLATION:
•Refertothefollowingtableforventinglengthmaximums:

Table2
DiameterMax.No.ofElbowMax.Vertical&Horizontal(Total)VentLength
3”225ft.
4”550ft.


•TheventingmayconsistofSchedule40PVC,CPVC,ABS,orCategoryIIIStainlessSteel.
•InCanada,PlasticventingrequiresULCS636Certifiedmaterials.
•DirectVentcombustionairintakeisveryimportant.
oInstalltheDirectVentairintakeopeninginanareathatisfreeofairbornedebris(lint,
grease,dust,flammableliquids,vapors,orchemicals).Dirtyburnertrayandsensorsare
averycommoncauseoftheheateroperatingimproperly.
oFreshairintakepipingmaybemanifoldedusingthefollowingequation:
(newventcross‐sectionalarea)=(numberofheaters)x(5.65)
DONOT:
oCommonventtheexhaustofanytanklessheaterwithanyotherheaterorvented
appliance.
oTerminatetheexhaustintoachimney.Anexistingchimneymaybeusedasachaseto
runexhaustpipeallthewayupandterminatetotheoutside.
oReduceorincreasetheventpipediameterbeyondwhatisspecifiedintheinstallation
manual.





TroubleshootingGuide

7|Page

GASLINE
•Incorrectgastype,NG(Natural)orLP(Propane),isoneofthemostcommonandsimple
problems.Verifythecorrectgastypeby:
oCheckingthatthestampontheburnermanifoldmatchesthegastypesuppliedatthe
applicationsite.
oCheckingtheboxthattheunitcomesinforthegastype.
oMinimumgaslinesizeforthetanklesswaterheateris¾inchpipe. Thesizecanbe
greaterdependingonthedistancetothegasmeterorregulator.
oSizethepipetodeliverthemaximuminletBTU/hrforeachtanklesswaterheater.This
numberis199,000BTU/hourforasingle520(T‐H2),or180,000BTU/hourforasingle
320(T‐H2S).
•Purgethegaslineofair.Seep.23forinstructions.Ifairispresentinthegaslinetheheaterwill
gooffwithanerrorcodeforlossofflame[121]orignitionfailure[111].
•Checkthegassupplypressures.SeetheSpecificationchartonp.1nexttotheTableofContents.
WATERLINE
•Thetanklesswaterheaterrequiresa¾inchconnectiontothecoldwaterinletandhotwater
outlet.
•Tanklesswaterheatersallrequirea“Pressureonly”reliefvalve(PRV)oneachindividualunit
ratedfor150psiwithadischargecapacityofatleasttheratedgasinputofthewaterheater
(199,000BTU/h)tobeinstalledperlocalcode.
•Installa¾”CSA/AGAapprovedisolationvalveoneachheateronallthreeinlets(Hot,Cold,Gas)
fortroubleshootingandmaintenanceprocedures.
•Re‐circulationsystems:
oMinimumflowrateof2.0gpmthroughthesystem.
oAirseparatorandairventinstalledinthesystem.
•Ifsedimentisknowntobeinthewatersupply,aY‐strainermaybeneededtopre‐filter
contaminantspriortoenteringtheheater’scoldwaterinletscreen.
•Forareaswithhardwater,installingawatersoftenerishighlyrecommended.Heatexchanger
damageandfailureduetoscalebuildupcanhappenrapidlyandisnotcoveredbythewarranty.
POWERSUPPLY
•Theunitshouldbeconnectedtoaproperlygrounded120VAC60Hzpowersupply.
•Makesurethataproperdisconnect(i.e.on/offswitch,powerplug,etc.)controllingthemain
powertotheunitisinstalled.












TroubleshootingGuide

8|Page

5.TROUBLESHOOTING

5.1PRELIMINARY CHECKLIST
Checkallofthesebasicitemsbeforeproceedingontoanyothersection:
•GAS/WATER/ELECTRIC:
oThegassupplyvalveshouldbefullyopen.
oVerifythecorrectgastypeisbeingused,NGorLP.
oThewatersupplyvalveshouldbefullyopen.
oTheunitshouldbeconnectedtoa120VAC60Hzpowersupply.Thiscanbeverifiedby
observingthecomputerboard3‐digitLEDdisplay.Ifitisnotlit,thecomputerboardis
notbeingpowered.ChecktoseeiftheON/OFFswitchbelowthefuseboxissettothe
onposition,orifthefuseinthefuseboxisblown.
•REMOTE:Ifyouareusingaremotecontroller,theremote’spowerbuttonmustbeturnedon.
•HIGHALTITUDE:Isyourlocationatanaltitudeofover3000feet?Thismaycausealackofair.
SeethehighaltitudeprocedureintheTroubleshootingProceduressection.
•HARDWATER:Whatisthehardnessofthewater?Asoftenerisalwaysrecommended,butif
thewaterisabove7grainsofhardnessor70‐140ppm,onemustbeinstalled.Ifthereisno
watersoftenerinstalled,existinginstallationswillgraduallyaccumulatescalebuilduponthe
heatexchangerandcausealeak.Heatexchangerleaksduetohardwaterscalearenotcovered
underthewarranty.
•NEWINSTALLATIONS:Isthisinstallationafewyearsoldorbrandnew?
oAunitthathasworkedproperlyforawhilebutisnowstrugglingmayhavebecome
scaleduporcontainsadirtyburner.
oAnewinstallationismostlikelyinstalledorplumbedincorrectly.
•EXTERNALPROBLEM:Testwhethertheproblemiswithintheunitorexternaltotheunit(i.e.in
theplumbingsystem)byattemptingtorunhotwaterlocallythroughthepressurereliefvalve
(PRV).
oDoestheheaterigniteandremainrunningproperly?Ordoestheheatershutdowninto
anerrorcode?IfitrunsfinethroughthePRVtheplumbingsystemisatfault.

NEXTSTEP:Finally,checktoseeiftheunithasanerrorcode.Theerrorcodewillbedisplayedonthe3‐
digitsevensegmentLEDPCBatthecenteroftheunit.(Seefigure4)
•Ifitisdisplayinganerrorcode,proceedtotheErrorCodessection(p.13).
•Ifthereisnoerrorcode,proceedtotheGeneralProblemssection(p.9).













TroubleshootingGuide

9|Page

5.2TROUBLESHOOTING‐GENERALPROBLEMS
ProceedtotheErrorCodessectionifanerrorcodeisidentified.Forothercommonproblemsthatdo
notinvolveanerrorcode,seeifthefollowingitemshelp:
Thewaterisnothotenough.
Thewateristoohot.
Temperaturefluctuateswhenafixtureisopened.
Unitdoesnotignitewhenwatergoesthroughit.
Ittakesalongtimetogethotwateratthefixtures.
Thefanmotorisstillspinningafteroperationhasstopped.
Abnormalsoundscomefromtheunit.
Lossofpressureatallsinkswhenthedishwasherfills.
Unithaspower,gas,andwaterbutdoesnotturnon.
MultipleHeaterSetup(Easy‐Link)
THEWATERISNOTHOTENOUGH
•Comparetheflowandtemperatureatthepressurereliefvalve.
oIfthetemperatureandflowratearecorrectatthePRVthentheproblemresidesinthe
plumbingline,notinthetanklessunit.
•Testthehotwatertemperaturewithahandheldthermometertomeasurehowfaroffthewater
temperatureisfromthesettemperature.
oThesettemperaturemaybesettoolow.Thetemperaturecanbechangedwiththe
pushbuttonsonthePCBorbytheremotetemperaturecontroller,ifoneisinstalled.
•Checkforcrossplumbingbetweencoldwaterlinesandhotwaterlines.SeetheProcedures
section(p.24)forinstructions.
•Unitmaybehardwaterscaled.Thescaleactsasaninsulatorpreventingtheheatexchanger
fromtransferringheattothewater.Contactaserviceagent.
•Theunitmaynotbereceivingenoughgas.
oThegassupplyvalvemaynotbefullyopen.
oThegaslinemaybesizedimproperly.
oThegassupplypressuremaybetoolow.Thismaybecausedbyamalfunctioninggas
supplyregulator,sochecktoseeifyourregulatorisworkingproperly.
•Checktoseethatacheckvalveisinstalledbetweenthepumpdischargeandtheconnectionto
thecoldwatersupply.Inspectthecheckvalveforproperoperation.Ifthereisn’toneinstalled,
orifitismalfunctioning,coldwatermaybeback‐feedingintothesystem.
•Double‐checkfora101errorcode.A101errorcodewillreducetheamountofgasinputinto
theheater.
•Outputtemperaturewillbeaffectedifairflowisimpeded.
oCheckconstructiondustanddebrisinventing,suchasdrywall.
oIfthereisdustinsidethecabinet,therewillalsobedustinsidetheburnerandheat
exchanger.Seetheprocedureforcleaningtheburner(p.28).
THEWATERISTOOHOT
•Thesettemperaturemaybesettoohigh.Thetemperaturecanbechangedwiththe
pushbuttonsonthePCBorbytheremotetemperaturecontroller,ifoneisinstalled.

TroubleshootingGuide

10|Page

•Theflowadjustmentvalvecouldbeobstructedduetohardwaterscaleordebris,causinglower
thanexpectedwaterflow.Verifywaterflowwithagraduatedcontainerorwiththeremote
temperaturecontroller,ifoneisinstalled.

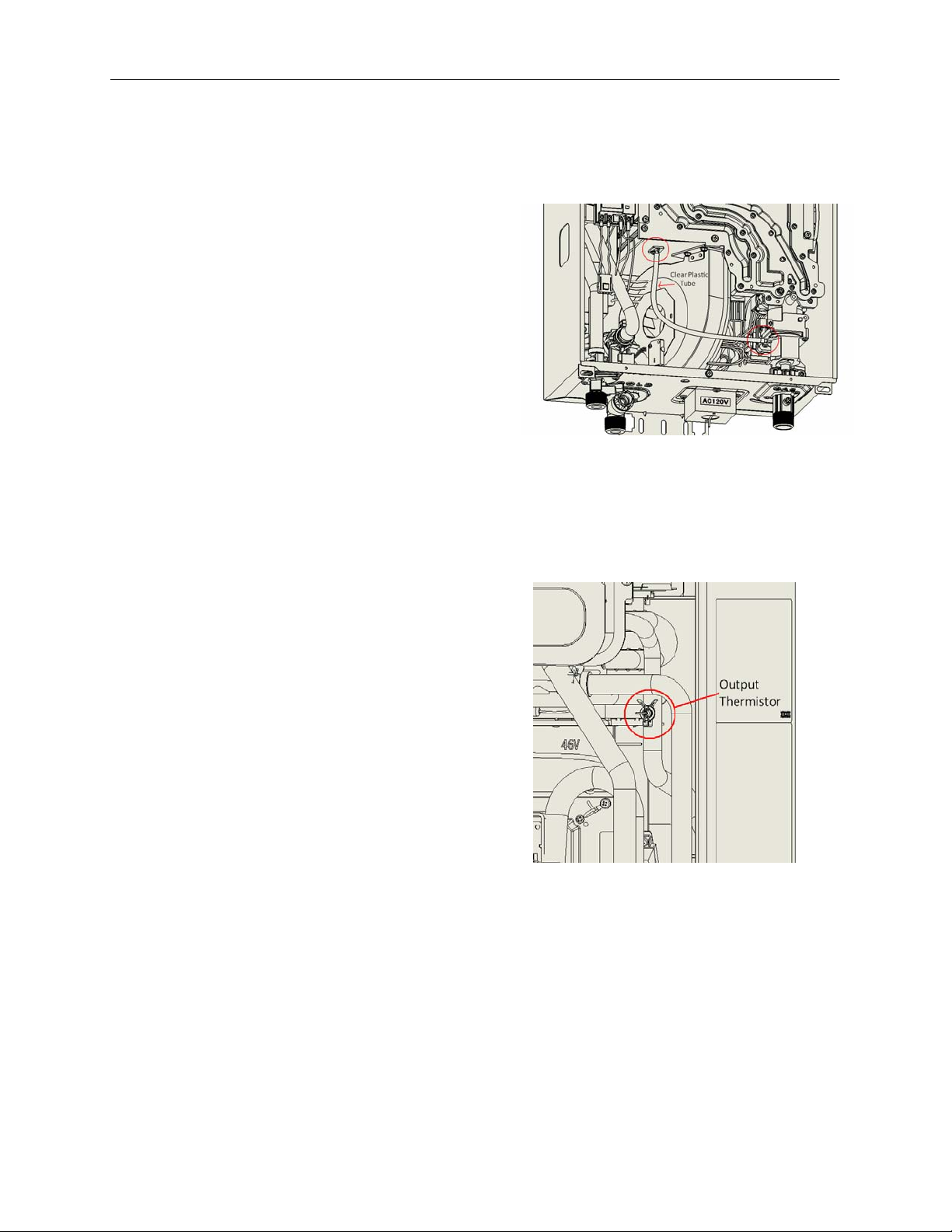

•Theoutputthermistorcouldbecompromised.Thiscomponentmaybecheckedbyenteringthe
DiagnosticsModeonaremotecontroller,ifoneisinstalled.Turnpowerofftotheunitandrun
coldwaterthroughit;checktoseeiftheinletandoutlettemperaturesreadthesameonthe
remote.Forinstructionsonhowtodothis,refertotheMaintenanceSheet,packagedwith
everytanklesswaterheaterandlocatedbehindthefrontpaneloftheunit.
TEMPERATUREFLUCTUATESWHENAFIXTUREISOPENED
•MakesuretheunitisinstalledproperlyusingtheProperInstallationsection(p.6)ofthisguide.
•Testwhethertheproblemiswithintheunitorexternaltotheunit(i.e.plumbingsystem)by
attemptingtorunhotwaterlocallythroughthePRV.
oDoestheheaterigniteandremainrunningproperly?Ordoestheheatershutdowninto
anerrorcode?
•Plumbingconnections
oCheckforacrossconnection(p.24).
oProblemswitharecirculationsystem:
Checkthatacheckvalveisinstalledbetweenthepumpdischargeandthe
connectiontothecoldwatersupply.
Checktoseeifthepumpisoperatingproperly.
Checkforaircavitation.Thepumpwillbeveryhotorchattering.
Checkthedirectionalindicatoronthepumpflange.
Checkthesizingofthepump–aminimumflowof2gpmisrequired.
•Checkgassupply
oVerifythegassupplylinesaresizedforthemaximumBtu/hdemand,asindicatedinthe
ProperInstallationsection(p.6)ofthisguide.Ifthegassupplylineissharedwithother
appliances,itshouldbesizedtoaccountforthoseappliancesaswell.Theheaterwill
stilltrytorunifthegassupplyisundersizedandhasnowayofdirectlydeterminingif
thereisnotenoughgas.
oForLPmodels,theremaynotbeenoughgasleftinthepropanetank.
oVerifythatthesupplygaspressureiswithinspecification,notonlywhentheheaterisin
standby,butwhiletheheaterisrunningonmaximumfireaswell.
oThegassupplypressuremaybetoolow.Thismaybecausedbyamalfunctioninggas
supplyregulator.
•Venting
oVerifythattheexhaustventingisinstalledtomanufacturer’sspecification.
oVerifythattheventrundoesnotexceedthemaximumlimit(50ft.)
•Thefilteroncoldwaterinletshouldbeclean;lookforsignsofhardwaterscaling.
•Ifthecleartubefromtheproportionalgasvalvetothebottomofthecombustionchamberis
disconnected,fluctuationsintemperatureand/orverylowflowtothefixturesmayoccur.
•Onwellsystemsorevenonsomecitywatersystems,waterpressurefluctuations(especiallyon
lowflow)of8to10psiwillresultinflowratefluctuations,whichwillinturnresultinminor
temperaturefluctuations.
•Flowsensororwatercontrolvalvemaybecompromised.Contactthetechnicalservice
department.


TroubleshootingGuide

11|Page

UNITDOESNOTIGNITEWHENWATERGOESTHROUGHIT
•Istheflowrateover0.5gpm?Seeiftheunitinitiateswhenyouincreasedemandofwaterbeing
drawnthroughtheunit(e.g.openingupmorehotfixtures).
•Checkthatthegaslineisopenandispurgedofair(p.24).
•Checkthatthefilteronthecoldwaterinletisclean(p.23).
•Checkforreverseconnectionandcrossconnection(p.24).
•Problemswithrecirculationsystem
oSeethatacheckvalveisinstalledbetweenthepumpdischargeandtheconnectionto
thecoldwatersupply.Amalfunctioningormissingcheckvalvewillcausecoldwaterto
back‐feedintothesystem.
•Ifyouusetheremotecontroller,istheremotepowerbuttonturnedon?
•ChecktoseeiftheComputerboardisreceivingpower.Thiscanbeverifiedbyobservingthe
computerboard3‐digitLEDdisplay.
oIfitisnotlit,thecomputerboardisnotbeingpowered.ChecktoseeiftheON/OFF
switchbelowthefuseboxissettotheonposition,orifthefuseinthefuseboxis
blown.
•Ifthefandoesnotinitiateatallanditisverifiedthereispowertotheunit(seeabove),theflow
sensormaynotbeworkingproperly.Checktheflowsensorforproperimpellerfunctionality.
•Possibleweakconnectiontopowersupply,eitheratthecircuitbreakerorwirenut.
ITTAKESALONGTIMETOGETHOTWATERATTHEFIXTURES
•Thetimeittakestodeliverhotwaterfromtheunittoyourfixturesdependsonthelengthof
pipingbetweenthetwo.Thelongerthedistanceorthebiggerthepipes,thelongeritwilltake
togethotwater.Ifthisisthecaseandyouwouldliketoreceivehotwatertoyourfixtures
quicker,youmaywanttoconsiderahotwaterrecirculationsystem.
•Problemswiththerecirculationsystem.
oSeethatacheckvalveisinstalledbetweenthepumpdischargeandtheconnectionto
thecoldwatersupply.Amalfunctioningormissingcheckvalvewillcausecoldwaterto
back‐feedintothesystem.
THEFANMOTORISSTILLSPINNINGAFTEROPERATIONHASSTOPPED
•Thisisnormal.Afteroperationhasstopped,thefanmotorkeepsrunning
from5to50secondsinordertore‐ignitequickly,aswellaspurgeallthe
exhaustgasoutoftheflue.
ABNORMALSOUNDSCOMEFROMTHEUNIT
•Checkthefanfordebris.
•Contactthetechnicalservicedepartment.
LOSSOFPRESSUREATALLSINKSDURINGCOMMERCIALDISHWASHERFILLS
•Verifythecapacityoftheheater(s)versustheGPMdemandofthedishwasher.
•Checkthesizeofthesupplylinestothedishwasher.
•Lookforawaterregulatoronthedishwasher.Checkthedishwasherratingplatetoconfirmthe
recommendedsupplywaterpressure.
•Unitmaybehardwaterscaled.Scalecanreducepressureandflowofwaterthroughtheunit;
thiscanoccurasquicklyasafewmonths.


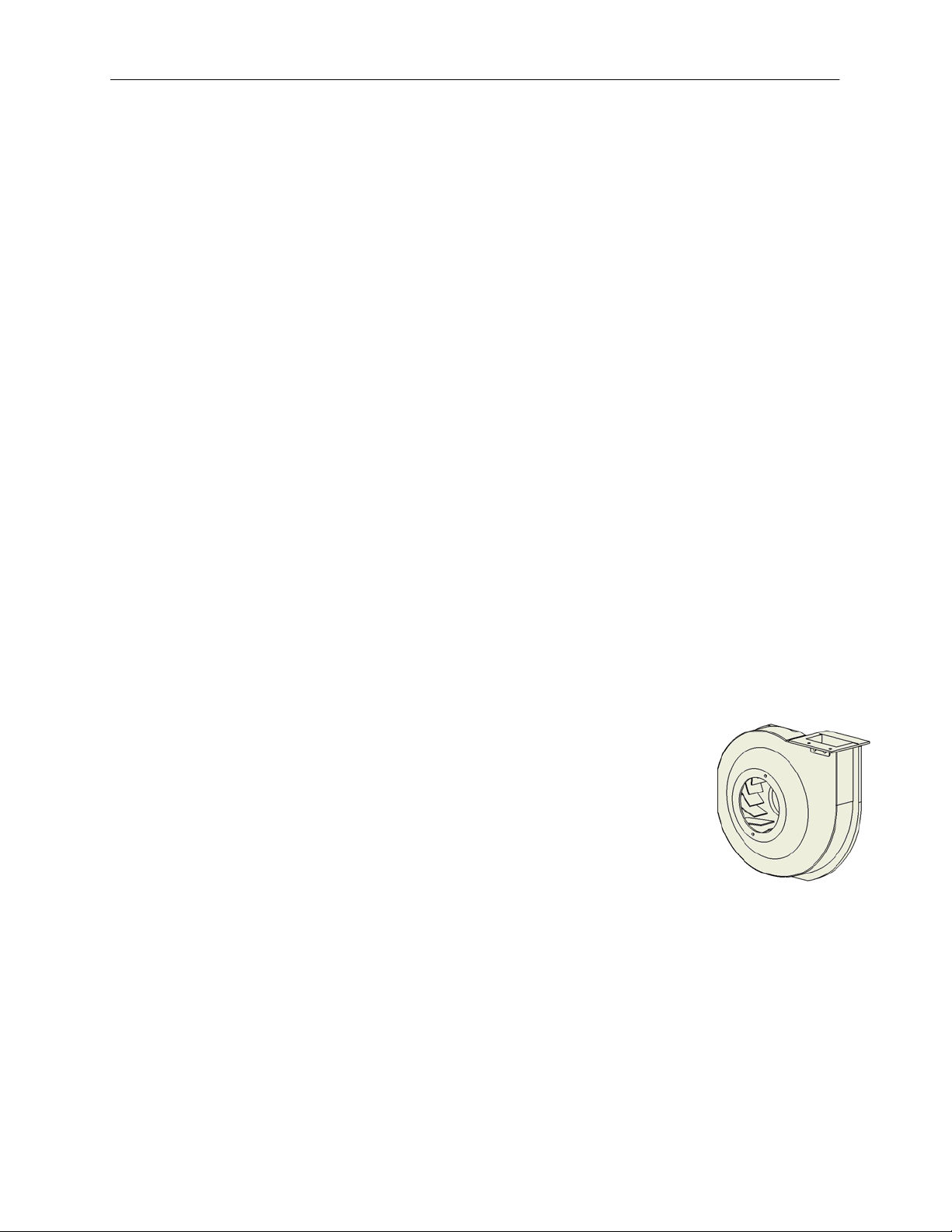

Figure3‐FanMotor

TroubleshootingGuide

12|Page

UNITHASPOWER,GAS,ANDWATERBUTDOESNOTTURNON
•Fornewunitinstalls,checktomakesuretheunitisnotplumbedinbackwards.
oShutoffcoldwaterfeedonly.
oOpennearesthotwatertap.Waterflowshouldstop.Ifnotthereisacoldwatercross
connection.
oOpenPressureReliefValve.Waterflowshouldstop.Ifnotunitisplumbedin
backwards.
•Cleanthefilter(p.23).
•Ifthefanneverinitiates,checkforafouledwaterflowsensor(p.34).
EASY‐LINKSYSTEMSETUP(MULTIPLEHEATERSETUP)
•UnitNumbering
oRefertotheinstallationmanualforpropersetup.
oThemasterunitwillalwaysbeassignednumber1.Theremainingunitswillberandomly
assignednumbers2‐4(ifthereare4unitsintheEasy‐Linksystem).


































TroubleshootingGuide

13|Page

5.3TROUBLESHOOTING‐ERRORCODES
•Allunitsareselfdiagnosticforsafetyandconveniencewhentroubleshooting.
•Ifthereisaproblemwiththeinstallationortheunit,itwilldisplayanumericalerrorcodeon
theTM‐RE30RemoteController(ifinstalled)oronthe3‐digit7‐SegLEDatthecenterofthe
computerboardtocommunicatethesourceoftheproblem.
•Consultthefollowingchartforthecauseofeacherrorcode.




SINGLEUNIT
•The3‐digit7‐SegLEDdisplayserrorcode,ortheTM‐RE30(ifinstalled)displaysthe3‐digiterrorcode.

EASY‐LINKSYSTEM
The7‐SegLEDoftheindividualunitwiththeerrorinquestiondisplaysthewhole3‐digiterrorcode.
TheTM‐RE30(ifinstalled)displaysa3‐digitnumberwhichsignifieswhichunithastheerror,andwhat
theerrorcodeis.

Table3–ErrorCodes
ErrorSymptomErrorSymptomError Symptom
031IncorrectDipswitch
Settings
391Air‐fuelRatioRodFailure661AbnormalWaterBypassValve
101Warningfor991
ErrorCode
441FlowSensor701ProportionalValve/
Computer
111IgnitionFailure510AbnormalMainand
SolenoidGasValve
711Hi‐Limitswitch/
OverheatCutoffFuse
121FlameLoss551SolenoidValves721FalseFlameDetection
311OutputThermistor611AbnormalFanMotor741RemoteController
CommunicationFailure
321InletThermistor621ExhaustFanMotor
(Indoormodelsonly)
761CommunicationFailure
(Easy‐Link)
331MixingThermistor631ExternalPump941AbnormalExhaust
Temperature
341ExhaustThermistor651AbnormalFlow
AdjustmentValve
991Abnormalcombustion
7‐SegLED
Figure4
Figure5
–
TM‐RE30(Optional)

TroubleshootingGuide

14|Page

Example:IfUnit#2hasthe“321”errorcode(inletthermistorfailure)
•Waterheater#2:Itwilldisplay“321”onthe7‐SegLED,justlikeintheSingleUnitexample.
•TM‐RE30:Itwilldisplay“232”onitsscreen.Thefirst“2”indicatesthatUnit#2hastheerror.The
“32”indicatesthefirsttwodigitsofthe“321”errorcode.











ERRORCODE031:INCORRECTDIPSWITCHSETTINGS
1) Turnoffthepowersupply.
2) Removefrontcoverandlocatethedipswitchesonthecenterofthecomputerboard.
3) Checkthedipswitchsettingsontheleftandrightbanks.Refertop.22forthecorrectdipswitch
positions.
a. Gastypeisacommondipswitcherror.
b. MostotherswitchesshouldbeondefaultsettingUNLESStheparticularsetuprequires
otherwise.
c. Easy‐Linksystems:Themasterheatershallhavethenumber10dipswitchontherightbankin
theONposition(left).Theremainingheaters(theslaveheaters)willhavethenumber10
dipswitchintheOFFposition(right)andthecommunicationwireswillbeattachedtotheslave
in/outplugs.

ERRORCODE101:ABNORMALCOMBUSTION
1) Blockageintheairway.Checkthefollowingareas:
a. Ventinglengthobstruction(Birds’nests,trash,etc.)
b. Backflowpreventerinstalledbackwards
c. Heatexchanger
d. Fan
2) Checkthemanifoldpressure(p.25).Adjustthemanifoldpressuretothecorrectvaluesifnecessary.
3) Ifintakeairiscontaminatedwithdust,lint(laundrymachinenearby),grease(kitchens),orother
contaminants,cleantheburner.Seep.28onproceduresforcleaningtheburner&sensor
assembly.
4) Weatherrelatedissues:highwinds,frozenventterminationflap,etc.
5) Installationsataltitudesaroundorover3000feet:Changingdipswitch5and6ontheleftbankof
dipswitchesonthecomputerboardforFM+modes.Seedipswitchexplanationsonpage21.
6) Makesurealldipswitchesaresetproperlyforthetypeofinstallation.
7) Ifthecauseofthe101errorcodehasbeendeterminedandsolved,resetthecomputerboardto
cleartheerrorcode(p.26).


TM‐RE30
Unit#1
MASTERunit
Unit#2
SLAVEunit
Unit#3
SLAVEunit
Unit#4
SLAVEunit
Figure6

TroubleshootingGuide

15|Page


ERRORCODE111:IGNITIONFAILURE
Heaterdoesnotfireafterthreefailedattemptsatignition.
1) Verifythatthehi‐limitswitchisnottripped.Turnthe
powerofftotheunit.Pushthewhitebuttonin.The
switchwillresetwhenyouhearandfeelthebutton
click.Turnthepowerbackonandtesttheheater.If
theunitfireson,thecauseofthehi‐limittripmustbe
determined.Pleasecontactthetechnicalservice
departmentforfurthertechnicalsupport.
2) Checkthegassupply.Verifythatsufficientgasisbeing
suppliedtotheheaterandthegaslineisclearofdebris
oranyair.Purgethelineofairifneeded(p.24).
a. Itispossiblethereisafaultypressureregulatoratthegasmeter.
b. Forpropaneunits,colderperiodsofthedayresultinacoldregulatorandmaycausethis
problem.
3) Verifythatthegassupplypressureiswithinspecificationswhentheheaterisinstandbyandwhen
theheaterisrunning.
4) Checkthattheclearplastictubeconnectingthe
proportionalgasvalvetothecombustionchamber
isattached.
5) Theoverheatcutofffuse(OHCF)mayhavebeen
compromised.Forproceduresonhowtocheck
whethertheOHCFisintact,refertop.26.Ifthe
OHCFhasbeencompromised,contactthe
technicalservicedepartmentforfurther
assistance.
6) Ifflamecomesonforonly1‐2secondsbefore
goingout,cleantheflamesensor(p.27).
7) Checktheigniterforaspark.Thesparkmaybeviewedthroughthesightglasslocatednexttothe
igniterandflamesensor.
a. Astrongbluesparkwillremainsteadyandinplace,whileaweaksparkwilljumparound.
b. Ifnosparkoraweaksparkisobserved,checktheigniterwireconnectionsandmakesurethese
aresecure.Ifthesearesecure,areplacementigniterwillberequired.
8) Checkforblockagesintheventing,suchasbirdnests,animals,ortrash.
a. PCBoardfaultorGasSolenoidfault.Contactthetechnicalservicedepartment.

ERRORCODE121:FLAMELOSS
Thiserrorcodeappearsiftheflamesdisappearwhile
theunitisstillsupposedtobeinoperation.
1) Verifythatthehi‐limitswitchisnottripped.Turn
thepowerofftotheunit.Pushthewhitebutton.
Theswitchwillresetwhenyouhearandfeelthe
buttonclick.Turnthepowerbackonandtestthe
heater.Iftheunitfireson,thecauseofthehi‐limit
tripmustbedetermined.Pleasecontactthe
technicalservicedepartmentforfurthertechnical
support.
Figure7
Figure8
Figure9

TroubleshootingGuide

16|Page

2) Checkthegassupply.Verifythatsufficientgasisbeingsuppliedtotheheaterandthegaslineis
clearedofdebris.
a. Itispossiblethereisafaultypressureregulatoratthegasmeter.
b. Forpropaneunits,colderperiodsofthedayresultinacoldregulatorandmaycausethis
problem.
3) Verifythatthegassupplypressureiswithin
specificationswhentheheaterisinstandbyand
whentheheaterisrunning.
4) Checkthattheclearplastictubeconnectingthe
proportionalgasvalvetothecombustionchamberis
attached.
5) Iftheflamecomesonfor1‐2secondsbutthengoes
out,cleantheflamesensor(p.27).
6) Theoverheatcutofffusemayhavebeen
compromised.Forproceduresonhowtocheck
whethertheOHCFisintact,refertop.26.Ifithas,
contactthetechnicalservicedepartmentforfurther
assistance.
7) Checkforblockagesinventing,suchasbirdnests,animals,ortrash.
8) PCBoardfaultorGasSolenoidfault.
a. Ifoneoftheseissuspectedtobetheproblem,contactthetechnicalservicedepartment.

ERRORCODE311:OUTPUTTHERMISTOR
1) Checkthatthewireconnectionsaresecureandfree
ofburnsorcuts.Theoutputthermistorislocatedon
theheatexchangerontherightside.
2) Checktheresistancevalue;itshouldbeabout9.0kΩ
atroomtemperature(about74°F).
3) Cleanthethermistor.
a. Draintheunitofwater.Seep.23.
b. Removethefastenerholdingtheoutput
thermistorandpulloutthesensorprobe.Clean
theprobetoasilverfinish.Donotlosethe
rubbero‐ringthatwrapsaroundthissensor.
c. Replaceandtest.
4) Iftheerrorcodepersists,replacethethermistor.

ERRORCODE321:INLETTHERMISTOR
1) Checkthatthewireconnectionsaresecureandfreeofburnsorcuts.Theinletthermistoris
embeddedinthewaterinletconnection.
2) Checktheresistancevalue;itshouldbeabout9.0kΩatroomtemperature(about74°F).
3) Cleanthethermistor.
a. Draintheunitofwater.Seep.23.
b. Removethecomputerboardtoaccesstheinletthermistor.Thecomputerisfixedinplacebya
singlescrewatthetopoftheboard.
c. Removethescrew,pulloutthesensorprobe.Cleantheprobetoasilverfinish.Donotlosethe
rubbero‐ringthatwrapsaroundthissensor.
d. Replaceandtest.
Figure10
Figure11

TroubleshootingGuide

17|Page

4) Iftheerrorcodepersists,replacethethermistor.

ERRORCODE331:MIXINGTHERMISTOR
1) Checkthatthewireconnectionsaresecureandfreeofburnsorcuts.Themixingthermistoris
embeddedinthewateroutletconnection.
2) Checktheresistancevalue;itshouldbeabout9.0kΩatroomtemperature(about74°F).
3) Cleanthethermistor.
a. Draintheunitofwater.Seep.23.
b. Removethecomputerboardtoaccessthemixingthermistor.Thecomputerisfixedinplaceby
asinglescrewatthetopoftheboard.
c. Removethescrew,pulloutthesensorprobe.Cleantheprobetoasilverfinish.Donotlosethe
redrubbero‐ringthatwrapsaroundthissensor.
d. Replaceandtest.
4) Iftheerrorcodepersists,replacethethermistor.

ERRORCODE341:EXHAUSTTHERMISTOR
1) Checkthatthewireconnectionsaresecureandfreeof
burnsorcuts.Theexhaustthermistorisembeddedat
thetopcenteroftheunitabovetheheatexchanger.
2) Checktheresistanceofthethermistor.Thevalue
shouldbeabout10.75kΩatroomtemperature(about
74°F).
3) Cleanthethermistor.
a. Removethescrewholdingthethermistorplate,
thenpulloutthesensorprobe.
b. Cleantheprobetoasilverfinish.Donotlosethe
whitegasketthatsealsthissensor.
c. Replaceandtest.
4) Iftheerrorcodepersists,replacethethermistor.

ERRORCODE391:AIR‐FUELRATIORODFAILURE
1) Checkthatthewireconnectionsaresecureandfreeof
burnsorcuts.
2) Checkthattheclearplastictubeconnectingthe
proportionalgasvalvetothecombustionchamberis
attached.
3) CleantheAFR(p.27).

Figure12
Figure13
Figure14

TroubleshootingGuide

18|Page


ERRORCODE441:FLOWSENSOR
PartofanEasy‐Linksystem,themasterunitsignaledforanadditionalheaterto
activateanditdidnot.
1) Verifythatwaterisbeingsuppliedtotheheaterinerror.
2) Verifythatthewiresareconnectedtothecomputerboard.
3) Checktheinletfilterforanydebris.Seep.23.
4) Checktheflowsensorfordebris.

ERRORCODE510:ABNORMALMAINAND/ORSOLENOIDGASVALVE
Drivingcircuitfaultforthemainorsolenoidgasvalves.
1) Ifthehotwaterisshutoff,butflamesarestillvisiblethroughtheburner
sightwindow,immediatelyshutoffgasandpowertotheunitand
contactthetechnicalservicedepartment.
2) Checkthewireconnectionstothegasvalveassemblyforburnsor
cuts.
3) Iftheunitwasrecentlyrebuilt,makesurethateachgasvalvewireis
pluggedintotheproperplace.
4) Verifythatthesupplygaspressureiswithinthespecifiedlimits.
Toohighofaninletgaspressuremaycausethemaingasvalveto
jamorcouldbedamaged.

ERRORCODE551:ABNORMALSOLENOIDGASVALVE
Drivingcircuitfaultforthesolenoidgasvalve.
1) Ifthehotwaterisshutoff,butflamesarestillvisiblethrough
thesightglass,immediatelyshutoffgasandpowertotheunit
andcontactthetechnicalservicedepartment.
2) Checkthewireconnectionstothegasvalveassemblyforburns
orcuts.
3) Iftheunitwasrecentlyrebuilt,makesurethateachgasvalve
wireispluggedintotheproperplace.
4) Verifythatthesupplygaspressureiswithinthespecified
limits.Toohighofaninletgaspressuremaycausethemain
gasvalvetojamorcouldbedamaged.

ERRORCODE611:ABNORMALFANMOTOR
1) Turnoffpowersupply.
2) Checkfanmotorwiringforanybreakages,burnmarks
onthePCboard,ormoisture.Ifmoistureisfound,
allowconnectiontocompletelydrybeforeturning
powerbackon.
3) Checkfanhousingforwater.Iffound,pleasedrythe
fan,thentestheater.
4) Toremovethefanmotor.
a. Turnoffthepowersupply.
Figure15
Figure16
Figure17
Figure18

TroubleshootingGuide

19|Page

b. Movethecomputerboardoutoftheway.Thisinvolvesthreescrewsandremovingany
restrictingwiresconnectedtothePCB.
c. LocatethetwoPhillipsheadscrewsfittedatthetopofthefanmotortothecombustion
chamberbox.Twoholesarelocateddirectlyatthebottomofthecasingthatlineupwiththe
twoscrews.Usingan8”screwdriver,removethescrews.
d. Slidethefanouttowardstheleft.
e. Ifsignsofwaterareevident,watermayhavedamagedthefanmotorrequiringreplacement.
5) Ifthe611errorcodestillappearsafterallitemshavebeenchecked,thePCBmayneedreplacement.
Contactthetechnicalservicedepartment.

ERRORCODE621:ABNORMALEXHAUSTFANMOTOR
ThiserrorcodeappliestotheIndoormodelsonly.
1) Turnoffpowersupply.
2) Checkfanmotorwiringforanybreakages,burnmarksonthePC
board,ormoisture.Ifmoistureisfound,allowconnectionto
completelydrybeforeturningpowerbackon.
3) Checkfanhousingforwater.Iffound,pleasedrythefan,then
testheater.
4) Toremovethefanmotor.
a. Turnoffthepowersupply.
b. Disconnectthefanmotorclipnearthefan.
c. LocateandremovethefourPhillipsheadscrewsaroundthe
fanmotortothecombustionchamberbox.
d. Thefanmotorshouldbefreetoberemoved.
e. Ifsignsofwaterordebrisareevident,watermayhave
damagedthefanmotorrequiringreplacement.
5) Ifthe621errorcodestillappearsafterallitemshavebeenchecked,thePCBmayneedreplacement

ERRORCODE631:ABNORMALEXTERNALPUMP
Thiserrorcodeoccurswhenthereisaproblemwiththeexternal
pumpconnectedtothePCB.Checktoseewhetherthepump
connectedtothePCBworksproperly.
ERRORCODE651:ABNORMALFLOWADJUSTMENTVALVE
1) Turnoffpowersupply.
2) Checkthatallwireconnectionsaresecureandfreeofburns.
Theflowadjustmentvalveislocatedbehindthecomputer
boardandattachedtothecoldwaterinlet.
3) Checkforwaterleakagefromthevalve.
4) DoavisualinspectionofthePCB.Checkfor
connection/breakageofwiresand/orburnmarksontheboard.
PCBmayneedtobereplaced.
5) Theflowadjustmentvalvemayneedtobecleaned.Toremove,followthestepsbelow:
a. Removethefourwaterwayclipsoneachsideofthevalves.
b. Slidethevalveupofftheinletwaterconnection.
c. Checkbothendsofthevalveforsedimentordebris.Useabrushordescalingsolutionto
removethesediment.
d. Re‐installthevalveandclips.
Figure19
Figure20

TroubleshootingGuide

20|Page

e. Testtheheater.
6) Thewatercontrolvalvemayneedtobereplacedifthevalvecannotbecleaned.Contactthe
technicalservicedepartment.

ERRORCODE661:ABNORMALWATERBYPASSFAULT
1) Turnoffpowersupply.
2) Checkthatallwireconnectionsaresecureandfreeofburns.Theflowadjustmentvalveislocated
behindthecomputerboardandattachedtothecoldwaterinlet.
3) Checkforwaterleakagefromthevalve.
4) DoavisualinspectionofthePCB.Checkforconnection/breakageofwiresand/orburnmarkson
theboard.PCBmayneedtobereplaced.
5) Thebypassvalvemayneedtobecleaned.Toremove,followthestepsbelow:
a. Removethefourwaterwayclipsoneachsideofthevalves.
b. Slidethevalveupofftheinletwaterconnection.
c. Checkbothendsofthevalveforsedimentordebris.Useabrushordescalingsolutionto
removethesediment.
d. Re‐installthevalveandclips.
e. Testtheheater.
6) Theflowadjustmentvalvemayneedtobereplacedifthevalvecannotbecleaned.
ERRORCODE701:PROPORTIONALGASVALVE/COMPUTER
1) Turnoffthepowersupply.
2) Theproportionalvalveislocatedatthebottomofthe
gasvalveassemblywitharedandwhitewires
connectingtoit.
3) Checkallwireconnectionsandmakesuretheyare
secureandfreeofburnsorcuts.
4) InspectthePCBforconnection/breakageofwires
and/orburnmarksontheboard.
5) Verifythatsupplygaspressureiswithinspecifications.
6) Contactthetechnicalservicedepartmentforfurther
assistance.
ERRORCODE711:HI‐LIMITSWITCH/OVERHEATCUTOFFFUSECOMPROMISED
Thiserrorcodemayappearinsteadofthe“111”or“121”
errorcodes.
1) ChecktheHi‐Limitswitch
a. Visualinspection:Connection/breakageofwires.
b. Normal:Lessthan1Ωbetweenblue&blue
2) OverheatCutoffswitchcompromised
a. Visualinspection:Connection/breakageofwires.
b. Normal:Lessthan1Ωbetweenblue&blue
c. Checkforcontinuity.SeetheTroubleshooting:
GeneralProceduresectionforinstructions.
3) PCBand/orgasvalvefault
a. Drivingcircuitfaultforgassolenoidvalve.Inspect
thePCBconnectionofthegasvalve.

Figure21
Figure22
