A.O. Smith Jaguar HSE-SCJ-015 User manual

Water Heater
HSE-SCJ-015 / HSE-SCJ-025
ADVANCED TECHNOLOGY
®
Blue Diamond glass lined tank. Maximum protection
against hard water and corrosion.
GLASS COATED DUAL HEATING ELEMENTS
Heats water faster and lasts longer. Flexible heating
options.
MORE FEATURES & USER CONTROLS
Wireless remote control, temperature settings,
ON/OFF timers, energy meter...
ENERGY SAVING
BEE 5 star rating. The most energy efficient water heater you can buy.
CHANGEABLE DECORATIVE PANELS
4 colour options to match the bathroom décor.
LONGER WARRANTIES
7 years warranty on inner tank, 4 years warranty on glass coated heating element & 2 years comprehensive.
MADE BETTER
Made in India’s most modern and advanced water heater factory.
Size: 210mm (H) x 148mm (W)
Part No.: 324173-000_R0
Approved on: 17-07-2012
User Guide
 Exciting new model
 Higher energy saving
 Handy wireless remote control

2

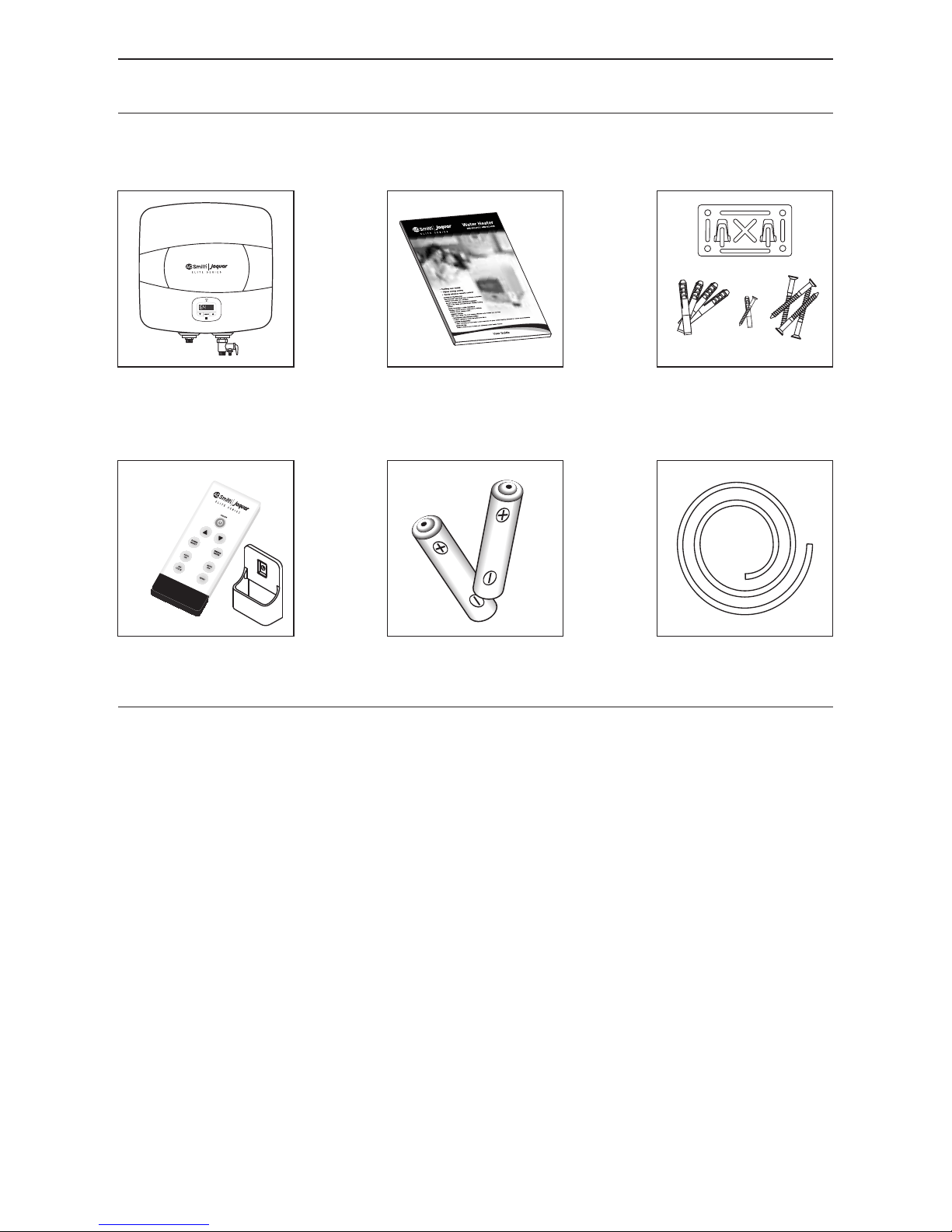

What's in the box?
Electric
Water Heater
Wall Mounting
Accessories
Battery
User Guide
Drain Pipe
Contents
Remote & Holder
1.5V
1.5V
Specifications........................................................................................ 1
Key Features.......................................................................................... 2
Installation............................................................................................ 3
Control panel operations..................................................................... 5
Wireless remote operations................................................................. 6
Directions for use ................................................................................. 7
Timer Explanation ................................................................................ 10
®
A. O. Smith ColourMatch System ....................................................... 11

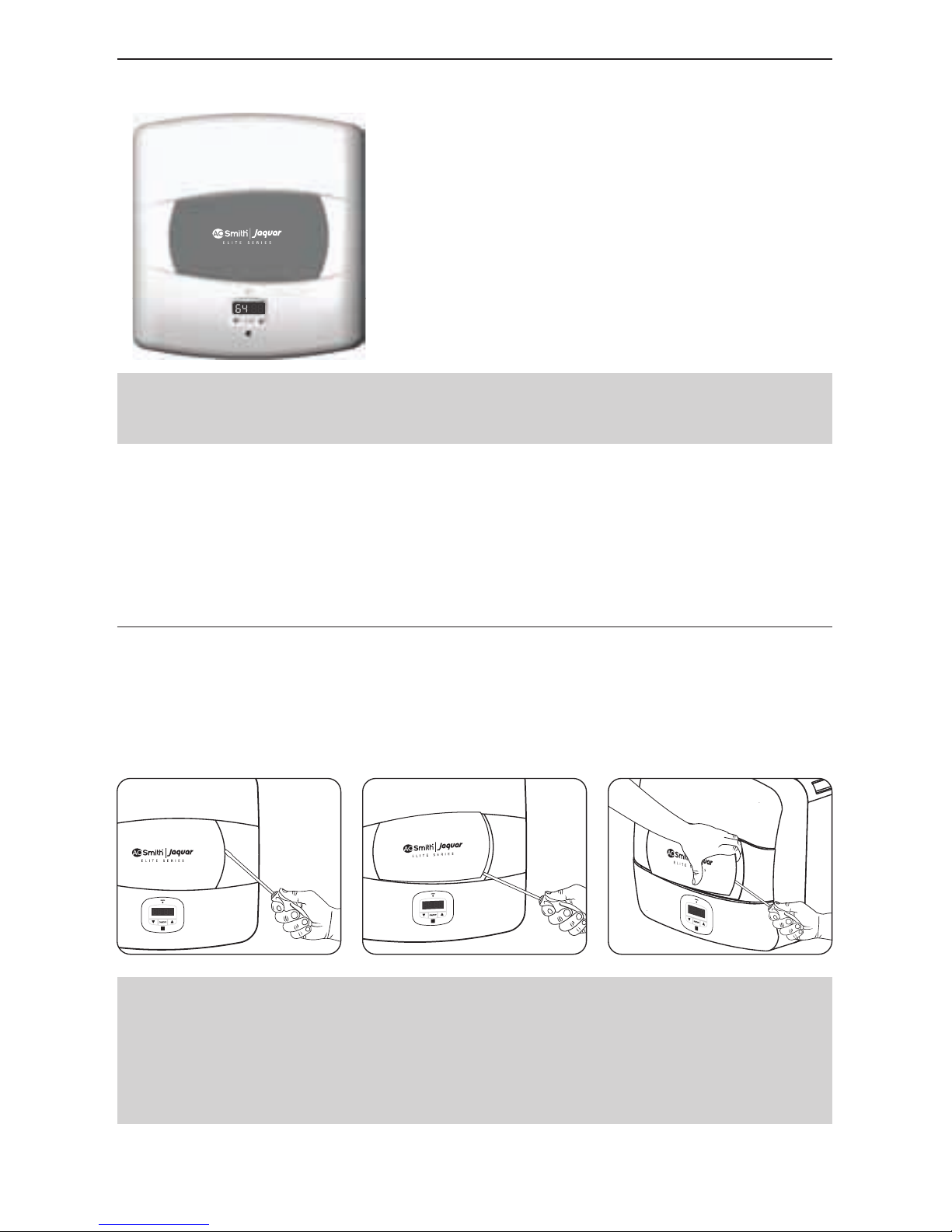

Changing the Decorative Front Panel ................................................. 11
Troubleshooting ................................................................................... 12
Circuit Diagram .................................................................................... 12
Warranty Card ...................................................................................... 13
Jaquar & Company Limited.................................................................. 19
HPW: Available in 60 & 80 litre capacities
Air2Heat Water Heaters
HPW-60, 80 Litres

Specifications
Dimensions
1
Caution: *Safety valve has been factory fit with the water heater and set at 0.8 MPa
(8 Bar) rated pressure.
Warning: Do not tamper or detach the safety valve from the water heater.
1 Outlet
2 Inlet
3 Safety Valve*
4 Electronic User interface
5 Decorative Front Panel
6 Front Jacket
7 Back Jacket
8 Anode
9 Heating Element
10 Tank
11 Installation Bracket
12 PU Insulation
13 Thermal Cutout
Part Descriptors
Model HSE-SCJ HSE-SCJ
-015 -025
A [mm] 386 444
B1 [mm] 386 444
B2 [mm] 410 478
B3 [mm] 444 513
C [mm] 349 391
12
11
10
9
8
7
13
6
C
4
3
2
1
5
A
B2
B3
B1
Model HSE-SCJ-015 HSE-SCJ-025
Volume [L] 15 25
Power [W] 3000/2000/1000 3000/2000/1000
Voltage/Frequency [V/Hz] ~230/50 ~230/50
Actual Stdg. Loss [kWh/24h/45°C diff.] 0.560 0.690
o
Max. Stdg. Loss [kWh/24h/45 C diff.]
[as per IS 2082:1993 amended in 2002] 1.138 1.386
Reheating Time for 35°C rise [in min] 18 31
Temperature range [°C] 25-75 25-75
2
Rated water pressure N/cm 80 80
Water head (meters) 80 80
Inlet/Outlet connections [Inch] ½ ½

2
Key Features
®
Blue Diamond technology increases the life of the inner tank. The lining is
stronger and more corrosion resistant than any other in the industry.
®
Blue Diamond Glass Lining
The tank has an anode rod system with a stainless steel core that is designed
to protect the tank from corrosive elements. The system uses a special cathodic
action to fight the corrosive elements and thus prolongs the life of the water
heater.
Anode Rod
The safety valve is designed to automatically relieve and discharge water in case
the pressure or temperature overshoots the preset limits.
Safety Valve
Glass Coated Dual Heating Element provide extended life to the water heater by
preventing Scale Formation on the element surface. They help in quick water
heating.
The LED displays electricity consumed, set temperature, actual temperature,
timer etc. The user can select the set temperature within the range of 25°C to
75°C. This water heater can retain the set information for 72 hours, even in
power off condition.
Digital Controls
In case a fault occurs and the water temperature exceeds the highest preset
temperature, the breaker rapidly cuts off the live line and the neutral line
simultaneously to assure safety.
Thermal Cutout
Note: A. O. Smith Jaquar reserves the right to amend or modify the specifications and
features at any time, as and when required without any prior notification.
Glass Coated Dual Heating Element

3
Installation
Mounting
Plumbing
1. Make sure that the wall can withstand at least twice
the weight of the water heater when completely
filled with water.
2. Before locating the position for installation of the
water heater, make sure that there is sufficient
clearance between the ceiling and the side wall.
(Fig. 1)
3. Use a drill bit with diameter of 10mm to drill 4 holes
at least 90mm deep in the wall (Fig. 3). The four
holes should be aligned horizontally and vertically.
The horizontal distance between the 2 holes should
be 120mm and the vertical distance should be
57mm. (Fig. 2)
4. Insert the expansion anchors into the holes. Place the
wall mounting bracket over the expansion anchors
and tighten the screws on the bracket. (Fig. 3)
5. Place the water heater on wall mounting bracket (Fig. 4)
using hanger hooks. Tug downwards on the heater to
ensure that the water heater is fixed steadily.
1. Make necessary plumbing with reference to the installation diagram. (Fig. 5)
2. A. O. Smith recommends nylon braided hoses having a minimum pressure rating of 8 Bar
and hoses should be compatible for hot water applications.
3. Connect the cold water pipe to the inlet [Blue Cap].
4. Connect the hot water pipe to the outlet [Red Cap].
5. Attach the discharge tube to safety valve as shown in installation diagram. (Fig. 5)
Attention: Make sure a suitable sealing tape is used for all connections to prevent leakage.
Fig. 1 Position for installation Fig. 2 Wall mounting bracket
Wall
Fig. 3 Installation of
wall mounting bracket
Fig. 4 Inserting the water heater
into mounting bracket
Wall Water
Heater
Water
Heater
Wall
Water
Heater
Wall
1
2
3
Wall
Ceiling
Water heater

1. Open a hot water faucet nearby to permit the air to escape.
2. Open the cold water inlet valve fully, filling the heater and the piping.
3. Close the hot water faucet when water flows.
4. Check all the connections to see if there is any leakage. In case of a leakage, drain the
heater completely, repair the leaking joint and then refill the heater.
Water Filling
*Flexible Hoses to be procured by the customer, not part of standard product.
Electrical Connections
The power cord and plug are connected with this water heater. Find a separate socket for
power plug and make sure the socket is in firm contact with the plug. Ensure that reliable
earthing has been done.
4
Caution:
• Connect the water heater using independent sockets. Do not use adapters. Use
multimeter to check whether the live line and neutral line are not reverse, to ensure
complete safety.
• Before installing the water heater confirm that the power of water heater matches
electric meter capacity and supply wire.
• The water heater should be earthed reliably. It is prohibited to connect the earth wire
to neutral wire or tap water pipe.
Fig. 5 Installation diagram
Hot Water Tap
Cold Water Tap
Discharge Tube
*Flexible Hose
*Flexible Hose Lever
To Drain
Safety Valve
Blue Cap
Red Cap

Caution: Once the mounting, plumbing, discharge tube and water filling is completed, then
only the power supply should be given.

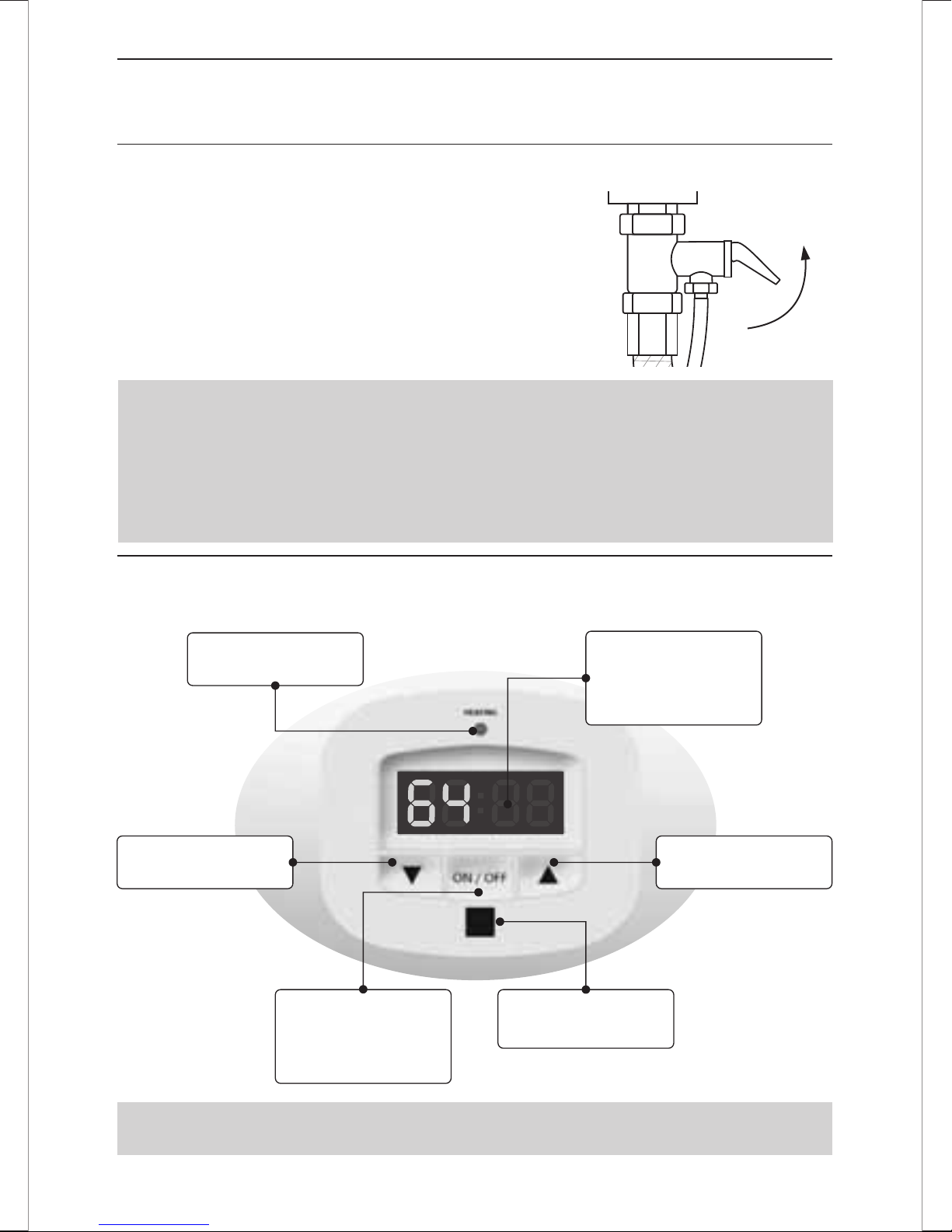

For draining water from the water heater, following steps
needs to be followed:
1. Switch off the electric supply to the water heater.
2. Open the hot water taps until the water is not hot any
more.
3. Close cold water supply.
4. Drain the water by moving the lever of safety valve in the
direction of the arrow as indicated in the diagram. (Fig. 6)
Draining
Fig. 6 Safety valve
Caution: Before using the water heater, make sure that it should be completely filled with
water.
Please turn off the power supply to the water heater prior to draining the water
heater.
Warning: This water heater should not be operated with insufficient amount of water.
Failure to do so may result in damage to the water heater & injuries to the users.
This will also make the warranty null & void.
Control panel operations
Fig. 7 Using control panel
Indicator glows when the
heating is in progress.
To decrease the Set
Temperature (normal mode)
To increase the Set
Temperature (normal mode)
5
Infra-Red rays connecting
the water heater and the
wireless remote
To switch ON/OFF the heater.
While switched on the
display shows the water
temperature as shown
above.
The LED display shows:
• Displays actual and set
temperature; indication
of timers and power
consumed.

To switch ON/OFF the heater.
While switched on the
display shows the water
temperature shown in Fig. 9.
To increase the set
temperature (normal mode),
time (when the Auto ON /
Auto OFF or Clock Set) is
pressed.
To select the power option
i.e, 1000W, 2000W or
3000W.
To set the ON time for the
water heater. Refer page 8.
To set the OFF time for the
water heater. Refer page 8.
To set the Real Time Clock.
Refer page 9.
To switch ON the water
heater instantly in timer
mode.
To display the total energy
consumption of the water
heater.
To decrease the set
temperature (normal mode),
time (when the Auto ON /
Auto OFF or Clock Set) is
pressed.
Wireless remote operations
Fig. 8 Using wireless remote
6

Directions for use
Caution:
• Before using the water heater, make sure the inner tank is completely filled with water
and the power plug has been connected properly.
• The wireless remote works with two AAA/1.5V cells.
• Ensure that the wireless remote does not get in direct contact with water. Do not
operate the remote with wet hands.
1. Initial power
When the water heater power supply plug is connected, it is in
initial power on state. The LED display on the control panel will
glow and goes off as shown in Fig. 9.
2. Power ON/OFF
To switch on/off the water heater press ON/OFF key on the
control panel or “ ” on wireless remote. While switched on the
LED display shows actual temperature of the water as shown in
Fig. 10.
Note: The heating indicator glows when the heating element in
switched on.
3. Clock setting
The clock is Real Time Clock. Press “Set Clock” key, the hour time
(first two digits) starts blinking. Adjust the hour time by pressing
““ or ““ keys and press “Set Clock” key to set the hour time
and minutes time (last two digits) starts blinking. Adjust the
Minute time by pressing ““ or ““ keys and press “Set Clock”
key to set the minute time. Now the clock time is set as shown in
Fig. 11.
Note: The clock time to be set before setting the Auto On & Auto
Off time.
4. Temperature setting
Press ““ (Increase), ““ (Decrease) keys to adjust the Set
Temperature. Set temperature increases or decreases by 1°C for
each press from 25°C to 75°C. Wait for few seconds the value
flashes for 5 times and the new temperature value is stored. The
set temperature scrolls on pressing the keys continuously for 3
sec. The LED display glow as shown in Fig. 12.
Note: The water is heated to the new stored temperature until
the temperature setting is changed.
5. Auto On
Press “Auto On” key, the hour time (first two digits) starts
blinking. Adjust the hour time by pressing ““ or ““ keys and
press “Auto On” key to set the hour time and minutes time (last
two digits) starts blinking. Adjust the Minute time by pressing
““ or ““ keys and press “Auto On” key to set the minute
time. Now the clock time is set as shown in Fig. 13.
Note: By default the “Auto On” time is 00:00 and if new time is
set the heating element will be switched on from the new “Auto
On” time irrespective of the water heater is switched on.
Fig. 9
Fig. 10
Fig. 12
Fig. 11
Fig. 13
7

6. Auto Off
Press “Auto Off” key, the hour time (first two digits) starts blinking.
Adjust the hour time by pressing ““ or ““ keys and press “Auto
Off” key to set the hour time and minutes time (last two digits)
starts blinking. Adjust the Minute time by pressing ““ or ““
keys and press “Auto Off” key to set the minute time. Now the
clock time is set as shown in Fig. 14 .
Note: By default the “Auto Off” time is 23:59 and if new time is
set the heating element will be switched on till the new “Auto Off”
time irrespective of the water heater is switched on.
7. Energy meter
The “ENERGY METER” key is used to display the energy
consumption of water heater in kWh. The energy meter value is
displayed for 5 sec and it is cumulative. The digital display as
shown in Fig. 15.
Note:
• Energy Meter values are indicative only.
• Refer 6. Reset function to reset the Energy Meter.
8. Power select
The water in the tank heats quick by changing the power options. The default power
selection is 2000W. It can be changed to 1000, 2000 or 3000W by pressing the power
select key. Wait for few seconds the value flashes for 5 times and the new power option is
stored. The LED display as shown in Fig. 16.
9. Override
By pressing the ”Override” key, the water heater enters the heating state instantly after the
“Auto Off” time. The heating continues until the set temperature is reached. You can exit
the heating mode by pressing the “Override” button again during the instant heating
mode. The LED display as shown in Fig. 9.
10. Reset
By pressing the ““ and ““ simultaneously for few seconds the water heater will change
into default stage. AUTO ON & OFF times set as 00:00 & 23:59. Power is set 2000W as
default. Set temperature set to 70°C.
11. Operation of remote controller
The operating method and function keys of the remote controller as shown in Fig. 7.
1. Prior to operating the remote controller, it is necessary to install the battery as show in
Fig. 17.
2. While the remote controller in use, point it at the electronic controller, having a range
within 5 m as shown in Fig. 18.
Note:
• Replace the batteries if the controller does not function correctly.
• Use two AAA/1.5V cells. Ensure to insert them in the correct orientation.
• When replacing the batteries, do not mix old and new or batteries of a different type.
• If the remote is not used for a long period, please remove the batteries.
Fig. 15
Fig. 16
Fig. 14
8
