A SYSTEMS DMP Series User manual

DMP SERIES
Digital Matrix Processors and Automatic Mixers

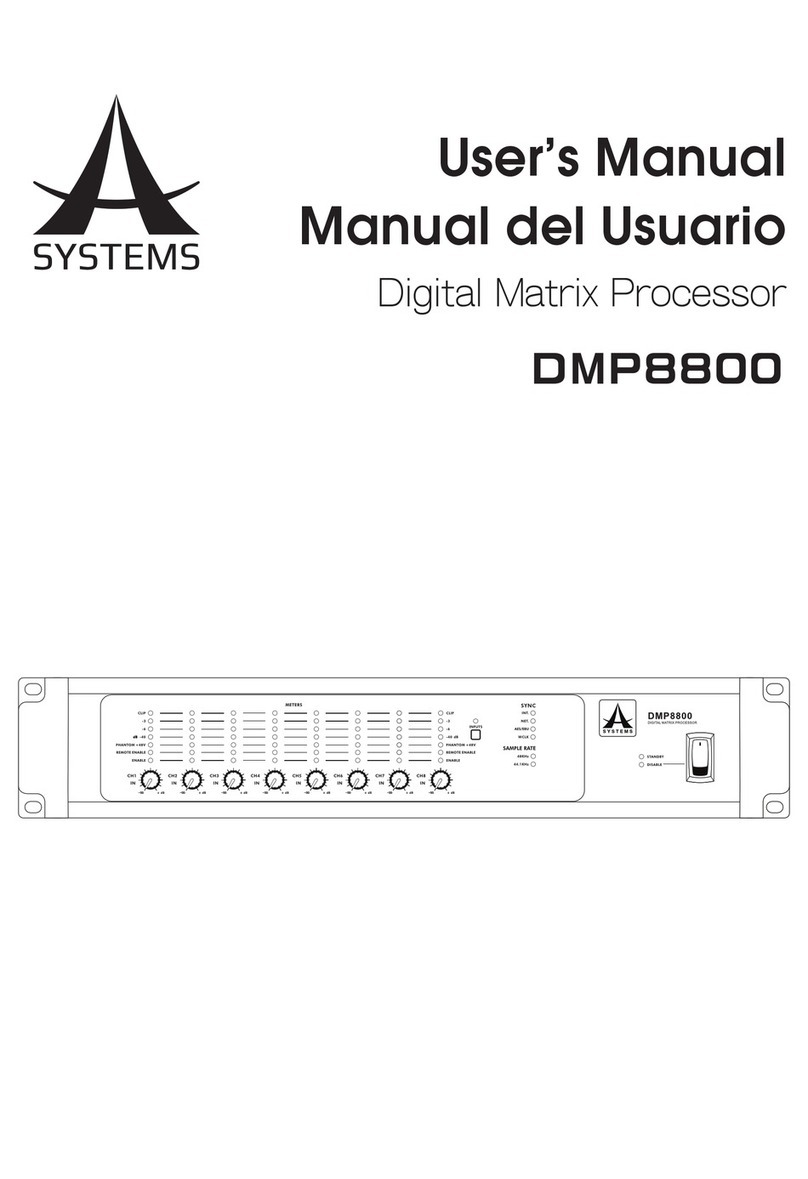

The Asystems DMP8800 digital matrix processor
promise simple integration into any live commercial
setup. These systems combine smart signal processing
with a exible modular mixing matrix. Sound complex?
It’s not, because all routing and processing is adjusted
through a simple, intuitive graphical user interface.
DMP8800 processors provide racks-full-o-gear in
a modest 2 unit construct. Combining many great
products into a simple design, the DMP8800 simplies
your installation and saves you money. The input and
output count on the DMP8800 are ideal for small-to-
medium sized venues, with possible expansion for
larger venues through optional 8x8 networking.
With extensive onboard signal processing, flexible
matrix routing and optional Dante audio interface
capabilities, the DMP8800 matrix processors do
it all. Asystems engineers have also ingrained
each DMP8800 with versatile and extensive signal
processing, including full 31-band GEQs, 4-band
parametric EQs, compressors, limiters, gates, auto-
mixing and auto-leveling, and page ducking. All
control is accomplished through the included Windows
software that allows for remote operation through local
area networks or the internet. With password protected
user accounts, extensive scheduling capabilities, and
flexible audio networking (optional), the DMP8800
digital matrix processor is a exible yet reliable center
for any commercial installation.
Designed specically for installed sound, the Asystems'

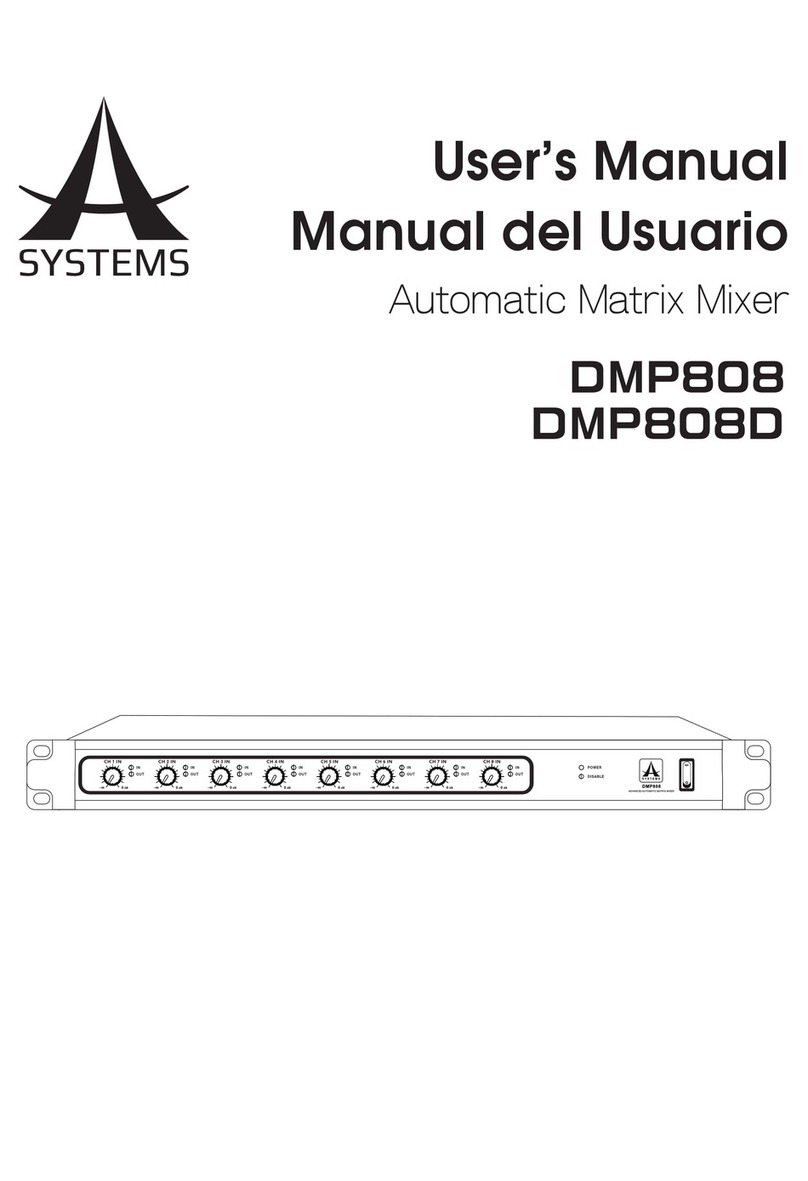

DMP808 automatic mixers combine clean, simple
designs with smart signal processing. These systems
offer fast-acting, noise-free microphone normalization
that automatically adjusts to changes in background
room noise. This essentially helps maintain high
quality audio despite the number of open microphones.
Networking capabilities allow integration of any number
of DMP808 mixers for expanding the system to up to
400 microphones.
Input on the DMP808 is achieved through professional-
standard 3-pin euroblock connectors for balanced
connections. Two sets of stereo RCA connectors are
also included for extended application. All inputs and
outputs are utilized through the flexible matrix routing
system, controlled via the included user-intuitive PC
software. This software also allows you to control the
extensive on-board signal processing, including 4-band
parametric EQs, feedback silencers, duckers, noise-
gates, compressors, limiters and, of course, automatic
mixing including NOM (Number of Open Microphones)
compensation. With flexible networking capabilities
(including a Dante networking option) and highly
accurate automixing, the DMP808 automatic mixer is a
must-have for all large commercial installations.
48 input channels available via 3-pin euroblock connections and dual
RCA inputs
4VGA and USB connectors enable use as a self-contained system
440-bit oating point processor with internal sampling selectable
between 44.1 and 48 kHz
4Optional 8x8 networking capabilities through Dante audio streaming
card (model no. DT88)
4Digital AES/EBU input and output connectors (plus BNC Word Clock in
and out)
4Playback of digital audio les from SD cards on cue or on schedule
through pre-programmed events
410/100 Ethernet computer interface standard
4Automatic DHCP network IP conguration
4Easy and intuitive control Windows software from Asystems
4Schedule system events down to the very second
44-band parametric EQs and 31-band graphic equalizers
4Seamless automatic mixing through dynamic channel gating and
attenuation
4Compressors, limiters and noise gates
4Autoleveler (Loudness Control) and level ducking with trigger control
4All signal processors exible and user-controllable
48 balanced mic/line input channels via euroblock connections
48 output channels through euroblock connections
4Non-automatic auxiliary input through unbalanced stereo RCA
connectors
4Gain controls for each input available on front panel
4Seamless automatic mixing through dynamic channel gating and
attenuation
4Network up to 400 microphones for exible, large-scale application
(Dante option required)
44-band parametric EQs with low-cut, high-cut and shelving boost/cut
4Fully functional compressors on all input channels
4Adjustable peak limiters available on outputs
4Delay on each output with variable time/distance control
4Accurate feedback silencing technology built-in
4Program-intuitive ducking function
4Ethernet connectivity for networking and control application
4+48V phantom power on input channels
4Easy and intuitive control software from Asystems
4Compatible with Asystems' range of remote controls
DMP8800
8-in x 8-out Digital Matrix Processor
DMP808
12-in x 8-out Digital Matrix Processor
Overview
Overview

DMP SERIES
Digital Matrix Processors and Automatic Mixers
Designed specically for installed sound, the Asystems'
DMP801 automatic mixers combine clean, simple
designs with smart signal processing. These systems
offer fast-acting, noise-free microphone normalization
that automatically adjusts to changes in background
room noise. This essentially helps maintain high quality
audio despite the number of open microphones.
Input to the DMP801 is achieved through professional-
standard 3-pin euroblock connectors for balanced
connections. All inputs and outputs are controlled
via the included user-intuitive Windows software.
This software allows you to control the extensive on-
board signal processing, including 4-band parametric
EQs, feedback silencers, compressors, limiters and,
of course, automatic mixing including NOM (Number
of Open Microphones) compensation. With flexible
networking control capabilities and highly accurate
automixing, the DMP801 automatic mixer is a must-
have for all large commercial installations.
Designed uniquely for sound reinforcement scenarios,
the Asystems DMP81 Digital Automatic Mixer combines
intuitive operation with state-of-art signal processing
technology. Asystems DMP81 features 8 mic/line
inputs via balanced Euroblock connectors, all of which
offer selectable +48V phantom power for condenser
microphones. The 8 1/4” TRS insert jacks can directly
route incoming signal to external sound processing
devices, or simply be used as additional input or output
connectors. All channels are equipped with front-panel
low- and high-pass lter control.
The DMP81 automatic mixer's adaptive threshold
distinguishes uctuating audio signals from background
noise and continuously adjusts the audio signal to be
louder than background noise. Furthermore, when
several channels “receive” one particular signal source,
DMP81 can be set to control the number of channels
that activate when triggered by one signal source
through which the best input quality is guaranteed
for every input channel. The last input source lock-on
feature keeps the most recently used channel activate
to get a natural uninterrupted signal ow.
Asystems DMP81 also provides a 1/4” headphone
output jack, an AUX input jack (both are with level
control knob), and LED indicators, offering intuitive
control that caters a wide-range of system setups.
48 balanced mic/line input channels via euroblock connections
4Balanced master output through 3-pin euroblock connector
48 insert points available through 1/4" TRS phone jacks
4Gain controls for each input available on front panel, plus signal/clip
indicators
4Seamless automatic mixing through dynamic channel gating and
attenuation
44-band parametric EQs with low-cut, high-cut and shelving boost/cut
4Fully functional compressors on all input channels
4Adjustable peak limiters available on outputs
4Accurate feedback silencing technology built-in
4Ethernet connectivity for networking and control application
4+48V phantom power on input channels
4Easy and intuitive control software from Asystems
4 Seamless automatic mixing through dynamic channel gating and
attenuation
4Adaptable, quick-acting technology automatically makes active
microphones a priority
48 balanced mic/line input channels (Euroblock connector)
4Selectable +48V phantom power on each input channel
48 unbalanced 1/4” TRS insert jacks
4Balanced mono master output through 3-pin Euroblock connector
4Master output 3-mode peak limiter (+16 dbm/+ 8 dbm/+4 dbm)
4Last input source lock-on
4Individual gain control knob per channel
4On-board HPF (high pass lter) and LPF (low pass lter)
4 1/4” headphone output with level control
4 1/4” AUX input with level control
4Fully functional compressors per input channel
DMP801
8 Channel Digital Automatic Mixer
DMP81
8 Channel Digital Automatic Mixer
Overview
Overview

DMP SERIES
Digital Matrix Processors and Automatic Mixers
DSP
The DMP8800, DMP808,
and DMP801 software offers
a number of digital signal
processors that can activated
at will on any of the input
and output mixes. This page
will also allow you to edit the
names of input and output
mixes.
Up to 4 signal processors
can be added to each of
the individual inputs and
outputs on the DMP8800 and
DMP808, with delay, VCAs,
graphic equalizers, parametric
equalizers, feedback silencers,
and more all available.
Channel Matrix
This page allows you to
adjust the signal flow of the
inputs from both the input
channels and the network
function. Numerous controls
commonly found on analog
mixers can also be found on
this page, laid out in a familiar
analog style. Level faders can
be adjusted, as well as the
panning, on/off status, phase
invert, ducking and ALC status,
and automixing. Meters are
also included on this page for
monitoring incoming signals
and mixes. It also allows direct
access to the signal generator
and SD card audio player (SD
card playback available on the
DMP8800 only).
REMOTE SOFTWARE

DMP SERIES
Digital Matrix Processors and Automatic Mixers
Events
Pre-program events into the
DMP8800 and DMP808 digital
matrix processors. Using
the event scheduler you can
determine what kind of event
you wish to schedule, whether
it be power on or a memory
recall, and when the event
should occur – right down
to the minute. You can even
program the unit to play music
at a specic time on a specic
day. This feature allows you to
set routinely scheduled events,
such as musical interludes or
power disable, or single events
that may involve channel
muting or level adjustment.
Security
Up to 8 user profiles can be
activated on the DMP8800,
DMP808, and DMP801. Users
can define their own user
names, while each account is
protected by a user-defined
password. User accounts
provide a means to ensure
there is no unauthorized access
to the control software.

DMP SERIES
Digital Matrix Processors and Automatic Mixers
DMP8800
Overall Sonic Performance Analog In, Digital Out Digital In, Analog Out
Frequency Response, 20Hz to 20kHz +/-0.1dB +/-0.25dB
Dynamic Range, 20Hz to 20kHz, unweighted >115dB >114dB
Latency at 48 kHz <1 ms <1ms
Audio Inputs Analog Mic/Line AES/EBU Digital
Input Type Active balanced Euroblock + unbalanced RCA Transformer balanced female XLR
Input Impedance Euroblock: 3.37KΩ, RCA: 8.2KΩ118Ω
Max Input Level +20 dBu 7.0 Vpp
Audio Outputs Analog Output AES/EBU Digital
Output Type Servo-balanced Euroblock Transformer balanced male XLR
Output Impedance 20Ω110Ω
Max Output Level +20 dBu 5.0 Vpp
Word Clock
Input/Output Type 75 ohm BNC
Lock Range 48 kHz +/-4%
Input Impedance Selectable 75 ohm or high impedance
Input Voltage Range 1.0Vpp - 7.0Vpp
Output Impedance 75 ohm BNC
Output Level 5.0 Vpp nominal, unterminated
Master Clock
Sources Audio Network, Word Clock, AES/EBU, Internal Crystal Clock
Modes Prioritized auto switching or manual
Digital Audio Hardware
Sampling Rates / Clock Sources 44.1KHz, 48KHz, Network, AES/EBU, Word Clock
DSP Processing 40-bit oating-point share processor array
Audio Input Source Selection Selectable in adjacent channel pairs from analog, digital, or network inputs
Network Audio Routing Selectable between input/ouput or internal to matrix mixer
Digital Control
Ethernet Control Standard RJ45 10/100 Ethernet with auto-conguration
Programmable Remote RJ-45 for Asystems RM-6E
Relay 7-pin, 5VDC
Analog Control
Remote Attenuators 10-pin Euroblock for (8) assignable 5VDC passive remote attenuators
Power Requirements 100V to 240V VAC, 50-60Hz, 70W maximum
Dimensions (W x D x H) 482 x 295 x 95 mm (18.97” x 37.4” x 11.61”)
Weight 5.1 Kgs (11.2 lbs)
SPECIFICATIONS

DMP SERIES
Digital Matrix Processors and Automatic Mixers
DMP808 DMP801 DMP81
Input Connections 8 x Balanced Euroblock &
4 x Unbalanced Stereo RCA 8 x Balanced Euroblock 8 x Balanced Euroblock
Output Connections 8 x Balanced Euroblock 1 x Euroblock, 8 x 1/4” TRS
(insert / direct output)
1 x Euroblock, 8 x 1/4” TRS
(insert / direct output)
Control Network ADnet, Compatible with standard
10/100 MBit/s Ethernet hardware
ADnet, Compatible with standard
10/100 MBit/s Ethernet hardware N/A
Front Panel Indicators 8 x Input/Clip, 8 x Output/Clip,
1 x Power, 1 x Network
8 x Input/Peak, 1 x Mix Output/Peak,
1 x Power, 1 x Disable
8 x Input/Peak, 1 x Master Output/Peak,
1 x Power, 1 x Limiter
Signal to Noise
(20Hz-20KHz, unweighted) >110dB >110dB <-120dB (Hum & Noise)
Frequency Response 20Hz-20KHz, +/-1dB 20Hz-20KHz, +/-1dB 20Hz-20KHz, +/-1dB
Input Impedance Euro: 3.52KΩ, RCA: 8.8KΩ 3.35KΩ, balanced Mic: 3.2KΩ, Line: 14KΩ, AUX: 7.5KΩ
Maximum Input Level 20dBu 20dBu 20dBu
Total Harmonic Distortion 0.002% 0.002% 0.002%
Processor 40-bit oating point 40-bit oating point 40-bit oating point
Input A/D Conversion 24-bit 24-bit 24-bit
Output D/A Conversion 24-bit 24-bit 24-bit
Sample Rates 44.1 kHz, 48 kHz 48 kHz 48 kHz
DIP Switches Network ID, 0 - F Network ID, 0 - F Auto/manual, Last-mic, hold time, o󰀨-att,
limiter threshold, +48V phantom power
Parametric Equalizers 4-band, adjustable Q, freq. and level 4-band, adjustable Q, freq. and level N/A
EQ lters All pass, band pass, hi/lo shelf All pass, band pass, hi/lo shelf N/A
Compressor Threshold, range, attack, release Threshold, range, attack, release Switchable limiter threshold
Ducker Trigger, release, depth N/A N/A
Delay Adjustable input and output delay N/A N/A
Feedback Silencer Fixed / Dynamic Fixed / Dynamic N/A
Auto-mixing Input level, output level, priority,
NOM attenuation max.
Input level, output level, priority,
NOM attenuation max.
Automatic/manual, last mic lock-on,
hold time, o󰀨-att
Phantom Power +48V DC +48V DC +48V DC
Crossover Butterworth Butterworth N/A
Power & Physical
Power Supply 120VAC/240VAC switching power supply,
15A Edison cable
120VAC/240VAC switching power supply,
15A Edison cable
120VAC/240VAC switching power supply,
15A Edison cable
External Power 2-pin euroblock, +24V DC 2-pin euroblock, +24V DC N/A
Dimensions 44 x 484 x 295 mm
(1.7” x 19” x 11.6”)
44 x 484 x 295 mm
(1.7” x 19” x 11.6”)
480 x 295 x 45 mm
(18.89” x 37.4” x 1.77”)
Weight 4.2 kg (9.3 lbs) 4.2 kg (9.3 lbs) 4.2 kg (9.3 lbs)
DMP808
DMP801
DMP81

DMP SERIES
Digital Matrix Processors and Automatic Mixers
Asystems offers the RM series of remote controls for the DMA
series of digital matrix amplifiers. The RM-2VR offers remote
level control of up to two channels o󰀨 a single control, while the
RM-4 can be used to recall presets at the touch of a button. The
RM-6E is a microprocessor-based control unit with 6 function
select buttons and 2 parameter buttons for controlling a range of
assigned functions within the connected product.
Remote Connections
Multiple units of the RM remote controls can be utilized at any
one time. The RM-2VR and RM-4 can be connected to the DMA
using euroblock connectors. The RM-6E includes RJ-45 ports for
connection, as well as 3 DIP switches for setting the remote ID.
For more exible commercial installations, the RM series is the
ideal companion to the Asystems DMP matrix processors.
RM-2VR
RM-2VR
RM-4
RM-4
RM-6E
RM-6E
4Control levels, recall presets, and control other properties of the product
4Clear display eld to label all rotary controls and/or buttons for easy reference
4RM-2VR includes two rotary VR controls for remote level control of up to two channels
4RM-4 allows for immediate remote recall of presets through interlocking push-buttons
4Each button of the RM-6E buttons can be programmed to allow gain control, channel mute and zone source select
4RM-2VR and RM-4 can be wired with standard euroblock connectors; RM-6E o󰀨ers RJ-45 connectivity
4RM-4 and RM-6E controls are compatible with Asystems DMP808 and DMP8800 Digital Matrix Processor
4RM-2VR controls are compatible with Asystems DMP8800 Digital Matrix Processors
4'Light-switch style' design for discrete installation
Channel 2 Ground is internally
wired to channel 1 ground
RM-2VR
RM-4
RJ-45
Connector
RJ-45
Connector
PORT
DIP
12345678
DMP81 does not support RM series remotes.
REMOTE CONTROLS

DMP SERIES
Digital Matrix Processors and Automatic Mixers
APPLICATION
Houses of Worship
Speaker
RJ-45
Audio Cable
RS-232
DMP8800
DMP808
NT2508
Laptop / Desktop
Router
CD Player
Wireless
Receiver
Ceiling Speakers
Ceiling Speakers
Ceiling Speakers
Dynamic
Microphones
Wireless
Microphones
PA Speakers PA Speakers
Control Room
CONTROL ROOM
RM-6E
Stage
CHURCH
(Seating Capacity: 1000 Persons)
3rd Party
Controller
Dante Audio Networking
(optional component)

DMP SERIES
Digital Matrix Processors and Automatic Mixers
Airport or Train Station
Corporate
Speaker
RJ 45
Audio Cable
RS232
Video Signal
DMP8800
NT2508
Computer
Desktop Microphones
for Station Announcements
Dante Audio Networking
(optional component)
Router
CD Player
Audio Systems
3rd Party
Controller
Ceiling Speakers
PA Speakers
PA Speakers
Control Room
CONTROL ROOM
STATION
(Seating Capacity: 500 Persons)
PLATFORM / GATE
(Seating Capacity: 100 Persons)
Speaker Cable
Audio Cable
Additional Audio
Input Sources
CONTROL ROOM
BOARDROOM
DMP801
DMP81
NT2508
Desktop Microphones NOTE: This system is particularly suitable for online conference calls
involving video and audio elements. The Asystems MK-20HD and
AV-800HD could potentially be utilized for this purpose.
©2017, Asystems reserves the right to alter information in this document without notice.
For information on sales, contact us by email at [e-mail]
www.asystems-sys.com
