A.T.I.B. 883 Instruction manual
Pag. 1 di 37
INDEX
WIDE OPENING FORK POSITIONER TYPE 883
INDEX ......................................................................................................................................................1
1USE RULES......................................................................................................................................3
2INTRODUCTION ...............................................................................................................................4
2.1 Use and upkeep of this manual .........................................................................................4
2.2 Description of equipment...................................................................................................5
3INSTALLATION ................................................................................................................................8
3.1 Installation ...........................................................................................................................9
3.1.1 Attachment installation - TYPE 883............................................................................. 9
3.1.2 Attachment installation - TYPE 883 with SLS ...........................................................12
3.2 Fork installation on attachment .......................................................................................15
3.2.1 Fork installation –TYPE “STANDARD”.....................................................................15
3.2.2 Fork installation –TYPE “FB” ....................................................................................16
3.2.3 Fork installation –TYPE “FS” ....................................................................................17
4HYDRAULIC SYSTEM....................................................................................................................18
4.1 Hydraulic system –TYPE 883 ..........................................................................................18
4.2 Hydraulic system –TYPE 883 with SLS ..........................................................................20
5USE RULES....................................................................................................................................21
5.1 Integral side shift ..............................................................................................................24
6PERIODIC MAINTENANCE............................................................................................................25
6.1 Maintenance every 100 hours ..........................................................................................25
6.2Maintenance every 300 hours ..........................................................................................25
6.3 Maintenance every 1000 hours ........................................................................................26
6.4 Maintenance every 2000 hours ........................................................................................26
7DISASSEMBLY PROCEDURE.......................................................................................................27
7.1 Disassembly attachments from forklift ...........................................................................27
7.2 Forks disassembly............................................................................................................28
7.2.1 Forks disassembly –TYPE “STANDARD” ................................................................28
7.2.2 Forks disassembly –TYPE “FB”................................................................................29
WARNING
READ THIS MANUAL VERY CAREFULLY BEFORE STARTING-UP THE MACHINE
Pag. 2 di 37
7.2.3 Forks disassembly –TYPE “FS”................................................................................30
7.3 Removal of fork cylinders from the attachment.............................................................31
7.3.1 Fork cylinder disassembly and reassembly..............................................................33
7.4 Maintenance SLS cylinder................................................................................................34
8BREAKDOWNS AND SOLUTIONS................................................................................................35
8.1 Breakdowns and solutions...............................................................................................35
8.2 Lubricate............................................................................................................................36
2INTRODUCTION
Pag. 4 di 37
2INTRODUCTION
2.1 Use and upkeep of this manual
This “User Manual” (hereinafter referred to as Manual) is supplied together with the A.T.I.B. -
WIDE OPENING FORK POSITIONER TYPE 883 pursuant the CE DIRECTIVE 2006/42/CE
date 17/05/2006 and amendments.
The information contained here are imperative for the correct use of the attachment and must
be known by the personnel who install, use, maintain and repair it.
This manual must be considered integral part of the attachment and must be kept as long as the
attachment is in use on any machine in an accessible place, protected, dry and available for
immediate consultation.
Should this manual be lost, the operator can apply for the supply of further copies from the
manufacturer.
The manufacturer is not liable in cases of:
- Improper use of the attachment;
- Use by untrained personnel;
- Use contrary to current national and international laws;
- Lack of recommended maintenance;
- Non authorised modifications and repairs;
- Use of non original spare parts or parts for other models;
- Failure to adhere, either totally or partially, to these instructions;
- Exceptional circumstances.
The manufacturer reserves the right to modify this Manual without notice and without
the obligation to update the copies previously distributed.
The Nominal Capacity of the forklift / Equipment combination is established by the
original manufacturer of the forklift and may be lower than that indicated on the
identification plate.
Consult the plate of the forklift (Directive 2006/42 / EC).
2INTRODUCTION
Pag. 6 di 37
All the A.T.I.B. –WIDE OPENING FORK POSITIONER TYPE 883 equipment are identified by
means of a sticky identification label on attachment (Tab 1) position of identification label on
equipment (Picture 1), always refer to the serial number.
1. TYPE
8. NOMINAL CAPACITY
kg/mm
11. MAX. TORQUE
daN m
2. CODE
9. CLAMPING CAPACITY
kg/mm
3. SERIAL N°
4. YEAR OF MANUFACTURE
10. MAX. OPERATING
PRESSURE
bar
A.T.I.B. S.r.l.
Via Quinzanese snc,
25020 Dello (BS) - ITALIA
+39 030/9771711
5. WEIGHT
6. THICKNESS
WARNING: RESPECT THE RATED
CAPACITY OF TRUCK AND
ATTACHMENT COMBINED
7. CENTER OF GRAVITY
Tab 1
Picture 1
POSITION OF LABEL
2INTRODUCTION
Pag. 7 di 37
1. TYPE
It identifies the model of the equipment as shown in the catalogue.
2. CODE
It identifies the equipment order code.
3. SERIAL N°
It progressively identifies the individual equipment.
The series number has been stamped should the tag go missing or be damaged. Always refer
to the series number for any kind of information.
4. YEAR OF CONSTRUCTION
It indicates the year of construction.
5. WEIGHT
It indicates the weight of the equipment in kg.
6. THICKNESS
It indicates the thickness of the equipment in mm.
7. CENTER OF GRAVITY
It indicates the distance in mm of the equipment CG center of gravity from the fork holding
plate table.
8. NOMINAL CAPACITY
It indicates the maximum P load applicable to the hoisting equipment and the maximum CC
barycentric distance of the load itself.
9. CLAMPING CAPACITY
Not applicable to this equipment.
10. MAX OPERATING PRESSURE
It indicates the maximum pressure applicable to the equipment.
11. MAX COUPLE
Not applicable to this equipment.
The A.T.I.B. - WIDE OPENING FORK POSITIONER TYPE 883 were planned and built to enable
the distance adjustment between fork centres through hydraulic actioning, all at the expected
operating pressures unless otherwise indicated in the case of specific applications (see
identification label).
SLI = with INTEGRAL SIDESHIFT
SLS = with SEMI-INTEGRAL SIDESHIFT
FB = with BOLTED FORKS
FS = with WELDED FORKS
This equipment must be applied between the fork holding plate of the lift truck and the forks,
and connected to the distributor by means of a hydraulic circuit.
The relative adjustment movement is carried out by means of two hydraulic cylinders which
act directly on the forks, which, suitably modified, slide on the relative bars.
The coupling components of the fork holding plate are manufactured in compliance with the
ISO 2328 norm.
3INSTALLATION
Pag. 8 di 37
3INSTALLATION
Verify the nominal capacity of equipment
To check the nominal capacity of equipment, consult the identification label (Tab 1 pag.6).
Check operating pressure and flow rate oil
A.T.I.B. advises to respect the hydraulic flow rates and operating pressures shown in Tab 2, in
order to optimize the operation of the equipment and avoid problems during the work or
commissioning phases. The values are indicative and may vary depending on the equipment.
TIPO and ISO
PORTATA (l/mm)
Max operating
pressure (Bar)
Min.
Max.
racommended
883 ISO II [2400kg.@500mm.]
10
20
15
80
883 ISO III [3000kg.@500mm.]
15
25
20
80
883 ISO III [4500kg.@500mm.]
15
25
20
80
883 ISO IV [4500kg.@600mm.]
30
60
45
80
883 ISO IV [7000kg.@600mm.]
35
60
45
80
Tab 2
The forklift manufacturer is responsible for calculating the residual capacity of the
forklift /equipment assembly.
WARNING!!
RESPECT THE MAXIMUM WORKING PRESSURES INDICATED
WARNING
Make sure that the operator of the forklift is aware of the maximum capacity of the
attachments, so as NOT to pose a danger to himself and to the people who work in his
vicinity.
3INSTALLATION
Pag. 9 di 37
3.1 Installation
3.1.1 Attachment installation - TYPE 883
1. Before installation, verify the condition of the fork carriage,
ensuring that it is not deformed.
2. Also make sure that the profiles of the fork holding plate are not deformed, in order to allow
a good coupling with the equipment.
3. Check the condition of the pipes, replacing those that are in a bad condition.
NOTE: The following figures show only the 883 standards, since the procedure for installing
the equipment on the forklift is the same for welded forks and bolted forks type.
4. Unscrew the lower hooks of equipment (Picture 2).
TYPE 883
Picture 2
3INSTALLATION
Pag. 10 di 37
5. For handling, use belts or chains appropriately sized for the weight of the equipment,
indicated on the identification plate (Picture 1 and Tab 1 pag.6).
6. With an overhead crane or with a hoist of sufficient capacity hook the attachment to the
fork carriage, placing the centring tooth Cinto the central notch (Picture 3).
Picture 3
3INSTALLATION
Pag. 11 di 37
7. Screw the two bottom hooks Gwith bolts so that the attachment is safely mounted on the
fork carriage P(with a tolerance max. 1,5mm Picture 4), reaching to the following torques
Tab 3.
8. Insert the forks.
9. Lubricate the contact parts.
10.Connect the hydraulic circuit, making sure that the operating pressure of the pipes is higher
than or equal to that indicated on the identification label (Picture 1 and Tab 1 pag.6).
ISO 2328
THREAD
TORQUE
ISO II
M12
90 Nm
ISO III
M14
140 Nm
ISO IV
M16
220 Nm
Tab 3
Picture 4
3INSTALLATION
Pag. 12 di 37
3.1.2 Attachment installation - TYPE 883 with SLS
1. Before installation, verify the condition of the fork holding plate,
making sure that the lower profile is free of roughness that could
compromise the sliding of the lower slides.
2. Also make sure that the profiles of the fork holding plate are not deformed, in order to allow
a good coupling with the sideshifting equipment.
3. Check the condition of the pipes, replacing those that are in a bad condition.
NOTE: The following figures show only the 883 standards, since the procedure for installing
the equipment on the forklift is the same for welded forks and bolted forks type.

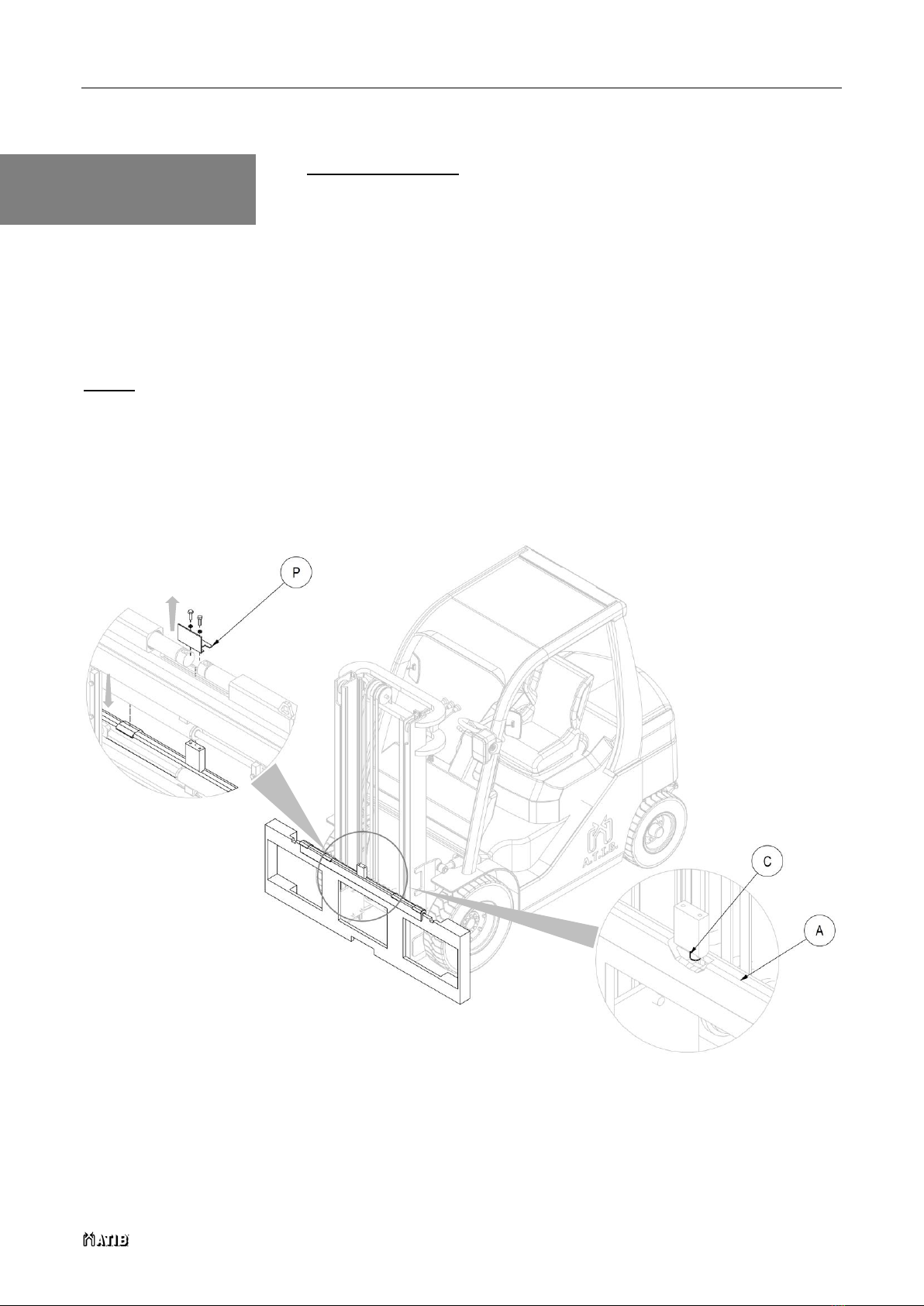

4. Manually take the double hook A(with the relative sliding bushings), after having
unscrewed the screws of the "protective fold" Pand place it on the upper profile of the fork
holder plate, taking care to fit the centring pin Cin the central notch of the same (Picture 5).
5. Unscrew the lower hooks of equipment and lubricate the slide (Picture 6).
TYPE 883 WITH SLS
Picture 5
3INSTALLATION
Pag. 13 di 37
6. For handling, use belts or chains appropriately sized for the weight of the equipment,
indicated on the identification plate (Picture 1 and Tab 1 pag.6).
7. With an overhead crane or with a hoist of sufficient capacity hook the attachment on the
double hook, taking care to position the equipment correctly (Picture 7).
8. Reposition the “protective fold”.
9. Screw the two bottom hooks Gwith bolts so that the attachment is safely mounted on the
fork carriage P(with a tolerance max. 1,5mm, see detail Picture 8), reaching to the following
torques Tab 4.
Picture 6
Picture 7
3INSTALLATION
Pag. 14 di 37
10. Insert the forks.
11. Lubricate the contact parts.
12. Connect the hydraulic circuit; making sure that the operating pressure of the pipes is higher
than or equal to that indicated on the identification label (Picture 1 and Tab 1 pag. 6).
ISO 2328
THREAD
TORQUE
ISO II
M12
90 Nm
ISO III
M14
140 Nm
ISO IV
M16
220 Nm
Tab 4
Picture 8
3INSTALLATION
Pag. 15 di 37
3.2 Fork installation on attachment
3.2.1 Fork installation –TYPE “STANDARD”
1. Apply the forks after unscrew the fork blocks from fork holders
(Picture 9), according to the width of the forks, use the most appropriate
fork stops (lateral or placed on the front part of the sliders).
2. Apply the forks and screw back the fork blocks (Picture 10).
TIPO “STANDARD”
Picture 9
Picture 10
3INSTALLATION
Pag. 16 di 37
3.2.2 Fork installation –TYPE “FB”
1. Relieve the pressure of the hydraulic system and disconnect the
pipes.
2. Apply the forks on fork holder, tightening the relative screws that lock them (Picture
11).
3. Check the correct locking of the forks (Picture 12).
TYPE “BOLTED
FORKS”
Picture 11
Picture 12
3INSTALLATION
Pag. 17 di 37
3.2.3 Fork installation –TYPE “FS”
1. Relieve the pressure of the hydraulic system.
2. Insert the forks, with the relative forks welded on them, and by the appropriate nut, fasten
them to the cylinders (Picture 13).
3. Check the correct locking of the forks (Picture 14).
TYPE “WELDED
FORKS”
Picture 13
Picture 14
Table of contents
Popular Forklift manuals by other brands
Doosan
Doosan D60S-7 Operation & maintenance manual
Rice Lake
Rice Lake CLS420 installation manual
Lift-Rite
Lift-Rite LCF55 Owner's Manual, Operating Instructions Manual, and Replacement Parts Manual
Xilin
Xilin CDDR Operation manual
Still
Still GX10 Operating and maintenance instructions
Linde
Linde E12 operating instructions
