Daewoo D35S-2 Manual

SB2301E06
Operation &
Maintenance Manual
LIFT TRUCKS
D35S-2, D40S-2, D45S-2, D50C-2
G35S-2, G40S-2, G45S-2, G50C-2
D40SC-2, D45SC-2, D50SC-2
G40SC-2, G45SC-2, G50SC-2
D35S-2, D40S-2, D45S-2, D50C-2
D40SC-2, D45SC-2, D50SC-2
G35S-2, G40S-2, G45S-2, G50C-2
(TIER II & STAGE II CERTIFIED TRUCK)
0510

WARNING
Do not start, operate or service this machine unless you have read and understood
these instructions and received proper training.
Unsafe or improper use of the machine may cause serious injury or death.
Operators and maintenance personnel must read this manual and receive training
before operating or maintaining the machine.
This manual should be kept with the machine for reference and periodically
reviewed by the machine operator and by all personnel who will come into contact
with it.
The following warning is provided pursuant to California Health & Safety Code Sections
25247.5 et, seq,
WARNING
California Proposition 65
Engine Exhaust, some of its constituents, and certain vehicle components contain
or emit chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Battery posts, terminals and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

Table of Contents
-1-
Table of Contents
Information Section
Foreword..................................................................... 2
Safety Section
Important Safety Information................................... 4
Safety .......................................................................... 5
Warning Signs and Labels............................. 5
General Hazard Information........................10
Operation Information..................................11
Before Starting the Lift Truck......................11
Maintenance Information.............................14
Operator Restraint System (If Equipped)..17
Avoiding Lift Truck Tipovers........................21
Safety Rules ..................................................23
How to Survive in a Tipover (If Operator
Restraint System Equipped) .......................28
General Section
Specifications ..........................................................30
Noise and Vibration.................................................36
Capacity Chart.........................................................37
Capacity Chart (with Side Shifter).........................39
Serial Number ..........................................................47
Operator's Warning and Identification Plate .......49
Operation Section
Operator’s Station and Monitoring Systems........51
Seat Switch System (If Equipped) ........................56
Lift Truck Controls...................................................57
Refueling...................................................................60
After Starting the Engine ........................................67
Lift Truck Operation ................................................86
Auto Shift Controller ASC - 200 (If Equipped) ...88
Operating Techniques.............................................91
Parking the Lift Truck..............................................95
Lift Fork Adjustment................................................96
Storage Information ................................................97
Transportation Hints................................................98
Towing Information .................................................99
Maintenance Section
Inspection, Maintenance and Repair of Lift Truck
Forks ....................................................................... 100
Tire Inflation Information...................................... 104
Torque Specifications........................................... 105
Cooling System Specifications........................... 107
Fuel Specifications ............................................... 109
Lubricant Specifications....................................... 111
Lubricant Viscosities and Refill Capacities ....... 114
When Required ...................................................... 118
Every 10 Service Hours or Daily.......................... 125
First 50 - 100 Service Hours or a Week............ 129
First 250 Service Hours or a Month.................... 135
Every 250 Service Hours or Monthly................... 136
Every 500 Service Hours or 3 Months................ 144
Every 1000 Service Hours or 6 Months.............. 150
Every 1500 Service Hours or 9 Months.............. 156
Every 2000 Service Hours or Yearly ................... 159
Every 2500 Service Hours or 15 Months ........... 164
Every 4500 Service Hours or two Years............. 166
Index Section
Index ....................................................................... 167

Information Section
-2-
Foreword
Literature Information
This manual should be stored in the operator's
compartment in the literature holder or seat back
literature storage area.
This manual contains safety, operation, trans-portation,
lubrication and maintenance information.
Some photographs or illustrations in this publication
show details or attachments that can be different from
your lift truck. Guards and covers might have been
removed for illustrative purposes.
Continuing improvement and advancement of product
design might have caused changes to your lift trucks
which are not included in this publication.
Read, study and keep this manual with the lift truck.
Whenever a question arises regarding your lift truck, or
this publication, please consult your DOOSAN dealer for
the latest available information.
Safety
The Safety Section lists basic safety precautions. In
addition, this section identifies the text and locations of
warning signs and labels used on the lift truck. Read
and understand the basic precautions listed in the
Safety Section before operating or performing
lubrication, maintenance and repair on this lift truck.
Operator Restraint System (If Equipped)
This manual contains safety, operation and
maintenance information for the DOOSAN operator
restraint system. Read, study and keep it handy.
WARNING
Your DOOSAN truck comes equipped with an
operator restraint system. Should it become
necessary to replace the seat for any reason, it
should only be replaced with another DOOSAN
operator restraint system.
Photographs or illustrations guide the operator through
correct procedures of checking, operation and
maintenance of the DOOSAN operator restraint system.
SAFE and EFFICIENT OPERATION of a lift truck
depends to a great extent on the skill and alertness on
the part of the operator. To develop this skill the
operator should read and understand the Safe Driving
Practices contained in this manual.
Forklift trucks seldom tipover, but in the rare event they
do, the operator may be pinned to the ground by the lift
truck or the overhead guard. This could result in serious
injury or death.
Operator training and safety awareness is an effective
way to prevent accidents, but accidents can still happen.
The DOOSAN operator restraint system can minimize
injuries. The DOOSAN operator restraint system keeps
the operator substantially within the confines of the
operator’s compartment and the overhead guard.
This manual contains information necessary for Safe
Operation. Before operating a lift truck make sure that
the necessary instructions are available and understood.
Operation
The Operation Section is a reference for the new
operator and a refresher for the experienced one. This
section includes a discussion of gauges, switches, lift
truck controls, attachment controls, transportation and
towing information.
Photographs and illustrations guide the operator through
correct procedures of checking, starting, operating and
stopping the lift truck.
Operating techniques outlined in this publication are
basic. Skill and techniques develop as the operator
gains knowledge of the lift truck and its capabilities.

Information Section
-3-
Maintenance
The Maintenance Section is a guide to equipment care.
The illustrated, step-by-step instructions are grouped by
servicing intervals. Items without specific intervals are
listed under “When Required” topics. Items in the
“Maintenance Intervals” chart are referenced to detailed
instructions that follow.
Maintenance Intervals
Use the service hour meter to determine servicing
intervals. Calendar intervals shown (daily, weekly,
monthly, etc.) can be used instead of service hour meter
intervals if they provide more convenient servicing
schedules and approximate the indicated service hour
meter reading. Recommended service should always
be performed at the interval that occurs first.
Under extremely severe, dusty or wet operating
conditions, more frequent lubrication than is specified in
the “Maintenance Intervals” chart might be necessary.
Perform service on items at multiples of the original
requirement. For example, at “Every 500 Service Hours
or 3 Months”, also service those items listed under
“Every 250 Service Hours or Monthly” and “Every 10
Service Hours or Daily”.
Environment Management
Note that DOOSAN INFRACORE is ISO 14001 certified
which is harmonized with ISO 9001. Periodic
ENVIRONMENTAL AUDITS & ENVIRONMENTAL
PERFORMANCE EVALUATIONS have been made by
internal and external inspection entities. LIFE-CYCLE
ANALYSIS has also been made through out the total
product life. ENVIRONMENT MANAGEMENT
SYSTEM includes DESIGN FOR ENVIRONMENT from
the initial stage of the design.
ENVIRONMENT MANAGEMENT SYSTEM considers
environmental laws & regulations, reduction or
elimination of resource consumption as well as
environmental emission or pollution from industrial
activities, energy saving, environment-friendly product
design (lower noise, vibration, emission, smoke, heavy
metal free, ozone depleting substance free, etc.),
recycling, material cost reduction, and even
environmentally oriented education for the employee.

Safety Section
-4-
Important Safety Information
Most accidents involving product operation, maintenance and repair are caused by failure to observe basic safety
rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an
accident occurs. A person must be alert to potential hazards, and use common sense. Persons must also have the
necessary training, skills and tools before attempting to perform these functions.
Improper operation, lubrication, maintenance or repair of this product can be dangerous and could
result in injury or death.
Do not operate or perform any lubrication, maintenance or repair on this product, until you have read
and understood the operation, lubrication, maintenance and repair information.
Safety precautions and warnings are provided in this manual and on the product. If these hazard
warnings are not heeded, bodily injury or death could occur to you or other persons.
The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as “WARNING” as
shown below.
WARNING
The meaning of this safety alert symbol is as follows:
Attention! Become Alert! Your Safety is Involved.
The message that appears under the warning, explaining the hazard, can be either written or pictorially presented.
Operations that may cause product damage are identified by NOTICE labels on the product and in this publication.
DOOSAN cannot anticipate every possible circumstance that might involve a potential hazard, and common sense
is always required. The warnings in this publication and on the product are therefore not all inclusive. Before any
tool, procedure, work method or operating technique not specifically recommended by DOOSAN is used, you must
be sure that it is safe for you and others. You should also ensure that the product will not be damaged or made
unsafe by the operation, lubrication, maintenance or repair procedures you choose.
The information, specifications, and illustration in this publication are on the basis of information available at the
time it was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other
items can change at any time. These changes can affect the service given to the product. Obtain the complete and
most current information before starting any job. DOOSAN dealers have the most current information available.

Safety Section
-5-
Safety
The safety rules and regulations in this section are
representative of some, but not all rules and regulations
noted under the Occupational Safety and Health Act
(OSHA) and are paraphrased without representation
that the OSHA rules and regulations have been
reproduced verbatim.
Please refer to 1910. 178 in Federal Register Vol. 37,
No. 202, the National Fire Protection Association No.
505 (NFPA), American National Standard, ANSI B56. 1
Safety Standard for Low lift and High Lift Trucks and
subsequent revisions for a complete list of OSHA rules
and regulations as to the safe operation of powered
industrial lift trucks. Since regulations vary from country
to country outside in U.S.A., operate this lift truck in
accordance with local regulations.
DOOSAN lift trucks are manufactured according to the
regulations and standards laid down in EU Machinery
Directive 98/37/EC and EMC directive 89/336/EC.
Please refer to the Directives 89/655/EC and 89/391/EC
and its amendments for the safe use of DOOSAN lift
trucks.
The most effective method of preventing serious injury
or death to the lift truck operator or others is for the lift
truck operator to be familiar with the proper operation of
the lift truck, to be alert and to avoid actions or
conditions which can result in an accident.
Do not operate a lift truck if in need of repair, defective
or in any way unsafe. Report all defects and unsafe
conditions immediately. Do not attempt any adjustments
or repairs unless trained and authorized to do so.
Warning Signs and Labels
There are several specific safety signs on your lift truck.
Their exact location and description of the hazard are
reviewed in this section. Please take the time to
familiarize yourself with these safety signs.
Make sure that you can read all warning and instruction
labels. Clean or replace these labels if you cannot read
the words or see the pictures. When cleaning the labels
use a cloth, water and soap. Do not use solvent,
gasoline, etc.
You must replace a label if it is damaged, missing or
cannot be read. If a label is on a part that is replaced,
make sure a new label is installed on the replaced part.
See your dealer for new labels.
Training Required to Operate or Service
Warning

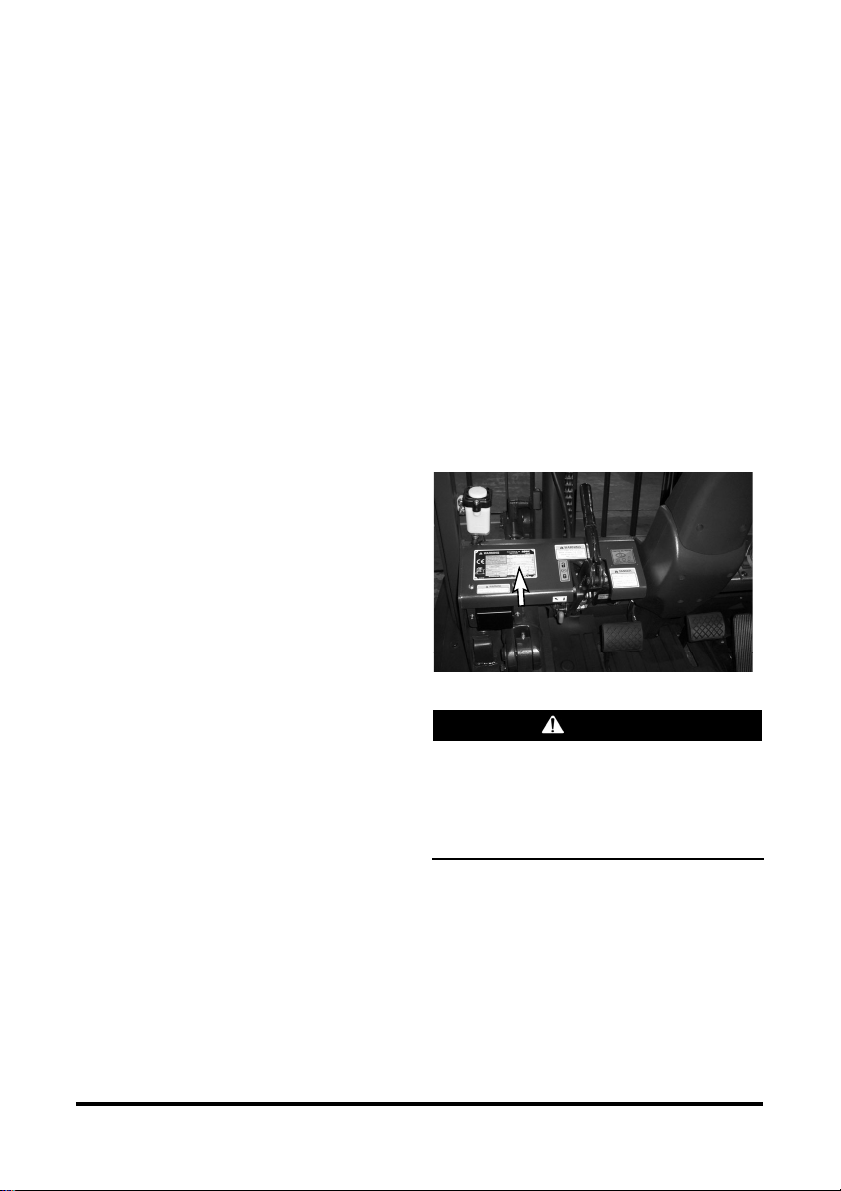

Located on the right of the steering wheel.
WARNING
Improper operation or maintenance could result in
injury or death. Do not operate or work on the lift
truck unless you are properly trained. Read and
understand the Operation and Maintenance Manual.
Additional manuals are available from DOOSAN Lift
Truck dealers.
This label also provides allowable lift truck capacity
information.

Safety Section
-6-
General Warnings to Operator
Located on the right side of the operator's seat.
WARNING
Only trained and authorized personnel may operate
this machine. For safe operation, read and follow
the operation and maintenance Manual furnished
with this lift truck and observe the following
warnings:
1. Before starting machine. Check all controls and
warning devices for proper operation.
2. Refer to machine identification plate for allowable
machine capacity. Do not overload. Operate
machines equipped with attachments as partially
loaded machines when not handling a load.
3. Put directional control or shift lever in neutral before
“ON - OFF” switch is turned on.
4. Start, turn and brake smoothly. Slow down for turns,
slippery or uneven surfaces. Extremely poor
surfaces should be repaired. Avoid running over
loose objects or holes in the roadway surfaces. Use
extreme caution when turning on inclines.
5. Travel with load as low as possible and tilted back. If
load interferes with visibility, travel with load trailing.
6. On grade operations travel with load up grade.
7. Watch out for pedestrians and obstructions. Check
overhead clearances.
8. Do not permit riders on forks or machine at any time.
9. Do not allow anyone to stand or pass under the
elevated portion of any machine.
10. Be sure operating surface can safely support
machine.
11. Operate machine and attachments only from
operator's position.
12. Do not handle unstable or loosely stacked loads.
13. Use minimum tilt when picking up or depositing a
load.
14. Use extreme care when handling long, high, or wide
loads.
15. Forks should be completely under load and spread
apart as far as load permits.
16. Machine should be equipped with overhead guard
or equivalent protection. Where load requires it, use
load backrest extension. Use extreme caution if
operating without these devices.
17. Parking - Lower lifting mechanism to floor. Put
directional control or shift lever in neutral. Set
parking/secondary brake. Turn “ON - OFF” switch
off. Check wheels if machine is on incline.
Disconnect battery when storing electric machines.
18. Observe safety rules when handling fuel for engine
powered machine and when changing batteries for
electric machines.

Safety Section
-7-
Pressure Warning
WARNING
Contents under pressure may be hot. Allow to cool
before opening.
Located on the radiator top tank by the radiator cap.
Hand Placement Warning
WARNING
No hands. Do not place hands in this area. Do not
touch, lean on, or reach through the mast or permit
others to do so.
Located on the mast.
No Standing On Forks Warning, No Standing
Under Forks Warning
WARNING
Do not stand or ride on the forks. Do not stand or
ride on a load or pallet on the forks. Do not stand or
walk under the forks.
Located on the lift cylinder.
Load Backrest Must Be In Place Warning
WARNING
Operation without this device in place may be
hazardous.
Located on the load backrest.

Safety Section
-8-
Overhead Guard Must Be In Place Warning
WARNING
Operation without this device in place may be
hazardous. This guard conforms to A.N.S.I.B56.1
and F.E.M. Section IV. This design has been tested
with an impact of (appropriate value).
Located on the Overhead Guard.
Brake Pedal Adjustment Warning
WARNING
Improper adjustment could result in injury or death.
It has to be adjusted by drawing dimension on free
condition. For safe, don’t unfasten clevis and nut. It
has to be adjusted by trained personnel.
(SHOE Type Only)
Located inside Brake pedal box.
(OCDB Type Only)
Located inside Brake pedal box.

Safety Section
-9-
Parking brake
Pull the lever BACK to engage the parking
brake.
Push the lever FORWARD to release the
parking brake.
Applying the parking brake puts the transmission in
NEUTRAL. The parking brake must be applied when
leaving the lift truck and when starting the engine. If the
operator leaves the seat without applying the parking
brake, an audible alarm will sound.
WARNING
When leaving machine apply parking brake!
Parking brake is not automatically applied.
Alarm will sound if parking brake is not applied.
WARNING
Correct adjustment is necessary to provide
adequate braking. See the MAINTENANCE section
for adjustment procedures. The lift truck may creep
at engine idle and can cause damage, injury or
death. Always apply the parking brake when leaving
the lift truck. The parking brake is NOT
automatically applied.
No Riders Warning
WARNING
To avoid personal injury, allow no riders. A lift truck
is designed for only one operator and no riders.
Located beside the operator’s station.
Moving Fan Warning
WARNING
To avoid personal injury, stay clear of moving fan.
Located on the shroud and upper cover.

Safety Section
-10-
General Hazard Information

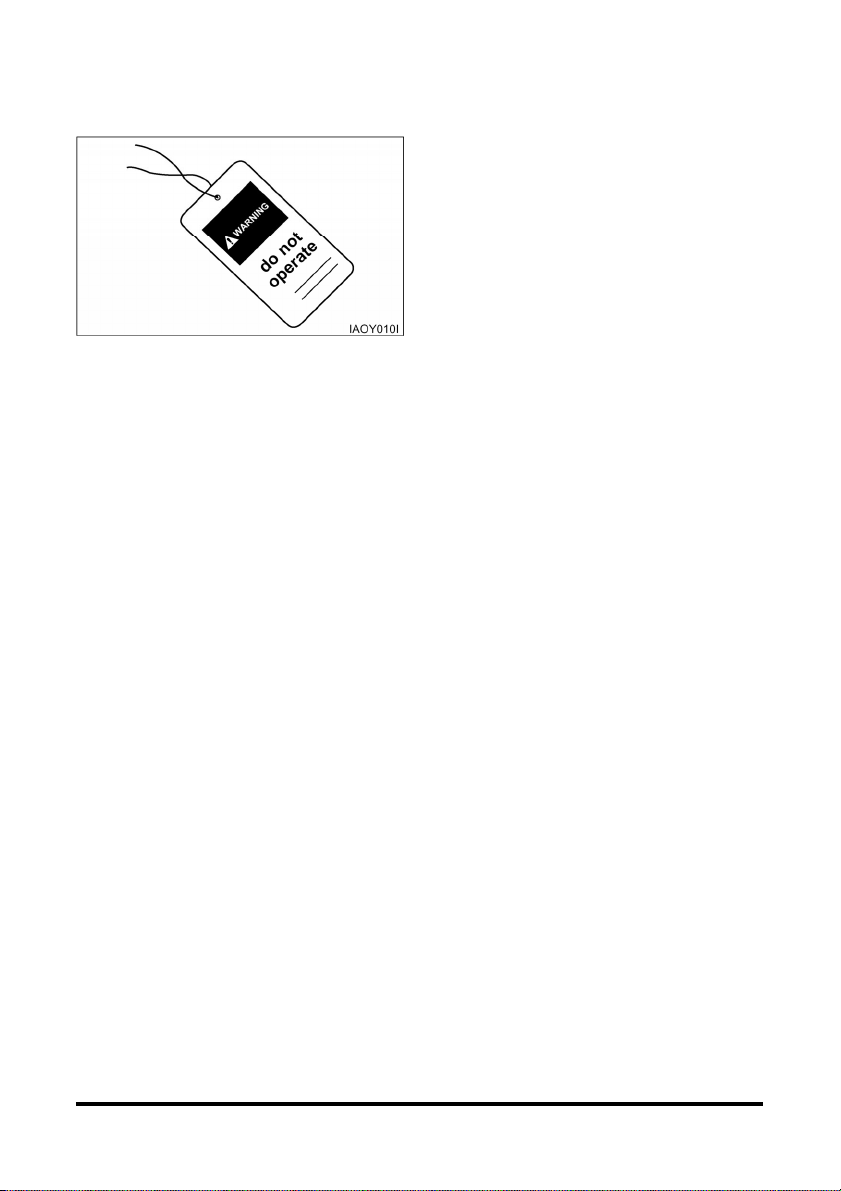

Attach a “Do Not Operate” or similar warning tag to start
switch or controls before servicing or repairing the lift
truck.
Do not start or service the lift truck when a “DO NOT
OPERATE” or similar warning tag is attached to the
start switch or controls.
Wear a hard hat, protective glasses and other protective
equipment as required by job conditions.
Know the width of your attachments so proper
clearance can be maintained when operating near
fences, boundary obstacles, etc.
Do not wear loose clothing or jewelry that can catch on
controls or other parts of the lift truck.
Keep the lift truck, especially the deck and steps, free of
foreign material such as debris, oil tools and other items
which are not part of the lift truck.
Secure all loose items such as lunch boxes, tools and
other items which are not part of the lift truck.
Know the appropriate work-site hand signals and who
gives them. Accept signals from one person only.
Always use the overhead guard. The overhead guard
is intended to protect the lift truck operator from
overhead obstructions and from falling objects.
A truck that is used for handing small objects or uneven
loads must be fitted with a load backrest.
If the lift truck must be operated without the overhead
guard in place due to low overhead clearance, use
extreme care. Make sure there is no possibility of falling
objects from any adjacent storage or work area. Make
sure the load is stable and fully supported by the
carriage and the load backrest extension (if equipped).
Do not raise loads any higher than necessary and never
raise a load higher than 1830 mm (72 in) with the
overhead guard removed.
Always use load backrest extension when the carriage
or attachment does not fully support the load.
The load backrest extension is intended to prevent the
load or any part of the load from falling backwards into
the operator's station.
When operation the lift truck, do not depend only on
flashing lights or back-up alarm (if equipped) to warn
pedestrians.
Always be aware of pedestrians and do not proceed
until the pedestrians are aware of your presence and
intended actions and have moved clear of the lift truck
and/or load.
Do not drive lift truck up to anyone standing in front of an
object.
Obey all traffic rules and warning signs.
Keep hands, feet and head inside the operator station.
Do not hold onto the overhead guard while operating
the lift truck. Do not climb on any part of the mast or
overhead guard or permit others to do so.
Do not allow unauthorized personnel to ride on the forks
or any other part of the lift truck, at any time. When
working in a building or dock, observe floor load limits
and overhead clearances.
Inhaling Freon gas through a lit cigarette or other
smoking method or inhaling fumes released from a
flame contacting Freon can cause bodily harm or death.
Do not smoke when servicing air conditioners or
wherever Freon gas may be present.
Never put maintenance fluids into glass containers.
Use all cleaning solutions with care.
Do not use steam, solvent, or high pressure to clean
electrical components.
Report all needed repairs.

Safety Section
-11-

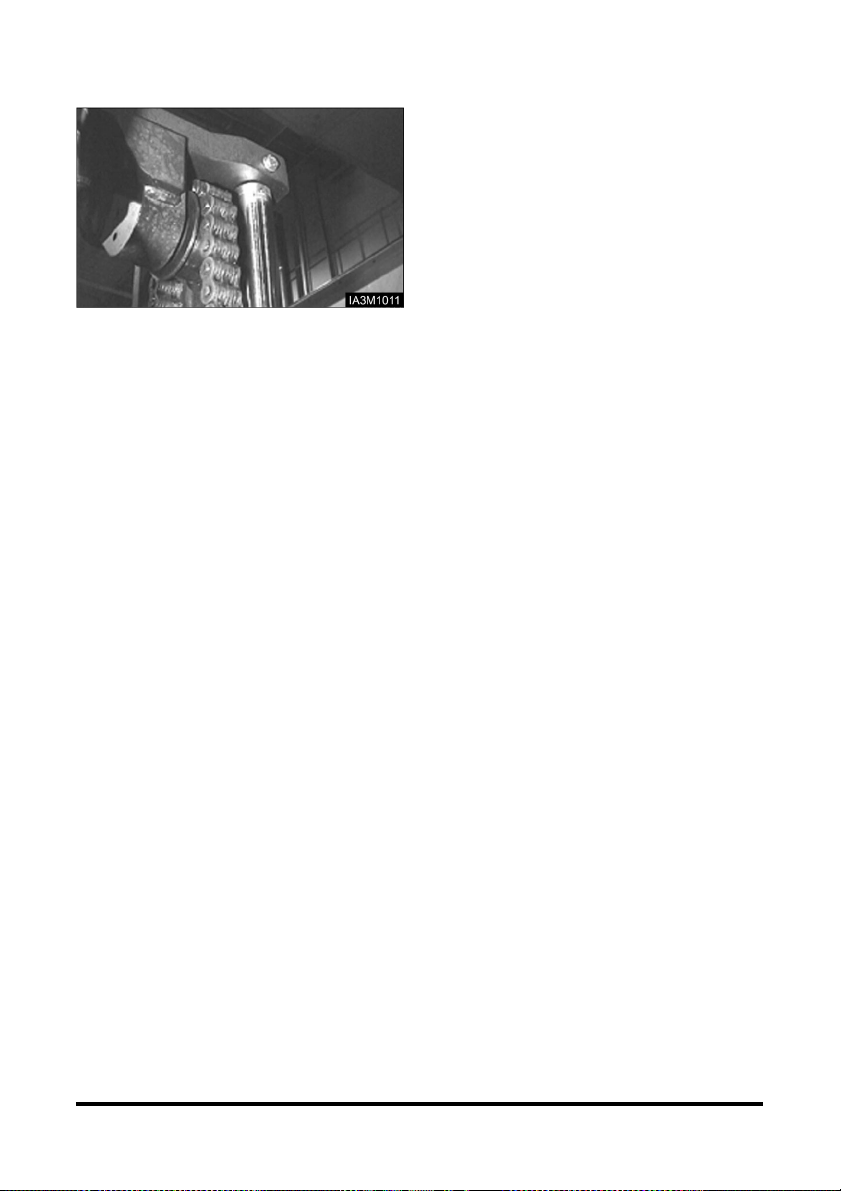

Inspect the part of the chain that is normally operated
over the crosshead roller. When the chain bends over
the roller, the movement of the parts against each other
causes wears.
Inspect to be sure that chain link pins do not extend
outside of the bore hole.
If any single link pin is extended beyond its connecting
corresponding link, it should be suspected of being
broken inside of its bore hole.
Inspect the chain anchor and the anchor links for wear.
Do not change any factory set adjustment
values(including engine rpm setting) unless you have
both authorization and training. Especially Safety
equipment and switches may not be removed or
adjusted incorrectly. Repairs, adjustments and
maintenances that are not correct can make a
dangerous operating condition.
For any checkup, repair, adjustments, maintenance and
all other work concerning your forklift truck, please
contact your DOOSAN dealer. We would like to draw
your attention to the fact that any secondary damages
due to improper handling, insufficient maintenance,
wrong repairs or the use of other than original DOOSAN
spare parts waive any liability by DOOSAN.
Operation Information
Mounting and Dismounting
Mount and dismount the lift truck carefully.
Clean your shoes and wipe your hands before mounting.
Face the lift truck when mounting and dismounting.
Use both hands face the lift truck when mounting and
dismounting.
Use the handgrips for mounting and dismounting.
Do not try to climb on or off the lift truck when carrying
tools or supplies.
Never get on or off a moving lift truck.
Do not use any controls as handholds when entering or
leaving the operator's station.
Never get on or off a moving lift truck. Never jump off the
lift truck.
Keep hands and steering wheel free of slippery material.
Before Starting the Lift Truck
Perform a walk-around inspection daily and at the start
of each shift. Refer to the topic “Walk-around Inspection”
in “Every 10 Service Hours or Daily” section of this
manual.
Adjust the seat so that full brake pedal travel can be
obtained with the operator's back against the seat back.
Make sure the lift truck is equipped with a lighting
system as required by conditions.
Make sure all hydraulic controls are in the HOLD
position.
Make sure the direction control lever is in the NEUTRAL
position.
Make sure the parking brake is engaged.

Safety Section
-12-
Make sure no one is standing and/or working on,
underneath or close to the lift truck before operating the
lift truck.
Operate the lift truck and controls only from the
operator's station.
Make sure the lift truck horn, lights, backup alarm (if
equipped) and all other devices are working properly.
Check for proper operation of mast and attachments.
Pay particular attention to unusual noises or erratic
movement which might indicate a problem.
Make sure service and parking brakes, steering, and
directional controls are operational.
Make sure all personnel are clear of lift truck and travel
path.
Refer to the topic “Lift Truck Operation” in the “Operation
Section” of this manual for specific starting instructions.
Starting the Lift Truck
Do not start the engine or move any of the controls if
there is a “DO NOT OPERATE” or similar warning tag
attached to the start switch or controls.
Before Operating the Lift Truck
Test brakes, steering controls, horn and other devices
for proper operation. Report faulty performance.
Do not operate lift truck until repaired.
Learn how your lift truck operates. Know its safety
devices. Know how the attachments work.
Before moving the lift truck, look around. Start, turn and
brake smoothly.
An operator must constantly observe his lift truck for
proper operation.
Operating the Lift Truck
Always keep the lift truck under control.
Obey all traffic rules and warning signs.
Never leave the lift truck with the engine operating, or
with the parking brake disengaged.
Operate the engine only in a well ventilated area.
Lower a mast, with or without load, before turning or
traveling. Tip over could result. Watch out for overhead
obstructions.
Always observe floor load limits and overhead clearance.
Start, turn, and brake smoothly, slow down for turns,
grades, slippery or uneven surfaces.
Use special care when operation on grades. Do not
angle across or turn on grades. Do not use lift truck on
slippery grades. Travel with forks downgrade when
unloaded. Travel with load upgrade.
Do not overload, or handle offset, unstable, or loosely
stacked loads. Refer to load capacity plate on the lift
truck. Use extreme caution when handing suspended,
long, high or wide load.

Safety Section
-13-
Tilt elevated load forward only when directly over
unloading area and with load as low as possible.

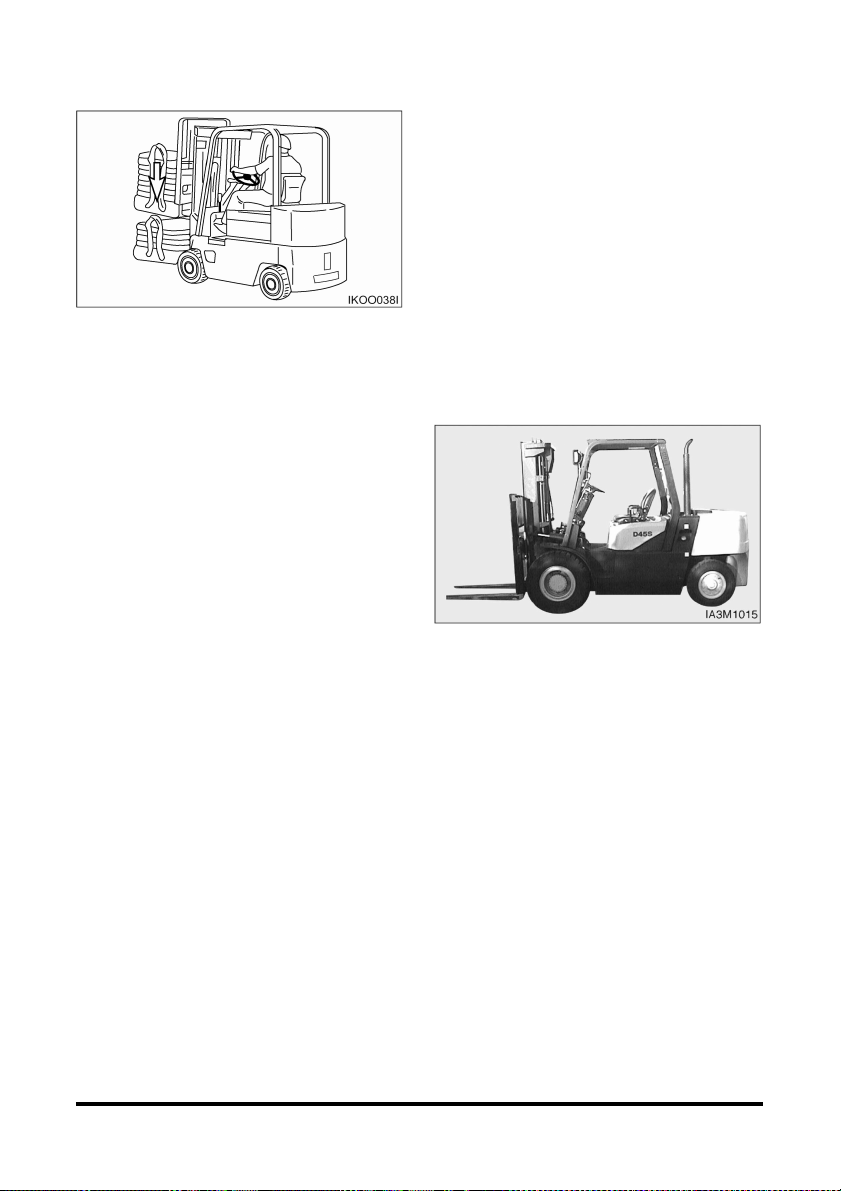

Do not stunt ride or indulge in horseplay.
Always look and keep a clear view of the path of travel.
Travel in reverse if load or attachment obstructs visibility.
Use extreme caution if visibility is obstructed.
Stay in designated travel path, clear of dock edges,
ditches, other drop-offs and surfaces which cannot
safely support the lift truck.
Slow down and use extra care through doorways,
intersections and other location where visibility is
reduced.
Slow down for and avoid pedestrians, other vehicles,
obstruction, pot holes and other hazards or objects in
the path of travel.
Always use overhead guards except where operation
conditions do not permit. Do not operate lift truck in high
stacking areas without overhead guards.
When stacking, watch for falling objects. Use load
backrest extension and overhead guard.
Refer to the topic “Operation Techniques” in the
“Operation Section” of this manual.
Loading or Unloading Trucks/Trailers
Do not operate lift trucks on trucks or trailers which are
not designed or intended for that purpose. Be certain
truck or trailer brakes are applied and wheel chocks in
place (or be certain unit is locked to the loading dock)
before entering onto trucks or trailers.
If trailer is not coupled to tractor, make sure the trailer
landing gear is properly secured in place. On some
trailers, extra supports may be needed to prevent
upending or corner dipping.
Be certain dock plates are in good condition and
properly placed and secured. Do not exceed the rated
capacity of dock boards or bridge plates.
Lift Truck Parking
When leaving the operator station, park the lift truck in
authorized areas only. Do not block traffic.
zPark the lift truck level, with the forks lowered and
the mast tilted forward until the fork tips touch the
floor.
zMove the direction control lever to NEUTRAL.
zEngage the parking brake.
zTurn the key switch off and remove the key.
zTurn the disconnect switch to OFF and remove the
key (if equipped).
zBlock the drive wheels when parking on an incline.

Safety Section
-14-
Maintenance Information
Perform all maintenance unless otherwise specified as
follows ;
zPark the lift truck in authorized areas only.
zPark the lift truck level, with the forks lowered and
the mast tilted forward until the fork tips touch the
floor.
zPlace the transmission controls in neutral.
zEngage the parking brake.
zStop the engine.
zRemove the start switch key and turn the
disconnect switch OFF (if equipped).
zBlock the drive wheels when parking on an incline.
Pressure Air
Pressure air can cause personal injury. When using
pressure air for cleaning, wear a protective face shield,
protective clothing and protective shoes.
The maximum air pressure must be below 205 kPa (30
psi) for cleaning purposes.
Fluid Penetration
Always use a board or cardboard when checking for a
leak. Escaping fluid under pressure, even a pinhole size
leak, can penetrate body tissue, causing serious injury,
and possible death. If fluid is injected into your skin, it
must be treated by a doctor familiar with this type of
injury immediately.
Crushing or Cutting Prevention
Support equipment and attachments properly when
working beneath them. Do not depend on hydraulic
cylinders to hold it up. Any attachment can fall if a
control is moved, or if a hydraulic line breaks.
Never attempt adjustments while the lift truck is moving
or the engine is running unless otherwise specified.
Where there are attachment linkages, the clearance in
the linkage area will increase or decrease with
movement of the attachment.
Stay clear of all rotating and moving parts.
Keep objects away from moving fan blades.
They will throw or cut any object or tool that falls or is
pushed into them.
Do not use a kinked or frayed wire rope cable. Wear
gloves when handling the wire rope cable.
Retainer pins, when struck with force, can fly out and
injure nearby persons. Make sure the area is clear of
people when driving retainer pins.
Wear protective glasses when striking a retainer pin to
avoid injury to your eyes.
Chips or other debris can fly off objects when struck.
Make sure no one can be injured by flying debris before
striking any object.
Falling Objects Protective Structure(FOPS)
This is an attached guard located above the operator's
compartment and secured to the lift truck.
To avoid possible weakening of the Falling Objects
Protective Structure (FOPS), consult a DOOSAN dealer
before altering, by adding weight to, welding on, or
cutting or drilling holes into the structure.
The overhead guard is not intended to protect against
every possible impact. The overhead guard may not
protect against some objects penetrating into the
operator's station from the sides or ends of the lift truck.
The lift truck is equipped with an overhead guard and
FOPS as standard. If there is a possibility of overhead
objects falling through the guard, the guard must be
equipped with smaller holes or a Plexiglas cover.
Any altering done that is not specifically authorized by
DOOSAN invalidates DOOSAN's FOPS certification.
The protection offered by this FOPS will be impaired if it
has been subjected to structural damage.
Structural damage can be caused by an overturn
accident, by falling objects, etc.
Do not mount any item such as fire extinguishers, first
aid kits and lights by welding brackets to or drilling holes
in any FOPS structure. See your DOOSAN dealer for
mounting guidelines.

Safety Section
-15-
Burn Prevention
Coolant
At operating temperature, the engine coolant is hot and
under pressure. The radiator and all lines to heaters or
the engine contain hot water or steam. Any contact can
cause severe burns.
Steam can cause personal injury.
Check the coolant level only after engine has been
stopped and the filter cap is cool enough to remove with
your bare hand.
Remove the cooling system filter cap slowly to relieve
pressure.
Cooling system additive contains alkali that can cause
personal injury. Avoid contact with the skin and eyes
and do not drink.
Allow cooling system components to cool before
draining.
Oils
Hot oil and components can cause personal injury. Do
not allow hot oil or components to contact the skin.
At operation temperature, the hydraulic tank is hot and
can be under pressure.
Remove the hydraulic tank filter cap only after the
engine has been stopped and the filter cap is cool
enough to remove with your bare hand.
Remove the hydraulic tank filter cap slowly to relieve
pressure.
Relieve all pressure in air, oil fuel or cooling systems
before any lines, fittings or related items are
disconnected or removed.
Batteries
Batteries give off flammable fumes which can explode.
Do not smoke when observing the battery electrolyte
levels.
Electrolyte is an acid and can cause personal injury if it
contacts skin or eyes.
Always wear protective glasses when working with
batteries.
Fire or Explosion Prevention
All fuels, most lubricants and some coolant mixtures are
flammable.
Fuel leaked or spilled onto hot surfaces or electrical
components can cause a fire.
Do not smoke while refueling or in a refueling area.
Do not smoke in areas where batteries are charged, or
where flammable materials are stored.
Batteries in series can be located in separate
compartments.
When using jumper cables always connect positive(+)
cable to positive(+) terminal of battery connected to
starter solenoid and negative(-) cable from external
source to starter negative(-) terminal.
(If not equipped with starter negative(-) terminal, connect
to engine block.)
See the Operation Section of this manual for specific
starting instructions.
Clean and tighten all electrical connections. Check daily
for loose or frayed electrical wires. Have all loose or
frayed electrical wires tightened, repaired or replaced
before operation the lift truck.
Keep all fuels and lubricants stored in properly marked
containers and away from all unauthorized persons.
Store all oily rags or other flammable material in a
protective container, in a safe place.
Do not weld or flame cut on pipes or tubes that contain
flammable fluids. Clean them thoroughly with
nonflammable solvent before welding or flame cutting
on them.
Remove all flammable materials such as fuel, oil and
other debris before they accumulate on the lift truck.
Do not expose the lift truck to flames, burning brush, etc.,
if at all possible.
Shields, which protect hot exhaust components from oil
or fuel spray in the event of a line, tube or seal failure,
must be installed correctly.
Do not operate in areas where explosive gases exist or
are suspected.

Safety Section
-16-
Fire Extinguisher
Have a fire extinguisher-type BC and 1.5KG minimum
capacity-on rear overhead guard leg with latch and
know how to use it. Inspect and have it serviced as
recommended on its instruction plate.
Ether
Ether is poisonous and flammable.
Breathing ether vapors or repeated contact of ether with
skin can cause personal injury.
Use ether only in well-ventilated areas.
Do not smoke while changing ether cylinders.
Use ether with care to avoid fires.
Do not store replacement ether cylinders in living areas
or in the operator's compartment.
Do not store ether cylinders in direct sunlight or at
temperatures above 39°C (102°F).
Discard cylinders in a safe place. Do not puncture or
burn cylinders.
Keep ether cylinders out of the reach of unauthorized
personnel.
Lines, Tubes and Hoses
Do not bend or strike high pressure lines. Do not install
bent or damaged lines, tubes or hoses.
Repair any loose or damaged fuel and oil lines, tubes
and hoses. Leaks can cause fires. Contact your
DOOSAN dealer for repair or replacement.
Check lines, tubes and hoses carefully. Do not use your
bare hand to check for leaks. Use a board or cardboard
to check for leaks. See Fluid Penetration in the Safety
Section for more details. Tighten all connections to the
recommended torque. Replace if any of the following
conditions are found.
zEnd fittings damaged or leaking.
zOuter covering chafed or cut and wire reinforcing
exposed.
zOuter covering ballooning locally.
zEvidence of kinking or crushing of the flexible part of
hose.
zArmoring embedded in the outer cover.
zEnd fittings displaced.
Make sure that all clamps, guards and heat shields are
installed correctly to prevent vibration, rubbing against
other parts, and excessive heat during operation.
Tire Information
Explosions of air-inflated tires have resulted from heat-
induced gas combustion inside the tires. The heat,
generated by welding or heating rim components,
external fire, or excessive use of brakes can cause
gaseous combustion.
A tire explosion is much more violent than a blowout.
The explosion can propel the tire, rim and axle
components as far as 500 m (1500 ft) or more from the
lift truck. Both the force of the explosion and the flying
debris can cause personal injury or death, and property
damage.

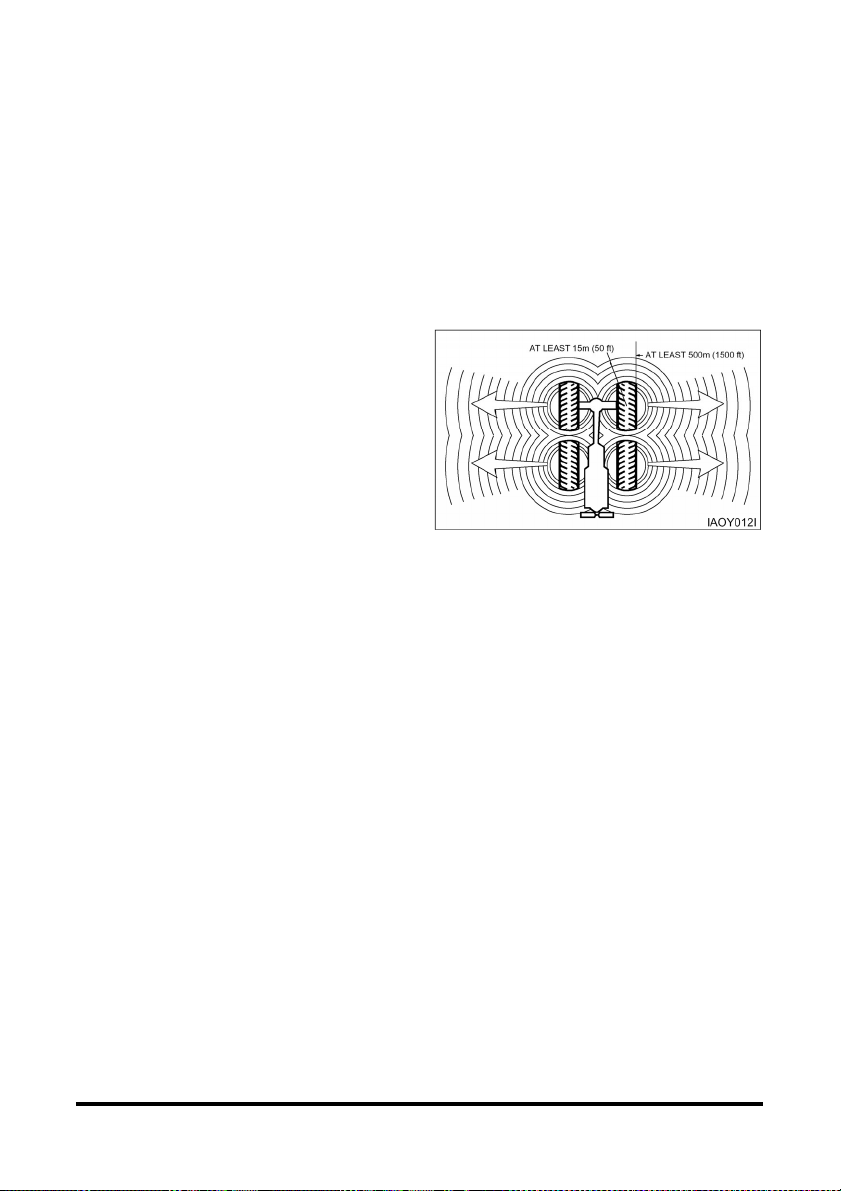

Do not approach a warm tire closer than the outside of
the area represented by the shaded area in the above
drawing.

Safety Section
-17-
Dry nitrogen(N2) gas is recommended for inflation of
tires. If the tires were originally inflated with air, nitrogen
is still preferred for adjusting the pressure. Nitrogen
mixes properly with air.
Nitrogen inflated tires reduce the potential of a tire
explosion, because nitrogen does not support
combustion. Also, nitrogen helps prevent oxidation and
the resulting deterioration of rubber and corrosion of rim
components.
Proper nitrogen inflation equipment and training in its
use are necessary to avoid over-inflation. A tire blowout
or rim failure can result from improper or misused
equipment.
Stand behind the tread and use a self-attaching chuck
when inflation a tire.
Servicing, changing tires and rims can be dangerous
and should be done only by trained personnel using
proper tools and procedures. If correct procedures are
not followed while servicing tires and rims, the
assemblies could burst with explosive force and cause
serious personal injury or death. Follow carefully the
specific information provided by your tire or rim servicing
personnel or dealer.
Operator Restraint System (If
Equipped)
Warning Signs and Labels
Your DOOSAN lift truck has the following tipover
warning decals.
Make sure that you can read all safety signs. Clean or
replace these if you cannot read the words or see the
pictures. When cleaning the labels use a cloth, water
and soap. Do not use solvent, gasoline, etc. You must
replace a label if it is damaged, missing or cannot be
read. If a label is on a part that is replaced, make sure a
new label is installed on the replaced part. See you
DOOSAN Lift Truck dealer for new labels.
The most effective method of preventing serious injury
or death to yourself or others is to familiarize yourself
with the proper operation of the lift truck, to be alert, and
to avoid actions or conditions which can result in an
accident.
WARNING
Tipover can occur if the truck is improperly
operated. In the event of a tipover, injury or death
could result.

Safety Section
-18-
The “Survive in tipover” warning is located on the
overhead guard. It shows the proper use of the operator
restraint system.
Seat Adjustment
Move the lever, slide the seat to the desired position,
and release the lever.
Adjust the seat before operating the lift truck. After
adjusting, set the seat to make sure it is properly locked.
DO NOT adjust the seat while the truck is in motion.
WARNING
Do NOT place your hand or fingers under the
seat. Injury may occur as the seat suspension
mechanism moves up and down.
NOTICE
Before getting on the truck, adjust the level of the
suspension using the grip in the rear of the seat.
WARNING
When raising and lowering the seat backrest,
avoid placing hand or fingers in the hinge area
indicated by the circle. Injury may occur.
