Aaeon FWS-7200 User manual

Network Appliance FWS-7200
FWS-7200
1U Rackmount
Network Appliance Platform
3.5” SATA HDD x 1
or 2.5” SATA HDD x 2
CF SATA Socket
6 LAN Ports
2 USB2.0, 1 COM for Console
1 Mini PCI
FWS-7200 Manual 2nd Ed.
March 2013

Network Appliance FWS-7200
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
i

Network Appliance FWS-7200
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Intel®and Atomare trademarks of Intel®Corporation.
AMI is a trademark of American Megatrends Inc.
CompactFlash™ is a trademark of the Compact Flash
Association.
Microsoft Windows®is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their
respective owners.
ii

Network Appliance FWS-7200
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
FWS-7200
CD-ROM for manual (in PDF format) and drivers
Ear Bracket x 1 set
Screw Accessories
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.
Note:
VGA Cable is an optional accessory. Please purchase those
cables according to the following item numbers.
1700160253 VGA Cable
iii

Network Appliance FWS-7200
Contents
Chapter 1 General Information
1.1 Introduction..........................................................1-2
1.2 Features..............................................................1-3
1.3 Specifications......................................................1-4
1.4 General System Information ...............................1-7
Chapter 2 Quick Installation Guide
2.1 Safety Precautions..............................................2-2
2.2 Location of Connectors of Main Board................2-3
2.3 Mechanical Drawing of Main Board ....................2-4
2.4 List of Jumpers....................................................2-5
2.5 List of Connectors ...............................................2-5
2.6 Setting Jumpers ..................................................2-7
2.7 CMOS Setting Selection (JP3)............................2-8
2.8 Auto PWRBTN Selection (JP6)...........................2-8
2.9 24-pin ATX Power Connector (ATX2).................2-8
2.10 Front Panel Connector (FP1)............................2-9
2.11 Pin Header (USB2)............................................2-9
2.12 RS-232 Box Header (COM2)............................2-9
2.13 SATA Connector (SATA 1, SATA 2).................2-10
2.14 CF-SATA Connector (CFD1) ............................2-10
2.15 Software Programmable Button (RSW1)..........2-11
2.16 Analog Display (VGA1) .....................................2-12
iv

Network Appliance FWS-7200
2.17 Installing the 2.5” Hard Disk Drive.....................2-14
2.18 Installing the 3.5” Hard Disk Drive.....................2-19
2.19 Installing the Expansion Card ...........................2-23
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization .............................3-2
3.2 AMI BIOS Setup..................................................3-3
Chapter 4 Driver Installation
4.1 Installation...........................................................4-3
Appendix A Programming the Watchdog Timer
A.1 Programming ..................................................A-2
A.2 W83627DHG Watchdog Timer Initial ProgramA-6
Appendix B I/O Information
B.1 I/O Address Map.............................................B-2
B.2 Memory Address Map.....................................B-4
B.3 IRQ Mapping Chart.........................................B-5
B.4 DMA Channel Assignments............................B-8
Appendix C Standard Firewall Platform Setting
C.1 Standard Firewall Platform Setting.................C-2
C.2 Status LED Sample Code...............................C-4
C.3 LAN Bypass Mode Sample Code...................C-7
C.4 Console Redirection .....................................C-11
v

Network Appliance FWS-7200
vi
Appendix D AHCI Settings
D.1 Setting AHCI...................................................D-2

Network Appliance FWS-7200
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Network Appliance FWS-7200
1.1 Introduction
FWS-7200 adopts the Intel®Dual Core Atom™ D525 Processor
and equips with Intel®Atom™ D525 + ICH8M chipset. The system
memory features two 204-pin single channel DDR3 800MHz
SODIMM slots up to 4GB. It deploys six Gigabit Ethernet LAN
ports with one pair (optional two pairs) LAN bypass function. The
condensed appearance of FWS-7200 features 1U form factor that
fits nicely into a space- limited environment.
This compact FWS-7200 can be equipped with a 3.5” SATA HDD or
two 2.5” SATA HDD and CF-SATA socket. In addition, it offers
flexible expansion with network products and features one Mini-PCI
and two PCI expansion slots, two USB2.0 ports and one RS-232
console port on the front panel. The console port deploys console
re-direction that increases the network security via remote control.
Moreover, the front panel supports LCM with keypad control for
easy access and operation. All of these designs provide for a
more user-friendly solution.
Chapter 1 General Information 1- 2

Network Appliance FWS-7200
1.2 Features
1U Rackmount 6 LAN ports Network Appliance
Onboard Intel®Dual-Core Atom™ D525 processor
Intel®Atom™D525 + ICH8M
Two 204-pin Single Channel DDR3 800MHz SODIMM Up to
4GB
10/100/1000Base-TX Ethernet Port x 6 With One Pair
(Optional Two Pairs) LAN Bypass Function
3.5” SATA HDD x 1 or 2.5” SATA HDD x 2 and CF-SATA
Socket
One Parallel LCM with Keypad
RS-232 Console x 2 (Front Panel x 1, optional Pin Header x 1),
USB2.0 x 2 (Type A Connector x 2 and optional Pin Header x
2)
AC Power Input Requirement
Mini PCI Slot x 1, Expansion PCI Slot x 2
Parallel LCM With Keypad On The Front Panel
Chapter 1 General Information 1- 3

Network Appliance FWS-7200
1.3 Specifications
System
Form Factor 1U Rackmount 6 LAN ports Network
Appliance
Processor Onboard Intel®Atom™ D525 processor
System Memory
204-pin single channel DDR3 800MHz
SODIMM slot x 2, up to 4GB
Chipset Intel®Atom™ D525 + ICH8M
Ethernet Intel®82574L controller, Gigabit Ethernet
x 6 with 1 pair (optional 2 pairs) LAN
bypass function
BIOS AMI BIOS
Serial ATA SATA 3.0Gb/s x 2
SSD CF-SATA x 1
Expansion Interface Mini PCI slot x 1, PCI slot x 2
Watchdog Timer System reset: 1~255 steps by software
programming
RTC Internal RTC
Storage 3.5” SATA HDD or 2.5” SATA HDD x 2
and CF-SATA socket
Front I/O Panel Power LED x 1, Bypass LED x 1, Status
LED x 1, HDD Active LED x 1, USB port x
2, RJ-45 port with LED x 6, DB-9
connector x 1, Parallel LCM display and
Chapter 1 General Information 1- 4

Network Appliance FWS-7200
keypad x 1, Software programmable
switch x 1
Rear I/O Panel AC power input x 1, Power switch x 1, PCI
Expansion slot x 2
Color Black
Power Supply 180W AC power input
Power Requirement One 24-pin ATX power connector
compatible with 20-pin PSU, two 4-pin DC
power out connector for HDD
Dimension 16.93”(W) x 13.19”(D) x 1.73”(H) (430mm
x 335mm x 44mm)
Certification CE/FCC Class A
Display
Chipset Intel®Atom™ D525 + ICH8M
Graphic Engine Intel®Atom™ D525 integrated GMA 3150
graphic engine
Resolution 2048x1536
Output Interface VGA internal box header
I/O
Serial Port COM x 2:
COM1: RS-232 with DB-9 for Console
COM2: RS-232 with pin header (optional)
Keyboard & Mouse Reserved pin header
Chapter 1 General Information 1- 5

Network Appliance FWS-7200
USB USB2.0 x 4:
USB for internal pin header x 2 (optional)
USB2.0 Type A on I/O side
Environment
Operating
Temperature
32oF~104oF (0oC ~40oC)
Storage
Temperature
-4oF~104oF (-20oC ~60oC)
Operating Humidity 10%~80% relative humidity,
non-condensing
Storage Humidity 10%~80% @ 40oC, non-condensing
Vibration 0.5g rms/5~500Hz/ operation (3.5” HDD)
1.5g rms/5~500Hz/ non-operation
Shock 10G peak acceleration (11m sec.
duration), operation
20G peak acceleration (11m sec.
duration), non operation
Chapter 1 General Information 1- 6

Network Appliance FWS-7200
Chapter 1 General Information 1- 7
1.4 General System Information

Network Appliance FWS-7200
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide

Network Appliance FWS-7200
2.1 Safety Precautions
The installation is intended for technically qualified personnel who
have experience installing and configuring system boards.
The equipment can be installed in a restricted access location (RAL)
only.
A restricted access location is a site location for equipment where
the following criteria apply:
01. Access can only be gained by service persons or by users who
have been trained on the restrictions and the precautions for this
specific site.
02. Access is by means of at least one of the following, special tool,
lock and key, or other means of security, and is controlled by the
authority responsible for the location.
Safety Precautions:
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis
Chapter 2 Quick Installation Guide 2-2

Network Appliance FWS-7200
2.2 Location of Connectors of Main Board
Location of Connectors of PER-T244
Chapter 2 Quick Installation Guide 2-3

Network Appliance FWS-7200

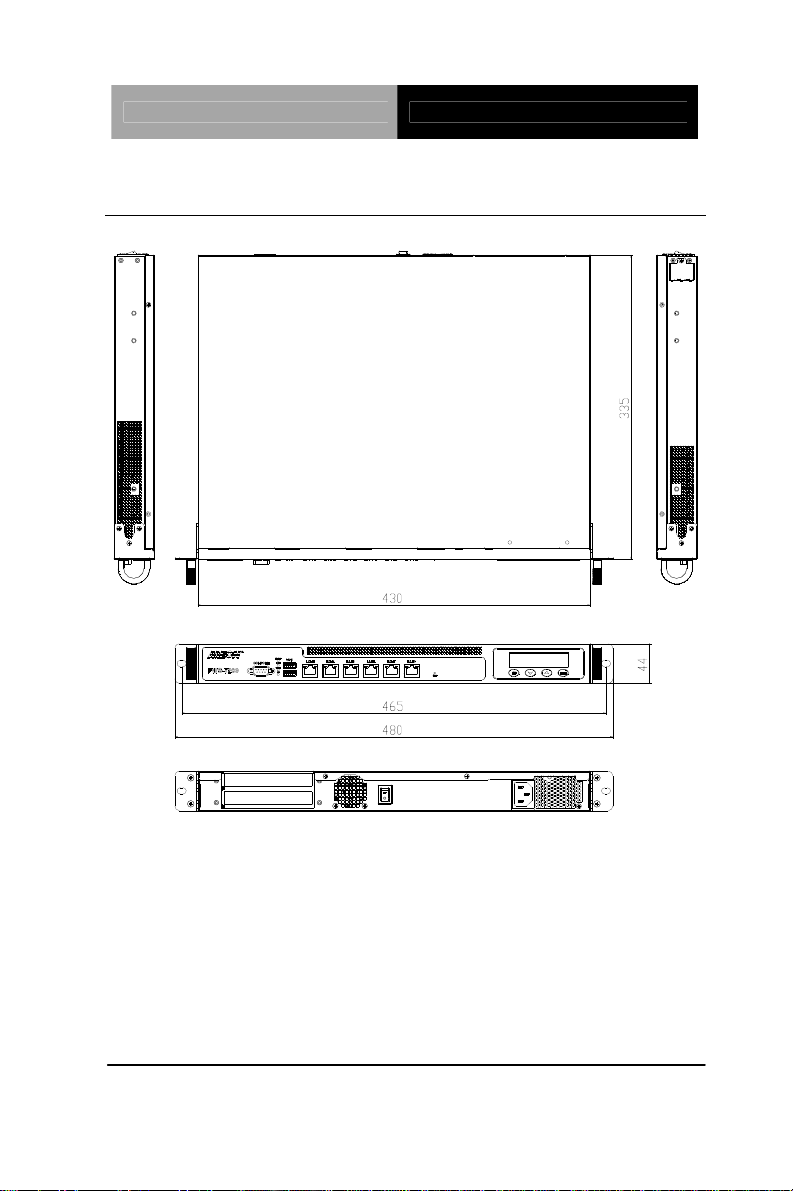

2.3 Mechanical Drawing of Main Board
Chapter 2 Quick Installation Guide 2-4

Network Appliance FWS-7200
Mechanical drawings of PER-T244
Chapter 2 Quick Installation Guide 2-5

Network Appliance FWS-7200
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Label Function
JP3 CMOS Setting Selection
JP6 Auto PWRBTN Selection
2.5 List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Label Function
SO-DIMM1 DDR3 SOCKET
SO-DIMM2 DDR3 SOCKET
ATX2 24PATX POWER SUPPLY INPUT
CN6 3P FAN
CN14 KB/MS
COM1 COM PORT
COM2 COM PORT
VGA1 Analog Display
USB1 USB 2.0 *2
USB2 USB 2.0 *2
FP1 Front Panel Pin Header
MPCI1 Mini PCI Slot
Chapter 2 Quick Installation Guide 2-6
