Aaeon FWS-7250 User manual

Network Appliance FWS- 7 250
FWS-7250
1U Rackmount
Network Appliance Platform
Internal 2.5” SATA HDD x1
or 3.5” SATA HDD x 1
or 2.5” SATA HDD x 2
CF SATA Socket
4 LAN Ports
2 USB2.0, 1 COM for Console
1 MiniCard Slot
FWS-7250 Manual 2nd Ed.
February 14, 2019

Network Appliance FWS-7250
i
Copyright Notice
This document is copyrighted, 2019. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Network Appliance FWS-7250
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Intel®and Atom™are trademarks of Intel®Corporation.
AMI is a trademark of American Megatrends Inc.
CompactFlash™ is a trademark of the Compact Flash
Association.
Microsoft Windows®is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their
respective owners.

Network Appliance FWS-7250
iii
Packing List
Before installation, please make sure that the following
materials have been shipped:
FWS-7250
Gift Box (Including Console Cable, Ear Brackets)
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.
Note:
VGA Cable is an optional accessory. Please only purchase
cable with the following item number.
1700160150 VGA Cable (must be used with two
S21D305011 screws)

Network Appliance FWS-7250
iv
Contents
Chapter 1 General Information
1.1 Introduction.......................................................1-2
1.2 Features............................................................1-3
1.3 Specifications....................................................1-4
1.4 General System Information..............................1-8
Chapter 2 Quick Installation Guide
2.1 Safety Precautions............................................2-2

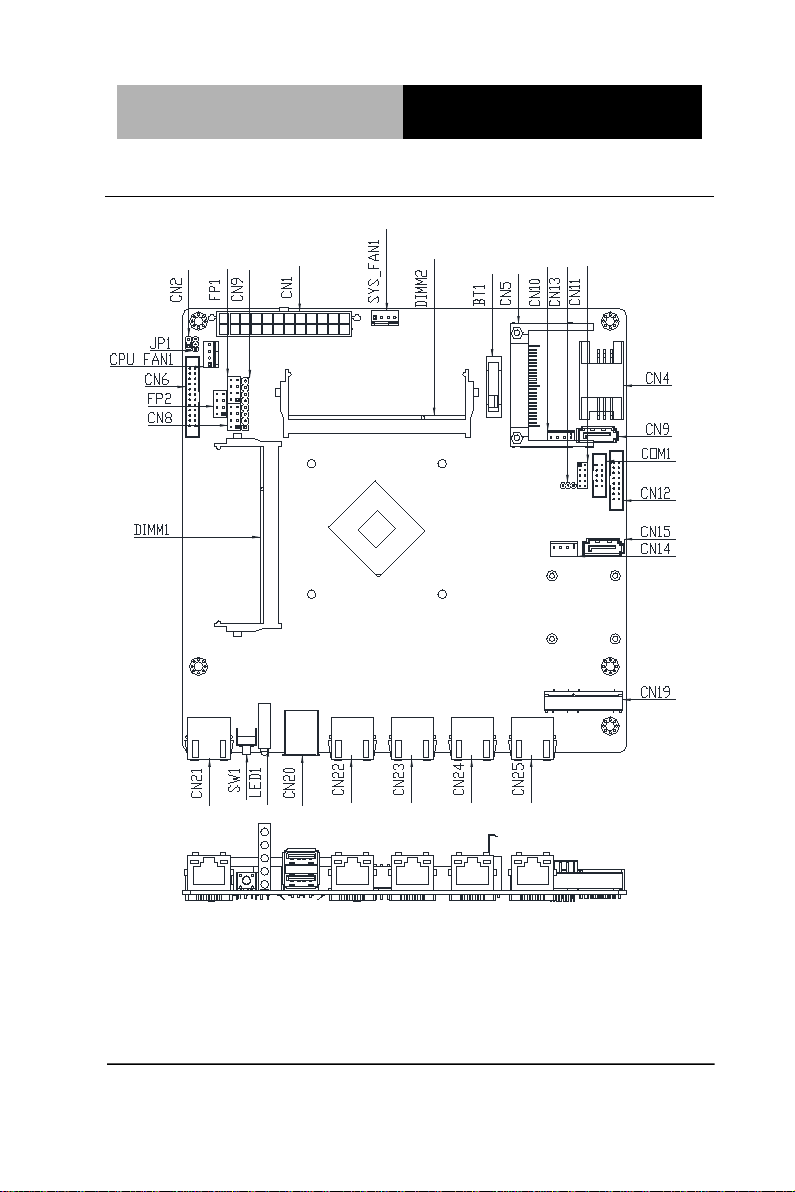

2.2 Location of Connectors of Main Board...............2-3

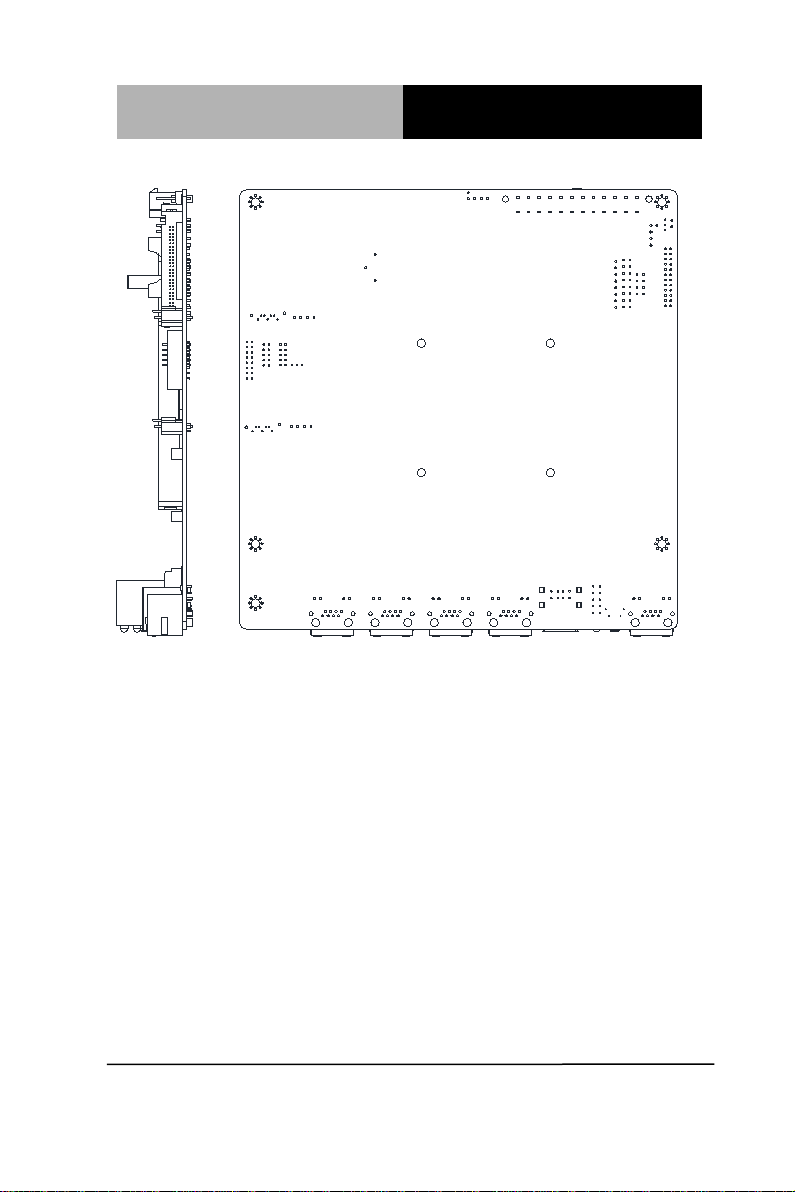

2.3 Mechanical Drawing of Main Board ...................2-5
2.4 List of Jumpers..................................................2-7
2.5 List of Connectors .............................................2-7
2.6 Setting Jumpers................................................2-9
2.7 Auto Power Button (JP1)...................................2-10
2.8 CF Power Selection (CN13)...............................2-10
2.9 CMOS Setting Selection (CN16)........................2-10
2.10 RTC Test Setting Selection (CN17) .................2-11
2.11 24-Pin ATX Power Connector (CN1)................2-12
2.12 Power Button (CN2) ........................................2-13
2.13 SIM Card Socket (CN4)...................................2-13
2.14 Compact Flash Socket (CN5)..........................2-14
2.15 LCM Connector (CN6).....................................2-16
2.16 PS2 Keyboard/Mouse Pin Header (CN8).........2-17

Network Appliance FWS-7250
v
2.17 SATA Port Connector (CN9)............................2-18
2.18 SATA Power Connector (CN10 & CN14).........2-18
2.19 USB2.0 Port 1 Pin Header (CN11)...................2-19
2.20 VGA Pin Header (CN12)..................................2-20
2.21 SATA Port Connector (CN15)..........................2-21
2.22 Mini PCI-E Slot (CN19)....................................2-21
2.23 USB2.0 Type-A Connector (CN20)..................2-24
2.24 Console Port Connector (CN21)......................2-24
2.25 Giga LAN Port Connector (CN22)....................2-25
2.26 Giga LAN Port Connector (CN23)....................2-26
2.27 Giga LAN Port Connector (CN24)....................2-26
2.28 Giga LAN Port Connector (CN25)....................2-27
2.29 COM Port Connector (COM1)..........................2-28
2.30 4-pin Fan Connector (CPU_FAN1) ..................2-30
2.31 Front Panel Connector (FP1)...........................2-30
2.32 Front Panel Connector (FP2)...........................2-31
2.33 4-pin Fan Connector (SYS_FAN1)...................2-31
2.34 Installing the 2.5” Hard Disk Drive....................2-32
2.35 Installing the 3.5” Hard Disk Drive....................2-36
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization............................3-2
3.2 AMI BIOS Setup................................................3-3
Chapter 4 Driver Installation
4.1 Installation.........................................................4-3

Network Appliance FWS-7250
vi
Appendix A Programming the Watchdog Timer
A.1 Watchdog Timer Initial Program....................A-2

Network Appliance FWS-7250
Chapter1 General Information 1- 1
General
Information
Chapter
1

Network Appliance FWS-7250
Chapter1 General Information 1- 2
1.1 Introduction
FWS-7250 adopts the Intel®Quad-Core Celeron™ J1900
Processor. The system memory features two 204-pin Dual channel
DDR3L 1333MHz SODIMM slots up to 8GB.It deploys four
Gigabit Ethernet LAN ports with two pairs LAN bypass function. The
condensed appearance of FWS-7250 features 1U form factor that
fits nicely into a space- limited environment.
This compact FWS-7250 can be equipped with one 3.5”/2.5” SATA
HDD and CF-SATA socket or two 2.5” SATA HDD. In addition, it
offers flexible expansion with network products and features one
Mini-Card slot with SIM socket, two USB2.0 ports and one RS-232
console port on the front panel. The console port deploys console
re-direction that increases the network security via remote control.
Moreover, the front panel supports LCM with keypad control for
easy access and operation. All of these designs provide for a more
user-friendly solution.

Network Appliance FWS-7250
Chapter1 General Information 1- 3
1.2 Features
1U Rackmount 4 LAN ports Network Appliance
Intel® Atom™ E3845, up to 1.91 GHz or Celeron® J1900 up
to 2.42 GHz
Two 204-pin Dual Channel DDR3L 1333MHz SODIMM Up to
8GB
Intel® I210AT, 10/100/1000Base-TX Ethernet Port x 4
Internal 2.5” SATA HDD x 1 or (2.5” SATA HDD x 2 /3.5”
SATA HDD x 1 optional), CompactFlash™ Socket x 1
RJ-45 Console x 1, USB 2.0 x 2
100W ATX PSU
