A&D FZ-120iWP User manual

FZ-120iWP / FZ-200iWP / FZ-300iWP
FZ-1200iWP / FZ-2000iWP / FZ-3000iWP
FX-120iWP / FX-200iWP / FX-300iWP
FX-1200iWP / FX-2000iWP / FX-3000iWP
1WMPD4001591A

This is a caution mark.
© 2007 A&D Company Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed,
or translated into any language in any form by any means without the
written permission of A&D Company Ltd.
The contents of this manual and the specifications of the instrument
covered by this manual are subject to change for improvement without
notice.
Windows, Word and Excel are the registered trademarks of the
Microsoft Corporation.

1
CONTENTS
Basic Operation
1. INTRODUCTION ...................................................................................................................................... 3
1-1 About This Manual .............................................................................................................................. 3
1-2 Features.............................................................................................................................................. 3
1-3 Compliance......................................................................................................................................... 4
2. UNPACKING THE BALANCE ................................................................................................................. 7
2-1 Unpacking........................................................................................................................................... 7
2-2 Installing the Balance.......................................................................................................................... 8
3. PRECAUTIONS........................................................................................................................................ 9
3-1 Before Use.......................................................................................................................................... 9
3-2 During Use........................................................................................................................................ 10
3-3 After Use ............................................................................................................................................11
3-4 Power Supply.....................................................................................................................................11
3-5 Display Symbols and Key Operation ................................................................................................ 12
4. WEIGHING UNITS ................................................................................................................................. 13
4-1 Units.................................................................................................................................................. 13
4-2 Storing Units ..................................................................................................................................... 15
5. WEIGHING ............................................................................................................................................. 16
5-1 Basic Operation (Gram Mode).......................................................................................................... 16
5-2 Counting Mode (PCS) ...................................................................................................................... 17
5-3 Percent Mode (%)............................................................................................................................. 19
5-4 Statistical Calculation Mode.............................................................................................................. 20
5-5 Statistical Calculation Mode (Example of Use) ...................................................................................... 25
Adapting to the Environment
6. RESPONSE ADJUSTMENT .................................................................................................................. 27
7. CALIBRATION ....................................................................................................................................... 28
7-1 Calibration Mode............................................................................................................................... 28
7-2 Calibration Using the Internal mass (One-Touch Calibration, only for FZ- i WP series) .......................................... 29
7-3 Calibration Using an External Weight............................................................................................... 30
7-4 Calibration Test Using an External Weight ....................................................................................... 32
Functions
8. FUNCTION SWITCH AND INITIALIZATION ......................................................................................... 34
8-1 Permit or Inhibit................................................................................................................................. 34
8-2 Initializing the Balance...................................................................................................................... 35
9. FUNCTION TABLE ................................................................................................................................ 36
9-1 Structure and Sequence of the Function Table ................................................................................36
9-2 Display and Keys.............................................................................................................................. 36

2
9-3 Details of the Function Table ............................................................................................................ 37
9-4 Description of the Class “Environment, Display” .............................................................................. 40
9-5 Description of the Item “Data Output Mode”..................................................................................... 42
9-6 Description of the Item “Data Format” .............................................................................................. 43
9-7 Data Format Examples..................................................................................................................... 45
9-8 Description of the Item “Application Function”.................................................................................. 46
9-9 Comparator Function........................................................................................................................ 47
9-10 Clock and Calendar Function ......................................................................................................... 48
10. ID NUMBER AND GLP REPORT ........................................................................................................ 50
10-1 Setting the ID Number .................................................................................................................... 50
10-2 GLP Report..................................................................................................................................... 50
11. UNDERHOOK ...................................................................................................................................... 53
12. PROGRAMMABLE-UNIT .................................................................................................................... 54
RS-232C Serial Interface
13. RS-232C SERIAL INTERFACE ........................................................................................................... 55
14. CONNECTION TO PERIPHERAL EQUIPMENT................................................................................. 56
14-1 Connection to the AD-8121B Printer .............................................................................................. 56
14-2 Connection to a Computer.............................................................................................................. 57
14-3 Using Windows Communication Tools (WinCT)............................................................................. 58
15. COMMANDS ........................................................................................................................................ 59
15-1 Command List................................................................................................................................. 59
15-2 Acknowledge Code and Error Codes ............................................................................................. 60
15-3 Settings Related to the RS-232C ................................................................................................... 61
Maintenance
16. MAINTENANCE ................................................................................................................................... 62
17. TROUBLESHOOTING ......................................................................................................................... 63
17-1 Checking the Balance Performance and Environment................................................................... 63
17-2 Error Codes .................................................................................................................................... 64
17-3 Asking For Repair ........................................................................................................................... 65
18. OPTIONS.............................................................................................................................................. 66
19. SPECIFICATIONS................................................................................................................................ 69
20. EXTERNAL DIMENSIONS................................................................................................................... 71
21. TERMS / INDEX ................................................................................................................................... 73

3
1. INTRODUCTION
This manual describes how the FZ-iWP series and the FX-iWP series balance works and how to get the
most out of it in terms of performance.
Read this manual thoroughly before using the balance and keep it at hand for future reference.
1-1 About This Manual
This manual consists of the following five parts:
Basic operation ...................... Describes precautions on handling the balance, balance construction
and basic balance operation.
Adapting to the environment .. Describes response adjustment and calibration.
Functions................................ Describes various functions of the balance.
RS-232C serial interface ........ Describes the interface which transmits data and controls the
balance.
Maintenance........................... Describes maintenance, error codes, troubleshooting, specifications
and options.
1-2 Features
Dust-tight and protected against water jets (complying with IP65), suitable to weigh powdery or liquid
material. A waterproof RS-232C cable (AX-KO2737-500) is available as an option.
Compact general-purpose balance, can be installed almost anywhere.
Casing construction, strong protection against dust and water.
Stabilization time of one second. When FAST is selected for the response rate, a stabilization time of
one second, to read a displayed value after a sample is placed on the pan, has been achieved.
Multiple weighing units with most of the common units used around the world.
Standard RS-232C serial interface to communicate with a computer and to output the Good
Laboratory Practice (GLP) data
Statistical calculation mode to statistically calculate the weight data, and display or output the sum,
maximum, minimum, range (maximum-minimum), average, standard deviation and coefficient of variation.
Comparator Indicators, displaying the comparison results.
Hold Function, provided for weighing a moving object such as an animal.
Breeze break, provided for the FZ-iWP series and the FX-120iWP / FX-200iWP / FX-300iWP, for
more accurate weighing.
Underhook, provided for suspended weighing.
As options, the USB interface (FXi-02), the Ethernet interface (FXi-08) and the built-in battery unit
(FXi-09) are available. When any one of these is used, the balance does not comply with IP65.

4
1-3 Compliance
Compliance with FCC Rules
Please note that this device generates, uses and can radiate radio frequency energy. This device has
been tested and has been found to comply with the limits of a Class A computing device pursuant to
Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against
interference when this device is operated in a commercial environment. If this unit is operated in a
residential area, it may cause some interference and under these circumstances the user would be
required to take, at his own expense, whatever measures are necessary to eliminate the interference.
(FCC = Federal Communications Commission in the U.S.A.)
Compliance with EMC Directives
This device features radio interference suppression and safety regulation in compliance with
the following Council Directives
Council directive 89/336/EEC EN61326 EMC directive
Council directive 73/23/EEC EN60950 Safety of Information Technology Equipment
The CE mark is an official mandatory European marking.
Please note that any electronic product must comply with local laws and regulations when sold or
used anywhere outside Europe.

5

6

7
2. UNPACKING THE BALANCE
2-1 Unpacking
The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used
for transporting the balance in the future.
The packing contents depend on the balance model. See the illustrations to confirm that everything is
contained.
When attaching the pan
support, use much care not
to deform the diaphragm.
To use as a dust and waterproof balance, cover the RS-232C
interface connector, or connect the waterproof RS-232C cable
The breeze break is
an accessory for
FZ-iWP series,
FX-120iWP,
FX-200iWP,
FX-300iWP .
The breeze break
A
ssemble the breeze break as shown below.
Follow the numbered sequence.
4
1
2
3
Waterproof diaphragm
Pan boss
Pan support
Weighing pan
Bubble spirit
level
Display
Keys
Leveling foot
A
C adapte
r
A
C adapter ID label
Note
Please confirm that the AC adapter
type is correct for your local voltage
and receptacle type.
The AC adapter plug is protected against dust and may be difficult to
insert. When inserting the plug, turn the plug while pushing on it.
Terminal cover
Grounding terminal
RS-232C serial interface
A
C adapter jack
A
C adapter plug
Main unit
Main unit rear
Main unit cover

8
2-2 Installing the Balance
Install the balance as follows:
1. Place the balance on a solid weighing table. Refer to “3. PRECAUTIONS” for installing the balance.
2. In case of FZ-iWP series and FX-120iWP / FX-200iWP / FX-300iWP
Assemble the pan support, weighing pan and breeze break, on the balance as shown in the
illustration on page 7.
In case of FX-1200iWP / FX-2000iWP / FX-3000iWP
Assemble the pan support and weighing pan on the balance as shown in the illustration on page 7.
3. Adjust the leveling feet to level the balance. Confirm it using the bubble spirit level.
4. Confirm that the AC adapter type is correct for the local voltage and power receptacle type.
5. Connect the AC adapter to the balance. Warm up the balance for at least 30 minutes with nothing
on the weighing pan.
Note
The AC adapter plug is protected against dust and may be difficult to insert. When inserting the
plug, turn the plug while pushing on it.

9
3. PRECAUTIONS
To get the optimum performance from the balance and acquire accurate weight data, note the following:
3-1 Before Use
The meaning of IP65 is "No ingress of dust. Projected against water jets".
If a powerful water jet is used or the balance is immersed in water, the
ingress of water may cause damage to the balance.
Confirm that "the plug is inserted firmly into the AC adapter jack" and "the
RS-232C interface connector is covered using the terminal cover or the
waterproof RS-232C cable (AX-KO2737-500) is connected", when using
as a dust and waterproof balance.
When the balance is used without the terminal cover on the RS-232C
interface connector or a standard RS-232C cable is used, the balance
does not comply with IP65.
Install the balance in an environment where the temperature and humidity
are not excessive. The best operating temperature is about 20°C / 68°F at
about 50% relative humidity.
Install the balance where it is not exposed to direct sunlight and it is not
affected by heaters or air conditioners.
Install the balance where it is free of dust.
Install the balance away from equipment which produces magnetic fields.
Install the balance in a stable place avoiding vibration and shock. Corners
of rooms on the first floor are best, as they are less prone to vibration.
The weighing table should be solid and free from vibration, drafts and as
level as possible.
Level the balance by adjusting the leveling feet and confirm it using the
bubble spirit level.
Ensure a stable power source when using the AC adapter.
Plug in the AC adapter and warm up the balance for at least 30 minutes.
Calibrate the balance before use or after having moved it to another
location.
Caution
Do not install the balance where flammable or corrosive gas is present.
Good No good
Leveling foot
Bubble spirit level

10
3-2 During Use
The FZ-iWP series and the FX-iWP series balance has a casing with
high sealing performance due to its dust-tight and waterproof design.
Therefore, a very subtle change in the atmospheric pressure in the
installation site, for example, generated by opening or closing the door,
affects the weighing and may yield an unstable weight value. Wait for
the atmospheric pressure to stabilize before weighing.
If the residue of a powdery or liquid material is left on the waterproof
diaphragm or the pan boss, it may cause weighing errors. Clean them
before weighing.
If the waterproof diaphragm is deformed due to overloading, it may
cause weighing errors. Remove the load and wait for the waterproof
diaphragm to restore to the original shape before continuing with
weighing.

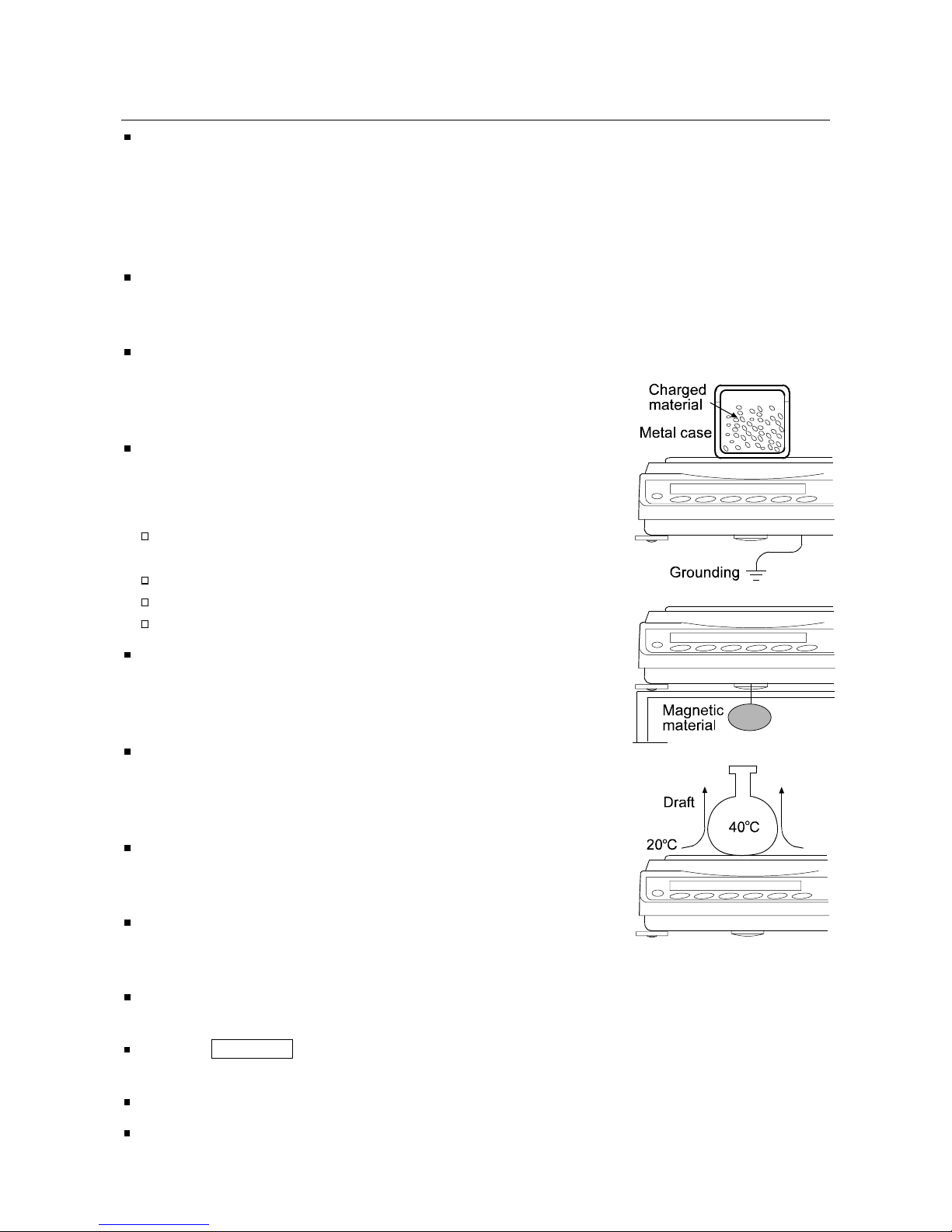

Discharge static electricity from the material to be weighed
(hereinafter referred to as the sample). When a sample could have a
static charge, the weight data is influenced. Ground the balance and
try the following:
Eliminate static electricity using the optional AD-1683 DC static
eliminator.
Try to keep the ambient humidity above 45%RH.
Use a metal shield case for a charged sample.
Wipe charged plastic samples with a moistened cloth.
This balance uses a strong magnet as part of the balance assembly,
so please use caution when weighing magnetic materials such as iron.
If there is a problem, use the underhook on the bottom of the balance
to suspend the material away from the influence of the magnet.
Eliminate the temperature difference between a sample and the
environment. When a sample is warmer (cooler) than the ambient
temperature, the sample will be lighter (heavier) than the true weight.
This error is due to a rising (falling) draft around the sample.
Make each weighing gently and quickly to avoid errors caused by the
evaporation of moisture from the sample or the absorption of moisture
by the sample.
Do not drop things upon the weighing pan, or place a sample on the
pan that is beyond the balance weighing capacity. Place a sample in
the center of the weighing pan.
Do not use a sharp instrument such as a pencil to press the keys. Use
your finger only.
Press the RE-ZERO key before each weighing to eliminate possible
errors.
Calibrate the balance periodically so as to eliminate possible errors.
Take into consideration the affect of air buoyancy on a sample when more accuracy is required.

11
Prevent foreign materials, such as powder, liquid and metal, from invading the area around the
weighing pan.
The breeze break (FZ-iWP series and FX-120iWP / FX-200iWP / FX-300iWP ) is provided as an
accessory. An anti-static treatment has been applied to the breeze break components, but they may
be charged with static electricity when they are unpacked or when the humidity is low. If the weight
value is unstable even when there are no drafts or the balance has a problem with repeatability,
remove the breeze break. Or wipe the clear plates with a moistened cloth, use the optional AD-1683
DC static eliminator or apply an anti-static spray.
3-3 After Use
Do not allow the balance to be immersed in water. Even though the balance complies with IP code,
the balance will not withstand being completely immersed in water.
Avoid mechanical shock to the balance.
Do not disassemble the balance. Contact the local A&D dealer if the balance needs service or repair.
Do not use organic solvents to clean the balance. Clean the balance with a lint free cloth that is
moistened with warm water and a mild detergent.
The edge of the weighing pan is sharp. Use much care when cleaning the pan.
3-4 Power Supply
When the AC adapter is connected, the balance is in the standby mode if the standby indicator is on
(refer to “3-5 Display Symbols and Key Operation”). This is a normal state and does not harm the
balance. For accurate weighing, warm up the balance for at least 30 minutes before use.

12
3-5 Display Symbols and Key Operation
Key operation
Key operation affects how the balance functions. The basic key operations are:
“Press and release the key immediately” or “Press the key”
= normal key operation during measurement.
“Press and hold the key”.
Display symbols
Each key, when pressed or when pressed and held, functions as follows:
Key When pressed When pressed and held
Turns the display on or off. The standby indicator is displayed when the display is turned off. The
weighing mode is enabled when the display is turned on.
This key is available anytime. Pressing the key during operation will interrupt the operation and
turn the display off.
In the weighing mode, turns the minimum
weighing value on or off.
In the counting or percent mode, enters the
sample storing mode.
Enters the function table mode.
Refer to “9. FUNCTION TABLE”.
Switches the weighing units stored in the function
table. Refer to “4. WEIGHING UNITS”. Enters the response adjustment mode.
Cancels the operation when performing settings. Enters the calibration mode.
Outputs the weight data to a printer or personal
computer using the RS-232C serial interface,
depending on the function table settings.
Confirms the operation when performing settings.
No function at the factory setting
By changing the function table:
Outputs “Title block” and “End block” for
GLP report.
Sets the display to zero.
Number of statistical data (Statistical calculation mode)
Displays the weight data relative to the weighing capacity,
in percentage, in the weighing mode (Capacity indicator)
Response indicators
A
nimal mode indicato
r
Comparator indicators
Units
Interval output mode
Standby indicator
Weight data
Interal output mode
A
ctive indicator
NET indicato
r
Processing indicato
r
Stabilization indicato
r
Standby indicato
r
Processing indicator
Blinking

13
4. WEIGHING UNITS
4-1 Units
With the FZ-iWP series and the FX-iWP series balance, the following weighing units and weighing
modes are available:
A unit or mode can be selected and stored in the function table as described on page 15.
If a weighing mode (or unit of weight) has been turned off, that mode or unit will be missing in the
sequence. Tael has four varieties, one of which can be selected and installed at the factory.
To select a unit or mode for weighing, press the MODE key.For details about the units and modes,
see the table below:
Name (unit, mode) Display Function table
(Storing mode)
Conversion factor
1 g =
Gram g g 1 g
Counting mode pcs pcs
Percent mode % %
Ounce (Avoir) oz oz 28.349523125 g
Pound lb lb 453.59237 g
Pound/Ounce Loz LO 1 Lb = 16 oz,
1 oz = 28.349523125 g
Troy Ounce ozt ozt 31.1034768 g
Metric Carat ct ct 0.2 g
Momme 3.75 g
Pennyweight dwt dwt 1.55517384 g
Grain (UK) GN GN 0.06479891 g
Tael (HK general, Singapore) 37.7994 g
Tael (HK jewelry) 37.429 g
Tael (Taiwan) 37.5 g
Tael (China)
tl tl
31.25 g
Tola (India) tol tol 11.6638038 g
Messghal 4.6875 g
Programmable-unit (Multi-unit) MLT MLT

14
The tables below indicate the weighing capacity and the minimum display for each unit, depending on
the balance model.
Capacity
Unit FX-120iWP FX-200iWP FX-300iWP Minimum display
Gram 122.000 220.000 320.000 0.001
Ounce (Avoir) 4.30340 7.76025 11.28765 0.00005
Pound 0.268965 0.485015 0.705480 0.000005
Pound/Ounce 0L 4.30oz 0L 7.76oz 0L 11.29oz 1L 0.01oz
Troy Ounce 3.92240 7.07315 10.28825 0.00005
Metric Carat 610.000 1100.000 1600.000 0.005
Momme 32.5335 58.6665 85.3335 0.0005
Pennyweight 78.621 141.776 206.220 0.001
Grain (UK) 1882.74 3395.12 4938.34 0.02
Tael (HK general, Singapore) 3.22755 5.82020 8.46575 0.00005
Tael (HK jewelry) 3.25950 5.87780 8.54950 0.00005
Tael (Taiwan) 3.25330 5.86670 8.53330 0.00005
Tael (China) 3.90400 7.04000 10.24000 0.00005
Tola (India) 10.4597 18.8618 27.4353 0.0001
Messghal 26.0265 46.9335 68.2665 0.0005
Capacity
Unit FX-1200iWP FX-2000iWP FX-3000iWP Minimum display
Gram 1220.00 2200.00 3200.00 0.01
Ounce (Avoir) 43.0340 77.6025 112.8765 0.0005
Pound 2.68965 4.85015 7.05480 0.00005
Pound/Ounce 2L 11.03oz 4L 13.60oz 7L 0.88oz 1L 0.01oz
Troy Ounce 39.2240 70.7315 102.8825 0.0005
Metric Carat 6100.00 11000.00 16000.00 0.05
Momme 325.335 586.665 853.335 0.005
Pennyweight 786.21 1417.76 2062.20 0.01
Grain (UK) 18827.4 33951.2 49383.4 0.2
Tael (HK general, Singapore) 32.2755 58.2020 84.6575 0.0005
Tael (HK jewelry) 32.5950 58.7780 85.4950 0.0005
Tael (Taiwan) 32.5330 58.6670 85.3330 0.0005
Tael (China) 39.0400 70.4000 102.4000 0.0005
Tola (India) 104.597 188.618 274.353 0.001
Messghal 260.265 469.335 682.665 0.005

15
4-2 Storing Units
The units or modes can be selected and stored in the function table. The sequence of displaying the
units or modes can be arranged in the function table so as to fit the frequency of use.
Select a unit or mode and arrange the sequence of display as follows:
1 Press and hold the SAMPLE key until ba5fnc of the
function table is displayed.
2 Press the SAMPLE key several times to display Unit .
3 Press the PRINT key to enter the unit selection mode.
4 Specify a unit or mode in the order to be displayed using the
following keys.
SAMPLE key To sequentially display the units.
RE-ZERO key To specify a unit or mode. The stabilization
indicator appears when the displayed unit or
mode is specified.
5 Press the
PRINT key to store the units or modes. The balance
displays end and then displays the next menu of the function
table.
6 Press the CAL key to exit the function table. Then the balance
returns to the weighing mode with the unit specified first in step 4.
Notes
When the power is turned on, the scale displays the unit specified first in step 4.
In the weighing mode, to select a unit or mode for weighing, press the MODE key.

16
5. WEIGHING
5-1 Basic Operation (Gram Mode)
1 Place a container on the weighing pan, if necessary.
Press the RE-ZERO key to cancel the weight (tare).
The balance displays 0.00 g. (The decimal point position
depends on the balance model.)
2 Place a sample on the pan or in the container.
3 Wait for the stabilization indicator to be displayed. Read the value.
While the stabilization indicator is on, pressing the PRINT key
will output the weight value, using the RS-232C serial interface.
Note
Peripheral equipment, that is sold separately , such as a
printer or a personal computer is required.
4 Remove the sample and container from the pan.
Notes
To use other units, press the MODE key and select an appropriate unit.
Press the SAMPLE key to turn on or off the minimum weighing value.
When the ON:OFF key is pressed with a container placed
on the weighing pan, the balance displays 0.00 g and
weighing is started,

17
5-2 Counting Mode (PCS)
This is the mode to determine the number of objects in a sample based on the standard sample unit mass.
Unit mass means the mass of one sample. The smaller the variables in each sample unit mass are, the
more accurate the counting will be. The FZ-iWP series and the FX-iWP series balance is equipped with
the Automatic Counting Accuracy Improvement (ACAI) function to improve the counting accuracy.
Note
If the sample unit mass variable is too large, it may cause a counting error.
Selecting the counting mode
1 Press the MODE key to select 1pcs (counting mode).
Storing a sample unit mass
2 Press the SAMPLE key to enter the sample unit mass
storing mode.
Even in the storing mode, pressing the MODE key will
switch to the next mode.
3 To select the number of samples, press the SAMPLE key
several times. It may be set to 5, 10, 25, 50 or 100.
Note
A greater number of samples will yield more accurate
counting result.
4 Place a container on the weighing pan, if necessary.
Press the RE-ZERO key to cancel the weight (tare).
The number specified in step 3 appears.
e.g.: 25 0 is displayed if 25 is selected in step 3.
5 Place the number of samples specified on the pan.
In this example, 25 pieces.
6 Wait for the stabilization indicator to come on.
Press the PRINT key to calculate and store the unit mass.
The balance displays 25 pcs (counting mode) and is set to
count samples with this unit mass. (The sample unit mass
stored, even if the AC adapter is removed, is maintained in
non-volatile memory.)
To improve the accuracy of the unit mass, proceed to step 8.
Notes
If the balance judges that the mass of the samples is too
light and is not adequate to be used as the unit mass, it
displays lo . In that case, store the mass by some
quantity. For example, when the model with the minimum
weighing value of 0.01 g is used and 10 pieces of samples
weigh 0.05 g. Store 100 pieces of samples as 10 and multiply
the weighing result by 10.

18
If the balance judges that the mass of the samples is too light
to aquire accurate weighing, it displays an error requiring the
addition of more samples to the specified number. In the
example above, 150-
PCS appears, requiring 25 more samples.
Add 25 samples and press the PRINT key. When the unit
mass is stored correctly, the balance proceeds to the counting
mode.
Counting operation
7 Place the samples to be counted on the pan.
While the stabilization indicator is on, pressing the PRINT key
will output the weight value, using the RS-232C serial interface.
Note
Peripheral equipment, that is sold separately , such as a
printer or a personal computer is required.
Counting mode using the ACAI function
The ACAI is a function that improves the accuracy of the unit
mass automatically by increasing the number of samples and
averaging the unit mass variable to minimize the weighing error,
as the counting process proceeds.
8 If a few more samples are added, the processing indicator turns on. To prevent an error, add three or
more. The processing indicator does not turn on if overloaded. Try to add the same number of
samples as displayed.
9 The balance re-calculates the unit mass while the processing indicator is blinking. Do not touch the
balance or samples on the pan until the processing indicator turns off.
10 Counting accuracy is improved when the processing indicator turns off.
Each time the above operation is performed, a more accurate unit mass will be obtained. There is
no definite upper limit of ACAI range for the number of samples exceeding 100. Try to add the
same number of samples as displayed.
11 Remove all the samples used in ACAI and proceed with the counting operation using the improved
unit mass.
