AAON PER-C101 User manual

Ethernet DaughterBoard PER-C101
PER-C101
Broadcom BCM5721/51/89,
Dual PCI Express 10/100/1000
Dual PCI Express Giga
Ethernet DaughterBoard
PER-C101 Rev. A Manual 2nd Ed.
Oct. 2005

Ethernet DaughterBoard PER-C101
i
Copyright Notice
This document is copyrighted, 2005. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Ethernet DaughterBoard PER-C101
ii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PER-C101 DaughterBoard
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
• 1 Flat Cable (For COM Port Version Only)
• 1 PCI Express Cable
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Ethernet DaughterBoard PER-C101
iii
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Mechanical Drawing..................................................2-3
2.3 Mechanical Drawing Showing Connector Locations.2-4
2.4 List of Jumpers..........................................................2-5
2.5 List of Connectors .....................................................2-5
2.6 Setting Jumpers ........................................................2-6
2.7 LAN1, LAN2 Enable/Disable (JP1, JP2)...................2-7
2.8 RS-232 Serial Port Connector (CN5)........................2-7
2.9 LAN 1, LAN 2 Active LED Connector (CN3, CN7)....2-7
2.10 LAN 1, LAN 2 Speed LED Connector (CN2, CN6).2-7
2.11 PCI Express Connector (CN4)................................2-8
Chapter 3 Driver Installation
3.1 Installation.................................................................3-3

Ethernet DaughterBoard PER-C101
Chapter 1 General Information 1 - 1
Chapter
1
General
Information

Ethernet DaughterBoard PER-C101
Chapter 1 General Information 1 - 2
1.1 Introduction
The PER-C101 is a Dual PCI Express 10/100/1000 Gigabit Ethernet
DaughterBoard that onboard two Broadcom 10/100/1000Base-T
Gigabit Ethernet Controllers for high-performance network applications
such as Firewall PC, Workstation PC, Server PC, etc.

Ethernet DaughterBoard PER-C101
Chapter 1 General Information 1 - 3
1.2 Features
 Dual PCI Express Host Interface
 Dual 10/100/1000Base-T Triple-speed Ethernet
Controller
 Supports IPMI 1.5 Standard (BCM5751/BCM5721
Optional)
 Supports ASF2.0 Standard (BCM5721 Optional)
 Supports Teaming Functions (BCM5721 Optional)
 Supports Wake on LAN

Ethernet DaughterBoard PER-C101
Chapter 1 General Information 1 - 4
1.3 Specifications
System
 Form Factor Dual PCI Express 10/100/1000
Ethernet Daughter Board
 Chipset PCI Express 10/100/1000Mb
LAN Optional RJ-45 x 2
Broadcom
BCM5721/BCM5751/BCM5789
 Expansion Interface Dual PCI Express Interface x 1
 PCI Express Support i915G or i945G-based
 Serial Port One COM port: Internal 5x2 Box
Header x 1, External D-sub x 1
 Power Supply Request From PCI Express Connector
(DF-13 30Pin)
 Qualification Formal Certification CE / FCC
Class A
 Operating Temp. 0ºC ~ 60ºC
Note: The PER-C101 has been tested by the following OS systems,
1. Windows 2000 Professional English Version / 5.00.2195
with Service Pack4
2. Windows XP Professional English Version / 2002 with
Service Pack2
3. Linux 9.0 Kernel Version 2.4.20-8

Ethernet DaughterBoard PER-C101
Chapter2QuickInstallationGuide2 - 1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of the user manual. Fo
r
other chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007C10111 Printed in Taiwan October

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 3

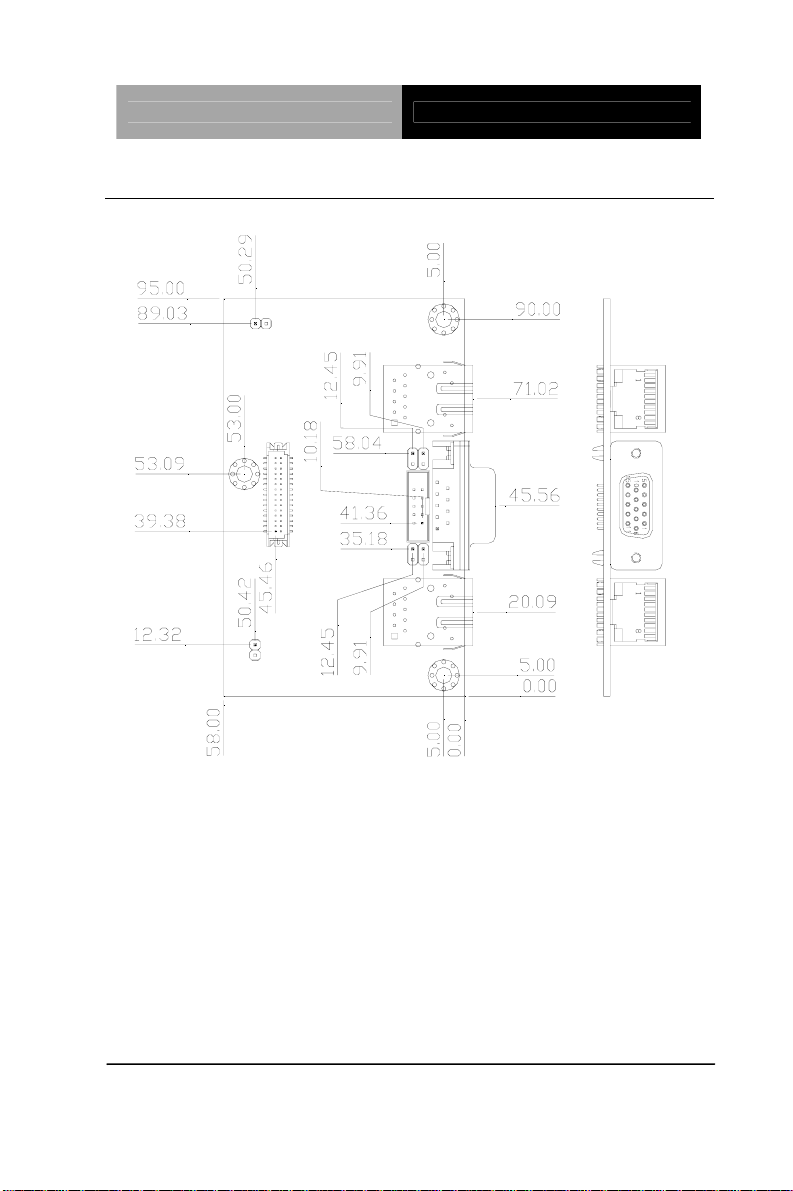

2.2 Mechanical Drawing
g

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 4

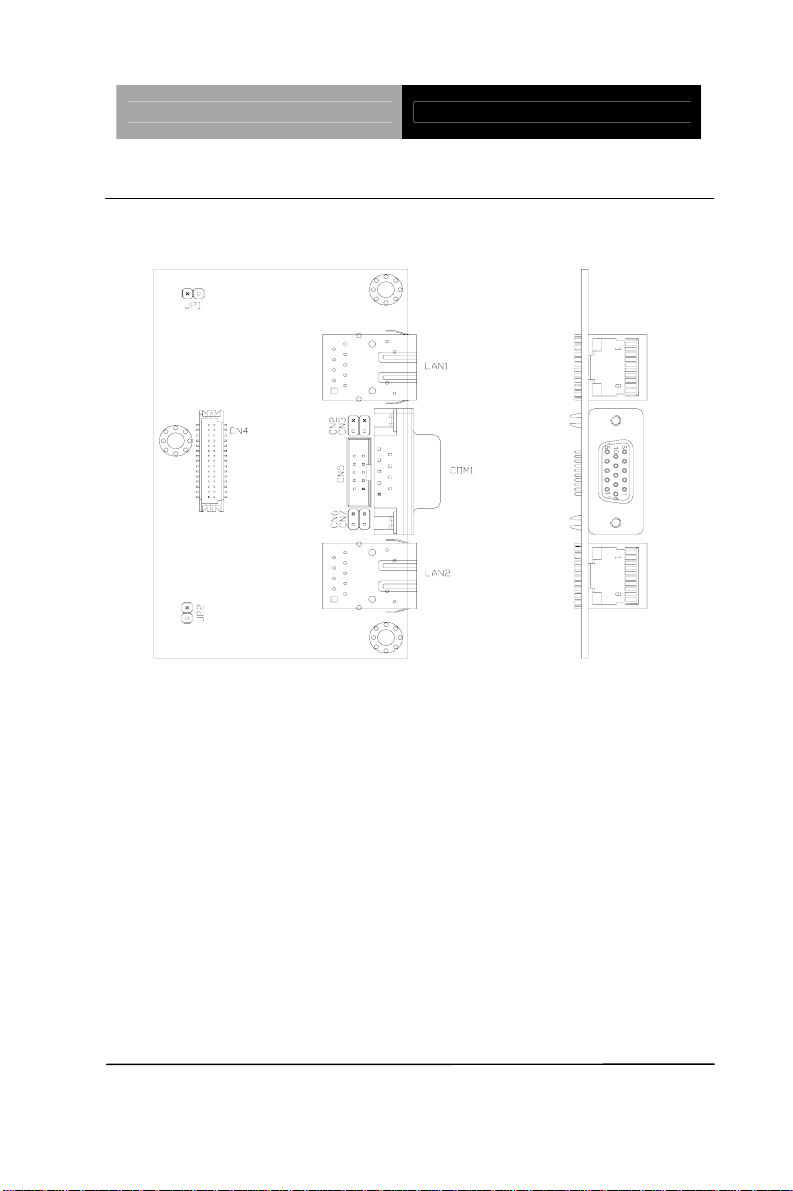

2.3 Mechanical Drawing showing connector locations

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 5
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Label Function
JP1 LAN1 Enable / Disable
JP2 LAN2 Enable / Disable
2.5 List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Label Function
COM1 DB9 RS-232 Serial Port Connector
CN5 RS-232 Serial Port Connector
LAN1 10/100 or 100/1000 Base-TX Ethernet Connector
LAN2 10/100 or 100/1000 Base-TX Ethernet Connector
CN3 LAN1 Active LED Connector
CN2 LAN1 Speed LED Connector
CN7 LAN2 Active LED Connector
CN6 LAN2 Speed LED Connector
CN4 PCI Express Connector x 1

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 6
2.6 Setting Jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by
a plastic cover) that slides over the pins to connect them. To “close”
a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will
have three pins, labeled 1, 2 and 3. In this case you would connect
either pins 1 and 2 or 2 and 3.

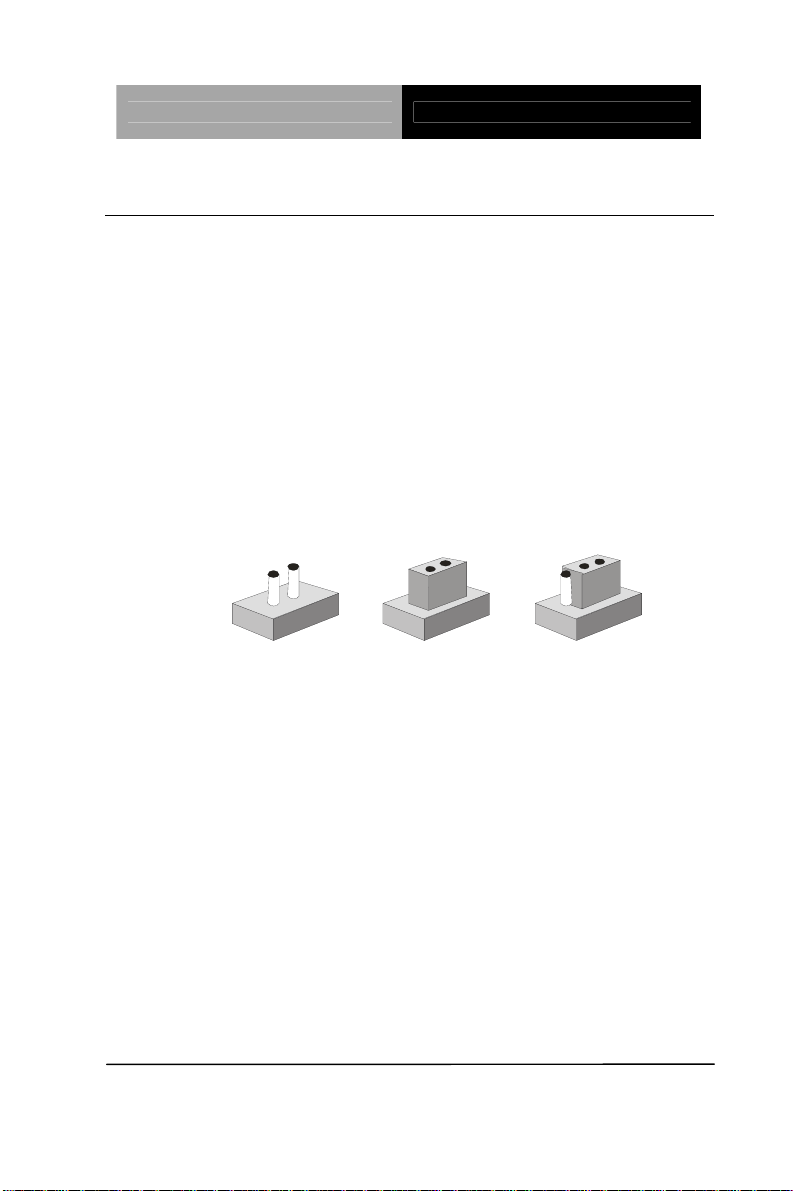

123
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales
representative before you make any change.
Generally, you simply need a standard cable to make most
connections.

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 7
2.7 LAN1, LAN2 Enable/Disable (JP1, JP2)
JP1, JP2 Function
LAN Disable Close
LAN Enable Open
2.8 RS-232 Serial Port Connector (CN5)
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 N.C
2.9 LAN1, LAN2 Active LED Connector (CN3, CN7)
Pin Signal Pin Signal
1 Link_LED (-) 2 Active_LED (+)
2.10 LAN1, LAN2 Speed LED Connector (CN2, CN6)
Pin Signal Pin Signal
1 #LINK1000_LED (G+/O-) 2 #LINK100_LED (G-/O+)
* 10 Speed LED OFF
100 Speed Green LED ON (G+, G-)
1000 Speed Orange LED ON (O+, O-)

Ethernet DaughterBoard PER-C101
Chapter 2 Quick Installation Guide 2 - 8
2.11 PCI Express Connector (CN4)
Pin Signal Pin Signal
1 GND 2 +3.3V
3 PCIe-RX1 4 +3.3V
5 PCIe-RX1# 6 PCIe-WAKE#
7 GND 8 PCIe-RST#
9 PCIe-CLK1 10 +3.3VSB
11 PCIe-CLK1# 12 +3.3VSB
13 GND 14 PCIe_TX2
15 PCIe_TX1 16 PCIe_TX2#
17 PCIe_TX1# 18 GND
19 +12V 20 PCIe-CLK2
21 +12V 22 PCIe-CLK2#
23 SMBDATA 24 GND
25 SMBCLK 26 PCIe-RX2
27 +3.3V 28 PCIe-RX2#
29 +3.3V 30 GND

Ethernet DaughterBoard PER-C101
Chapter 3 Driver Installation 3 - 1
Chapter
erDriv
3
Installation

Ethernet DaughterBoard PER-C101
Chapter 3 Driver Installation 3 - 2
The PER-C101 comes with a CD-ROM that contains all drivers your
need.
In addition, you can activate the installation items through Autorun
program which will install each driver directly. If your system do not
support Autorun program or you cannot install drivers successfully,
please read instructions below for further detailed installations.
Follow the sequence below to install the drivers:
-- For Chipset BCM5721 please install BCM5721 Drivers
-- For Chipset BCM5751 and BCM-5789 please install
BCM5751&BCM-5789 Drivers
Please read following instructions for detailed installations.

Ethernet DaughterBoard PER-C101
Chapter 3 Driver Installation 3 - 3
3.1 Installation
Insert the PER-C101 CD-ROM into the CD-ROM Drive. And
install the drivers.
1. Go to My Computer and click on the right of mouse,
select Properties
2. Select Hardware
3. Enter Device Management
4. Select your LAN card and click on the right of mouse
5. Select Update your driver and follow the instructions
that the window show
6. Select to install from CD-ROM
7. Click on the BCM5721 or BCM5751&BCM5789
(depend on the chip your card supports) folder
8. Choose the OS your system is
9. The system will help you install the driver automatically
10. Please re-start your computer
