ETAS ES5372.1-B User manual

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2
User’s Guide

2
Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in rela-
tion to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license. Using
and copying is only allowed in concurrence with the specifications stipulated in
the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2019 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
V1.0.0 R04 EN - 09.2019

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 3
Contents
ETAS Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.1 Properties of the ES5372.1-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.2 ES5372.1-B Block Diagram with ES4455.2. . . . . . . . . . . . . . . . . . . . 6
1.1.3 ES5372.1-B Block Diagram with ES4456.2. . . . . . . . . . . . . . . . . . . . 8
1.2 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.1 Identification of Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.2 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.3 Requirements for Users and Duties for Operators. . . . . . . . . . . . . . . 9
1.2.4 Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.3 Identifications on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.1 CE Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.3.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.3.3 P007 Identification in Accordance with ISO 7010:2011 . . . . . . . . . 16
1.4 Product Return and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.5 Materials Subject to Declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.6 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.6.1 Working with this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2 Setup, Installation and Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.1 Position of Plug Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.2 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3 Installing the ES4456.2 in an ES5372.1-B . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4 Installing the ES4455.2 in an ES5372.1-B . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.5 Installation / Removal of the ES5300.1-B into / from the ES5300.1-A Housing
and ES5300.1-B Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 Connections and Plug Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.1 Backplane Connector CO402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide4
Contents ETAS
3.2 Plug Connector X1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.2.1 Technical Details of Plug Connector X1 . . . . . . . . . . . . . . . . . . . . . 34
3.3 Plug Connector X2 Load 0..7 on the Front Plate for Installed ES4456.2 . . . . 36
3.4 Plug Connector CO201 for ES4455.2 or ES4456.2 . . . . . . . . . . . . . . . . . . . 37
4 Technical Data and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.1 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.2 Standards Met . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5 Ordering Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6 ETAS Contact Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 5
ETAS Introduction
1 Introduction
This user's guide contains the description of the ES5372.1-B 1 Slot Carrier Board
for ES4455.2 and ES4456.2. The ES5372.1-B is an adapter card that allows oper-
ating the ES4455.2 Load Carrier Board and the ES4456.2 Load Board for 8 RB
CRI3-x Piezo Injectors in the ES5300.1-A Housing and in the ES5300.1-B Hous-
ing. The ES5372.1-B, fitted with the ES4455.2, can be used for connecting exter-
nal loads, e.g. injectors. If the ES5372.1-B is fitted with the ES4456.2, it can also
be used to simulate eight piezo injectors.
Since the ES5372.1-B occupies only one slot in the ES5300.1-A Housing or in the
ES5300.1-B Housing, it is a space-saving alternative compared to the ES5372.1
if external loads are to be connected.
This chapter contains information about the following topics:
• "Properties" on page 6
• "Basic Safety Notices" on page 9
• "Identifications on the Product" on page 15
• "CE Mark" on page 16
• "RoHS Conformity" on page 16
• "Product Return and Recycling" on page 17
• "Materials Subject to Declaration" on page 17
• "About this Manual" on page 18

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide6
Introduction ETAS
1.1 Properties
The chapter describes the fundamental properties of the ES5372.1-B.
1.1.1 Properties of the ES5372.1-B
The ES5372.1-B is a plug-in card for a LABCAR HiL system to be used in the
ES5300.1-A Housing and in the ES5300.1-B Housing. The ES5372.1-B may be
fitted with the ES4455.2 or the ES4456.2.
The properties of the ES5372.1-B are as follows:
• Plug-in card for a LABCAR HiL system
• Compatibility with the ES5300.1-A Housing and ES5300.1-B Housing
• Slot for an ES4455.2 or an ES4456.2 plug-in card
• 1 slot width for fitting a ES4455.2
• 3 slot width for fitting a ES4456.2
• Calibration of four external loads in a state fitted with the ES4455.2
• Simulation of eight piezo injectors in a state fitted with the ES4456.2
For additional specific properties in the fitted state, please read the ES4455.2
user's guide or the ES4456.2 user's guide.
1.1.2 ES5372.1-B Block Diagram with ES4455.2
The block diagram in Fig. 1-1 on page 7 shows the ES5372.1-B, fitted with an
ES4455.2.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 7
ETAS Introduction

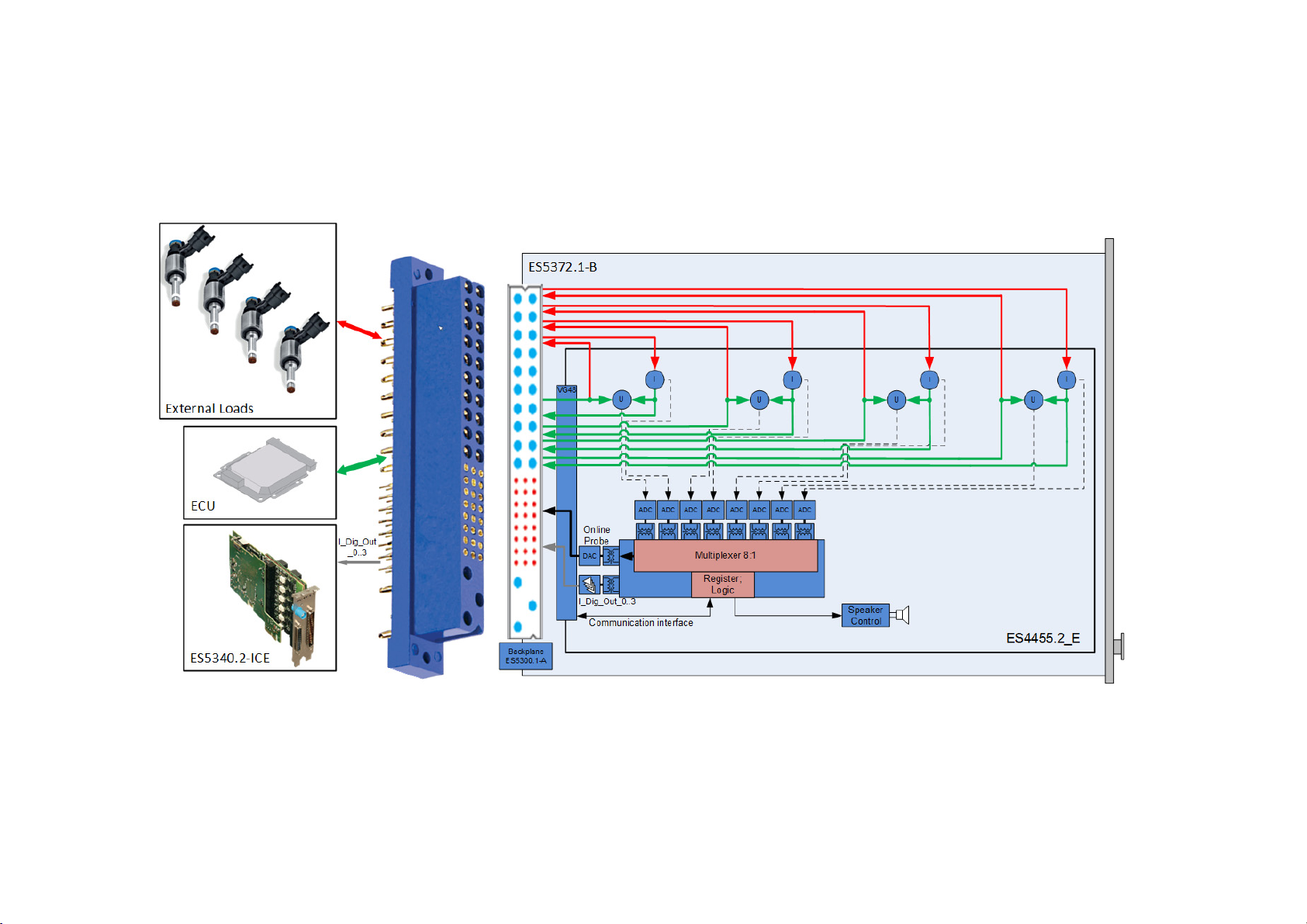

Fig. 1-1 Block diagram of ES5372.1-B, fitted with an ES4455.2

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide8
Introduction ETAS
Fig. 1-2 shows an example for the use of the ES5372.1-Bs in an HiL system.
Fig. 1-2 Example for the integration of an ES5372.1-B in a
LABCAR HiL system.
1.1.3 ES5372.1-B Block Diagram with ES4456.2
The block diagram for the ES4456.2 is located in the ES4456.2 user's guide.
Host PC with ETAS
LCO-IP and CEE
HiL-System (ETAS LABCAR)
Real-Time Environment
(ETAS ES5300.1-A/B HiL Systemhousing;
RTPC included)
Injector Load
ES4455.2 with
ES5372.1-B
Adapter
I Inj.
U Inj.
Angle Synchronous
Measurement
ES5340.2-ICE
with ES5370.1 Adapter
Injection time
x
...
Plant
Model
Realtime Connector
Oscilloscope
Onlineprobe
I/O Interface
Injection
time,
Start/Stop
Injection
(SW variable)
ECU
Vsupply
INCA
x
x
Loadx+
Loadx-
Example for 1 of x Cylinders
Example for y HW version (Diesel,
Gasoline,..)
Digital Signal
I_Dig_Out_1,...4
0...15 V
Angle
sychronous to
the other
cylinders
External Load

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 9
ETAS Introduction
1.2 Basic Safety Notices
Observe the following safety notices to avoid health issues or damage to the
device.
1.2.1 Identification of Safety Notices
The safety notices contained in this manual are identified with the danger symbol
shown below:
The safety notices shown below are used for this purpose. They provide notes to
extremely important information. Read this information carefully.
1.2.2 General Safety Information
Observe the following safety notices to avoid health issues or damage to the
device.
ETAS GmbH does not assume any liability for damages resulting from improper
handling, unintended use or non-observance of the safety precautions.
1.2.3 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by a
user without sufficient qualification can lead to damages or injuries to one's
health or damages to property.
The system integrator is responsible for the safety of systems that use the prod-
uct.
CAUTION!
identifies a hazard with low risk that could result in minor or medium
physical injuries or property damages if not avoided.
WARNING!
indicates a possible danger with moderate risk of death or (serious)
injury, if not avoided.
DANGER!
indicates an immediate danger with a high risk of death or serious
injury, if not avoided.
Note
The User's Guide and the Product Safety Advice must be read carefully prior to
the startup of the product!

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide10
Introduction ETAS
General Safety at Work
Follow the existing regulations for work safety and accident prevention. All appli-
cable regulations and laws regarding operation must be strictly adhered to when
using this product.
1.2.4 Intended Use
The ES5372.1-B is a plug-in card for the ES5300.1-A Housing and the
ES5300.1-B Housing. The ES5372.1-B is used for accepting an ES4455.2 or an
ES4456.2 plug-in card.
The ES5372.1-B consists of the following:
• Slot for ES4455.2 or ES4456.2
• SPI interface to the ES5300.1-A Housing or ES5300.1-B Housing for con-
figuring the cards
• Output interface to the ECU
• Digital interface for battery node control signals
• Voltage supply of the ES4455.2 or the ES4456.2
• Replacement load simulation for connecting to ECU output stages
• Interface for the battery voltage
(The simulation of the vehicle battery itself is not part of the ES5300.1-A
Housing or ES5300.1-B Housing and cannot be installed here.)
The ES5372.1-B may be installed and operated only in the ES5300.1-A Housing
or in the ES5300.1-B Housing.
The intended use of the ES5372.1-B in an ES5300.1-A Housing or ES5300.1-B
Housing is:
• Use as a component in industrial lab facilities or at industrial workplaces
• Use as hardware interface for ECUs in a hardware-in-the-loop test system
• Use in conjunction with ETAS software that supports the ES5300.1-A
Housing and the ES5300.1-B Housing
• Use as interface in cooperation with software programs that operate the
standardized, documented and open APIs of ETAS software products
The ES5372.1-B is not intended for the following:
• Use within a vehicle on the road.
• Use as part of a life support system.
• Use as part of a medical application
• In applications where misuse can lead to injuries or damages.
• Use in environments in which conditions prevail that fall outside the spec-
ified ranges (see "Ambient Conditions" on page 40).
• Use with signal conditioning that falls outside the specified ranges (see
voltages, currents and power consumption in the chapter "Technical
Data" on page 39)

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 11
ETAS Introduction
Requirements for the Technical State of the Product
The product is designed in accordance with state-of-the-art technology and rec-
ognized safety rules. The product may be operated only in a technically flawless
condition and according to the intended purpose and with regard to safety and
dangers as stated in the respective product documentation. If the product is not
used according to its intended purpose, the protection of the product may be
impaired.
Requirements for Operation
The following requirements are necessary for safe operation:
• Use the product only according to the specifications in the corresponding
User's Guide. With any deviating operation, the product safety is no lon-
ger ensured.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical Safety and Power Supply
Observe the regulations applicable at the operating location concerning electrical
safety as well as the laws and regulations concerning work safety!
DANGER!
Risk of electric shock!
At the plug X2 Load 0...7 high voltages may still be present even after
disconnecting the counter plug.
After disconnecting the cable, wait one minute before touching the
connections or the circuit board. Parallel to the capacitors are resis-
tors that allow a safe discharging.
Failure to do so poses a danger to life and health.
WARNING!
Danger of high voltages!
The components, plug connectors, conductor paths of the
ES5372.1-B and the installed ES4455.2 or ES4456.2 may have
dangerous voltages. These voltages can also be present when the
ES5372.1-B is not installed in the ES5300.1-A Housing or in the
ES5300.1-B Housing or the ES5300.1-A Housing or if the ES5300.1-B
Housing is switched off.
Ensure that the ES5372.1-B is protected against touching it during
operation. Switch off the ES5300.1-A Housing or the ES5300.1-B
Housing and pull the power plug. Wait at least three minutes before
removing the ES5372.1-B.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide12
Introduction ETAS
Power Supply
The product is powered by theES5300.1-A Housing or the ES5300.1-B Housing
via the PCIe Backplane Connector.
Insulation Requirements for Lab Power Supplies to Circuits Connected to the HIL
System:
• The power supply to live circuitry must be safely isolated from the supply
voltage. For example, use a car battery or a suitable lab power supply.
• Only use lab power supplies with dual protection for the supply network
(with double/reinforced insulation (DI/RI)). This requirement is met by lab
power supplies that comply with IEC/EN 60950 or IEC/EN 61010.
• The lab power supply must be approved for use at a height of 2000 m and
in ambient temperatures of up to 40 °C.
De-energizing a Plug-in Board
Switch off the ES5300.1-A Housing or the ES5300.1-B Housing and external
power supplies, and unplug the power plug and other connectors attached to
the plug-in board. Wait at least three minutes before removing the plug-in
board.
WARNING!
Danger trough electromagnetic radiation!
The ES5372.1-B, fitted with the ES4455.2 or the ES4456.2 and loads
connected to it, can emit electromagnetic radiation during operation
which can cause interference with the operation or damage pace-
makers or implanted defibrillators.
The ES5372.1-B may be operated only in areas where persons with
pacemakers are prohibited from entering. At the entrances to these
areas, the P007 identification, "No access for persons with pacemak-
ers or implanted defibrillators" in accordance with ISO 7010:2011
"Registered Safety Signs", must be attached and clearly legible.
Failure to observe it can lead to health hazards and even death for
persons with pacemakers and implanted defibrillators.
WARNING!
Fire hazard!
Use only fuses that meet the specification in Tab. 2-1 on page 24!
Never bridge defective fuses!
Failure to observe the fuse specification can lead to excess currents,
short circuits and fires.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 13
ETAS Introduction
Approved Cables
The signal lines must not exceed a maximum length of 3 m.
Requirements for the Installation Location
Requirements for Ventilation
Transport and Installation
To avoid damages to the hardware from electrostatic discharge, please observe
the following precautionary measures:
WARNING!
Fire hazard!
Use only approved cables for creating cable assemblies (e.g. for con-
necting the ECU and external loads). The cables used must be suitable
particularly for occurring currents, voltages and temperatures and
flame-retardant in accordance with one of the following standards
IEC 60332-1-2, IEC 60332-2-2, UL 2556/UL1581VW-1!
WARNING!
This is class A equipment. This equipment can cause radio interfer-
ence in residential areas. Should that be the case, the operator may
be requested to institute reasonable measures.
CAUTION!
The air circulation inside the ES5300.1-A housing and the ES5300.1-B
housing can be ensured only if all free slots are covered with front
plates. Otherwise, it may lead to overtemperatures and trip the over-
temperature protection of the ES5300.1-A or the ES5300.1-B. For
this reason, install front plates in all free slots!
CAUTION!
Some components of the ES5372.1-B and the ES4455.2 or ES4456.2
to be installed can be damaged or destroyed by electrostatic dis-
charges. Leave the plug-in cards in their transport packaging until
their installation.
Remove, configure and install the ES5372.1-B and the ES4455.2 or
the ES4456.2 only at a workplace secured against static discharges.
CAUTION!
In order to prevent damage to the plug-in boards and the LABCAR
housing, and thereby also avoid damage to property or health,
observe the installation instructions and information contained in the
relevant User's Guides.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide14
Introduction ETAS
Connecting/Disconnecting Devices
To avoid injuries and hardware damages, observe the following precautionary
measures:
• Do not apply any voltages to the connections of the ES5372.1-B that do
not correspond to the specifications of the respective connection.
• Do not connect or disconnect any devices while the ES5300.1-A Housing
or ES5300.1-B Housing or external devices are switched on. First, switch
off the ES5300.1-A Housing or ES5300.1-B Housing by shutting down the
real-time PC and by activating the On/Off switch at the rear and unplug
the power cable.
• When plugging in connectors, ensure that they are inserted straight and
no pins are bent.
• When crimping the plug contacts of Positronic, use only the crimping tool
intended for this purpose.
Maintenance
The product does not require maintenance.
Repairs
If an ETAS hardware product needs to be repaired, return the product to ETAS.
Cleaning
The product is not expected to require cleaning.
WARNING!
Risk of electric shock, fire hazard!
For safety reasons, the assembly of the ES5372.1-B and ES4456.2
may be performed only at ETAS. If you purchased the two products
individually, please contact your ETAS contact person so that the
ES5372.1-B and the ES4456.2 can be returned to ETAS for assembly.
Failure to observe it can lead to an incorrect pin assignment, damage
to the board of the ES4456.2 or short circuits. This causes a risk of
electric shock from high voltages and of fires.
CAUTION!
If cards (e.g. for startup or calibration) are unlocked but not com-
pletely removed from the housing, they must be pulled out far
enough that the distance between the respective card and the back-
plane of the housing is at least 1 cm. Otherwise, contacts may be
established between the cards and lead to their destruction.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 15
ETAS Introduction
1.3 Identifications on the Product
The following Symbols are Used for Product Labeling:
Observe the information in the chapter "Technical Data and Standards"
on page 39.
Symbol Description
The User's Guide must be read prior to the startup of the
product
W012 identification in accordance with DIN EN ISO 7010:
"Warning about electrical voltage"
Marking for CE conformity
(see "CE Mark" on page 16)
Marking for China RoHS
(see "RoHS Conformity" on page 16)
Marking for conformity with WEEE directive
(see "Product Return and Recycling" on page 17)
P007 identification in accordance with ISO 7010:2011: "No
access for persons with pacemakers and implanted defibrilla-
tors".
"Operational malfunction or damage to pacemakers and
implanted defibrillators".

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide16
Introduction ETAS
1.3.1 CE Mark
With the CE mark attached to the product or its packaging, ETAS confirms that
the product corresponds to the product-specific, applicable European Directives.
The CE Declaration of Conformity for the product is available upon request.
1.3.2 RoHS Conformity
European Union
The EU directive 2011/65/EU limits the use of certain dangerous materials for
electric and electronic devices (RoHS conformity).
ETAS confirms that the product meets this directive applicable in the European
Union.
China
With the China RoHS identification attached to the product or its packaging,
ETAS confirms that the product meets the guidelines of the "China RoHS" (Man-
agement Methods for Controlling Pollution Caused by Electronic Information
Products Regulation) applicable in the People's Republic of China.
1.3.3 P007 Identification in Accordance with ISO 7010:2011
Under consideration of the standard ISO 7010:2011, the product is labeled with
the symbol "No access for persons with pacemakers or implanted defibrillators".
The ES5372.1-B Carrier Board may be operated only in areas where persons with
pacemakers are prohibited from entering. The user is obligated to attach a clearly
legible P007 identification, "No access for persons with pacemakers or
implanted defibrillators" in accordance with ISO 7010:2011 "Registered Safety
Signs", at the entrances to these areas.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 17
ETAS Introduction
1.4 Product Return and Recycling
The European Union (EU) released the Directive for Waste Electrical and Elec-
tronic Equipment - WEEE to ensure the setup of systems for collecting, treating
and recycling electronic waste in all countries of the EU.
This ensures that the devices are recycled in a resource-friendly way that does not
represent any risk to personal health and the environment.
Fig. 1-3 WEEE symbol
The WEEE symbol on the product or its packaging identifies that the product may
not be disposed of together with the remaining trash.
The user is obligated to separately collect old devices and provide them to the
WEEE return system for recycling.
The WEEE Directive applies to all ETAS devices, but not to external cables or bat-
teries.
Additional information about the recycling program of ETAS GmbH is available
from the ETAS sales and service locations (see "ETAS Contact Addresses"
on page 43).
1.5 Materials Subject to Declaration
Some products from ETAS GmbH (e.g. modules, boards, cables) use components
with materials that are subject to declaration in accordance with the REACH reg-
ulation (EC) no.1907/2006.
Detailed information is located in the ETAS download center in the customer
information "REACH Declaration" < www.etas.com/Reach >. This information is
continuously being updated.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide18
Introduction ETAS
1.6 About this Manual
This manual consists of the following chapters:
• "Introduction" on page 5
This chapter
• "Setup, Installation and Fuses" on page 21
This chapter contains a description of the components of the ES5372.1-B.
It also contains instructions for installation and information about the
fuses.
• "Connections and Plug Connections" on page 31
This section provides a description of the different connections of the
ES5372.1-B.
• "Technical Data and Standards" on page 39
This chapter contains the technical data of the ES5372.1-B and the appli-
cable standards.
• "Ordering Data" on page 41
1.6.1 Working with this Manual
Presentation of Information
All activities to be performed by the user are presented in a "Use Case" format.
That is, the goal to be accomplished is briefly defined in the heading, and the
respective steps required for reaching this goal are then presented in a list. The
presentation looks as follows:
Target Definition
Any advance information...
1. Step 1
Any explanation for step 1...
2. Step 2
Any explanation for step 2...
Any concluding comments...
Specific example:
Creating a New File
Before creating a new file, no other file may be open.
1. Select File → New.
The "Create File" dialog box appears.
2. Enter the name of the new file in the “File name”
field.
The file name may not have more than 8 characters.
3. Click on OK.
The new file is being created and saved under the name you specified. You can
now work with the file.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide 19
ETAS Introduction
Typographical Conventions
The following typographical conventions are used:
Important notes for the user are presented as follows:
Select File →Open. Menu commands are displayed in bold/
blue.
Click on OK. Buttons are displayed in bold/blue.
Press <ENTER>. Key commands are printed in small capi-
tals enclosed in angle brackets.
The "Open file" dialog window
appears.
Names of program windows, dialog win-
dows, fields and similar are given in quota-
tion marks.
Select the setup.exe file. Text in selection lists, program code, as
well as path and file names are displayed
using the Courier font.
A conversion between the logical
and arithmetic data types is not
possible.
Content-based highlights and newly intro-
duced terms are placed in italics.
Note
Important note for the user.

ES5372.1-B 1 Slot Carrier Board for ES4455.2 and ES4456.2 - User’s Guide20
Introduction ETAS
