1 Product introduction
Z603L/LE is a new Feiyun Smart Box™ based on the NVIDIA Jetson™ Xavier NX series module
design. It has a built-in Xavier_NX module integrated with a 384-core Volta™ architecture GPU, pre-installed
with the Ubuntu 18.04 operating system, and has 21TFLOPS of AI processing capabilities for floating-point
operations. It adopts super strong and lightweight aluminum alloy material design, conductive heat dissipation,
excellent heat dissipation capacity, small and light overall size, excellent engineering structure, reserved side
wing structure for easy on-site installation, and has the ability to operate 7x24 hours on-site super long MTBF.
It can be applied to autonomous machines such as robots, unmanned delivery vehicles, smart gates, and smart
vending cabinets. It is an ideal carrier for deploying AI computing power at the edge for deep learning.
1.1 Features
Arithmetic unit：Jetson Nano/Xavier NX/TX2 NX（Default core Xavier NX）
1 x USB3.0 Type-A interface，Support USB3.0 signal, provide 1A output current
1 x Micro USB2.0 OTG interface，Support USB host and USB device mode，provide 1A output
current
1 x GbE（10/100/1000Mbps adaptive; native to Xavier NX interface）
4 x GbE
1 x HDMI 2.0 interface
1 x Mini HDMI 2.0 interface
1 x EMMC(128GB)(Z603LE)
1 x TF Card slot(Z603L)
1 x Isolated communication port（485，CAN，4 x I/O）
Size：170mm×93.54mm×37.5mm
Power input：+12V
Temperature：-20℃—+60℃
Weight：626g

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
6
1.2 Ordering Information
Model Options
Functional Description
Z603L
Support Jetson Nano/Xavier NX/TX2 NX module, Pre-installed
Ubuntu 18.04, built-in 16GB eMMC; 5 x GbE, 4 x GPIO (2 X
isolated input, 2 X isolated output), 1 x RS-485 (isolated), 1 x
CAN (isolated), 1 x USB3.0, 1 x USB OTG, 1 x HDMI, 1 x
Mini HDMI, 1 x microSD, 1 x M.2 KEY M, 1 x M.2 KEY E,
SSD optional, WIFI and Bluetooth optional; 2 WIFI/ Bluetooth
antenna interface, power indicator, -20——+60℃; including
power adapter, providing RTS-Linux4Tegra software support
package for the new era of Ruitai
Z603LE
Support Jetson Nano/Xavier NX/TX2 NX module, Pre-installed
Ubuntu 18.04, built-in 16GB eMMC; 5 x GbE, 4 x GPIO (2 X
isolated input, 2 X isolated output), 1 x RS-485 (isolated), 1 x
CAN (isolated), 1 x USB3.0, 1 x USB OTG, 1 x HDMI, 1 x
Mini HDMI, 1 x microSD, 1 x eMMC(128GB), 1 x M.2 KEY
M, 1 x M.2 KEY E, SSD optional, WIFI and Bluetooth available
Optional; 2 WIFI/Bluetooth antenna ports, power indicator light,
-20——+60℃; including power adapter, providing
RTS-Linux4Tegra software support package for the new era of
Ruitai
Order online:
https://shop340963258.taobao.com
https://mall.jd.com/index-824786.html

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
7
2 External interface function and location

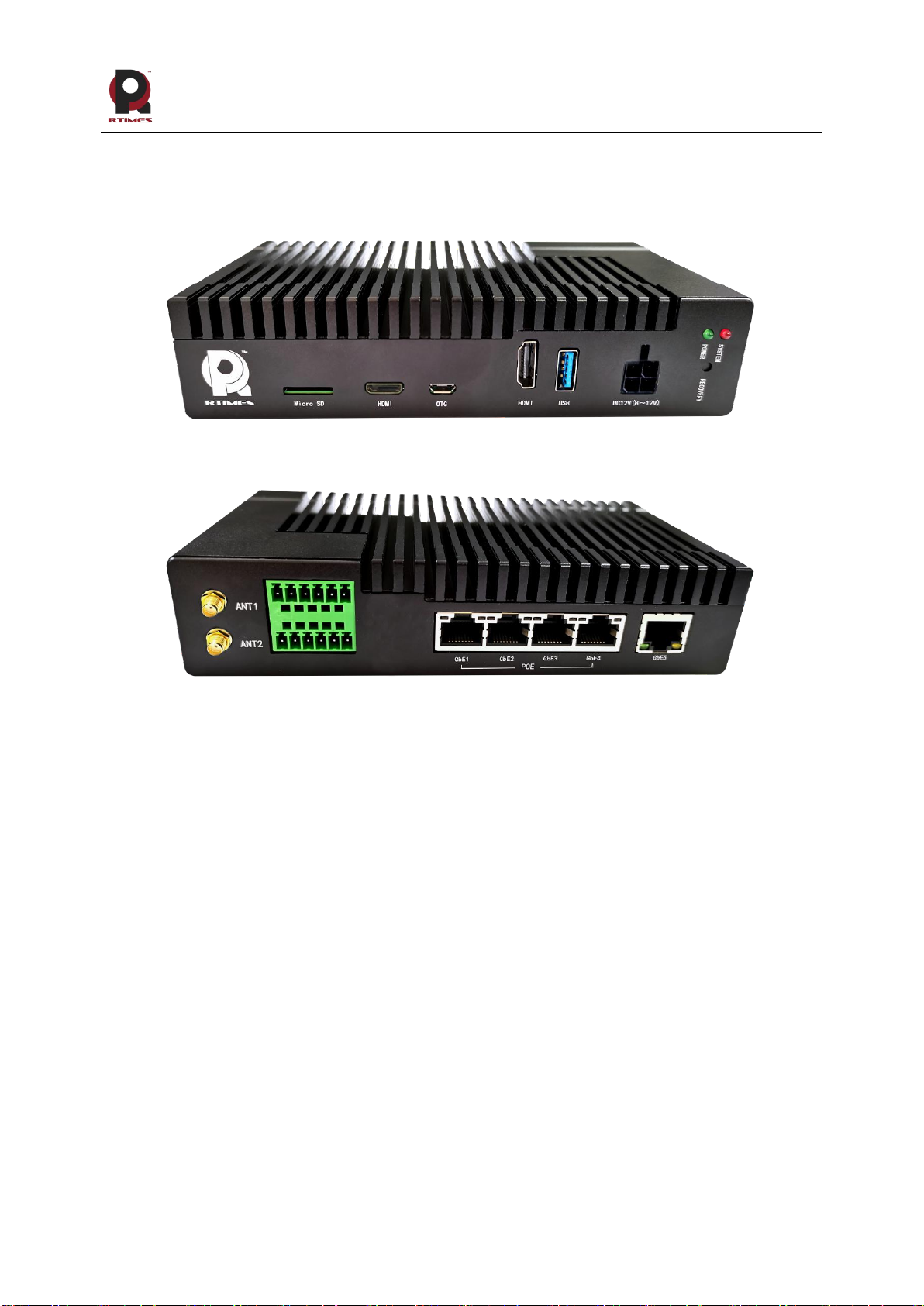

Z603L/LE FRONT
Z603L/LE BACK

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
8
3 Installation and use
3.1 System installation renderings
3.2 How to use Smart Box
a) Make sure that the voltage of all external systems is turned off
b) Install the Jetson Nano/Xavier NX/TX2 NX core module to the 260-pin SO-DIMM
connector.Please pay attention to the alignment between the connectors during the installation process,
and install the fixing screws at the same time.
c) Install necessary external cables. (Such as: the display cable connected to the HDMI monitor, the
power input cable to power the system, the USB cable connected to the keyboard and mouse...)
d) Connect the power cord to the power source.
e) Z603L/LE adopts automatic/manual power-on design, turn on the power and the system starts to
work.
f) For a system without a protective enclosure, after the system is powered on, please avoid moving
the entire system, and it is strictly forbidden to touch the circuit board and its electronic components
with your body.
3.3 Recovery mode
Jetson Nano/Xavier NX/TX2 NX core module can work in normal mode and Recovery mode. File
system update, kernel update, boot loader update, BCT update and other operations can be performed in
Recovery mode.
The steps to enter the Recovery mode are as follows:
a) Turn off the power supply to the system.
b) Use a USB cable to connect the OTG-USB port of the Z603L/LE and the USB port of the Jetson
development host.
c) Press the RECOVERY button without releasing it to supply power to the system, keep the power
supply for more than 3 seconds, then release the RECOVERY button.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
9
d) The system enters Recovery mode, and subsequent operations can be performed at this time.。

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
10
4 Connectors Description
4.1 Micro SD Card solt
Function
Micro SD（TF）Card solt
Marking
Micro SD
Type
Micro SD（TF）
Pin define
Pin
Signal
Pin
Signal
1
SD_D2
2
SD_D3/CD
3
SD_CMD
4
SD_VDD
5
SD_CLK
6
GND
7
SD_D0
8
SD_D1
9
CD
4.2 HDMI2.0 interface
Function
HDMI2.0 interface
Marking
HDMI
Type
HDMI2.0
Pin define
Pin
Signal
Pin
Signal
1
TMDS Data2+
2
TMDS Data2 shield
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock shield
12
TMDS Clock-
13
CEC
14
Reserved
15
SCL
16
SDA
17
DDC/CEC_GND
18
+5V Power
19
Hot Plug Detect
4.3 Mini HDMI interface
Function
HDMI interface
Marking
HDMI
Type
Mini HDMI
Pin define
Pin
Signal
Pin
Signal
1
TMDS Data2 shield
2
TMDS Data2+
3
TMDS Data2-
4
TMDS Data1 shield
5
TMDS Data1+
6
TMDS Data1-
7
TMDS Data0 shield
8
TMDS Data0+

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
11
9
TMDS Data0-
10
TMDS Clock shield
11
TMDS Clock+
12
TMDS Clock-
13
DDC/CEC Ground
14
CEC
15
SCL
16
SDA
17
Reserved
18
+5V Power
19
Hot Plug Detect
4.4 Power input interface 1
Function
Power input terminal
Marking
DC12V(8~12V)
Type
Needle Connector-Through Hole-4-Position-0.165" (4.20mm) 39281043
Pin define
Pin1: the place marked by the green box on the right
Pin2: the place marked by the red box on the right
Pin
Signal
Pin
Signal
1
GND
2
GND
3
POWER_IN
4
POWER_IN
4.5 Network port
Function
Gigabit Ethernet connector
Marking
GbE5
Type
RJ45
Pin define
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
12
4.6 4 Integrated Network Port(POE)
Function
4 Gigabit Ethernet connectors（POE）
Marking
GbE1、GbE2、GbE3、GbE4
Type
HR931474CE
Pin define
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-
Note: When you need to use POE power supply, you need to
connect the PSE power supply.
4.7 USB3.0 Interface
Function
USB3.0 Connector
Marking
USB
Type
USB Type-A interface
Pin define
Pin
Signal
Pin
Signal
1
VBUS
2
D-
3
D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
4.8 USB2.0 OTG
Function
Micro USB Connector
Marking
OTG
Type
USB 2.0 MicroType-B interface
Pin define
Pin
Signal
Pin
Signal
1
VBUS
2
DN
3
DP
4
ID
5
GND

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
13
4.9 Isolated communication port
Function
Isolated communication port（485，CAN，4 optocoupler isolated I/O
ports）
Type
Board end double-row curved needle 3.81mm
Pin define
Pin
Signal
Pin
Signal
1
RS485_A
2
IN1+
3
RS485_B
4
IN1-
5
CANH
6
IN2+
7
CANL
8
IN2-
9
OUT1+
10
OUT2+
11
OUT1-
12
OUT2-

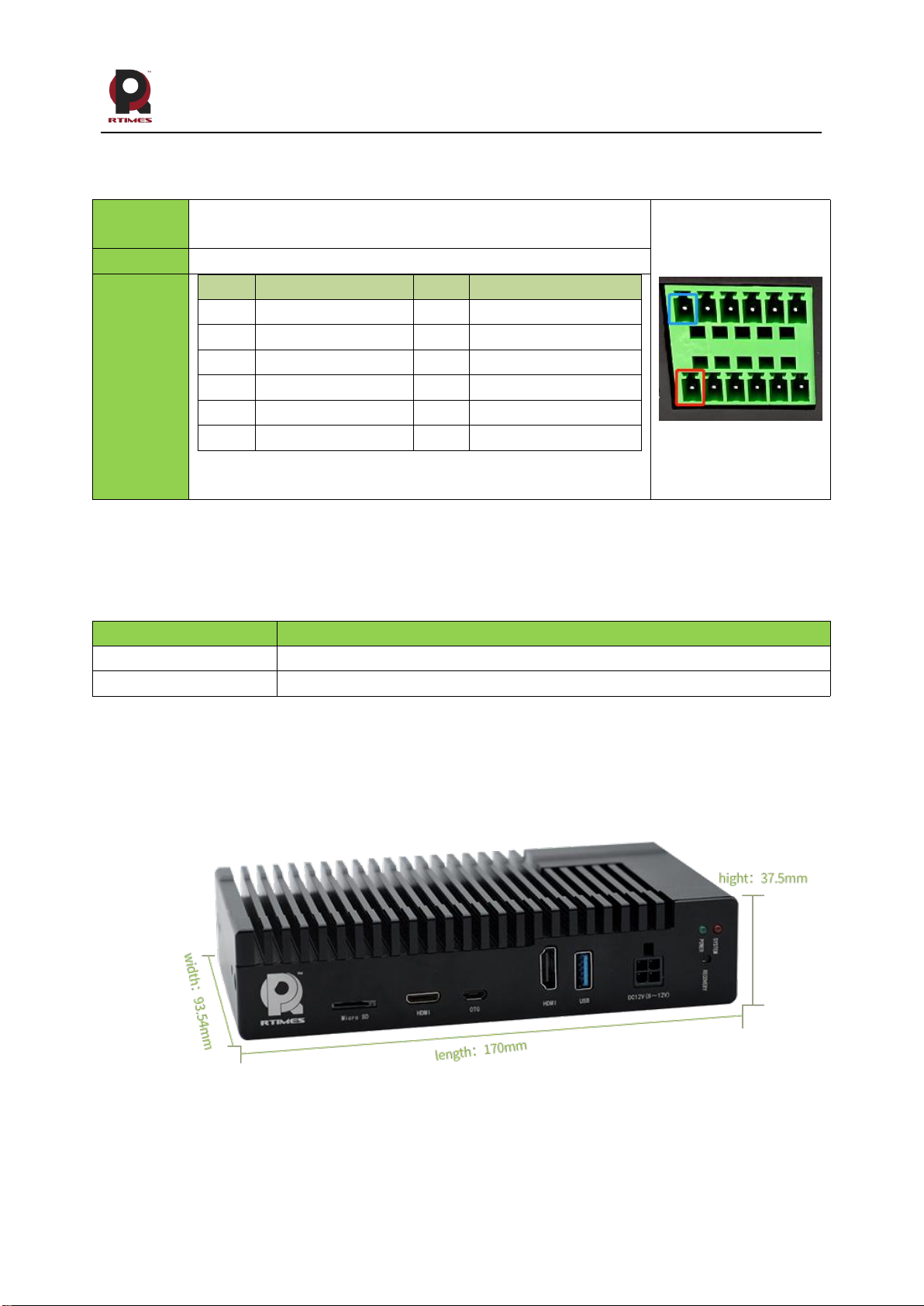

Pin1: The place marked by the blue box on the right.
Pin2: The place marked by the red box on the right.
5Hardware update history
Z603L/LE Board card hardware update history
Revision
Reason for change
V1.0
Initial release
V1.1
Change board
6 Product size diagram

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
14
7 Drive
When Z603L/LE is working on a system burned with the official original version of NVIDIA Linux For
Tegra (L4T). HDMI, Gigabit Ethernet, USB2.0, serial port, GPIO, I2C bus, fan interface, and upper USB3.0
are all supported. But with SD card, the USB3.0 below does not work properly.
All Z603L/LE onboard interfaces are supported, and the supporting driver patch needs to be loaded.
The NVIDIA Original LT4 package can be downloaded from the following link:
https://developer.nvidia.com/embedded/linux-tegra
Z603L/LE Driver Patch Support Package Download address:
http:// www.realtimesai.com

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
15
8 Copyright notice
Realtimes Beijing Technology Co.,LTD
Realtimes Beijing Technology Co.,LTD all rights reserved.And reserves all rights to this manual and
declaration.
Without the written permission of the Company, no entity or individual shall copy, extract, backup, modify,
disseminate, translate, or use in whole or in part any part of this Manual in any manner or form for
commercial purposes.
Terms of Warranty
Important note
Each embedded product provided by Realtimes Technology is free from any defects in material and
process,fully in line with the specifications officially issued by the original factory.
Realtimes Technology warranty covers the original products,If the parts configured by the dealer are out of
order, please consult with the dealer to solve the problem. All the baseplate and core modules provided by
Ruitai New Era (Beijing) Technology Co., Ltd. are guaranteed for 3 years, while the other peripherals are
guaranteed for 1 year (life-long maintenance service is provided if the warranty period is beyond the warranty
period).The warranty period starts from the date of delivery, for the products repaired within the warranty
period, the repair parts shall be extended for 12 months.Unless notified by Realtimes Technology, the date
of your original invoice shall be the date of shipment.
How do I get warranty services
If the product does not work properly, Please contact Realtimes Technology or dealer for warranty service,
please show invoice when product warranty(this is the proof for you getting warranty service).
Warranty solution
When you ask for warranty service, please follow Realtimes Technology warranty process,You will need to
receive your first diagnosis from a technicial engineer by phone or by email,at that time,we need you to
cooperate with us to fill in all the questions on the RMA form provided by us. Once we accurately determine
the cause of the fault and the location of the damage ,we will provide the charge list for the out of warranty
products,which needs your confirmation.Realtimes Technology keep the right to repair or replace the products.
If the product is replaced or repaired, the replaced faulty product or the repaired and replaced faulty parts will
be returned to Realtimes Technology.
For products under warranty,the customer shall bear the freight when the product is returned to the
manufacturer,Realtimes Technology will bear the ship cost of the products after maintenance.
The following conditions are not covered by the warranty terms
a) Improper installation, improper use, misuse and abuse of products(Overloading, for example).
b) Improper maintenance and storage（Such as fire, explosion, etc）or natural disasters（such as lightning

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z603L/LE Reference Manual V1.0
16
stroke,earthquake,typhoon,etc）
c) Personal unauthorized changing the product(such as changing circuit characteristics, mechanical
characteristics, software characteristics,Conformal coating).
d) Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or
broken,the wrong connection,drop damage,transportation damage,damage due to over operating
temperature and so on).
e) The logo and part number on the product have been deleted or removed.
f) The product is out of warranty.
Special concerns
If the same fault multiple occurrence for the products,in order to find out the reason causing the problem,we
will request the users to provide the specific documents or information of peripheral equipment,such as
monitor,I/O boards,cables,power supply, diagram and structure of the system,etc.If such documents or
information are not available,we have the right to refuse to perform the warranty, the repairments will be
charged accordingly.
Rev.C 6/2020
