ABB ACS880-7107LC DC User manual

—
ABB INDUSTRIAL DRIVES
ACS880-7107LC DC feeder unit
Hardware manual

ACS880-7107LC DC feeder unit
Hardware manual
Table of contents
4. Electrical installation
6. Start-up
3AXD50000752423 Rev A
EN
Original instructions
EFFECTIVE: 2021-07-09

Table of contents
1 Introduction to the manual
9Contents of this chapter ...........................................................................
9Applicability .........................................................................................
9Safety instructions .................................................................................
9Target audience ....................................................................................
10Categorization by number of strings and option code ........................................
10Use of component designations .................................................................
10Terms and abbreviations ..........................................................................
10Related documents ................................................................................
2 Operation principle and hardware description
13Contents of this chapter ...........................................................................
13Operation principle .................................................................................

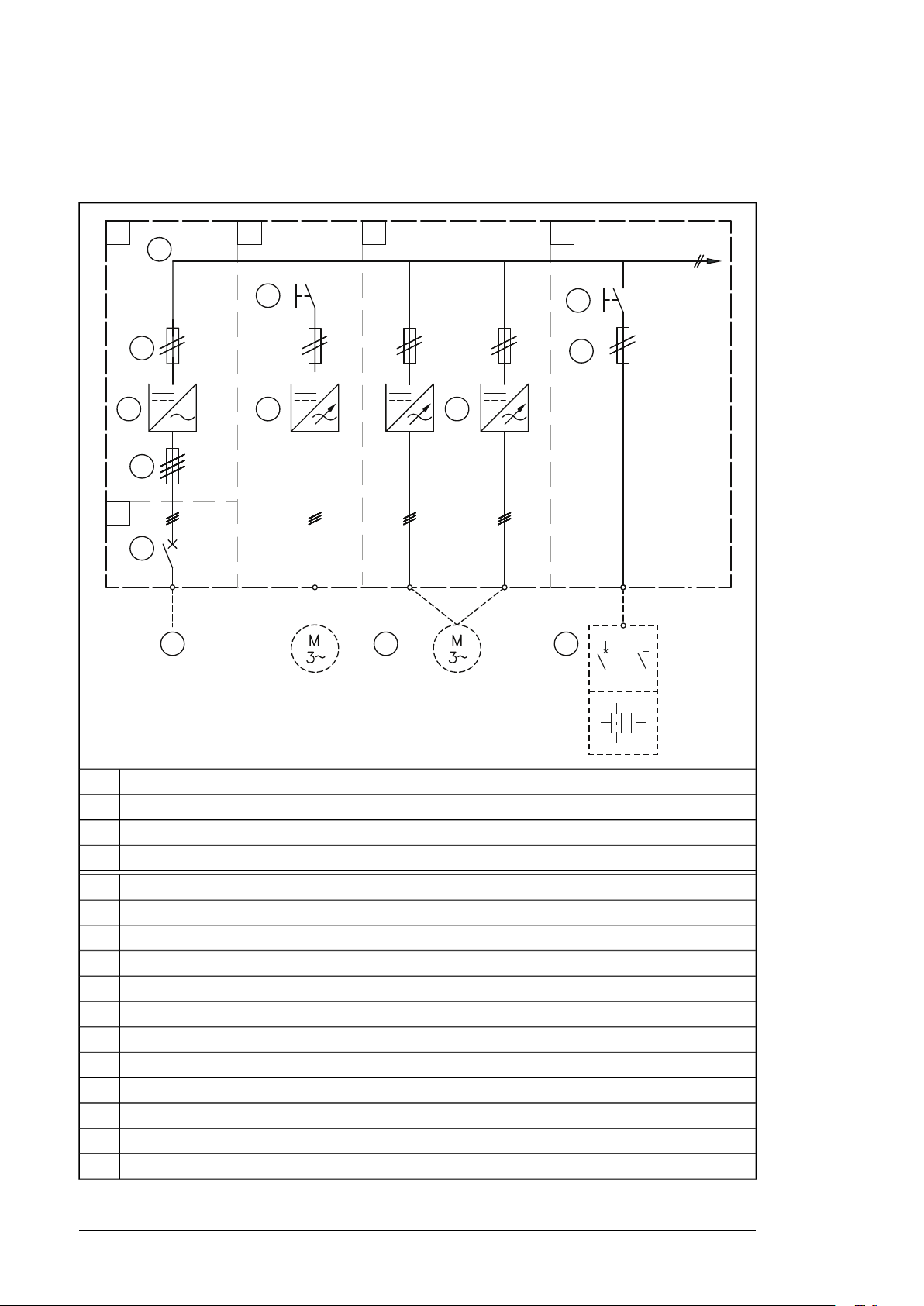

14Overview diagram of the drive system ..........................................................
15Overview diagram of the DC feeder unit .......................................................
16Layout drawings ....................................................................................
16Layout of a drive system with a DC feeder unit ............................................
17Layout of a DC feeder unit ....................................................................
17Control of the DC feeder unit .....................................................................
18User control signal interface ..................................................................
19Type designation label of the DC feeder unit ..................................................
20Type designation key ..............................................................................
20Basic code .......................................................................................
20Option codes ....................................................................................
3 Guidelines for planning the electrical installation
23Contents of this chapter ...........................................................................
23Limitation of liability ................................................................................
23Generic guidelines .................................................................................
24Selecting the energy storage .....................................................................
24Implementing protections for the energy storage .............................................
24General principles ..............................................................................
25Selecting the protective circuit breaker of the energy storage ...........................
25Energy storage disconnecting device .......................................................
25Protecting the energy storage cable .........................................................
25Energy storage discharging device ..........................................................
25Implementing an interlocking for the DC switch/disconnector ...............................
26Selecting and routing the energy storage cables .............................................
26Recommended cables .........................................................................
26Typical cable sizes .............................................................................
26Minimizing electromagnetic interference ....................................................
26Maximum cable length .........................................................................
26EMC compliance of the complete installation ..............................................
26Parallel connection ................................................................................
Table of contents 5

4 Electrical installation
27Contents of this chapter ...........................................................................
27Electrical safety precautions .....................................................................
29Checking the insulation of the DC cabling .....................................................
30Connecting the DC power cables and the disconnector status monitoring cable ........
30Connection diagram ............................................................................
31Connection procedure .........................................................................
32Connecting the control cables ...................................................................
32Control connection diagram ...................................................................
33Connection procedure .........................................................................
33Grounding the cable 360° .................................................................
5 Installation checklist
35Contents of this chapter ...........................................................................
6 Start-up
37Contents of this chapter ...........................................................................
37Start-up procedure .................................................................................
7 Operating instructions
41Contents of this chapter ...........................................................................
41Connecting the energy storage to the drive ....................................................
41
Connecting the energy storage - DC feeder unit without DC switch/disconnector
([Q11], no option +F290) ......................................................................
41
Connecting the energy storage - DC feeder unit with the DC switch/disconnector
([Q11], option +F290) and without charging switch ([Q10], no option +F272) .........
41
Connecting the energy storage - DC feeder unit with DC switch/disconnector ([Q11],
option +F290), and charging switch ([Q10] option +F272) ...............................
42Disconnecting the energy storage from the drive .............................................
42
Disconnecting the energy storage - DC feeder without DC switch/disconnector ([Q11],
no option +F290) ...............................................................................
42
Disconnecting the energy storage - DC feeder unit with the DC switch/disconnector
([Q11], option +F290), and without charging switch ([Q10], no option +F272) ........
42
Disconnecting the energy storage - DC feeder unit with DC switch/disconnector ([Q11],
option +F290) and charging switch ([Q10], option +F272) ...............................
8 Fault tracing
43Contents of this chapter ...........................................................................
43Indicator lamps on cabinet door .................................................................
9 Maintenance
45Contents of this chapter ...........................................................................
45Maintenance intervals .............................................................................
45Description of symbols ........................................................................
45Recommended maintenance intervals after start-up ......................................
46Cabinet ..............................................................................................
46Cleaning the exterior of the drive ............................................................
47Power connections ................................................................................
47Retightening the power connections ........................................................
6 Table of contents

47Fans ..................................................................................................
47Replacing the cooling fan of the heat exchanger ..........................................
49Fuses ................................................................................................
49Replacing the fuses ............................................................................
10 Internal cooling circuit
11 Technical data
53Contents of this chapter ...........................................................................
53Electrical ratings ....................................................................................
54Fuses ................................................................................................
54Dimensions and weights ..........................................................................
54Losses, internal cooling circuit data and noise ................................................
55Terminal and cable entry data for the power cables ..........................................
56Tightening torques .................................................................................
56Electrical connections ..........................................................................
56Mechanical connections .......................................................................
56Insulation supports .............................................................................
56Cable lugs .......................................................................................
56Typical power cables ..............................................................................
57Terminal [X350] data for the control cables ....................................................
57DC connection data ................................................................................
57Auxiliary circuit current consumption ............................................................
57Energy efficiency data (ecodesign) ..............................................................
57Protection classes .................................................................................
57Ambient conditions ................................................................................
58Materials .............................................................................................
58Color .................................................................................................
59Package .............................................................................................
59Disposal .............................................................................................
59Applicable standards ..............................................................................
59Markings .............................................................................................
59Disclaimers .........................................................................................
59Generic disclaimer .............................................................................
60Cybersecurity disclaimer ......................................................................
Further information
Table of contents 7

8

Introduction to the manual
Contents of this chapter
This chapter contains information on the manual.
Applicability
This manual is applicable to ACS880-7107LC DC feeder unit. The unit is a part of a complete
multidrive system.
Safety instructions
Obey all safety instructions delivered with the drive.
•Read the complete safety instructions before you install, commission, use or service
the drive. The complete safety instructions are given in ACS880 liquid-cooled multidrive
cabinets and modules safety instructions (3AXD50000048633 [English]).
•Read the software-function-specific warnings and notes before changing the default
settings of a function. For each function, the warnings and notes are given in the section
describing the related user-adjustable parameters.
•Read the task-specific safety instructions before starting the task. See the section
describing the task.
Target audience
This manual is intended for people who plan the installation, install, start up and do
maintenance work on the drive, or create instructions for the end user of the drive concerning
the installation and maintenance of the drive.
Read the manual before working on the drive. You are expected to know the fundamentals
of electricity, wiring, electrical components and electrical schematic symbols.
1
Introduction to the manual 9

Categorization by number of strings and option code
The number of strings identifies information which concerns only a certain DC feeder unit
design: the unit with one, two or three parallel strings (ST1, ST2 or ST3). The identifier is
shown on the type designation label and in the technical data for each DC feeder unit type.
The option code (option +A123) identifies information which concerns only a certain optional
selection. The options included in the unit are listed on the type designation label.
Use of component designations
Some device names in the manual include the item designation in brackets, for example
[Q20], to make it possible to identify the components in the circuit diagrams of the drive.
Terms and abbreviations
DescriptionTerm
Connection point for an external energy storage to the DC bus of a drive system.DC feeder unit
Frequency converter for controlling AC motorsDrive
Inverter module(s) under control of one control unit, and related components. One
inverter unit typically controls one motor.
Inverter unit
Drive for controlling several motors which are typically coupled to the same machinery.
Includes one supply unit, and one or several inverter units.
Multidrive
Supply module(s) under control of one control unit, and related components.Supply unit
Related documents
CodeManual
General manuals
3AXD50000048633
ACS880 liquid-cooled multidrive cabinets and modules safety instructions
3AXD50000048634
ACS880 liquid-cooled multidrive cabinets and modules electrical planning instructions
3AXD50000048635
ACS880 liquid-cooled multidrive cabinets mechanical installation instructions
3AXD50000126880
CIO-01 I/O module for distributed I/O bus control user's manual
Supply unit manuals
3AXD50000174782
ACS880-207LC IGBT supply units hardware manual
3AUA0000131562
ACS880 IGBT supply control program firmware manual
3AXD50000579662
ACS880-307LC…+A018 diode supply units hardware manual
3AUA0000103295
ACS880 diode supply control program firmware manual
Inverter unit manuals
3AXD50000196111
ACS880-107LC inverter units hardware manual
3AUA0000085967
ACS880 primary control program firmware manual
3AUA0000098062
ACS880 primary control program quick start-up guide
Manuals for application programs (Crane, Winder, etc.)
Brake unit and DC/DC converter unit manuals
3AXD50000481491
ACS880-607LC 1-phase brake units hardware manual
3AXD50000581627
ACS880-607LC 3-phase dynamic brake units hardware manual
3AXD50000020967
ACS880 (3-phase) brake control program firmware manual
3AXD50000431342
ACS880-1607LC DC/DC converter units hardware manual
10 Introduction to the manual

CodeManual
3AXD50000024671
ACS880 DC/DC converter control program firmware manual
3AXD50000752423
ACS880-7107LC DC feeder unit hardware manual
Option manuals
3AXD50000129607
ACS880-1007LC liquid cooling unit user's manual
3AXD50000039629
ACS880 +C132 marine type-approved cabinet-built drives supplement
3AUA0000085685
ACS-AP-x assistant control panels user’s manual
3AUA0000094606
Drive composer start-up and maintenance PC tool user’s manual
3AXD50000210268
Converter module lifting device for drive cabinets hardware manual
Manuals for I/O extension modules, fieldbus adapters, safety options etc.
You can find manuals on the Internet. See www.abb.com/drives/documents. For manuals
not available in the document library, contact your local ABB representative.
Introduction to the manual 11

12

Operation principle and hardware
description
Contents of this chapter
This chapter introduces the operation principle and construction of the DC feeder unit.
Operation principle
The DC feeder unit provides a connection point for an external energy storage to the common
DC bus of a drive system. It enables transferring energy from a common DC bus of a drive
into an external energy storage and discharging energy back to the DC bus. The energy
storage can be, for example, a battery or super capacitor. The energy storage media does
not belong to the DC feeder unit product offering.
One DC feeder unit can contain one single or up to 3 parallel connected strings.
Parallel strings must be connected to separate energy storages. Each parallel string must
also have its own connection cabling. For more information, contact ABB.
Typically, the DC feeder unit is used in marine applications for heave compensation, peak
load compensation, propulsion supply in harbors, or energy storing instead of an additional
generator. The DC feeder unit can also be used in several other applications where energy
storing and reuse is needed.
2
Operation principle and hardware description 13

Overview diagram of the drive system
This diagram shows an example drive line up with an example DC feeder unit.
1
3
4
6
5
88
12
9
7
2
A
B C C D
11
10
Incoming unitA
Supply unitB
Inverter unitC
DC feeder unitD
AC supply1
Main breaker, or main contactor and main switch-disconnector2
Input (AC) fuses3
Supply module4
DC bus5
Supply and inverter module DC fuses6
DC switch/disconnector (option +F286)7
Inverter modules8
Motor(s) (acquired by user)9
DC switch/disconnector ([Q11], option +F290)10
DC fuses [F11]11
Energy storage (acquired by user) with disconnecting and protection devices12
14 Operation principle and hardware description

Overview diagram of the DC feeder unit
-
+
1ES-
1ES+
1 2
3
4 5 6
7
Drive DC busbars (+ and -)1
DC switch/disconnector ([Q11], option +F290)2
Charging circuit (switch: [Q10], resistors: [R10], option +F272)3
DC fuses [F11]4
Common mode filters ([R11], option +E208)5
Current transducers ([T353], option +G353)6
External DC connection terminals [ES-, ES+]7
Operation principle and hardware description 15

Layout drawings
￭Layout of a drive system with a DC feeder unit
1 2 3 4 5
Auxiliary control cubicle1
Incoming cubicle2
Supply module cubicle3
Supply unit1…3
Inverter unit4
DC feeder unit5
16 Operation principle and hardware description

￭Layout of a DC feeder unit
18
9
10
11
12
16
17
18
19
20
21
13
14
15
2
3
4
5
6
7
DC fuses [F11]1
Common mode filters ([R11], option +E208)2
Charging switch ([Q10], option +F272)3
DC connection bus bars [1ES+, 1ES-, 2ES+, 2ES-]4
Cabinet heater ([E95], option +G300)5
PE bus bar [PE]6
DC cable entry7
DC switch ([Q11], option +F290)8
Charging resistors ([R10], option +F272)9
Current transducers ([T353], option +G353)10
Fan [G115]11
Cooling input pipe12
Cooling inlet manifold13
Inlet and drain valves14
Draining pipe (input)15
Heat exchanger16
Cooling output pipe17
Cooling outlet manifold18
Outlet and drain valves19
Draining pipe (output)20
Terminal block for the user control connections [X350]21
Control of the DC feeder unit
The table below shows the switches and indications lamps on the door of the unit.
Operation principle and hardware description 17

1
2
5
43
DC disconnector handle ([Q11], option +F290))1
Charging circuit switch handle ([Q10], option +F272)2
Indication lamp: DC switch disconnector interlocking released ([P11], option +F290)3
Indication lamp: DC feeder unit disconnected ([P13], option +F290)4
Indication lamp: Energy storage disconnected [P12].5
￭User control signal interface
See Control connection diagram (page 32) for the user control connections. See Layout of
a DC feeder unit (page 17) for the location of the terminal block [X350].
18 Operation principle and hardware description

Type designation label of the DC feeder unit
Each converter unit has a type designation label attached onto the inside of the cubicle
door. The type designation label includes the ratings, appropriate markings, a type
designation and a serial number of the unit. An example is shown below.
ACS880-7107LC-0950A-7+A012+B054+C121+
F290+G300+G320+G338+H352+H367
ABB Oy
Hiomontie 13
00380 Helsinki
Finland
Input U1
l1
f
U1
l1
f
S/N:
742/849/976VDC
950 A
-
742/849/976 VDC
950 A
1190403889
-
Output
MADE IN FINLAND
1xST
FRAME
IP42
Liquid cooling
1
2
3
4
5
6
7
Type designation1
Number or parallel strings2
Cooling system and other additional data3
Degree of protection4
Ratings5
Valid markings. See ACS880 liquid-cooled multidrive cabinets and modules electrical planning instruc-
tions (3AXD50000048634 [English]).
6
Serial number. The first digit of the serial number refers to the manufacturing plant. The next four digits
refer to the unit's manufacturing year and week, respectively. The remaining digits complete the serial
number so that there are no two units with the same number.
7
Operation principle and hardware description 19

Type designation key
Type designation describes the composition of the unit in short. The complete designation
code is divided in subcodes:
•The first digits form the basic code. It describes the basic construction of the unit. The
fields in the basic code are separated by hyphens.
•The plus codes (or option codes) follow the basic code. Each plus code starts with an
identifying letter (common for the whole product series), followed by descriptive digits.
The plus codes are separated by plus signs.
￭Basic code
The basic code is described in the table below for an example code
ACS880-7107LC-0350A-7.
DESCRIPTIONCODE
Product seriesACS880
Product type. Liquid-cooled DC feeder unit.7107LC
Size. See technical data350A
Voltage rating. 709…976 V DC. This is indicated in the type designation label as typical input voltage
levels 742 / 849 / 976 (849 UL, CSA) V DC.
7
￭Option codes
DescriptionCode
50 Hz supply frequencyA012
60 Hz supply frequencyA013
IP42 (UL Type 1 Filtered)B054
IP54 (UL Type 12)B055
Marine constructionC121
Marine type approval. Refer to ACS880 +C132 marine type-approved cabinet-built drives supplement
(3AXD50000039629 [English]).
C132
Plinth height 100 mmC164
Door hinges on leftC176
Plinth height 200 mmC179
Marine product certification issued by DNV GLC205
Marine product certification issued by the American Bureau of Shipping (ABS)C206
Marine product certification issued by Lloyd's Register (LR)C207
Marine product certification issued by Bureau VeritasC209
Marine product certification issued by China Classification Society (CCS)C228
Marine product certification issued by Russian Maritime Register of Shipping (RS)C229
Common mode filteringE208
EMC/RFI filter for 2nd environment TN (grounded) or IT (ungrounded) system, category C3E210
Internal charging circuitF272
DC switch-disconnectorF290
Cabinet and module heating elements (external supply)G300
20 Operation principle and hardware description
