3. Key Features
•Patent pending design allows for fast changes to the working angle without
disassembly in 6˚ increments
•Top platen can be used for flat surface grinding and can be moved out of the way
for convenient free strapping
•Easy belt tracking adjustment knob and lock
•Fast belt changes with patent pending push in push out arm retraction/extension
system
•915 x 50mm (36 x 2”) belt
•178mm (7”) diameter disc
•89mm (3.1/2”) contact wheel
•Optional Mitre Table Accessory is also available
•Linishing Attachment fully assembled out of the box
2. Introduction

Abbott & Ashby Linisher Installation Manual 5
4. ISO 7010 Symbols used in this manual
Warning - Electrical safety
Warning – Potential consequences of use outside of intended application(s).
Includes environmental condition warnings.
Mandatory warning
Warning to disconnect power
Read carefully
5. Warnings
Read the manual carefully before starting and retain for future reference. Failure
to follow all instructions listed below may result in electric shock, fire and/or
serious injury. The term “power tool” in all of the warnings listed below refers to
your mains-operated (corded) power tool.
Prior to starting installation or any maintenance the product must be
disconnected from the power supply.
Always wear eye protection
ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric
shock.

Abbott & Ashby Linisher Installation Manual 6
e. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
WORK AREA
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
d. Safe work space. Ensure tool is located in a low traffic area and install
safety signage in the area to provide a visual warning to other staff or
visitors. It is recommended to mark out a safe work zone to prevent other
people from entering when the tool is in use - especially non-qualified users
or children.
e. Secure the Grinder. It is recommended to secure the grinder to the work
bench to prevent unnecessary movement and injury.
PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off-position before
plugging in. Carrying power tools with your finger on the switch or plugging
in power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools

Abbott & Ashby Linisher Installation Manual 7
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power
tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended
could result in a hazardous situation.
h. Qualified User. Ensure only qualified or trained users are allowed to operate
the tool.
SERVICE
a. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
Any changes or modification to the wiring must be carried out by suitably
qualified personnel.
A qualified electrician should correctly size and install residual current devices
to protect the power supply. The fitment of additional surge protection is
recommended.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Ensure that the installation will comply with all applicable local regulations.
6. Standards and Approvals
CTick – ACN002 123 337
Patent
Pending 2020902087

Abbott & Ashby Linisher Installation Manual 8
7. Technical Specifications
AA362
Linisher
Bench Grinder Capacity
6” (150mm)
8” (200mm)
10” (250mm)
Minimum motor of 1/3 HP (248W)
Shaft size – 12mm (½") or 16mm (5/8")
Trade/factory bench grinder – Perfect for
A&A Bench Grinders
Linishing surface
Belt –915mm x 50mm (36" x 2")
Disc –178mm (7")
Contact Wheel – 89mm (3 ½")
WEIGHT
5kg
AA362W6
6” Industrial Bench Grinder and AA362 Linisher
RPM no load speed
2880
WHEEL SIZE
150 x 25 x 12mm
AMPS
1.8
INPUT/OUTPUT
420W / 280W
WEIGHT
15kg
WHEEL GRIT
60 Medium
AA362W8
8” Industrial Bench Grinder and AA362 Linisher
RPM no load speed
2880
WHEEL SIZE
200 x 25 x 16mm
AMPS
3.8
INPUT/OUTPUT
900W / 600W
WEIGHT
24kg
WHEEL GRIT
60 Medium

Abbott & Ashby Linisher Installation Manual 9
8. Safety Instructions
Protect yourself and others by observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to product or property.
Additional safety rules for Bench Grinders - Wheel
a. Ensure that the power tool is disconnected from the mains supply when not in use, before
servicing, lubricating or making adjustments and when changing accessories such as grinding
wheels.
b. Always use the correct type of grinding wheel for the type of operation to be carried out and
the material being machined. Do not use a grinding wheel as a cutting disc.
c. Only use grinding wheels that are in good condition. This will improve grinding and reduce the
load on the machine ensuring a longer life of the grinding wheel and the machine.
d. Never use damaged grinding wheels. Grinding wheels that are cracked, chipped or worn could
shatter causing injury to the operator and bystanders and damage to the machine.
e. Do not use grinding wheels that are larger than specified, only use grinding wheels that are
rated for the machine. The rotational speed shown on the grinding wheel should always be
HIGHER than the rotational speed of the machine.
f. Always fit the blotter or paper washers on either side of the grinding wheel if not already fitted
to the grinding wheel.
g. When fitting a new wheel ensure blotters are in place, fit concave side of ashers to face the
wheel and tighten the lock nut firmly.
h. Do not over tighten (over tightening can crack a grinding wheel).
i. Do not attempt to modify the machine or its accessories in any way.
j. Do not use excessive force on the grinding wheel. Only use gradual pressure as this will
reduce the wear on the bench grinder and grinding wheels and increase its efficiency and
operating life.
k. Use approved safety glasses or goggles, face mask and if being used for an extended period
wear ear defenders.
l. Do not start the machine with the work piece in contact with the grinding wheel or before
checking the position of the tool rest.
m. Never apply the work piece to the side of the grinding wheel, this could cause the grinding
wheel to shatter.
n. Keep guards in place and in good working order. With the machine disconnected from the
mains supply check that the guards are secure and fitted correctly.
o. Always keep the tool rest as close to the grinding wheel as possible. The gap between the tool
rest and the grinding wheel should be no more than 2mm.
p. Do not attempt to grind objects that are too small to hold safely.
q. Do not use the work piece to slow down the grinding wheel once the machine has been
switched off.
Additional safety rules for Bench Grinders - Linisher
a. Be aware of belt movement and your positioning when grinding. Where possible avoid
positioning your body where the grinding belt/disc/wheel is moving towards you, position your
body slightly to the side to ensure no material or debris is thrown towards you.
b. Understand your application and use the correct grit and material belt/disc to suit
c. Ensure that belt and disc in use is not damaged and if so replace before use. Replacement
belts usually have a direction indicator on the inside, ensure the belt is installed correctly with
the direction indicator following the movement direction of the tool.
d. It is recommended to use the guard to lessen the chances of accidents or injury
e. Ensure the tool is in full operation before you commence the task. Do not hold the material
against the belt/disc while the tool is turned “on”. Ensure a firm grip is maintained on the
material, avoid unnatural hand positions as this can result in sprains, slippage or accidental
contact with the sanding surface. Do not attempt to grin objects that are too small to hold
safely.

Abbott & Ashby Linisher Installation Manual 10

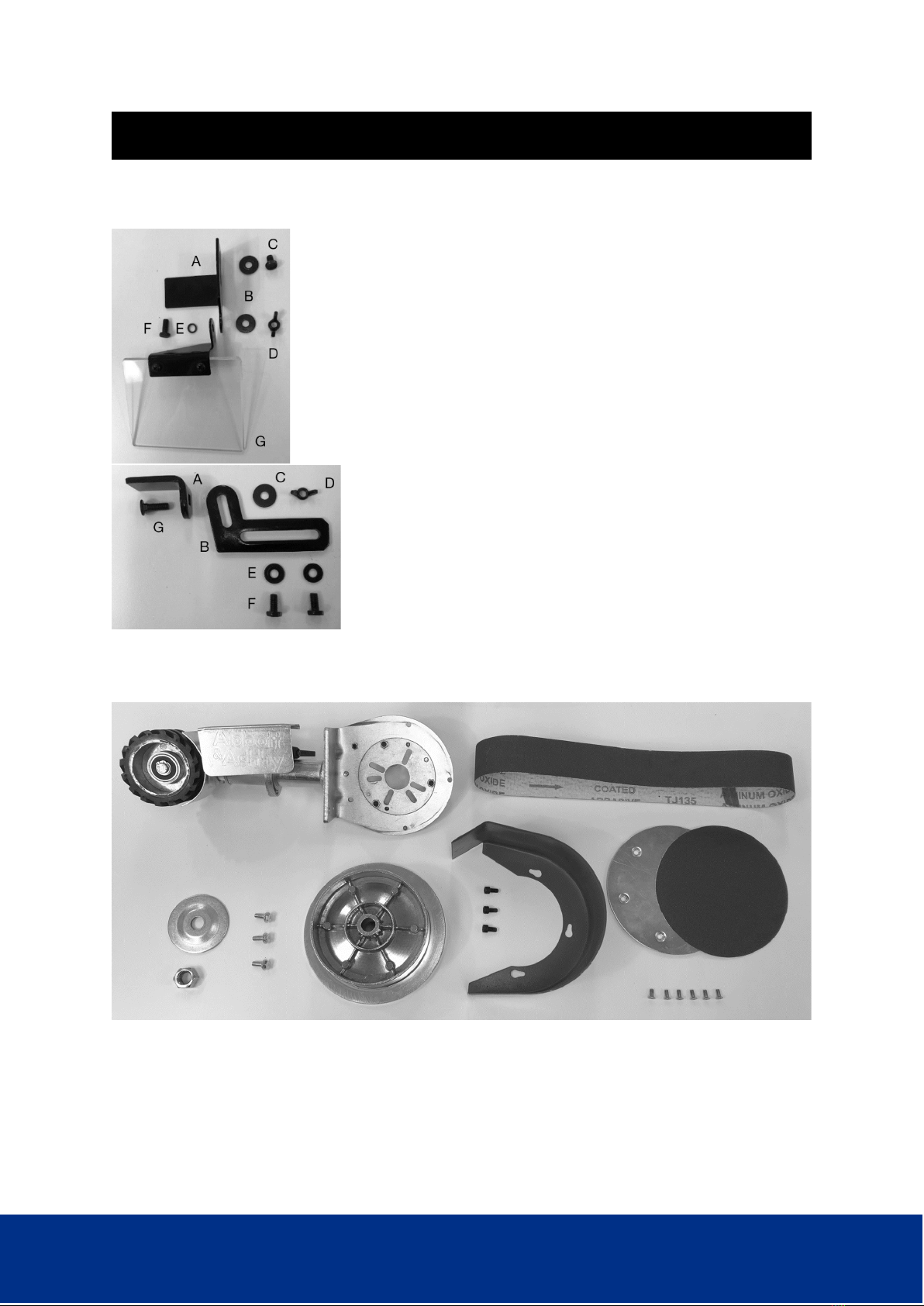

9. Product pieces
AA362W6 & AA362W8 (BENCH GRINDER)
AA362, AA362W6, AA362W8 (LINISHING ATTACHMENT)
A
B
C
D
E
F
G
H
I
K
J
EYESHIELD:
A) Bracket
B) 2 x Washers
C) Short Fastener
D) Wing Nut
E) Spring Washer
F) Long Fastener
G) Eye Shield
TOOL REST:
A) Tool Rest
B) Bracket
C) 3 x Washers
D) Wing Nut
E) 2 x Short Fasteners
F) Long Fastener
TOOL REST:
A) Main Bracket
B) Linishing Belt
C) Abrasive Disc
D) Backing Plate
E) 6 x Fasteners for backing plate
F) Linishing Guard
G) 3 x cap screws for guard
H) Drive Pulley
I) 3 x 6x20mm fasteners for main bracket
J) 16mm Nut
K) Washer

Abbott & Ashby Linisher Installation Manual 11
10. Installation
STEPS ONLY REQUIRED FOR INSTALLING ABBOTT & ASHBY AA362 LINISHING
ATTACHMENT TO AN EXISTING BENCH GRINDER
Remove the grinding wheel and guard off the side of the bench grinder
that you would like to install the linishing attachment to. Keep the
original nut and washer holding the grinding wheel in place
Install the Main Bracket (A) to the
Grinder, using the 3 x 6x20mm locking
fasteners (I)
Place the Drive Pulley (H) onto the
shaft of the bench grinder if it is a
16mm dia shaft. If the bench grinder
has a smaller 12mm shaft you will
need to insert the bush (not pictured)
to the shaft and then place the drive
pully onto the shaft to ensure there is a
snug fit.
Place the washer (K) over the shaft
onto the drive pulley

Abbott & Ashby Linisher Installation Manual 12
Place the nut (J) over the washer and
secure onto the shaft
Install the guard
(F) over the
assembly and
tighten the 3 x
6mm cap screws
(G)
Install the backing plate (D) to the drive
pulley with the 6 x fasteners (E)
Attach the abrasive disc (C) to the
backing plate. Hold firmly for a few
seconds to ensure the adhesive
activates.

Abbott & Ashby Linisher Installation Manual 13
STEPS REQUIRED FOR AA362W6 AND AA362W8 COMPLETE UNITS
Install the guard
(F) over the
assembly and
tighten the 3 x
cap screw (G)
Attach the
abrasive disc (C) to the backing plate.
Hold firmly for a few seconds to ensure
the adhesive activates.
Push against the contact wheel
towards the drive pulley to retract the
extension arm and place the linishing
belt (B) over the main wheel and the
contact wheel. Refer to the inside of
the belt for the correct installation
direction of the belt.
Initially there may be a tightness in this
mechanism. This is normal and will
improve with use.
Push against the contact wheel again
to extend the extension arm. Ensure the
belt is taught and not loose.
Once the belt is on the linisher you can
also push down on the bottom of the
belt (B) to retract or extend the
extension arm.
B

Abbott & Ashby Linisher Installation Manual 14
TRACKING:
Turn the unit on and inspect the movement of the belt. If adjustments are required move the
lever into the loose position (A) To correct any tracking concerns simply turn the knob (B) to
adjust the tracking and once adjusted lock the lever gently back into place (C).
Use the wing nut (D) and 1 x washer (B) secure the eyeshield
to the bench grinder allowing no more than 2mm gap
between the grinding wheel and bracket (A)
Attach the tool rest (A) to the bracket (B) using the long fastener (G) and the Large Washer
(C) and wing nut (D). then attach this to the bench grinder using the 2 x small washers (E)
and 2 x short fasteners (F), allowing no more than 2mm gap between the grinding wheel
and tool rest (A).
EYESHIELD:
A) Bracket
B) 2 x Washers
C) Short Fastener
D) Wing Nut
E) Spring Washer
F) Long Fastener
G) Eye Shield
A
B
C
D
E
F
G
TOOL REST:
A) Tool Rest
B) Bracket
C) 1 x Large Washer
D) Wing Nut
E) 2 x Small Washers
F) 2 x 8mm Fasteners
G) Long Fastener
A
B
E
D
C
F
G

Abbott & Ashby Linisher Installation Manual 15
MOUNTING:
The grinder can be secured with screws or nuts and bolts to a workbench or pedestal
stand. The length of the fasteners will depend on the thickness of the work surface. Where
a steel bench is used it is best to mount the grinder to a board, then attach the board to the
bench as this will also minimise vibration.
SWITCHING ON AND OFF:
Before connecting to the power supply rotate the wheel by hand to ensure that it is running
free from obstruction. Connect to the mains supply and press the rocker switch to the ON
position (l). To stop the machine simply press the rocker switch to the OFF position (O).
We also recommend the use of the E-Stop switch ATPED-ESTOP (sold separately)
REPLACING GRINDING WHEEL:
Remove guard by untightening 3 x 6 x 10mm cap screws. Remove 16mm nut and replace
wheel. Choose the correct grit to suit your application. Hand spin the wheel to ensure it
spins freely and true. Reinstall guards.
WORKING ANGLE ADJUSTMENT:
Loosen the bolt (A) out of the locking position and lift latch
(B) to disengage the locking teeth (C); rotate the linisher to
the desired angle. Lock the latch back into place firmly into
the locking teeth and fasten the bolt to secure the linisher
into position.
GUARD:
Designed for user ease when changing belts or servicing the
unit. No need to remove other components in order to
remove the guard. Loosen 3 x cap screw (A), rotate the guard
slightly and remove.
A
B
C
A
A
A

Abbott & Ashby Linisher Installation Manual 16
PLATEN:
Platen swivels from under the belt at
the top of the linishing attachment (1)
to the bottom of the linisher (2).
Turn the lever (A) anti-clockwise to
loosen the platen and it can be moved
into the desired location and locked
back into place by tightening the lever
by rotating it clockwise. If required
you can lift the lever out of its seat to
reset the lever turning position.
POSITIONING:
When purchased on its own the AA362 Linisher can be mounted on either the left or right
hand side of the bench grinder to suit your workflow.
There is an additional plate included in the fitting kit that can be installed on the guard to
complete the guard when mounted to the left hand side of a bench grinder
Only required when the AA362 is
mounted to the left hand side of
the bench grinder
1
2
A
A
B
C
LEFT HAND MOUNT GUARD:
A) 2 x Nut
B) Guard Shield
C) 2 x Retaining fasteners

Abbott & Ashby Linisher Installation Manual 17
11. Maintenance
WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY
BEFORE CARRYING OUT ANY MAINTENANCE
a. Use a soft dry brush and brush down the body of the unit regularly to ensure there isn’t a build
of dust and debris on the on the unit.
b. Remove guards and with a soft dry brush clean the main wheel, extension arm, contact wheel,
shaft and inside the guards. Replace the wheel/belt and guards when clean.
c. Check condition of the wheel, belt and disc, if cracked, torn, worn down or damaged, replace
immediately.
d. Check the condition of the cord to ensure it is not damaged or frayed. As this could cause
electrical injuries to the user. If damaged have it repaired by an authorised service agent.
e. Perform a visual check to ensure tool is functioning as per normal and an audible check for
any noise that is not normal. If visual and audible check immediately turn off the tools and
contact a relevant repair agent to inspect and service
f. Regularly check that all the fixing screw, nuts and bolts are tight. They may vibrate loose over
time.

Abbott & Ashby Linisher Installation Manual 18
16. Warranties – Terms and Conditions
White International Pty Ltd – Abbott & Ashby Linisher AA362 has a 3 Year Limited Product Warranty not including abrasives
White International Pty Ltd – Abbott & Ashby Linisher AA362W6 and AA362W8 have a 5 Year Limited Product Warranty on
Motor, electrical switch, device body and guards but not including motor start / run capacitor and provided grinding wheels
and abrasives)
This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act
2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand:
This warranty will not apply:
(i) where this product has been subjected to misuse, abuse, accident or want of care;
(ii) where this product has been used for a purpose for which it was not designed or is not suited;
(iii) where the service of this product has been undertaken by a non-authorised person or company or if
nonapproved parts have been used;
(iv) where this product has been used for industrial purposes.
WARRANTY EXCLUSIONS
Wear parts or service related parts required when performing normal and regular maintenance of this product are not covered
by warranty unless it is found to be defective by an Authorised Service Centre. These include, but are not limited to: Wheels,
Belts and Disc, Contact Wheel
1. White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from
defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this
document. Subject to the conditions of the warranty, White International will repair any defective products free of charge at
the premises of our authorised service agents throughout Australia and New Zealand if a defect in the product appears during
the warranty period. If you believe that you have purchased a defective product and wish to make a claim under this warranty,
contact us on our Sales Hotline on 1300 783 601, or send your claim to our postal address or fax line below and we will
advise you as to how next to proceed. You will be required to supply a copy of your proof of purchase to make a claim under
this warranty.
2. This warranty excludes transportation costs to and from White International or its appointed service agents and excludes
defects due to non-compliance with installation instructions, neglect or misuse, inadequate protection against the elements,
low voltage or use or operation for purposes other than those for which they were designed. For further information regarding
the suitability of your intended application contact us on our Sales Hotline on 1300 783 601. If you make an invalid claim
under this warranty, the original product will be sent back to you unrepaired.
3. This warranty refers only to products sold after the 1st January 2012, and is not transferable to another product type and only
applies to the original owner, purchaser or end user, and is in addition to the consumer guarantees found within the
Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 (NZ) for
goods purchased in New Zealand.
4. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
5. To the fullest extent permitted by law, White International excludes its liability for all other conditions or warranties which
would or might otherwise be implied at law. To the fullest extent permitted by law, White International’s liability under this
warranty and any other conditions, guarantees or warranties at law that cannot be excluded, including those in the
Competition and Consumer Act 2010 (Cth), is expressly limited to:
a. in the case of products, the replacement of the product or the supply of equivalent product, the payment of the cost of
replacing the product or of acquiring an equivalent product or the repair of the product or payment of the cost of having the
product repaired, is at the discretion of White International or a 3rd party tribunal elected under the Competition and
Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 (NZ) for goods purchased
in New Zealand; and
6. To the fullest extent permitted by law, this warranty supersedes all other warranties attached to the product or its packaging.
7. In the case of services, supplying the services again or the payment of the cost of having the services supplied again, is at the
discretion of White International or a 3rd party tribunal elected under the Competition and Consumer At 2010 (Cth) for goods
purchased in Australia and the Consumer Guarantees Act 1993 (NZ) for goods purchased in New Zealand.
8. Our warranty commences from the date of purchase of the above mentioned tool. Proof of purchase is required before
consideration under warranty is given. Record your date of purchase in the space below and retain this copy for your records.
The White International Policy is one of continuous improvement and the company reserves the right to alter designs, colours
and specifications without notice.
The Abbott & Ashby logo is a registered trademark of White International Pty Ltd.
Record your date of purchase in the space below and retain this copy for your records.
Date of Purchase ..................................................Model Purchased ..............................................

Abbott & Ashby Linisher Installation Manual 19
THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK
HIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK

Abbott & Ashby Linisher Installation Manual 20
www.whiteint.com.au
www.whiteint.co.nz
Please always refer to our website for further technical information & new product
innovations.
Disclaimer: Every effort has been made to publish the correct information in this manual.
No responsibility will be taken for errors, omissions or changes in product specifications.
© 2020 Copyright White International Pty Ltd
TM ® - WARNING: Please be aware that various brands & products depicted within this
document are subject to trademark, patent or design registrations. Infringement of any
intellectual property contained within this document without express written authority by
the appropriate intellectual property holder may result in further legal action to be taken. For
any queries regarding use of the contained information please feel free to contact White
International Pty Ltd.
