ABI Attachments ABI-BS-GD-339 User manual

Ground Drive Model: ABI-BS-GD-339
Owner s Manual
Broadcast Spreader
Form No. 10-80086 | Rev 1 | 10/11/2021
NOTE This Owner’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to
all models and the model depicted may dier from yours.

Visit www abisupport com 2
For Your Records
Product Manual Information
Model and Serial Number
Contact Information
Customer Support
Located on the front of the hopper above the main support frame is an ID decal showing the model/serial
numbers. Record your machine’s information and serial number in the space provided below. ABI will use
this information to give you prompt, eicient service when you order parts or need product support.
NOTE: This operators manual covers several models, Features may vary by model. Not all features in this manual are applicable to
all models depicted may dier from yours.
Model Number:
Serial Number:
Version Number:
Purchaser’s Name:
ABI Attachments, Inc
520 S. Byrkit Ave.
Mishawaka, IN 46544
Email: [e-mail]
Phone: [phone]
Website: www.abisupport.com
Table of Contents
General Info & Warranty...........................3
Safety......................................................4
SafetyLabels...........................................7
Uncrating Instructions............................8
Initial Setup............................................9
OperationGuide....................................14
Specifications........................................15
PartsDescription...................................16
Maintenance.........................................18
Troubleshooting....................................19
Replacement Parts................................19

Call Toll Free 877-788-7253Email support@abiattachments com 3
LIMITED WARRANTY
Chain Harrows, Cultipackers, & Broadcast Spreaders
24 Month Consumer, 3 Month Commercial, & 3 Month Rental
General Information
TERMS & CONDITIONS
“ABI” means ABI Attachments, Inc. 520 S Byrkit Ave, Mishawaka, Indiana 46544, 877.788.7253. The above referenced models are
warrantied for 24 months, from the original invoice date, against defects in materials and/or workmanship when put to normal
and designed residential, farm, & ranch consumer use; 3 months for commercial use and 3 months for rental use. Options are
warranted for 12 months (3 Month Commercial & 3 months rental). This limited warranty is only valid on new equipment to the
original purchaser with proof of purchase. Non-transferable.
For the purpose of the warranties, “normal & designed use” refers to such uses shown in ABI marketing materials, websites,
& videos specific to this product and does not include misuse, abuse, accidents, or damage due to inadequate maintenance,
storage, or exposure to corrosive materials including airborne salt. However, a final judgment of “normal & designed use” is the
sole opinion of ABI.
The warranty holder is responsible for performing reasonable and proper maintenance. The warranty holder is further responsible
for purchasing and performing replacement of normally wearing parts at own expense.
ABI’s obligation and or liability, under this warranty, of any product defect or claim for injury or damages is limited to repair or
replacement of the product, or payment of the reasonable cost of repair or replacement of the product, at ABI’s sole discretion
and direction. During the warranty period, warranty replacement parts or replacement product will ship by a standard method
at no charge to the warranty holder, in the United States & Canada only. Expedited shipping costs or international shipping costs
(Outside of US or Canada) of warranty parts or replacement product is the responsibility of the warranty holder.
To secure warranty service, the warranty holder must, (1) report the defect immediately to ABI customer service, in writing,
for warranty consideration within the applicable warranty term and discontinue use of the product; (2) present photographic
evidence of the warranty claim and valid proof of purchase; (3) return the product or part to ABI or independent service technician
within 30 days of defect discovery or failure, for return, inspection, or repair; if required. If ABI is unable to repair the product to
conform to the warranty in a reasonable number of attempts, ABI will provide, at its option, one of the following: (a) a replacement
for the product or, (b) a full refund of the purchase price. Repair, replacement, or refunds are the warranty holder’s EXCLUSIVE
remedies against ABI under this limited warranty.
ABI IS NOT RESPONSIBLE FOR THE FOLLOWING: (1) Equipment purchased used; (2) Any equipment that has been altered or
modified in ways not approved by ABI, including, but not limited to, unauthorized repair, and acts of God; (3) Depreciation
or damage caused by normal wear, lack of reasonable and proper maintenance, failure to follow operating instructions/
recommendations; misuse, lack of proper protection during storage or use, vandalism, the elements, collision or accident; (4)
Normal maintenance/wear parts and/or service, including but not limited to, tips, shanks, teeth, scarifiers, top-links, finish
rakes, pins, bolts, leveling blades, profile blades, tires, rims, and bearings. Periodic replacement of normally wearing parts is the
responsibility of the warranty holder.
To the extent permitted by law, the limited warranty stated above is the exclusive warranty given by ABI to the original purchaser,
and ABI disclaims any other warranties. There are no other warranties, either express or implied, including any warranty of
merchantability, fitness for a particular purpose, or arising from course of dealing or trade usage. ABI shall not be liable in any
event for incidental or consequential or other special damages under any theory of strict liability or negligence, or expenses
of any kind, including, but not limited to, personal injury, damage to property, cost of equipment rentals, loss of profit, loss of
time, loss of wages, or cost of hiring services to perform tasks normally performed by this product. ABI reserves the right to make
improvements in design or changes in specifications at any time without incurring any obligation to owners of units previously
sold.
Some jurisdictions do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary from jurisdiction to jurisdiction.
Publish Date: 3/1/2021

Visit www abisupport com 4
Safety
WARNING! The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved
and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the
message that follows it. In addition to design and configuration of equipment, hazard control, and accident
prevention are dependent upon the awareness, concern, prudence, and proper training of personnel
involved in the operation, transport, maintenance, and storage of equipment.
SAFETY AT ALL TIMES
Careful operation is your best assurance against
an accident. All operators, no matter how much
experience they may have, should carefully read
this manual and other related manuals, or have the
manuals read to them, before operating the tow
vehicle and this implement.
SAFETY PRECAUTIONS FOR CHILDREN
Tragedy can occur if the operator is not alert to the presence of
children. Children generally are attracted to implements and
their work.
SHUTDOWN & STORAGE
WARNING! Cancer and reproductive harm- www.P65Warnings.ca.gov
CALIFORNIA PROPOSITION 65
• Thoroughly read and understand the “Safety
Label” section. Read all instructions noted on
them.
• Do not operate the equipment while under the
influence of drugs or alcohol as they impair
the ability to safely and properly operate the
equipment.
• The operator should be familiar with all functions
of the tow vehicle and attached implement and be
able to handle emergencies quickly.
• Make sure all guards and shields appropriate for
the operation are in place and secured before
operating implement.
• Keep all bystanders 50 yards away from equipment
and work area.
• Start tow vehicle from the driver’s seat with
hydraulic controls in neutral.
• Operate tow vehicle and controls from the driver’s
seat only.
• Never dismount from a moving tow vehicle or leave
tow vehicle unattended with engine running.
• Do not allow anyone to stand between tow vehicle
and implement while backing up to implement.
• Keep hands, feet, and clothing away from power-
driven parts.
• While transporting and operating equipment,
watch out for objects overhead and along side such
as fences, trees, buildings, wires, etc.
• Do not turn tow vehicle so tight as to cause hitched
implement to ride up on the tow vehicle’s rear
wheel.
• Store implement in an area where children
normally do not play. When needed, secure
attachment against falling with support blocks.
• Never assume children will remain where you last saw
them.
• Keep children out of the work area and under the watchful
eye of a responsible adult.
• Be alert and shut the implement and tractor down if
children enter the work area.
• Never carry children on the tractor or implement. There is
not a safe place for them to ride. They may fall o and be
run over or interfere with the control of the tow vehicle.
• Never allow children to operate the tow vehicle or
implement, even under adult supervision.
• Never allow children to play on the tow vehicle or
implement.
• Use extra caution when backing up. Before the tractor
starts to move, look down and behind to make sure the
area is clear.
If engaged, disengage power take-o.
Park on solid, level ground and lower implement to ground
or onto support blocks.
Put tractor in park or set park brake, turn o engine, and
remove switch key to prevent unauthorized starting.
Relieve all hydraulic pressure to auxiliary hydraulic lines
Wait for all components to stop before leaving operator’s
seat.
Use steps, grab-handles and anti-slip surfaces when
stepping on and o the tractor.
Detach and store implement in an area where children
normally do not play. Secure implement using blocks
and supports.
•
•
•
•
•
•
•

Call Toll Free 877-788-7253Email support@abiattachments com 5

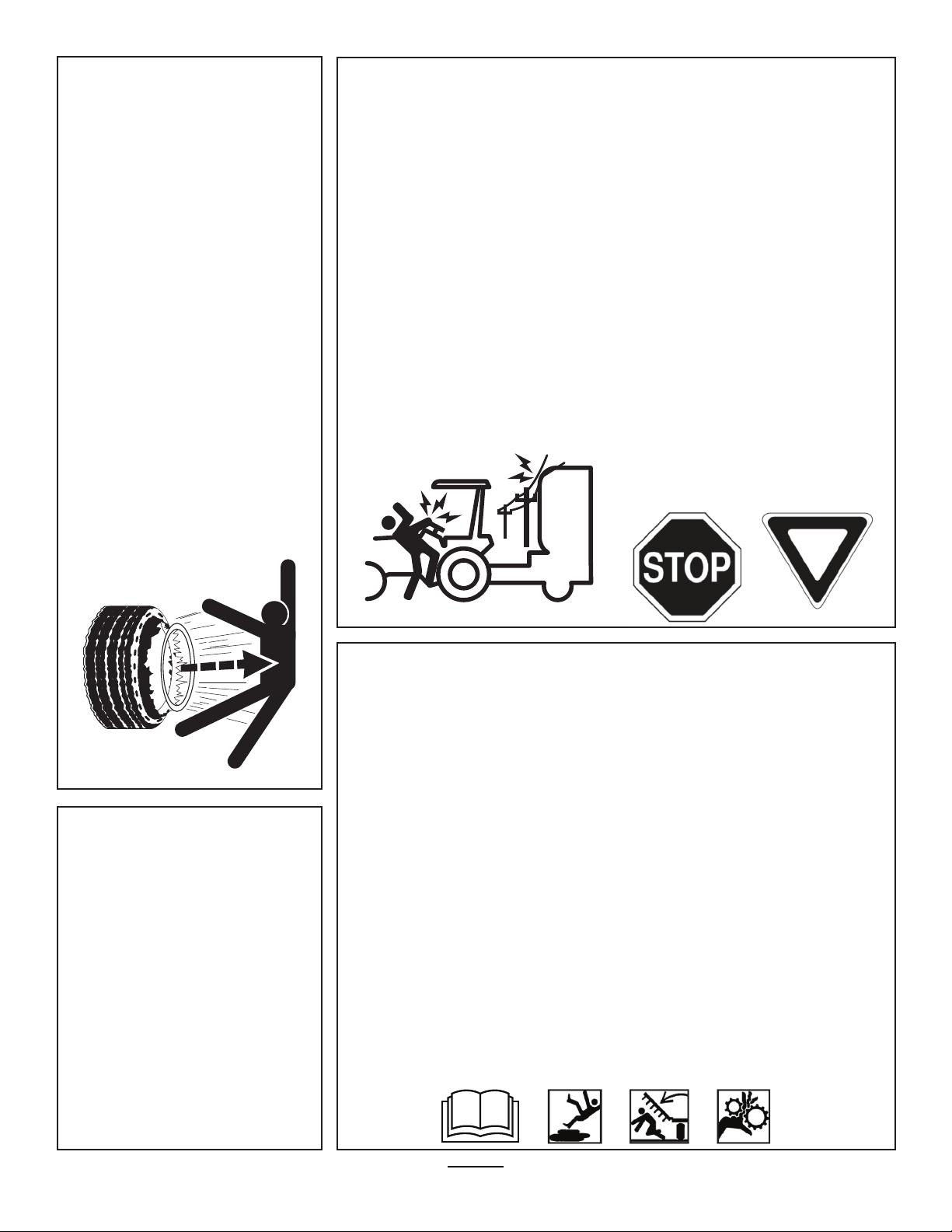

TIRE SAFETY
OPERATION SAFETY
TRANSPORT SAFELY
PRACTICE SAFE MAINTENANCE
• Tire changing can be dangerous
and must be performed by trained
personnel using the correct tools
and equipment.
• Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
• When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand
to one side and NOT in front of
or over the tire assembly. Use a
safety cage if available.
• Securely support the implement
when changing a wheel.
• When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
• Make sure wheel bolts have been
tightened to the specified torque.
• Some attachments may have
foam or sealant inside them and
must be disposed of properly.
• Stay alert for holes, rocks, and
roots in the terrain and other
hidden hazards. Keep away from
drop-os.
• Stop implement immediately
upon striking an obstruction.
Turn engine o, remove key,
inspect and repair any damage
before resuming operation.
• Never operate tractor and
implement under trees with low
hanging limbs. Operators can be
knocked o the tractor and then
run over by implement.
• Comply with federal, state, and
local laws.
• Use towing vehicle and trailer of
adequate size and capacity Secure
equipment towed on a trailer with
tie downs and chains.
• Sudden braking can cause a
towed trailer to swerve and upset.
Reduce speed if towed trailer is
not equipped with brakes.
• Avoid contact with any overhead
utility lines or electrically charged
conductors.
• Always drive with load on end of
loader arms low to the ground.
• Always drive straight up and
down steep inclines with heavy
end of a tow vehicle with loader
attachment on the “uphill” side.
• Understand procedure before doing
work. Refer to the Operator’s Manual
for additional information.
• Work on a level surface in a clean dry
area that is well-lit.
• Lower implement to the ground
and follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
• Do not work under any hydraulic
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to
work under the equipment, securely
support it with stands or suitable
blocking beforehand.
• Use properly grounded electrical
outlets and tools.
• Use correct tools and equipment for
the job that are in good condition.
• Allow equipment to cool before
working on it.
• Engage park brake when stopped on
an incline.
• Maximum transport speed for an
attached equipment is 20 mph. DO
NOT EXCEED. Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrains require a slower
speed.
• As a guideline, use the following
maximum speed weight ratios for
attached equipment:
- 20 mph when weight of attached
equipment is less than or equal
to the weight of machine towing
the equipment.
- 10 mph when weight of attached
equipment exceeds weight of
machine towing equipment but
not more than double the weight.
• IMPORTANT: Do not tow a load that
is more than double the weight of the
vehicle towing the load.
• Disconnect battery ground cable
(-) before servicing or adjusting
electrical systems or before welding
on implement.
• Inspect all parts. Make certain parts
are in good condition & installed
properly.
• Replace parts on this implement
with genuine ABI Attachments parts
only.
• Do not alter this implement in a
way which will adversely aect its
performance.
• Do not grease or oil implement
while it is in operation.
• Remove buildup of grease, oil, or
debris.
• Always make sure any material and
waste products from the repair and
maintenance of the implement are
properly collected and disposed.
• Remove all tools and unused parts
before operation.

Visit www abisupport com 6
• Slow moving tractors, skid
steers, self-propelled machines,
and towed equipment can
create a hazard when driven on
public roads. They are diicult
to see, especially at night. Use
the Slow Moving Vehicle sign
(SMV) when on public roads.
• Flashing warning lights and
turn signals are
recommended
whenever driving on
public roads.
PREPARE FOR EMERGENCIES
USE SAFETY LIGHTS AND DEVICES
AVOID UNDERGROUND UTILITIES
USE SEAT BELT AND ROPS
KEEP RIDERS OFF MACHINERY
WEAR PERSONAL PROTECTION
EQUIPMENT (PPE)
AVOID HIGH PRESSURE
FLUIDS HAZARD
• Be prepared if a fire starts.
• Keep a first aid kit and fire
extinguisher handy.
• Keep emergency numbers
for doctor, ambulance,
hospital,and fire department
near phone.
• Dig Safe, Call 811 (USA Always
contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they
may mark the location of any
underground services in the area.
• Be sure to ask how close you
can work to the marks they
positioned.
• ABI Attachments recommends the
use of a CAB or roll-over protective
structures (ROPS) and seat
belt in almost all tow vehicles.
Combination of a CAB or ROPS
and seat belt will reduce the risk of
serious injury or death if the tow
vehicle should be upset.
• If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine
overturn.
• Never carry riders on tractor or
implement.
• Riders obstruct operator’s view
and interfere with the control
of the tow vehicle.
• Riders can be struck by objects
or thrown from the equipment.
Never use tractor or implement
to li or transport riders.
• Wear protective clothing and
equipment appropriate for the
job such as safety shoes, safety
glasses, hard hat, and ear plugs.
• Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
• Prolonged exposure to loud noise
can cause hearing impairment
or hearing loss. Wear suitable
hearing protection such as
earmus or earplugs.
• Operating equipment safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.
• Escaping fluid under pressure
can penetrate the skin causing
serious injury.
• Before disconnecting hydraulic
lines or performing work on the
hydraulic system, be sure to
release all residual pressure.
• Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
• Use a piece of paper or cardboard,
NOT BODY PARTS, to check for
suspected leaks.
• Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
• DO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately.
Any fluid injected into the skin
or eyes must be treated within a
few hours
or gangrene
may result.

Call Toll Free 877-788-7253Email support@abiattachments com 7
Safety Labels

Visit www abisupport com 8
Uncrating Instructions
Tools Needed:
- Gloves
- Safety Glasses
- Safety Shoes
- Tin Snips / wire cutters
- Razor Blade or knife
- (2) large adjustable wrenches
- (2) 10mm wrenches or socket set
- (2) 13mm wrenches or socket set
1. Cut the banding securing the unit to the pallet. Use
caution when cutting metal straps that they do not
spring toward you and cause injury (Fig 1 & 2).
2. Remove the hopper, tires, owner's, packages and owner's
manual from the skid and set them in an area where all parts
can be viewed (Fig 3).
3. Cut open main support frame/towing hitch package and
remove zipties then set parts o to the side (Fig 4 & 5).
4. Open white bag of components and set them in an area
where all parts can be viewed (Fig 6 and 7).
5. Open plastic bag of hardware from the white bag and set
in an area where all parts can be viewed (Fig 8).
6. Set all hopper components in an open with area with
room to build the unit (Fig 9).
Fig 1. Fig 2.
Fig 9.
Fig 5.
Fig 7.
Fig 3.
Fig 8.
Fig 4.
Fig 6.
Cut zipties
Cut zipties and seperate main
support frame and towing hitch.
White bag of
components
Frame/towing
hitch package
Cut banding

Call Toll Free 877-788-7253Email support@abiattachments com 9

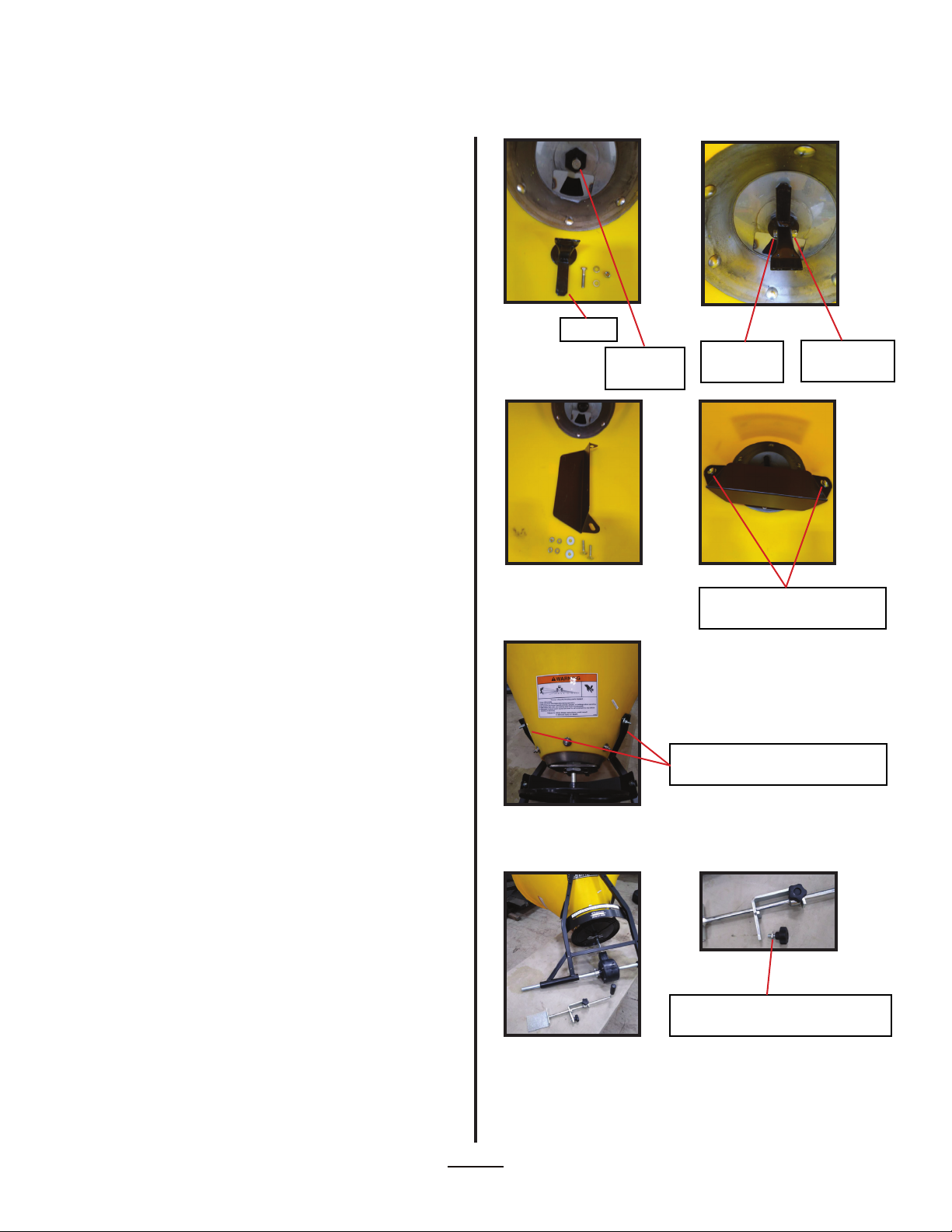

Initial Setup
Fig 1.
Fig 5.
Fig 3.
Fig 2.
Fig 6.
Fig 4.
Mobile shutter
Black threaded
bushing
M30 nut
Slide threaded bushing thru
hole in bottom of hopper.
Fasten guard onto
main support frame.
Welded tab on Main support
frame (both sides).
Guard faces opposite direction
than long welded brackets on
main frame support.
ABI recommends assembling the broadcast spreader be
done by 2 people.
1. Locate the hopper, mobile shutter, black threaded
bushing and the M30 nut (Fig 1).
2. Slide the black threaded bushing through the bottom
hole of the hopper (Fig 2). Place the mobile shutter on the
bottom of the hopper with the black threaded bushing going
thru the hole in the mobile shutter (make sure the sliding
grooves on the mobile shutter are facing away from the
hopper and in the same direction as the hole pointed out
on the side of the hopper shown in Fig 2). Hold the black
threaded bushing by reaching thru the square hole in the
mobile shutter to keep it from spinning while threading the
M30 nut onto the black threaded bushing and tighten using
two large adjustable wrenches (one person will need to be
on the inside of the hopper holding the hex portion of the
threaded bushing with an adjustable wrench while the 2nd
person is on the outside of the hopper tightening the M30
nut with an adjustable wrench while keeping the mobile
shutter facing the direction as the hole in the side of the
hopper) (Fig 3 & 4). Then set aside.
3. Locate curved guard, Main support frame, (2) M8x20 bolts,
(2) Ø8 flat washers and (2) M8 nuts (Fig 5).
4. Fasten the curved guard onto the frame using the M8x20
bolts, Ø8 washers and M8 nuts (hand tighten only at this
time) (Fig 6).
5. Locate spreader disc, main support frame, flat cotter pin
and hopper assembly (Fig 7).
6. Slide the spreader disc onto the outgoing sha with the
"X" shaped ribs on the spreader disc facing toward the end
of the outgoing sha (Fig 8). Line up holes in spreader disc
and outgoing sha and secure with flat cotter pin (Fig 9).
Slide end of outgoing sha into black threaded bushing on
bottom of hopper assembly.
Depending on which broadcast spreader that was
purchased, there is either an M8x40 carriage bolt (on the
103-130 and 106-130 models) or an M8x45 carriage bolt
(on the 103-230 and 106-230 models). Insert the M8x40 (or
M8x45 depending which model was purchased) carriage
bolt from the inside of the hopper thru the hole pointed out
in (Fig 2) then thru the hole in the main support frame (Fig
11). Slide the fender washer and lockwasher onto the end
of bolt. Thread the M8 nut onto the bolt and tighen using a
13mm wrench or socket set (Fig 12).
NOTE: Since the carriage bolt has a square section under
its head, the carriage bolt head will not fully seat onto the
inside surface of the hopper wall which may not allow
enough room aer sliding it thru the frame to add the fender
washer and lock washer and still thread the nut on.

Visit www abisupport com 10

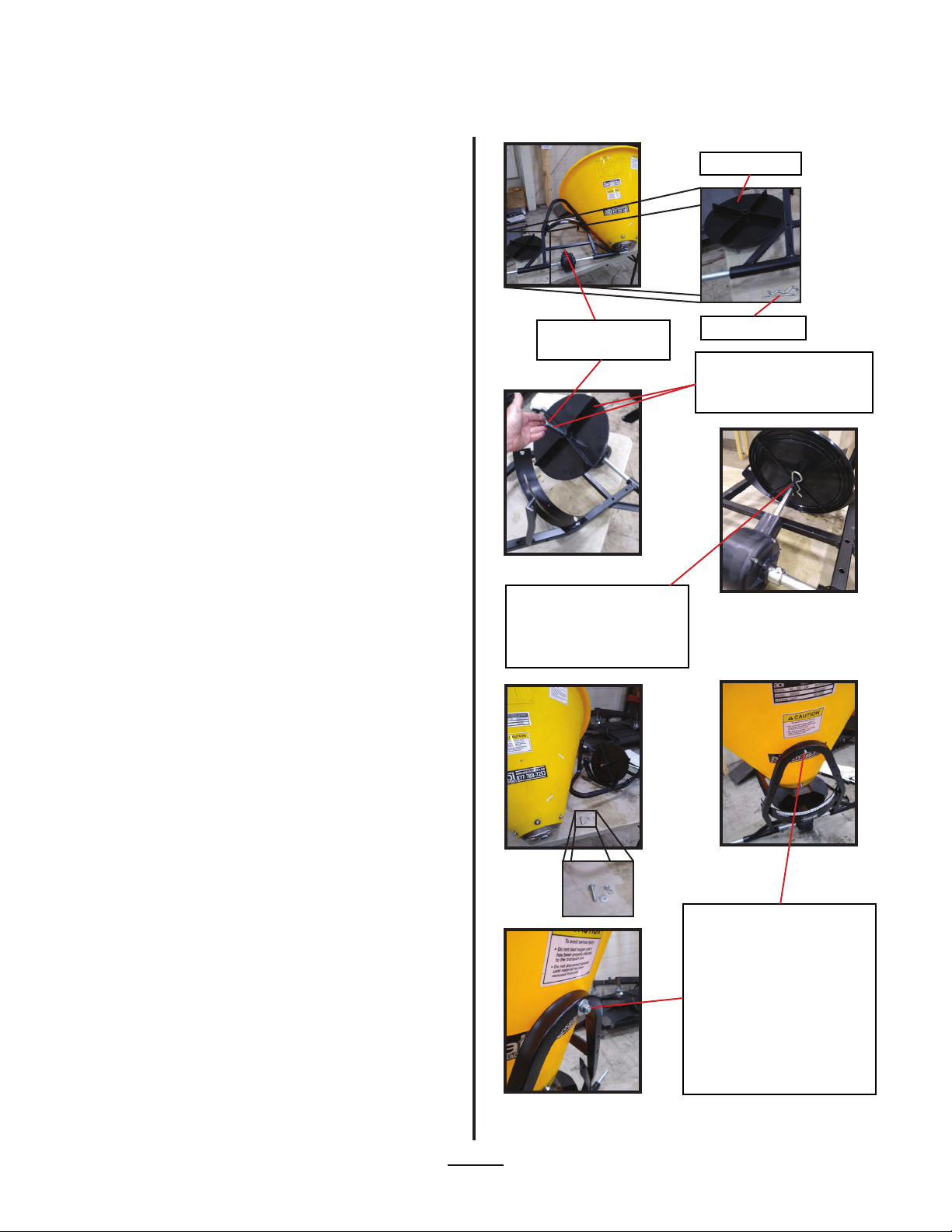

Initial Setup (cont'd)
Fig 9.
Fig 12.
Fig 11.
Fig 10.
Fig 7.
Fig 8.
Spreader disc
Flat cotter pin.
Outgoing sha
from axle gearbox.
Slide cotter pin thru holes
in spreader disc and
outgoing sha to secure
spreader disc to sha.
From the inside of the
hopper, slide carriage bolt
thru the hole pointed out
in (Fig 2) then thru the hole
in the main support frame.
Slide fender washer and
lockwasher onto end of
bolt. Thread nut onto bolt
and tighen using (2) 13mm
wrenches or socket set.
"X" ribs of spreader disc
faces toward the end of
the outgoing sha.
If this is the case, set the lockwasher o to the side and
thread the nut as tight as it will go to draw the square
section of the carriage bolt into the wall of the hopper. This
will give more thread length at the end of the bolt to remove
the nut and reinsert the lockwasher onto the bolt then
reinsert the nut and tighten.
7. Locate stirrer, M6x30 Hex head bolt, (2) Ø6 washers and
the M6 locknut (Fig 13).
8. Looking inside the hopper, slide the stirrer over the
outgoing sha. Slide (1) washer onto the M6x30 bolt then
insert the bolt into the slot on the side of the stirrer then
thru the hole on the end of the outgoing sha then thru the
2nd slot on the other side of the stirrer. Slide 2nd washer
onto the bolt then thread the M6 locknut onto the bolt and
tighten using (2) 10mm wrenches or socket set (Fig 14).
9. Locate the stirrer guard, (2) M8x20 carriage bolts , (2)
fender washers, (2) lockwashers and (2) M8 nuts (Fig 15).
10. Looking inside the hopper, place the stirrer guard over
the stirrer and align the slots on the stirrer guard over the
two holes in the hopper wall on either side of the stirrer (Fig
16). Insert the (2) M8x20 carriage bolts thru the slots on the
stirrer guard then thru the holes in the hopper wall and on
thru the long hopper support brackets welded on the main
support frame (Fig 16 & 17). Slide a fender washer onto
each bolt then slide a lockwasher onto each bolt. Thread an
M8 nut onto each bolt and tighten using a 13mm wrench or
socket set (Fig 17).
11. Locate the flow control assembly and remove the lower
knob and washer and set aside for the moment (Fig 18 &
19).
12. Slide the flow control assembly flat plate into the
slots of the mobile shutter (mention in Fig 1 thru 4) while
pivoting the bracket on the flow control assembly over and
behind the curved guard (Fig 20 & 21). If threaded hole in
flow control assembly bracket is not centered in slot on the
curved guard, rotate the curved guard up or down as needed
to center the hole in the bracket with the slot on the guard
(Fig 20 & 21). Once hole in the bracket is cenetered, fully
tighten the (2) nuts that hold the curved bracket to the main
support frame using (2) 13mm wrenches or socket set (Fig
22 & 23). Re-thread the flow control adjustment knob and
washer (that were removed in step 11) thru the curved guard
slot and into the threaded hole on the flow control assembly
bracket (Fig 24).
13. Locate both wheels, (2) Ø28 shims, (2) Ø20 washers, (2)
bent cotter pins (Fig 26).

Call Toll Free 877-788-7253Email support@abiattachments com 11
Fig 16.
Fig 18.
Fig 14.
Fig 17.
Fig 13.
Fig 19.
Fig 15.
Stirrer
Bolt and
flat washer
Flat washer
and locknut
Align slots on stirrer guard
over holes in hopper wall.
Long hopper support brackets
welded on main support frame.
Remove lower knob and washer
and set aside for the moment.
Outgoing
sha.
14. Slide (1) Ø28 shim onto both le and right axle sha (Fig
27). Slide (1) wheel onto both le and right axle shas. The
side of the wheel with the long tube portion of the hub (with
the small hole going thru the side of the hub) faces inward
toward the gearbox on the axle (Fig 28 & 29). Slide (1) Ø20
washer onto both le and right axle sha (Fig 29). On both
le and right axle shas, insert bent cotter pin into hole at
the end of the axle sha to secure the washer, wheel and
shim (Fig 30).
15. Locate the M6x45 hex head bolt, (2) Ø6 flat washers and
the M6 locknut.
On the le axle sha is a 2nd hole going thru the sha that
will line up with the hole going thru the side of the wheel
hub (shown in Fig 28). Slide (1) washer onto the M6x45 bolt
then slide the bolt thru the hub and axle holes. Slide the
other washer onto the bolt then thread the M6 lock nut onto
the bolt and tighten using (2) 10mm wrenches or socket set
(Fig 31).
16. Locate towing hitch with pivoting brackets, (6) M8x40 hex
head bolts, (6) Ø8 washers and (6) M8 nuts (Fig 32).
17. Mount 1st pivot bracket to main support frame by
inserting (2) M8x40 bolts thru pivot bracket holes then thru
main support frame holes. Slide (1) Ø8 washer onto both
bolts then thread (1) M8 nut onto each bolt - hand tighten
only. Pivot bracket should be parallel to spreader disc when
properly mounted. (Fig 33 & 34). Slide towing hitch onto
pivot bracket with 2nd pivot bracket attached to towing
hitch (Fig 35). Mount 2nd pivot bracket to main support
frame by inserting (2) M8x40 bolts thru pivot bracket holes
then thru main support frame holes. Slide (1) Ø8 washer
onto both bolts then thread (1) M8 nut onto each bolt - hand
tighten only. Pivot bracket should be parallel to spreader
disc when properly mounted (Fig 36). Rotate both angled
brackets (with multiple holes in each bracket) attached to
towing hitch until the hole at the end of each bracket line up
with the holes on the main support frame. Insert (1) M8x40
bolt thru angle bracket hole and hole in main support frame.
Slide (1) Ø8 washer onto bolt then thread (1) M8 nut onto
each bolt - hand tighten only. Repeat this with 2nd angled
bracket on other side. (Fig 37). Once all (6) bolts and nuts are
installed, fully tighten using (2) 13mm wrenches or socket
set.
18. The broadcast spreader is now fully assembled (Fig 38 &
39).
19. Once the spreader is hitched to the tow vehicle, position
the spreader disc to be parallel to the ground by removing
the bolts on the two angled brackets using (2) 13mm
wrenches or socket set and line up one of the holes in the
angled brackets with the holes in the towing hitch that
makes the spreader disc parallel to the ground. Replace the
bolts, washers and nuts and retighten (Fig 40).

Visit www abisupport com 12

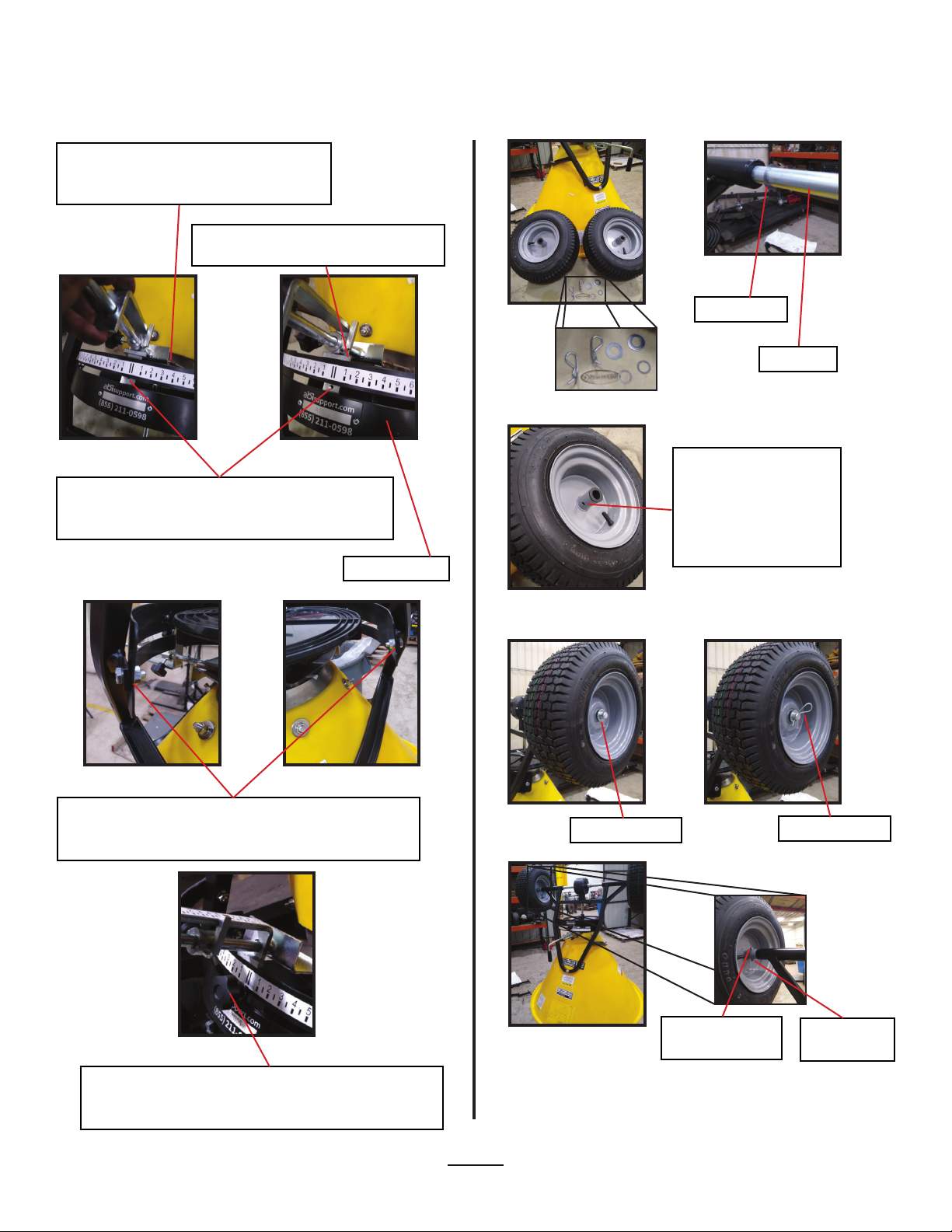

Fig 29.
Fig 28.
Fig 31.
Fig 26.
Fig 30.
Fig 27.
Fig 25.
Fig 22. Fig 23.
Initial Setup (cont'd)
axle sha
bent cotter pin
The long tube portion of
the hub (with the small
hole going thru the side
of the hub) faces inward
toward the gearbox on
the axle.
M6x45 hex head
bolt and washer.
washer and
M6 locknut.
28mm shim
20mm washer
Fully tighten both nuts securing curved guard to main
support frame (from Fig 6) once flow control bracket
hole is centered in slot on curved guard.
Re-thread the flow control adjustment knob and
washer thru the curved guard slot and into the
threaded hole on the flow control assembly bracket.
Fig 21.Fig 20.
Slide flat plate on flow control assembly
into grooves on mobile shutter attached
to the bottom of the hopper.
Rotate curved guard up or down as needed to get
threaded hole in flow control assembly bracket
centered in slot of curved guard.
Curved guard.
Rotate flow control assembly bracket
up and behind curved guard.

Call Toll Free 877-788-7253Email support@abiattachments com 13
Fig 38. Fig 39.
Fig 40.
Angled brackets
w/holes.
Spreader disc
Remove and replace
bolts, washers and nuts
to adjust spreader disc
angle.
Fig 34.
Fig 36. Fig 37.
Fig 35.
Fig 32.
Fig 33.
Mount 2nd pivot
bracket to main
support frame.
Rotate angled brackets (with
multiple holes) until hole at
the end of the angled brackets
line up with holes in the main
support frame.
Angled brackets mounted
to towing hitch.
Pivot bracket should be
parallel to spreader disc
when properly mounted.
Mount 1st pivot bracket
to main support frame.
Spreader disc
Slide towing hitch onto pivot
bracket with 2nd pivot bracket
attached to towing hitch.

Visit www abisupport com 14
Operation Guide
1. The rotating spreader disc is ground driven by the
pneumatic tires which are attached to a drive axle that runs
through a sealed gearbox (with tempered high carbon steel
gears).
2. Prior to start working, make sure there are no
obstructions. Run machine under a no-load condition for a
short while to assure that everything is functioning properly.
3. Adjust all settings for the desired quantity distribution
and spread pattern.
4. The working speed depends on ground conditions. Only a
test run will enable you to gauge the optimal working speed
for your conditions.
5. Before loading the fertilizer in the hopper read carefully
the instructions printed on the fertilizer canvas bag
concerning the precautions to be taken in case of toxicity
or corrosivity of the product. Before loading switch o the
engine and remove the ignition key.
6. Load hopper with product only aer the spreader has
been properly attached to the tractor.
7. Befoe use, ensure proper lighting is available, sunlight or
good artificial lighting.
8. Shi the transmission to a slow speed gear and start
forward, increase the ground speed by shiing upward until
the desired speed is obtained. Do not use in reverse unless
absolutely necessary and only aer careful observation of
the area behind the spreader.
9. For emergency reasons learn how to stop the tractor and
spreader quickly.
10. The quantity of material distributed per acre depends on
the following factors:
A. Spreader ground speed.
B. Unit weight and size of the material to be spread.
C. Spreading width.
D. Position of the Flow Control Assembly lever.
Spread Adjustment
The hopper's spreading is adjustable in three ways by:
A. Regulating the spread pattern.
B. Regulating the amount of material to be spread.
C. Regulating the spreading width.
To regulate the (A) spread pattern : loosen the knob (Fig
25) in front of the curved guard (Fig 5 & 6). Slide (to the le
or right) the flow control assembly (mentioned in Fig. 20 &
21) which is located under the hopper and runs through the
slot in the curved guard. This moves the spread pattern from
180° at position 0 (in the center), to either mostly 90° right
with the lever shied all the way to the le or mostly 90° le
when shied to the right completely (Fig. 41).
To regulate the (B) amount of material to be spread, using
the flow control assembly (mentioned in Fig. 20 & 21),
push/pull the lever handle in and out to regulate the size of
opening at the bottom of the hopper. Use the scale located
above the lever rod to gauge the size opening needed.
Example: if it is determined that the appropriate opening
desired is position #6, loosen the knob on the side of the
lever rod (not the knob that tightens against the curved
guard) (Fig. 42) so the blocking plate will slide. Push the
lever handle in until the hole in the bottom of the hopper
is completely closed then pull the blocking plate out to
position #6 (Fig. 43) and tighten the knob. The hopper is
now ready to spread with that amount of flow rate.
To regulate the (C) spreading width, ground speed is the
most important factor, the faster the ground speed the
further the material is thrown. An optional rear deflector
(see P/N #49, Fig. 44) is available for additional regulation.
Move the rear deflector up and down to change the
spreading distance. The higher the position of the rear
deflector the further the spread width, the lower the less
distance the material travels.
In order to give a guide to the operator, Table 1 (pg 15) gives
the amount of material distributed (lbs./1000 sq.) at two
spreading widths (6.5 . and 13 .) versus the lever position.
Fig 41.
Fig 42. Fig 43.
Knob on the side
of the lever rod.
Lever rod set
to position 6.

Call Toll Free 877-788-7253Email support@abiattachments com 15

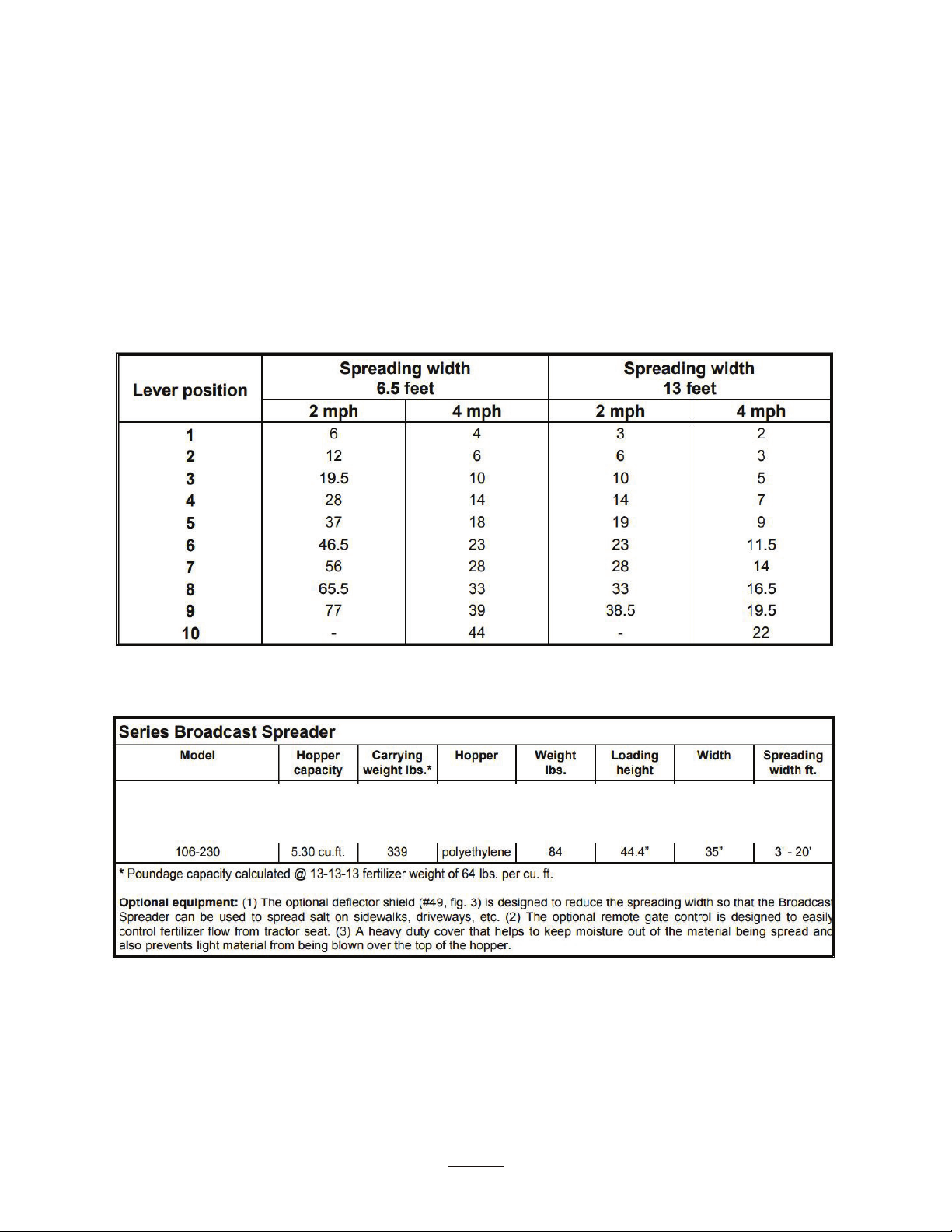

TABLE  - SWATH SPREADING PATTERNS (LBS./ SQ.FT)
TABLE  - BROADCAST SPREADER - TECHNICAL FEATURES
Specifications
1. Unless otherwise specified, all hardware is metric. Use only metric tools on metric hardware. Other tools that do not fit
properly can slip and cause injury.
2. Right hand and le hand sides of the implement are determined by facing in the direction the implement will travel
when going forward.
3. The broadcast spreader should be used to distribute granular fertilizers, seeds, sand and small granular salt. It is not
designed for use with powder type material.
4. The broadcast spreader ground driven fertilizer spreaders are designed and sized for lawn tractors, ATV’s or other
equipment without PTO.

Visit www abisupport com 16

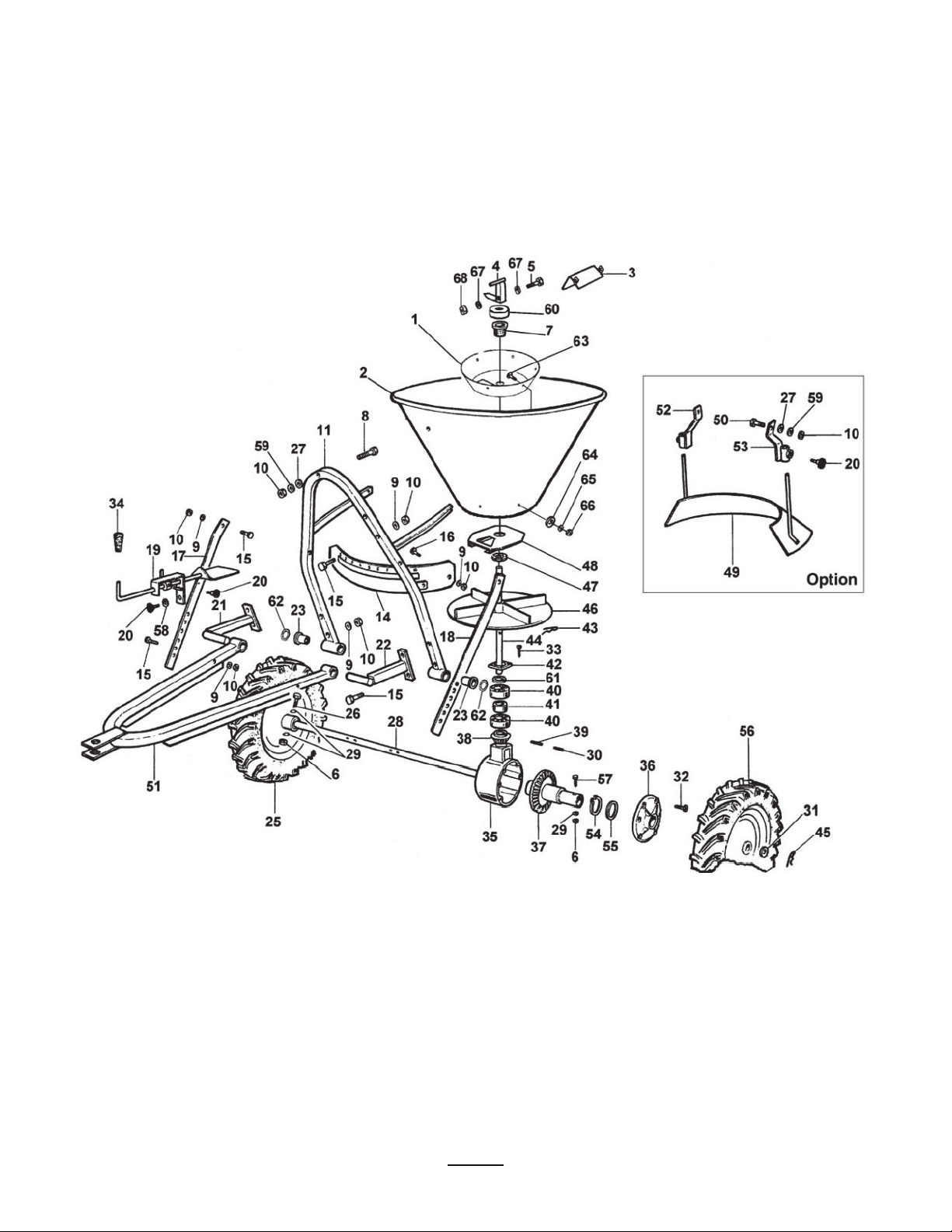

Parts Description
103-230, 106-230 Broadcast Spreader Assembly
Fig 44.

Call Toll Free 877-788-7253Email support@abiattachments com 17

Visit www abisupport com 18
Maintenance
1. Tire MAX inflation - 28 PSI. Replace tire if cracks or missing chunks in tire are present.
2. Before beginning work:
A. Apply a thick layer of grease to all exposed moving parts.
B. Apply a film of biodegradable oil in crevasses and corners in order to keep corrosive
material from rusting areas that are diicult to clean.
3. Aer each use:
A. Be sure to thoroughly wash the machine without using excessive pressure especially on the moving parts. It is
B. Carefully dry the machine.
C. Apply a thick layer of grease to all exposed moving parts.
D. Apply a film of biodegradable oil in crevasses and corners.
4. Aer seasonal use it is important to perform the following for prolonged storage:
A. Wash and dry the spreader carefully.
B. Inspect the spreader and replace worn or damaged parts. If corrosive material has eaten under the paint,
clean o the area with a wire brush and touchup with primer and paint.
C. Tighten all hardware.
D. Apply a thick layer of grease to all exposed moving parts.
E. Apply a film of biodegradable oil in crevasses and corners.
F. Cover the spreader from the elements in order to have it in perfect condition for the start of the next season.
5. The gearbox has been filled with EP grade grease from the factory. The grease never needs replacing unless internal
work is done to the gearbox.
6. Inspect the entire machine periodically. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Use
TABLE  - TORQUE SPECIFICATIONS for any loose bolts or nuts.
7. Never replace hex bolts with less than grade five bolts unless otherwise specified (ex: shear bolts).
particularly important to wash the implement aer using salt or fertilizer. This will help prevent the caustic
chemicals in the salt and fertilizer from destroying the metal of the machine.
TABLE  - TORQUE SPECIFICATIONS

Call Toll Free 877-788-7253Email support@abiattachments com 19
Troubleshooting
WARNING: Be sure tractor engine is o, parking brake is
locked, and key is removed before making any adjustments.
PROBLEM POSSIBLE CAUSE SOLUTION
NON UNIFORM SPREAD
PATTERN
OPENING LEVER NOT
POSITIONED CORRECTLY
SET LEVER AT GATE OPENING TO THE PROPER
POSITION (SEE "SPREAD ADJUSTMENT" - PG 14)
SPREADER DISC DOES NOT
TURN
DRIVE WHEEL BOLT MISSING OR
SHEARED.
SPREADER DISC COTTER PIN
MISSING OR SHEARED.
BROKEN RING OR PINION GEAR.
REPLACE BOLT.
REPLACE COTTER PIN.
REPLACE RING OR PINION GEAR.
NARROW SPREAD WIDTH SLOW GROUND SPEED.
HOPPER TOO FAR BACKWARDS.
INCREASE GROUND SPEED.
POSITION SPREADER SO IT RUNS LEVEL OR INCLINED
SLIGHTLY FORWARD TOWARD THE TOWING VEHICLE.
Replacement Parts
All of the Classic Spreader components are considered wear
parts and will need to be replaced as they wear out from
use. To reorder, please contact the ABI Support department
at 877-788-7253.
Recommended replacement parts to be kept on hand to prevent delaying work.
DESCRIPTION QTY
SPREADER DISC
(P/N 46, PG 17) 1
THREADED BUSHING
(P/N 7, PG 17) 1
NYLON BUSHING Ø21
(P/N 23, PG 17) 2

Contact Information Customer Support
For additional information on the use or setup of the Ground Drive Broadcast Spreader, please
contact the ABI customer support team at 855.211.0598.
Additional support videos are available at the ABI support page ( abisupport.com ) under each tool.
Warranty Information and Return Policy - Warranty and return policy information can also be
found on the ABI support page under each tool. For additional questions regarding warranty or
return policy, contact the ABI customer support team at 855.211.0598.
ABI Attachments, Inc
520 S. Byrkit Ave.
Mishawaka, IN 46544
Email: [e-mail]
Phone: [phone]
Website: www.abisupport.com
To order parts or to speak to one of ABI’s Customer Service
Representatives contact us Monday to Friday 9am to 5pm EST.
