SI-1Ns42
SI-1Ns60
Intel Pentium 4 Server Board
Socket 478
User’s Manual
Rev. 1.00

Copyright and Warranty Notice
The information in this document is subject to change without notice and does not
represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular part of this document. In no event shall
the manufacturer be liable for direct, indirect, special, incidental or consequential
damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and
trademarks and product names or brand names appearing in this document are
property of their respective owners.
This document contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or transcribed
without the expressed written permission of the manufacturer and authors of this
manual.
SI-1Ns42/SI-1Ns60

Table Of Contents
Chapter 1. Introduction .................................................... 1-1
1.1. Features & Specifications....................................................... 1-1
1.2. Layout..................................................................................... 1-3
1.3. Jumpers & Connectors Description........................................ 1-4
Chapter 2. Hardware Setup.............................................. 2-1
2.1. CPU Socket ............................................................................ 2-1
2.2. System Memory ..................................................................... 2-2
2.3. ATX12V Power Connectors .................................................. 2-3
2.4. FAN Connectors..................................................................... 2-4
2.5. CMOS Memory Clearing Header ..........................................2-5
2.6. Front Panel Switches & Indicators Connection Headers ....... 2-6
2.7. External Keyboard/Mouse Connection Header ..................... 2-7
2.8. System Management Bus Connection Header.......................2-8
2.9. IDE Disk Drive Connector..................................................... 2-9
2.10. PCI Expansion Slot .............................................................. 2-10
2.11. Additional COM Port Connection Header........................... 2-11
2.12. Additional USB Port Connection Header ............................ 2-12
2.13. VGA Output Connection Header ......................................... 2-13
2.14. Compact Flash Memory Card Reader Socket...................... 2-14
2.15. Status Indicators ................................................................... 2-15
2.16. Power-On Switch ................................................................. 2-16
2.17. Low Pin Count Connection Header (Reserved for internal
testing) .................................................................................. 2-17
2.18. External I/O Panel Connectors............................................. 2-18
User’s Manual

Chapter 3. BIOS Setup...................................................... 3-1
3.1. Standard CMOS Features....................................................... 3-2
3.2. Advanced BIOS Features ....................................................... 3-5
3.3. Advanced Chipset Features.................................................... 3-7
3.4. Integrated Peripherals............................................................. 3-9
3.5. Power Management Setup.................................................... 3-14
3.6. PnP/PCI Configurations ....................................................... 3-17
3.7. PC Health Menu ................................................................... 3-19
3.8. Load Fail-Safe Defaults........................................................ 3-21
3.9. Load Optimized Defaults .....................................................3-21
3.10. Set Supervisor Password ...................................................... 3-21
3.11. Set User Password ................................................................ 3-21
3.12. Save & Exit Setup ................................................................ 3-21
3.13. Exit Without Saving ............................................................. 3-21
Chapter 4. Driver Installation .......................................... 4-1
4.1. Setup Items ............................................................................. 4-2
Appendix A. How to Get Technical Support ..................... A-1
SI-1Ns42/SI-1Ns60

Introduction 1-1
Chapter 1. Introduction
1.1. Features & Specifications
CPU
• Supports single Pentium 4 478-pin processor up to 3.06GHz and higher.
(Based on 533/400MHz FSB)
Chipset
• Intel RG82845GV (845GV) / FW82801DB (ICH4)
Memory
• Two 184-pin DIMM sockets supporting 144-bit wide Single Channel
DDR 200/266/333 memory
• Up to 2GB, un-buffered and non-ECC memory capacity
LAN
• SI-1Ns42: 2x Intel 82541ER single port GbE Ethernet
4x Intel 82551ER single port 10/100 Ethernet
• SI-1Ns60: 6x Intel 82551ER single port 10/100 Ethernet
Security & Acceleration
• Onboard Cavium CN-1005S supporting IPSec/SSL
VGA
• Integrated graphics controller by Intel RG82845GV
PCI Expansion Slot
• 1x PCI 32bit/33MHz expansion slot (3.3V)
Internal I/O Headers
• 1x 44-pin Ultra DMA 100/66/33 connector
• 1x 50-pin IDE Interface Compact Flash Type II Socket
• 1x VGA header
• 1x PS/2 Keyboard/Mouse header
• 1x COM header (COM1)
• 1x USB 2.0 header (Supports two USB 2.0 connectors)
• 1x SM Bus header (For SM Bus and I2C)
User’s Manual

1-2 Chapter 1
External I/O Connectors
• 1x COM port (COM2)
• 2x USB 2.0 connectors
• 6x RJ-45 w/Transformer LAN connectors
System BIOS
• Supports Plug-and-Play (PNP)
• Supports Advanced Configuration Power Interface (ACPI)
• Write-Protect Anti-Virus function by AWARD BIOS
• 4MB Flash ROM
Miscellaneous
• ATX form factor (305mm x 245mm)
• Hardware monitoring - including fan speeds, voltages, and system
environment temperature
• Chassis-intrusion detector header
 Specifications and information contained herein are subject to change
without notice.
SI-1Ns42/SI-1Ns60

Introduction 1-3
1.2. Layout
User’s Manual

1-4 Chapter 1
1.3. Jumpers & Connectors Description
Jumpers Description Default Setting
CCMOS1 CMOS Clearing Header Pins 1-2 Close (Normal)
PWR_ON External Power-On switch Connection
Header Open (Power Off)
Connectors Description
ATXPWR1/ATX12V1 ATX12V Power Connectors
CF1 Compact Flash Memory Card Reader Socket
COM1 Additional COM Port Connection Header
COM2 COM Port Connector
DIMM1/DIMM2 DDR DIMM Slots
FAN1/FAN2/FAN3 Fan Power Connector with Speed Monitoring Support
FAN4 Fan Power Connector without Speed Monitoring Support
FPIO1 Front Panel Switches & Indicators Connection Headers
FP-USB1 Additional USB Port Connection Header
IDE1 IDE Disk Drive Connector
J2 Low Pin Count Connection Header (Reserved for internal
testing)
KM1 External Keyboard/Mouse Connection Header
LAN1/LAN2 SI-1Ns42: 10/100/1000Mbps LAN connectors.
SI-1Ns60: 10/100Mbps LAN connectors.
LAN3~LAN6 10/100Mbps LAN Connectors
PCI1 PCI Expansion Slot
SMBUS1 System Management Bus Connection Header
USB1 External USB Port Connector
VGA1 VGA Output Connection Header
SI-1Ns42/SI-1Ns60

Hardware Setup 2-1
Chapter 2. Hardware Setup
2.1. CPU Socket
This server board provides one 478-pin Zero Insertion Force (ZIF) socket to install the
Intel Pentium 4 CPU.
User’s Manual

2-2 Chapter 2
2.2. System Memory
This server board provides two 184-pin DDR DIMM slots for un-buffered and
non-ECC modules with memory size expansible up to 2GB (DDR333/266/DDR200).
DIMM DIMM Module Total Memory
1 128MB, 256MB, 512MB, 1GB 128MB ~ 1GB
2 128MB, 256MB, 512MB, 1GB 128MB ~ 1GB
Total System Memory 128MB ~ 2GB
SI-1Ns42/SI-1Ns60

Hardware Setup 2-3
2.3. ATX12V Power Connectors
These two connectors connect to ATX12V power supply.
User’s Manual

2-4 Chapter 2
2.4. FAN Connectors
These 3-pin connectors each provide power to the cooling fans installed in your
system.
• FAN1/FAN2/FAN3: With speed monitoring support in BIOS menu
• FAN4: Without speed monitoring support in BIOS menu
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on
these connectors.
SI-1Ns42/SI-1Ns60

Hardware Setup 2-5
2.5. CMOS Memory Clearing Header
This header uses a jumper cap to clear the CMOS memory.
• Pin 1-2 shorted (default): Normal operation.
• Pin 2-3 shorted: Clear CMOS memory.
ATTENTION: Turn the system power off first (including the +5V standby power)
before clearing the CMOS memory.
User’s Manual

2-6 Chapter 2

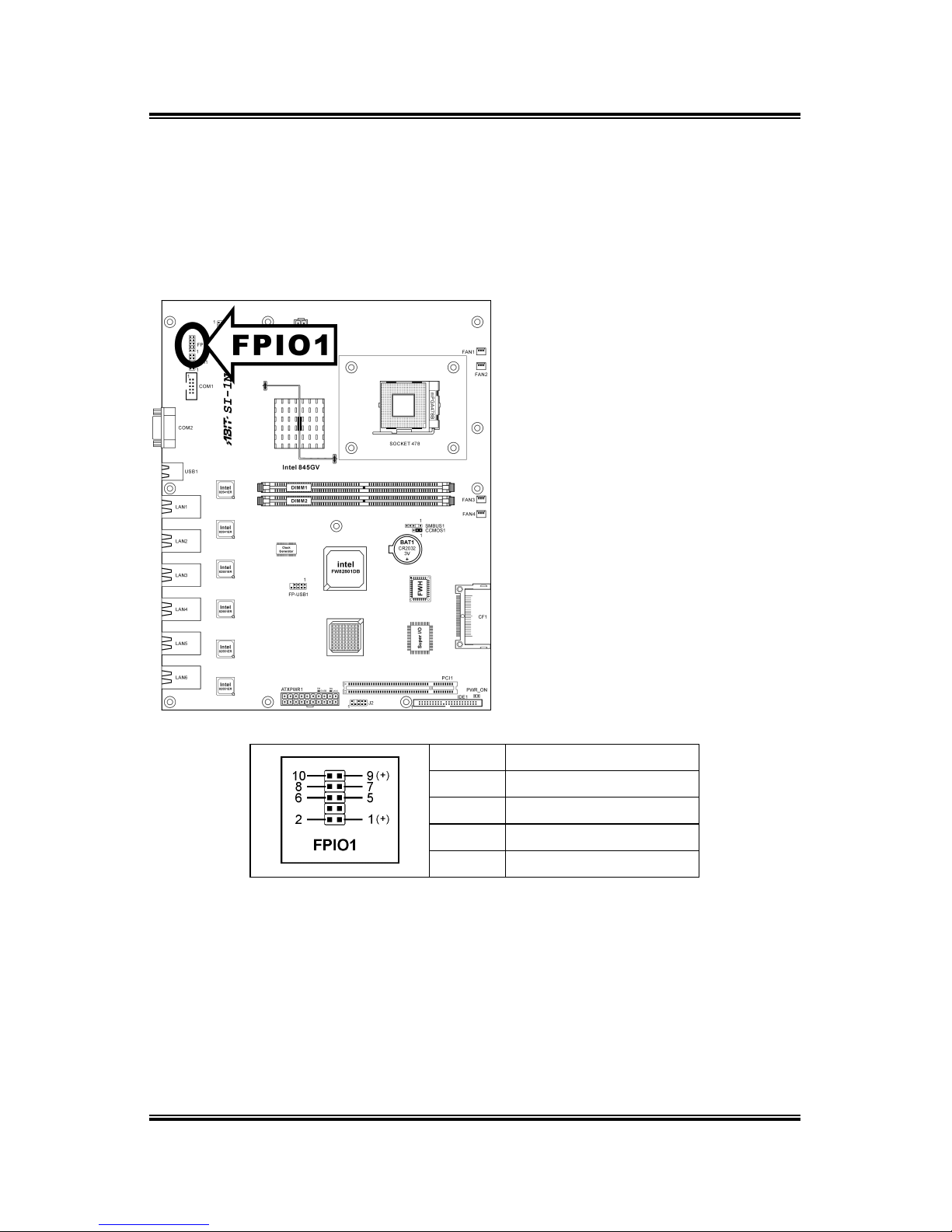

2.6. Front Panel Switches & Indicators Connection
Headers
This header provides connection to external switches and indicators.
Pin Definition
1-2 S.LED
5-6 Reset
7-8 Chassis Intrusion
9-10 HD LED
SI-1Ns42/SI-1Ns60

Hardware Setup 2-7
2.7. External Keyboard/Mouse Connection Header
This header provides the external connection to keyboard and mouse.
Pin Definition Pin Definition
1 VCC 2 VCC
3 NC 4 NC
5 KB Data 6 Mouse Data
7 Ground 8 Ground
9 KB Clock 10 Mouse Clock
User’s Manual

2-8 Chapter 2
2.8. System Management Bus Connection Header
This header provides the connection to system management bus (SMBus).
Pin Definition Pin Definition
1 SMBCLK 4 SMBDATA
3 Ground
5 VCC
SI-1Ns42/SI-1Ns60

Hardware Setup 2-9
2.9. IDE Disk Drive Connector
This connector provides IDE hard drive connection (Pitch 2.5).
User’s Manual

2-10 Chapter 2
2.10. PCI Expansion Slot
This slot provides one 32bit/33MHz PCI add-on-card connection.
SI-1Ns42/SI-1Ns60

Hardware Setup 2-11
2.11. Additional COM Port Connection Header
This header provides an external COM port connection.
Pin Definition Pin Definition
1 DCDA 2 SINA
3 SOUTA 4 DTRA
5 Ground 6 DSRA
7 RTSA 8 CTSA
9 RIA 10 VCC
User’s Manual

2-12 Chapter 2
2.12. Additional USB Port Connection Header
This header provides two external USB ports connection.
Pin Definition Pin Definition
1 VCC 2 VCC
3 - Data 0 4 - Data 1
5 + Data 0 6 + Data 1
7 Ground 8 Ground
10 NC
