Introduction 1-1
Chapter 1. Introduction
1.1. Features & Specifications
CPU
• Supports dual IntelXeon 400MHz/533MHz Processors with 512K L2
Cache
Chipset
• Intel®E7501 Chipset Memory Controller Hub (MCH)
• 82801CA I/O Controller Hub 3-S (ICH3-S)
• 82870P2 64-bit PCI/PCI-X Controller Hub 2 (P64H2)
Memory
• 4x 184-pin DIMM sockets support 144-bit wide (Dual Channel)
PC2100/1600 (DDR266/200) memory
• Up to 8GB, ECC, Registered memory capacity (Chipkill technology
support)
LAN
• 2x Intel82546EB dual port Gigabit Ethernet Controllers
• RX and TX IP and TCP/UDP checksum off-loading capabilities
• Front panel LAN Active/Link LED
Graphics
• Onboard ATI RAGE XL PCI interface VGA
• 4MB local SDRAM memory support
System BIOS
• AWARD Plug and Play BIOS supports APM, DMI, and ACPI
• 4M-bit Flash ROM
PCI Extension Slot
• 1x PCI-X 64bit/100MHz
• 4x PCI-X 64bit, up to 133MHz max.
• 1x PCI 32bit/33MHz
Internal I/O Connectors
• 2x Channels Bus Master IDE Ports supporting Ultra DMA 33/66/100
• 1x USB Header
User’s Manual

1-2 Chapter 1
• 2x COM Port Headers
• 1x LPT Port Header
• 1x VGA Header
• 1x Smart Card Reader Header
• EPS12V PSU Connector
External I/O Panel
• PS/2 Keyboard and PS/2 Mouse Connectors
• 2x USB Connectors
• 4x RJ-45 LAN ports
Form Factor
• EEB 3.0 Form Factor: 12in. x 13in. (305mm x 330mm)
 Specifications and information contained herein are subject to change
without notice.
SI-2Pa

Introduction 1-3
1.2. Package Checklist (Standard Package)
 (1) SI-2Pa Server Board
 (1) Brief Installation Guide
 (1) Driver & Utilities CD
 (1) 34-pin FDD Cable
 (1) 40-pin IDE ATA66 Cable
 (1) 26-pin to D-SUB 25-pin Print Port Extension Cable w/Bracket
 (1) 16-pin to D-SUB 15-pin VGA Port Extension Cable w/Bracket
 (1) 10-pin to D-SUB 9-pin COM Port Extension Cable w/Bracket
 (2) 603/604-pin Retention Module
 (2) 603-pin Retention Module w/Clip
 (2) 604-pin Retention Module w/Clip
 (1) I/O Shield
User’s Manual

1-4 Chapter 1
1.3. Layout Diagram
SI-2Pa

Introduction 1-5
Jumpers Description Default Setting
CCMOS1 CMOS Clear Pins 1-2 (Normal) Closed
Connectors Description
COM1/COM2 External COM1 & COM2 Bracket Connectors
DIMM 1~4 DDR DIMM Slots
FAN1~5 Fan Connectors (Speed monitoring support in BIOS menu)
FAN6 Fan Connector (No speed monitoring support in BIOS menu)
FPIO1 Front Panel Switches & Indicators Headers
IDE1/IDE2 Hard Disk Drive Connectors
J13 8-Pin EPS12V Power Connector
J17 24-Pin EPS12V Power Connector
LPT1 Parallel Port Connector
PCI1~5 PCI-X 100MHz/64bit Slot
PCI6 PCI 33MHz/32bit Slot
Smart Card Smart Card Reader Extension Cable Connector
USB_2 Additional USB Ports Connector
VGA1 VGA Output Extension Cable Connector
User’s Manual

1-6 Chapter 1
SI-2Pa

Hardware Setup 2-1
Chapter 2. Hardware Setup
2.1. Precautions
Please pay attention to the following precautions before setting up any hardware.
1. Always switch off the power supply and unplug the power cord from the wall
outlet before installing the board or changing any settings.
2. Ground yourself properly by wearing a static safety wrist strap before removing
the board from the antistatic bag.
3. Hold the board by its edges. Avoid touching any component on it.
4. Avoid touching module contacts and IC chips
5. Place the board on a grounded antistatic surface or on the antistatic bag that came
with the board.
User’s Manual

2-2 Chapter 2
2.2. Installing the Server Board
Before installing the server board, exam your chassis to ensure this server board fits
into it. Your chassis should support EEB 3.0 form factor.
1. Face the side of the I/O ports toward the control panel.
2. Locate the screw holes on the server board and the chassis base.
3. Place all the studs or spacers needed on the chassis base and have them tightened.
4. Line up all the screw holes on the board with those studs or spacers on the chassis.
5. Tightens all the screw holes.
ATTENTION: To prevent shorting the PCB circuit, please REMOVE the metal studs
or spacers if they are already secured on the chassis base and are without
mounting-holes on the server board to align with.
SI-2Pa

Hardware Setup 2-3
2.3. Installing the CPU
This server board provides dual 604-pin
Zero Insertion Force (ZIF) sockets to
install the Intel Xeon CPU.
NOTE: This server board also supports
the Xeon CPU of 603-pin package.
NOTE: This server board supports installing either one or two CPUs. To set up
system with only one CPU, you MUST install it in the Primary Processor Socket
(Socket CPU0 in this model). To install a second processor, you must verify that the
second processor is identical to the first processor of same voltage and speed. Using
non-identical processors could cause system failure.
2.3.1. Installing Retention Modules
1. Remove power from your system by unplugging
the AC power cord.
2. Remove the chassis cover (see your system or
chassis documentation for instructions).
3. Locate the CPU sockets.
4. Insert the retention modules and tighten four
retention screws.
User’s Manual

2-4 Chapter 2
2.3.2.
2.3.3.

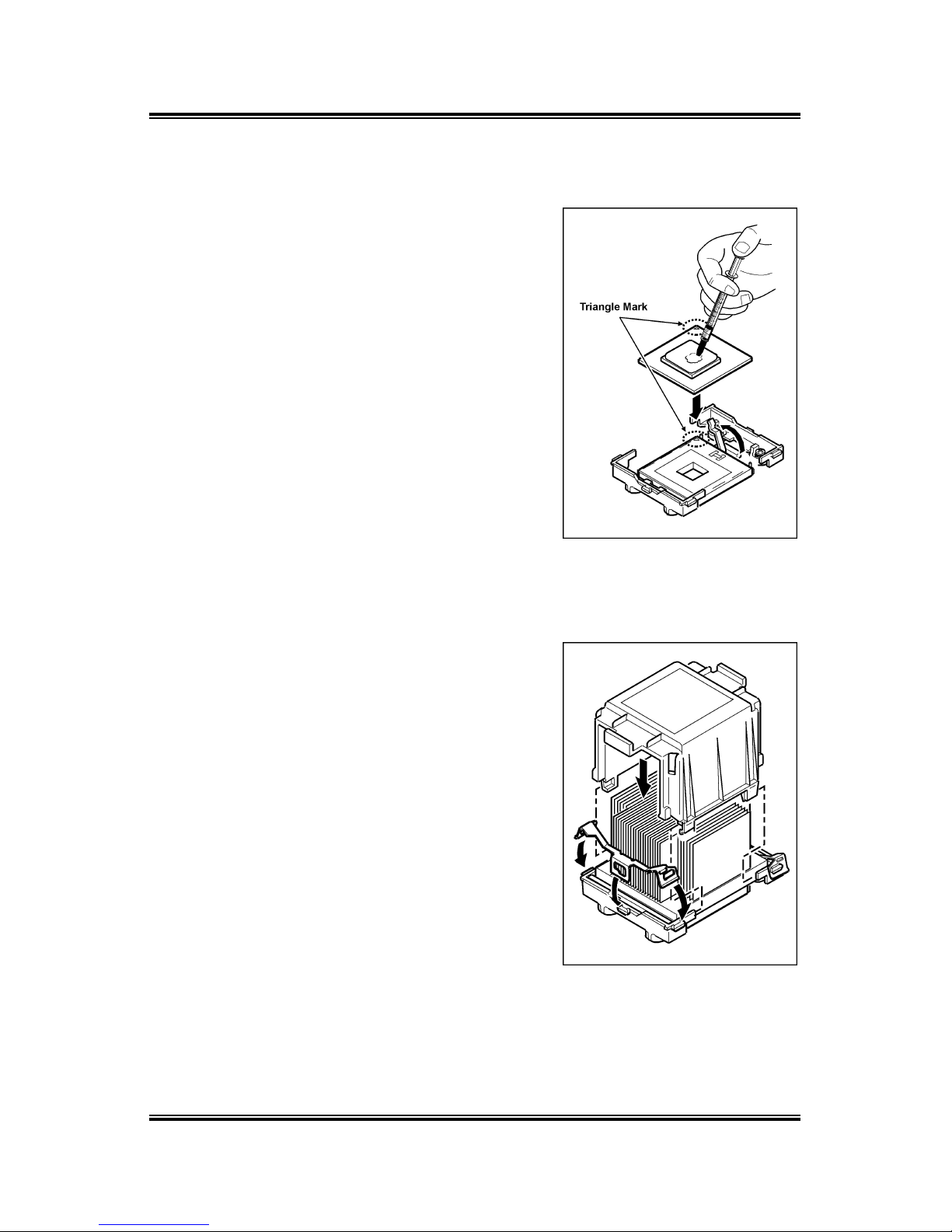

Installing CPU into Socket
1. Lift the socket lever upright to 115 degree at
least.
2. Align the triangle mark on the CPU with the
triangle cutout on the CPU socket.
3. Insert the CPU into the socket until it fits in
place. Do not use extra force to insert CPU; it
only fit in one orientation. Close down the
socket lever to its locked position while firmly
pressing the CPU.
4. Apply thermal grease to the CPU with an
applicator.
Installing Heatsink and Wind Tunnel
1. Align the heatsink with the retention modules,
and then place the heatsink onto the CPU.
2. Position the retention clip over the plastic tab
and then engage the clip end-slot over the
plastic tab.
3. Press downward on the retention clip ends until
they engage the plastic tabs.
4. Repeat steps 2-3 to install the other retention
clip.
5. Install the CPU wind tunnel center portion over
the heatsink. Note that the plastic tabs engage
the tabs on the retention clips.
SI-2Pa

Hardware Setup 2-5
2.3.4. Installing Fan to Wind Tunnel Assembly
1. Attach the cooling fan with its airflow direction pointed to heatsink to the air
intake portion of wind tunnel.
2. Attach the air intake assembly to the side of the wind tunnel nearest to the front of
the chassis.
Instead of attaching cooling fan to the side of the wind tunnel, the fan itself could
also be attached to the top of the center portion of wind tunnel.
3. Align the tabs on the assembly with the slots in the wind tunnel portion, and then
snap the lower portion of the fan holder over the tabs on the center portion.
4. Attach the air outlet portion of the wind tunnel.
5. Attach CPU Fan 1 power cable to the server board at location FAN1 and/or attach
CPU Fan 2 power cable at location FAN2.
NOTE: The system airflow should be toward the front of the chassis. If there are two
processors installed, the fans should be positioned side by side.
User’s Manual

2-6 Chapter 2
2.4. System Memory
This server board provides four 184-pin Double Data Rate (DDR) Dual Inline
Memory Module (DIMM) slots for Registered ECC DIMM modules with memory
expansion size up to 8GB (DDR266/DDR200).
2.4.1. Memory Configuration Table
DIMM Registered ECC DIMM Module Total Memory
1 128MB, 256MB, 512MB, 1GB, 2GB 128MB ~ 2GB
2 128MB, 256MB, 512MB, 1GB, 2GB 128MB ~ 2GB
3 128MB, 256MB, 512MB, 1GB, 2GB 128MB ~ 2GB
4 128MB, 256MB, 512MB, 1GB, 2GB 128MB ~ 2GB
Total System Memory 256MB ~ 8GB
2.4.2. Installing and Removing Memory Modules
ATTENTION: Populate the DDR DIMMs in-order and in-pair (of the same type
and size) by starting from DIMM1+DIMM2 to DIMM3+DIMM4. The system may
hang or appear unstable if the DIMM ordering is not followed.
SI-2Pa

Hardware Setup 2-7
Power off the computer and unplug
the AC power cord before installing
or removing memory modules.
1. Locate the DIMM slot on the
server board.
2. Hold two edges of the DIMM
module carefully, keep away of
touching its connectors.
3. Align the two notch keys on the
module with the two ribs on the slot.
4. Firmly press the module into the slots until the ejector tabs at both sides of the slot
automatically snaps into the mounting notch. Do not force the DIMM module in
with extra force as the DIMM module only fit in one orientation.
5. To remove the DIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the DIMM module.
ATTENTION: As the static electricity can damage the electronic components of the
computer or optional modules, make sure you are discharged of static electricity by
touching a grounded metal object briefly before starting these procedures.
User’s Manual

2-8 Chapter 2
2.5. Connectors, Headers, and Switches
All the connectors, headers and switches mentioned here are depending on your
system configuration. Some features you may (or may not) have to connect or to
configure depending on the peripherals you have connected.
WARNING: Always power off the computer and unplug the AC power cord before
adding or removing any peripheral or component. Failing to so may cause severe
damage to your server board and/or peripherals. Plug in the AC power cord only after
you have carefully checked everything.
2.5.1. EPS12V Power Connectors [J13, J17]
These two connectors connect to EPS12V power supply. This server board requires an
EPS12V power supplier with 460W capacity at least for Pentium 4 Xeon CPU
system.
WARNING: This server board only supports EPS12V power supplies and will not
operate with other types. DO NOT use ATX 2.x, ATX12V and dual AMD power
supplies as they will damage the board and void your warranty.
NOTE: The auxiliary 12V power (J13) is necessary to support Intel Xeon CPUs.
Failing to provide such extra power will result in the system’s booting failure.
SI-2Pa

Hardware Setup 2-9
2.5.2. FAN Connectors [FAN1~6]
These 3-pin connectors each provide power to the cooling fans installed in your
system.
The CPU must be kept cool by using a powerful fan with heatsink. The system is
capable of monitoring the speed of the CPU fan.
• FAN1~FAN5: With speed monitoring support in BIOS menu
• FAN6: Without speed monitoring support in BIOS menu
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on
these connectors.
User’s Manual

2-10 Chapter 2
2.5.3. CMOS Memory Clearing Header [CCMOS1]
This header uses a jumper cap to clear the CMOS memory.
• Pin 1-2 shorted (default): Normal operation.
• Pin 2-3 shorted: Clear CMOS memory.
ATTENTION: Turn the system power off first (including the +5V standby power)
before clearing the CMOS memory. Failing to do so may cause your system to work
abnormally or malfunction.
SI-2Pa
