Ableconn USB2E100W User manual

User's Manual
USB
2.0
EthernetAdapter

i
Safety Instructions
Always read the safety instructions carefully
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situation arises, get the equipment checked by a service technician:
The equipment has been exposed to moisture.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
The equipment has not been working well or you cannot get it work according to User’s
Manual.
Copyright Statement
No part of this publication may be reproduced in any form by any means without the prior written
permission. Other trademarks or brand names mentioned herein are trademarks or registered
trademarks of their respective companies.
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not make
any representations or warranties (implied or otherwise) regarding the accuracy and completeness
of this document and shall in no event be liable for any loss of profit or any commercial damage,
including but not limited to special, incidental, consequential, or other damage.
All trademarks, trade names and copyrights are properties of their respective owners.

ii
Table of Contents
1. Introduction.......................................................................................................1
Features.............................................................................................................................1
Package Contents..............................................................................................................1
System Requirements........................................................................................................2
LED Status........................................................................................................................2
2. Installation.........................................................................................................3
On Windows®7 / Windows®8 / Windows®8.1...............................................................3
Verifying the Driver Installation on Windows®................................................................5
On MAC OS®...................................................................................................................6
Verifying the Driver Installation on Mac®........................................................................9
3. Specifications..................................................................................................10
4. Regulatory Compliance..................................................................................11
FCC Conditions ..............................................................................................................11
CE ...................................................................................................................................11
WEEE Information .........................................................................................................11

1. Introduction
1
1. Introduction
The USB 2.0 Ethernet Adapter allows your computer instantly connect to a
10/100Mbps network through simply a USB port; no hassle to open up your
computer case as is required for an internal card now! It’s also an ideal
USB-to-LAN alternative for gaming console that needs network access in an
environment lacking wireless capability. Compared with USB 1.1 standard which
offers 12 Mbps speed, the adapter’s compliance with USB 2.0 (480Mbps) ensures
true 10/100 Mbps network speed without any compromise. Furthermore, the
adapter is compact and is USB bus-powered; it requires no external power adapter,
so that you can use it without crowding your workspace at all.
Features
Compliant with USB 2.0 and USB 1.1 specifications
Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
Supports both full-duplex and half-duplex operations
Supports suspend mode and remote wakeup via link-up and magic packet
Powered by USB port only
Equipped with diagnostic LEDs
Plug & Play installation
Package Contents
USB2.0 Ethernet Adapter x1
CD (Driver & User’s Manual) x1

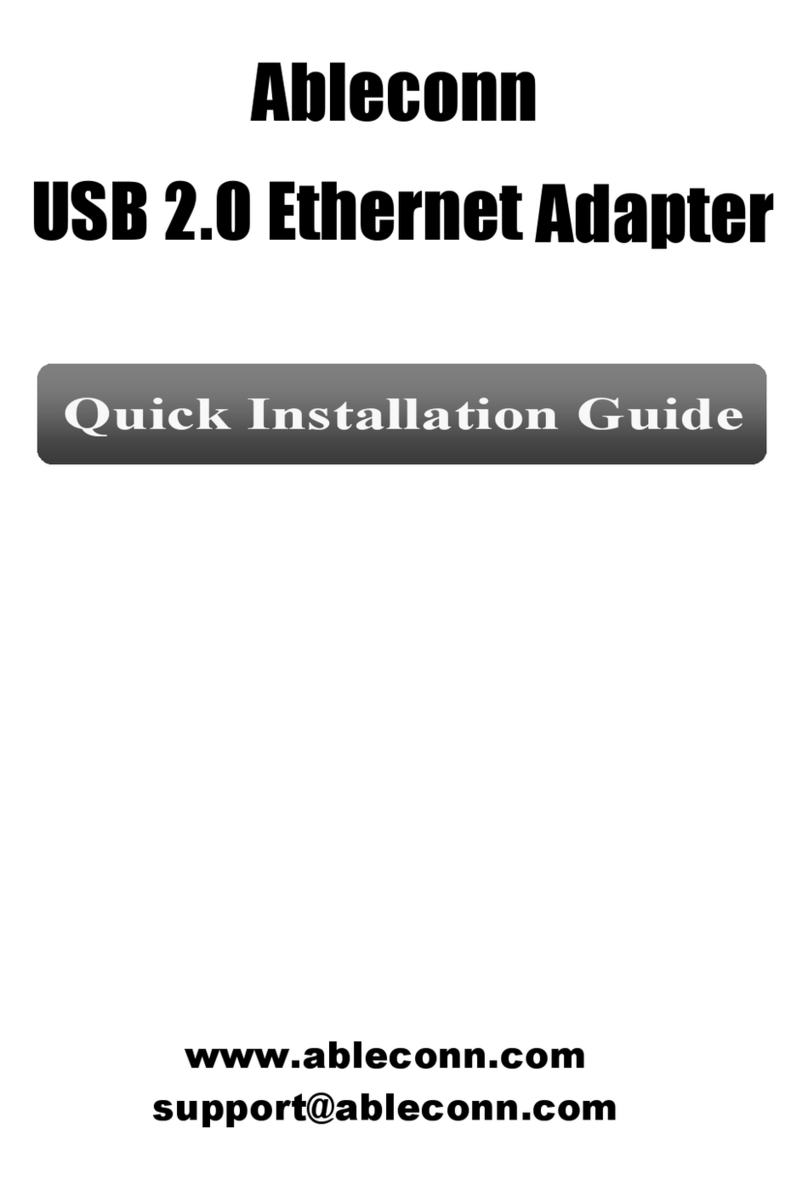

Quick Installation Guide x1

USB 2.0 Ethernet Adapter User’s Manual
2
System Requirements
CPU: IBM compatible Pentium®-233MHz or faster PC or Mac®
RAM: 64 MB RAM or more
USB: One available USB port
Operating System:
-Windows®7/ Window®8 / Windows®8.1 / Windows®RT 8.1
-Mac OS®
LED Status
LED Color Description
Power Green On for connection to a 100Mbps network.
Off for connection to a 10Mbps or not connected.
Link Yellow LAN activity. Blinking when there is data flow between LAN and
the host computer.

2. Installation
3
2. Installation
On Windows®7 / Windows®8 / Windows®8.1
Caution: DO NOT connect the Ethernet adapter to your computer before you
install the provided driver. You will be instructed to do so later.
1. Insert the provided CD into your disc drive. Please locate and double-click the
setup.exe file under x:\Driver\Windows where x stands for your disc drive.
On Windows®Vista or other OS, you may need to click Allow at the User
Account Control screen.
2. It will pop up as below screen for installation process.

USB 2.0 Ethernet Adapter User’s Manual
4
3. The next screen will show Setup Status as below.
4. When the installation is done, click Finish .
5. Connect the end of the Ethernet adapter to a free USB port of your computer.
Then a pop-up message will appear in the notification area indicating the
installation is completed.
*Actual strings depend on your operating system. These screen shots are from Windows®7
and might vary slightly for each operating system.
When the installation is completed, you can connect the adapter to a network
device by an Ethernet cable:

2. Installation
5
1. Connect an Ethernet cable to the Ethernet port on the adapter.
2. Connect the other end of the Ethernet cable to your network hub, switch or
router.
The “LINK LED” should light up in green to indicate a proper physical connection
between the adapter and the network. If the LED doesn’t light up, please verify the
cable connection between all the network devices.
Verifying the Driver Installation on Windows®
Once you finish the installation, you can open Windows Device Manager to verify if
your Ethernet adapter is properly installed. To access the Device Manager:
On Windows®Vista: Right-click Computer on the desktop and click
Properties > Device Manager.
On Windows®7/ Windows®8: Right-click Computer on the desktop and click
Control Panel \ system and security>Device Manager
On Windows®XP: Right-click My Computer on the desktop and click
Properties > (Hardware) > Device Manager.
In the Network adapters group, an item named ASIX AX88772B USB2.0 to Fast
Ethernet Adapter should be displayed.
If there is a question or exclamation mark next to that item, the driver is not properly
installed. Hence, please delete the item, select the Delete the driver software
for this device option (if provided), unplug the adapter from your computer, and
then repeat the installation steps.
NOTE: Windows®8 has the driver installed for this adapter as default, and you do
not need to install it. The CD driver for Windows®8 is for back up only.

USB 2.0 Ethernet Adapter User’s Manual
6
On MAC OS®
1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD
and navigate to the directory of \Driver\Mac10.x.
2. In the directory of Mac10.x, please double-click AX88772C…10.5~10.8 to
execute the installer program. Please click AX88772.dmg first. (AX88772A,
AX88772B, AX88772C, AX88772 are the same drivers on Mac OS®. The
installation screen will only show AX88772)
3. Click AX88772_v4.0.0.pkg as below.
4. Please click on Continue to go to the next step once the screen below is
prompted up.

2. Installation
7
5. Please see Install AX88772 Ethernet Adapter Drivers screen to click on
Install for the installation.
6. You may see the below prompt window, please enter your password and click
OK.
7. Make sure that you want to install this driver now and the computer will be
restarted once the installation is done. Please click on Continue Installation
to continue the installation.
8. After finish the installation process, you will see The installation was
successful screen as below and please click Restart for the device using.

USB 2.0 Ethernet Adapter User’s Manual
8
Once computer restart is completed, you can connect the adapter to a network
device by an Ethernet cable:
1. Connect an Ethernet cable to the Ethernet port on the adapter.
2. Connect the other end of the Ethernet cable to your network hub, switch or
router.
The Link LED should light up in green to indicate a proper physical connection
between the adapter and the network. If the Link LED doesn’t light up, please verify
the cable connection between all the network devices.
*Actual strings depend on your operating system. These screen shots are from Max OS

10.8 and
might vary slightly for each operating system.

2. Installation
9
Verifying the Driver Installation on Mac®
Once you finish the installation of Ethernet Adapter, please navigate to About This
Mac>System Profiler>Hardware>USB, then you will find the driver of AX88772B.
Also, you can check the connection from System Preference>Network

USB 2.0 Ethernet Adapter User’s Manual
10
3. Specifications
Items Descriptions
Network Standards IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-T
Data Transfer Rates Ethernet: 10Mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps (Half/Full Duplex)
Data Bus USB 2.0 (1.1 compliant)
LED Indicators Power, Link
Power Consumption 220mW
Power Management Suspend mode, hibernation mode
Network Interface Female RJ45 jack
RAM Embedded SRAM for RX/TX packet buffering
Operating System Support Windows®7, Windows®8, Windows®8.1,
Windows®RT 8.1
Mac OS®
Operating Temperature 0℃to 70℃
Compliance FCC,CE
*Specification is subject to change without prior notice.

4. Regulatory Compliance
11
4. Regulatory Compliance
FCC Conditions
This equipment has been tested and found to comply with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received. Including interference that
may cause undesired operation.
CE
This equipment is in compliance with the requirements of the following regulations:
EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment) Directive, do not
dispose of this product as household waste or commercial waste. Waste electrical and
electronic equipment should be appropriately collected and recycled as required by
practices established for your country. For information on recycling of this product,
please contact your local authorities, your household waste disposal service or the shop
where you purchased the product.
