Abode Outdoor Smart Camera User manual

abode Outdoor Smart Camera
User Guide
!
!
May 13, 2020

Contents!
1. Introduction!
2. Application Overview!
"2.1. Parts Overview!
"2.2. Power Supply!
"2.3. LED Indicators!
"2.4. Equipment Required!
"2.5. Hardware Installation!
"2.6. Setup with App!

1. Introduction !
Outdoor Smart Camera (OSC) is designed to replace conventional doorbells by providing
remote video streaming access, two-way communication via Wi-Fi network. OSC is an AC-
powered video doorbell that is designed for you to view and speak with the visitor at the door
with a smartphone from anywhere. OSC may also be used with the included DC-powered
mount that allows the device to be used an an outdoor or indoor security camera. The built-in
PIR sensor is designed to give a typical detection range of 5 meters and has 105∘degrees
viewing angle to the front. !
The doorbell functions either as a part of the Abode alarm system by connecting to an Abode
security system Control Panel, or as a standalone device. Setup and remote access of OSC is
performed via smartphone application developed by Abode Systems, Inc.. !
2. Application Overview!
2.1 Parts Overview!
!
!
!
!
!
Front
!
!
1
2
3
4

Side (DC-Powered Attachment)
!
!
Side (AC-Powered Attachment)
1. Microphone!
2. Lens!
3. LED light ring!
4. PIR sensor!
5. Camera body!
6. DC camera mount!
7. Magnetic mount!
8. AC doorbell mount!
5
6
7
5
8

2.2 Power Supply!
The OSC uses 8~24V AC power or 5V DC power as its power source. !
For AC-Powered (Doorbell) Setup:!
Loosen the two screws on the back of the Doorbell Mount. Connect hardwired AC doorbell
wires to the inputs on the mount and rescue screws. Install OSC Camera Body to the Doorbell
mount by rotating the device 90 degrees to lock into place. Secure bottom security lock screw. !
*Note: It is recommended to use wire with a diameter less than 15mm to connect to the power
input. The torque on the screw should be less than 24.5 nm (2.5 kg-m)!
For DC (Security Camera) Setup: !
With the Corded Attachment unplugged from power source, rotate the Camera Body 90
degrees to lock into place on Attachment. Secure bottom security lock screws. Plug USB
power cable into a 5V powered USB Type-A port to power camera, or plug USB power cable
into included AC wall adapter. Plug wall adapter into wall to power camera. !
2.3 LED Indicators!
The OSC has built-in RGB LEDs to indicate device status.!
Blue
Flash every 2 seconds (ON for 1 second,
OFF for 2 seconds)
Wi-Fi setup mode
Spinning
Motion triggered, waiting for answer
Breathing/pulsing at 2 second rate (fade ON
for 1 second, fade OFF for 1 second)
Video/audio streaming or 2-way voice
Amber
ON for 2 seconds
Finished warm up upon power on,
entering normal operation
Green
ON for 3 seconds
Successfully setup/paired to wifi.
Red
Spinning
Wi-Fi connection problem
Flash every 1 second (ON for 1 second, OFF
for one second)
Unable to connect to server
Quick flash 5x
Setup failed
Amber/White
3 quick amber flashes, then 2x spinning
white circles
Reset to factory default

*Note: It takes about 1 minute for VDP to connect to Wi-Fi after power on. Before the Wi-Fi
connection is established, the Red LED may flash momentarily.!
2.4 Equipment Required!
The following equipment is required to use OSC: !
•"A router supporting 2.4 GHz Wi-Fi network. The OSC should be connected to this
router with access to internet and the Abode mobile app. !
•"An iPhone or Android smartphone#
Android version requirement: Android 5.1 or above. iPhone version requirement: iOS 9
or above. !
•"If planning to use the OSC with your existing alarm system, an Abode security system
alarm panel is required – the panel must be registered a valid Abode user account.#
If planning to use the OSC as a standalone device, no Abode security system device is
required. #
2.5 Hardware Installation!
Step 1. Installation height is recommenced to be at least 4.5 feet (1.4 meters) from the ground
in both doorbell and security camera configurations. Before you begin installation for doorbell
mode, identify the doorbell circuit breaker and turn OFF main power to that circuit. !
Step 2. Remove Camera Body and mounts from package. Determine which mount will be
used. !
For AC-Powered (Doorbell) Setup:!
Loosen the two screws on the back of the Doorbell Mount. Connect hardwired 8-24V AC
doorbell wires to the inputs on the mount and rescue screws. Mount Doorbell Mount to exterior
of the house on door frame or siding using the included mounting screws. Use the included
wall anchors if installing on stone or masonry. Install OSC Camera Body to the Doorbell mount
by rotating the device 90 degrees to lock into place. Secure bottom security lock screw. !
Doorbell compatibility— the OSC is compatible with 8-24V AC-powered electronic and
mechanical doorbell chimes operating on a two-wire system. The camera is not compatible
with wireless doorbells.!

!
!
For DC-Powered (Security Camera) Setup: !
With the Corded Attachment unplugged from power source, rotate the Camera Body 90
degrees to lock into place on Attachment. Secure bottom security lock screws. Plug USB
power cable into a 5V powered USB Type-A port to power camera, or plug USB power cable
into included AC wall adapter. Plug wall adapter into wall to power camera. !
Step 3. If using Corded Attachment determine best placement of camera before permanently
installing. The camera may be used sitting flat on a surface inside (such as a shelf), or mounted
inside or outside using the included Magnetic Mount. To install the Magnet Mount, use the
included mounting screw to mount the Magnetic Mount metal bracket to a solid surface.
Rotate to lock Magnetic Mount to metal bracket. Confirm the connection is secure, then latch
camera to mount and position to the desired angle. !
Step 4. Supply power to the camera by either turning the circuit breaker back ON, or plugging
in the Corded Attachment USB cable into a 5V USB port. !
8-24V wiring pins
Mounting holes

2.6 Setup with App!
The Video Door Phone can be either incorporated into existing Climax security system as an
accessory device, or used as a standalone device. Determine which application should be
used with your Video Door Phone before proceeding to setup process. !
OSC as an Alarm System Accessory!
In order to incorporate the OSC into existing Abode security system, the Control Panel of the
security system must be registered with a user account in the Abode mobile app.!
A smartphone with the Abode app installed is required to perform setup. Search for the app in
Google Play or Apple App Store, type “abode” int the search bar, then download the
application.!
1. Open the Abode app and enter your existing user account and password.!
2. Power up OSC used the Corded Attachment. Wait up to 30 seconds for the device to warm
up. Warm-up is complete when the LEDs turn amber for 2 seconds. !
3. Select the menu button on the top left, then select Add Device. !
4. Chose Outdoor Smart Camera option. Follow in-app prompts to add the camera to your
account. Camera LEDs will flash blue every 2 seconds during Wi-Fi setup. Once setup is
successful the LEDs will turn green for 3 seconds.!
5. After successfully adding your OSC to your account the camera may be powered down
and re-installed in desired location (doorbell or security camera) and re-powered. Video
stream and recorded clips from the camera will be accessible on the Abode app
Dashboard.!

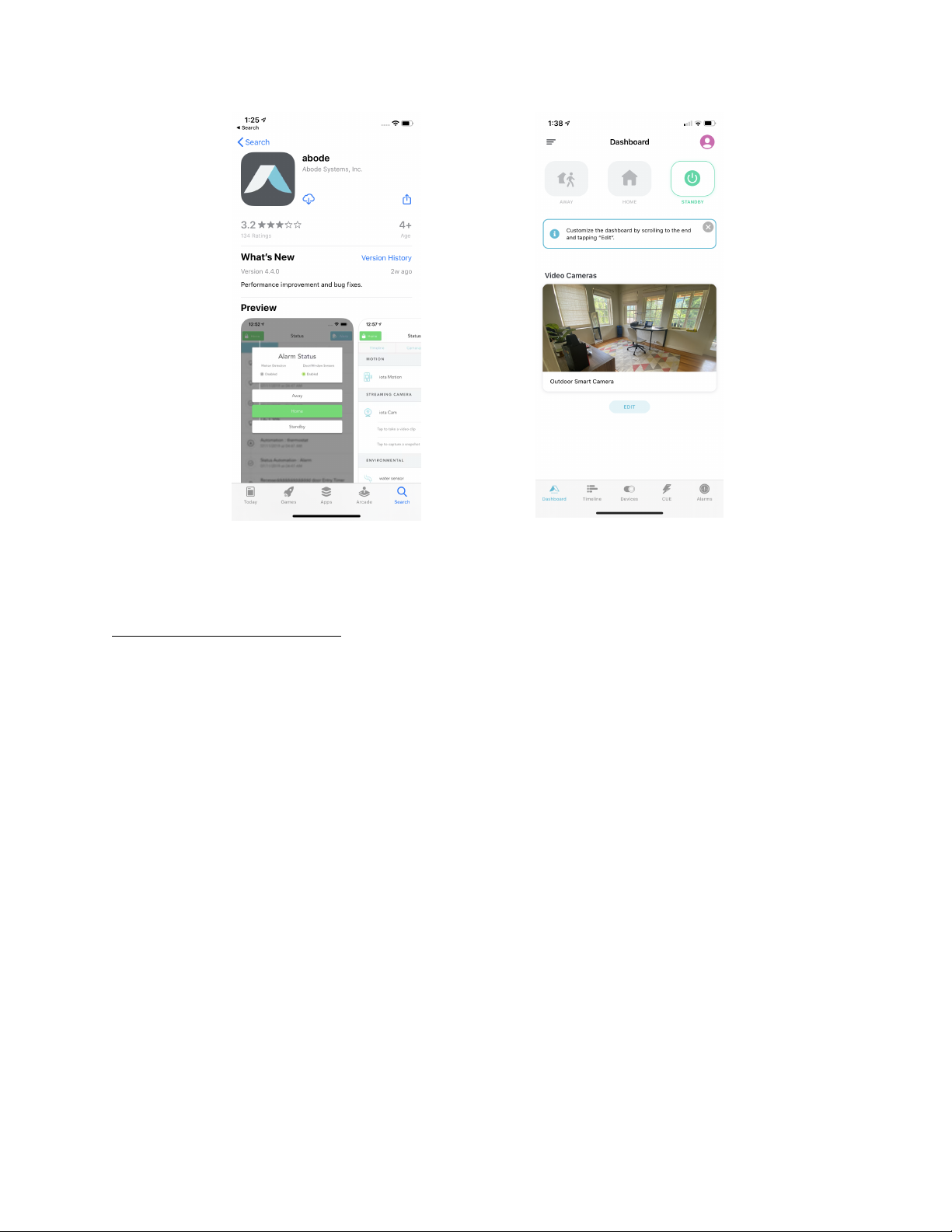

"Abode App in App Store Outdoor Smart Camera Dashboard Preview !
OSC as a Stand-Alone Device!
Using OSC as standalone device does not require any other Abode security system panels. A
smartphone with the Abode app installed is required to perform setup. Search for the app in
Google Play or Apple App Store, type “abode” int the search bar, then download the
application.!
1. Open the Abode app and follow the prompts to create a new Abode account. !
2. Power up OSC used the Corded Attachment. Wait up to 30 seconds for the device to warm
up. Warm-up is complete when the LEDs turn amber for 2 seconds. !
3. Select the menu button on the top left, then select Add Device. !
4. Chose Outdoor Smart Camera option. Follow in-app prompts to add the camera to your
account. Camera LEDs will flash blue every 2 seconds during Wi-Fi setup. Once setup is
successful the LEDs will turn green for 3 seconds.!
5. After successfully adding your OSC to your account the camera may be powered down
and re-installed in desired location (doorbell or security camera) and re-powered. Video
stream and recorded clips from the camera will be accessible on the Abode app
Dashboard.
